USER MANUAL Click&Style HQ444 PHILIPS

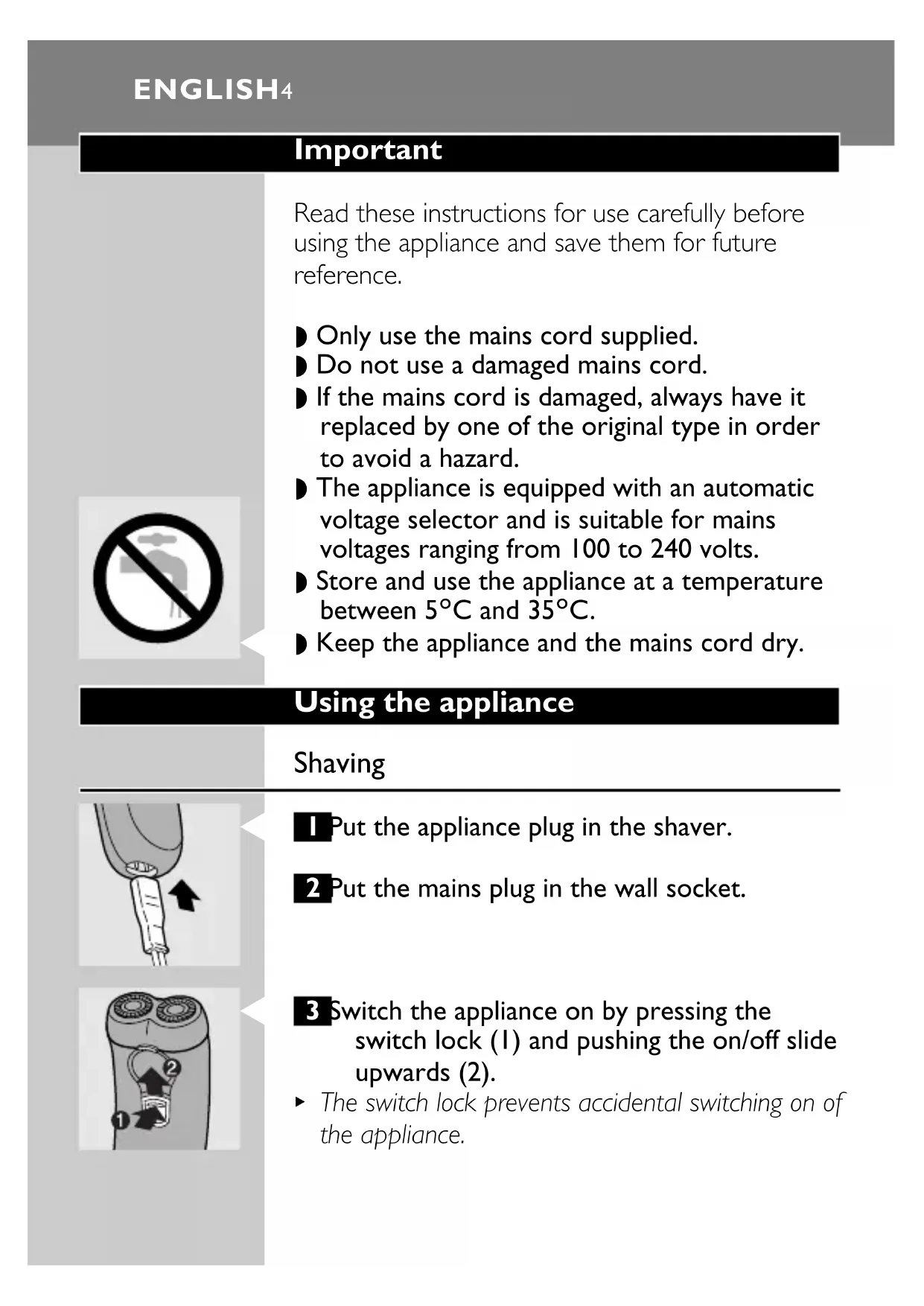

HQ444,HQ441Important

Read these instructions for use carefully before

using the appliance and save them for future

◗ Only use the mains cord supplied.

◗ Do not use a damaged mains cord.

◗ If the mains cord is damaged, always have it

replaced by one of the original type in order

◗ The appliance is equipped with an automatic

voltage selector and is suitable for mains

voltages ranging from 100 to 240 volts.

◗ Store and use the appliance at a temperature

between 5cC and 35cC.

◗ Keep the appliance and the mains cord dry.

1 Put the appliance plug in the shaver.

2 Put the mains plug in the wall socket.

3 Switch the appliance on by pressing the

switch lock (1) and pushing the on/off slide

B The switch lock prevents accidental switching on of

4 Move the shaving heads quickly over your

skin, making both straight and circular

Shaving on a dry face gives the best results.

Your skin may need 2 or 3 weeks to get

accustomed to the Philips system.

5 Switch the shaver off by pushing the on/off

6 Put the protection cap on the shaver every

time you have used it, to prevent damage.

For grooming sideburns and moustache.

1 Open the trimmer by pushing the slide

The trimmer can be activated while the motor is

Cleaning and maintenance

Regular cleaning guarantees better shaving

◗ For easy and optimal cleaning, the Philips

Action Clean (shaving head cleaner, type

HQ100) is available.Ask your Philips dealer

ENGLISH 5B The Philips Action Clean may not be available in

all countries. Contact the Customer Care Centre in

your country about the availability of this

You can also clean the shaver in the following

Every week: shaving unit and hair chamber

1 Switch the shaver off, remove the mains

plug from the wall socket and pull the

appliance plug out of the shaver.

2 Clean the top of the appliance first, using

3 Press the release button (1) and remove

the shaving unit (2).

4 Clean the inside of the shaving unit and the

hair chamber with the brush.

5 Put the shaving unit back onto the shaver.

ENGLISH6Every two months: shaving heads

1 Switch the shaver off, remove the mains

plug from the wall socket and pull the

appliance plug out of the shaver.

2 Press the release button (1) and remove

the shaving unit (2).

3 Remove the retaining frame by pushing the

sides of the central spring towards each

other (1) and lifting the retaining frame out

of the shaving unit (2).

4 Slide the shaving heads out of the retaining

frame and clean them one by one.

Do not mix up the cutters and the guards.

This is essential since each cutter has been

ground with its corresponding guard for optimal

performance. If you accidentally mix the sets up, it

could take several weeks before optimal shaving

performance is restored.

5 Clean the cutter with the short-bristled

Brush carefully in the direction of the arrow.

7 Slide the shaving heads back into the

retaining frame and put the retaining frame

back into the shaving unit.

8 Put the shaving unit back onto the shaver.

For extra thorough cleaning, clean the shaving

heads by putting them in a degreasing liquid (e.g.

alcohol) every six months.To remove the shaving

heads, follow steps 1 to 4 described above. After

cleaning, lubricate the central point on the inside

of the guards with a drop of sewing machine oil

to prevent wear of the shaving heads.

Clean the trimmer every time you have used it.

1 Switch the shaver off, remove the mains

plug from the wall socket and pull the

appliance plug out of the shaver.

2 Clean the trimmer with the brush

3 Lubricate the trimmer teeth with a drop

of sewing machine oil every six months.

◗ Put the protection cap on the shaver to

The appliance can be stored in the luxury pouch

Replace the shaving heads every two years for

optimal shaving results.

Replace damaged or worn shaving heads with

HQ4« Philips shaving heads only.

1 Switch the shaver off, remove the mains

plug from the wall socket and pull the

appliance plug out of the shaver.

2 Press the release button (1) and remove

the shaving unit (2).

3 Remove the retaining frame by pushing the

sides of the central spring towards each

other (1) and lifting the retaining frame out

of the shaving unit (2).

4 Slide the shaving heads out of the retaining

5 Slide new shaving heads into the retaining

6 Put the retaining frame back into the

7 Put the shaving unit back onto the shaver.

◗ Do not throw the appliance away with the

normal household waste at the end of its life,

but hand it in at an official collection point for

recycling. By doing this you will help to

preserve the environment.

The following accessories are available:

- HQ4« Philips shaving heads.

- HQ100 Philips Action Clean (shaving head

- HQ101 Philips Action Clean refill (shaving head

- HQ110 Philips shaving head cleaner (shaving

head cleaning spray).

ENGLISH10Guarantee & service

If you need information or if you have a

problem, please visit the Philips website at

www.philips.com or contact the Philips Customer

Care Centre in your country (you will find its

phone number in the worldwide guarantee

leaflet). If there is no Customer Care Centre in

your country, turn to your local Philips dealer or

contact the Service Department of Philips

Domestic Appliances and Personal Care BV.

1 Reduced shaving performance

B Cause 1: the shaving heads are dirty.

B The shaver has not been cleaned well enough or

has not been cleaned for a long time.

◗ Clean the shaver thoroughly before you

continue shaving. See chapter 'Cleaning and

B Cause 2: long hairs are obstructing the shaving

◗ Clean the cutters and guards with the brush

supplied. See chapter 'Cleaning and

maintenance', section 'Every two months:

B Cause 3: the shaving heads are damaged or worn.

ENGLISH 11Replace the shaving heads. See chapter

2 The shaver does not work when the on/off

slide is pushed upwards.

B Cause: the shaver is not connected to the mains.

◗ Put the mains plug in the wall socket.

Department of Philips Domestic Appliances and

Philips Action Clean (HQ100

Appliances and Personal Care BV.

Appliances and Personal Care BV.

Department of Philips Domestic Appliances and

Appliances and Personal Care BV.
