USER MANUAL WSLP1500HWW GE

Installation Instructions

Washers 49-90517-3 08-14 GE Safety Information 2, 3

Operating Instructions Care and Cleaning 10, 11 Control and Indicator Settings 4, 5 Loading and Using the Washer 8 Features 6, 7 Installation Instructions . . 12-20

Troubleshooting Tips Before You Call For Service .... 22–24 Status Indicators 21 Consumer Support Consumer Support Back CoverWarranty for Customers in Canada 26Warranty for Customers in the U.S.A. 25Write the model and serial numbers here: #

# You can find them on a label on the back of the washer. Laveuses

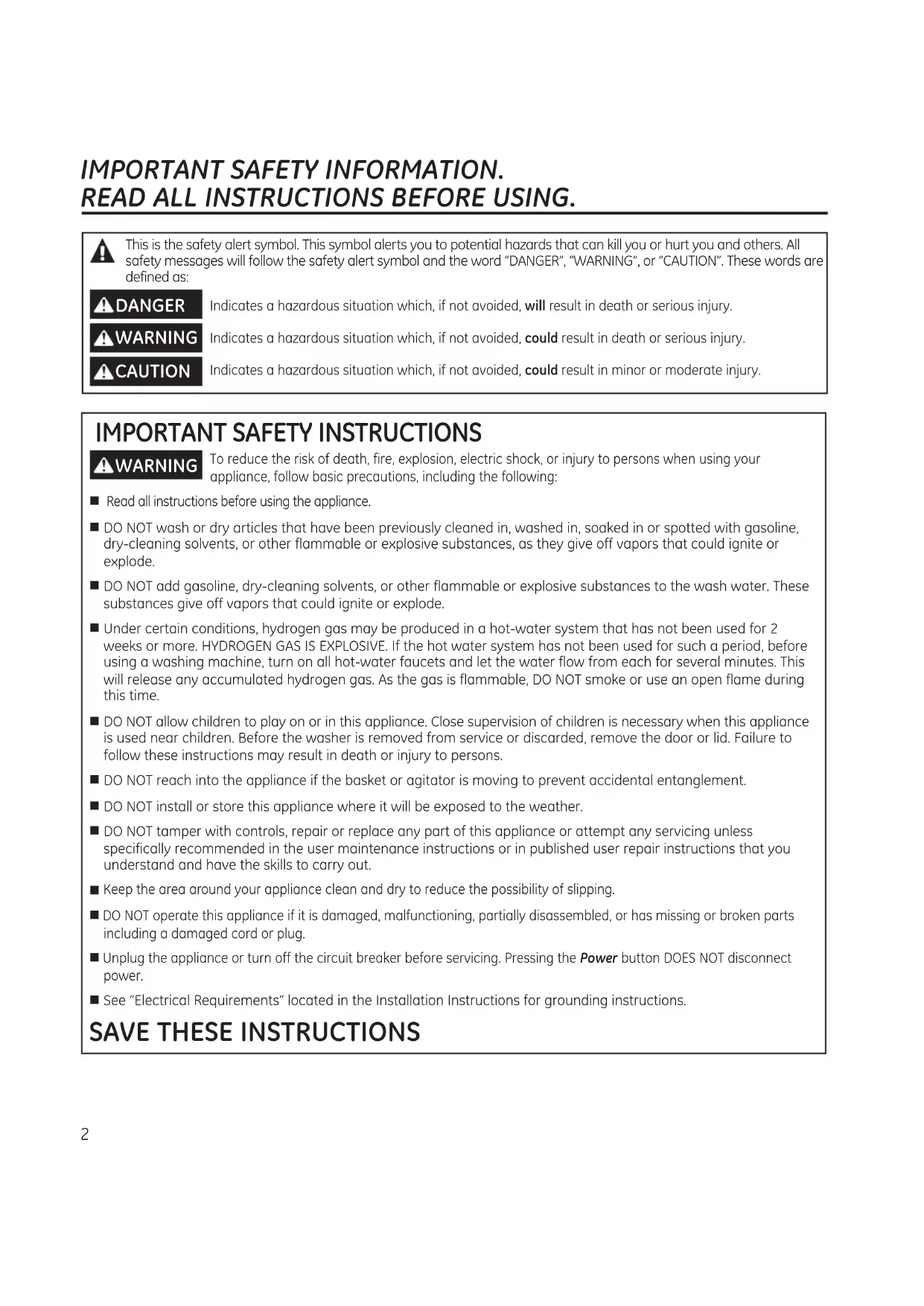

READ ALL INSTRUCTIONS BEFORE USING.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All

safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

DANGER WARNING CAUTION IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of death, fire, explosion, electric shock, or injury to persons when using your

appliance, follow basic precautions, including the following:

Read all instructions before using the appliance.

DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline,

dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or

DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These

substances give off vapors that could ignite or explode.

Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2

weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before

using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This

will release any accumulated hydrogen gas. As the gas is flammable, DO NOT smoke or use an open flame during

DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance

is used near children. Before the washer is removed from service or discarded, remove the door or lid. Failure to

follow these instructions may result in death or injury to persons.

DO NOT reach into the appliance if the basket or agitator is moving to prevent accidental entanglement.

DO NOT install or store this appliance where it will be exposed to the weather.

DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless

specifically recommended in the user maintenance instructions or in published user repair instructions that you

understand and have the skills to carry out.

Keep the area around your appliance clean and dry to reduce the possibility of slipping.

DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts

including a damaged cord or plug.

Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power button DOES NOT disconnect

See “Electrical Requirements” located in the Installation Instructions for grounding instructions.

 Turn off water faucets to minimize leakage if a break or

rupture should occur. Check the condition of the water

supply hoses; GE recommends changing the water

supply hoses every 5 years.

 Ensure that the hot water hose is connected to the “H”

(internal red screened) valve and the cold water hose is

connected to the “C” (internal blue screened) valve.

 Install or store where it will not be exposed to

temperatures below freezing or exposed to the weather,

which could cause permanent damage and invalidate

 Properly ground washer to conform with all

governing codes and ordinances. Follow details

in Installation Instructions.

 This washer does include water supply hoses.

GE strongly recommends the use of factory specified

parts. A list of factory hoses available for purchase are

listed below. These hoses are manufactured and tested

to meet GE specifications.

GE strongly recommends the use of new water supply

hoses. Hoses degrade over time and need to be

replaced every 5 years to reduce the risk of hose failures

Parts and Accessories

Order on-line at GEApplianceparts.com today, 24 hours a

day or by phone at 800.626.2002 during normal business

hours. In Canada, visit your local GE parts distributor or call

Part Number Accessory

PM14X10002 4 ft Rubber Water Supply Hoses

PM14X10005 4 ft Braided Metal Water Supply Hoses

PM7X1 Washer Floor Tray

PROPER INSTALLATION This washer must be properly installed and located in accordance with the Installation Instructions before it is used.

If you did not receive an Installation Instructions, you can receive one by visiting GEAppliances.com or by calling

800.GE.CARES (800.432.2737). In Canada, visit www.GEAppliances.ca or call 800.561.3344. * Tide ® is a registered trademark of Procter & Gamble SAVE THESE INSTRUCTIONS

- Electrical Shock Hazard

WARNING Plug into a grounded 3 prong outlet.

DO NOT remove ground prong.

DO NOT use an adapter.

DO NOT use an extension cord.

Failure to do so can result in death, fire or electrical

About the control and indicator settings.

Before starting the washer:

• Sort laundry by color and/or fabric type.

• Load laundry in the washer.

• Add detergent to the dispenser drawer.

• Add fabric softener to the fabric softener dispenser.

• Add bleach , if desired, to the bleach dispenser.

Power Press the Power button to turn on the control panel. NOTE: Pressing Power does not disconnect the appliance from the power supply.

Normal For heavily to lightly soiled colorfast cottons, household linens, work and play clothes. This cycle provides the best overall cleaning and should be used for most everyday items. Provides normal wash and medium speed spin. Delicates For lingerie and special-care fabrics with light to normal soil. Provides light wash and low speed spin. Speed Wash For small loads of lightly soiled items that are needed in a hurry. Provides light wash/rinse and short high speed spin. Heavy Duty An above normal cycle for heavily soiled or stained clothes. A soak cycle is added and the agitate cycle is extended for extra cleaning. This more aggressive cycle should be used sparingly. Handwash For items labeled hand-washable with light soils. Provides gentle tumbling and soak during wash and rinse. Soak Cycle An extended wash cycle to loosen embedded soils and stains. My Cycle

To save a favorite cycle, set Cycles to My Cycle and select the desired Process, Load Size,

Options and Water Temp settings. Press the Start button. The washer will automatically save the setting and start.To change the My Cycle, re-save following the above process. To use My Cycle, set Cycles to My Cycle and press the Start button.

Basket Clean Use for cleaning the basket of residue and odor. Recommended use of at least once per month. NOTE: Never load laundry while using Basket Clean. The laundry may become damaged. See the Care and Cleaning section. Cycles Press the Cycles button to select the desired cycle. 3

Load Size This washer will automatically determine the correct amount of water suited to the size and type of load placed in the unit. To change load size, press the Load Size button and select the desired load size: Extra Large; Extra Large-

Large; Large; Large-Medium; Medium; Medium-Small; Small. NOTE: Extra Large cannot be selected for Normal wash cycle. The light will indicate the load size selected. Adjust the load size accordingly. Loosely load clothes no higher than the top row of holes in the washer basket. 1

Press the Options button to select the desired options.

Select to spin excessive water out of swimwear. NOTE: This is NOT a wash cycle. This option

can only be selected after turning the unit on by pressing Power. Do NOT load more than 4

pounds of clothes into the washer.

When you use extra detergent or bleach to clean heavily soiled clothes, use the Extra Rinse

option to better remove additional residues. NOTE: This option is available for Normal and

Heavy Duty cycles only.

Provides a lower spin speed.

Select the water temperature for the wash cycle: Hot; Warm (hot and cold); Cold. Always follow fabric manufacturer’s

care label or instructions when laundering.

NOTE FOR PORTABLE MODELS: When using a one-faucet connection, adjust the water flow mix and water

temperature at the faucet.

Chose the wash options to include in the cycle. Press the Process button until all the options you want to include are

lit. More than one option can be selected.

Select to set a soak cycle only. Washer basket will fill, soak and drain.

NOTE: This option is available for Normal and Heavy Duty cycles only.

Select to set a wash cycle only. Washer basket will fill, wash and drain.

Select to set a rinse cycle only. Washer basket will rinse and spin.

Select to set a spin cycle only. Washer basket will spin.

You can delay the start of a wash cycle for 3–48 hours. Press the Delay Wash button to choose the number of hours

you want to delay the start of the cycle, then press the Start/Pause button. The machine will count down and start

automatically at the correct time.

NOTE: If you forget to fully close the lid, a reminder signal will beep reminding you to do so.

NOTE: If you open the lid when the delay is counting down, the machine will enter the pause state. You must close the lid and

press Start/Pause again in order to restart the countdown.

To cancel Delay Wash, press Power to restart.

Press to start a cycle. If the washer is running, pressing it once will pause the washer. Press again to restart the cycle.

NOTE: If the washer is paused and the cycle is not restarted within 15 minutes, the current cycle will be cancelled.

You can lock the controls to prevent any selections from being made. Controls can be locked or unlocked after you have

To lock/unlock the washer, press and hold the Process and Cycles buttons for 3 seconds.

A sound is made to indicate the lock/unlock status.

To turn the signal sounds on/off, press and hold the Load Size and Process buttons for 3 seconds.

The display shows the approximate time remaining until the end of the cycle.

NOTE: The cycle time is affected by how long it takes the washer to fill. This depends on the water pressure in your home.

NOTE: If Delay Wash is set, Delay and the time remaining until the cycle starts will be shown before the remaining cycle

dispense into the wash

Features and appearance will vary throughout this manual

dispense into the wash

Fabric softener will

automatically dispense

into the wash basket

connections do not leak

Clean the lint filter

Powder Detergent Dispenser Drawer

Add powder detergent by pouring it in the

back center powder dispenser drawer. Most

detergent will immediately enter the basket.

Liquid detergent should be added directly to

the wash basket following the manufacturer’s

DO NOT put detergent packets in

dispenser compartments. Laundry

detergent packets should only be

added directly to the wash basket following

the manufacturer’s directions.

Fabric Softener Dispenser

Add liquid fabric softener by pouring it into the

left center fabric softener dispenser. The liquid

will be added at the optimum time in the rinse

DO NOT put detergent packets in

dispenser compartments. Laundry

detergent packets should only be

added directly to the wash basket following

the manufacturer’s directions.

Add liquid bleach by pouring it into the left front

liquid bleach dispenser. The water fill dilutes

liquid chlorine bleach as the washer fills for the

Check clothing care labels for special

Measure liquid bleach carefully, following

instructions on the bottle.

  Never pour undiluted liquid chlorine

bleach directly onto clothes or into the

Before starting the washer, pour measured

amount of bleach directly into bleach

compartment. Avoid splashing or over-filling

dispenser. If you prefer to use powdered

bleach, add it into the wash basket with

  Do not mix chlorine bleach with

ammonia or acids such as vinegar and/

or rust remover. Mixing can produce a

toxic gas which may cause death.

DO NOT put detergent packets in

dispenser compartments. Laundry

detergent packets should only be

added directly to the wash basket following

the manufacturer’s directions. ( )( ) ( )8

Always follow fabric manufacturer’s care label when laundering.

Loading the Washer Load dry items loosely in the washer basket. For best results, load items evenly and loosely around the outside of the basket. To add items after washer has started, press Pause, lift the lid and submerge additional items around the outside of the basket. Close the lid and press Start to resume. Do not place large items such as sheets, blankets and towels across the infusor. Load them around the outside of the basket.  Do not put lawn or sofa cushions into the washer as they are too big to move. Remove outer covers and ONLY wash them. Proper Use of Detergent Using too little or too much detergent is a common cause of laundry problems. Use less detergent if you have soft water, a smaller load or a lightly soiled load.For spots, apply pre-treatment to items as recommended on the product label. Application should be made in the basket to prevent overspray which may cause the coloring on the lid or graphics to fade.GE recommends the use of High Efficiency

detergents in all Energy Star rated washers. HE detergents are formulated to work with low water wash and rinse systems. HE detergents reduce the oversudsing problems commonly associated with regular detergents.When using high efficiency or concentrated detergents, consult the product label to determine amount required for optimum performance. Excessive detergent will negatively impact wash performance. Sorting Wash Loads Sort by color (whites, lights, colors), soil level, fabric type (sturdy cottons, easy care, delicates) and whether the fabric produces lint (terry cloth, chenille) or collects lint (velveteen, corduroy). - Fire Hazard

WARNING Never place items in the washer that are dampened with gasoline or other flammable liquids.No washer can completely remove oil.Do not dry anything that has ever had any type of oil on it (including cooking oils).Doing so can result in death, explosion, or fire. Loading and using the washer. Average Small LoadClothes LevelWater LevelAverage Medium LoadClothes LevelWater LevelClothes LevelWater LevelAverage Large Load9

Notes. GEAppliances.comTo clean the interior of the washer, select the

Basket Clean feature on the control panel.

This Basket Clean cycle should be performed,

at a minimum, once per month. This cycle

will use more water, in addition to bleach, to

control the rate at which soils and detergents

may accumulate in your washer.

NOTE: Read the instructions below

completely before starting the Basket Clean

1. Remove any garments or objects from the

washer and ensure the washer basket is

2. Open the washer lid and pour one cup or

250 ml of liquid bleach or other washing

machine cleaner into the basket.

3. Close the lid and select the Basket Clean

cycle. Push the Start button.

4. When the Basket Clean cycle is working,

the display will show the estimated cycle

time remaining. The cycle will complete in

about 3 hours. Do not interrupt the cycle.

Basket Clean may be interrupted by pressing

the Start pad in between cycles. A power

outage in the house might also interrupt the

cycle. When the power supply is back, the

Basket Clean cycle resumes where it had

stopped. When interrupted, be sure to run a

complete Basket Clean cycle before using the

washer. If the Power pad is pressed during

Basket Clean, the cycle will be lost.

 Run Basket Clean with 1 Cup (250 ml) of

bleach once a month.

 After the completion of a Basket Clean

cycle, the interior of your washer may

have a bleach smell.

 It is recommended to run a light color load

after the Basket Clean cycle.

Interior of the Washer

Care and cleaning of the washer.

Clean as needed especially after washing loads

of lint producing items such as towels.

1. Remove the blue lint filters from the side of

the basket by unclipping.

2. Open the blue disc, remove all lint, rinse

3. Replace by snapping filter back into its

location in the washer basket.

and pull outGEAppliances.com

Immediately wipe off any spills. Wipe with damp

cloth. Try not to hit surface with sharp objects.

Exterior of the Washer

Hoses connecting washer to faucet should be

replaced every 5 years.

Ask the service technician to remove water from

drain pump and hoses. Do not store the washer

where it will be exposed to the weather.

Be sure water supply is shut off at faucets. Drain

all water from hoses and water filter pump area

if weather will be below freezing.

If the flow of entering water into the washer

is slow, the inlet water valve screen(s) may be

1. Turn off water valve(s).

2. Disconnect water hose(s) from the back of

3. Remove the screen(s), clean with a brush

4. Replace the hose(s).

5. Turn water valves on.

6. Check for leaks, tighten if necessary.

Inlet Water Valve Screen(s)

Clean as needed to remove any items that may

have been caught in the filter or housing.

1. At the bottom back of the washer, place

a towel on the floor under the filter cap to

catch any water that may flow out.

2. Turn the filter cap counter-clockwise and

3. Remove any objects and lint from the

4. Replace the filter by aligning its guide rib

with the housing rails, pushing all the way

in and turning clockwise to lock in place.

Pump Filter and Housing

Instructions WSLP1500 and WSLS1500

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as: Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

DANGER WARNING CAUTION SPECIFICATIONS Type Fully automaticBasket capacity2.6 cu. ft.Electrical ratings120V, 60HzWash systemRotating drumOuter dimensions23 1/4” (W) x 23 7/8” (D) x 36 1/2” (H) 59.06cm (W) x 60.65cm (D) x 928mm (H) Weight90 1/2 lbs. (41kg) 44

8 ” (60.65cm)Allowing for adjustable feet 23

1 ø4” (115cm) minimum height of water valves to clear top of washerElectricity supply 120V, 60Hz If you have any questions, call 800.GE.CARES (800.432.2737)

or visit our Website at: GEAppliances.com

In Canada, call 800.561.3344

or visit www.GEAppliances.ca

12Washer must be installed on firm flooring to minimize vibration during spin cycles. Concrete flooring is best, but wood base is sufficient providing floor support meets FHA standards. Washer should not be installed on rugs or exposed to the weather.Install or store where it will not be exposed to temperatures below freezing or exposed to the weather. BEFORE YOU BEGIN Read these instructions completely and carefully. •

IMPORTANT – Save these instructions for local inspector’s use. •

IMPORTANT – Observe all governing codes and ordinances.• Note to Installer – Be sure to leave these instructions with the Consumer.• Note to Consumer – Keep these instructions for future reference.• Skill level – Installation of this appliance requires basic mechanical skills.• Completion time – 1 hour• Proper installation is the responsibility of the installer. • Product failure due to improper installation is not covered under the Warranty.• Note – This appliance must be properly grounded, and electrical service to the washer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70. WASHER LOCATION • WATER PRESSURE³0XVWEHSVLPLQLPXPWR150 p.s.i. maximum dynamic pressure measured at faucet. • WATER TEMPERATURE³+RXVHKROGZDWHU heater should be set to deliver water at 120° to 150°F (50° to 66°C) IN THE WASHER when HOT wash is selected.• SHUT-OFF VALVES³%RWKKRWDQGFROGVKXWRIIvalves (faucets) should be supplied.• DRAIN³:DWHUPD\EHGUDLQHGLQWRDVWDQGSLSHRUset tub. The discharge height MUST NOT BE LESS THAN 30” nor more than 8’ above the base of the washer. The standpipe must be 1 1 ø2” minimum inside diameter and must be open to the atmosphere. PLUMBING • Ensure washer is centered between the rack sides. RACK INSTALLATION This appliance must be supplied with the voltage and frequency indicated on the rating plate (located on the back of the washer) and connected to an individual, properly grounded branch circuit, protected by a 15- or 20-amp circuit breaker or time-delay fuse. ELECTRICAL Pliers TOOLS REQUIRED Water Hoses (2) PARTS SUPPLIED Drain Hose Installation Instructions

WARNING Plug into a grounded 3-prong outlet.DO NOT remove ground prong.DO NOT use an adapter.DO NOT use an extension cord.Failure to follow these instructions can result in death, fire or electrical shock.CIRCUIT – Individual, properly polarized and grounded 15 or 20 amp circuit breaker or time-delay fuse. POWER SUPPLY – 2 wire plus ground, 120 Volt, single phase, 60 Hz, alternating current.Outlet Receptacle – Properly grounded 3-prong receptacle to be located so the power cord is accessible when the washer is in an installed position. If a 2-prong receptacle is present, it is the owner’s responsibility to have a licensed electrician replace it with a properly grounded 3-prong grounding type receptacle.Washer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, in accordance with the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70 latest edition. Check with a licensed electrician if you are not sure that the washer is properly grounded.If required by local codes, an external 18 gauge or larger copper ground wire (not provided) may be added. Attach to washer cabinet with a #8-18 x ½” sheet metal screw (available at any hardware store) to rear of washer.Mobile Home Installation:Installation must conform to Standard for Mobile Homes, ANSI A119.1 and National Mobile Home Construction and Safety Standards Act of 1974 (PL93-383). GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment- grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. WARNING Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician, or service representative or personnel, if you are in doubt as to whether the appliance is properly grounded. DO NOT modify the plug on the power supply cord. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. 14

STATIONARY MODELS Adjust the legs of the washer by lifting up the front of the unit and rotating the legs clockwise until the unit is level. INSTALL FRONT LEG STOPPERS

• To prevent the washer from “walking” during a spin cycle, tilt the washer back slightly and insert the leg stoppers under the front legs.Leg stopperCaster wheel WARNING Before beginning the installation, unplug the appliance or turn off the circuit breaker. Pressing the Power button DOES NOT disconnect power . If you did not receive a base cover with your purchase, call 800.626.8774 to receive one at no cost. (In Canada, call 800.561.3344.) For installation instructions of the cover, visit: www.GEAppliances.com. (In Canada, www.GEAppliances.ca.)Base Cover Kit Included - Entanglement

WARNING • A child or adult can become entangled and result in serious injury.• Install the base cover to the unit by sliding cover in place and screwing into the unit.• Failure to do so can result in serious injury.Cable Tie

: Make sure the washer is

Run some water from the hot and cold faucets

to flush the water lines and remove particles that

might clog up the water valve screens.

Installation Instructions

WASHER CONNECTIONS - STATIONARY MODEL WSLS1500

Connect the inlet hose ends to the HOT and COLD

water faucets tightly by hand, then tighten another

ø3 turn with pliers. Turn the water on and check for

leaks. Retighten if necessary.

CONNECT TO WATER LINES

Form a U shape on the end of the drain hose with

the hose pointed toward the drain. Place the hose in

a laundry tub or stand pipe and secure it with a cable

NOTE: If the drain hose is placed in a stand pipe

without forming a U shape, a siphoning action could

occur. There must be an air gap around the drain

hose. A snug hose fit can also cause a siphoning

Ensure proper ground

Installation Instructions

WASHER CONNECTIONS - STATIONARY MODEL WSLS1500

RUN THE WASHER THROUGH A COMPLETE CYCLE

Check for water leaks and proper operation.

REMOVE THE PROTECTIVE FILM COVERING THE CONTROL PANEL

It contains valuable and helpful information that will

save you time and money.

READ THE REST OF THIS OWNER’S MANUAL

NOTE: If your washer does not operate, please

review the Before You Call For Service section.

If your washer is approved for installation in an alcove or

closet, there will be a label on the back of the machine

describing requirements.

• Minimum clearances between washer and adjacent

walls or other surfaces are: 1” either side, 2” front,

• Minimum vertical space from washer to overhead

shelves, cabinets, ceilings, etc. is 24”.

• Closet doors must be louvered or otherwise ventilated

and have at least 60 square inches open area for

washer only, or if the closet contains both a washer

and dryer, doors must contain at least 120 square

inches of open area equally distributed.

NOTE: The clearances stated on this label are minimums.

Consideration must be given to providing adequate

clearances for installation and servicing.

INSTALLATION CHECKLIST

Before starting the washer, check to make sure:

❏ Main power is turned on.

❏ The washer is plugged in.

❏ The water faucets are turned on.

❏ The unit is level.

❏ The drain hose is properly tied up.

❏ There are no leaks at the faucet, drain line

Installation Instructions

Use the hose connector provided with the washer for a

one-faucet connection.

TO CONNECT THE WASHER:

Attach the hose connector to the faucet adapter by

pulling down on the locking collar while lifting up on

the connector until it snaps into place. Make sure

the water filter provided is in place.

CONNECT TO VALVE INLET

Attach the COLD water supply connector to the

COLD water valve inlet (color BLUE). Make sure the

washer is inside the connector before tightening.

Tighten the connector, ensuring the threads are

aligned properly for tightest fit. Inspect for kinks

or binding of the hose.

Attach the drain hose to the rear of the washer.

Install the clamp on the drain hose and tighten to

prevent leakage of water.

WASHER CONNECTIONS FOR PORTABLE MODEL

:6/3³21()$8&(7&211(&7,216Ensure proper ground

Installation Instructions

WASHER CONNECTIONS FOR PORTABLE MODEL

:6/3³21()$8&(7&211(&7,216&217

The electrical power cord is on the back of the

Before starting the washer, check to make sure:

❏ Main power is turned on.

❏ The washer is plugged in.

❏ The water faucets are turned on.

❏ The unit is level.

❏ There are no leaks at the faucet, drain line

Installation Instructions Hose ConnectorLocking CollarMove the locking collar down and pull the hose connector down to disengage from the faucet adapter. DRAIN WATER

5 Drain water from the hoses through the hose connector. 19TO DISCONNECT THE WASHER:

TO CONNECT THE WASHER:

If you have two separate water connections, your washer

can be connected to both the hot and cold water faucets.

This kit can be purchased from your dealer or from Parts

and Accessories. In the United States, call 800.626.2002.

In Canada, consult the yellow pages for your local Mabe

WASHER CONNECTIONS FOR PORTABLE MODEL

:6/3³7:2)$8&(7&211(&7,216

CONNECT TO WATER LINE

Connect HOT and COLD water inlet hoses to the

HOT and COLD faucets.

Secure the drain hose to the sink or stand pipe.

Ensure proper ground

DISCONNECT THE DRAIN AND WATER SUPPLY HOSES

Hang them on the storage rack.

Installation Instructions

INSTALLATION CHECKLIST

Before starting the washer, check to make sure:

❏ Main power is turned on.

❏ The washer is plugged in.

❏ The water faucets are turned on.

❏ The unit is level.

❏ The drain hose is properly tied up.

❏ There are no leaks at the faucet, drain line

Troubleshooting Tips

Save time and money! Review the charts on the following pages

first and you may not need to call for service.

 Indicates washer failed to fill. Ensure wall faucets are on and fill hose is

not clogged or kinked.

 Indicates water has not drained from washer. Ensure the drain hose is

not kinked or connected improperly.

 Indicates the laundry load is unbalanced. Reposition laundry evenly in

basket, and ensure washer is level.

 Indicates the lid is open. Close the lid.

 Press Power and call service.

Indicates water has overflowed. Restart after spinning.

 Press Power and call service.22

Before you call for service…

WATER POSSIBLE CAUSES WHAT TO DO Too many suds Type of detergent • Switch to HE detergent.

Very soft water • Try less detergent.

Too much detergent • Measure your detergent carefully. Use less soap if you

have soft water, a smaller load or a lightly soiled load.

Water leaks Fill hoses or drain hose is

improperly connected

• Make sure hose connections are tight at faucets and

the washing machine. Make sure the end of the drain

hose is correctly inserted and secured to the drain

Household drain may be clogged • Check household plumbing. You may need to call a

Constant water pressure to the fill

hoses at the water source

• Tighten hoses at the faucets and turn the water off

• Check condition of the fill hoses; they may need

replacement after 5 years.

Using too much detergent in

• Use less detergent. Use less soap if you have soft

water, a smaller load or a lightly soiled load.

Water temperature is

Water supply is turned off or

improperly connected

• Turn both hot and cold faucets fully on and make sure

hoses are connected to correct faucets.

Water valve screens are stopped

Turn off the water source and remove the water

connection hoses from the upper back of the washer.

Remove screens and use a brush or toothpick to clean

the screens in the machine. Reinstall screens, reconnect

the hoses and turn the water back on

House water heater is not set

• Make sure house water heater is delivering water at

120°F–140°F (48°C–60°C).

Water won’t drain Drain hose is kinked or improperly

• Straighten drain hose and make sure washer is not

• Top of drain outlet should be less than 8 ft. above floor.

Pump clogged • Remove and clean pump filter.

OPERATION POSSIBLE CAUSES WHAT TO DO Washer pauses in cycle The washer normally pauses

between washing steps

Washer won’t operate Washer is unplugged • Make sure cord is plugged securely into a working

Water supply is turned off • Turn both hot and cold faucets fully on.

Controls are not set properly • Make sure all selections have been made.

Lid is open • Close lid and press Start/Pause.

Circuit breaker/fuse is tripped/

• Check house circuit breakers/fuses. Replace fuses or

reset breaker. Washer should have separate outlet.

Washer has not been turned on • Press the Power button.

Troubleshooting Tips23

PERFORMANCE POSSIBLE CAUSES WHAT TO DO Colored spots Incorrect use of fabric softener • Check fabric softener package for instructions and

follow directions for using dispenser.

Dye transfer • Sort whites or lightly colored items from dark colors.

Not enough detergent • Use more detergent (especially with larger loads).

Hard water • Use a water conditioner like Calgon brand or install a

Water is not hot enough • Make sure water heater is delivering water at

120°F–140°F (48°C–60°C).

Washer is overloaded • Select load size to match clothes load.

Dye transfer • Sort clothes by color. If fabric label states wash

separately, unstable dyes may be indicated.

Clothes are air or line dried • If you do not dry your clothes with a clothes dryer, your

clothes may retain more lint.

eparate lint producers from lint collectors.

Washing too long • Wash small loads for a shorter time than larger loads.

Overloading • Load clothes no higher than the top row of holes in the

• Make sure load size selector matches clothes load size

Pilling Result of normal wear on

poly-cotton blends and fuzzy

• While this is not caused by the washer, you can slow

the pilling process by washing garments inside out.

Snags, holes, tears, rips

Pins, snaps, hooks, sharp buttons,

belt buckles, zippers, and sharp

objects left in pockets

• Fasten snaps, hooks, buttons and zippers.

• Remove loose items like pins, objects in pockets and

• Turn knits (which snag easily) inside out.

Undiluted chlorine bleach • Check bleach package instructions for proper amount.

• Never add undiluted bleach to wash or allow clothes to

come in contact with undiluted bleach.

Chemicals like hair bleach or dye,

permanent wave solution

• Rinse items that may have chemicals on them before

Wrinkling Improper sorting • Avoid mixing heavy items (like work clothes) with light

items (like blouses).

• Try a fabric softener.

Overloading or incorrect water

• Load your washer so clothes have enough room to

Repeated washing in water that is

Troubleshooting Tips

NOISE POSSIBLE CAUSES WHAT TO DO Washer is noisy Washer is uneven • Level the washer. See Leveling the Washer.

Washer load is unbalanced •

button to stop the washer, open

the lid and redistribute the load evenly. Close the lid

Washer is sitting too close to wall

FDXVHVNQRFNLQJGXULQJF\FOH

• Pull washer away from the wall; about 4” is needed

OTHER POSSIBLE CAUSES WHAT TO DO Labels on the exterior

of the washer will not

Occasionally the adhesive used on

the labels does not release cleanly

• Use a hair dryer set at the lowest heat setting, directing

the air at the label for a short amount of time. This will

release the adhesive easily, without damaging the

surface of the washer.25

GE Washer Warranty. (For customers in the United States)

For The Period Of: We Will Replace:

All warranty service provided by our Factory Service Centers,

or an authorized Customer Care

technician. To schedule service,

on-line, visit us at GEAppliances.com, or call 800.GE.CARES

(800.432.2737). Please have serial number and model number

availa ble when calling for service.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use

within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may

be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for

service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you

specific legal rights, and you may also have other rights which vary from state to state. To know what your legal

rights are, consult your local or state consumer affairs office or your state’s Attorney General.  Service trips to your home to teach you how to use the product.  Improper installation, delivery or maintenance.  Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.  Damage after delivery. Replacement of house fuses or resetting of circuit breakers.  Damage to the product caused by accident, fire, floods or acts of God.  Incidental or consequential damage caused by possible defects with this appliance.

 Product not accessible to provide required service.

What Is Not Covered (in the United States):

Warrantor: General Electric Company. Louisville, KY 40225

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

One Year Any part of the washer which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and related service

original purchase costs to replace the defective part.

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV/LPLWHG

Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular

purpose, are limited to one year or the shortest period allowed by law.26

GE Washer Warranty. (For customers in Canada)

All warranty service provided by our authorized service technicians. For service, call 800.561.3344.

Please have serial number and model number available when calling for service.  Service trips to your home to teach you how to use the product.  Improper installation, delivery or maintenance.  Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.  Damage after delivery. Replacement of house fuses or resetting of circuit breakers.  Damage to the product caused by accident, fire, floods or acts of God.  Incidental or consequential damage caused by possible defects with this appliance.  Product not accessible to provide required service. What Is Not Covered (in Canada):

Warrantor: MC COMMERCIAL, Burlington, L7R 5B6

WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

This warranty is extended to the original purchaser and any succeeding owner for products purchased in

Canada for home use within Canada. In-home warranty service will be provided in areas where it is available

and deemed reasonable by Mabe to provide.

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV/LPLWHG Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. For The Period Of: We Will Replace:

One Year Any part of the washer which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty, GE will also provide, free of charge, all labour and related

original purchase service costs to replace the defective part.Consignes de sécurité 28, 29

5HJLVWHU\RXUQHZDSSOLDQFHRQOLQH³DW\RXUFRQYHQLHQFH7LPHO\SURGXFWUHJLVWUDWLRQZLOODOORZIRUHQKDQFHG

communication and prompt service under the terms of your warranty, should the need arise. You may also mail

in the pre-printed registration card included in the packing material. In Canada, visit: www.GEAppliances.ca

In the U.S.: GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,

any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,

order parts or even schedule service on-line. In Canada, visit: www.GEAppliances.ca

Schedule Service In the U.S.: GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your

convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 800.561.3344

Real Life Design Studio In the U.S.: GEAppliances.com

*(VXSSRUWVWKH8QLYHUVDO'HVLJQFRQFHSW³SURGXFWVVHUYLFHVDQGHQYLURQPHQWVWKDWFDQEHXVHGE\SHRSOHRI

all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities

and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with

disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, MC Commercial

Suite 310, 1 Factory Lane

Moncton, N.B. E1C 9M3

Extended Warranties In the U.S.: GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still

in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer

Home Services will still be there after your warranty expires. In Canada, consult your local listings for an

extended warranty provider.

Parts and Accessories In the U.S.: GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes

(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally

should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause

In Canada, consult your local listings for your nearest GE parts distributor or call 800.661.1616.

Contact Us In the U.S.: GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including

your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada, write to: Director, Consumer Relations, MC Commercial

Suite 310, 1 Factory Lane
