USER MANUAL GFWH1200HWW GE
Operating Instructions
Controls 4-9
Features 10-11
Quick Start 5
Loading and Using the Washer 12-13
Care and Cleaning 14-17
Installation Instructions
Preparing to Install Your Washer 18
Location of Your Washer 19
Rough-In Dimensions 19
Unpacking Your Washer 20
Electrical Requirements 21
Grounding Requirements 21
Drain Requirements 22
Water Supply Requirements 22
Installing the Washer 23-24
Replacement Parts 24
Troubleshooting Tips 25-29
Consumer Support
Warranty (U.S.) 30
Warranty (Canada) 31
Consumer Support........... Back Cover
ENERGY STAR
As an ENERGY STAR® partner,
GE has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.
Write the model and serial
numbers here:
Model#
Serial #
You can find them on a label on the
side of the washer.
Owner's Manual & Installation Instructions
GFWS1705
GFWS1700
GFWS1605
GFWS1600
GFWH1200
GFWN1100
Washing Machines
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION". These words are defined as:
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of death, fire, explosion, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:
Read all instructions before using the appliance. DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode. DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode. Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, DO NOT smoke or use an open flame during this time. DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance is used near children. Before the washer is removed from service or discarded, remove the door or lid. Failure to follow these instructions may result in death or injury to persons. DO NOT reach into the appliance if the tub or agitator is moving to prevent accidental entanglement. DO NOT install or store this appliance where it will be exposed to the weather. DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless specifically recommended in the user maintenance instructions or in published user repair instructions that you understand and have the skills to carry out. - Keep the area around your appliance clean and dry to reduce the possibility of slipping. DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts including a damaged cord or plug. Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power button DOES NOT disconnect power. See "Electrical Requirements" located in the Installation Instructions for grounding instructions.
SAVE THESE INSTRUCTIONS
PROPER INSTALLATION
This washer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions, you can receive one by visiting GEAppliances.com or by calling 800.GE.CARES (800.432.2737). In Canada, visit www.geappliances.ca or call 800.561.3344.
Ensure that the hot water hose is connected to the "H" (internal red screened) valve and the cold water hose is connected to the "C" (internal blue screened) valve. Install or store where it will not be exposed to temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty. Properly ground washer to conform with all governing codes and ordinances. Follow details in Installation Instructions. This washer does not include water supply hoses.
GE strongly recommends the use of factory specified parts. A list of factory hoses available for purchase are listed below. These hoses are manufactured and tested to meet GE specifications.
GE strongly recommends the use of new water supply hoses. Hoses degrade over time and need to be replaced every 5 years to reduce the risk of hose failures and water damage.
Parts and Accessories
Order on-line at GEApplianceparts.com today, 24 hours a day or by phone at 800.626.2002 during normal business hours. In Canada, call 800.661.1616.
Part Number Accessory
PM14X10002 4 ft Rubber Water Supply Hoses Or
PM14X10005 4 ft Braided Metal Water Supply Hoses
WX10X10011 Tide® Washing Machine Cleaner*
PM7X1 Washer Floor Tray
WHEN NOT IN USE
Turn off water faucets to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; GE recommends changing the hoses every 5 years.
SAVE THESE INSTRUCTIONS
About the washer control panel.
Throughout this manual, features and appearance may vary from your model.
You can locate your model number on a label on the side of the washer or inside the washer door.
Models: GFWS1700 and GFWS1705 - Steam Washer with Time Saver
Models: GFWS1600 and GFWS1605 - Steam Washer with Time Saver
Model: GFWH1200
Model: GFWN1100
Quick Start
NOTE: Features and appearance vary by model.
1 Press the Power button.
If the screen is dark, a press of the Power button will "wake up" the display.
2 Select a wash cycle. (Defaults are set for each cycle. These default settings can be changed. See Control settings for more information.)
Press the Start/Pause button.
Power
Press to "wake up" the display. If the display is active, press to put the washer into standby mode. NOTE: Pressing Power does not disconnect the appliance from the power supply.
2 Wash Cycles
The wash cycles are optimized for specific types of wash loads. The chart below will help you match the wash setting with the loads.
| Colors/Normals* | For heavily to lightly soiled colorfast cottons, household linens, work and play clothes. |
| Whites* | For heavily to lightly soiled white laundry, work and play clothes. |
| Bulky/Bedding* | For large items such as comforters, blankets, small rugs and similar bulky items. |
| Active Wear*
(on some models) | For active sports, exercise and some casual wear clothes. Fabrics include modern technology finishes and fibers such as spandex, stretch and micro-fibers. |
| Power Clean*
(on some models) | For heavily soiled items which require extra cleaning power. |
| Sanitize*
(on some models) | For increased water temperature which will sanitize and kill more than 99.9% of many common bacteria found in home laundry. For best results, select the extra heavy soil setting when using the Sanitize cycle.
NSF Protocol P172
Sanitization Performance of Residential and Commercial, Family-Sized Clothes Washers |
| Towels/Sheets*
(on some models) | For items such as towels, sheets, pillowcases and dish rags. |
| Delicates/
Hand Wash | For items labeled hand-washable with light soils. Provides gentle tumbling and soak during wash and rinse. |
| Speed Wash or
Quick Wash | For lightly soiled items that are needed in a hurry. Cycle time is approximately 30 minutes, depending on selected options. |
| Rinse & Spin
(on some models) | To quickly rinse and spin out any items at any time. To achieve a Drain + Spin, deselect the Extra Rinse option. |
| Drain + Spin
(on some models) | To quickly drain and spin out any items at any time. To achieve a Rinse + Spin, select the Extra Rinse option. |
| Basket Clean | Use for cleaning the basket of residue and odor. Recommended use of at least once per month.
NOTE: Never load laundry while using Basket Clean. The laundry may become damaged. See the Care and Cleaning section. |
- The Add Steam option (on some models) can be used with these cycles.
Control settings.
| 3 | Add Steam | Add Steam (on some models)
Add Steam adds steam into the washer to assist with loosening stains on the Whites, Colors/Normal, Towels/Sheets, Active Wear or Power Clean (depending on model), Bulky Bedding or Sanitize cycles. | To use:
1. Turn power ON and select a wash cycle.
2. Select the Add Steam button to activate steam.
3. Press the Start/Pause button. |
| 4 | Soil
(appearance will vary) | Soil
Change the Soil level to increase or decrease the wash time to remove different amounts of soil. | To change the Soil level, press the Soil level button until you have reached the desired setting. You can choose between Extra Light, Light, Normal, Heavy or Extra Heavy soil levels. |
| 5 | Temp
(appearance will vary) | Temp
Adjust to select the proper main water temperature for the wash cycle. The PreSoak and PreWash rinse water is always cold to help reduce energy usage and reduce setting of stains and wrinkles. Follow the fabric manufacturer's care label when selecting the wash temperature. | To change the wash temperature, press the wash Temp button until you have reached the desired setting. You can choose between Tap Cold, Cold, Warm, Hot or Extra Hot (Extra Hot is available on models equipped with a heater). By design, to protect fabrics, not all wash temperatures are available for certain wash cycles.
NOTE: The first 10 seconds of the wash fill is always cold. This feature assists in conditioning the fabric and preventing stains from setting on garments. |
| 6 | Spin
(appearance will vary) | Spin
Changing the Spin speed changes the final spin speed of the cycles. Always follow the garment manufacturer's care label when changing the Spin speed. | To change the Spin speed, press the Spin speed button until you have reached the desired setting. You can choose between No Spin, Low, Medium, High or Max. Higher spin speeds are not available on certain cycles, such as Delicates.
Higher spin speeds remove more water from the clothes and will help reduce dry time, but may also increase the possibility of setting wrinkles on some fabrics. |
| 7 | My Cycle | My Cycle (on some models)
To save a favorite cycle, set the desired settings for wash cycle, soil level, spin speed and wash temp settings and hold down the My Cycle button for 3 seconds. A beep will sound to indicate the cycle has been saved.
To use your custom cycle, press the My Cycle button before washing a load.
To change the saved cycle, set the desired settings and hold down the My Cycle button for 3 seconds. | NOTE: When using My Cycle, wash options cannot be modified after the cycle has been started.
NOTE: If you change wash options with My Cycle before starting the cycle, the My Cycle light will turn off and you will be returned to the base cycle. |
| 8 | PreWash | PreWash (on some models)
Prewash is an extra wash before the main wash. Use it for heavily soiled clothes or for clothes with a care label that recommends prewashing before washing. Be sure to add liquid or powder high-efficiency detergent, or the proper wash additive to the prewash dispenser. | PreWash must be selected prior to pressing Start.
The PreWash feature will fill the washer with cold water (adding the prewash detergent), tumble the clothes, drain and spin. Then the washer will run the selected wash cycle.
NOTE: In some special cycles, the prewash is selected automatically as the default. You can modify this selection at any time. |
| 9 | Time Saver | Time Saver (on some models)
Use this option to reduce the overall wash cycle by at least 20% without sacrificing wash performance. This feature is available on all cycles except Basket Clean, Sanitize, Rinse + Spin, and Quick Wash.
This option will modify the wash cycle, slightly raising the wash temperature and using more water to deliver equal wash performance as the basic cycle. All other features, such as Extra Rinse, Add Steam, etc, can be used with Time Saver but may adjust the total wash time. | To use:
1. Turn power on and select a wash cycle which has Time Saver as an option.
2. Make any adjustments to Soil, Temp and Spin as desired.
3. Press the Time Saver button to reduce the overall wash time.
4. Press the Start/Pause button. |
| 10 | Delay Wash or Delay Wash (depending on model) | Delay Wash
You can delay the start of a wash cycle for up to 24 hours. Press the Delay Wash button to choose the amount of time you want to delay the start of the wash cycle. Once the desired time is reached, press the Start button. The machine will count down and start automatically at the correct time. | NOTE: If you forget to fully close the door, a reminder signal will beep reminding you to do so.
NOTE: If you open the door when the delay is counting down, the machine will enter the pause state. You must close the door and press Start again in order to restart the countdown. |
| 11 | Extra Rinse or Extra Rinse (depending on model) | Extra Rinse
This option allows for an extra rinse during a cycle to remove excess dirt and detergent from soiled loads. | On models with Rinse & Spin cycle, a drain and spin cycle can be achieved by pressing the Extra Rinse button until the light is no longer illuminated.
On models with Drain+Spin cycle, a rinse and spin cycle can be achieved by selecting Extra Rinse option. |
Control settings.
| 12 | Stain Removal Guide
Grass Wine Blend Tomato Skin
Select cycle and push button for stain options | Stain Removal Guide
(on some models)
The Stain Removal Guide is pre-programmed with the ideal wash and rinse settings to tackle five common stains: grass, wine, blood, tomato and dirt. To use this feature, select the desired wash cycle and then press the Stain Removal Guide button until the stain you want to remove is highlighted. Once selected, press the Start button to start the cycle. | For some stains, a prewash will be selected automatically. Be sure to add liquid or powder high-efficiency detergent, or the proper wash additive to the prewash dispenser.
Add Steam cannot be selected when the Stain Removal Guide is used. |
| 13 | PreSoak | PreSoak (on some models)
For soaking your garments prior to the PreWash (if selected) and/or wash cycle. This option begins with a brief tumble and then proceeds to soak the clothes with cold water for a specified period of time. Once complete, the cycle will begin automatically. | PreSoak must be selected prior to pressing Start.
The PreSoak time is set in 1/2 hour increments, with the maximum presoak set option of 8 hours.
If desired, add high-efficiency detergent or the proper wash additive to the prewash dispenser. |
| 14 | Ext Tumble | Extended Tumble (on some models)
Freshly tumbles your garments periodically for up to 8 hours after the wash cycle is complete to lessen the setting of wrinkles and creases when you are not able to move clothing to the dryer right away.
At the end of the cycle, the display will scroll “END” and after ten minutes the Extended Tumble will begin. It can be stopped at any time by pressing the Power button. | Note: The Extended Tumble option cannot be added to the My Cycle feature. |
| 15 | Volume | Volume
This button has two functions:
■ To change the loudness of the end of cycle signal, press the button as many times as needed to reach the desired volume. There are four sound levels including OFF. | ■ To turn the button sounds ON/OFF, press and hold the button for 3 seconds. |
| 16 | Signal | Cycle Signal
Use the Signal pad to change
the volume of the end of cycle signal. | Press the pad until you reach
the desired volume. |
| 17 | Lock Controls or Lock
Hold 3 Sec
(depending on model) | Lock Controls or Lock
(depending on model)
You can lock the controls to prevent
any selections from being made. Or
you can lock or unlock the controls
after you have started a cycle.
Children cannot accidentally start the
washer by touching buttons with this
option selected.
To lock the washer, press and hold the
Lock Controls or Lock button for 3
seconds. | To unlock the washer controls, press
and hold the Lock Controls or Lock
button for 3 seconds.
A sound is made to indicate the lock/
unlock status.
The indicator light above the button
will illuminate when the controls are
locked.
NOTE: The Power button can still be
used when the machine is locked. |
| 18 | Start / Pause
or Start
Pause/Add a Garment
(depending on model) | Start/Pause-Add A Garment
Press to start a wash cycle. If the
washer is running, pressing it once will
pause the washer and unlock the door.
It will take a few seconds for the door
to unlock after pressing Pause. Press
again to restart the wash cycle.
NOTE: If the washer is paused and
the cycle is not restarted within 15
minutes, the current wash cycle will be
cancelled. | NOTE: In some cycles the washer will
drain first, then unlock the door when it
is paused.
NOTE: The washer performs automatic
system checks after pressing the Start
button. Water will flow in 45 seconds
or less. You may hear the door lock
and unlock before water flows; this is
normal. |
| 19 | (appearance will vary
and not all features
on all models) | Display
Displays the approximate time
remaining until the end of the cycle.
NOTE: The cycle time is affected by
the water pressure in your home and
the balance of the load in the washer.
You may see the time remaining on
the display increase to accommodate
a slower spin speed to handle
unbalanced loads. | On some models, cycle status is also
displayed and certain features such
as Delay Wash or Steam are shown
indicating they have been selected. |
About the washer features.
| The Dispenser Drawers
Slowly open the dispenser drawer by pulling it out until it stops.
After adding laundry products, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of the bleach, fabric softener or detergent. | You may see water in the dispenser drawer at the end of the cycle. This is a result of the flushing/siphoning action and is part of the normal operation of the washer. | |
| The Prewash Compartment (on some models)
■ Only use the Prewash Compartment if you are selecting the Prewash or Presoak cycle for heavily soiled clothes. Add measured detergent or prewash additive to the back left prewash compartment of the dispenser drawer.
■ Detergent or prewash additive is flushed from the dispenser in the prewash or Presoak cycle (if selected). | NOTE: Liquid detergent will drain into the washer drum as it is added.
■ Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer as it can lead to over sudsing and detergent residue being left on the clothes. | |
| The Detergent Compartment
■ High-efficiency detergent is required for this washer. Use the detergent manufacturer's recommended amount.
■ Add measured detergent to the front left detergent compartment of the dispenser drawer.
■ Detergent is flushed from the dispenser at the beginning of the wash cycle. Either powdered or liquid detergent can be used. | Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer as it can lead to oversudsing and detergent residue being left on the clothes.
■ Using more detergent than the recommended quantity can cause residue buildup on your washer. | |
| Remove for powder detergent
Max HE Liquid Detergent Setting
2x HE Liquid Detergent Setting (most common setting)
3x HE Liquid Detergent Setting
Appearance may vary | On models with a removable detergent cup
■ Powder Detergent - Remove the liquid detergent cup and place it in a safe location outside of the washer. Follow the detergent manufacturer's instructions when measuring the amount of powder to use.
■ Liquid Detergent - Locate the concentration of your detergent on the bottle. Do not fill above the Max Fill line in the detergent cup for your detergent concentration type. | |
| Remove for powder detergent
Normal HE Liquid Detergent Setting
2x HE Liquid Detergent Setting (most common setting)
3x HE Liquid Detergent Setting
Appearance may vary | On models with a selection insert
The detergent selection insert must be placed in the detergent compartment in a specific position according to what type of detergent you are using.
■ Powder Detergent - Remove the detergent selection insert and place it in a safe location outside of the washer.
■ Liquid Detergent - You will need to adjust the insert according to the type of Liquid Detergent you are using. The Icons on the side of the detergent compartment must line up on the center when the insert is in position. | NOTE: Not all models have the 2x and 3x detergent settings. Some have only regular HE detergent settings. You must reduce the amount of detergent for 2x or 3x detergent per bottle instructions.
Move the insert by pulling it up and replace it by sliding it down between either the rear or front detergent compartment molded rails, as desired, for liquid detergent. Remove for powder detergent.
Liquid detergent may seep under the insert prior to the start of the cycle. This is normal and will not affect the wash performance. |
On some models:
The Liquid Bleach Compartment
IMPORTANT: The bleach compartment position varies by model. Be sure to identify the correct compartment for bleach before using.
If desired, measure out the recommended amount of liquid bleach, not to exceed 1/3 cup (80 ml), and pour into the right compartment labeled "LIQUID BLEACH".
Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.
NOTE: Do not use powdered bleach in the dispenser.
On some models:
On some models:
The Fabric Softener Compartment
IMPORTANT: The fabric softener compartment position varies by model. Be sure to identify the correct compartment for fabric softener before using.
If desired, pour the recommended amount of liquid fabric softener into the compartment labeled "FABRIC SOFTENER."
Use only liquid fabric softener in the dispenser.
Dilute with water to the maximum fill line.
Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener which could stain clothes.
NOTE: Do not pour fabric softener directly on the wash load.
On some models:
Loading and using the washer.
Always follow fabric manufacturer's care label when laundering.
Preparing Clothes
To avoid snags during washing:
Follow these steps to maximize garment care.
- Close garment zippers, snaps, buttons and hooks. Mend seams, hems, tears.
- Empty all items from pockets.
- Remove nonwashable garment accessories such as ornaments and nonwashable trim materials.
To avoid tangling, tie strings, draw ties and belt-like materials. Brush away surface dirt and lint; treat spots and stains. Promptly wash wet or stained garments to maximize results. Mix garments using recommended maximum load sizes on page 13. Use nylon mesh garment bags to wash small items. Wash multiple garments at one time for best results.
Fabric Care Labels
Below are fabric care label "symbols" that affect the clothing you will be laundering.
WASH LABELS
Machine wash cycle
Normal
Permanent Press/ wrinkle resistant
Gentle/ delicate
Hand wash
Do not wash Do not wring
Do not wring.
Water temperature
Hot (50°C/120°F)
Warm (40°C/105°F)
Cold/cool (30°C/85°F)
BLEACH LABELS
Bleach symbols
Any bleach (when needed)
Only non-chlorine bleach (when needed)
Do not bleach
DETERGENT LABELS
Use only HE High-Efficiency detergent.
Sorting Wash Loads
| Colors | Soil | Fabric | Lint |
| Whites | Heavy | Delicates | Lint Producers |
| Lights | Normal | Easy Care | Lint Collectors |
| Darks | Light | Sturdy Cottons | |
Combine large and small items in a load. Load large items first. Large items should not be more than half the total wash load. Pillows and comforters should not be mixed with other items. This may cause an out-of-balance load. Sort dark-colored clothes from light-colored clothes to prevent dye transfer. This is a high-efficiency washer, so it uses less water, making dye transfer more common.
WARNING
Fire Hazard
Never place items in the washer that are dampened with gasoline or other flammable liquids. No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on it (including cooking oils).
Doing so can result in death, explosion, or fire.
Loading the Washer
The wash drum may be fully loaded with loosely added items. Do not wash garments containing flammable materials (waxes, cleaning fluids, etc.).
To add items after the washer has started, press Start/Pause and wait until the door is unlatched. The washer may take up to 30 seconds to unlock the door after pressing Start/Pause, depending on the machine conditions. Do not try to force the door open when it is locked. After the door unlocks, open gently. Add items, close the door and press Start/Pause to restart.
Loading Examples
| WORKWEAR | LINENS | MIXED LOAD | DELICATES* | SPEED WASH
(2-4 GARMENTS) |
| 4 Jeans
5 Work Wear Shirts
5 Work Wear Pants | 2 Bath Sheets
10 Bath Towels/12 Washcloths
7 Hand Towels/2 Tarrycloth Bath Mats
OR
2 Flat Queen-Sized Sheets
2 Fitted Queen-Sized Sheets
4 Pillowcases | 4 Pillowcases
2 Hand Towels
2 Flat Sheets/2 Fitted Sheets
2 Bath Towels/4 Washcloths
OR
6 Shirts (Men's or Women's)
4 Pair Pants (Khakis or Twills)
5 T-shirts
7 Pairs of Boxers
4 Pairs of Shorts
OR
6 T-shirts
4 Pairs of Sweatpants
4 Sweatshirts
2 Hoodies
7 Pairs of Socks | 7 Bras
7 Panties
3 Slips
2 Camisoles
4 Nightgowns
* Using a nylon mesh bag for small items is recommended. | 2 Casual Wear
Work Shirts
1 Pair Casual Wear
Work Pants
OR
3 Soccer Uniforms |
Exterior
Immediately wipe off any spills. Wipe with a damp cloth. Do not hit the surface with sharp objects.
Interior
To clean the interior of the washer, select the Basket Clean feature on the control panel. This Basket Clean cycle should be performed at least once per month. This cycle will use more water, in addition to bleach, to control the rate at which soils and detergents may accumulate in your washer.
NOTE: Read the instructions below completely before starting the Basket Clean cycle.
- Remove any garments or objects from the washer and ensure the washer basket is empty.
- Open the washer door and pour one cup (250 ml) of liquid bleach or other washing machine cleaner into the basket.
- Close the door and select the Basket Clean cycle. Push the Start pad.
- When the Basket Clean cycle is working, the display will show the estimated cycle time remaining. The cycle will complete in about 90 minutes. Do not interrupt the cycle.
- After the cycle is complete, leave the door open slightly for better ventilation.
If for any reason the cycle needs to be interrupted, the door will not open immediately. Forcing open the door at this stage may cause water to flood. The door will open after the water is drained to a level where it would not flood the floor.
Basket Clean may be interrupted by pressing the Start pad in between cycles. A power outage in the house might also interrupt the cycle. When the power supply is back, the Basket Clean cycle resumes where it had stopped. When interrupted, be sure to run a complete Basket Clean cycle before using the washer. If the Power pad is pressed during Basket Clean, the cycle will be lost.
IMPORTANT:
Run Basket Clean with 1 cup (250 ml) of bleach once a month. After the completion of a Basket Clean cycle, the interior of your washer may have a bleach smell. It is recommended to run a light color load after the Basket Clean cycle.
Door Gasket
Open the washer door. Using both hands, press down the door gasket. Remove any foreign objects if found trapped inside the gasket. Make sure there is nothing blocking the holes behind the gasket.
While holding down the door gasket, inspect the interior gasket by pulling it down with your fingers. Remove any foreign objects if found trapped inside this gasket. Make sure there is nothing blocking the holes behind the gasket.
When you are finished cleaning the door gasket, remove your hands and the gasket will return to the operating position.
Video
Scan this code to watch a video on this topic.
Cleaning the Pump Filter
Due to the nature of the front-load washer, it is sometimes possible for small articles to pass to the pump. The washer has a filter to capture lost items so they are not dumped to the drain. To retrieve lost items, clean out the pump filter.
- Using a small flathead screwdriver or coin, open the access door.
- Place a shallow pan or dish under the pump access door and towels on the floor in front of the washer to protect the floor. It is normal to catch about a quart of water when the filter is removed.
NOTE: If there is water in the basket when the pump filter is cleaned, it will drain out and a larger pan or dish may be necessary.
- Pull down the pour spout.
- Turn the pump filter counterclockwise and remove the filter slowly, controlling the flow of the draining water.
- Clean the debris from the filter.
- Replace the filter and turn clockwise. Tighten securely.
- Flip up the pour spout.
- Close the access door by hooking the bottom tabs first, then rotating the access door shut.
Tab on back right or left depending on model
Lock tab is visible only after drawer has been pulled open
Dispenser Drawer Area
Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.
- Remove the drawer by first pulling it out until it stops. Then reach back into the left or right rear corner (depending on model) of the drawer cavity and press down firmly on the lock tab, pulling out the drawer.
- Remove the inserts from the bleach and fabric softener compartments and the detergent insert. Rinse the inserts and the drawer with very warm water to remove traces of accumulated laundry products. To clean the drawer opening, use a small brush to clean the recess. Remove all residue from the upper and lower parts of the recess.
- Return inserts to the proper compartments. Replace the dispenser drawer. To reduce buildup in the Dispenser Printer area:
Use only HE High-Efficiency detergent.
Long Vacations
Be sure the water supply is shut off at the faucets. Drain all water from the hoses if the weather will be below freezing.
Moving and Storage
Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. When moving the washer, the tub should be kept stationary by reinstalling the shipping bolts removed during installation. See Installation Instructions in this book. If these parts are not available, they can be ordered by visiting our Website at GEAppliances.com or by calling 800.GE.CARES. In Canada, call 800.561.3344.
Installation Instructions
Washer
If you have any questions, call 800.GE.CARES (800.432.2737)
or visit our Website at: GEAppliances.com
In Canada, call 1.800.561.3344 or visit www.GEApliances.ca
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word "DANGER", "WARNING", or "CAUTION". These words are defined as:
DANGER
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
IMPORTANT for local inspector's use. Save these instructions. IMPORTANT: Observe all governing codes and ordinances. Note to Installer: Be sure to leave these instructions with the Consumer. Note to Consumer: Keep these instructions for future reference. Skill level: Installation of this appliance requires basic mechanical and electrical skills. Completion time: 1-3 hours. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Warranty.
PARTS SUPPLIED
Cable Tie
Inlet Hose Screen Washers (2)
Hose Guide
Adjustable wrench or 1/2" socket with ratchet; Adjustable wrench or 9/16" open-end wrench; Channel-lock adjustable pliers; Carpenter's level
PARTS REQUIRED (Obtain locally)
Water Hoses (2)
STACK BRACKET KIT
A stack bracket kit is available at additional cost. It can be ordered in the United States by visiting our Web site at GEAppliances.com or calling 800.GE.CARES. In Canada, call 800.661.1616 or visit your local GE Appliances dealer. Order kit # WE25X10018 or GEFLSTACK.
OPTIONAL PEDESTAL ACCESSORY
A pedestal is available at additional cost. It can be ordered in the United States by visiting our Web site at GEAppliances.com or calling 800.GE.CARES. In Canada, visit your local GE Appliances dealer. This product should be used with the pedestal # SBSC137HXX, SBSD137HXX and SBSD227FXX. Follow the pedestal Installation Instructions.
Do Not Install the Washer:
- In an area exposed to dripping water or outside weather conditions. The ambient temperature should never be below 60°F (15.6°C) for proper washer operation.
- In an area where it will come in contact with curtains or drapes.
- On carpet. The floor MUST be a hard level surface with a maximum slope of 1/2 per foot (1.27 cm per 30 cm). To make sure the washer does not vibrate or move, you may have to reinforce the floor.
NOTE: If the floor is in poor condition, use 3/4" impregnated plywood sheet solidly attached to the existing floor covering.
IMPORTANT:
Minimum Installation Clearances
- When installed in alcove: Sides, Rear, Top = 0" (0 cm)
- When installed in closet: Sides, Rear, Top = 0" (0 cm), Front = 1" (2.54 cm)
- Closet door ventilation openings required: 2 louvers each 60 square in. (387 cm), located 3" (7.6 cm) from top and bottom of door
ROUGH-IN DIMENSIONS
NOTE: With pedestal, 52.6" Stacked, 84
UNPACKING THE WASHER
WARNING: Recycle or destroy the carton and plastic bags after the washer is unpacked. Make materials inaccessible to children. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers causing suffocation.
- Cut and remove the top and bottom packaging straps.
- While it is in the carton, carefully lay the washer on its side. DO NOT lay the washer on its front or back.
- Turn down the bottom flaps--remove all base packaging, including the cardboard, styrofoam base and styrofoam tub support (inserted in center of base).
NOTE: If you are installing a pedestal, proceed to the installation instructions that come with the pedestal.
- Carefully return the washer to an upright position and remove the carton.
- Carefully move the washer to within 4 feet (122 cm) of the final location.
Scan this code to watch a video on this topic.
- Remove the following from the back side of the washer: 4 bolts, 4 plastic spacers (including rubber grommets), 4 power cord retainers.
NOTE: Failure to remove the shipping braces can cause the washer to become severely unbalanced.
Save all bolts for future use.
NOTE: If you must transport the washer at a later date, you must reinstall the shipping support hardware to prevent shipping damage. Keep the hardware in the plastic bag provided.
In case you misplace your shipping bolts, replacements are available at additional cost. They can be ordered in the United States by visiting our website at GEAppliances.com or calling 800.GE.CARES. In Canada, call 800.661.1616. Order kit #WH49X10039.
ELECTRICAL REQUIREMENTS
WARNING
- Fire Hazard
Plug into a grounded 3-prong outlet.
DO NOT remove ground prong.
DO NOT use an adapter.
DO NOT use an extension cord.
Failure to follow these instructions can result in death, fire or electrical shock.
CIRCUIT - Individual, properly polarized and grounded 15 or 20 amp circuit breaker or time-delay fuse.
POWER SUPPLY - 2 wire plus ground, 120 Volt, single phase, 60 Hz alternating current.
Outlet Receptacle - Properly grounded 3-prong receptacle to be located so the power cord is accessible when the washer is in an installed position. If a 2-prong receptacle is present, it is the owner's responsibility to have a licensed electrician replace it with a properly grounded 3-prong grounding type receptacle.
receptacle to be located so the power cord is accessible when the washer is in an installed position. If a 2-prong receptacle is present, it is the owner's responsibility to have a licensed electrician replace it with a properly grounded 3-prong grounding type receptacle.
The washer must be electrically grounded in accordance with local codes and ordinances, or in the absence of local codes, in accordance with the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70 latest edition. If you are not sure that the washer is properly grounded, check with a licensed electrician.
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician, or service representative or personnel, if you are in doubt as to whether the appliance is properly grounded. DO NOT modify the plug on the power supply cord. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can result in a risk
of electrical shock. Check with a qualified electrician, service representative, or personnel if you are in doubt as to whether the appliance is properly grounded. DO NOT modify the plug on the power supply cord. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
If required by local codes, an external 18 gauge or larger copper ground wire (not provided) may be added. Attach to washer cabinet with a #8-18 x 1/2 sheet metal screw (available at any hardware store) to rear of washer.
WATER SUPPLY REQUIREMENTS
Installation must conform to Standard for Mobile Homes, ANSI A119.1 and National Mobile Home Construction and Safety Standards Act of 1974 (PL93-383).
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUST be installed within 42 inches (107 cm) of your washer's water inlet. The faucets MUST be 3/4" (1.9 cm) garden hose-type so inlet hoses can be connected. Water pressure MUST be between 10 and 120 pounds per square inch. Your water department can advise you of your water pressure. The hot water temperature should be set to deliver water at 120° to 140°F (48° - 60°C).

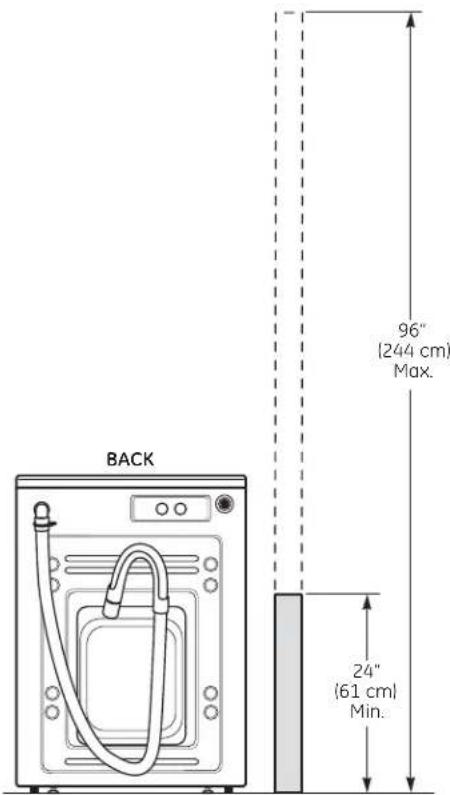

DRAIN REQUIREMENTS
- Drain capable of eliminating 17 gals (64.3 L) per minute.
- A standpipe diameter of 1-1/4" (3.18 cm) minimum.
- The standpipe height above the floor should be:
Minimum height: 24" (61 cm) Maximum height: 96" (244 cm)
NOTE: The drain hose attached to the washer can reach a 58" (147 cm) high standpipe. For a higher standpipe, contact an authorized parts distributor.
INSTALLING THE WASHER
- Run some water from the hot and cold faucets to flush the water lines and remove particles that might clog up the inlet hoses and water valve screens.
- Obtain inlet hoses locally.
- Ensure there is a rubber washer in the hoses. Reinstall the rubber washer into the hose fitting if it has
Video
Scan this code to watch a video on this topic.
Carefully connect an inlet hose to the outside "H" outlet of the water valve. Tighten by hand, then tighten another 2/3 turn with pliers. Carefully connect the other inlet hose to the inside "C" outlet of the water valve. Tighten by
hand; then tighten another 2/3 turn with pliers. Do not cross thread or over-tighten these connections.
- Install the screen washers by inserting them into the free ends of the inlet hoses with protruded side facing the faucet.
- Connect the inlet hose ends to the HOT and COLD water faucets tightly by hand, then tighten another 2/3 turn with pliers. Turn the water on and check for leaks.
- Carefully move the washer to its final location. Gently rock the washer into position ensuring inlet hoses do not become kinked. It is important not to damage the rubber leveling legs when moving your washer to its final location. Damaged legs can increase washer vibration. It may be helpful to spray window cleaner on the floor to help move your washer into its final position. NOTE: To reduce vibration, ensure that all four rubber leveling legs are firmly touching the floor. Push and pull on the back right and then back left of your washer.
NOTE: Do not use the dispenser drawer or door to lift the washer.
NOTE: If you are installing into a drain pan, you can use a 24-inch long 2x4 to lever the washer into place.
- With the washer in its
final position, place
a level on top of the
washer (if the washer
is installed under a
counter, the washer
should not be able to
rock). Adjust the front
leveling legs up or down
to ensure the washer is resting
solid. Turn the lock nuts on
each leg up towards the base
of the washer and snug with a
wrench
NOTE: Keep the leg extension at a minimum to prevent excessive vibration. The farther out the legs are extended, the more the washer will vibrate.
If the floor is not level or is damaged, you may have to extend the rear leveling legs.
Video
Scan this code to watch a video on this topic.
INSTALLING THE WASHER (cont.)
- Attach the U-shaped hose guide to the end of the drain hose. Place the hose in a laundry tub or standpipe and secure it with the cable tie provided in the enclosure package.
NOTE: Placing the drain hose too far down the drain pipe can cause a siphoning action. No more than 7 inches of hose should be in the drain pipe. There must be an air gap around the drain hose. A snug fit can also cause a siphoning action.
- Plug the power cord into a grounded outlet.
NOTE: Check to be sure the power is off at the circuit breaker/fuse box before plugging the power cord into an outlet.
- Turn on the power at the circuit breaker/fuse box.
- Read the rest of this Owner's Manual. It contains valuable and helpful information that will save you time and money.
- Before starting the washer, check to make sure:
Main power is turned on. The washer is plugged in. The water faucets are turned on. The unit is level and all four leveling legs are firmly on the floor. The shipping support hardware is removed and saved. The drain hose is properly tied up. There are no leaks at the faucet, drain line or washer.
- Run the washer through a complete cycle. Check for water leaks and proper operation.
- If your washer does not operate, please review the Before You Call For Service section before calling for service.
- Place these instructions in a location near the washer for future reference.
REPLACEMENT PARTS
If replacement parts are needed for your washer, they can be ordered in the United States by visiting our Web site at GEAppliances.com or by calling 800.GE.CARES. In Canada, call 800.661.1616.
Truth or myth?
| Below is a list of truths and myths to help you better understand your frontload washer |
| Truth or Myth? Answer | Explanation |
| There is not enough water to properly wash my clothes | MYTH | Since frontload washers do not require the tub to fill with water, significantly less water is required to thoroughly wash and rinse each load. Except for certain cycles like Delicates/Handwash and Basket Clean that use more water, you will not see a visible water line on the door glass. |
| My frontload washer may add time or run longer than the original displayed time. | TRUE | Occasionally, the washer may need to add more time to the cycle. This is mainly due to automatic load redistributions to better balance the load and reduce vibration. It is normal operation for the washer to add time to the cycle to rebalance the load. Common causes of out-of-balance loads or longer cycle times are a clogged pump filter (see the Care and Cleaning section), un-level washer, or exceeding the recommended maximum load sizes. |
| I should see suds/foam during a wash cycle in the frontload washer. | MYTH | HE detergents, which should be the only detergents used in your GE frontload washer, have been formulated to clean effectively without causing a build-up of suds. If you add detergent until a visible suds/foam level is reached, you may be using too much detergent and negatively impacting washer performance. Remember, more suds/foam does not equal more cleaning power. Follow the manufacturer's directions for HE detergent. |
| It is best to wash full loads and like fabrics together. | TRUE | Wash multiple similar garments at one time for best results. Washing single items can cause an out-of-balance condition. |
| I need to keep the washer level for proper operation and to reduce vibration. | TRUE | If the washer is uneven, adjust the leveling legs so that they are firmly touching the floor and the lock nuts are securely tightened. This is especially important if the washer is installed on a pedestal. Leveling the legs on the washer or the pedestal require the same steps. |
| It is impossible to overload a frontload washer. | MYTH | Although the capacity of the frontload washer allows for larger loads than a traditional topload washer, care must be taken to not overload the wash basket. See the Loading and Using the Washer section for recommended maximum load sizes. Overloading the washer can lead to reduced wash performance and clothes becoming trapped between the door glass and the gasket, possibly causing damage to your gasket or your clothes. |
| If not periodically cleaned, my wash basket and gasket may not maintain a fresh smell. | TRUE | This is true for all washers, not just frontload. Regularly run a Basket Clean cycle and clean around the rubber door gasket. When not in use, you may leave the door slightly open for the inside of the washer to air dry. Close supervision is necessary if this appliance is used by or near children. |
| Frontload washers have a "pump filter" that needs to be cleaned periodically. | TRUE | Due to the nature of the frontload washer, it is sometimes possible for small articles to pass to the drain pump. The washer has a filter to capture lost items so they do not damage the drain pump. To retrieve lost items, clean out the pump filter (see the Care and Cleaning section). Indicators of a clogged pump are long drain and cycle times, wet clothes at the end of a cycle, incomplete cycles or washer pausing in the middle of a cycle. |
| I cannot add items to a wash cycle once it has started. | MYTH | To add items after the washer has started, press Start/Pause - Add a Garment button and wait until the door is unlocked. The drain pump may run briefly before door is unlocked. Do not try to force open the door when it is locked. After the door unlocks, open gently. Add items, close the door and press Start/Pause to restart. |
| Items left in pockets can cause damage to the rubber door gasket | TRUE | This is true for all frontload washers. Remove all loose items from your clothes. |
Troubleshooting Tips
Save time and money! Review the charts on the
following pages first and you may not need to call for
service.
| Problem Possible Cause What To Do | |
| Not draining
Not spinning
Not tumbling | Load is out of balance | · Redistribute clothes and run drain & spin or rinse & spin.
· Increase load size if washing small load containing heavy and light items.
· See page 15 on how to clean the Pump Filter.
· Straighten drain hose and make sure washer is not sitting on it.
· Check household plumbing. You may need to call a plumber.
· Ensure there is an air gap between hose and drain. |
| Pump clogged |
| Drain hose is kinked or improperly connected |
| Household drain may be clogged |
| Drain hose siphoning; drain hose pushed too far down the drain |
| Leaking water | Door gasket is damaged | · Check to see if gasket is seated and not torn. Objects left in pockets may cause damage to the washer (nails, screws, pens, pencils)
· Water may drip from the door when the door is opened. This is a normal operation.
· Carefully wipe off rubber door seal. Sometimes dirt or clothing is left in this seal and can cause a small leak |
| Check back left of washer for water |
| Fill hoses or drain hose is improperly connected |
| Household drain may be clogged | · If this area is wet, you have oversudsing condition. Use less detergent. |
| Dispenser clogged | · Make sure hose connections are tight at washer and faucets and make sure end of drain hose is correctly inserted in and secured to drain facility.
· Check household plumbing. You may need to call a plumber.
· Powder soap may cause clogs inside the dispenser and cause water to leak out the front of the dispenser. Remove drawer and clean both drawer and inside of dispenser box. Please refer to Cleaning the Washer section.
· Use only HE and correct amount of detergent.
· If new installation, check for crack on inside of dispenser box. |
| Incorrect use of detergent |
| Dispenser box cracked |
| Clothes too wet Load | Load is out of balance | · Redistribute clothes and run drain & spin or rinse & spin.
· Increase load size if washing small load containing heavy and light items.
· The machine will slow the spin speed down to 410 rpm if it has a hard time balancing the load. This speed is normal.
· See page 15 on how to clean the Pump Filter.
· The dry weight of the load should be less then 16 lbs.
· Straighten drain hose and make sure washer is not sitting on it.
· Check household plumbing. You may need to call a plumber.
· Ensure there is an air gap between hose and drain. |
| Pump clogged |
| Overloading |
| Drain hose is kinked or improperly connected |
| Household drain may be clogged |
| Drain hose siphoning; drain hose pushed too far down the drain |
Problem Possible Cause What To Do
| Incomplete cycle or timer not advancing | Automatic load redistribution | • Timer adds 3 minutes to cycle for each rebalance. 11 or 15 rebalances may be done. This is normal operation. Do nothing; the machine will finish the wash cycle. |
| Pump clogged | • See page 15 on how to clean the Pump Filter. |
| Drain hose is kinked or improperly connected | • Straighten drain hose and make sure washer is not sitting on it. |
| Household drain may be clogged | • Check household plumbing. You may need to call a plumber. |
| Drain hose siphoning; drain hose pushed too far down the drain | • Ensure there is an air gap between hose and drain. |
| Loud or unusual noise; vibration or shaking | Cabinet moving | • Washer is designed to move 1/4" to reduce forces transmitted to the floor. This movement is normal. |
| All rubber leveling legs are not firmly touching the floor | • Push and pull on the back right and then back left of your washer to check if it is level. If the washer is uneven, adjust the rubber leveling legs so they are all firmly touching the floor and locked in place. Your installer should correct this problem. |
| Unbalanced load | • Pause unit, open door and manually redistribute load. To check machine, run rinse and spin with no load. If normal, unbalance was caused by load. |
| Pump clogged | • See page 15 on how to clean the Pump Filter. |
| No power/washer not working or dead | Washer is unplugged | • Make sure cord is plugged securely into a working outlet. |
| Water supply is turned off | • Turn both hot and cold faucets fully on. |
| Circuit breaker/fuse is tripped/blown | • Check house circuit breakers/fuses. Replace fuses or reset breaker. Washer should have separate outlet. |
| Automatic self system checks | • First time the washer is plugged in, automatic checks occur. It may take up to 20 seconds before you can use your washer. This is normal operation. |
| Snags, holes, tears, rips or excessive wear | Overloaded | • Do not exceed maximum recommended load sizes. See recommended maximum load sizes on page 13. |
| Pens, pencils, nails, screws or other objects left in pockets | • Remove loose items from pockets. |
| Pins, snaps, hooks, sharp buttons, belt buckles, zippers and sharp objects left in pockets | • Fasten snaps, hooks, buttons and zippers. |
| Control time wrong or changes | This is normal | • During spin the washer may need to rebalance the load sometimes to reduce vibrations. When this happens, the estimated time is increased causing time left to increase or jump. |
| Not enough water | This is normal | • Horizontal washers do not require the tub to fill with water like top-load washers. |
| Washer pauses or has to be restarted, or washer door is locked and will not open | Pump clogged | • See page 15 on how to clean the Pump Filter. |
| Door unlocks or press Start and machine doesn't operate | This is normal | • Front-load washers start up differently than top-load washers, and it takes 30 seconds to check the system. The door will lock and unlock. |
| Incorrect operation | • Simply open and close the door firmly; then press Start. |
Before you call for service...
| Problem Possible Cause What To Do | |
| Water does not enter washer or enters slowly | Automatic self system checks | After Start is pressed, the washer does several system checks. Water will flow 60 seconds after Start is pressed. |
| Water supply is turned off | Turn on both hot and cold faucets fully. |
| Water valve screens are stopped up | Turn off the water source and remove the water connection hoses from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on. |
| Inlet hose screen washers are stopped up | Turn off the water source and remove the inlet hoses from the wall faucets. Use a brush or toothpick to clean the screen washers in the end of the hoses. Reconnect the hoses and turn the water back on. |
| Wrinkling Improper | sorting | Avoid mixing heavy items (like work clothes) with light items (like blouses). |
| Overloading | Load your washer so clothes have enough room to move freely. |
| Incorrect wash cycle | Match cycle selection to the type of fabric you arewashing (especially for easy care loads). |
| Repeated washing in water that is too hot | Wash in warm or cold water. |
| Grayed or yellowed clothes | Not enough detergent | Use correct amount of detergent. |
| Not using HE (high efficiency) detergent | Use only HE detergent. |
| Hard water | Use hottest water safe for fabric. |
| Water is not hot enough | Use a water conditioner like Calgon brand or install a water softener. |
| Detergent is not dissolving | Make sure water heater is delivering water at 120°-140°F (48°-60°C). |
| Dye transfer | Try a liquid HE detergent. |
| Dye transfer | Sort clothes by color. If fabric label states wash separately, unstable dyes may be indicated. |
| Colored spots Incorrect | Correct use of fabric softener | Check fabric softener package for instructions and follow directions for using dispenser. |
| Dye transfer | Sort whites or lightly colored items from dark colors. Promptly remove wash load from washer. |
| Water temperature is incorrect | Water supply is improperly connected | Make sure hoses are connected to correct faucets. |
| House water heater is not set properly | Make sure house water heater is delivering water at 120°-140°F (48°-60°C). |
| Slight variation in metallic color | This is normal | Due to the metallic properties of paint used for this unique product, slight variations of color may occur due to viewing angles and lighting conditions. |
| Bad odor inside your Washer | Washer unused for a long time, not using recommended quality of HE detergent or used too much detergent | Run a Basket Clean cycle. |
| In case of strong odor, you may need to run the Basket Clean cycle more than once. |
| Use only the amount of detergent recommended on the detergent container. |
| Use only HE (high efficiency) detergent. |
| Always remove wet items from the washer promptly after machine stops running. |
| Leave the door slightly open for the water to air dry. Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on or in this or any other appliance. |
| Detergent leak Inc. | Correct placement of detergent insertThis is normal | Make sure detergent insert is properly located and fully seated. Never put detergent above max line.It is normal operation to see detergent leak on door gasket about 20 seconds after filling the dispenser. |
| Improper dispensing of softener or bleach | Dispenser cloggedSoftener or bleach is filled above the max lineSoftener or bleach cap issue | Monthly clean the dispenser drawer to remove buildup of chemicals.Make sure to have the correct amount of softener or bleach.Make sure softener and bleach cap for dispenser are seated or they will not work. |
| Dispenser drawer not dispensing properly | Laundry detergent packet placed in dispenser drawer | Laundry detergent packets should not be used in the dispenser.They should only be added directly to the wash basket following the manufacturer's directions. |
| Pump running while washer is not in use | Clog in sump drain | This is normal. Drain sump is detecting an undesired water fill level from a potential open faucet. Shut off water valve and inspect water valve for blockage. |
GE Washer Warranty. (For customers in the United States)
All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.
Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.
For The Period Of: We Will Replace:
One Year
From the date of the
original purchase costs
Any part of the washer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and related service to replace the defective part.
What Is Not Covered (in the United States):
Service trips to your home to teach you how to use the product. ■ Improper installation, delivery or maintenance. Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. - Replacement of house fuses or resetting of circuit breakers. - Products which are not defective or broken, or which are working as described in the Owner's Manual.
- Damage to the product caused by accident, fire, floods or acts of God.
- Incidental or consequential damage caused by possible defects with this appliance. Defects or damage due to operation in freezing temperatures. Damage after delivery. Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
All warranty service provided by our Factory Service Centres or an authorized technician. For service, call 1.800.561.3344.
Please have serial number and model number available when calling for service.
For The Period Of: We Will Replace:
One Year
From the date of the original purchase se
Any part of the washer which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labour and related costs to replace the defective part.
What Is Not Covered (in Canada):
Service trips to your home to teach you how to use the product. ■ Improper installation, delivery or maintenance. Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially. - Replacement of house fuses or resetting of circuit breakers. - Products which are not defective or broken, or which are working as described in the Owner's Manual.
- Damage to the product caused by accident, fire, floods or acts of God.
- Incidental or consequential damage caused by possible defects with this appliance. Defects or damage due to operation in freezing temperatures. Damage after delivery. Product not accessible to provide required service.
EXCLUSION OF IMPLIED WARRANTY--Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by MC Commercial to provide.
WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.
Warrantor: MC COMMERCIAL, BURLINGTON, ON, L7T 3R6
PROPER INSTALLATION
Power (Alimentation)
Warrantor: MC COMMERCIAL, BURLINGTON, ON, L7T 3R6
Light colored clothing
Dark colored clothing
Soil
Heavy
Normal Light
Fabric
Delicate garments
Warrantor: General Electric Company. Louisville, KY 40225
GE Appliances Website
GEAppliances.com
General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Register your appliance at GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line. In Canada: www.GEApliances.ca
Schedule Service
In the U.S.: GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours. In Canada, call 1.800.561.3344
Real Life Design Studio
In the U.S.: GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, MC Commercial Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3
Extended Warranties
In the U.S.: GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133
Parts and Accessories
In the U.S.: GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.
In the U.S.: GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park Louisville, KY 40225
In Canada: www.GEApliances.ca, or write to: Director, Consumer Relations, MC Commercial Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3
For questions on installation call 1-800-626-2000 (US) and 1-800-561-3344 (Canada).
Register Your Appliance
In the U.S.: GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca
