1-Specific characteristics
2- Installation
3- Handling
4- Maintenance
5- Cautions and advice
6- Safety features
7- Controls
8- Wash programme table

TABLE DES MATIERES

Diagram of two electrical plugs, one open and one inserted, with no visible text or symbols

Illustration of a two-pin electrical socket connected to a plug, showing internal components and wiring (no text or symbols)

Hand holding a rectangular object with curved lines, labeled 'B' (no text or symbols on the object itself)

BOMANN® M F L WA - 921 P

BOMANN WA - 924 WA - 925

BOMANN' WA - 922 Y E L P

WA - 923

P PROGRAMMSCHALTER

8- TABELLE DER WASCHPROGRAMME

8- TABELLE DER WASCHPROGRAMME

- Dimensions....Height....85 cm

Width....60 cm

Depth....55 cm

● Power supply voltage (s.ph.)....220-230 V \~ 50 Hz
● Maximum power consumption washing....2.200 W

Spin speed......	400			rpm1200/1400
Energy consumption,cotton wash at 60°C (without pre-wash)......		1.151.35	1.03	kWh
Water consumption,cotton wash at 60°C (without pre-wash)......	69	59	49	1

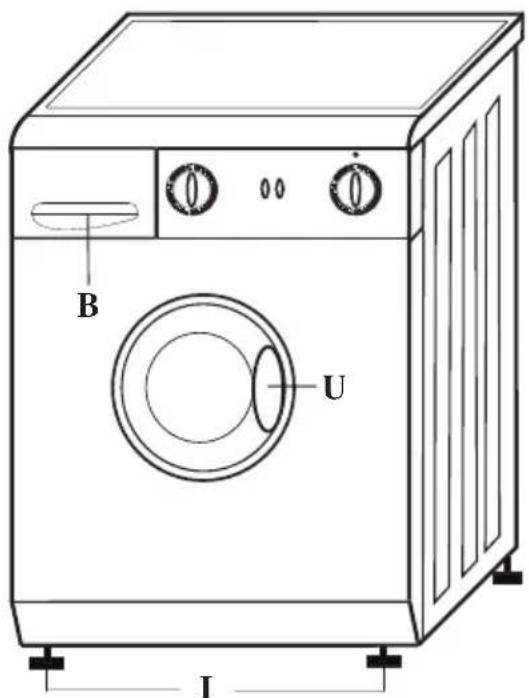

1.2 -Description of the washing machine

B U I

18

Section 7 CONTROLS

B- Detergent drawer

C- No spin push-button

E- ECO 60 °C push-button

F- Cold wash push-button

I- Adjustable feet

L- Pilot lamp

M- ECO half load push-button

P- Programme selector

T- Temperature selector

U- Door opening handle

Y- Super rinse push-button

2- INSTALLATION

2.1 - Un-blocking the drum

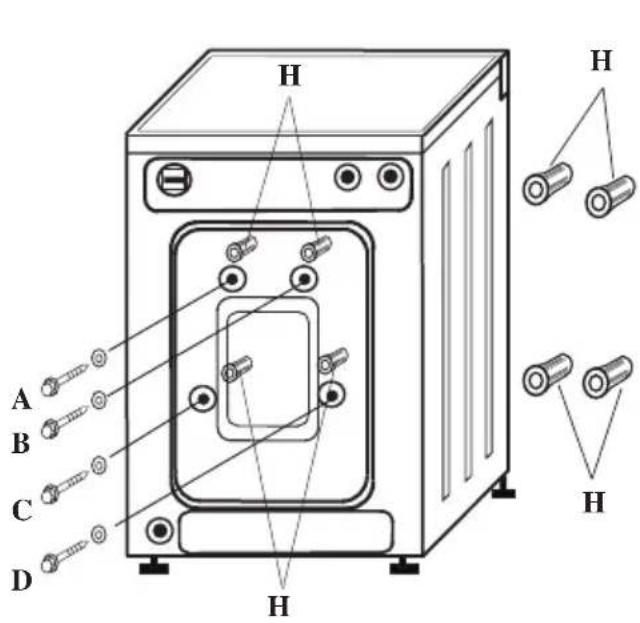

After removing the external packing the drum must be un-blocked before the machine is used.

A B C D H H H H

This is done in the following manner:

1.) Unscrew and remove the four screws A-B-C-D.

2.) Push with a screwdriver at an angle in the screw holes until the four spacers (H) fall.

These must be recovered and kept.

3.) It is very important to recover these four spacers (H) because they could cause damage if they remain inside the machine and also because they will be required to move the machine in the case of moving house.

2.2 -Plumbing connection

The user will require a tap with a 3/4" gas screwthread outlet and a drain situated between 50 and 80 cms. above floor level. The watermain pressure must be between 4 and 98 N/cm² inclusively.

Proceed as follows:

-Let the water run for a while before connecting the hose.

-Connect the water inlet hose applying the rubber joint provided in the fittings equipment bag.

-Position the drainage hose inside a hose of a larger diameter, or rest it well fastened against any kind of drain at the height indicated.

-Neither of the hoses should be twisted or kinked.

Max.80 cm. Min.50 cm H C

C- Cold water connection.
H- Hot water connection.

The "H" connection can only be applied in those machines fitted for this (Bithermical).

2.3 - Levelling

For the appliance to work under optimum conditions, it needs to be levelled perfectly, i.e. horizontal and stable.

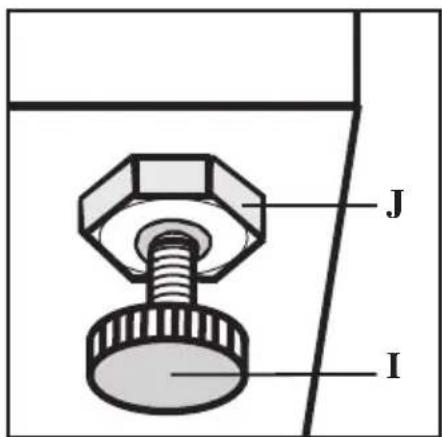

J I

- Once the machine has been positioned in 1st place, work the adjustable feet "I" at the front of the washing machine, until it is horizontal and the four feet are resting firmly on the floor.

- Once the levelling is done, block the adjustable feet by tightening the nut "J".

- In order to prevent noise and vibration, ensure that the machine is not touching any nearby walls or furniture.

- Make periodic checks that the machine is levelled by repeating these operations if necessary.

2.4 -Electrical connection

Before connecting the washing machine to the power supply, the following points should be checked through:

- That the power supply, is single-phase 230 V \~ (230-240 \~ for UK).

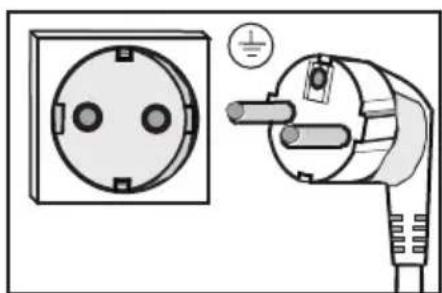

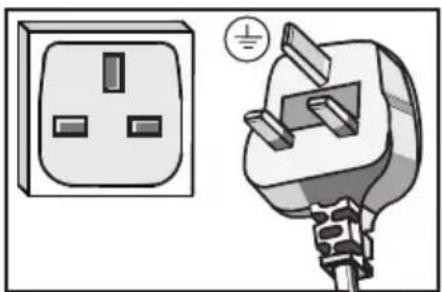

Diagram of a two-pin electrical outlet connected to a power plug, showing internal components and terminal connections (no text or labels)

- That the user's meter, limiter, fuses, power socket and installation are of an adequate output for the power indicated on the characteristics plate of this washing machine.

• 10 A 250 V fuse (13 A 250 V for UK).

- Use a wall socket with an earth connection.

The wasing machine's plug guarantees the machine's earthing.

Illustration of a power outlet and its plug (no text or symbols)

If the wall socket does not have an earth connection, you must connect the central earth connection of the washing machine to good ARTIFICIAL EARTH (consult your dealer).

THE WASHING MACHINE MUST BE WELL EARTHED.

The manufacturer declines all responsibility for any accidents on occurrences caused by a defective earth connection or lack thereof.

NOTE: If the power supply cable is damaged, it should be substituted by a specially prepared replacement cable, to be supplied by the manufacturer, or by the official after sales Technical Service Organisation.

3- HANDLING

3.1 - Loading door-Opening

Once the washing programme has finished, push the programme button (or ON/OFF push-button) and wait 2 minutes before trying to open the door.

A 1

CASE A: 1. Press the hidden lever with the index and middle fingers ①

1. Pull outwards.

Hand holding a rectangular object with curved lines, no visible text or symbols

CASE B: Pull the door lever outwards.

WARNING: When the door is open, the power supply is cut and the machine will not operate.

3.2 - Detergent drawer. Distribution of the washing products.

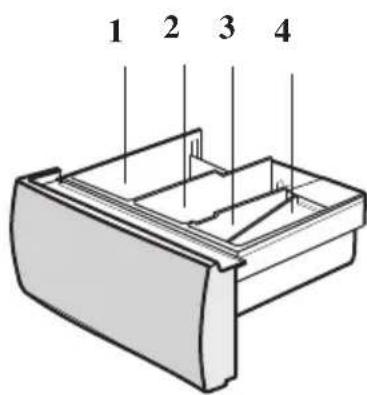

1 2 3 4

- To open the drawer, put your and in the lower part of the soap drawer and pull it outwards.

SECTION 1 - Pre-wash soap (50 gr.Max.).

SECTION 2 - Main wash soap (125 gr.Max.).

SECTION 3 - Bleach (80 ml. Not concentrated).

SECTION 4 - Softener (80 ml.Max.).

- Never put more than indicated by the lever in the soap drawer.

- The ideal dose of detergent depends on the hardness of the water, how dirty the clothes are and the load. (Consult the soap manufacturer's instructions).

● Make sure that the material can support the treatment with bleach if it is used.

3.3 - Selecting the clothes load

Beffore putting the clothes into the machine, you should:

• Separate the clothes into three lots (cotton, synthetics and wool).
• Within each group, separate the coloureds from the whites.
• Once the clothes have been sorted, put them into the drum of the machine, separately according to colour and group, loose piece by piece, as per the following proportions:

Cotton maximum 5 kg.

Synthetics maximum 2,5 kg.

Wool maximum 1 kg.

3.4 - Selecting the right program

Once the clothes have been sorted into fabric types and colours, you need to select the right program and temperature. SEE PROGRAM TABLE (Section 8).

3.5 - Starting operation

With the machine now loaded, the door closed, the soap drawer compartments filled and the right program chosen, to start the machine, you just need to PULL OUT THE PROGRAMMER CONTROL BUTTON (P), OR ON THE PUSH-BUTTONT (X).

The machine automatically goes through all the operations included in the wash cycle until it ends.

The wash is now ready to be hung out dry (or to be ironed in the case of washer - dryers).

3.6 - How to get the best performance

3.6-1 - Maximise the load (Section 8)

You obtain the most efficient use of energy, water, detergent and time by using the maximum recommended load.

You save 50% energy by washing one full load instead of two half loads.

3.6-2 - Do you need a pre-wash?

Only for deeply stained laundry !.

You save detergent, water, time and between 5 to 15% of energy through not using the pre-wash for light and anormally soiled clothes.

3.6-3 - Do you need hot water?

Soak or treat stains before the wash, in order to reduce to need to use the hot programme.

You save 50% energy by using the 60°C programme.

3.6-4 - For washer-dryers: before using the dryer

Select high ( ≥ 850 rpm) for the spin before drying, in order to save energy, water hand time during the drying period.

4- MAINTENANCE

4.1 - Cleaning the drain-pump

This machine is fitted with a high-performance SELF-CLEANING motorized pump.

This pump has the capacity to pull along and to wash away with the water any fibres, buttons or objects of a small size. Because of this, the machine does not require a water filter.

Under normal circumstances, this motorized pump cannot become blocked. If it should become blocked in any case, call the Technical Assistance Service to have this malfunction put right.

N.B.: Before placing clothes in the washing machine, make sure there are no coins, buttons, clips, etc. in any pockets.

4.2 - Cleaning the electrovalve filter.

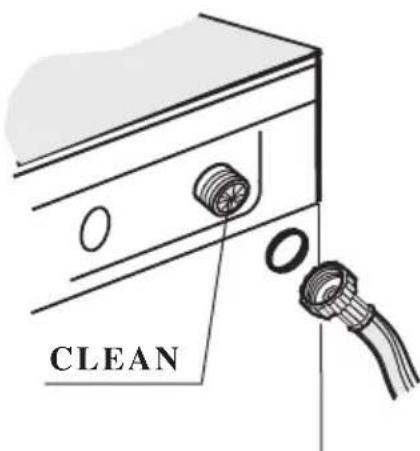

CLEAN

Any impurities in the water supply are deposited in the filter at the inlet to the electrovalve.

To clean this filter:

a) Turn off the water tap.

b) Unscrew the water inlet hose at the washing machine end.

c) Remove the filter using pointed pliers and clean it.

d) Reverse the procedure to re-attach the hose.

4.3 - Cleaning remains of detergent.

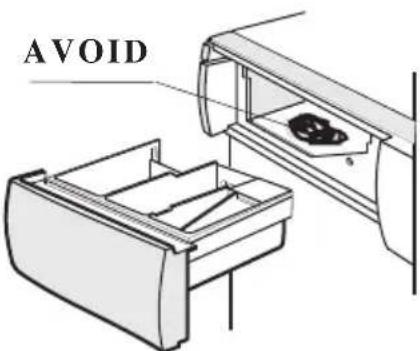

AVOID

Overfilling the prewash and main wash compartments with too must detergent causes remains to be deposited inside the collector, and could, over time, cause water to leak through the entrance of the detergent drawer.

To eliminate these remains, remove the soap drawer by pulling it outwards, and clean it thoroughly.

5- CAUTIONS AND ADVICE

In order to get maximum satisfaction and performance from this appliance, it is important to follow the instructions indicated below:

• Select the clothes load correctly (section 3.3) and choose the appropriate programme (section 8).
  Before starting to operate the machine, it must be released from its blocking (section 2.1).
  Before opening the door, check that there is no water in the machine and the pilot light is off.
  ◆ Plug the power supply plug into a socket with an EARTH CONNECTION and at the correct voltage.
  Put in the washing products in the right proportion and the right compartment (section 3.2).
  ◆ Small garments, such as socks, belts, etc. are best put inside a bag to avoid them being lost.
  Before putting clothes into the washing machine, make sure that there is nothing in the pockets (coins, buttons, clips, etc.) and that zips are undone.
  ◆ If your machine has a filter, you should periodically check it is clean (sec. 4.1).
  ◆ The interior of the washing machine should be handled by specialist only.
• After each wash, leave the door ajar to prevent the rubber seal from becoming misshapen.
  When the clothes to be washed are heavily soiled or splattered with mud, it is advisable to run a program with prewash.
  ◆ Always put the machine on full, to save energy.
  When the machine is installed, or after a long time without it being used, it is advisable to run a wash program with the machine empty, to eliminate any rusty water in the tubes.
• For washer-dryers, do not use the dryer function if the clothes have been treated with any non-aqueous solution.
• Also for washer-dryers, do not use the dryer function for items containing spongey rubber or similar elastomer materials.
• The dryer must be installed in a well-ventilated place, awway from the influence of gases from other appliances and from defective installations.
• The lower ventilation, between the floor and the base of the machine, must not be obstructed (by carpet, cloths, etc.).

If the event any doubts or anomalies which arise, ring the TECHNICAL ASSISTANCE SERVICE, but first, make the following checks:

a) The machine is not working. Check that:

• The door is properly closed.
• The fuses are not brown and the automatic cutout has not been triped.
• The programmer control button P (or the push-button X) is not in the STOP position.

b) The machine is not filling with water. Check that:

• The tap is open and the pressure is sufficient.
• The electrovalve filter is not clogged (Section 4.2).
• The filling hose is not kinked.

c) The machine will not drain or spin. Check that:

• The drainage hose is not kinked.
• The drainage pump filter is not clogged.

d) The machine is filling with water and draining at the same time. Check that:

• The drainage hose is positioned at the right height (Section 2.2) and that it is not syphoning because the diameters of this hose and the drain where it is resting are very tight.
  e) The machine is vibrating or making a lot of noise. Check that:

- The block release operation has been carried out (Section 2.1).

- The washing machine is properly levelled (Section 2.3).

- The washing machine is not vibrating due to contact with furniture or a wall.

f) The machine is leaking water. Check that:

• The filter cap is tightly closed and with the trim in 1st place.
• The inlet hose is tightened on both sides and with the trim in 1st place.
• The detergent used is loose powder and is not forming lumps which clog the soap drawer.
• The washing machine is well levelled and not leaning forwards.

g) The machine is not washing to your satisfaction. Check that:

• You have chosen the right temperature an program.
• You are using the right dose of detergent.
• The filter is not clogged and so the rinses are not working properly.

h) If the loading door will not open, remember that:

- The pilot lamp (if there is one) must be off. If it is not, press the button to the STOP position and wait about three minutes before trying to open it. If it is still impossible to open the door the give it a gentle blow with your hand so that the vibration will un-block the safety device.

If after making these checks, the doubts or abnormalities continue, then call our Technical Assistance Service who will attend to you as soon as possible. The telephone number can be found in the control list of Technical Assistance Services, or on the own machine customer attention and Technical Service DIRECT LINE label.

6- SAFETY FEATURES

An electro-mechanical safety device prevents the loading door from opening whilst the appliance is operating, thus preventing access to the inside of the machine and the consequent danger of injuries to the hands from coming into contact with high temperatures or from the movement of the drum.

6.2 - In the wash motor

In the event of mechanical underload or overload, a thermal safety device automatically protects the motor.

6.3 - Heating

Heating of the wash water cannot start until the required water level is reached. If there is not enough water or the tap is off, the machine stops (the program does not move forward).

A safety thermostat prevents excess temperatures.

6.4 - Plumbing.Water inlet

In the event the filter clogs.the machine will never overflow,and in the event the pump motor suffers an electrical malfunction,the filling valve will not work.

6.5 - Child safety

The accesses to the loading door and to the pump motor filter are protected against any accidental handling by children.

7- CONTROLS

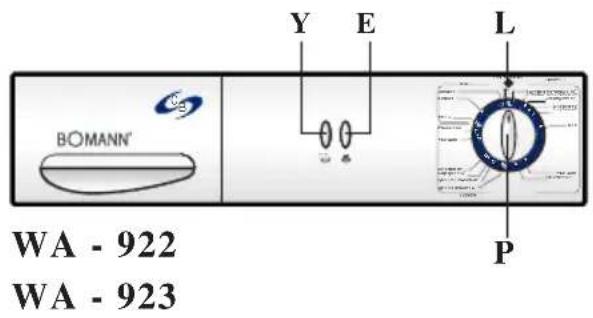

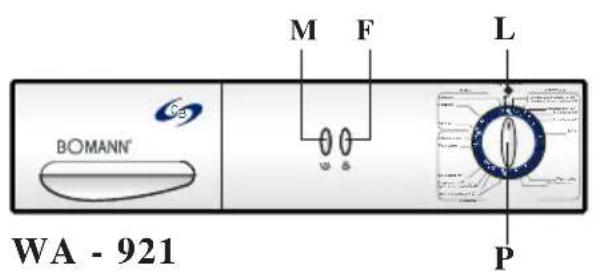

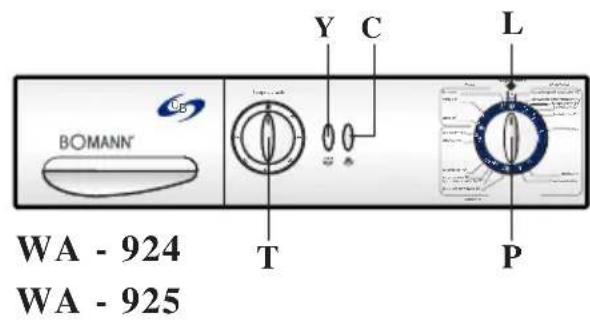

M F L BOMANN® WA - 921 P

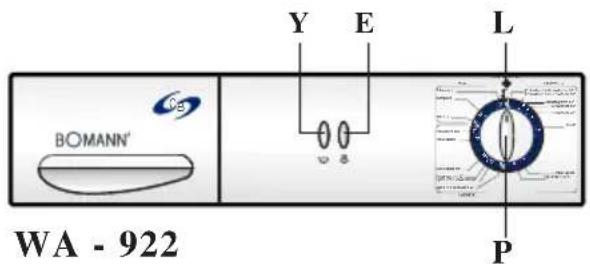

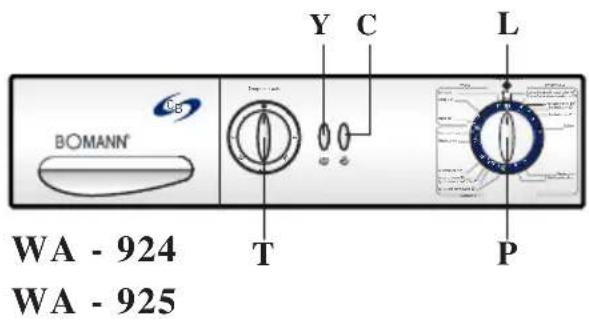

BOMANN WA - 924 WA - 925

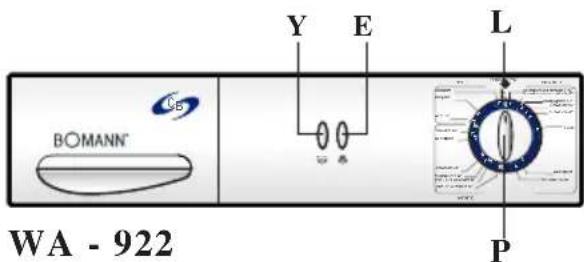

BOMANN Y E L WA - 922 WA - 923 P

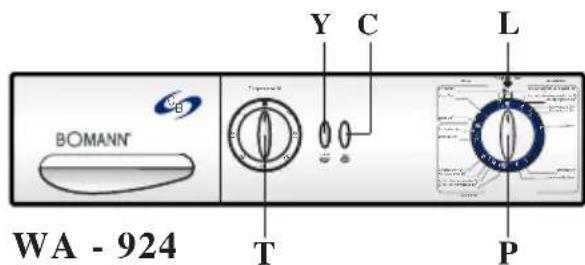

P PROGRAMME SELECTOR

This control button has two functions:

1- Selecting the right program for the type and degree of soiling of the fabric to be washed.

To fix the program, push the button and turn clockwise until the marker is lined up with the chosen program.

2- Starting the operation of the washing machine.

Once the adequate programme has been selected, pull the button outwards; the machine start up and automatically goes through all the wash functions until the end of the cycle. The programmer button moves forward along with the wash cycle until it reaches the stop position; at is point, push the button in to switch off the machine and to be able to open the loading door. The machine will not work with the button pushed in.

① TEMPERATURE SELECTOR

This control button enables the temperature to be chosen for the wash, most suitable for the type of fabrics of which the load of clothes to be washed consists. A temperature equal to or lower than that indicated in the program table can be chosen (even cold). To fix the temperature, just turn the button until it is lined up with the corresponding marker.

NO SPIN PUSH-BUTTON

When activated (button IN), the spin is eliminated from all the programs of the machine. This operation is necessary for certain types of delicate fabrics.

ECO 60 °C PUSH-BUTTON

When this control button is in the machine will automatically carry out the programme with a considerable saving in energy and at a temperature of 60 °C .

COLD WASH PUSH-BUTTON

When activated (button IN), the water heating is eliminated from all the wash programs and they are run with the water at the temperature at which it goes into the machine.

HALF LOAD PUSH-BUTTON

When activated (button IN), the machine automatically runs the program with a considerable water saving. Recommended only when the load is less than 2,5 kg.

SUPER RINSE PUSH-BUTTON

When it is not operated (button OUT) the machine will automatically carry out the programmes for cotton with a considerable saving of water. It is only advisable when the load is equal to or less than 3 kg. With bigger loads it is advisable to operate this button (button IN) so that greater rinse efficiency is obtained.

PILOT LAMP

When it is lit, indicates that the machine is switched on and that the door blocking system is activated.

In normal washing machines it goes out at the end of each programme and door lock not activated.

PRACTICAL ADVICE

a) Correctly select the load of clothes and adequate programme (sec. 3.3 & 8).
b) The temperature indicated in the programme table is the maximum which can be reached.
c) One can choose the desired temperature with the temperature selector, but always lower than that indicated in the programme table (section 8).
d) By pressing the button "COLD WASH" the wash programmes temperatures will be reduced to that of the incoming mains water.

e")The programmes for resistant materials cotton finish with a long spin.

The programmes for synthetic materials finish a short spin. They could also finish with the drum full of water (according to rinse and hold push button). To finish the cycle in this case, move the programme button one position.

The wool programmes finish with a gentle spin. They could also finish with the drum full of water (according to rinse and hold push button). To finish the cycle in this case, move the programme button one position.

f) All articles of clothing that bear a label with the wool symbol can be washed with complete safety with the wool programme of this washing machine.

g) The ECO 60 °C button allows us to carry out a wash with a considerable saving in energy. It only woks in the energetic cotton programmes.

h) Bleach must only be used with white cotton materials. It must be non-concentrated bleach for use in washing machines and it must be put in the corresponding section of the soap drawer.

i) The super rinse button permits an extra rinse when the user thinks it necessary.

k) Never press the ECO 1/2 load button with the "WOOL" and "SYNTHETIC" programmes.

8- WASH PROGRAMME TABLE

SYNTHETICS
17	15	Empty
16	14	Delicate spinning
15	13	Softener	*
14	12	Delicate rinses	*
13	11	Silk wash	30
12	10	Wool wash	40
11	9	Mixed loads	60
10	Resistant with pre-wash	60	●	●
9	8	Resistant with pre-wash	60	●	●
		Intensive spinning
8	7	Softener	*
7	6	Intensive rinses	*
6	5	Intensive colours	40
5	4	Delicate colours	60
4	3	Resistant colours	90
3	2	Very dirty whites	90
2	Whites with soak	90	●	●	●	●
1	1	Whites with pre-wash	90	●	●	●	●
COTTON
ECO 60 °C
COLD WASH
HALF LOAD
SUPER RINSE
E	F	M	Y
LOAD kg
2.5	2.5	400/550 rpm	Empty
0.03	8	1 rinse + ● + spin	Wash 30 + 3 rinse + ● + spin
0.03	11	3 rinse + ● + spin	Wash 60 + 3 rinse + ● + spin
0.04	22	3 rinse + ● + spin	Wash 40 + 3 rinse + ● + spin
0.45	44	Wash 30 + 3 rinse + ● + spin	0.65
●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●	●
2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5	2,5

8- WASH PROGRAMME TABLE

FABRIC

WA-924WA-925PROGRAMMES

°C. SELECTOR

1

Whites with pre-wash

90

●

●

●

●

2

Very dirty whites

90

●

●

●

3

Jeans

60

●

●

4

Resistant colours

60

●

●

5

Delicate colours

40

●

●

6

Intensive rinse

*

(●)

●

7

Softener

*

●

8

Intensive spin

9

Resistant with pre-wash

60

●

●

●

10

Mixed loads

60

●

●

11

Eco wash-Quick wash

50

●

●

12

Delicate colours

40

●

●

13

Softener

*

●

14

Delicate spin

●

15

Wool wash

30

●

●

1

●

0.50

50

Wash 30 + 3 rinse + ● + spin

3 rinse + ● + spin

550 rpm

16

Gentle rinse

*

●

0.03

35

3 rinse + ● + spin

17

Gentle spin

●

0.02

6

550 rpm

18

Gentle rinse

● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + Spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

550 rpm

19

Gentle spin

●

0.02

6

550 rpm

20

Gentle rinse

● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

550 rpm

21

Gentle spin

● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Pin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

40

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

60

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

3 rinse + ● + Spin

10

11

12

13

14

15

16

17

1 - CARACTERISTIQUES SPECIFIQUES

Diagram of a two-pin electrical outlet connected to a multi-pin plug, showing terminal and socket (no text or labels)

Illustration of a power outlet with three slots and a plug inserted into it (no text or symbols)

IL EST INDISPENSABLE DE RACCORDER LE LAVE-LINGE A UNE BONNE PRISE DE TERRE.

Hand holding a rectangular object with curved lines, no visible text or symbols

M F L BOMANN® WA - 921 P

BOMANN WA - 924 T Y C L P

Y E L BOMANN® WA - 922 P

WA - 925

P PROGRAMMATEUR
