USER MANUAL NFW5800DW AMANA

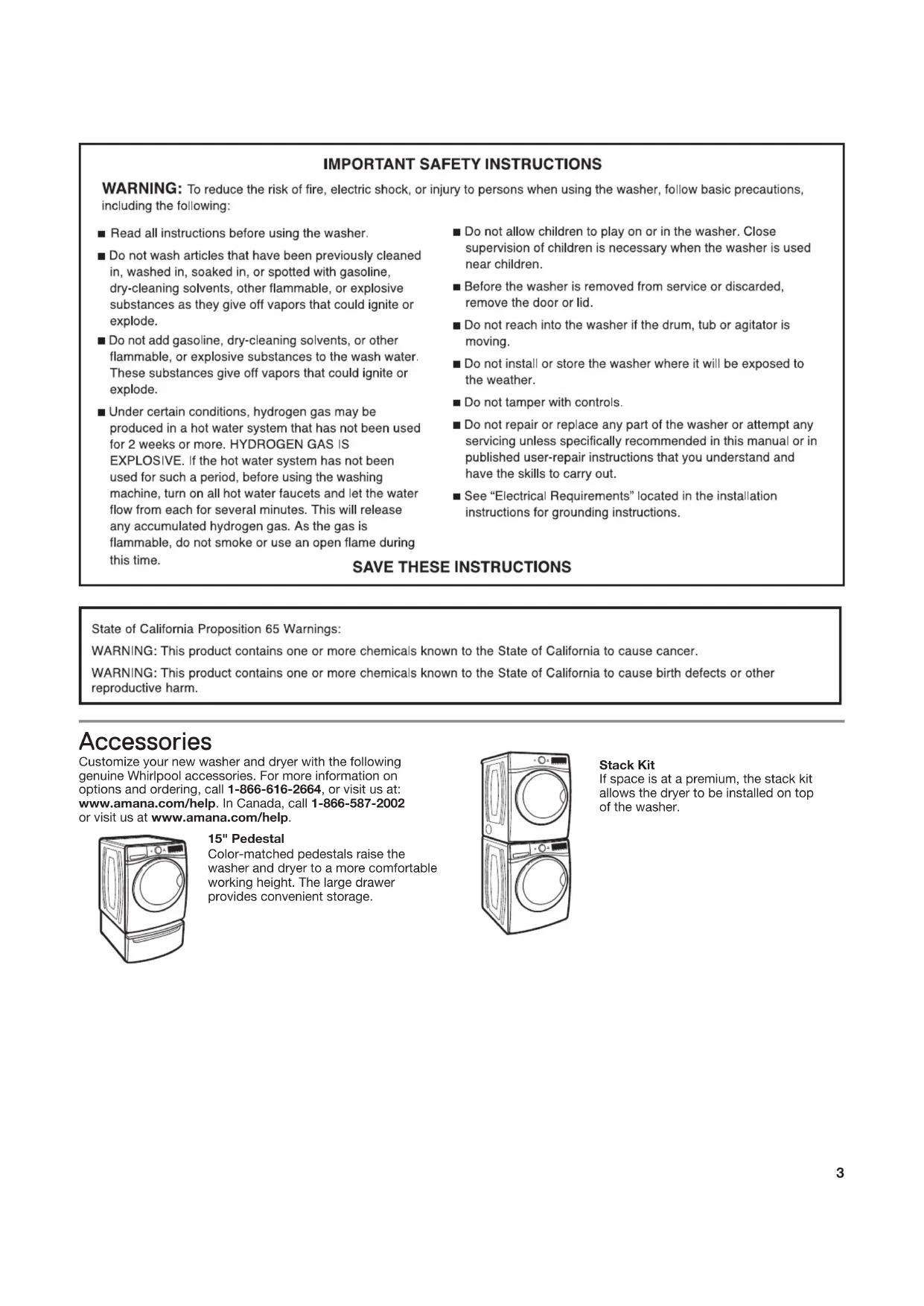

DÉPANNAGE .........................................................................34 GARANTIE ............................................................................43 ASSISTANCE OU SERVICE ..................... Couverture arrière3 Accessories Customize your new washer and dryer with the following genuine Whirlpool accessories. For more information on options and ordering, call 1-866-616-2664, or visit us at: www.amana.com/help. In Canada, call 1-866-587-2002 or visit us at www.amana.com/help. Stack Kit If space is at a premium, the stack kit allows the dryer to be installed on top of the washer. 15" Pedestal Color-matched pedestals raise the washer and dryer to a more comfortable working height. The large drawer provides convenient storage.4 Control Panel and Features NOTE: The control panel features a sensitive surface that responds to a light touch of your nger. To ensure your selections are registered, touch the control panel with your nger tip, not your ngernail. When selecting a setting or option, simply touch its name. Cycle Status Lights Delay Wash – If a Delay Wash is set, the Delay Wash indicator will light and the delay time will count down in the display. Door Locked – Door Locked will light to indicate that the door is locked and cannot be opened without rst pausing or canceling the cycle. Add Garment – When “Add Garment” is lit, you may pause the washer, open the door, and add items. Touch and hold START to start the washer again. Done – Once the cycle is complete, this light will come on. Remove the load promptly for best results. Efciency Monitor – The Efciency Monitor allows you to see how the settings you select affect your energy savings. To use the Efciency Monitor, choose the best cycle, temperature, spin speed, and options for the fabrics being washed. The Efciency Monitor will rate the water and energy use of those selections, from Good to Best. You can then adjust the settings and options to decrease the amount of energy used within that cycle. Wash Temp The recommended wash temperature is preset for each cycle. You may also select a wash temperature based on the type of fabric and soils being washed. For best results, follow the garment label instructions. All wash temperatures feature a cold rinse. Spin This washer automatically selects the spin speed based on the cycle selected. Some preset speeds can be changed. n Faster spin speeds mean shorter dry times, but may increase wrinkling in your load. n Slower spin speeds reduce wrinkling, but will leave your load more damp.

POWER Touch to turn the washer on and off. Touch to stop/cancel a cycle at any time. NOTE: Turning the Wash Cycle knob will also turn the washer on and off.

Turn the knob to select a cycle for your laundry load. An LED will light up for the cycle selected. NOTE: The Clean Washer with affresh

LED will ash when the washer has run 30 wash cycles as a reminder to run the Clean Washer with affresh

cycle. See “Cycle Guide” for detailed descriptions of cycles. START Touch and hold until the light above START comes on to start a cycle, or touch once while a cycle is in process to pause it. If you want to add a garment, you can touch START when the “Add Garment” LED is on. DELAY WASH Use + and – to delay the start of the wash cycle by up to 8 hours. To turn off Delay Wash, use + and – to set the delay time to “0,” or touch POWER.

LED DISPLAY AND SETTINGS

When you select a cycle, its default settings will light up and the Estimated Time Remaining will be displayed (for times longer than 99 minutes, hours will be displayed, followed by minutes). Factors such as load size, wash temperature, and water pressure may affect the time shown in the display during the cycle. Tightly packing garments, unbalanced loads, or excessive suds may cause the washer to adjust the cycle time, as well. Touch the desired setting along the bottom of the display to adjust. See “Cycle Guide” for available settings on each cycle. Not all settings are available with all cycles.

High Efciency “HE” detergent compartment This compartment holds liquid or powdered HE detergent for your main wash cycle. Liquid fabric softener compartment Automatically dilutes and dispenses liquid fabric softener at the optimum time in the cycle.

Use only liquid fabric softener in this dispenser. Liquid chlorine bleach compartment Automatically dilutes and dispenses liquid chlorine bleach at the optimum time during the rst rinse after the wash cycle. This compartment cannot dilute powdered bleach.

DISPENSER DRAWER The dispenser drawer gives you the convenience of automatically adding HE detergent, liquid chlorine bleach, and liquid fabric softener to the wash load at the proper time. See “Using the Dispenser Drawer” for information on using the dispenser drawer.

Adding HE detergent to dispenser Powdered detergent: Lift the selector to the high position.Liquid detergent: Push down the selector to the low position. Pour a measured amount of HE detergent into detergent compartment. For powdered detergent, lift the selector to the high position. For liquid detergent, push down the selector to the low position. Do not overll; adding too much detergent may cause detergent to be dispensed into the washer too early. Use only High Efciency (HE) detergent. IMPORTANT: n Do not add single-dose laundry packet to dispenser drawer. n Use powdered detergent when using the Delay Wash option. Liquid detergent may seep out before the wash begins. HE detergent compartment Using the Dispenser Drawer

1. Open the dispenser drawer.

2. Add laundry products as described in steps 4–6 in the “Using

Your Washer” section.

3. Slowly close the dispenser drawer. Make sure it is

completely closed. NOTE: A small amount of water may remain in the dispensers from the previous wash cycle. This is normal. SelectorSelector in high positionSelector in low positionUse only High Efciency (HE) detergent. Choosing the Right Detergent Use only High Efciency detergents. The package will be marked “HE” or “High Efciency.” Low-water washing creates excessive sudsing with a non-HE detergent. Using non-HE detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component failure and, over time, buildup of mold or mildew. HE detergents are low-sudsing and quick-dispersing to produce the right amount of suds for the best performance. They hold soil in suspension so it is not re-deposited onto clean clothes. Follow the manufacturer’s instructions to determine the amount of detergent to use. OPTIONS Touch to activate additional wash options or additional features on the washer. Control Lock Touch and hold for 3 seconds to lock the controls to avoid unwanted changes or operation. Touch and hold 3 seconds again to unlock. For each second CONTROL LOCK is held down, the display will count down one second: you will see “3,” then “2,” then “1.” You may still touch START to pause the cycle, or touch POWER to turn off the washer.

Cycle Guide Settings and options shown in bold are default settings for that cycle. For best fabric care, choose the cycle, options, and settings that best t the load being washed. Not all settings are available with each cycle, and some options cannot be used together. NOTE: All wash temperature selections feature a cold rinse. Normally soiled Normal Hot Fast Delay Wash This cycle combines medium-speed tumbling cottons, linens, Warm Medium and a fast-speed spin. This cycle is designed sheets, and mixed Cool Off to provide the most energy efciency. garment loads Cold Sturdy colorfast Heavy Hot Fast Delay Wash Fast-speed tumbling and a fast-speed nal fabrics and heavily Duty Warm Medium spin help provide optimal cleaning and reduce soiled garments Cool Slow drying times. Cold Off Wet load of clothes Drain N/A Fast Delay Wash Use Drain & Spin to remove excess water from & Spin Medium the load. Spin speed can be set to a slower Slow setting. Off No clothes in washer Clean Delay Wash Use this cycle every 30 washes to keep Washer the inside of your washer fresh and clean. with This cycle uses a higher water level. Use with affresh

washer cleaner tablet or liquid chlorine bleach to thoroughly clean the inside of your washer. This cycle should not be interrupted. See “Washer Care.” IMPORTANT: Do not place garments or other items in the washer during the Clean Washer with affresh

cycle. Use this cycle with an empty wash tub. See “Washer Care” in “Washer Maintenance.” Small loads of 2–4 Quick Hot Fast Delay Wash For small loads (2–4 items) needed quickly. lightly soiled Warm Medium This cycle combines fast-speed tumbling, garments Cool Slow a shortened wash time, and a fast-speed spin Cold Off for reduced drying times. Bright or darkly Cold Cold Fast Delay Wash This cycle uses a concentrated detergent colored cottons, Medium solution along with cold water throughout linens, casual and Off the cycle to gently lift out stains and care for mixed loads fabrics. Sheer fabrics, Delicates Hot Fast Delay Wash This cycle combines slow-speed tumbling and lingerie, sweaters, Warm Medium slow-speed spin for gentle fabric care and and lightly-soiled Cool Slow reduced wrinkling. shirts, blouses, Cold Off trousers, pants, and skirts Items to wash using default cycle settings: Cycle: Wash Temperature: Spin Speed: Available Options: Cycle Details: Load Size Recommendations For best results, follow the load size recommendations noted for each cycle. Small load: Fill the washer drum with 3–4 items, not more than 1/4 full. Medium load: Fill the washer drum up to about 1/2 full. Large load: Fill the washer drum up to about 3/4 full. Extra-large load: Fill the washer drum, but make sure clothes can tumble freely. For best results, avoid packing tightly.7 Using Your Washer Sort items by recommended cycle, water temperature, and colorfastness. Separate heavily soiled items from lightly soiled. Separate delicate items from sturdy fabrics. Treat stains promptly and check for colorfastness by testing stain remover products on an inside seam. IMPORTANT: n Empty pockets. Loose change, buttons, or any small object can plug pumps and may require a service call. n Close zippers, fasten hooks, tie strings and sashes, and remove non-washable trim and ornaments. n Mend rips and tears to avoid further damage to items during washing. n Turn knits inside out to prevent pilling. Separate lint-takers from lint-givers. Synthetics, knits, and corduroy fabrics will pick up lint from towels, rugs, and chenille fabrics. n Do not dry garments if stains remain after washing, because heat can set stains into fabric. n Always read and follow fabric care labels and laundry product instructions. Improper usage may cause damage to your garments.

1. Sort and prepare your laundry

Place a load of sorted clothes loosely in the washer. Items need to move freely for best cleaning and to reduce wrinkling and tangling. Close the washer door by pushing it rmly until the latch clicks. n Depending on load type and cycle, the washer can be fully loaded, but not tightly packed. Washer door should close easily. See “Cycle Guide” for loading suggestions. n Mix large and small items and avoid washing single items. Load evenly. n Wash small items in mesh garment bags. For multiple items, use more than one bag and ll bags equally.

3. Load laundry into washer

First wash cycle without laundry Before washing clothes for the rst time, if not completed during the nal installation step, choose the QUICK cycle and run it without clothes. Use only HE detergent. Use 1/2 the manufacturer’s recommended amount for a medium-size load. This initial cycle serves to ensure the interior is clean before washing clothes.

2. Add laundry products (if desired)

Single-dose laundry packet, Oxi-type boosters, color-safe bleach, or fabric softener crystals can be added to the drum prior to adding laundry. NOTE: Do not add clothes to washer drum prior to adding laundry products. Always follow manufacturer’s instructions.8 Add liquid chlorine bleach to the bleach compartment. Do not overll, dilute, or use more than 2/3 cup (157 mL). Do not use color-safe bleach or Oxi in the same cycle with liquid chlorine bleach. Always measure liquid chlorine bleach. Use a measuring cup with a pour spout; do not guess. Do not ll beyond the “MAX” level. Overlling could cause garment damage.

6. Add liquid chlorine bleach to dispenser

(if desired) Pour a measured amount of liquid fabric softener into liquid fabric softener compartment. Always follow manufacturer’s directions for correct amount of fabric softener based on your load size. IMPORTANT: Do not overll, dilute, or use more than 1/4 cup (60 mL) of fabric softener. Do not ll past the MAX line. Overlling dispenser will cause fabric softener to immediately dispense into washer.

Do not spill or drip any fabric softener onto the clothes.

Do not use liquid fabric softener dispenser balls in this washer. They will not dispense correctly.

5. Add liquid fabric softener to dispenser

(if desired) Adjust the selector, based on type of HE detergent used (either liquid or powdered). See “Using the Dispenser Drawer” instructions on how to use the dispenser.

7. Touch POWER to turn on washer

(optional) Slowly close the dispenser drawer. Make sure the drawer is closed completely, then touch POWER to turn on the washer or go to Step 8.

USING LAUNDRY PRODUCT DISPENSERS

NOTE: Do not add single-dose laundry packets, Oxi-type boosters, color-safe bleach, or fabric softener crystals to dispensers. They will not dispense correctly.

Turn cycle knob to select your wash cycle. See “Cycle Guide” for details on cycle features. Using Your Washer

• Not all options and settings are available with all cycles. See “Cycle Guide” for available options and settings.9 The display will show the default settings for the selected cycle. To adjust a setting, touch its name – Wash Temp or Spin. Adjusting settings will change the Estimated Time Remaining. Tightly packing the load, unbalanced loads, or excessive suds may also cause the washer to increase the cycle time.

9. Adjust settings, if desired*

• Not all options and settings are available with all cycles. See “Cycle Guide” for available options and settings.

10. Setting a delayed wash

If you do not want to begin a cycle immediately, you may choose the DELAY WASH option. This will delay the start of the wash cycle by up to 8 hours. To set a delayed wash:

1. Touch DELAY WASH + and – buttons to set the desired

2. Touch and hold START to set the delay. The delay

countdown has started when the START light stops blinking.

11. Touch and hold START to begin

wash cycle Unlocking the door to add garments: If you need to open the door to add 1 or 2 missed garments, you may do so while the “Add Garment” light is lit. Touch START once; the door will unlock once the washer movement has stopped. This may take several minutes. Then close door and touch and hold START again to restart the cycle.

12. Remove garments promptly

after cycle is nished Promptly remove garments after cycle has completed to avoid odor and rusting of metal objects on garments. When unloading garments, pull back the door seal and check for small items between the tub and the washer drum. NOTES:

A small amount of water may remain in the dispensers after the wash cycle is complete. This is normal.

This washer has a tight seal to avoid water leaks. To avoid odors, leave the door open to allow the washer to dry between uses. Touch and hold START to start the wash cycle. To pause a cycle in progress, touch START once, then touch and hold again to continue the cycle. To cancel a cycle, touch POWER. Once you touch and hold START, you will hear the door lock, unlock, and lock again. The washer door will remain locked during the wash cycle.10 WASHER CARE Recommendations to Help Keep Your Washer Clean and Performing at its Best

1. Always use High Efciency (HE) detergents and follow the

HE detergent manufacturer’s instructions regarding the amount of HE detergent to use. Never use more than the recommended amount because that may increase the rate at which detergent and soil residue accumulate inside your washer, which in turn may result in undesirable odor.

2. Use warm or hot water washes sometimes (not exclusively

cold water washes), because they do a better job of controlling the rate at which soils and detergent accumulate.

3. Always leave the washer door slightly ajar between uses

to help dry out the washer and avoid the buildup of odor- causing residue.

4. Periodically clean residue from the underside of the glass

window. Cleaning Your Front Loading Washer Read these instructions completely before beginning the routine cleaning processes recommended below. This Washer Maintenance Procedure should be performed, at a minimum, once per month or every 30 wash cycles, whichever occurs sooner, to control the rate at which soils and detergent may otherwise accumulate in your washer. Cleaning the Door Seal

2. Inspect the colored seal between the door opening and

the drum for stained areas or soil buildup. Pull back the seal to inspect all areas under the seal and to check for foreign objects.

3. If stained areas or soil buildup are found, wipe down

these areas of the seal using either of the following two procedures: a. affresh

i. When the cycle is complete, gently pull back the

rubber door seal and clean the entire surface with the rough side of the Grit Grabber™ cloth. b. Dilute Liquid Chlorine Bleach Procedure:

i. Mix a dilute bleach solution, using 3/4 cup (177 mL)

of liquid chlorine bleach and 1 gallon (3.8 L) of warm tap water.

ii. Wipe the seal area with the dilute solution, using

iii. Let stand 5 minutes.

iv. Wipe down area thoroughly with a dry cloth and let

washer interior air dry with door open. IMPORTANT: n Wear rubber gloves when cleaning with bleach. n Refer to the bleach manufacturer’s instructions for proper use. WASHER CARE (cont.) Cleaning the Inside of the Washer This washer has a special cycle that uses higher water volumes in combination with affresh

Washer Cleaner or liquid chlorine bleach to thoroughly clean the inside of the washer. Steam washer models also utilize steam to enhance cleaning in this special cycle. NOTE: Read these instructions completely before beginning the cleaning process. Begin procedure

1. Clean Washer with affresh

Cycle Procedure (Recommended for Best Performance): a. Open the washer door and remove any clothing or items. b. Add an affresh

Washer Cleaner tablet to the washer drum. c. Do not add the affresh

Washer Cleaner tablet to the dispenser drawer. d. Do not add any detergent or other chemical to the washer when following this procedure. e. Close the washer door. f. Select the Clean Washer with affresh

cycle. g. On some models: Select the Fan Fresh

option to help dry the washer interior after the cycle is complete. NOTE: The washer remembers your last option selection and will use it for future wash cycles until you deselect that option. While the fan is on, the washer door will lock. To unlock the door, touch POWER. h. Touch and hold START to begin the cycle. The Clean Washer with affresh

Cycle Operation is described below.

2. Chlorine Bleach Procedure:

a. Open the washer door and remove any clothing or items. b. Open the dispenser drawer and add liquid chlorine bleach to the MAX level in both the bleach compartment and the fabric softener compartment. Either traditional or HE chlorine bleach can be used. NOTE: Use of more liquid chlorine bleach than is recommended above could cause washer damage over time. c. Close the washer door and the dispenser drawer. d. Do not add any detergent or other chemicals to the washer when following this procedure. e. Close the washer door. f. Select the Clean Washer with affresh

cycle. g. On some models: Select the Fan Fresh

option to help dry the washer interior after the cycle is complete. NOTE: The washer remembers your last option selection and will use it for future wash cycles until you deselect that option. While the fan is on, the washer door will lock. To unlock the door, touch POWER. h. Touch and hold START to begin the cycle. The Clean Washer with affresh

Cycle Operation is described below. NOTE: For best results, do not interrupt cycle. Washer Maintenance Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are found. When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker.

WASHER CARE (cont.) Description of Clean Washer with affresh

1. The Clean Washer with affresh

cycle will determine whether clothing or other items are in the washer.

2. If no items are detected in the washer, it will proceed

with the cycle. a. If any items are detected in the washer, “rL” (remove load) will be displayed. The door will unlock. Open washer and remove any garments from the washer drum. b. Touch POWER to clear the “rL” code. c. Touch and hold START to restart the cycle.

3. Steam models only: During the rst 20 minutes of the

cycle, it will activate the steamer but the drum will not spin or ll with water. You may see condensation on the door glass during this initial phase. If you are using an affresh

Washer Cleaner tablet, it will not dissolve completely during the steam phase. This is normal. After the cycle is complete, leave the door open slightly to allow for better ventilation and drying of the washer interior. Cleaning the Dispensers After a period of using your washer, you may nd some residue buildup in the washer’s dispensers. To remove residue from the dispensers, remove the drawer and wipe the surfaces with a damp cloth and towel dry either before or after you run the Clean Washer with affresh

cycle. Use an all-purpose surface cleaner, if needed. IMPORTANT: Dispenser is not dishwasher safe. Cleaning the Outside of the Washer Use a soft, damp cloth or sponge to wipe up any spills. Occasionally wipe the outside of your washer to help keep it looking new. Use mild soap and water. IMPORTANT: To avoid damaging the washer’s nish, do not use abrasive products.

1. Pull dispenser drawer out until it stops.

2. Press down on the release tab and pull straight out to

remove the dispenser.

3. Lift off cover panel by

pulling straight up. To replace:

1. Slide cover panel back onto

2. Align edges of dispenser

with guides in washer, then slide dispenser back into slot.

CLEAN WASHER CYCLE REMINDER

NOTE: Not all models have the Clean Washer with affresh

cycle reminder light. The Clean Washer with affresh

LED will ash at the end of a wash cycle when the washer has run 30 wash cycles. This is a reminder to run the Clean Washer with affresh

cycle. If the Clean Washer with affresh

cycle is not turned on, the LED will stop ashing at the end of a wash cycle after running 3 more regular wash cycles. After 30 more wash cycles are completed, the Clean Washer with affresh

LED will again ash at the end of a wash cycle as a reminder.12 Operate your washer only when you are home. If moving, or not using your washer for a period of time, follow these steps:

1. Unplug or disconnect power to washer.

2. Turn off water supply to washer to avoid ooding due

to water pressure surges.

3. Clean the dispensers. See “Cleaning the Dispensers.”

IMPORTANT: To avoid damage, install and store washer where it will not freeze. Because some water may stay in hoses, freezing can damage washer. If storing or moving during freezing weather, winterize your washer. To winterize washer:

1. Shut off both water faucets, disconnect and drain water

2. Put 1 qt. (1 L) of R.V.-type antifreeze in washer drum

and run washer on NORMAL cycle for about two minutes to mix antifreeze and remaining water.

3. Unplug washer or disconnect power.

1. Shut off both water faucets. Disconnect and drain water

2. If washer will be moved during freezing weather, follow

WINTER STORAGE CARE directions before moving.

3. Disconnect drain hose from drain system and from back

5. Place inlet hoses and drain hose inside washer drum.

6. Bundle power cord with a rubber band or cable tie to

keep it from hanging onto the ground. IMPORTANT: Call for service to install new transport bolts. Do not reuse transport bolts. Washer must be transported in the upright position. To avoid structural damage to your washer, it must be properly set up for relocation by a certied technician.

REINSTALLING/USING WASHER AGAIN

To reinstall washer after non-use, vacation, winter storage, or moving:

Refer to Installation Instructions to locate, level, and connect washer.

Before using again, run washer through the following recommended procedure: To use washer again:

Flush water pipes and hoses. Reconnect water inlet hoses. Turn on both water faucets.

Plug in washer or reconnect power.

Run washer through HEAVY DUTY cycle to clean washer and remove antifreeze, if used. Use only HE detergent. Use half the manufacturer’s recommended amount for a medium-size load. Washer Maintenance13 If you experience Possible Causes Solution First try the solutions suggested here or visit our website at www.amana.com/help for assistance and to possibly avoid a service call. Error Code Appears in Display “Sd” (Excess suds) appears in display Excessive suds in washer. Washer is running a suds reduction routine. Allow the washer to continue. Use only HE detergent. Always measure detergent, and base detergent quantity on load size. Follow detergent manufacturer’s instructions. Touch POWER once to clear the code. Then touch POWER again to restart washer. If code appears again, call for service.

1 (water supply error) appears in display Check for proper water supply. Both hoses must be attached and have water owing to the inlet valve. Both hot and cold water faucets must be on. Inlet valve screens on washer may be clogged. Remove any kinks in the inlet hose.

1 (drain pump system error) appears in display Check plumbing for correct drain hose installation. Drain hose extends into standpipe farther than 4

(114 mm). Check drain hose for proper installation. Make sure the drain hose is not kinked, pinched, or blocked. Remove any clogs from drain hose. Use drain hose form and securely attach to drainpipe or tub. Lower drain hose if the end is higher than 96" (2.4 m) above the oor.

2 (door will not lock) appears in display Washer door not locking. Touch POWER to cancel the cycle. Make sure the door is closed completely and latching. Check for items in the washer drum that may be keeping the door from closing completely. Washer beeps when START is touched Door not closed. Close the door completely. “rL” (remove load) appears in display Load detected in drum during Clean Washer with affresh

cycle. Remove items from washer drum and restart Clean Washer with affresh

cycle. Washer making error beeps Door has not been opened and closed for at least 3 cycles. This code may appear when the washer is rst turned on. Open and close the door to clear the display. Once any possible issues are corrected, touch POWER once to clear the code. Reselect and restart the cycle.

# code other than as described above appears in display System error code. Touch POWER once to clear the code. Then touch POWER again to restart washer. If code appears again, call for service. Not using HE detergent or using too much HE detergent. Use only HE detergent. Always measure detergent and follow manufacturer’s directions based on load size and soil level. Troubleshooting “nt” (interrupted) appears in display The cycle was paused or cancelled. The washer can take 20 to 30 minutes to stop spinning and drain and will display this error code during that time. Touch POWER once to clear the code. Then touch POWER again to restart washer. Clean Washer LED ashing at end of wash cycle The washer has run 30 wash cycles and is indicating a reminder to run the Clean Washer with affresh

cycle. Run the Clean Washer with affresh

cycle. If the Clean Washer with affresh

cycle is not turned on, the LED will stop ashing at the end of a wash cycle after running 3 more regular wash cycles. After 30 more wash cycles are completed, the Clean Washer LED will again ash at the end of a wash cycle as a reminder.14 First try the solutions suggested here or visit our website at www.amana.com/help for assistance and to possibly avoid a service call. If you experience Possible Causes Solution Feet may not be in contact with the oor and locked. Front and rear feet must be in rm contact with oor, and washer must be level to operate properly. Jam nuts must be tight against the bottom of the cabinet. Check oor for exing or sagging. If ooring is uneven, a 3/4" (19 mm) piece of plywood under your washer will reduce sound. See “Level the Washer” in Installation Instructions. Load could be unbalanced or too large. Avoid tightly packing the load. Avoid washing single items. Balance a single item such as a rug or jeans jacket with a few extra items. Item or load not suitable for selected cycle. See “Cycle Guide” and “Using Your Washer.” Empty pockets before washing. Loose items such as coins could fall between washer drum and tub or may block pump. It may be necessary to call for service to remove items. Fill hoses not attached tightly. Tighten ll-hose connection. Properly seat all four ll-hose at washers. Drain hose connection. Check that the drain hose is properly secured to drainpipe or laundry tub. Check household plumbing for leaks or clogged sink or drain. Water can back up out of a clogged sink or drainpipe. Check all household plumbing for leaks (laundry tubs, drainpipe, water pipes, and faucets). Fill hose washers. Noises It is normal to hear metal items on clothing such as metal snaps, buckles, or zippers touch against the stainless steel drum. Objects caught in washer drain system. Clicking or metallic noises Gurgling or humming The pump may make a humming sound with periodic gurgling or surging as nal amounts of water are removed during the spin/drain cycles. This is normal at certain stages of the cycle. Washer may be draining water. Water Leaks Check the following for proper installation Vibration, rocking, or “walking” Load not completely covered in water Water level not visible on door or does not cover clothes. This is normal for an HE front load washer. The washer senses load sizes and adds the correct amount of water for optimal cleaning. Washer Not Performing as Expected Washer may not be level. The door will lock unlock and lock again. You will hear 3 clicks after touching and holding START. This is normal. Door locking or unlocking. Not using HE detergent or using too much HE detergent. Only use HE detergent. Suds from regular detergents can cause leaking from the door or rear of cabinet. Always measure detergent and follow manufacturer’s directions based on your load requirements. Water or suds leaking from door or rear of cabinet Residue on door glass. Periodically clean the underside of the glass window to avoid potential leaks. The shipping bolts are still in the back of the washer. See “Remove transport bolts from washer” in the Installation Instructions. Door opened during “Add Garment.” Water can drip off the inside of the door when the door is opened after the start of a cycle. Rolling or sloshing and occasional clicking (on slow-speed spin) This is normal at certain stages of the cycle.Steel balls in the balancing system are balancing the load. Vibration or Off-Balance Troubleshooting15 Normal washer operation. Door must be completely closed and latched for washer to run. Washer will pause during certain phases of cycle. Do not interrupt cycle. The washer pauses for about 2 minutes during certain cycles. Allow the cycle to continue. Some cycles feature periods of tumbling and soak. Washer may be stopped to reduce suds. Cold Wash uses less water in the beginning of the cycle to provide a high concentration of detergent for optimal cleaning action. Following this concentrated tumbling, more water is used to complete the wash. Plug power cord into a grounded 3-prong outlet. Do not use an extension cord. Ensure there is power to outlet. Check electrical source or call an electrician to check if voltage is low. Reset a tripped circuit breaker. Replace any blown fuses. NOTE: If problems continue, contact an electrician. Washer not loaded as recommended. Remove several items, rearrange load evenly in washer drum. Close door and touch and hold START. Do not add more than 1 or 2 additional items after cycle has started to avoid tightly packing or unbalancing. Do not add more water to the washer. If you experience Possible Causes Solution Washer won’t run or ll, washer stops working Check for proper water supply. Both hoses must be attached and have water owing to inlet valve. Both hot and cold water faucets must be turned on. Check that inlet valve screens have not become clogged. Check for any kinks in inlet hoses, which can restrict water ow. Check proper electrical supply. First try the solutions suggested here or visit our website at www.amana.com/help for assistance and to possibly avoid a service call. Washer Not Performing as Expected (cont.) The washer door is not rmly shut. The door must be closed during operation. Troubleshooting16 Washer Not Performing as Expected (cont.) If you experience Possible causes Solution Incorrect or wrong wash or rinse temperatures Check for proper water supply. Make sure hot and cold inlet hoses are not reversed. Both hoses must be attached to both washer and faucet, and have both hot and cold water owing to inlet valve. Check that inlet valve screens are not clogged. Remove any kinks in hoses. First try the solutions suggested here or visit our website at www.amana.com/help for assistance and to possibly avoid a service call. Select DRAIN & SPIN to remove any water remaining in the washer. The washer door will unlock at the end of the drain. Water remaining in washer after cycle. Door locked at end of wash cycle Using cycles with a slower spin speed. Cycles with slower spin speeds remove less water than cycles with fast spin speeds. Use the recommended cycle/speed spin for your garment. Washer not loaded as recommended. A tightly packed or unbalanced load may not allow the washer to spin correctly, leaving the load wetter than normal. See “Cycle Guide” for load size recommendation for each cycle. Washer not draining/ spinning, loads are still wet Drain hose extends into standpipe farther than 4.5" (114 mm). Check drain hose for proper installation. Use drain hose form and securely attach to drainpipe or tub. Do not tape over drain opening. Not using HE detergent or using too much HE detergent. Use only HE detergent. Suds from regular detergent or using too much detergent can slow or stop draining or spinning. Always measure and follow manufacturer’s directions for your load. The load may be out of balance. Avoid washing single items. Balance a single item such as a rug or jeans jacket with a few extra items. The drain hose is clogged, or the end of the drain hose more than 96" (2.4 m) above the oor. Lower drain hose if the end is higher than 96" (2.4 m) above the oor. Remove any clogs from drain hose. See “Installation Requirements” in Installation Instructions. The drain hose ts too tightly in the standpipe, or is it taped to the standpipe. The drain hose should be loose yet t securely. Do not seal the drain hose with tape. The hose needs an air gap. See “Secure the Drain Hose” in Installation Instructions. Small items may have been caught in the pump or stuck between the washer drum and the outer tub. Check the drum for any items sticking through the drum holes. Empty pockets and use garment bags when washing small items. If the “Add Garment” light is lit, touch START once. The door will unlock. Door locks when cycle has started. Door will not unlock Washing many loads. Your hot water tank may not have enough hot water to keep up with the number of hot or warm washes. This is normal. Not using HE detergent or using too much HE detergent. Only use HE detergent. Suds from regular detergents can slow or stop the washer. Always measure detergent, following manufacturer’s directions based on your load requirements. To remove suds, cancel cycle. Select the QUICK cycle. Touch and hold START. Do not add more detergent. After 3 wash cycles in a row are completed, the door must be opened and then closed before a new cycle can begin. Door not opened between cycles. Washer won’t run or ll, washer stops working (cont.) Troubleshooting17 Load not rinsed Check for proper water supply. Make sure hot and cold inlet hoses are not reversed. Both hoses must be attached and have water owing to the inlet valve. Both hot and cold water faucets must be on. Inlet valve screens on washer may be clogged. Remove any kinks in the inlet hose. Not using HE detergent or using too much HE detergent. The suds from regular detergent can cause the washer to operate incorrectly. Use only HE detergent. Always measure detergent and follow manufacturer’s directions based on load size and soil level. Washer not loaded as recommended. Avoid tightly packing the washer. The washer will not rinse well if tightly packed. Load with dry items only. See the “Cycle Guide” for load size recommendations for each cycle. Use cycle designed for the fabrics being washed. Add only 1 or 2 garments after washer has started. If you experience Possible Causes Solution First try the solutions suggested here or visit our website at www.amana.com/help for assistance and to possibly avoid a service call. Washer Not Performing as Expected (cont.) Washer not loaded as recommended. Not cleaning or removing stains Add load loosely. Items need to move freely for best cleaning. See the “Cycle Guide” for load size recommendations for each cycle. Add only 1 or 2 garments after washer has started. Not using HE detergent or using too much HE detergent. Use only HE detergent. Always measure detergent and follow manufacturer’s directions based on load size and soil level. Hard water or high level of iron (rust) in water. You may need to install a water softener and/or iron lter. Fabric softener dispensing ball used. Dispensing balls will not operate correctly with this washer. Add liquid fabric softener to the fabric softener compartment. Powdered detergent used for slow-speed cycle. Consider using liquid detergent. Load is wrinkled, twisted, or tangled Washer not loaded as recommended. Add load loosely. Items need to move freely reduce wrinkling and tangling. See the “Cycle Guide” for load size recommendations for each cycle. Reduce tangling by mixing types of load items. Use the recommended cycle for the type of garments being washed. Select a slower spin speed. Note that items will be wetter than when using a faster speed spin. Spin speed too fast for load. Unload the washer as soon as it stops. The washer is not unloaded promptly. Use the Delicates cycle or another cycle with a slow spin speed to reduce wrinkling. Not choosing the right cycle for the load being washed. If safe for load, use warm or hot wash water. The wash water was not warm enough to relax wrinkles. The load may be out of balance. When load unbalance occurs, a washing process will start to redistribute the load. This may lengthen the cycle time. Avoid washing single items. Balance a single item such as a rug or jeans jacket with a few extra items. For best performance, not all settings are available with each cycle, and some options cannot be used together. Desired setting or option does not light See the “Cycle Guide” for the available settings and options for each cycle. Troubleshooting18 Not using correct cycle for fabric type. Use a higher soil level setting and warmer wash temperature to improve cleaning. If using Quick cycle, wash only a few items. Use Heavy Duty cycle for tough cleaning. If you experience Possible Causes Solution First try the solutions suggested here or visit our website at www.amana.com/help for assistance and to possibly avoid a service call. Washer Not Performing as Expected (cont.) Empty pockets, zip zippers, and snap or hook fasteners before washing to avoid snags and tears. Sharp items were in pockets during wash cycle. Strings and straps could have tangled. Items may have been damaged before washing. Mend rips and broken threads in seams before washing. Fabric damage can occur if washer is tightly packed. Liquid chlorine bleach may have been added incorrectly. Do not pour liquid chlorine bleach directly onto load. Wipe up bleach spills. Undiluted bleach will damage fabrics. Do not use more than recommended by manufacturer. Avoid tightly packing the washer. Load with dry items only. Use cycle designed for the fabrics being washed. Add only 1 or 2 garments after washer is started. Tie all strings and straps before starting wash load. Fabric Damage The transfer of dye can occur when mixing whites and colors in a load. Sort dark clothes from whites and lights. Use hot or warm temperatures if safe for the load. Make sure your hot water system is adequate to provide a hot water wash. Use more detergent for washing heavy soils in cold or hard water. Load not sorted properly. Gray whites, dingy colors Wash temperatures too low. Not enough detergent used, or hard water. Monthly maintenance not done as recommended. Run the Clean Washer with affresh

cycle monthly or every 30 wash cycles. See “Washer Care” in “Washer Maintenance.” Unload washer as soon as cycle is complete. Use only HE detergent. Be sure to measure correctly. Always follow the manufacturer’s directions. See “Washer Care” section. This washer has a tight seal to avoid water leaks. To avoid odors, leave the door open to allow the washer to dry between uses. Odors Not using HE detergent or using too much HE detergent. Door not left open after use. Not washing like colors together. Wash like colors together and remove promptly after the cycle is complete to avoid dye transfer. Use more detergent for washing heavy soils in cold or hard water. Not enough detergent used, or hard water. Not cleaning or removing stains (cont.) Not using dispensers. Use dispensers to avoid chlorine bleach and fabric softener staining. Load dispensers before starting a cycle. Avoid overlling. Do not add products other than those specied directly to load. Troubleshooting19 Clogged dispensers or laundry products dispensing too soon. Do not overll dispenser. Overlling causes immediate dispensing. Load dispensers before starting a cycle. Homes with low water pressure may result in residual powder in the dispenser. To avoid, select a warmer wash temperature if possible, depending on your load. Use only liquid chlorine bleach in the bleach compartment. Incorrect dispenser operation Liquid chlorine bleach not used in bleach compartment. It is normal for small amounts of water to remain in dispenser at the end of the cycle. Water in dispenser after cycle has nished. If you experience Possible Causes Solution First try the solutions suggested here or visit our website at www.amana.com/help for assistance and to possibly avoid a service call. Washer Not Performing as Expected (cont.) Not using correct cycle for load type. When using the Quick or Delicates cycles, you should wash small loads. This ensures a gentle wash for your garments without increasing cycle times. The Quick cycle is designed for smaller load sizes (2–4 items) of lightly soiled garments. If larger loads are washed in this cycle, cycle time will be increased. Normal washer operation. The cycle times vary automatically based on your water pressure, water temperature, detergent, and clothes load. The options you select will also affect the cycle times. Cycle time changes or cycle time too long Excessive suds in washer. Load may be out of balance. When excessive suds are detected, a special suds routine automatically starts to remove extra suds and ensure proper rinsing of your garments. This routine will add time to the original cycle. When load unbalance occurs, a washing process will start to redistribute the load. This extends the cycle time. Avoid washing single items. Balance a single item such as a rug or jeans jacket with a few extra items. Single-dose laundry packet not dissolving Adding laundry packet incorrectly. Be sure laundry packet is added to washer drum before adding clothes. Do not add packet to dispenser. Follow the manufacturer’s instructions to avoid damage to your garments. Troubleshooting Control Lock is on. Touch and hold CONTROL LOCK for 3 seconds to turn off Control Lock. For each second CONTROL LOCK is held down, the display will count down one second: you will see “3,” then “2,” then “1.” The controls are not responding20

WHIRLPOOL CORPORATION LAUNDRY WARRANTY

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the product, Amana, Admiral, Estate, Inglis, or Roper brands of Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specied Replacement Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a company designated by Whirlpool to service Amana, Admiral, Estate, Inglis, or Roper brand appliances. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of original consumer purchase. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions. 2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 3. Service calls to repair or replace appliance light bulbs, air lters, or water lters. Consumable parts are excluded from warranty coverage. 4. Damage resulting from accident, alteration, misuse, abuse, re, ood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the nish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Pick up and delivery. This major appliance is intended to be repaired in your home.

7. Repairs to parts or systems resulting from unauthorized modications made to the appliance.

8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized company designated by Whirlpool to service Amana, Admiral, Estate, Inglis, or Roper brands is not available. 9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool’s published installation instructions. 10. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered, or cannot be easily determined. The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or tness, so this limitation may not apply to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specic legal rights, and you also may have other rights that vary from state to state or province to province. If outside the 50 United States and Canada, contact your authorized Whirlpool, Amana, Admiral, Estate, Inglis, or Roper dealer to determine if another warranty applies. If you think you need repair service, rst see the “Troubleshooting” section of the Use & Care Guide. If you are unable to resolve the problem after checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling the following numbers for assistance: In the U.S.A., call 800-843-0304 for Amana brand products; 800-688-9920 for Admiral brand products; 800-253-1301 for Estate brand products, or 800-447-6737 for Roper brand products. For assistance In Canada, call: 800 -807- 6777 for Amana, Admiral, Estate, Inglis, or Roper brand products. 1/12

1. Le programme Clean Washer with affresh

DU PROGRAMME CLEAN WASHER

Factory Specied Parts. These parts will t right and work right because they are made with the same precision used to build every new Amana, Admiral, Estate, Inglis, or Roper brands of Whirlpool Corporation or Whirlpool Canada LP appliance. To locate FSP

replacement parts, assistance in your area, or accessories: or call your nearest designated service center or refer to your Yellow Pages telephone directory. In the U.S.A. ■ Features and specications on our full line of appliances. ■ Installation information. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). In the U.S.A. and Canada ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulll the product warranty and provide after-warranty service, anywhere in the United States and Canada.
