USER MANUAL LE46M600SF HAIER
LE39M600SF LE46M600SF LE50M600SF Please read this manual carefully before operating the unit,and keep it for
Warning and cautions
Base Stand Assembly Instruction
Connecting to your Haier TV Common Interface
Prepare to record the program
Prepare to record the program
to USB storage device
Auto Tuning (DVB-S2) 19Thanks for buying this 39"/46"/50"LED LCD TV . This guide will help you set up and
Now you can get star

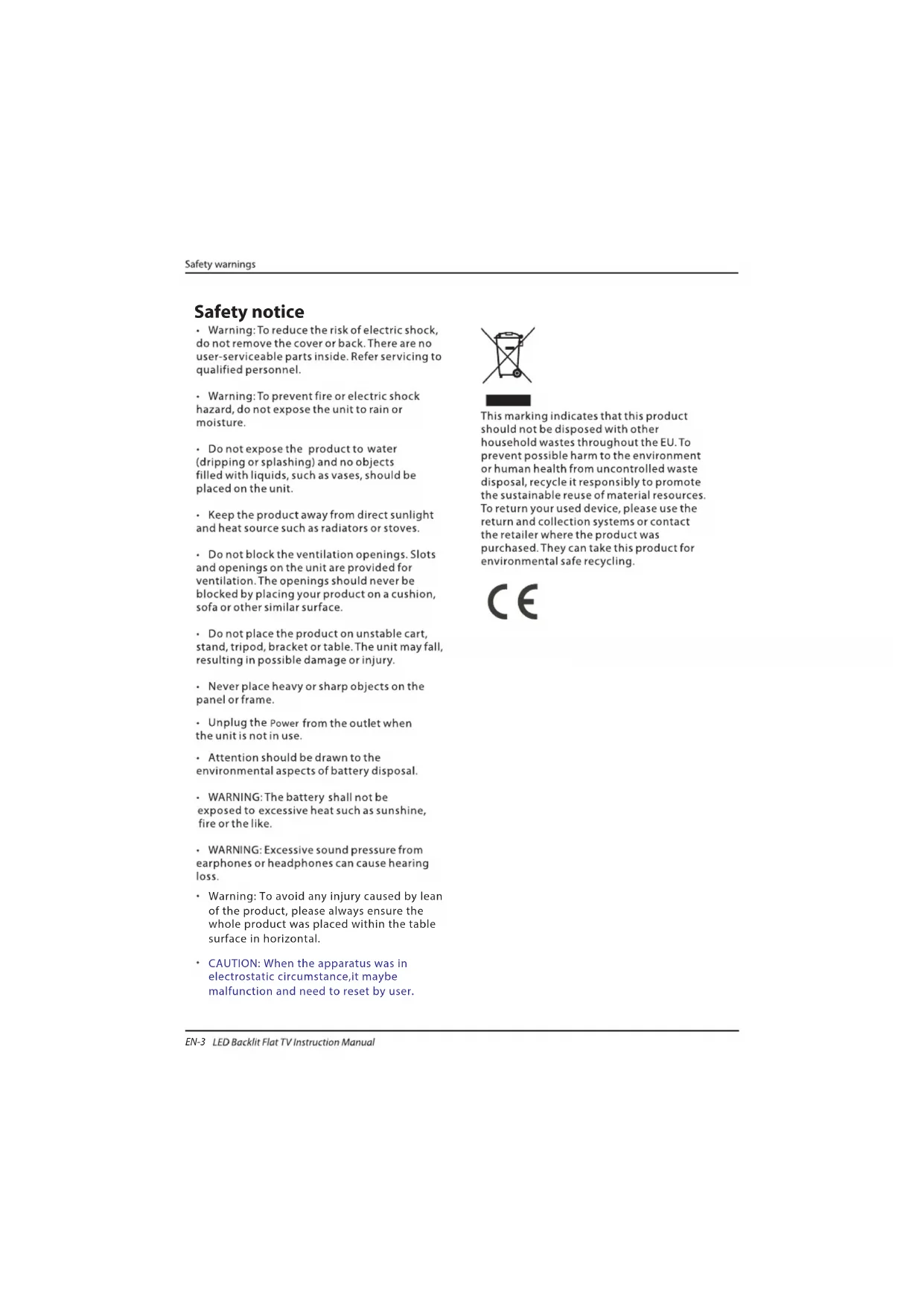

Warning: To avoid any injury caused by lean
of the product, please always ensure the
whole product was placed within the table
surface in horizontal.
CAUTION: When the apparatus was in
electrostatic circumstance,it maybe
malfunction and need to reset by user.Dim:515*320mm(不包括底座）
High voltages are used in the operation of this
television receiver. Do not remove the cabinet
back from your set. Refer servicing to qualified
not expose the television receiver to rain or
Do not drop or push objects into the
television cabinet slots or openings. Never
spill any kind of liquid on the television
Do not block the ventilation holes in the back
cover. Adequate ventilation is essential to
prevent failure of electrical components.
Do not trap the power supply cord under the
television receiver.
Never stand on, lean on, or suddenly push the
television or its stand. You should pay special
attention to children. Serious injury may result if
Do not place your television on an unstable cart,
stand, shelf or table. Serious injury to an
individual , and damage to the television, may
result if it should fall.
When the television receiver is not used for an
extended period of time, it is advisable to
disconnect the AC power cord from the AC
If the television is to be built into a compartment
or similar enclosure, the minimum distances must
be maintained. Heat build-up can reduce the
service life of your television, and can also be
WARNING AND CAUTIONS EN-4PanelPAL-B/G ,I , D/KPAL/SECAM/MPEG2/MPEG4/H.264AC 100 - 240V 50/60Hz2x10WAnalog RGB(PC) x1; PC audio x1High-Definition Multimedia Interface (HDMI) x 2/MHL x 1Composite Input x 1YPbPr x 1SCART Inputx 1 78W
39 CI x 1USB x 1 x 1 RF Co-Ax x 1LNB IN Composite video input >=350YPbPr >=400Headphone x 1 TV SystemVideo Signal SystemInput Power VoltagePower consumptionStandby Power consumptionAudio Output Power Signal InputSignal output Horizontal definition (TV line) SECAM-B/G , D/K , L , ≤0.50WDVB-T, DVB-C, DVB-S2 INSTALLATIONCAUTION *Locate the TV in the room where light does not strike the screen directly.*Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.*Allow enough space between the TV and the wall to permit ventilation.*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.*Do not cover the ventilation openings when using theTV. Main parameter
4 NICAM； 5 T ；ime-shift3 HDMI interface and SCART Interface；High luminance, wide viewing angle；2 Used as Television, display terminal, PC display；1 Never tamper with any components inside the TV, or any other adjustment controls not described in this manual. All LED-TV's are high voltage electrical equipment. When you clean dust or any water drops off the SCREEN or CABINET or around any of the buttons or connectors, the power cabled should be removed from the power socket. Wipe the TV with a soft, dry, dust free cloth. During thunderstorms, unplug the power cable and aerial / antenna cable to prevent damage to your TV and any other devices connected to it. All repairs to this TV should only be performed by qualified TV servicepersonnel. 02 Introdution Introduction EN-5 5000(DVB-S2);510(DTV);100(ATV)Storage channel numberSCART Output x 1 46
Base Stand Assembly Instruction
1. Place the TV with the display side down on a
flat surface. Use a cloth to protect the
display.Position the stand base pillar onto the
2. Attach the stand base plate to the stand pole
by firmly tightening the supplied screws.
INSTALLATION NOTES Locate the TV in a room where light does not strike the screen directly. Total darkness or a
reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for
comfortable viewing.
Allow enough space between the TV and the wall to permit ventilation.
Avoid excessively warm locations to prevent possible damage to the cabinet or premature
Please do not attempt to rotate the TV on the stand.
WALL MOUNTING INSTALLATION GUIDELINES
2.Use the four screws provided to fix the TV onto a wall mounting bracket (not included)
via the four VESA standard holes on the back of the television.
This television can be wall mounted as follows:
1.Place the LED LCD Television onto a solid surface. Please place some soft material over the front of
the screen to protect it from any damage.
Remote control sensor.
4 CH+/CH-In TV mode,press CH+ or CH- to change the channel up and down.In MENU, press CH+ or CH- to select items .STANDBY 2 VOL+/VOL-Adjust sound level.In MENU,adjust the item that you selected. 5
inputHDMI2/MHL EN-10RY W Audio/Video machine
with HDMI interfaces
CVBS, DVD Player or other
machine with CVBS/S-Video.
Connecting to your Haier TV(39",50")
R Red (AUDIO-R, Pr/Cr)
CVBS, DVD Player or other
machine with YPbPr/YCbCr.
CAUTION RISK OF ELECTRIC SHOCK !
(COAXIAL) SCARTLNB IN EN-11RY W Audio/Video machine
with HDMI interfaces
CVBS, DVD Player or other
machine with CVBS/S-Video.
Connecting to your Haier TV(46")
R Red (AUDIO-R, Pr/Cr)
CVBS, DVD Player or other
machine with YPbPr/YCbCr.
R F VGA PC AUDIO COMMON INTERFACE(CI)HEADPHONEHDMI1(ARC)HDMI2/MHLUSBGRB RW Amplifier VIDEO/Y Pb Pr L RDIGITAL AUDIO OUTPUT (COAXIAL)SCARTLNB INEN-13
Connecting a DVD player/Satellite / cable set top box
receiver / games console / PC or Laptop
There are several options to connecting a DVD
player / Satellite or Cable set top box receiver /
games console / PC or Laptop to your TV.
Option 1 SCART Connect a SCART cable (not supplied)from the SCART
socket on the TV to the DVD set top box
receiver or games consol.
To select the device connected with the SCART cable
press the SOURCE button on the remote and use the▼▲
keys to select SCART and press the OK button.
Note:- The TV will default to the SCART connection when
the TV is switched on.
Option 2 HDMI If the device you want to connect to the is
switched on, switch off the device first.
Connect a HDMI cable (not supplied) from the HDMI
socket on the TV to the DVD receiver or
Switch on the device you have just connected to the
To select the device connected with the HDMI cable
press the SOURCE button on the remote and use the▼▲
keys to select HDMI and press the OK button.
Option 3 AV Audio Visual
Make sure that both TV and the device are switched
off before connecting.
Connect the AV cables (not supplied) from the Video
(yellow) and Audio (white, red) sockets on the TV to the
DVD player or games console etc.
To select the device connected with the AV cable
press the SOURCE button on the remote and use the▼▲
keys to select AV and press the OK button.
(Green/Blue/Red)+(White/Red)
Make sure that both TV and the device are switched
off before connecting.
TV Connect the cables (not supplied) from the
COMPONENT IN sockets Y, Pb, Pr (green, blue, red) and
L-Audio-R (white, red) on the TV to the DVD player or
To select the device connected with the
COMPONENT cable press the SOURCE button on the
remote and use the keys to select and
press the OK button.
To select the PC / Laptop connected with the VGA
cable press the SOURCE button on the remote and use
the keys to select PC and press the OK button.
Note :VGA is video only. For audio from your PC/Laptop
you need to connect a separate cable from the PC Audio
(3.5mm jack) to the headphone socket on you PC/Laptop
Option 6 USB Most USB sticks can be connected to your TV
and some digital cameras may also work.
Connect USB stick (not supplied) or a USB
cable (not supplied) to the TV.
To select the USB device connected to the TV,
press the SOURCE button on the remote and
use the keys to select USB and press the
Note1:Only *.jpg and *.mp3 files will work,
other file types are not guaranteed and may not.
Note 2. Apple iPhones and iPods are not
compatible with your TV.
Note 3. When connecting any device to the USB
connection, keep the USB cable length as short
is a digital audio connection used to
connect audio equipment, for example home
theatres and other digital HiFi systems over
short distances. The signal is transmitted over
either a coaxial cable with RCA connectors.
Make sure that both TV and the device are
switched off before connecting.
Connect the AV cables (not supplied) from
the socket on the TV to the Home Theater
sound system or digital HiFi system etc.
Insert the plug of the earphone into the headphone
socket on the TV. The TV speakers are now muted.
Alternatively you can also plug in external speakers if
DIGITAL AUDIO OUTPUT(COAXIAL)
COAXIAL COAXIAL Connecting to your Haier TV Option 9 MHL INPUT Connect the devices which can support MHL
function; also function as HDMI input socket.
Option 10 LNB INPUT Connect the satallite cable with the LNB Port on the
After that, you can turn on the engine. Press “Source”
to switch into the DVB-S2 mode and start the channel
Option 5 VGA (15pin Sub-D)
Connect a VGA cable (not supplied) from the
VGA socket on the TV to the PC / Laptop.EN-14
The common interface (CI) slot is designed to
accept the conditional Access (CA) Module and
Smart card in order to view the pay TV
programmes and additional services.
Contact your Common Interface service provider
to get more information about the modules and
Please noted that CA modules and smart cards
are neither supplied nor optional accessories
OK OK BACK MOVE OK MENUPress to turn the TV on or off.(Power)S.MODEPress to select the sound mode.P.MODEPress to select the picture mode. 0-9 Press to enter a channel numberor password.Q.VIEWPress to switch to the last viewedchannel.SLEEPPress to set the sleep timer.VOL +/-Press to adjust the volume level.(Mute)Press to turn the sound on or off.AUDIO(I/II)Press to select Mono,Nicam stereo for ATV channel.Select Audio language for DTV channel.SUBTITLEPress to turn the subtitle on or off.Press to open a favorite channel list.In teletext mode,press to hold a page. 03 Remote Control
EN-15 SCREENPress to change picture aspect ratio.Press to open the on-screen menu.In teletext mode,press to open the INDEX page.Press to navigate the on-screen menu.Press to confirm a selection.OKPress to return to the previous screen.In teletext mode,press to enter mix mode.(reverse)(forward)Press to fast forward or reverseplaybadk in multimedia mode.In teletext mode,press to open or close teletext page.Press to display main menu in the MHL mode,for example the APP menu.SOURCEPress to open the input source list.Press to launch the HDMI2/MHL mode. P Press to change the channel.Press to display the channel information.In teletext mode,press to revealthe hidden information. Press to open the channel list.In teletext mode,press to switch the image to top,bottom or full.3D WORLDThese models do not support 3D feature.Press to close the on-screen menu.In teletext mode,press to hide the text. 16
26 Press to select previous or next file.(previous)(next)Press to stop multimedia playback.GUIDEPress to display electronic programme guide in TV mode. Press to enter the teletext subpage.(REC)Press to record the TV program you are watching in DTV mode.Press to play/pause in multimedia mode.(play/pause) Insert Batteries into the Remote Contol
1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity
(+ or -) of the batteries matches the polarity marks inside the unit.
3. Mount the battery cover. Replace with new batteries when the
TV set begins to show the following symptoms:Operation is
unsteady or erratic. Sometimes the TV set does not function
with Remote Control Unit.
1) Alkaline Battery Recommeded.
2) Remove batteries when they are exhausted or if the remote
control is not to be used for long time.EN-16
E TEXT SELECTING A PAGE DIRECT ACCESS TO THE ITEMS INDEX SUB PAGE HOLD REVEAL Press:
TELETEXT Enter the number of the page required using the 0 to 9 up/down. Example:
page 120, enter 120. The number is displayed top left, the counter turns and
then the page is displayed. Repeat this operation to view another page. If
the counter continues to search, this means that the page is not
transmitted. Select another number.
Coloured are as are displayed at the bottom of the screen. The 4 coloured
keys are used to access the items or corresponding pages. The coloured
areas flash when the item or the page is not yet available.
This returns to the contents page (usually page 100).
Certain pages contain sub-pages which are automatically displayed
successively. This key is used to stop or resume sub-page acquisition.
The indication appears top left.
To display or hide the concealed information (games solutions).
This is used to call or exit teletext modes. The summary appears with a list
of items that can be accessed. Each item has a corresponding 3 digit page
number. If the channel selected does not broadcast teletext, the indication
100 will be displayed and the screen will remain blank (in this case, exit
teletext and select another channel).
Teletext is an information system broadcast by certain channels which can be consulted like
a newspaper. It also offers access to subtitles for viewers with hearing problems or who are
not familiar with the transmission language(cable networks, satellite channels, etc.)
Teletext,program,image are displayed together.
MIX Exit the teletext.
EXIT Switch the image to top,bottom,full.
04 OPERATION Password
Please enter old password
Please enter new password
Confirm new password The installation guide only appear when the TV first time turn on or reset to factory set. Installation Guide 1).Press the ▲▼ buttons to navigate the menu and change the settings. Press the OK button to confirm.Select your desired language ,Home/Shop Mode to be displayed on the menu. 2). Press the buttons to select DVB-T/DVB-C/ and then press the OK button to confirm. ▲▼ DVB-S2 a. If you select DVB-T, the next step is to select the Tune type and country then press the OK button to start tuning.b. If you select DVB-C, the next step is to config the DVB-C system like (scan type / Frequency/ Network ID/Symbol(KS/S) then press OK button to into the tune type and country select menu, this step is the same as DVB-T, select the tune type (DTV/ATV).Choose the right country, press OK button to start tuning. Note: The default password is 0000. EN-17 OK GreeceNederlands GermanyPortugalPolandItalyHungaryLuxembourgNorwayHOME or Shop modes1.When the unit is turn on for the very first time, it will show Initialization set-up menu. After the OSD language is set, the user can choose between "shop mode" and "home mode". When the screen shows the following setting menu and the cursor stays on the "home mode" choice, press ◀▶
to adjust, and "OK" to enter the menu. Select the usage mode?shop mode is for shop usage only.Shop modeHome modeIf "Shop mode" is choosen, the following menu will displayed. Are you sure to change to Shop mode? OK CancelPress "OK" to enter the next prompt menu Shop mode is the most energy mode.
OK CancelContinue?Choose "Cancel" to go back to the Initialization set-upmenu, and the cursor will stay at the "home mode"choice. choose it to go the next menu to choose the country. Please select an OSD language
Completed Initial Quick Setup.
Enjoy your Haier TV Press OK to Exit
3). Press the buttons to select DVB-T/DVB-C/
ATV / DTV / DTV + ATV. Press the button and then press
the buttons to select the country where you will
operate the TV. Press the OK button to confirm
5). After tuning is complete, the channels are arranged in a
preset order. If you wish to skip channels, modify the preset
order or rename channels, select
Programme Edit under the
5). Channel tuning will commence. This operation may take
up to minutes. The display will show the progress of
the tuning and the number of channels found.
6). If you want to skip the ATV tuning, press the MENU
button to interrupt the tuning half way. A pop-up screen
will be displayed, press the◀button to select YES to
confirm. You will then go straight to DTV tuning. You may
repeat the above step if you also want to skip the DTV
tuning. An installation reminder will appear the next time
7). After tuning is complete, the channels are arranged in a
preset order. If you wish to skip channels, modify the preset
order or rename channels, select P
rogramme Edit under the
some Programme(s)Programme(s)Programme(s)Programme(s) 1
3). Channel tuning will commence. This operation may take
up to The display will show the progress of
the tuning and the number of channels found.
4). If you want to skip the ATV tuning, press the MENU
button to interrupt the tuning half way. A pop-up screen
will be displayed, press the button to select YES to
confirm. You will then go straight to DTV tuning. You may
repeat the above step if you also want to skip the DTV
tuning. An installation reminder will appear the next time
press the OK button to confirm.
5). In the Tune Type menu, press the buttons to
select ATV / DTV / DTV + ATV. Press the button
and then press the buttons to select the
country where you will operate the TV. Press the
OK button to confirm.
EN-19 OK GreeceNederlands GermanyPortugalPolandItalyHungaryLuxembourgNorway 6). Channel tuning will commence. This operation may
take up to The display will show the
progress of the tuning and the number of channels
7). If you want to skip the ATV tuning, press the MENU
button to interrupt the tuning half way. A pop-up screen
will be displayed, press the◀button to select YES to
confirm. You will then go straight to DTV tuning. You
may repeat the above step if you also want to skip the
DTV tuning. An installation reminder will appear the
next time you turn on the TV.
8). After tuning is complete, the channels are arranged
in a preset order. If you wish to skip channels, modify
the preset order or rename channels, select P
2. 1 ) DTV Manual Tuning (DVB-T)
All the channels including ATV, DTV and Radio
can be tuning by one time,if the Tune Type is
All the stored channels will be disappear after
After auto tuning , the channel will skip to
the first DTV channel.
1). Press the MENU button and then press the▼▲
buttons to select the CHANNEL menu and then
4). Press BLUE key to start a new channel search; Press
Exit key to skip the channel search to load the default
1). Press the MENU button and then press the
buttons to select the CHANNEL menu and then
press the OK button. DVB-S2 1.2 )Auto Tuning (DVB-C)
2). Press the▼▲buttons to select Auto Tuning and then
2. 2 )DTV Manual Tuning (DVB-C)
3). The DTV Manual Tuning screen will pop up.
Press the◀▶buttons to select the desired UHF
channel and then press the OK button to
commence the search of that channel. When the
signal has been tuned, the picture and signal
strength will be displayed on the screen.
1). Press the MENU button and then press the
buttons to select the CHANNEL menu and then
and then press the OK button.
3). The CADTV Manual Tuning screen will pop up.
Press the▼▲buttons to select(Frequency /Symbol
(ks/s/QAM Type QAM) press the OK button to commence
the search of that channel. When the signal has been
tuned, the picture and signal strength will be displayed
3.1First Time Installation
Please press the source button to enter input menu
and use/ direction buttons to select DVB-S2 and press
OK key to confirm. The Channel List for ASTRA is
already installed. You are now ready to watch TV.
If you are using different satellites please follow the
system settings instructions to set up the satellite.
If you are using more than one Satellite you need to
assign the satellites the correct DiSEqC-LNB that is
used in your satellite installation.
3.2 Satellite Managment
Configure the settings of satellites.
Satellites' list: Press to select a satellite,
whose settings will be shown at right side.
◀ /▶/OK to show the list of LNB Types which is shown as frequencies of local
oscillator. You also can enter frequency by User
Single, User Dual at bottom of the list.
◀ /▶to set the LNB power.
◀ /▶to switch on or off the 22K,which is
set with auto when LNB Type is dual local oscillator.
Select the right port up to 4 for the right LNB.
Select the right port up to 16 for the right LNB.
Press LEFT/RIGHT to select DiSEqC1.2 or DiSEqC1.3. Then Press OK to
show the menu to set position.
Move the motor to a right position to lock the signal.
Move the motor according to the local and satellite positions.
Select DiSEqC and press OK to open.
Press LEFT/RIGHT to start to move West/East. It will be stopped
automatically when the signal is locked.
Press LEFT/RIGHT to start to move West/East. It will keep moving until you stop it.
Press LEFT/RIGHT to move just a step.
Store current position of motor.
Press LEFT/RIGHT to goto the position stored.
Rest all the positions.
Goto X: Goto the position calculated from the local and satellite positions.
3.2.1 Satellite settings
Add satellites: Press RED to add a new satellite, in which you must input an unique longitude, and edit the
satellite's name with soft keyboard.
Edit satellites: Press GREEN to edit the focused satellite.
Delete satellite: Press YELLOW to delete the focused satellite.
Press OK to confirm.
Press GUIDE to switch the list to show transponders of the focused satellite. Also you can press GUDIE to switch
back to satellites' list.
Press RED to add a new transponder. It can't save an existing TP under the same satellite.
Press GREEN to edit the focused transponder. It can't save an existing TP under the same satellite.
Press YELLOW to delete the focused transponder. Press OK to confirm.
Single Transponder Scan:
Press BLUE to pop the menu of scanning setting. After configuring the settings, Press OK to start scanning.
Multi-Transponder Scan:
Press OK to select transponders with the mark”√",then press BLUE to pop the menu of scanning setting. After
Configuring the settings, press OK to start multi-transponder scanning.
3.2.3 Channel search
Single Satellite Scan:
Press BLUE to pop the menu of scanning settings.
◀/▶ to select default, which scan the default transponders built in, Blind Scan and NetWork,
which scan with NIT on.
◀/▶to select All Channels or FTA Channels;
◀/▶to select ALL , DTV or Radio.Press OK to start scanning with the above settings.
Multi-Satellites Scan:
Press OK to select satellites with the mark “√" ,then press BLUE to pop the menu of scanning setting. After
Configuring like single satellite scan, press OK to start multi-satellites scan.
To edit your program preferences (skip, favourite, move or delete), you will need to enter the Program Edit Menu.
Delete a TV or Radio Program
Select the program and then press the RED button to delete the channel.
Move a TV or Radio Program
Select the preferred program then press the YELLOW button. Press
◀/▶ to move the program. Press YELLOW
Skip TV or Radio Program
Select the program you would like to skip and press the BLUE button. A skip symbol is displayed. The program is
Set Favourite Program
Press▼▲to choose the program , press FAV button , it will show on the right side of the program.Choose the FAV
program , press FAV button again , you can cancel the FAV, the will disappear.Once your favorite group is created, you
can press the FAV key to quickly access your favorite channel.
3.4 Signal information
It shows the signal quality and signal strange by selectet channel.
It shows informations about the CI card that is connectet to tv.
3.6 EPG (Electronic program guide)
The EPG is an on-screen TV guide that shows scheduled programs seven days in advance for every tuned channel.
Press the GUIDE button on the Remote Control to access guide. It will show a list with the current runprogramms.
Select “Programm Guide” and press to switch between Time / Channel.
▼/▲ key to select the preferred program.
Time:An overview will be shown about the broadcast to the selectet date to current time from the programms.
- Select the “Date / Timer” display and press
◀/▶to edit the date.
Channel:An overview will be shown about the broadcast course of the selectet channel on day you edit befor.
- Select the programm display and press ◀/▶to switch the channel
Remind:Use BLUE botton to open the reminder setting. Press “Ok” to acknowledge the edit settings.
The made settings will be stored in your schedule list.
Record:Use RED botton to open the record setting. Pres “Ok” to acknowledge the edit settings.
The made settings will be stored in your schedule list.
Info:Use Green botton to open the information about the selectet broadcast.
Schedule:Use YELLOW botton to open the schedule list from your records and remind settings.
Selectet items can be delete with “RED” botton.
4) ATV Manual tuning :
You can change the sound system to search the
analog TV channels and fine tune the channels ,
then storage the channels you selected.
Press teletext red button to storage to channels
after manual tuning . ATV Manual TuningStorage To 1System BGCurrent CH 1SearchFine-TuneFrequency 424.25 MHzSave MENU 5). Program edit:
You can Delete ,Rename ,Move, Skip , FAV any programs.
Press teletext red button , the program in cursor will delete.
Only can rename ATV programs .Move the cursor to the program, press teletext green button to rename the program.
Press▼▲ to choose the character. Press◀▶to move the cursor.Press MENU button to exit edit , Press EXIT to exit the
Note: ATV programs name only can be 5 character.
EN-226). CI information: (optional)
This menu can display the CI card' s information.
Use the Arrow Buttons to select the channel you wish to
move. Then press the Yellow Button to select Move
function. Once active use the Arrow Buttons to move and
then press OK to confirm.
Press to choose the program , press teletext blue
button to skip this program, The will show on the right
side of the program .Choose the skipped program, press
blue button again , you can cancel the skip ,The will
the will disappear .
Once your favorite group is created, you can press the FAV
key to quickly access your favorite channel.
1).Tint is available in NTSC system only.
2).There are four colors temperature modes
can be selected medium, warm, cool,user
3).Screen is available in PC mode only which
can adjust Horizontal position, vertical
position, size and phase.
3.SOUND MENU The third item of the MENU is the SOUND MENU.
You can adjust the sound effect here such as
treble, bass, balance etc.
Auto volume: only available when the input signal
volume is too large or distortion.
4.TIME MENU The fourth item of the menu is the TIME MENU.
You can adjust the clock, power on/off time,sleep timer etc
The second item of the MENU is PICTURE MENU.
You can adjust picture effect here, such as contrast,
5.OPTION MENU The fifth item of the MENU is the OPTION MENU. You can
adjust the OSD language,Audio language,Subtitle
Within 15 minutes there is no signal, the TV will auto
sleep , if Auto Sleep is set ON. The clock time can get
from the DTV system auto.
EN-236.LOCK MENU The sixth item of the menu is the LOCK MENU. You can lock system, set password, block program and set parental guidance Once you set the lock system on you can not search the channels or change any programs. The default pass word is 0000, If you forget thepassword, you can use the super password:9443.Block program: Press▼▲ to choose the program ,press teletext green button to block the program. If you want unblock the program, pls enter the main menu , input the password,then press green button again.Parental guidance: Press◀▶to choose rating. 7.EPG Menu(Electronic Program
Guide). The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day.To access the EPG menu, press the ,the following menu will be displayed:GUIDE button1. Use to choose the programs , Press INFO key, you can display the highlight program's information. INFO 2. Press the teletext yellow key, It can list all the reminder schedule, press to choose the list, press red key to delete the schedule list. ▼▲
DELETE Schedule List 04:55 28th Apr Delete Time DateProgramme TitleChannel Name Restore factory default will clear all the programs
In PVR File system menu you can set up USB
disk for PVR. Automatic Power-down1.If after 4 hours from switch on and no changes have been made to the TV, for example no channel or volume changes,the TV will start the automatic power down sequence. And pop-up window will appear on screen. After 150 seconds the TV will automatically switch to standby. To override the automatic shutdown press any button on the remote control.2. To cancel the automatic power-downOn the Option Menu select Automatic power-down(4H)Press left/right A pop-up message will appear “Are you sure you want to disable automatic power-down?”Use the left arrow key to select YESThe TV screen returns to the Option Menu and the Automatic power-down(4H) option will display.Automatic power-down(4H) OFFTo return to auto shutdown after 4 hours repeat the above except use the right arrow key to select NO.Seconds to Automatic power-downPlease press any Key to Cancel 26/Jan
OK OK BACK MOVE OK MENU 3. Record Press the red key ,It can set the program to be recorded.4. Press the blue key to choose one program and set up one reminder time, the TV screen will skip to the choosed program in the reminder time automatically. Reminder1 TV337 Minute11 HourJan Month26 DateOnce ModeReminder BACK OK EN-24PVR File System Type Hi Speed FSPVR File System Size AllSD 104 MinsHD 29 Mins File System SizePVR File System Type FAT32SD 104 MinsHD 29 Mins File System SizeOK OK Select Disk
System set up in the USB device or not.
Select Disk:select which disc to save the
1.Prepare to record the program
PVR function only works in DTV.
From OPTION MENU enter into PVR File System
In “OPTION MENU”, please choose “check
PVR File System”. Click “OK”, until
“checking”change into “Success”.
Note: please check the term “speed”. If it is
“HD support”, that means the speed of USB
device is available for time shift and record. If
not, please format the device, to make sure the
device available. The default “Free Record
Limit” is 6 hour, if the space on the disk is big
enough. If the space is not
big enough, the record time should be shorter,
depends on the room on the device. During the
“check PVR File System” checking, please do
not take any other operation until it finished.
The recordings must be done with the TV PVR
system. It can only be played in the same TV,
not in any other kind of device (computer,
DVD, etc.) which is not compatible with .
Please note that in order to carry out any kind of
recording, the TV will require you to format the
connected USB device to store the recording.
WARNING. WHEN YOU FORMAT, THE EXTERNAL USB DEVICE YOU WILL LOSE ALL THE FILES AND INFORMATION YOU HAVE STORAGE ON THE DEVICE.
The USB file system will limit the size of the
File system: NTFS up to 2TB FAT32 with up to 192GB FAT16 with up to 2GB From OPTION MENU enter into PVR File
below menu appear after Format finish:
If you select the “Hi Speed FS ”format mode,
then you can change the time shift size:
Operation Time Shift SizeTime Shift Disk Size 512 MBSD 14 MinsHD 4 MinsOK 2.Record the program
As playing the DTV source, choose the channel
and click “ record”, the record frame will pop up. Click
” record” again, the record frame will disappear and
the “REC” icon still on the left top. It will disappear until
The program recorded on the “USB”will be
saved in the folder “_MSTPVR” on the
1.The USB storage size can be between
128MB and 500GB in size, but for practical use 2GB to
500GB is recommended.
2. Video may become pixelated when Video
bit rate is too low. This can be caused by connecting a
USB extension cable instead of plugging the USB
directly into the TV
3. Not all USB devices are compatible.
Below is a list of recommended USB drives.
Models that are not listed may be compatible, but it is
not guaranteed to work.
The USB support list are the same as Timeshift
function,see the following pages for details.
Do not unplug USB device.
Formatting,please wait
Warning! All data will be lost. OK (Suggest to format the device by “High Speed Fs...”,
which can speed up the record.)
Please do not unplug the USB storage device
when the Time Shift function is activated.
Approximately 4GB of memory buffers
about offer 140 minutes.
Prepare to record the program
This TV allows you to pause and record the
currently watched digital program to a USB
storage device, and to resume to the point
where it was paused.
Formatting a USB 2.0 storage device will
be needed. Save your original data
before formatting. All the data stored in
the USB device will be erased after
USB Drive Storage Format
Select to format the USB device and allocate the
amount of space for the Time Shift function.
The format process will take at least 2
minutes. Please do not turn off the power or
remove the USB device during formatting.
During formatting, a speed test will be done
on the USB device. If it fails, it means the USB
device may not support the Time Shift
Record a paused DTV program to
1. While in the DTV input source, insert
USB storage device to the USB port on the
2. Press Play/Pause 15 to start Time Shift
function. The TV program paused. The Time
Shift OSD appears, and starts recording.
3. Press STOP 26 to stop Time Shift
function and stop recording program.
9.Timeshift function
1. When the Time Shift feature is activated, only
the PLAY/PAUSE/STOP/FWD/REV/
VOL+/VOL-/MUTE keys and some basic
operation keys ( /EXIT/navigation keys)
2. Video playback may not be smooth and skip if
USB recording speed does not meet the
minimum requirements .
3. Do Not remove USB disk or switch off the
power during Time Shift operations. It will
abort once the signal is lost.
4. Do Not remove the signal source during Time
5. Do Not quickly and repeatedly change
operations between PLAY/PAUSE/FWD/REV.
6. Video may become pixelated when Video bit
7. Not all USB devices are compatible, The USB
hard disk drive electricty should be
Below is a list of recommended USB drvies.
Models that are not listed may be compatible,
but it is not guaranteed to work.
8. This feature is not available for all digital
TV,such as scrambled or audio only channels.
San Disk Extreme® Contour™ USB Flash
Press source key, and select USB in source
list, press OK button to enter the USB menu.
Please make sure that the USB device have
plugged in the slot.There are four type media
item can be selected, such as photo, music,
Movie, and text. Select the type media item by
pressing , press OK button to enter
the disk selection menu.
Press the to select the right disk and press
OK to display media files and folder list or
choose Return to back to the media type
Select the media file by pressing or , then
the preview frame will pop up.Press the button
to play the media file in full screen.When the
media file (photo, Movie, or text type) is playing,
press the OK or Info button can display the control
Press to select the function icon, press OK
button to confirm the function.
Press or EXIT button to exit the control bar
You can adjust the audio track, or program in the
USB playback is supported for the following photo
-JPEG(JPEG format, files with the extension ".jpg" )
-BMP (files with the extension ".bmp")
-PNG (files with the extension ".png")
USB playback is supported for the following music
-MP3 (files with the extension ".mp3")
USB playback is supported for the following text
-TXT (files with the extension ".txt")
USB playback is supported for the following movie
EN-2911.MHL user guide:
1: Turn on the TV, and unlock the phone screen.
2: Connect one end of the MHL cable to the TV "MHL" port.
3: Connect other end of MHL cable to Mini USB interface of mobile phone
If your mobile phone is Samsung GALAXY SIII or GALAXY NOTE II, please use inverter from the attachment to
connect MHL cable and mobile phone. Other brand can connect with MHL cable directly.
4: Press “ ” on the remote control to switch the TV to the MHL mode.
If your phone supports MHL function, the TV will simultaneously display screen of the phone; otherwise, TV will be
prompted to not connected to an external device or external devices do not support MHL.
After MHL successfully connected, you can remote control the phone through the TV remote control, specific remote
function associated with your phone specification.
At this point, you can enjoy a wealth of Internet resources by phone.
5: For MHL official certified mobile phone models, please see the following links:
http://www.mhlconsortium.org/productlist/mobile-devices/
6: Support other devices with MHL-function.
7: The product has been officially certified by the MHL. If MHL functionality encounters any problems, please
contact the manufacturer of mobile devices.
HDMI2/MHL EN-30Picture Audio
Snow Noise antenna position, direction or connection Inspection Check
Noise electronic equipment,car/motorcycle,fluorescent light Normal Picture
Mute Volume(check if mute is activated or if the audio system connections are not correct) No picture Mute Power cord is not insertedPower switch is not openedContrast and brightness/volume setupPress standby key on the remote control for inspecting No colour Normal audio Colour control
or weak retune channel No colour
Noise TVsystem Normal audio antenna position, direction or connection Trouble phenomenon Symptom
Normal audio Change aspect to zoom There is black baron top and bottom 05 Trouble shooting
Trouble Shooting EN-31Trouble Shooting
My TV does not display the picture
on my laptop / PC when connected.
Most PC's and laptops when connected with a VGA Plug (the
blue 15 pin plug on your PC or laptop) require you to press
some buttons on your key board to get a picture on a TV or
other external display. This is usually the F7 (Dell) or F4 (HP /
Samsung) or F5 (Toshiba). On laptops, you have to press the
“Fn” key at the same time as the “F” key.
I have connected my PC/Laptop to
the TV and get a picture but no
The VGA cable only carries the video or picture information.
You need to connect a separate cable connected to the
earphone socket (3.5mm jack) on you PC/Laptop to the 3.5m
(PC Audio IN) socket on your TV. You will need to select “PC”
using the Source button on your remote.
Alternatively connect your PC/Laptop using a HDMI cable if
you PC/Laptop has a HDMI connector. HDMI is both audio and
The picture is not auto resizing
when changing channels.
Check that the TV picture Aspect Ratio is set to 'Auto' on all
inputs ATV, DTV, SCART, HDMI 1, 2 etc.
To set the aspect ratio, (Auto, 4:3 or 16:9). Press Source button
start at ATV and repeat the sequence below for all input
sources ATV, DTV, SCART, HDMI 1 and 2 as each input source is
controlled separately.
Press TV Menu button
Press Right Arrow to access Picture sub menu
Press Down Arrow to select Aspect Ratio
Repeat for all input sources.
I have just plugged in a DVD player
or another item into my TV and it
This is applicable to any item of equipment plugged to the TV
1. Turn both TV & DVD player off (plugs out of the wall socket,
2. Turn off any equipment connected to the SCART socket.
3. Disconnect the SCART plug from the TV.
4. Plug in and turn TV on
5. Plug in and turn DVD player on
6. Select HDMI from Source Menu
7. Press play on DVD player and check movie plays ok
NOTE: The SCART socket has priority over HDMI and it is
important that the equipment connected to the SCART socket
on the TV is switched OFF (not in standby).
Please follow this information. If the advice works and the
DVD player works, the TV is OK it is just a bit confused.
Probably HDMI plugs have been removed and plugged back in
when the TV is switched on.
Never remove or plug in HDMI cables or any digital equipment
with the equipment switched on.
Always switch off all equipment when unplugging or
connecting any digital equipment.
EN-32Trouble Shooting
Picture Breaks into Pixels
A typical example of a reception problem includes the break up of pictures (pixilation) or the picture freezing,
sometimes there are clicking or squeaking sounds or the sound drops out or there is NO reception at all.
Your picture may break into pixels due to the digital video signal dropping. The signal dropping may occur because of
either problems with weak signals (see TV Aerials) or if you are connected by cable a weak cable signal. If the problem
is weak signals, use an amplifier to strengthen the signal. A cable technician can help you install an inline amplifier or a
pre-amplifier. This will boost your signal strength and fix the pixel problem.
If you are receiving your TV signal by satellite, check your dish has not moved following high winds, or that the signal is
blocked by trees. Trees can be a problem as the TV signal can change depending if a tree between the satellite dish and
satellite is in bare or in full leaf.
It may be that you find that there are channels missing, or you're receiving channels from the wrong region.
Sometimes the interactive services (red button) doesn't work. This is usually caused by weak signal, see TV Aerials
Digital terrestrial television (Freeview) comes to your TV via an aerial, The old aerial that was good for analogue TV may
not work well for digital so may need upgrading. If you are getting some but not all of the digital channels on DTV
(Freeview) for example you get BBC1, BBC2, Channel 4 ,but not ITV or Channel 5, this is usually because your aerial is a
narrow band type, and needs to be changed to a wide band type.
Faulty Leads and Cables
Check your TV. Are the leads at the back - to the mains, the aerial, the set-top box, the video or DVD player or recorder
properly connected? SCART leads are known to work loose over time and can result in both audio and video (picture)
problems. Either left or right or both audio is missing and the colours are poor or muddy looking. Push the SCART
plugs firmly in, this should fix the problem.
HDMI plugs need to be pushed in firmly; it's only the last millimetre that the contacts make. Typically the black plastic
part of the HDMI plug should be very close or touching the body of the TV or component.
When plugging in any HDMI cables you may experience problems if the HDMI cables are plugged in when the TV or the
other component is switched on. Always switch off both the TV and the component you are plugging in. If you have
checked the plugs and sockets, switch off the TV and whatever you have plugged in to the TV and then switch them on
I have connected my PC to the TV. There is no sound.
If you connect your PC or Laptop to the TV using a VGA (15 pin Sub D) cable there is no audio, you need to connect a
separate audio cable to the TV from the PC or laptop.
Unnatural Colours and Flesh Tones
Unnatural flesh tones and other colours could present another problem even in a new HDTV. This is due to the TV
picture settings, which are optimized for a showroom environment. Fix this by changing the picture mode to natural in
the picture menu. For more precision, try manually setting the colour, contrast and brightness options in the picture
White outlines around objects and people generally appear either if the TV sharpness is set to very high, or if your
television set uses some edge-enhancement processing technology. Go to the picture menu and adjust the sharpness
till the white outline disappears. If edge-enhancement is enabled, try to disable it using the service menu.
At times the video might become choppy. When this happens, check whether the signal is strong enough. If the signal
is strong the problem is with the cable operator. If the signal strength is weak, try boosting the signal strength with the
help of an amplifier.
The picture does not fill the screen
When connecting PC's or laptops to the TV, the picture may not fill the screen. Check the display settings on your PC or
laptop (Windows > Start > Control Panel > Appearance and Personalization > Display
settings) and select the best
resolution. On your TV select:- TV Menu > Picture > Settings and then try AUTO, ZOOM1 or ZOOM2 for the best display.
The USB connection will work with *.jpg (photo) and *.mp3 (music) files. Please note the TV does not recognize Apple
iPhone, or iPod's connected to the USB connector on the TV. The TV may play other files, but due to the multiple
different file formats, there is no guarantee that these other file formats will work.
Trouble Shooting Digital TV Problems and possible Solutions.
EN-33Television picture quality:FULL HDIntegrated digital.Screen Size: 99cmResolution 1920x1080 pixels 50Hz. 39" FULL HD 1080P Digital LED LCD TV Additional features:NICAM stereo sound system.2 x 10watts RMS power output.Digitally interactive.Digital text.Digital video broadcasting (DVB) subtitles available.Auto setup.Auto scan for new channels.Now and next programme guide.7 day electronic programme guide (EPG).Top up TV compatible.CI slot.Audio description compatible.Sound quality:Digital features:Standby Power consumption ≤0.50W * The part specifications of this TV set provided here
are for reference only.
Difierences may occur as product technology is updated.
Design and specifications are subject to change without notice. Scart Output description :1. When current source is ATV/AV/SCART, scart output signal is AT V.2. When current source is DTV, scart output signal is DTV.3. Other source have no SCART output signal.Connectivity:2 HDMI sockets/1MHL sockets.1 SCART socket.PC input socket.Component video socket.Composite.1 USB port.1 Headphone port.1 LNB.Supported Systems:PAL+SECAM Storage channel number: 5000(DVB-S2),510(DTV),100(ATV) TV(RF):75Ω Imbalance AV Video-Input:75Ω,1V-P,RCAAV Audio-Input:20KΩ,500mV RMS YPbPr/HDMI Video Input:480i, 480p, 576i, 576p, 720p, 1080i, 1080p DTV Tuner DecorderDVB-T, DVB-C,DVB-S216/32/64/128/256 QAM modulationMPEG2,MPEG4,H.264 Specification
EN-34 UHF/VHF tuner;Sleep timer; ;Picture and textParental GuidanceRemote control batteries required 2 x AAA (included).VESA Mount Size: 200x200 mmPackage Size (WxHxD): 1015x160x640mm
46" FULL HD 1080P Digital LED LCD TV Additional features:
NICAM stereo sound system.
2 x 10watts RMS power output.
Digitally interactive.
Digital video broadcasting (DVB) subtitles available.
Auto scan for new channels.
Now and next programme guide.
7 day electronic programme guide (EPG).
* The part specifications of this TV set provided here
are for reference only.
Difierences may occur as product technology is updated.
Design and specifications are subject to change without notice.
Scart Output description :
1. When current source is ATV/AV/SCART, scart output signal is AT V.
2. When current source is DTV, scart output signal is DTV.
3. Other source have no SCART output signal.
UHF/VHF tuner;Sleep timer; ;Picture and textParental Guidance
Remote control batteries required 2 x AAA (included).
VESA Mount Size: 200x200 mm
Package Size (WxHxD): 1220x170x770mm
Set Size (WxHxD) with Stand: 1060x280x668mm
Package weight : 16.6 kg
Set weight with stand: 13.8kg
EN-35Television picture quality:
50" FULL HD 1080P Digital LED LCD TV Additional features:
NICAM stereo sound system.
2 x 10watts RMS power output.
Digitally interactive.
Digital video broadcasting (DVB) subtitles available.
Auto scan for new channels.
Now and next programme guide.
7 day electronic programme guide (EPG).
* The part specifications of this TV set provided here
are for reference only.
Difierences may occur as product technology is updated.
Design and specifications are subject to change without notice.
Scart Output description :
1. When current source is ATV/AV/SCART, scart output signal is AT V.
2. When current source is DTV, scart output signal is DTV.
3. Other source have no SCART output signal.
UHF/VHF tuner;Sleep timer; ;Picture and textParental Guidance
Remote control batteries required 2 x AAA (included).
VESA Mount Size: 200x200 mm
Package Size (WxHxD): 1290x175x827mm
V. Freq. (Hz) H. Freq. (kHz)
R Rot (AUDIO-R, Pr/Cr)
R Rot (AUDIO-R, Pr/Cr)
play 00:04:22 SUB-10.avi
R Rouge (AUDIO-R, Pr/Cr)
R Rouge (AUDIO-R, Pr/Cr)
Option 5 VGA (Sub-D 15 broches)
Identification Reseau Auto
Identification Reseau Auto
WAARSCHUWING: de batterijen (of accu's)
R Rood (AUDIO-R, Pr/Cr)
R Rood (AUDIO-R, Pr/Cr)
“Home”- of “Shop”-modus
Enjoy Your Haier TV Press OK to Exit
"OK”.Een pop-up-bericht "Are you sure you want to enable
OK PVR File System Type Hi Speed FS PVR File System Size All
play 00:04:22 SUB-10.avi
R Rojo (AUDIO-R, Pr/Cr)
R Rojo (AUDIO-R, Pr/Cr)
RISOLUZIONE V. Freq. (Hz) H. Freq. (KHz)
R Red (AUDIO-R, Pr/Cr)
R Red (AUDIO-R, Pr/Cr)
Digitally interactive.
Digital video broadcasting (DVB) subtitles available.
Auto scan for new channels.
Now and next programme guide.
7 day electronic programme guide (EPG).
UHF/VHF tuner;Sleep timer; ;Picture and textGuida famiglia
Remote control batteries required 2 x AAA (included).
VESA Mount Size: 200 x 200 mm
Dimensioni confezione (LxAxP):
Digitally interactive.
Digital video broadcasting (DVB) subtitles available.
Auto scan for new channels.
Now and next programme guide.
7 day electronic programme guide (EPG).
TV LED LCD 50" FULL HD 1080P Digital
UHF/VHF tuner;Sleep timer; ;Picture and textGuida famiglia
Remote control batteries required 2 x AAA (included).
VESA Mount Size: 200 x 200 mm
Dimensioni confezione (LxAxP):
DIF for DTV MSD309B DDR3
ON_PBACK Encrypt TS Stream to CI TS1_SYNC(Y12)
DMBTH AIF for analog TV CI_CD(K15)
470uF/16V R69 NC/0R-0805R69 NC/0R-0805
KEY PAD OFF ON ON OFF FLASH FOR TEST LED EAR PH DETECT WITH EARPHONEWITHOUTClose to MST ICwith wide traceR82 Close to MST ICḍᅲ䰙⬉⑤Ϟ⬉ᯊᑣ䇗ᭈ
RIN1 GIN1NSC1_FSSC1_FBCVBS1_OUTSPDIF_OUTSPDIF_OUT RIN2
R147 4.7K/NC R147 4.7K/NC TS1
VAG V4 AVSS_VRM_ADC V3 SPDIF_IN G14 SPDIF_OUT H15 I2S_OUT_MCK F15 I2S_OUT_WS F14 A_RX0N F2 A_RX0P G3 A_RX1N G2 A_RX1P H3 A_RX2N H2 A_RX2P H1 A_RXCN F3 A_RXCP F1 DDCDA_CK D5 DDCDA_DA C5 HOTPLUGA J4 D_RX0N C2 D_RX0P D3 D_RX1N D2 D_RX1P E3 D_RX2N E2 D_RX2P E1 D_RXCN C3 D_RXCP C1 DDCDD_CK D4 DDCDD_DA C4 HOTPLUGD B1
CEC K4 I2S_OUT_BCK G15 I2S_OUT_SD F13
IRIN J5 RESET H6 XTAL_IN Y4 XTAL_OUT AA4 TESTPIN M7
Close to DDR POWER PIN
A-MVREFCA A-MA2A-TMA2
A-MCASB A-MODT A-MRASB A-TMA10 A-MA10
C173 10nFC173 10nF C150
Each of these Vcc pins of TDA18273 is decoupled by a
9.5-12v: 4:3 AV SCART Keep AGND trace with signal
R119 R118 10KR118 10K 2.2u
8 C20433pFC20433pF C194
20K R116 R142 NC/0RR142 NC/0R C174
20K C1830.1uF C1830.1uF C187 100pF C187 100pF R115
470R C199 100pF C199 100pF 10k
20K R127 R139 NC/0RR139 NC/0R
DDC2BSCL DDC2BSDA GPIO0#
NC/2.2uFEARPHONE OUT
PCM_CD2_N PCM_CD_N PCM_CD1_N PCM_CE_N PCM_A10
1nFPIN14H:turn off L;turn on900mil 90
2.2K R17100R R17100R L2
10K L5 22uH/2A L5 22uH/2A TC7
4.7K HS1HS1 1 HS2HS2 1
only for 39”/46”only for 39”/46”
NC R146 1KR146 1K R143
