USER MANUAL LE40B650CF HAIER

LE40B650CF Please read this manual carefully before operating the unit,and keep it for

Warning and cautions

Base Stand Assembly Instruction

Connecting to your Haier TV Common Interface

PVR File System(only for TV)

Prepare to record the program

06 tionThanks for buying this 40" LED LCD TV.This guide will help you set up and begin using your TV.

Now you can get star

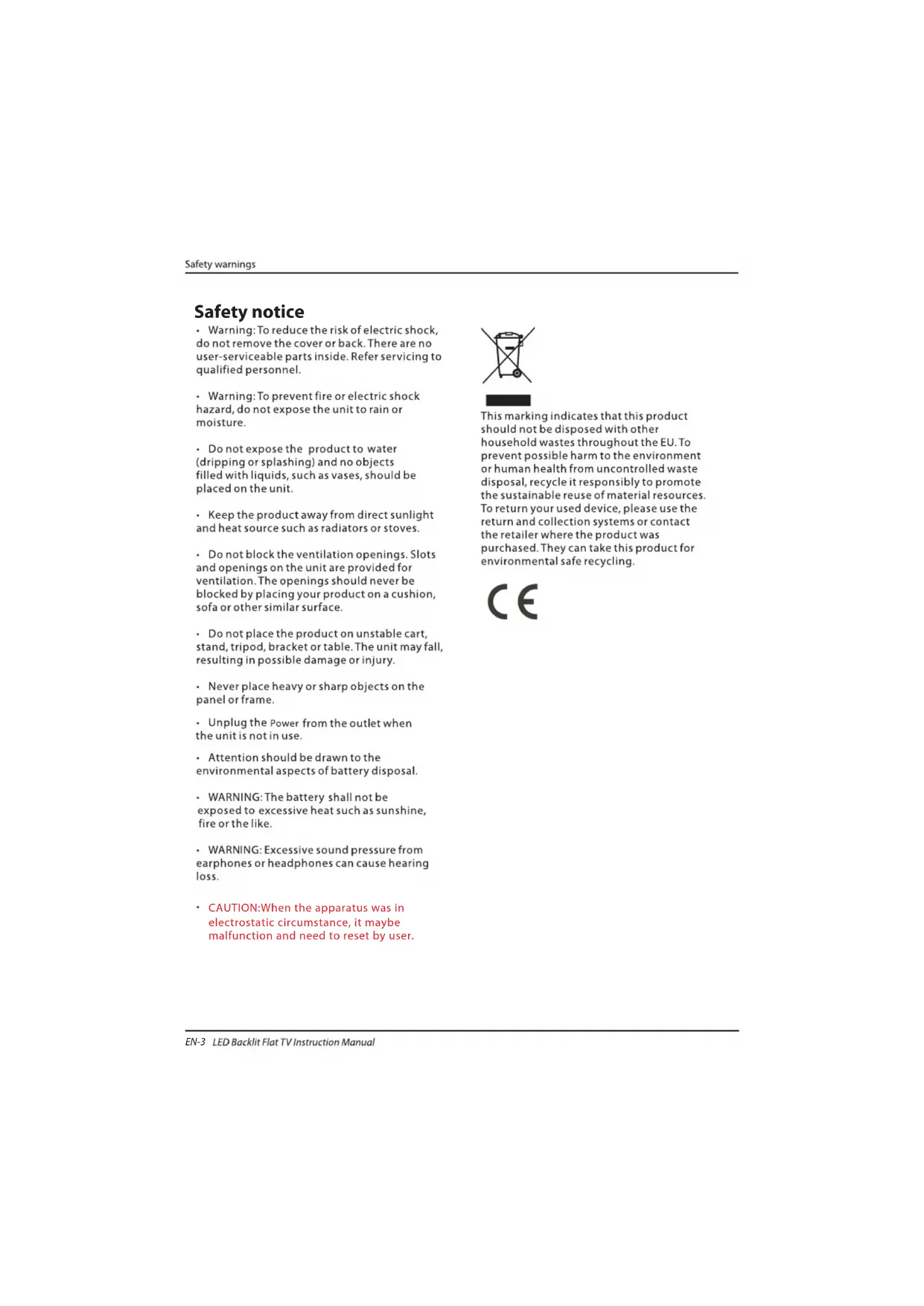

CAUTION:When the apparatus was in

electrostatic circumstance, it maybe

malfunction and need to reset by user.Dim:515*320mm(不包括底座）

High voltages are used in the operation of this

television receiver. Do not remove the cabinet

back from your set. Refer servicing to qualified

not expose the television receiver to rain or

Do not drop or push objects into the

television cabinet slots or openings. Never

spill any kind of liquid on the television

Do not block the ventilation holes in the back

cover. Adequate ventilation is essential to

prevent failure of electrical components.

Do not trap the power supply cord under the

television receiver.

Never stand on, lean on, or suddenly push the

television or its stand. You should pay special

attention to children. Serious injury may result if

Do not place your television on an unstable cart,

stand, shelf or table. Serious injury to an

individual , and damage to the television, may

result if it should fall.

When the television receiver is not used for an

extended period of time, it is advisable to

disconnect the AC power cord from the AC

If the television is to be built into a compartment

or similar enclosure, the minimum distances must

be maintained. Heat build-up can reduce the

service life of your television, and can also be

WARNING AND CAUTIONS EN-4PanelPAL-B/G ,I , D/KPAL/SECAM/MPEG2/MPEG4/H.264AC 100 - 240V 50/60Hz 2x8W Analog RGB(PC) x1; PC audio x1H nterface (HDMI) x 2Composite Input x 1YPbPr x 1SCART Input x 140"CI x 1USB x 2RF x 1 Composite video input >=350YPbPr >=400Headphone x 1 COAXIAL x 1 TV SystemVideo Signal SystemInput Power VoltagePower consumptionStandby Power consumptionAudio Output Power (THD 7%)Signal InputSignal outputHorizTVlineSECAM-B/G , D/K , L≤0.30WDVB-T, DVB-C INSTALLATIONCAUTION *Locate the TV in the room where light does not strike the screen directly.*Total darkness or a rtion on the picture screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.*Allow enough space between the TV and the wall to permit ventilation.*Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure.*Do not cover the ventilation openings when using theTV. Main parameter

4 NICAM˗ 5 T ˗ime-shift3 HDMI interface and SCART Interface˗High luminance, wide viewing angle˗2 Used as Television, display terminal, PC display˗1 Never tamper with any components inside the TV, or any other adjustment controls not described in this manual. All LED-TV's are high voltage electrical equipment. When you clean dust or any water drSCREEN or CABINET or around any of the buttons or connectors, the power cabled should be removed from the power socket. Wipe the TV with a soft, dry, dust free cloth. During thunderstorms, unplug the power cable and aerial / antenna cable to prevent damage to your TV and any other devices connected to it. All repairs to this TV should only be performed b TV servicepersonnel. 02 Introdution Introduction EN-5 1000(DTV);100(ATV)Storage channel number

Base Stand Assembly Instruction Locate the TV in a room where light does not strike the screen directly. Total darkness or a reflection on the screen can cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing. Allow enough space between the TV and the wall to permit ventilation. Please do not attempt to rotate the TV on the stand. Avoid excessively warm locations to prevent possible damage to the cabinet or premature component failure. INSTALLATION NOTES

2. Attach the stand base plate to the stand poleby firmly tightening the supplied screw. 1.Place the TV with the display side down on a flatsurface.Use a cloth to protect the display.Positionthe stand base plate onto the bottom of the standpole.WALL MOUNTING INSTALLATION GUIDELINES This television can be wall mounted as follows:

1.Place the LED LCD Television onto a solid surface. Please place some soft material over the front of the screen to

protect it from any damage.

2.Remove the screws from the lower part of the television, where the base joins to the TV, and take away the stand

(put the stand somewhere safe for future use).

3.Use the four screws provided to x the TV onto a wall mounting bracket (not included) via the four VESA standard

holes on the back of the television.Introduction

Remote control sensor.

Connecting to your Haier TV G Green Y

machine with YPbPrYCbCr

with HDMI interfaces

CVBSDVD Player or other

machine with CVBSSVideoEN-10

Connecting a DVD player / Satellite / cable

set top box receiver / games console / PC or

There are several options to connecting a DVD

player / Satellite or Cable set top box receiver /

games console / PC or Laptop to your TV.

Option 1 SCART Connect a SCART cable (not supplied)

from the SCART socket on the TV to the DVD

player / Satellite or cable set top box receiver or

To select the device connected with the

SCART cable press the SOURCE button on the

remote and use the keys to select SCART

and press the OK button.

Note:- The TV will default to the SCART

en the TV is switched on.

Option 2 HDMI1/HDMI2

If the device you want to connect to the TV

is switched on, switch off the device first.

Connect a HDMI cable (not supplied) from

the HDMI socket on the TV to the DVD player /

Satellite or cable receiver or games consol.

Switch on the device you have just

connected to the TV To select the device connected with the

HDMI cable press the SOURCE button on the

remote and use the keys to select HDMI and

Option 3 AV Audio Visual

Make sure that both TV and the device are

switched off before connectin

Connect the AV cables (not supplied) from

the Video (yellow) and Audio (white, red)

sockets on the TV to the DVD player or games

To select the device connected with the

cable press the SOURCE button on the

remote and use the keys to select AV and

press the OK button.

(Green/Blue/Red)+(White/Red)

Make sure that both TV and the device are

switched off before connecting.

Connect the cables (not supplied) from the

YPbPr IN sockets Y, Pb, Pr (green, blue, red) and

L-Audio-R (white, red) on the TV to the DVD player

or games console etc.

AV To select the device connected with the

cable press the SOURCE button on the

remote and use theƷ keys to select and

Option 5 VGA (15pin Sub-D)

Connect a VGA cable (not supplied) from the

VGA socket on the TV to the PC / Laptop.

To select the PC / Laptop connected with the

VGA cable press the SOURCE button on the

remote and use the keys to select PC and

press the OK button.

Note VGA is video only. For audio from your

PC/Laptop you need to connect a separate

cable from the PC Audio (3.5mm jack) to the

headphone socket on you PC/Laptop (3.5mm

Option 6 USB Most USB sticks can be connected to your TV

and some digital cameras may also work.

Connect USB stick (not supplied) or a USB

To select the USB device connected to the TV,

press the SOURCE button on the remote and

use the keys to select USB and press the

Note 2. Apple iPhones and iPods are not

compatible with your TV.

Note 3. When connecting any device to the USB

connection, keep the USB cable length as short

work, other file types are not guaranteed and may not.

is a digital audio connection used to

connect audio equipment, for example home

theatres and other digi

short distances. The signal is transmitted over

either a coaxial cable with RCA connectors.

Make sure that both TV and the device are

switched off before connecting.

Connect the AV cables (not supplied) from

the socket on the TV to the Home Theater

sound system or digital HiFi system etc.

Insert the plug of the earphone into the headphone

socket on the TV. The TV speakers are now muted.

Alternatively you can also plug in external speakers if

DIGITAL AUDIO OUT(COAXIAL)

COAXIAL COAXIAL Connecting to your Haier TVEN-11

The common interface (CI) slot is designed to

accept the conditional Access (CA) Module and

Smart card in order to view the pay TV

programmes and additional services.

Contact your Common Interface service provider

to get more information about the modules and

Please noted that CA modules and smart cards

are neither supplied nor optional accessories

CAM Inserted ChannelPictureAudioClockSetup Lock

Auto ScanSignal InformationManual ScanProgram EditCommon InterfaceReturn Move OK OK MENUPress to turn the TV on or off.(Power)S.MODEPress to select the sound mode.P.MODEPress to select the picture mode. 0-9 Press to enter a channel numberor password.Q.VIEWPress to switch to the last viewedchannel.SLEEPPress to set the sleep timer.VOL +/-Press to adjust the volume level.(Mute)Press to turn the sound on or off.AUDIO(I/II)Press to select Mono,Nicam stereo for ATV channel.Select Audio language for DTV channel.SUBTITLEPress to turn the subtitle on or off.Press to open a favorite channel list.In teletext mode,press to hold a page. 03 Remote Control

Remote Control SCREENPress to change picture aspect ratio.Press to open the on-screen menu.In teletext mode,press to open the INDEX page.Press to navigate the on-screen menu.Press to confirm a selection.OKIn teletext mode,press to enter mix mode.(reverse)(forward)Press to fast forward or reverse playback in multimedia mode and timeshift (Red and Green button in teletext mode)mode.Press to turn on/off the teletext function,and change TTX mode.SOURCEPress to open the input source list.No function. P Press to change the channel.Press to display the channel information.In teletext mode,press to revealthe hidden information. Press to open the channel list.In teletext mode,press to size the teletext.3D WORLDNo function.Press to close the on-screen menu.In teletext mode,press to hide the text. 16

26 Press to select previous or next file.(yellow and blue button in teletext mode)(previous)(next)Press to stop multimedia playback,stop timeshiftin DTV mode.GUIDEPress to display electronic programme guide in TV mode. In teletext mode,press to enter a secondary page.(REC)Press to record the TV program you are watching in DTV mode.Press to play/pause in multimedia mode,timeshift in DTV mode.(play/pause) Insert Batteries into the Remote Contol

1. Remove the battery cover.

2. Inserting the 2 AAA 1.5V batteries making sure the polarity

(+ or -) of the batteries matches the polarity marks inside the unit.

3. Mount the battery cover. Replace with new batteries when the

TV set begins to show the following symptoms:Operation is

unsteady or erratic. Sometimes the TV set does not function

with Remote Control Unit.

1) Alkaline Battery Recommeded.

2) Remove batteries when they are exhausted or if the remote

control is not to be used for long time.

EN-12E TEXT SELECTING A PAGE DIRECT ACCESS TO THE ITEMS SUB CGUIDE/ ODE HOLDFAV/

TELETEXT Enter the number of the page required using the 0 to 9 up/down. Example:

page 120, enter 120. The number is displayed top left, the counter turns and

then the page is displayed. Repeat this operation to view another page. If

the counter continues to search, this means that the page is not

transmitted. Select another number.

Coloured are as are displayed at the bottom of the screen. The 4 coloured

keys are used to access the items or corresponding pages. The coloured

areas flash when the item or the page is not yet available.

This returns to the contents page (usually page 100).

To display or hide the concealed information (games solutions).

This is used to call or exit teletext modes. The summary appears with a list

of items that can be accessed. Each item has a corresponding 3 digit page

Teletext is an information system broadcast by certain channels which can be consulted like

a newspaper. It also offers access to subtitles for viewers with hearing problems or who are

not familiar with the transmission language(cable networks, satellite channels, etc.)

Remote Control EN-13 MIXBACK/

This will superimpose the teletext data on top of the TV picture. Press

button again to return to full text.

Switch the image to top,bottom,full.

04 OPERATION The First Time Setup screen will appear when the TV is first switched

on or reset to the factory setting.

1).Press the Ʒ buttons to navigate the menu and buttons

to change the settings. Select your desired language ,Home/Shop

scan.Also you can select Auto Scan mode. DTV+ATV or

DTV only, or ATV only. First Time SetupOSD Language EnglishMode Setting Home ModeCountry GermanyStartAuto Scan DTV+ATVAntenna Type AirFirst Time SetupOSD Language EnglishMode Setting Home ModeCountry GermanyStartAuto Scan DTV+ATVAntenna Type CableCable Quick 3). Channel tuning will commence. This operation

may take up to . The display will show

the progress of the tuning and the number of

4). If you want to skip the DTV tuning, press the

MENU button to interrupt the tuning half way.

You will then go straight to ATV tuning.

5). After tuning is complete, the channels are

arranged in a preset order. If you wish to skip channels,

modify the preset order or rename

channels, select Programme Edit under the C

6). The old password is 0000, you can’t use 0000 as new

press the OK button.

In the UK to connect to cable TV you will require the

appropriate cable TV's company's 'set top box' to be

connected to the TV. Please refer to the cable TV's

instructions manual for further details.

EN-14 HOME or Shop modes1.When the unit is turn on for the very first time, it will show Initialization set-up menu. After the OSD language is set, the user can choose between "shop mode" and "home mode". When the screen shows the following setting menu and the cursor stays on the "home mode" choice, press to adjust, and "OK" to enter the menu. Select the usage mode?

shop mode is for shop usage only. Shop modeHome modeIf "Shop mode" is choosen, the following menu will displayed. Areyousuretochangeto

OK CancelChoose "OK" to enter the next prompt menu Shop modeisthemostenergymode

OK Cancel Continue? Choose "Cancel" to go back to the Initialization set-up menu, and the cursor will stay at the "home mode" choice. choose it to go the next menu to choose the country.First Time Setup 

mode: ATV / DTV / DTV + ATV. Press the

6). Channel tuning will commence. This operation may take

up to . The display will show the progress of the

tuning and the number of channels found.

7). If you want to skip the DTV tuning, press the MENU

button to interrupt the tuning half way. You will then go

straight toATV tuning. You may repeat the above step if

you also want to skip the ATV tuning. An installation

reminder will appear the next time you turn on the TV,

8). After tuning is complete, the channels are arranged in a

preset order. If you wish to skip channels, modify the preset

order or rename channels, select P

rogramme Edit under the

buttons to select the CHANNEL menu and then

to select the country you will operate the TV.

Channel PictureAudioClockSetup Lock Antenna Type AirCountry GermanyMode DTV+ATVStart Channel PictureAudioClockSetup Lock Antenna Type CableCountry GermanyMode DTV+ATVStart Channel PictureAudioClockSetup Lock Quick Full Advanced 4). In Country mode, press the buttons to select the

country where you will operate the TV.

4). In the Mode menu, press the buttons to select ATV /

6). Channel tuning will commence. This operation may

take up to The display will show the

progress of the tuning and the number of channels

5). Select start to enter the menu as below, to select

2. 1 )DTV Manual Tuning (DVB-T)

All the channels including ATV, DTV and Radio

can be tuning by one time,if the Tune Type is

All the stored channels will be disappear after

After auto tuning , the channel will skip to

the first DTV channel.

2). Press theƷ buttons to select DTV Manual Tuning

and then press the OK button, if you select Air in Auto

buttons to select the CHANNEL menu and then

press the OK button.

3). The DTV Manual Tuning screen will pop up.

Press the buttons to select the desired UHF channel

or press the OK button then input channel number. Select

Start to commence the search of that channel. When the

signal has been tuned, the picture and signal strength will

be displayed on the screen.

1). Press the MENU button and then press the

buttons to select the CHANNEL menu and then

press to change Modulation press Start to commence

the search of that channel. When the signal has been tuned,

the picture and signal strength will be displayed on the

ress theƷbuttons to select(Frequency /Symbol

3) ATV Manual tuning :

You can change the sound system to search theanalog TV

channels and fine tune the channels , then storage the

channels you selected.

1. Press teletext red button to storage to channels

after manual tuning .

2. If the number save to is the same as the number

Current CH, when you press Red button,the save to

number will cover the Current CH number.

Press the or Buttons to select Channel Edit in the

Channel Menu. Then press the OK Button to enter the sub-

Menu. Then you will need to select the channel you wish

7). If you want to skip the DTV tuning, press the MENU button to

interrupt the tuning half way. You will then go straight to

ATV tuning. You may repeat the above step if you also want to

skip the ATV tuning. An installation reminder will appear the

next time you turn on the TV,if no channel is found.

8). After tuning is complete, the channels are arranged in a

preset order. If you wish to skip channels, modify the preset

order or rename channels, select P

This menu can display the CI card' s information.

The second item of the MENU is PICTURE MENU.

You can adjust picture effect here, such as

contrast, brightness, etc.

Press Ʒ to move, press to adjust.

2. PICTURE MENU ChannelPictureAudioClockSetup Lock Picture Mode NR MediumDynamic Contrast MediumAspect Ratio 16:9Color Temp StandardMiddle MEMC

2). is available in PC mode only which

can adjust Horizontal position, vertical

position, size and phase.

1).There are three colors temperature modes

can be selected normal, warm, cool.

3.AUDIO MENU The third item of the MENU is the AUDIO MENU.

You can adjust the sound effect here such as

treble, bass, balance etc.

Press Ʒ to move, press to adjust.  ChannelPictureAudioClockSetup Lock Sound Mode StandardTreble 0Bass 0Balance 0

Volume OnSurround Sound Off

FAV Delete: Press the Red Button to delete the channel you

SKIP: Press the Yellow Button to select the Skip function

and a SKIP icon will be displayed next to the program and

it will be skipped when changing the channel.

MOVE: Press the Green Button to highlight the select the

channel you want to move. An icon will display ahead the

channel number. Then press the  /  Buttons to a new

position and press the Green Button to confirm.

Rename: (For ATV only) Press the Blue Button for renaming

the channel. Press the number key circularly to enter a new

name and press the OK Button to confir

as the following table).

FAV: Press the FAV Button (instead of color Buttons) to set

the favourite channel. (If you want to view the Favorite

Channel List you need to exit Program Edit Menu and then

press the FAV Button.)

6). Signal Information (Only for DTV)

Press the  Buttons to select the Signal Information

in the Channel Menu. Then press the OK Button to show the

related information of the current channel.

Auto volume: only available when the input

signal volume is too large or distortion.

The fourth item of the menu is the CLOCK MENU You can adjust the clock, power on/off time,

5.SETUP MENU The fifth item of the MENU is the SETUP MENU. You can

adjust the OSD language, Audio language,Subtitle

In PVR File system menu you can set up USB disk for PVR.

1.If after 4 hours from switch on and no changes have

been made to the TV, for example no channel or volume

changes,the TV will start the automatic power down

And pop-up window will appear on screen. ChannelPictureAudioClock Lock O EA Languages Off Blue Screen Off

6.LOCK MENU The sixth item of the menu is the LOCK MENU You can lock system, set password, block program

and set parental guidance Once you set the lock

system on you must input the password before

searching the channels or change any programs.

Restore factory default will clear all the programs

and password. ChannelPictureAudioClockEnter Password ----Enable OffNew Password ---- Channel Locks Parental Rating NoneSetup Lock

Timeshift Record Time: To set the max Timeshift

Auto Standby (4hr): To set the unit to standby

after any 4hours operation.

Mode Setting: To set Home mode or mode.

HDMI CEC Cntrol: To set CEC function to on or off.

OSD Time: Press  or  to select the menu

Restore Factory Default

Default and press the OK Button to enter the first

setup. Once confirmed, all the settings will be

cleared. This should be used if you experience

any issues with your TV.

standby. To override the automatic shutdown press any

button on the remote control.

To return to auto shutdown after 4 hours repeat the

above except use the left arrow key to select .on(4 hours)

If after 15 minutes there is no signal input, the TV will switch

off to Auto Sleep, when the Auto Sleep function is set to ON.

The clock time is automatically set when the TV is able to

18-NE Return Move OK OK MENU Return Move OK OK MENU Return Move OK OK MENU The default pass word is 0000, If you forget the

password, you can use the super password:9443.

Channel Locks: Press Ʒ to choose the

program ,press OK button to block

the program. If you want unblock the program,

pls enter the main menu , input the password,choose

the program,then press OK button again.

Parental Rating: Pre

ss to choose rating.

Software Updated (USB)

Press the ▼ or ▲ Buttons to select Software Update (USB)

in the Channel Menu. Then press the OK Button to update

software by using a USB. Follow the software upgrade

instructions provided with the software.

Note: We recommend you perform a factory reset (refer to

Restore Factory Default in Setup menu) to ensure the unit

is successfully upgraded.Operation

program, press Yellow (Schedule) Button. To view a

different channel, use the  or  Buttons to highlight the

channel and then press the  or  Buttons. To exit the

EPG Menu, press the GUIDE or EXIT Button. Press it (Service)

Please refer to the bottom of the EPG screen

for the basic remote control key functions.

In EPG mode, press the Red Button on the remote control

to select a program to be recorded. You will then enter

Scheduled Record menu for record setting. (Refer to the

section of PVR file system.)

Please ensure a compatible Hard Disc Drive or USB

device is inserted into the USB input to schedule

recordings. If your storage device is not compatible, you

If you have set a timed recording, your TV will automatically

turn on when the program is set to record and will

automatically turn off after the recording is complete.

During a timed recording however the picture and volume

will be mute (there will be no display), however the unit

will be on. You can press the STANDBY Button to turn the

picture and volume back on.

Reminder (Blue Button)

In the EPG Menu, press the BLUE Button to set a program

eminder. The below Reminder Menu will then be displayed

and you can use the or  Buttons to set the program

reminder details. You will be able to set reminder to occur

once, Daily or Weekly. FrequencyChannel Minute Hour Month Date

19 17:03 19/11/2004OK Schedule List You may press Red button to view the scheduled programs

list. Also you may delete the programs you have scheduled.

In the EPG Menu, press the GREEN Button to view more

information about the current program.

8.PVR File System (only for DTV)

Press Menu Key,select setup submenu.Press the  or 

Buttons to select PVR File System, then press the OK Button to enter sub-Menu and then use the  or 

Buttons to scroll through the options.

The EPG (Electronic Programme Guide) Menu provides

you with detailed broadcast program information. Press

the GUIDE Button and a pop-up Menu will be displayed with

ation about the channel you are currently

watching. You will be able to see up to seven days of

program information. To view the next day or more use

the  or  Buttons to highlight the date and then press

the  or  Buttons to scroll through the available dates.

will be asked to format it. In Setup menu, enter the PVR File

System Menu Device List to format your device.

WARNING When formatting the USB device it will delete all the files

stored on the USB device.

7.EPG Menu(Electronic Program Guide)

Delete OneDelete AllEXIT HtK E X I T FunctionGroupFrequencyChannel 1

Duration Date Start Time2007-10-10 07

Scheduled Record: You may set the scheduled record

List here. And you may also delete the scheduled records

Enter the sub menu you may set the recording frequency

as Once, Daily, Weekly, Weekday, or off.

1.The USB storage size can be between

128MB and 500GB in size, but for practical use 2GB to

500GB is recommended.

2. Video may become pixelated when Video

bit rate is too low. This can be caused by connecting a

USB extension cable instead of plugging the USB directly

3. Not all USB devices are compatible.

Below is a list of recommended USB driv

Models that are not listed may be compatible, but it is

not guaranteed to work.

The USB support list are the same as Timeshift function,

see the following pages for details.

The program recorded on the “USB”will be

saved in the folder “usbrecord” on the

You can play it in PVR File System and in File manager

To reveal the menu press the REC Button again.

To stop recording, press the Stop Button.

You may also enter the Media Player Menu to view your

recorded programs via Movie mode.

To record the program you are currently watching press the

REC Button and a red REC icon will appear on the screen.

The record time/ length and remaining record time will be

displayed in the menu below. File ManagerMove UpMove DownSelectReturn Exit

Delete OneDelete AllZoom In/OutEXIT E X I T Function Current Playing File Into

BBC ONE Olympics 2012

Matt Baker and Clare Balding

present coverage of the eager... UKTV Br’tldeas_Good Food Bites_20041119_161021.tsBBC ONE_Olympics 2012_20120808_114427.tsUKTV Br’tldeas_Good Food Bites_20041119_162019.ts Device List: This sub menu will list the USB devices

connected to the TV set. You can select the device and

then press red button to format the USB device.

PVR Settings Move LeftMove RightSelect Exit

OK EXIT File Manager Device ListScheduled Record File Manager: You may view all the recorded

programs here. Press key to play with full

Scheduled Record - Group 1 Move UpMove DownSelectReturn Exit

Prepare to record the program:

Press the Button to pause the program you are

watching to activate Time Shift function. The below

menu will be displayed. This Menu will auto disappear

after several seconds. 00:00:00 Available Time Choose the option and press OK to resume playing, and a

white play icon will appear at the right of the screen, which

shows that time shift is being performed.

When the menu disappeared,press the button,the menu

will appear again. To stoptime shifting, press the Stop Button

or move the cursor to select the Stop option when the menu

is on, and then follow the pop-up guide.

Ensure the storage device used for recording is

inserted into the USB Input on the back of the unit and is

compatible for recording. If your storage device is not

compatible, you will be asked to format it. In Setup menu,

enter the PVR File System submenu and select Device

List to format your device.

All the functions (Play, FB, FF, Pause and Stop) in the menu

can only be performed when the menu is on.

Ensure the storage device used to record is inserted into

the USB Input on the back of the unit and is compatible

for recording. If your storage device is not compatible,

you will be asked to format it. Enter the PVR File System

menu and select Device List to format your device.

During recording, only the Stop functions is

There will be no record function,when the channel is

There will be no Timeshift function when the

channel is CI+ channel. 00:00:05Play FB Stop FF Prev. Next00:00:00/04:13:20 EN-21

OperationPress source key, and select USB in source list, press OK button to enter the USB menu. 10.USB Player Please make sure that the USB device have plugged in the slot.There are four type media item can be selected, such as photo, music, Movie, and text. Select the type media item by pressing , press OK button to enter the disk selection menu.

Press the to select the right disk and folder,press OK to . Press EXIT button to back to the media type selection menu. enter the media files list Select the media file by pressing and OK button, then the preview frame will pop up. Press the button to play the media OK button can display the control bar. PhotoUSB1/PicBasic Function When photos are playingpress

Press ” Play/Pause”key on the remote control to play or pause.

“ OK”key on the remote controla toolbar will display under the screen 

Press ” (previous)” key on the remote control to read the previous photo.

Press ” (next)”key on the remote control to read the next photo.

press ” (stop)”key to stop playing and return to the previous menu.

MUSIC When music are playing, press “ ” key to select toolbar.

Other functions are similar to the PHOTO Please refer to PHOTO options”” ””

The operations are similar to the PHOTO Please refer to PHOTO options”” ””

ress” ” to select previous / next page, Input the number key and OK to jump to the page

FB LeftRight”key on the remote control to select this function,press”ok”

key to to fast backPress

”PLAY”key to play normally.

FF LeftRight”key on the remote control to select this function,press”ok”

key to fast forwardPress”PLAY”key to play normally.

Back ground music LeftRight”key on the remote control to select this function,press”ok”

key to turn on / off

Set A LeftRight”key on the remote control to select this function,press”ok”

key to set A and B

the film will circulating play in thetime of A to B

Zoom in LeftRight”key on the remote control to select this function,press”ok”

key to enlarge pictureif the document is larger than 1920x1080,this function is

Zoom out LeftRight”key on the remote control to select this function,press”ok”

key to reduce pictureThis function does not support more than 1920x1080 HD video.)

Select Time Press”LeftRight”key on the remote control to select

this function,press”ok”

key to select the time to play.

EN-23 Provide list of major file types that play from a USB devicePhoto .jpg filesAudio .mp3Video .avi ,.mp4 Text .txt (previous)/ (next)Picture Audio

Snow Noise antenna position, direction or connection Inspection Check

Noise electronic equipment,car/motorcycle,fluorescent light Normal Picture

Mute Volume(check if mute is activated or if the audio system connections are not correct) No picture Mute Power cord is not insertedPower switch is not openedContrast and brightness/volume setupPress standby key on the remote control for inspecting No colour Normal audio Colour control

or weak retune channel No colour

Noise TVsystem Normal audio antenna position, direction or connection Trouble phenomenon Symptom

Normal audio Change aspect to zoom There is black baron top and bottom 05 Trouble shooting

Trouble Shooting EN-24Trouble Shooting

My TV does not display the picture

on my laptop / PC when connected.

Most PC's and laptops when connected with a VGA Plug (the

blue 15 pin plug on your PC or laptop) require you to press

some buttons on your key board to get a picture on a TV or

other external display. This is usually the F7 (Dell) or F4 (HP /

Samsung) or F5 (Toshiba). On laptops, you have to press the

“Fn” key at the same time as the “F” key.

I have connected my PC/Laptop to

the TV and get a picture but no

The VGA cable only carries the video or picture information.

You need to connect a separate cable connected to the

earphone socket (3.5mm jack) on you PC/Laptop to the 3.5m

(PC Audio IN) socket on your TV. You will need to select “PC”

using the Source button on your remote.

Alternatively connect your PC/Laptop using a HDMI cable if

you PC/Laptop has a HDMI connector. HDMI is both audio and

The picture is not auto resizing

when changing channels.

Check that the TV picture Aspect Ratio is set to 'Auto' on all

inputs ATV, DTV, SCART, HDMI 1, 2 etc.

To set the aspect ratio, (Auto, 4:3 or 16:9). Press Source button

start at ATV and repeat the sequence below for all input

sources ATV, DTV, SCART, HDMI 1 and 2 as each input source is

controlled separately.

Press TV Menu button

Press Right Arrow to access Picture sub menu

Press Down Arrow to select Aspect Ratio

Repeat for all input sources.

I have just plugged in a DVD player

or another item into my TV and it

This is applicable to any item of equipment plugged to the TV

1. Turn both TV & DVD player off (plugs out of the wall socket,

2. Turn off any equipment connected to the SCART socket.

3. Disconnect the SCART plug from the TV.

4. Plug in and turn TV on

5. Plug in and turn DVD player on

6. Select HDMI from Source Menu

7. Press play on DVD player and check movie plays ok

NOTE: The SCART socket has priority over HDMI and it is

important that the equipment connected to the SCART socket

on the TV is switched OFF (not in standby).

Please follow this information. If the advice works and the

DVD player works, the TV is OK it is just a bit confused.

Probably HDMI plugs have been removed and plugged back in

when the TV is switched on.

Never remove or plug in HDMI cables or any digital equipment

with the equipment switched on.

Always switch off all equipment when unplugging or

connecting any digital equipment.

EN-25Trouble Shooting

Picture Breaks into Pixels

A typical example of a reception problem includes the break up of pictures (pixilation) or the picture freezing,

sometimes there are clicking or squeaking sounds or the sound drops out or there is NO reception at all.

Your picture may break into pixels due to the digital video signal dropping. The signal dropping may occur because of

either problems with weak signals (see TV Aerials) or if you are connected by cable a weak cable signal. If the problem

is weak signals, use an amplifier to strengthen the signal. A cable technician can help you install an inline amplifier or a

pre-amplifier. This will boost your signal strength and fix the pixel problem.

If you are receiving your TV signal by satellite, check your dish has not moved following high winds, or that the signal is

blocked by trees. Trees can be a problem as the TV signal can change depending if a tree between the satellite dish and

satellite is in bare or in full leaf.

It may be that you find that there are channels missing, or you're receiving channels from the wrong region.

Sometimes the interactive services (red button) doesn't work. This is usually caused by weak signal, see TV Aerials

Digital terrestrial television (Freeview) comes to your TV via an aerial, The old aerial that was good for analogue TV may

not work well for digital so may need upgrading. If you are getting some but not all of the digital channels on DTV

(Freeview) for example you get BBC1, BBC2, Channel 4 ,but not ITV or Channel 5, this is usually because your aerial is a

narrow band type, and needs to be changed to a wide band type.

Faulty Leads and Cables

Check your TV. Are the leads at the back - to the mains, the aerial, the set-top box, the video or DVD player or recorder

properly connected? SCART leads are known to work loose over time and can result in both audio and video (picture)

problems. Either left or right or both audio is missing and the colours are poor or muddy looking. Push the SCART

plugs firmly in, this should fix the problem.

HDMI plugs need to be pushed in firmly; it's only the last millimetre that the contacts make. Typically the black plastic

part of the HDMI plug should be very close or touching the body of the TV or component.

When plugging in any HDMI cables you may experience problems if the HDMI cables are plugged in when the TV or the

other component is switched on. Always switch off both the TV and the component you are plugging in. If you have

checked the plugs and sockets, switch off the TV and whatever you have plugged in to the TV and then switch them on

I have connected my PC to the TV. There is no sound.

If you connect your PC or Laptop to the TV using a VGA (15 pin Sub D) cable there is no audio, you need to connect a

separate audio cable to the TV from the PC or laptop.

Unnatural Colours and Flesh Tones

Unnatural flesh tones and other colours could present another problem even in a new HDTV. This is due to the TV

picture settings, which are optimized for a showroom environment. Fix this by changing the picture mode to natural in

the picture menu. For more precision, try manually setting the colour, contrast and brightness options in the picture

White outlines around objects and people generally appear either if the TV sharpness is set to very high, or if your

television set uses some edge-enhancement processing technology. Go to the picture menu and adjust the sharpness

till the white outline disappears. If edge-enhancement is enabled, try to disable it using the service menu.

At times the video might become choppy. When this happens, check whether the signal is strong enough. If the signal

is strong the problem is with the cable operator. If the signal strength is weak, try boosting the signal strength with the

help of an amplifier.

The picture does not fill the screen

When connecting PC's or laptops to the TV, the picture may not fill the screen. Check the display settings on your PC or

laptop (Windows > Start > Control Panel > Appearance and Personalization > Display

settings) and select the best

resolution. On your TV select:- TV Menu > Picture > Settings and then try AUTO, ZOOM1 or ZOOM2 for the best display.

The USB connection will work with *.jpg (photo) and *.mp3 (music) files. Please note the TV does not recognize Apple

iPhone, or iPod's connected to the USB connector on the TV. The TV may play other files, but due to the multiple

different file formats, there is no guarantee that these other file formats will work.

Trouble Shooting Digital TV Problems and possible Solutions.

EN-26Television picture quality:

Additional features:

NICAM stereo sound system.

Digitally interactive.

Digital video broadcasting (DVB) subtitles available.

Auto scan for new channels.

Now and next programme guide.

7 day electronic programme guide (EPG).

* The part speci cations of this TV set provided here

are for reference only.

erences may occur as product technology is updated.

cations are subject to change without notice.

YPbPr/HDMI Video Input:480i480p576i576p720p1080i1080p

16/32/64/128/256 QAM modulation/QPSK Modulation

FULL HD Integrated digital.

Screen Size: 101.6 cm

Resolution 1920x1080 pixels 60 Hz.

40" FULL HD 1080p Digital LED LCD TV

2 x 8 watts RMS power output.

UHF/VHF tuner;Sleep timer; ;Picture and textParental Rating

Remote control batteries required 2 x AAA (included).

VESA Mount Size: 200 x 200 mm

Package Size (WxHxD): 616x426x135mm

Set Size (WxHxD) with Stand: mm930x612 x220

Scart Output description :

1. When current source is ATV, scart output signal is ATV.

2. When current source is DTV, there will be no SCART output signal.

3. Other source have no SCART output signal.Lisez attentivement ces instructions avant d'utiliser l'appareil, il vous guidera

R Rouge (AUDIO-R, Pr/Cr)

Option 5 VGA (Sub-D 15 broches)

OSD Language English

Select the usage mode? shop mode is for shop usage only. Shop mode Home mode Are

R Rot (AUDIO-R, Pr/Cr)

shop mode is for shop usage only. Shop modeHome mode Are you sure to change to

OK Cancel Shop mode is the most energy mode

002 TMF Delete Channel Edit

Auto Volume OnSurround

PVR Settings Move LeftMove RightSelect Exit

Parental Rating None Setup Lock

Current Playing File Into

BBC ONE Olympics 2012

Matt Baker and Clare Balding

present coverage of the eager...

UKTV Br’tldeas_Good Food Bites_20041119_161021.ts

Scheduled Record Setting List

RISOLUZIONE V. Freq. (KHz) H. Freq. (KHz)

R Red (AUDIO-R, Pr/Cr)

Volume OnSurround Sound Off

PVR Settings Move LeftMove RightSelect Exit

Parental Rating None Setup Lock

Current Playing File Into

BBC ONE Olympics 2012

Matt Baker and Clare Balding

present coverage of the eager...

UKTV Br’tldeas_Good Food Bites_20041119_161021.ts

K Device List Device

Standby Delete OneDelete AllEXIT Function

8. PVR File System (only for DTV)

Digitally interactive.

Digital video broadcasting (DVB) subtitles available.

Auto scan for new channels.

Now and next programme guide.

7 day electronic programme guide (EPG).

TV LED LCD 40" FULL HD 1080P Digital

UHF/VHF tuner;Sleep timer; ;Picture and textGuida famiglia

Remote control batteries required 2 x AAA (included).

VESA Mount Size: 200 x 200 mm

Dimensioni confezione (LxAxP):

R Rojo (AUDIO-R, Pr/Cr)

002 TMF Delete Channel Edit

2. MENÚ PICTURE (IMAGEN)

PVR Settings Move LeftMove RightSelect Exit

Parental Rating None Setup Lock

Current Playing File Into

BBC ONE Olympics 2012

Matt Baker and Clare Balding

present coverage of the eager...

UKTV Br’tldeas_Good Food Bites_20041119_161021.ts

K Device List Device

Scheduled Record Setting List

WAARSCHUWING: de batterijen (of accu's)

R Rood (AUDIO-R, Pr/Cr)

shop mode is for shop usage only. Shop modeHome mode Are you sure to change to

OK Cancel Shop mode is the most energy mode

om “Channel Edit” (Zender

PVR Settings Move LeftMove RightSelect Exit

Parental Rating None Setup Lock

Current Playing File Into

BBC ONE Olympics 2012

Matt Baker and Clare Balding

present coverage of the eager...

UKTV Br’tldeas_Good Food Bites_20041119_161021.ts

FF Prev. Next 00:00:00/04:13:20 Scheduled Record Setting List

Off Device List Device

≤0.30W DTV-Tuner-decoder
