USER MANUAL TAB701 LENCO

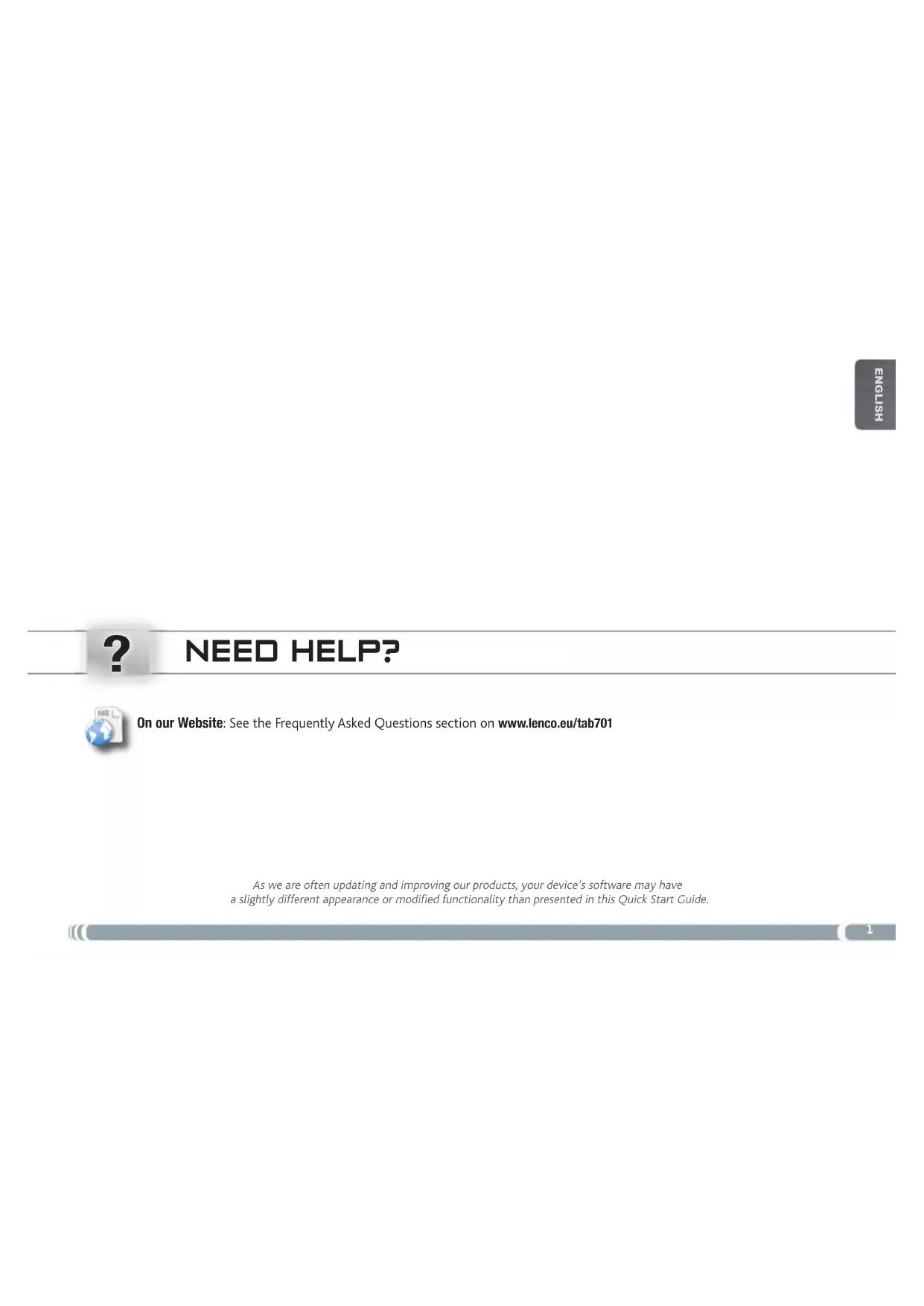

ENGLISH NEED HELP? As we are often updating and improving our products, your device’s software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. On our Website: See the Frequently Asked Questions section on www.lenco.eu/tab7012

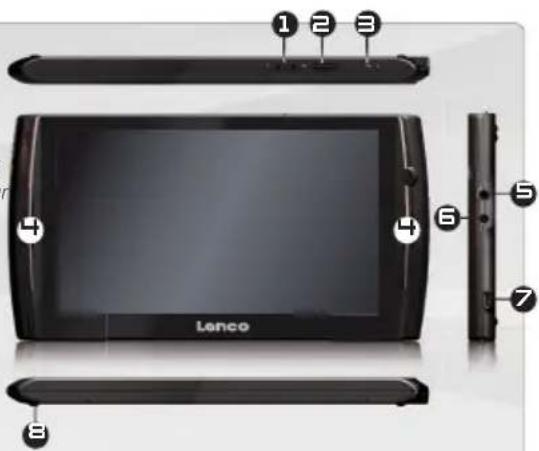

Hardware Reset: In the event that your TAB-701 freezes operation, you can press the “pinhole reset” button, located on the back the device, by using a sharp object such as a toothpick. Power/Lock: slide left and hold to switch on/off. Slide right to lock the device’s touchscreen. When you slide left and hold, a window appears with a list of options (when the product is on). Tap on “Power Off” to fully shut down your TAB-701. Tap on “Suspend” to put the device in standby (and allow a quick start up when you next tap the screen). While the device is in suspend mode, slide right to lock the device with its screen off. This can be useful if your TAB-701 is in your backpack, for example, and you do not want to wake it up by touching the screen by accident. Micro-SD card reader Charging indicator: Red light: battery charging / Yellow: battery charged. Loudspeakers Headphone jack Power connector: to connect the supplied power cable. USB port: to connect your TAB-701 to your computer, using the included USB cable. Leg stand: pull it out, and it will allow your TAB-701 to stand by itself on a flat, stable surface.3

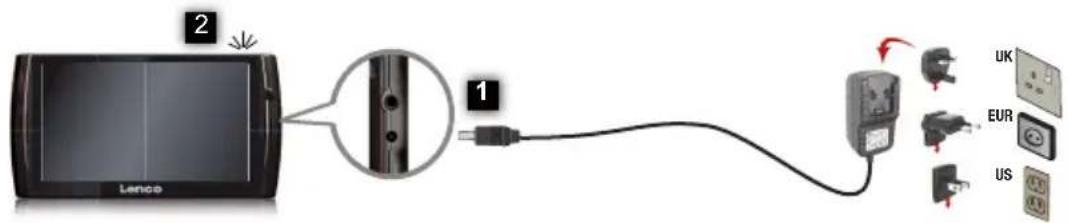

ENGLISH STARTING UP Installation Wizard The first time you start up your TAB-701, the installation wizard will bring you through a few screens to help you set up the principal settings: Language, country, time, etc. Before using your TAB-701 for the fi rst time, completely charge the battery! Charging the Battery Connect the supplied power cable to the TAB-701 Power connector and to a wall outlet. The TAB-701 device will turn on and start charging. The Power indicator light is red while the battery is charging. It will turn yellow when the battery is fully charged.4

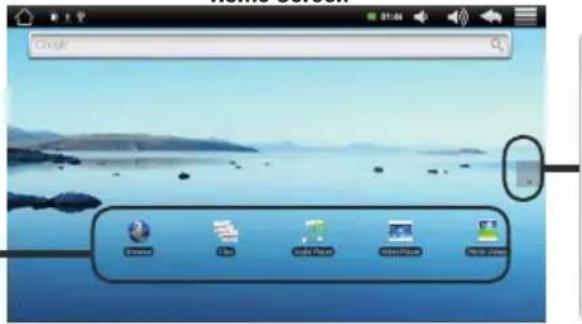

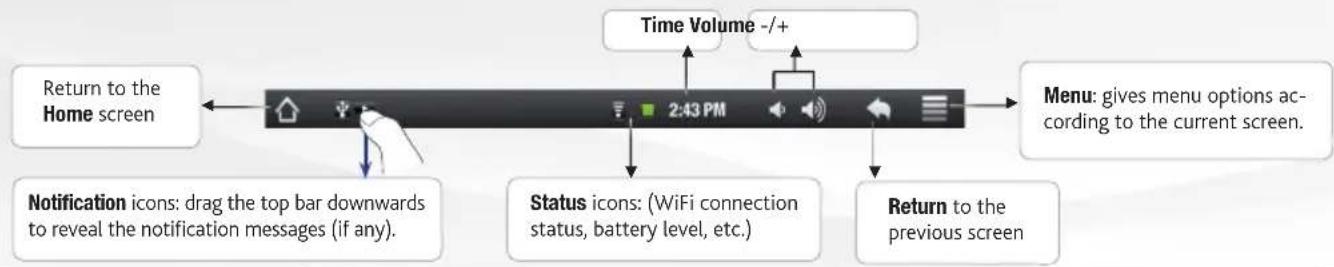

Top bar of the Interface (varies according to the screen you are in) Return to the Home screen Return to the previous screen Menu: gives menu options ac- cording to the current screen. Your TAB-701 device is equipped with a touchscreen. Most screen areas will react when you tap on them with your finger. Status icons: (WiFi connection status, battery level, etc.) Notification icons: drag the top bar downwards to reveal the notification messages (if any). These are the default Android™ shortcuts ( Web Browser, EMail, etc.). Tap on an icon to open the correspond- ing application. You can customize the Home screen by adding/removing shortcuts and widgets, changing the wallpaper, etc. See next page. Home Screen Applications Tab Tap on this icon to reveal all the An- droid™ applications installed on your TAB-701 (games, various tools, etc.). You can copy them onto the Home screen. You can get more Android™ applications from the AppsLib which can be found on the Home screen. Time Volume -/+5 ENGLISH Customizing the Home screen items To add a Home screen item (shortcuts, widgets, etc.), hold your finger on the screen at an empty location, then choose from - the list. You can also tap on the Menu icon and select Add To add a Home screen item (shortcuts, widgets, etc.), hold your finger on the screen at an empty location, then choose from , at the bottom of the screen. To move a Home screen item, hold your finger onto it until it gets larger, then drag it to the desired location, and release - your finger. To remove a Home screen item, hold your finger onto it, drag it onto the recycle bin (while you’re holding an item, the - Applications tab, on the right side of the screen, turns into a recycle bin) and release your finger.

CUSTOMIZING YOUR PRODUCT

Changing the Settings: From the Home screen, tap on the Menu icon , tap on Settings and choose a category: Wireless controls, Sound & display, Date & time, etc. The extended Home screen Slide your finger horizontally on the screen to go to the left or right side of the extended Home screen. Adding more applications with APPSLIB : With the TAB-701 connected to the Internet, tap on the AppsLib icon Adding more applications with APPSLIB . This online library of free and purchasable applications has thousands of fun games and useful applications to download and use.6

First of all, you need to configure a WiFi network. For this procedure to work, you need to be in a WiFi zone that will allow you to connect to it. Every time the TAB-701 is in range of a network that you have already configured once, it will attempt to make a connection.

• For free access WiFi points, there is no need to enter any special information. For secured networks, you will need either a key (a series of numbers and/or letters) of the type WEP, WPA, or WPA2. Check with the person who manages the WiFi network to obtain the exact connection parameters required. To configure a new WiFi network, go on the Home screen, tap on the Menu icon , then select Settings To configure a new WiFi network, go on the Home screen, tap on the Menu icon

In the Settings screen, select Wireless controls. If the WiFi is off, tap on the Wi-Fi line to turn it on. Then select Wi-Fi settings. The TAB-701 will scan for available WiFi networks and display them at the bottom of the screen. Tap on the network you want to connect to, enter the required network information* and then tap on Connect. Your TAB-701 will now attempt to establish a connection to that WiFi hot spot with the network parameters you entered.7

From the Home screen, tap on the video, audio or photo application. The TAB-701 will display a list of fi les or folders corresponding to the selected category. Tap on an item to start playing it. Only in Video and Photo modes: to display/hide the on-screen controls, tap anywhere on the screen. To pause or resume a video, tap on the icon

(bottom of screen). To go to any particular point in the video, slide the progression bar to the desired point. To play the next or previous song, tap on the icons / . Use the icons / and the progression bar as in the video player screen (see above). To start or pause a slide show, tap on the icon

. To view the next or previous photo, tap on the icons / . Video Music Photo8

TRANSFERRING MEDIA TO YOUR TAB-701

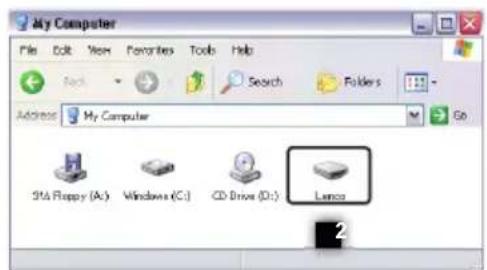

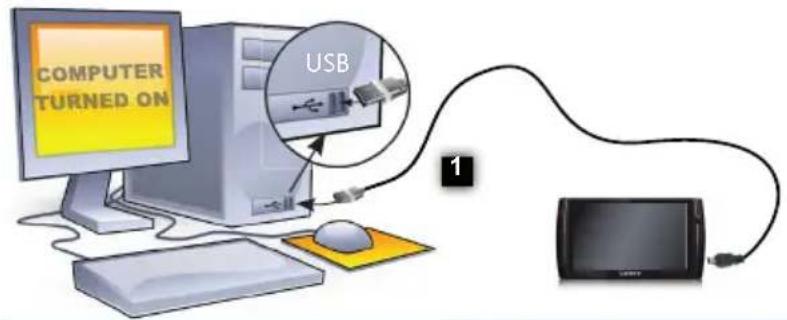

COMPUTER TURNED ON Connect the supplied USB cable to the TAB-701 and to a running computer. The TAB-701 will turn on and ask you if you want to connect it. Tap on “Mount” to connect it. Within a few seconds the TAB-701 will appear as an icon on your computer. You can transfer your media files to the TAB-701 either by copy/pasting them into the respective folders using Win- dows® Explorer (or the Finder on a Mac®), or by using Windows Media® Player. Open Windows Media Player® and then use the Sync tab to synchronize your music, videos, and photos onto your TAB-701. See Windows Media Player®’s Help to learn more about this. Once all your file transfers are finished, close Windows® Explorer and any other program that may have read or written to the TAB-701. Click on the ‘safely remove’ icon in the system tray, next to the clock. You can now unplug the USB cable.?
