USER MANUAL GME04GGHBB GE

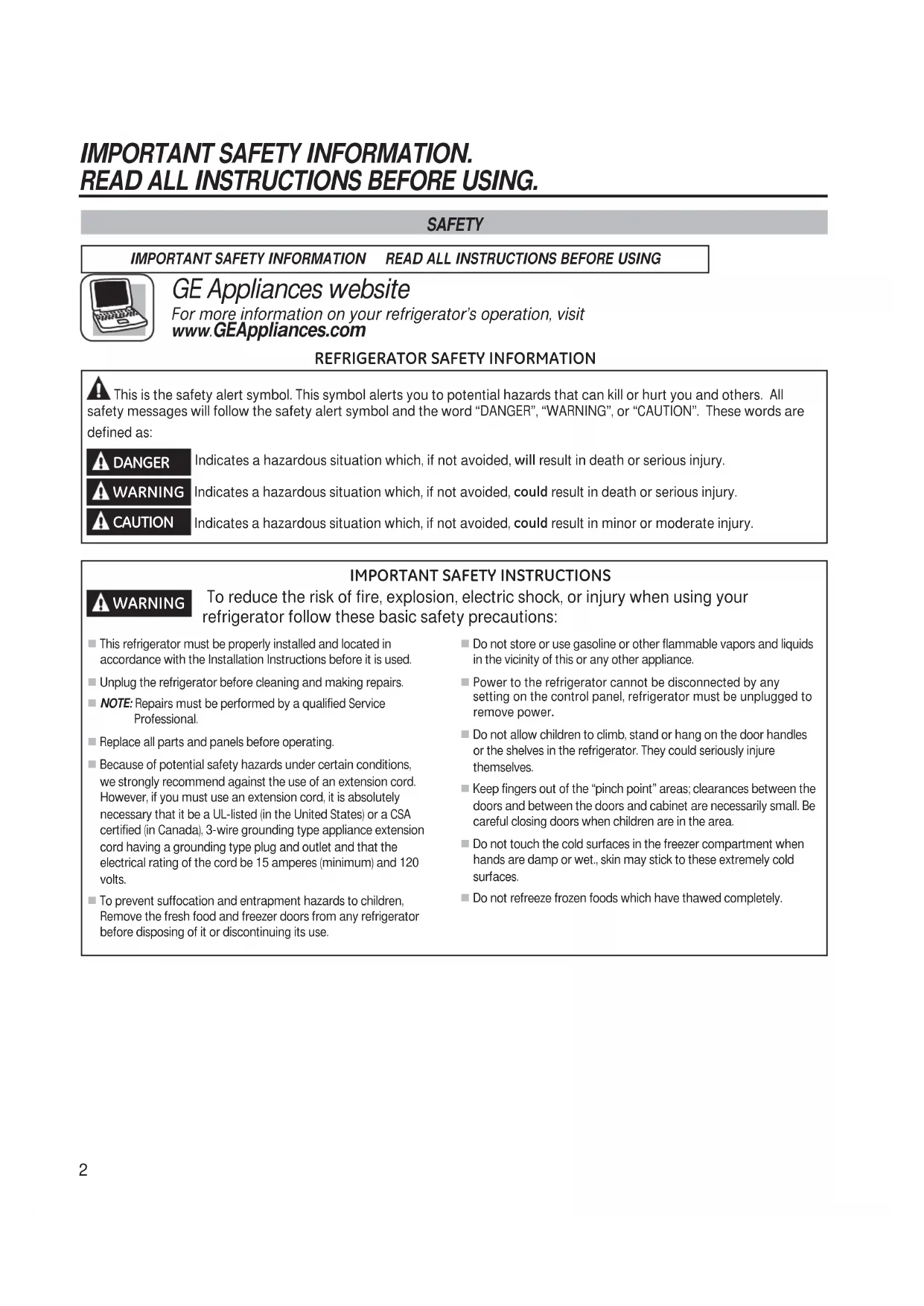

READ ALL INSTRUCTIONS BEFORE USING. IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING GE Appliances website

For more information on your refrigerator’s operation, visit

www.GEAppliances.com  This refrigerator must be properly installed and located in accordance with the Installation Instructions before it is used. Unplug the refrigerator before cleaning and making repairs.  NOTE: Repairs must be performed by a qualified Service Professional. Replace all parts and panels before operating. Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord. However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a CSA certified (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts. To prevent suffocation and entrapment hazards to children, Remove the fresh food and freezer doors from any refrigerator before disposing of it or discontinuing its use. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Power to the refrigerator cannot be disconnected by any setting on the control panel, refrigerator must be unplugged to remove power Do not allow children to climb, stand or hang on the door handles or the shelves in the refrigerator. They could seriously injure themselves. Keep fingers out of the “pinch point” areas; clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area. Do not touch the cold surfaces in the freezer compartment when hands are damp or wet., skin may stick to these extremely cold surfaces. Do not refreeze frozen foods which have thawed completely. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as:DANGER Indicates a hazardous situation which, if not avoided, ZLOO result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, FRXOG result in death or serious injury. CAUTION Indicates a hazardous situation which, if not avoided, FRXOG result in minor or moderate injury.

,03257$176$)(7<,16758&7,216

To reduce the risk of fire, explosion, electric shock, or injury when using your

refrigerator follow these basic safety precautions:

5()5,*(5$7256$)(7<,1)250$7,21

SAFETY WARNINGREAD AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

([SORVLRQ+D]DUG

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can

result in fire, explosion, or death.

,167$//$7,21 'RQRWXQGHUDQ\FLUFXPVWDQFHVFXWRUUHPRYHWKHWKLUGJURXQGSURQJIURPWKHSRZHUFRUG)RUSHUVRQDOVDIHW\WKLVDSSOLDQFHPXVWEHSURSHUO\JURXQGHGThe power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Do not use an adapter.The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord. &211(&7,1*(/(&75,&,7<

(OHFWULFDO6KRFN+D]DUG

Plug into a grounded 3-prong outlet

Do not remove the ground prong

Do not use an adapter

Failure to follow these instructions can result in death, fire, or electrical shock.

6XIIRFDWLRQDQGFKLOGHQWUDSPHQWKD]DUG

Remove fresh-food and freezer doors from the refrigerator, prior to disposal. Failure to do so can

result in child entrapment which can lead to death or brain damage. Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.%HIRUH<RX7KURZ$ZD\<RXU2OG5HIULJHUDWRURU)UHH]HU Take off the fresh food and freezer doors. Leave the shelves in place so that children may not easily climb inside. Refrigerants All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with the company handling the disposal about what to do. 3523(5',6326$/2)<2852/'5()5,*(5$725

About the refrigerator controls and features.

The temperature control maintains the temperature in

the refrigerator. Setting the control to MIN is the warmest

setting. Setting the control to MAX is the coldest setting.

Set the control to MED.

Allow 24 hours for the refrigerator to reach the

MED temperature. If you want a colder or warmer

temperature, move the dial one setting at a time. Moving

the control to OFF stops cooling but does not turn off the

power to the refrigerator. Setting the control too high may

cause freezing in the refrigerator depending on the room

How To Test Temperatures

Use the milk test. Place a container of milk on a shelf and

check it a day later. If the milk is too warm or too cold,

adjust the temperature control.

After changing the control, allow 24 hours for the

refrigerator to reach the temperature you have set.

The control will look like one of the above.

To remove a shelf, lift up the back slightly and pull forward. Some models have multi-position shelves that can be moved to different levels. Ice Tray Compartment

This compartment is designed for production of ice cubes and short-term storage (a few days at most) of some commercially-frozen foods when in contact with the evaporator (cold surface in compartment.) Door Shelves

Shelves on the door provide convenient storage for frequently used items. Some models have doors that are deep enough to store large bottles.

Cleaning the Outside

Keep the outside clean. Wipe with a clean cloth

lightly dampened with kitchen appliance wax or

mild liquid dish detergent. Dry and polish with a

Do not wipe the refrigerator with a soiled dish

cloth or wet towel. These may leave a residue

that can erode the paint. Do not use scouring

pads, powdered cleaners, bleach or cleaners

containing bleach because these products can

scratch and weaken the paint finish.

Protect the paint finish. The finish on the outside

of the refrigerator is a high quality, baked-on

paint finish. With proper care, it will stay new-

looking and rust-free for years. Apply a coat of

kitchen/ appliance wax when the refrigerator is

new, and then at least

To help prevent odors, leave an open box of

baking soda in the refrigerator.

Unplug the refrigerator before cleaning. If this

is not practical, wring excess moisture out of

sponge or cloth when cleaning around the

Use warm water and baking soda solution –

about a tablespoon (15 ml) of baking soda to

a quart (1 liter) of water. This both cleans and

neutralizes odors. Rinse and wipe dry.

Other parts of the refrigerator–including door

gaskets, fruit and vegetable drawers, and all

plastic parts–can be cleaned the same way.

Do not wash any plastic refrigerator parts in the

Care and cleaning of the refrigerator. GEAppliances.com

Replacing the Light Bulb (on some models)

Unplug the refrigerator before replacing a

burned-out bulb. Setting the controls to OFF

does not remove power to the light circuit.

The light bulb is located behind the temperature

control housing and is visible through the light

Remove the light shield by snapping it from the

bottom of the housing. Gently unscrew the light

bulb. Replace with a bulb of the same or lower

Light ShieldCare and cleaning of the refrigerator.

Preparing for Vacation

For long vacations or absences, remove food and

unplug the refrigerator. Move the control to the OFF

position, and clean the interior with a baking soda

solution of one tablespoon (15 ml) of baking soda to

one quart (1 liter) of water. Leave the door open.

(on manual defrost models only)

Defrost whenever frost on the wall of the

ice tray compartment becomes 1/4” thick.

1HYHUXVHDVKDUSRUPHWDOOLFLQVWUXPHQWWR

UHPRYHIURVWDVLWPD\GDPDJHWKHFRROLQJ

FRLOV (A punctured cooling coil will cause

serious problems and void the warranty.) We

recommend using a plastic scraper. Do not

use any electrical device in defrosting your

 Remove foods and ice trays from the ice tray

 Set the temperature control dial at OFF

 On models without a drip tray, place a pan

beneath the ice tray compartment to collect

Defrosting usually takes a few hours. To defrost

faster, keep the door open. Also, pouring warm

(not hot) water on the frosted part may speed

defrosting. 'RQRWXVHERLOLQJZDWHU³LWPD\

damage plastic parts.

 Empty water from the drip tray or from

the pan placed beneath the ice tray

compartment. Wash the tray or pan with

 Wipe the ice tray compartment with a damp

 Turn the temperature control to the desired

setting and return food and ice trays to the

NOTE: If ice buildup is very thick, it may keep

the ice tray compartment door from opening

or closing completely. Don’t try to force it open;

after defrosting, the door will open and close

Secure all loose items such as shelves and

ice trays by taping them securely in place to

Be sure the refrigerator stays in an upright

position during moving.

67 Turn counterclockwise to raise, clockwise to lower./(9(/,1*/(*6$GMXVWDEOHOHJVat the front corners of the refrigerator should be set so the refrigerator is firmly positioned on the floor, and the front is raised just enough that the door closes easily when opened about halfway.To adjust the leveling legs, turn the legs counterclockwise to raise the refrigerator, clockwise to lower it. If you have questions, call 1.800.GE.CARES RUvisit our Website at: GEAppliances.com

,03257$17²Observe all governing codes and ordinances. • 1RWHWR,QVWDOOHU²Be sure to leave these instructions with the Consumer. • 1RWHWR&RQVXPHU²Keep these instructions for future reference./2&$7,215(48,5(0(176• Do not install the refrigerator where the temperature will go below 50°F (10°C) because it will not run often enough to maintain proper temperatures. • Install it on a floor strong enough to support it fully loaded.• Do not install it in a recessed area.• Do not build in the refrigerator.&/($5$1&(6Allow the following clearances for ease of installation and proper air circulation. 3 and 4 Cubic Foot ModelsSides 1/2” (13 mm)Top 2” (51 mm)Back 2” (51 mm)****From the rear cabinet surface to the wall813$&.,1*<2855()5,*(5$725• Remove tape and any labels (except for the rating label) from your refrigerator. Tape or glue residue can also be removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.• Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.• When moving the refrigerator, do not tilt the refrigerator beyond 45° from upright position.3 Cubic Foot Models 4 Cubic Foot ModelsLeveling legsBottom hingePlug button SpacerHinge coverPlug buttons or screwsHinge Door Reversal

1. Remove the small plug button on the left

side of the door top cap.

2. Remove the 2 plug buttons or screws on

the left side on top of the cabinet.

3. Remove the plastic hinge cover by lifting

it up by the front edge.

4. Remove the 2 screws from the top hinge.

5. Lift the door up and off the bottom hinge

6. Tilt the refrigerator cabinet back to

remove the left leveling leg.

7. Remove the screws on the bottom hinge

(right side) and remove the leveling leg.

Move the bottom hinge to the left side

and secure it with screws. Re-install the

IMPORTANT: The left leg has a spacer or

spacer feature that must be moved to the

right side leveling leg when the door swing

8. Screw the right leveling leg, with the

spacer, back in place on the right side.

9. Position the door on the left bottom

hinge. With the magnetic gasket holding

the door in place, secure the top hinge

10. Make sure the door is aligned with the

refrigerator cabinet before continuing.

11. Replace the hinge cover on top of the

12. Put the plug button in the hole on the

right side of the door cap.

13. Put the 2 plug buttons on the right side

on top of the cabinet

,QVWDOODWLRQ,QVWUXFWLRQV

• Plug the refrigerator power cord into its own properly grounded wall outlet with a voltage rating matching that on the

refrigerator rating plate.

• Do not use an extension cord.

• Read all safety precautions on pages 2 and 3.

([SORVLRQ+D]DUG

Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can

result in fire, explosion, or death.

&211(&7,1*(/(&75,&,7<

(OHFWULFDO6KRFN+D]DUG

Plug into a grounded 3-prong outlet

Do not remove the ground prong

Do not use an adapter

Failure to follow these instructions can result in death, fire, or electrical shock.9

1. Remove the small plug button on the left

side of the door top cap.

2. Remove the 2 plug buttons or screws on

the left side on top of the cabinet.

3. Remove the plastic hinge cover by lifting

it up by the front edge.

4. Remove the 2 screws from the top hinge.

5. Lift the freezer door up and off the middle

hinge (right side). Set the door on a non-

scratching surface with the outside up.

6. Remove the center hinge by removing

the 2 screws. Lift the hinge to remove.

7. Lift the fresh food door off of the bottom

hinge. Set the door on a non-scratching

surface with the outside up.

8. Tilt the refrigerator cabinet back to

remove the left leveling leg.

9. Remove the screws on the bottom hinge

(right side) and remove the leveling leg.

Move the bottom hinge to the left side

and secure it with screws. Re-install the

IMPORTANT: The left leg has a spacer or

spacer feature that must be moved to the

right side leveling leg when the door swing

10. Screw the right leveling leg, with the

spacer, back in place on the right side.

11. Remove the two plug buttons on the left

side at the center and install them on the

12. Position the door on the left bottom

hinge. With the magnetic gasket holding

the door in place, make sure the door is

aligned with the refrigerator, and secure

the center hinge on the left with screws.

Place the freezer door on the center hinge

over the pin. Assure the door is aligned

horizontally and vertically, and that the

gasket seals on all sides.

Replace the top hinge on the left side with

15. Replace the hinge cover on top of the

16. Put the plug button in the hole on the

right side of the door cap.

17. Put the 2 plug buttons on the right side

on top of the cabinet

Troubleshooting Tips

Save time and money! Review the chart below first and you

may not need to call for service.

Before you call for service…

Problem Possible Causes What To Do

Refrigerator does not operate &RQWUROLQOFFSRVLWLRQ Move the control to a temperature

5HIULJHUDWRULVXQSOXJJHG Push the plug completely into the

Vibration or rattling (slight vibration is

Wait 24 hours for the refrigerator to

completely cool down.

2IWHQRFFXUVZKHQODUJH

'RRUOHIWRSHQ Check to see if package is holding

Set the temperature control one step

colder. See About the control.

'RRUOHIWRSHQ Check to see if package is holding

&DELQHWVLGHVDUHZDUP This is normal for a hot wall type

Refrigerator has odor )RRGVWUDQVPLWWLQJRGRUWR

Foods with strong odors should be

Keep an open box of baking soda in

the refrigerator; replace every three

Moisture forms on outside of refrigerator 1RWXQXVXDOGXULQJSHULRGVRIKLJK

Moisture collects inside (in humid weather,

air carries moisture into refrigerator when

Refrigerator too cold 7HPSHUDWXUHFRQWUROVHWWRRFROG See About the control.7(506$1'&21',7,216

This warranty applies only for single family domestic

use in Canada when the Refrigerator has been properly

installed according to the instructions supplied by Mabe

and is connected to an adequate and proper utility

Damage due to abuse, accident, commercial use,

and alteration or defacing of the serial plate cancels

all obligations of this warranty.

Service during this warranty period must be

performed by an Authorized Mabe Service Agent.

Neither Mabe nor the Dealer is liable for any claims

or damages resulting from failure of the Refrigerator

or from service delays beyond their reasonable control.

To obtain warranty service, purchaser must present

the original Bill of Sale. Components repaired or replaced

are warranted through the remainder of the original

warranty period only.

This warranty is extended to the original purchaser

and any succeeding owner for products purchased for

home use within Canada. In home warranty service will

be provided in areas where it is available and deemed

reasonable by Mabe to provide.

This warranty is in addition to any statutory warranty.

:+$7,6127&29(5('

• Owner is responsible to pay for service calls related

to product installation and/or teaching how to use

• Damage to finish must be reported within 48 hours

following the delivery of the appliance.

• Damage to finish after delivery.

,PSURSHULQVWDOODWLRQ³SURSHULQVWDOODWLRQLQFOXGHV

adequate air circulation to the refrigeration system,

adequate electrical, plumbing and other connecting

• Replacement of house fuses or resetting of circuit

• Replacement of light bulbs.

• Damage to product caused by accident, fire, floods

• Loss of food due to spoilage.

• Proper use and care of product as listed in

the owner’s manual, proper setting of controls.

• Product not accessible to provide required service.

• WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

• Damage caused by a non-GE brand water filter.

.HHSWKLVZDUUDQW\DQG\RXUELOORIVDOHDVSURRIRIRULJLQDOSXUFKDVHDQGSXUFKDVHGDWH

3OHDVHKDYHVHULDOQXPEHUDQGPRGHOQXPEHUDYDLODEOHZKHQFDOOLQJIRUVHUYLFH

Mabe Service is available coast to coast. If further help is

needed concerning this warranty, contact:

Manager, Consumer Relations

Mabe Canada Inc., Consumer Service

1 Factory Lane, Suite 310

Moncton, New Brunswick E1C 9M3

Staple your receipt here.

Proof of the original purchase date

is needed to obtain service under

What is covered How Long Warranted Parts Labour

(From Date of Sale) Repair or Replace

evaporator, condenser GE and All Other GE and All Other GE and All Other

$OO2WKHU3DUWV 2QH<HDU 2QH<HDU 2QH<HDU

(for customers in Canada)

<RXUUHIULJHUDWRULVZDUUDQWHGWREHIUHHRIGHIHFWVLQPDWHULDODQGZRUNPDQVKLS

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQ

this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness

for a particular purpose, are limited to one year or the shortest period allowed by law.

11This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within

the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible

for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the

warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific

legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult

your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

For The Period Of: GE Will Replace:

One Year Any part of the refrigerator which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and related service costs to

original purchase replace the the defective part.

6HUYLFHWULSVWR\RXUKRPHWRWHDFK\RXKRZWRXVHWKH

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV/LPLWHG

Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular

purpose, are limited to one year or the shortest period allowed by law.

Refrigerator Warranty. (For customers in the United States)

All warranty service provided by our Factory Service Centers,

or an authorized Customer Care

technician. To schedule service,

on-line, 24 hours a day, visit us at www.GEAppliances.com, or

call 800.GE.CARES (800.432.2737).

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.Mesures de sécurité 14, 15

&216(59(=&(6,16758&7,216

Cleaning the Outside

Use shims to level the refrigerator.

7(50(6(7&21',7,216

Move the control to a temperature

Normal when refrigerator is first

deberán cubrir de forma hermética.

Keep an open box of baking soda in

the refrigerator; replace every three

Warrantor: General Electric Company. Louisville, KY 40225

Louisville, KY 40225

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For

greater convenience and faster service, you can now download Owner’s Manuals, order parts, catalogs, or even schedule service

on-line. You can also “Ask Our Team of Experts

” your questions, and so much more...

Schedule Service GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours

any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio GEAppliances.com

GE supports the Universal Design concept–products, services and environments that can be used by people of all ages, sizes and

capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s

Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing

impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can

purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after

your warranty expires.

Parts and Accessories GEAppliancesparts.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and

Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to

qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us GEAppliances.com

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone

number, or write to:

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Register Your Appliance GEAppliances.com

Register your new appliance on-line–at your convenience! Timely product registration will allow for enhanced communication and

prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card

included in the packing material.
