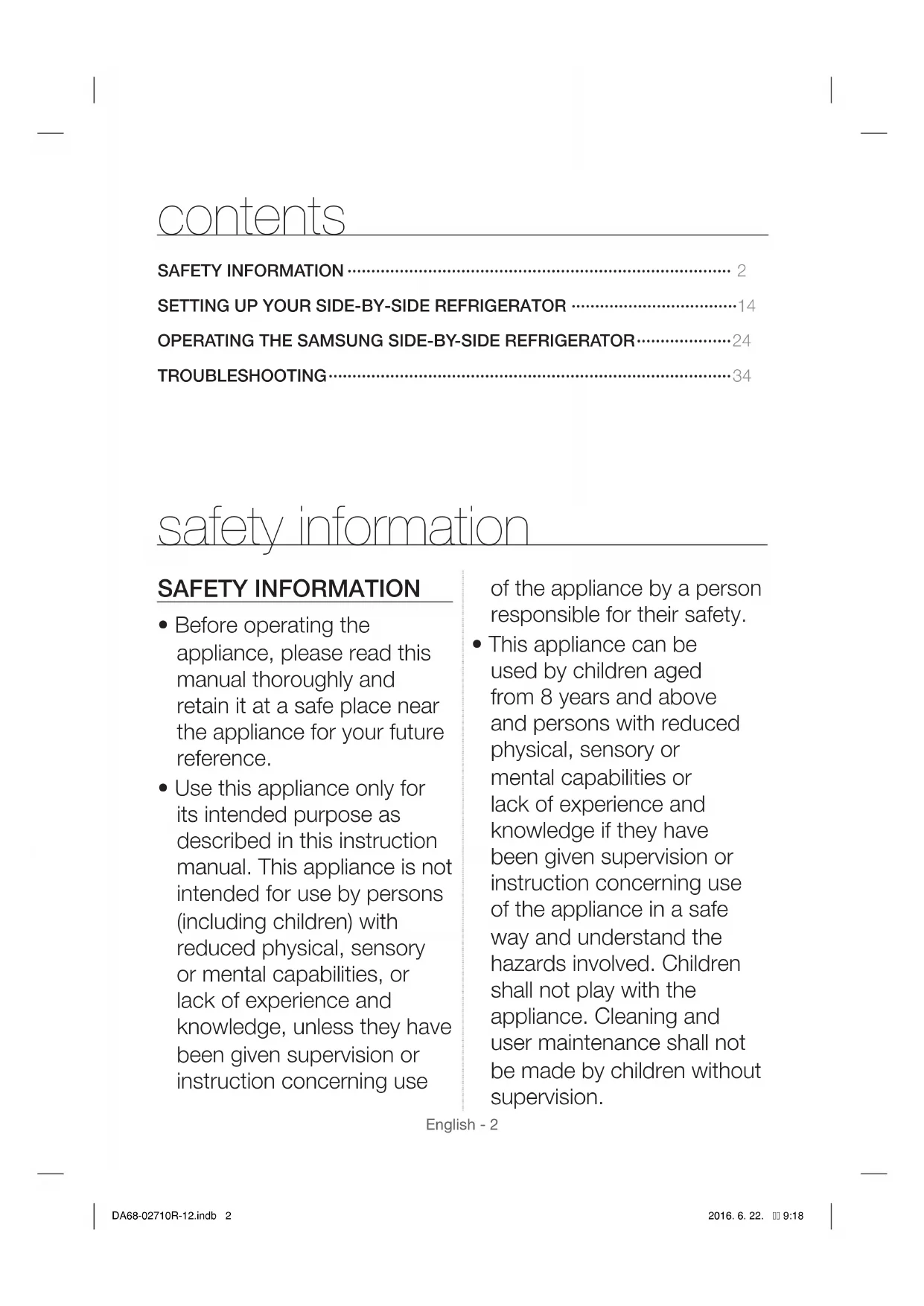

USER MANUAL RS7528THCWW SAMSUNG

user manual Free Standing Appliance

Thank you for purchasing this Samsung product.

• Before operating the

appliance, please read this

manual thoroughly and

retain it at a safe place near

the appliance for your future

• Use this appliance only for

its intended purpose as

described in this instruction

manual. This appliance is not

intended for use by persons

(including children) with

reduced physical, sensory

or mental capabilities, or

lack of experience and

knowledge, unless they have

been given supervision or

instruction concerning use

of the appliance by a person

responsible for their safety.

• This appliance can be

used by children aged

from 8 years and above

and persons with reduced

physical, sensory or

mental capabilities or

lack of experience and

knowledge if they have

been given supervision or

instruction concerning use

of the appliance in a safe

way and understand the

hazards involved. Children

shall not play with the

appliance. Cleaning and

user maintenance shall not

be made by children without

SAFETY INFORMATION ················································································· 2

SETTING UP YOUR SIDE-BY-SIDE REFRIGERATOR ···································14

OPERATING THE SAMSUNG SIDE-BY-SIDE REFRIGERATOR ····················24

TROUBLESHOOTING ····················································································· 34
