USER MANUAL PerfectCare Pure GC7610 PHILIPS

- Perform Calc-Clean process regularly for great steam and prolonged life (Fig. 1).

- Recommended water to use: distilled or demineralised water (Fig. 2).

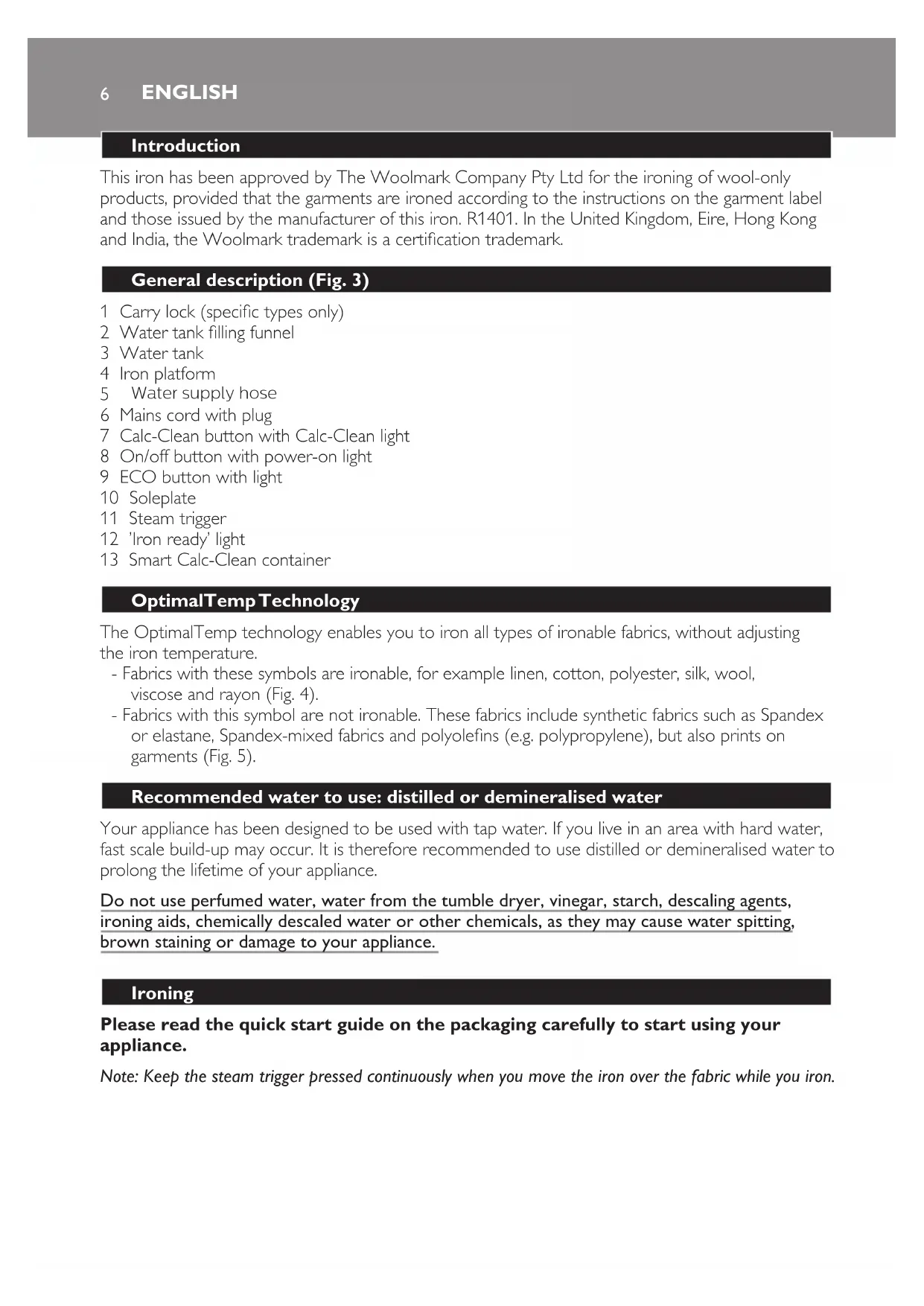

This iron has been approved by The Woolmark Company Pty Ltd for the ironing of wool-only

products, provided that the garments are ironed according to the instructions on the garment label

and those issued by the manufacturer of this iron. R1401. In the United Kingdom, Eire, Hong Kong

and India, the Woolmark trademark is a certication trademark.

General description (Fig. 3)

1 Carry lock (specic types only)

2 Water tank lling funnel

6 Mains cord with plug

7 Calc-Clean button with Calc-Clean light

8 On/off button with power-on light

9 ECO button with light

13 Smart Calc-Clean container

OptimalTemp Technology

The OptimalTemp technology enables you to iron all types of ironable fabrics, without adjusting

the iron temperature.

- Fabrics with these symbols are ironable, for example linen, cotton, polyester, silk, wool,

viscose and rayon (Fig. 4).

- Fabrics with this symbol are not ironable. These fabrics include synthetic fabrics such as Spandex

or elastane, Spandex-mixed fabrics and polyolens (e.g. polypropylene), but also prints on

Recommended water to use: distilled or demineralised water

Your appliance has been designed to be used with tap water. If you live in an area with hard water,

fast scale build-up may occur. It is therefore recommended to use distilled or demineralised water to

prolong the lifetime of your appliance.

Do not use perfumed water, water from the tumble dryer, vinegar, starch, descaling agents,

ironing aids, chemically descaled water or other chemicals, as they may cause water spitting,

brown staining or damage to your appliance.

Please read the quick start guide on the packaging carefully to start using your

Note: Keep the steam trigger pressed continuously when you move the iron over the fabric while you iron.

ENGLISHIMPORTANT - Cleaning and maintenance

Smart Calc-Clean System

Your appliance has been designed with a Smart Calc-Clean system to ensure that descaling and

cleaning is done regularly. This helps to maintain a strong steam performance and avoids dirt and

stains coming out of the soleplate over time. To ensure that the cleaning process is performed,

the steam generator gives regular reminders. Besides that, a second defence step to protect the

steam generator from scale is integrated: the steam function gets disabled if descaling is not done

after 1 hour steam ironing once the reminder came up. After descaling is done, the steam function

will be restored. This takes place regardless of the type of water used.

Sound and light Calc-Clean reminder

- After 1 to 3 months of use, the light of the Calc-Clean button starts ashing and the appliance

starts beeping to indicate that you have to perform the Calc-Clean process (Fig. 6).

- You can continue steam ironing for 1 hour while the Calc-Clean light ashes and the appliance

beeps. After 1 hour, the steam function is automatically disabled. You have to perform the

Calc-Clean process before you can continue steam ironing. (Fig. 7)

Performing the Calc-Clean process with the Calc-Clean container

Do not leave the appliance unattended during the Calc-Clean process.

Always perform the Calc-Clean process with the Calc-Clean container. Do not interrupt the

process by lifting the iron up from the Calc-Clean container, as hot water and steam will come

out of the soleplate.

1 Fill up the water tank halfway (Fig. 8).

Note: Make sure that the appliance is plugged in and switched ON during the Calc-Clean process.

2 Place the Calc-Clean container on the ironing board or any other even, stable surface (Fig. 9).

3 Place the iron stably on the Calc-Clean container (Fig 10).

4 Press and hold the CALC-CLEAN button for 2 seconds until you hear short beeps (Fig. 11).

Note: The Calc-Clean container has been designed to collect scale particles and hot water during the

Calc-Clean process. It is perfectly safe to rest the iron on this container during the entire process.

5 During the Calc-Clean process, you hear short beeps and a pumping sound (Fig.12)

Wait approximately 2 minutes for the appliance to complete process. When the Calc-Clean

process is completed, the iron stops beeping and the CALC-CLEAN light stops ashing (Fig. 13).

7 Wipe the iron with a piece of cloth (Fig. 14). Put the iron back on the base station.

Caution: The iron is hot.

8 As the Calc-Clean container becomes hot during the Calc-Clean process, wait approx.

5 minutes before you touch it. Then carry the Calc-Clean container to the sink, empty it and

store it for future use (Fig 15).

9 If necessary, you can repeat steps 1 to 8. Make sure that you empty the Calc-Clean container

before you start the Calc-Clean process.

Note: During the Calc-Clean process, clean water may come out of the soleplate if no scale has

accumulated inside the iron. This is normal.

For more information on how to carry out the Calc-Clean process, refer to the videos in this link:

http://www.philips.com/descaling-iron.

ENGLISH 7Energy saving

By using the ECO mode (reduced amount of steam), you can save energy without compromising

on the ironing result.

1 To activate the ECO mode, press the ECO button. The green ECO light goes on. (Fig. 16)

2 To deactivate the ECO mode, press the ECO button again. The green light goes off.

For the best results on tough fabrics you can use the TURBO mode.

1 Press and hold the on/off button for 2 seconds until the light turns white.

2 To deactivate the TURBO mode, press and hold the on/off button for 2 seconds again until

the light turns blue.

Safety auto-off (specic types only)

The safety auto-off function automatically switches off the appliance if it has not been used for

5 minutes, to save energy.

This chapter summarises the most common problems you could encounter with the appliance.

If you are unable to solve the problem with the information below, visit www.philips.com/support

for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Possible cause Solution

There is not enough water in

Fill the water tank beyond the MIN

indication. Press and hold the steam trigger

until steam comes out. It may take up to

30 seconds until steam comes out.

You have not pressed the

Press and hold the steam trigger until

The steam function has been

disabled until you have

performed the Calc-Clean

Perform the calc-clean process to restore

(see chapter ‘IMPORTANT - Cleaning and

This is the Calc-Clean

Perform the Calc-Clean process within

1 hour after the Calc-Clean reminder is

given (see chapter ‘IMPORTANT - Cleaning

You have not done or have

not completed the Calc-Clean

Perform the Calc-Clean process to enable

the steam function again

(see chapter ‘IMPORTANT - Cleaning and

was activated. This happens

automatically when the steam

generator has not been used

for more than 5 minutes.

Set the on/off switch to ‘off’ position and

then to ‘on’ position.

The water tank is empty. Fill the water tank with water and press the

steam trigger until the pumping sound

becomes softer and steam comes out of

After the Calc-Clean process,

remaining water may drip out

Wipe the soleplate dry with a piece of

cloth. If the light in the Calc-Clean button

still ashes and the appliance still beeps,

perform the Calc-Clean process

(see chapter ‘IMPORTANT - Cleaning and

The Calc-Clean process has

You have to perform the Calc-Clean

process again (see chapter ‘IMPORTANT

- Cleaning and maintenance’).

Impurities or chemicals

present in the water have

deposited in the steam vents

Perform the Calc-Clean process regularly

(see chapter ‘IMPORTANT - Cleaning and

You have accidentally started

the Calc-Clean process

(see chapter ‘IMPORTANT -

Cleaning and maintenance’).

Switch off the appliance. Then switch it

back on again. Let the iron heat up until the

‘iron ready’ light lights up steadily.

You have not pressed the

Calc-Clean button for 2

seconds until the appliance

See chapter ‘IMPORTANT - Cleaning and

The surface to be ironed was

uneven, for instance because

you were ironing over a seam

or a fold in the garment.

Perfect Care is safe on all garments.

The shine or imprint is not permanent and

will disappear when you wash the garment.

Avoid ironing over seams or folds or you

can place a cotton cloth over the area to

be ironed to avoid imprints.

Steam has condensed on the

ironing board cover after a

long ironing session.

Replace the ironing board cover if the foam

material has worn out. You can also add an

extra layer of felt material under the ironing

board cover to prevent condensation on

You may have an ironing

board that is not designed to

cope with the high steam rate

of the steam generator.

Put an extra layer of felt material under the

ironing board cover to prevent

condensation on the ironing board.

ENGLISH 9Problem Possible cause Solution

Steam is generated in the

soleplate. When you release

the steam trigger, remaining

water is transformed into

steam. This is normal.

Release the steam trigger 2 to 3 seconds

before you place the iron back on the iron

platform or ironing board.

When the iron is tilted

upwards, remaining water is

collected and converted into

strong steam. This is normal.

Release the steam trigger 2 to 3 seconds

before you place the iron back on the iron

platform or ironing board.

Steam is weak. You do not press the steam

trigger continuously.

Keep the steam trigger pressed

continuously when you move the iron over

You use the ECO mode. For more steam, switch off the ECO mode

by pressing the ECO button. The green

Water is converted into

steam in the soleplate. When

you press the steam trigger, it

will take 1 to 2 seconds until

steam is generated and

released. This is normal.

Keep the steam trigger pressed

continuously when you move the iron over
