Product type	Wireless keyboard and mouse
Brand	Trust
Model	Wireless Laser MediaPlayer Deskset
Connection	Wireless 2.4 GHz
Range	Approximately 8 meters
Keyboard power supply	2 AA batteries (non-rechargeable)
Mouse power supply	2 AA batteries (can work with 1 battery)
Mouse type	Laser (Class I)
DPI resolution	800 / 1,600 DPI (switchable)
Multimedia keys	Media player, volume, mute, navigation, sleep, etc.
Desktop keys	Calculator, workstation, favorites, search, browser, email
Compatibility	Windows (XP, Vista and later)
Receiver	USB (plug and play)
Included software	CD-ROM with drivers
Maintenance	Clean with a dry cloth
Safety	Do not open the device, do not stare into the laser beam, respect the environment
Warranty	2 years
Repairability	Spare parts not provided; contact customer service

Frequently Asked Questions - Wireless Laser MediaPlayer Deskset TRUST

How to install the keyboard and mouse?

Insert the batteries into the keyboard and mouse, then plug the USB receiver into a free port on your PC. Automatic installation completes in a few seconds. For advanced features, insert the CD-ROM and install the software.

What to do if the mouse does not move?

Check that the batteries are in good condition and properly installed, that the USB receiver is plugged in and the mouse is turned on. Move away metal objects or other wireless devices that could interfere.

How to change the DPI resolution of the mouse?

Press and hold the DPI switch button (J key) for 1 second to toggle between 800 and 1,600 DPI.

How to switch to Media Command mode?

Press and hold the DPI switch button (J key) for 5 seconds. The low battery indicator flashes for 3 seconds to confirm the mode change.

What multimedia keys are available?

Multimedia keys include: default media player, mute, play/pause, stop, volume, previous/next track, and Internet navigation keys (favorites, search, etc.).

Does the mouse work with a single battery?

Yes, the mouse can work with a single battery, but battery life will be reduced. It is recommended to use two batteries for extended duration.

How to clean the keyboard and mouse?

Use a dry, soft cloth. Do not use liquids or abrasive products. Unplug the receiver before cleaning.

What is the maximum wireless range?

The range is approximately 8 meters under normal conditions. Metal objects, interference, or low batteries can reduce this distance.

What to do if the keyboard types wrong characters?

Check that the keyboard layout in Windows matches your Trust keyboard (see the label on the box). Use the Alt Gr key for special characters like the € sign.

Where to find updates and support?

Visit www.trust.com/15220 for FAQs, drivers and manuals. For extended warranty, register your product at www.trust.com/register.

USER MANUAL Wireless Laser MediaPlayer Deskset TRUST

Front view of a black Nusel computer keyboard with standard keys and control buttons (no visible text or symbols on the keys)

LIFE IS MORE! TRUST US

TRUST.COM

LIFE IS MORE! TRUST US

TRUST.COM

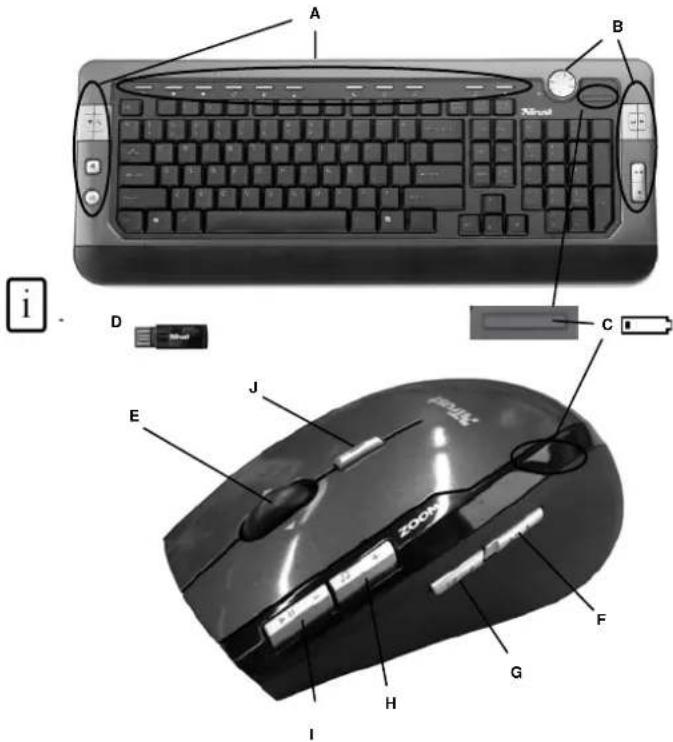

A B i D C E J F G H I ZOOM

Installation

1

Close-up of a remote control device showing battery and warning symbol (no readable text or labels)

2

PC I

3

Illustration of a hand holding a CD or DVD next to a tray labeled 'Xtrust' (no other text or symbols)

Trust Install software

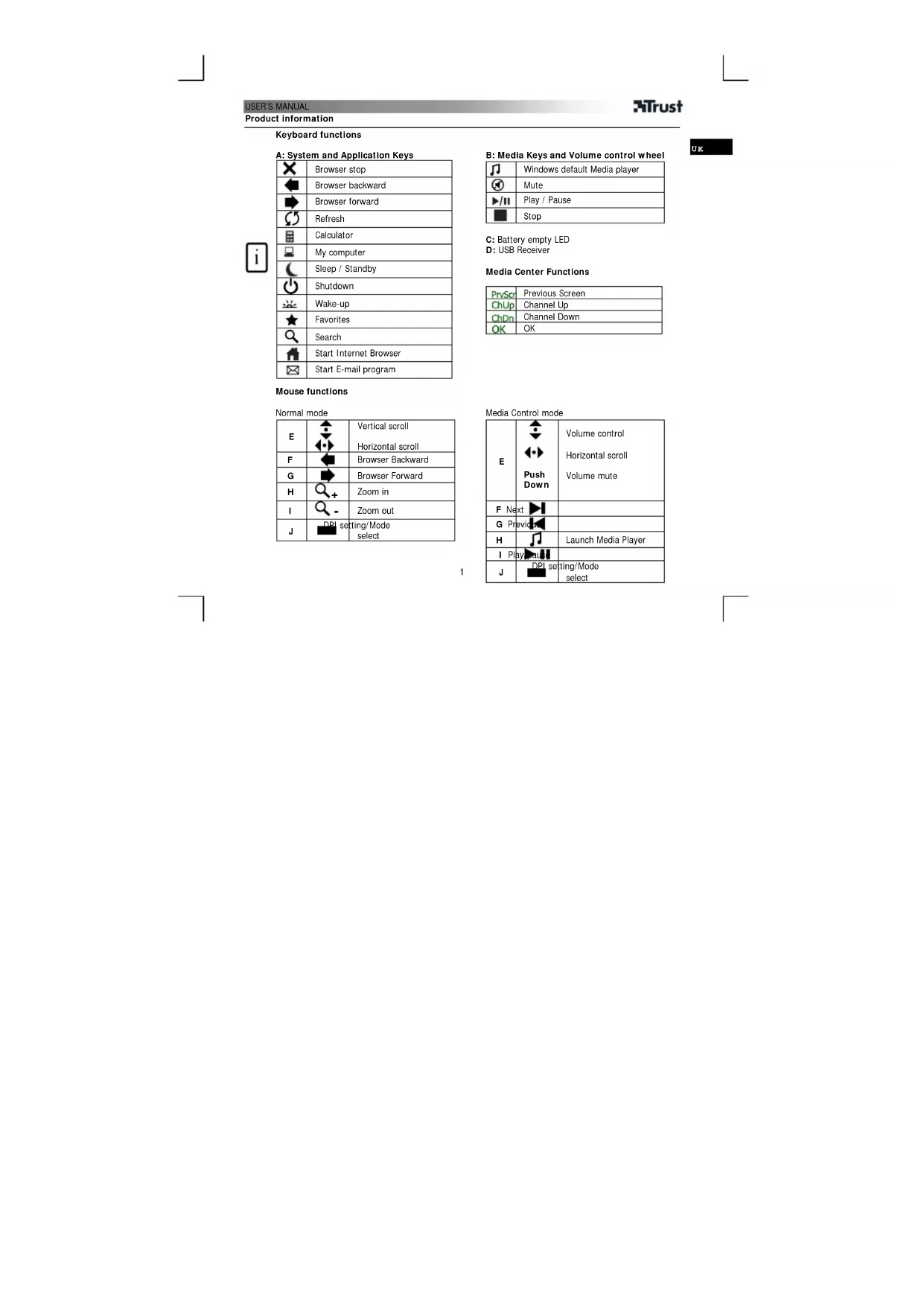

Keyboard functions

A: System and Application Keys

	Browser stop
	Browser backward
	Browser forward
	Refresh
	Calculator
	My computer
	Sleep / Standby
	Shutdown
	Wake-up
	Favorites
	Search
	Start Internet Browser
	Start E-mail program

Mouse functions

Normal mode

E		Vertical scrollHorizontal scroll
F		Browser Backward
G		Browser Forward
H		Zoom in
I		Zoom out
J	DPI setting/Mode select

B: Media Keys and Volume control wheel

	Windows default Media player
	Mute
	Play / Pause
	Stop

C: Battery empty LED

D: USB Receiver

Media Center Functions

PrvScr	Previous Screen
ChUp	Channel Up
ChDn	Channel Down
OK	OK

Media Control mode

E	Push Down	Volume controlHorizontal scrollVolume mute
F Next
G Previd
H		Launch Media Player
I Play
J	DPI setting/Mode select

UK

USER'S MANUAL

Trust

Installation

1	Open battery compartments on bottom side of keyboard and mouse to insert batteries.Turn on mouse
2	Connect USB Transmitter to PC; wait until automatic installation has completed → Ready to use.
3	Insert CD-ROM and install software

Mouse

• Hold down DPI switch (J) for 1 sec will change DPI setting between 800 DPI and 1600 DPI
• Hold down DPI switch (J) for 5 sec to change mouse modes (Normal/Media Control). Low Battery LED will flash for 3 sec.
  • Could also work on just 1 battery. Use 2 for extra long life-time.
• Tilt scroll is supported in MS Office, Internet Explorer, and Windows Explorer, but may also work in other applications.
• Zoom function is supported in MS Office and Internet Explorer 7 and up, but may also work in other applications.

Note

! Multimedia and Office keys

- Launch keys will start the default internet browser, E-mail program and Mediaplayer installed on your PC. Configure default programs:

XP: Start → Control Panel → Add/Remove Programs → Set Program Access and Defaults.

Vista: Start → Control Panel→Default Programs→Set programs access and computer defaults→Custom

• The multimedia keys also work with other media player software like iTunes.
- 4th and 5^th Mouse button only work in games that support standard 5 button mice (normal mode).

⚠️

- The keyboard country layout settings in Windows should correspond with the keyboard layout of your Trust keyboard. Layout of the Trust keyboard is specified by a sticker on the Box.

To set the keyboard Layout in Windows: Go to: Start → Control Panel (classic view) → Regional and Language Options → Languages → Details (Vista: "Change Keyboards")

- The Alt Gr key gives access to special characters like the € sign. An overview of the special characters per country is available at www.trust.com/keyboardlayout.

!

Performance

• Maximum Wireless working distance is around 8 meter.
- Reduced wireless performance can be caused by: - (Metal) objects close to or between transmitter and keyboard → Remove objects. - Other wireless devices close by → Remove devices or reconnect USB transmitter to get different communication ID. - Empty batteries → Replace batteries.

USER'S MANUAL

Trust

• Mouse will have reduced tracking performance on very shiny or transparent surfaces.
• Do not place USB dongle next to Bluetooth dongle.

UK

Energy

• Never recharge the batteries provided and never throw them onto a fire.
• Observe local regulations when disposing of batteries.
• Insert batteries in keyboard or mouse: low battery LED (C) will flash for 3 sec.

Safety instructions

• LASER CLASS I device. Never look directly at the laser beam!

• Do not open or repair this device.
• Do not use the device in a damp environment. Clean the device with a dry cloth.

See www.trust.com/15220 for up-to-date FAQs, driver and instruction manuals. For extensive service, register at www.trust.com/register.

CE

- This device meets the essential requirements and other relevant conditions of the applicable European directives. The Declaration of Conformity (DoC) is available at www.trust.com/15220/ce.

- If possible, dispose of the device at a recycling centre. Do not dispose of the device with the household waste.

Wireless

• This class 1 wireless device works at a frequency of 2.4 GHz. It meets the essential requirements and other relevant conditions of R&TTE Directive 1999/5/EC.
• Be careful when using wireless devices if you have a pacemaker or are dependent on other life-saving, sensitive electronic equipment, because this device transmits radio signals.

Warranty & copyright

• This device has a two-year product warranty which is valid from the date of purchase. See www.trust.com/warranty for more information.
• It is forbidden to reproduce any part of this instruction manual without the permission of Trust International B.V.

Tastaturfunktionen

	Windows Media player
	Mute
	Riproduci / Pausa
	Stop

predefiniti (Set Program Access and Defaults)

E		Loddrett rullingVannrett rulling
F		Tilbake i nettleser
G		Fremover i nettleser
H		Zoom inn
I		Zoom ut
J		PDT-in-stilling /modusvalg

B: Medietaster og volumkontrollhjul

	Windows standardni Media player
	prigušeno
▶/II	play / pause
	stop

C: LED indikator za pražnjenje baterije

D: USB prijamnik

XP: Start → Control Panel → Add/Remove Programs → Set Program Access and Defaults.

Vista: Start → Control Panel→Default Programs→Set programs access and computer defaults→Custom

• Multimedlijske tipke rade i s drugim media player softverima kao što je Itunes.
• 4. I 5. tipka miša rade samo u igrama koje podržavaju standardne miševe s 5 tipki (normalni način rada).

Specijalni znakovi

- Podešavanje postave tipkovnice za određenu zemlju u Windows-u mora odgovarati postavi vaše Trust tipkovnice. Postava Trust tipkovnice je prikazana na kutiji.

Podešavanje pstave tipkovnice u Windows-u: Idite na: Start → Control Panel (classic view) → Regional and Language Options → Languages → Details (Vista: "Change Keyboards")

- Tipka Alt Gr daje vam pristup specijalnim znakovima kao što je znak €. Pregled specijalnih znakova za svaku zemlju dostupan je na adresi www.trust.com//dkeyboardlayout.

Izvedba

• Maksimalna udaljenost za bežični rad je oko 8 metara.
• Smanjena bežična izvedba može biti prouzročena:

- (metalnim) objektima u blizini ili između prijenosnika i tipkovnice → Odstranite objekte.
