FR6915 - Deep fryer TRISTAR - Free user manual and instructions

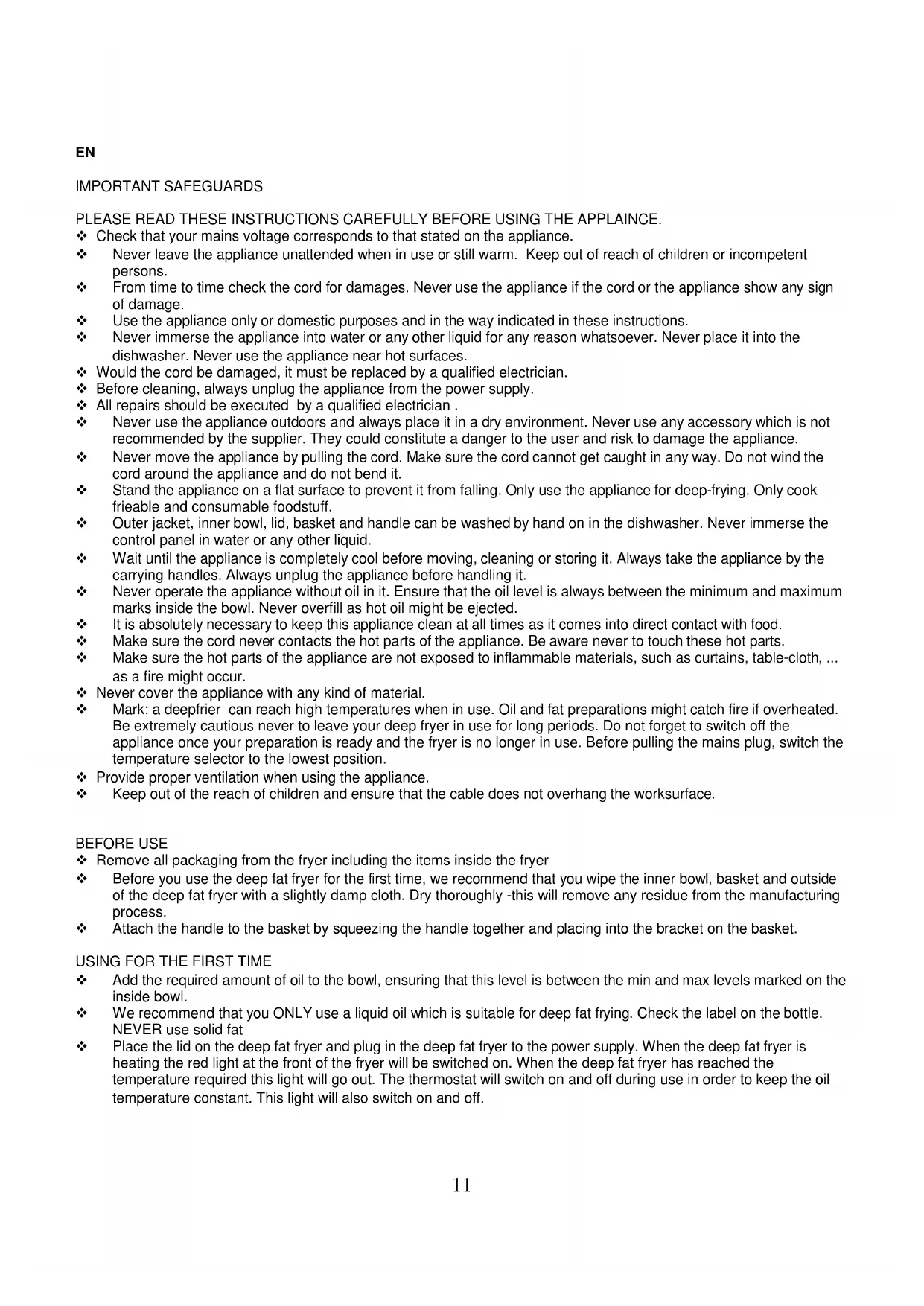

USER MANUAL FR6915 TRISTAR

EN IMPORTANT SAFEGUARDS PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE APPLAINCE.

 Check that your mains voltage corresponds to that stated on the appliance.

 Never leave the appliance unattended when in use or still warm. Keep out of reach of children or incompetent

 From time to time check the cord for damages. Never use the appliance if the cord or the appliance show any sign

 Use the appliance only or domestic purposes and in the way indicated in these instructions.

 Never immerse the appliance into water or any other liquid for any reason whatsoever. Never place it into the

dishwasher. Never use the appliance near hot surfaces.

 Would the cord be damaged, it must be replaced by a qualified electrician.

 Before cleaning, always unplug the appliance from the power supply.

 All repairs should be executed by a qualified electrician .

 Never use the appliance outdoors and always place it in a dry environment. Never use any accessory which is not

recommended by the supplier. They could constitute a danger to the user and risk to damage the appliance.

 Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the

cord around the appliance and do not bend it.

 Stand the appliance on a flat surface to prevent it from falling. Only use the appliance for deep-frying. Only cook

frieable and consumable foodstuff.

 Outer jacket, inner bowl, lid, basket and handle can be washed by hand on in the dishwasher. Never immerse the

control panel in water or any other liquid.

 Wait until the appliance is completely cool before moving, cleaning or storing it. Always take the appliance by the

carrying handles. Always unplug the appliance before handling it.

 Never operate the appliance without oil in it. Ensure that the oil level is always between the minimum and maximum

marks inside the bowl. Never overfill as hot oil might be ejected.

 It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.

 Make sure the cord never contacts the hot parts of the appliance. Be aware never to touch these hot parts.

 Make sure the hot parts of the appliance are not exposed to inflammable materials, such as curtains, table-cloth, ...

as a fire might occur.

 Never cover the appliance with any kind of material.

 Mark: a deepfrier can reach high temperatures when in use. Oil and fat preparations might catch fire if overheated.

Be extremely cautious never to leave your deep fryer in use for long periods. Do not forget to switch off the

appliance once your preparation is ready and the fryer is no longer in use. Before pulling the mains plug, switch the

temperature selector to the lowest position.

 Provide proper ventilation when using the appliance.

 Keep out of the reach of children and ensure that the cable does not overhang the worksurface.

 Remove all packaging from the fryer including the items inside the fryer

 Before you use the deep fat fryer for the first time, we recommend that you wipe the inner bowl, basket and outside

of the deep fat fryer with a slightly damp cloth. Dry thoroughly -this will remove any residue from the manufacturing

 Attach the handle to the basket by squeezing the handle together and placing into the bracket on the basket.

USING FOR THE FIRST TIME

 Add the required amount of oil to the bowl, ensuring that this level is between the min and max levels marked on the

 We recommend that you ONLY use a liquid oil which is suitable for deep fat frying. Check the label on the bottle.

 Place the lid on the deep fat fryer and plug in the deep fat fryer to the power supply. When the deep fat fryer is

heating the red light at the front of the fryer will be switched on. When the deep fat fryer has reached the

temperature required this light will go out. The thermostat will switch on and off during use in order to keep the oil

temperature constant. This light will also switch on and off.12

 When the fryer has reached the desired temperature, one should remove the fryer lid and place the food into the

basket. Do not overfill the basket as the food will not cook properly. Lower the basket slowly into the fryer to avoid

splashes of oil and then place the lid back on the fryer.

 Warning : Show care when removing the lid as hot steam may be emitted.

 When the food is ready, remove the lid and attach the handle to the basket. Lift out the basket and allow to drain

the basket at an angle on the lip of the bowl.

 Ensure the food is thoroughly cooked in- and outside.

 Always unplug the deep fat fryer after use.

 Always dry food well before frying. Very 'wet' food can cause the oil to 'foam' and may overflow.

 Food for frying should be roughly of the same size to ensure the food cooks evenly and thoroughly.

 Many types of food may need to be coated before frying - typical coatings are batter or breadcrumbs.

 Always wait until the fryer has reached the desired temperature and the light has gone out, before adding the food.

 Do not overfill the basket.

CONSIDERATIONS FOR USING THE FRYER DO

 Only use the fryer for household appliance.

 Only use the fryer for frying food.

 Only use oil or grease that is suitable for frying. Check the packaging if the fat or oil is suitable for this fryer.

 Ensure the level of the fat or oil is higher than the minimum and less than the maximum, so between the minimum

and maximum lines. If there is too much fat or oil in the fryer, it may be overflow the fryer.

 Be careful when frying, make sure the fryer is used safely by keeping enough distance between the user and the

device. Make sure that people who needs extra help or supervision can’t reach the fryer.

 Change the oil or fat when it is brown, dirty smell or smoke in the beginning.

 Change the oil or fat when too much water is in it. You can recognize the high concentration of water in the oil or fat

by large bubbles and water droplets, water vapor or rapid rise in oil or fat. If the oil concentration in the fryer is too

high, there will be a chance, that the fat or oil will come out with an explosion, which can be very dangerous for

those who use the fryer and those which are near the fryer.

 Change the oil or fat after 8 to maximum 10 times use.

 Remove all ice (molecules) on frozen foods. Make sure that fried foods will be thawed first, by laying the food in a

dry clean towel. Dab the food with the towel when the majority of ice is melted.

 Make sure there is enough space around the fryer when you use it.

 Let the fryer cool down uncovered in order to prevent condensation. Keep the fryer in a dry, safe place.

 Never store or place the bowl outside or in a damp place. Keep your fryer away from rain or moisture.

 Do not place food in the fryer when it is warming. Have patience and wait until the fryer have reached the right

 Do not fry too much food at once.

 Never cover the bowl and the filter.

 Do not add water to the fat or oil

 Unplug the deep fat fryer.

 Wait until the unit is completely cool before taking out the oil tank, disposal of the oil and cleaning the appliance.

 Do not use strong detergents or abrasive cloths/liquid as this will damage the deep fat fryer. Clean the outside of the

deep fat fryer with a warm slightly damp cloth and dry thoroughly. Never immerse the deep fat fryer or lid in water.

 When changing the oil - take this opportunity to clean the interior of the bowl. Pour the oil from the bowl and dry the

interior of the bowl with absorbent paper. Then wipe the interior of the bowl in warm soapy water.

 Attention : given the electronic unit under the appliance, never immerse the motor-part into water. Dry thoroughly.

 Change the oil regularly. Pour out the old oil from the bowl and dispose of oil thoughtfully.

 Clean your deep fat fryer regularly. This will prolong the life of your deep fat fryer.

 Wait until the deep fat fryer is completely cool before storage.

 The unit can be stored with the oil inside. Ensure the lid is tightly closed to avoid dust getting into the oil.13

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be

disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on

appliance, instruction manual and packaging puts your attention to this important issue. The materials

used in this appliance can be recycled. By recycling used domestic appliances you contribute an

important push to the protection of our environment. Ask your local authorities for information regarding

the point of recollection..
