USER MANUAL S‘POWER extremXL CY 7085 SEVERIN

GB Single-cyclone vacuum cleaner Instruction manual 9

CY7085.book Seite 8 Freitag, 1. August 2014 4:41 169

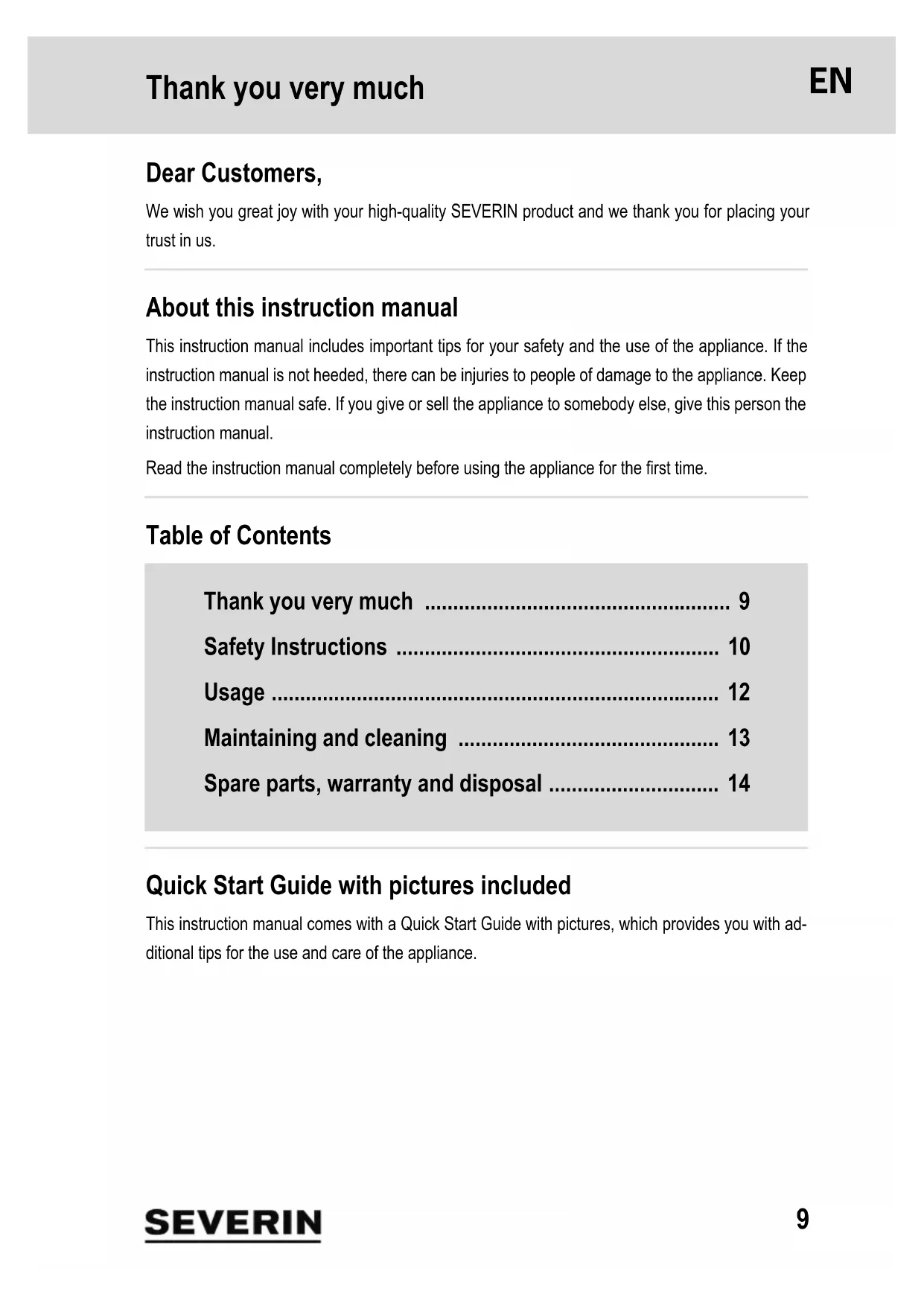

Thank you very much 1 Thank you ver y much Dear Customers,

We wish you great joy with your high-quality SEVERIN product and we thank you for placing your

About this instruction manual

This instruction manual includes important tips for your safety and the use of the appliance. If the

instruction manual is not heeded, there can be injuries to people of damage to the appliance. Keep

the instruction manual safe. If you give or sell the appliance to somebody else, give this person the

Read the instruction manual completely before using the appliance for the first time.

Thank you very much 9

Safety Instructions 10

Maintaining and cleaning 13

Spare parts, warranty and disposal 14

Quick Start Guide with pictures included

This instruction manual comes with a Quick Start Guide with pictures, which provides you with ad-

ditional tips for the use and care of the appliance.

EN CY7085.book Seite 9 Freitag, 1. August 2014 4:41 1610

Safety Instructions 2 Safety Instructions Connecting the appliance safely

Since the appliance is operated with electrical current, there is a danger

of electric shock. Therefore:

– Only connect and start up the vacuum cleaner according to the de-

tails on the name plate (underside of the appliance).

– Check the appliance and power cable for possible damage before

use. Never operate a defective appliance or an appliance with a de-

fective power cable.

– Never try to repair the appliance or its power cable yourself. To pre-

vent hazards, repairs to the appliance and the power cable may only

be made by our customer service. Give a defective appliance to a

dealer or make contact with SEVERIN customer service.

– Do not immerse appliance in water or other liquids or treat it with liq-

uids. Do not operate the appliance outdoors or in rooms with high hu-

midity. Do not handle the plug with wet hands.

– Make sure that the power cable is not kinked, crushed or run over

and that it does not come into contact with sources of heat, humidity

and sharp edges. Make sure that the power cable does not become

– Do not pull or transport the appliance using the power cable. When

unplugging the plug from the outlet, always pull directly on the plug.

– If possible, do not use an extension cable. If this is unavoidable, only

use GS-tested, simple extension cables (no multi-outlet adapters)

that are designed for the appliance's power consumption.

– Before cleaning or maintaining the appliance, as well as before

changing accessories, switch off the appliance and unplug the plug

CY7085.book Seite 10 Freitag, 1. August 2014 4:41 1611

Safety of particular groups of people

– This appliance may only be used by children over the age of 8 and

by persons with reduced physical, sensory or mental capacities or a

lack of experience and/or knowledge when they are supervised or if

they have been instructed about the safe use of the appliance and

have understood the risks resulting from the use of the appliance.

– Children may not play with the appliance or stand or sit on the appli-

ance. Cleaning and user maintenance may not be performed by chil-

dren without supervision.

– Keep children younger than 8 away from the appliance and power

– Keep packaging materials out of the reach of children and dispose of

them. Otherwise they present a suffocation risk.

The appliance may only be used in households. Only vacuum dry, nor-

mally-soiled floors or, depending on the accessories, also furniture and

upholstery. Any other use is improper and is forbidden.

In order to prevent injuries, fires and damage, the appliance may

not be used to vacuum:

– People, animals and plants. Always keep nozzles and vacuum open-

ings away from all body parts, hair and clothing. Do not vacuum near

– Glowing or burning particles (such as ash, coals, charcoal, ciga-

– Explosively or flammable materials or toner.

– Water and other liquids, e.g. damp carpet cleaners.

– Pointy objects such as glass splinters, needles or construction

CY7085.book Seite 11 Freitag, 1. August 2014 4:41 1612

Usage 3 Usage When attaching parts or while changing accessories

– Only attach appliance parts when the plug has been disconnected from the outlet.

– Only use undamaged nozzles. Damaged nozzles can scratch surfaces.

For additional tips, see also illustrated Quick Start Guide.

– Especially when vacuuming stairs, make sure that you are always above the appliance. Other-

wise the appliance may fall down and cause injuries.

– Only use the appliance with the filters inserted.

– Follow the cleaning and maintenance instructions of the floor covering, carpet or furniture man-

– When pulling in the power cable, hold the plug in your hand and slide it in the direction in which

the cable is winding. Otherwise the power cable can whip around, injure persons nearby, be-

come a stumbling hazard or take objects along with it.

For additional application tips, see also illustrated Quick Start Guide.

Emptying the dust container

– Before emptying the dust container, switch the appliance off and disconnect the plug from the

– Empty the dust container at the latest:

- when the MAX marking has bee reached,

- before longer storage or

In order to empty the dust container, the cover must be un-

hinged and removed (see image to the left).

The contents of the dust container can be disposed of in nor-

mal household garbage unless it contains dirt that is forbidden

in the household garbage. In order to replace the dust con-

tainer correctly, it must be carefully inserted and then closed

(see hinge in the image to the left). To empty the dust contain-

er, see also illustrated Quick Start Guide.

CY7085.book Seite 12 Freitag, 1. August 2014 4:41 1613

Maintaining and cleaning 4 Maintaining and cleaning Cleaning or replacing the filter

– Before changing or cleaning the filter, switch the appliance off and disconnect the plug from the

– The dual motor filter's foam plastic insert can be washed, it can not however be washed in the

dishwasher or washing machine. Rinse the dual motor filter's foam plastic insert out thoroughly

under running water (illustrated Quick Start Guide, page 3). Allow the dual motor filter's foam

plastic insert to dry for approx. 24 hours at room temperature after cleaning. Only replace the

dual motor filter's foam plastic insert when it is completely dry.

– To clean the dual motor filter's laminated filter, first knock the dust out of it then brush with a soft

brush (illustrated Quick Start Guide, page 3).

– To clean the exhaust filter, first knock the dust out of it then brush with a soft brush.

(illustrated Quick Start Guide, page 4).

For the filter cleaning, see also illustrated Quick Start Guide.

– Before cleaning, switch off the appliance and disconnect the plug from the outlet.

– The housing and power cable may not be handled with liquids or immersed in liquids for reasons

of electrical safety. Rub housing with a slightly damp cloth and then dry.

– For cleaning, do not use any sharp or scouring cleansers or hard brushes.

Troubleshooting by yourself

So that as few problems as possible arise, it is important to empty the dust container regularly and

take this opportunity to check the filters and clean them if they are dirty.

If you still have problems with the appliance, first visit us on the Internet at

www.severin.com/go/to/8360 under "FAQs" and try to fix the problem by

Use this QR code to reach our home page directly.

If this does not help, contact our customer service.

The contact data is in the appendix to this instruction manual or on our home page.

CY7085.book Seite 13 Freitag, 1. August 2014 4:41 1614

Spare parts, warranty and disposal 5 Spare parts, warranty a nd disposal Ordering spare parts and accessories

You can order spare parts or accessories on the Internet at www.severin.com/go/to/8360 by using

the "Service / Spare Parts Shop" menu.

Our filter set (1 dual motor filter + 1 exhaust filter) can be ordered on our

home page or through our customer service department quoting the item

Use this QR code to reach our home page directly.

The legal warranty rights with respect to the seller and any seller warranties are unaffected by the

following warranty conditions.

If repair should be necessary, contact our customer service via telephone or mail. The con-

tact data is in the appendix to this instruction manual. In case of warranty claim, you may also

contact the dealer directly. In addition, SEVERIN grants a manufacturer's warranty of two years from

the purchase date. In this period, we will eliminate all defects due to material or manufacturing errors

and which compromise the function. Other claims are excluded.

Excepted from the warranty are: Damage that is due to non-observance of the instruction manual,

improper handling or normal wear; also easily-breakable parts such as glass, plastic or light bulbs.

Intervention of people not authorised by SEVERIN voids the warranty.

Appliances that are marked with this symbol must be disposed of separately from

household garbage. These appliances contain valuable raw materials that can be

recycled. Proper disposal protects the environment and the health of your fellow

men. Your community government or your dealer can provide information about
