USER MANUAL Complete C3 EcoLine Plus MIELE

26Warning and Safety instructions 28

Guide to the appliance 34

Caring for our environment 36

Preparing for use 37

Using the accessories supplied 38

Setting down, transportation and storage41

Purchasing new dustbags and filters 42

Ordering the correct dustbags and filters 42

When to change the dustbag 42

How the dustbag change indicator works43

How to replace the dustbag 43

When to change the dust compartment filter (for motor protection) 43

How to change the dust compartment filter 43

When to replace the exhaust filter 44

How to replace the AirClean filter 44

How to replace an Active AirClean 50 filter or a HEPA AirClean 50 filter 44

Replacing one type of exhaust filter with another 45

Maintenance indicator with reset button 45

When to change the battery in the radio-control handle 45

How to change the battery in the radio-control handle 46

When to change the thread lifters 46

How to replace the thread lifters 46

How to clean the roller on floorhead SBD 285 AllTeQ46

Cleaning and care 46

Problem solving guide 47

After sales service 47

Optional accessories48

Electrical connection for the UK 50

Electrical connection AU, NZ 50

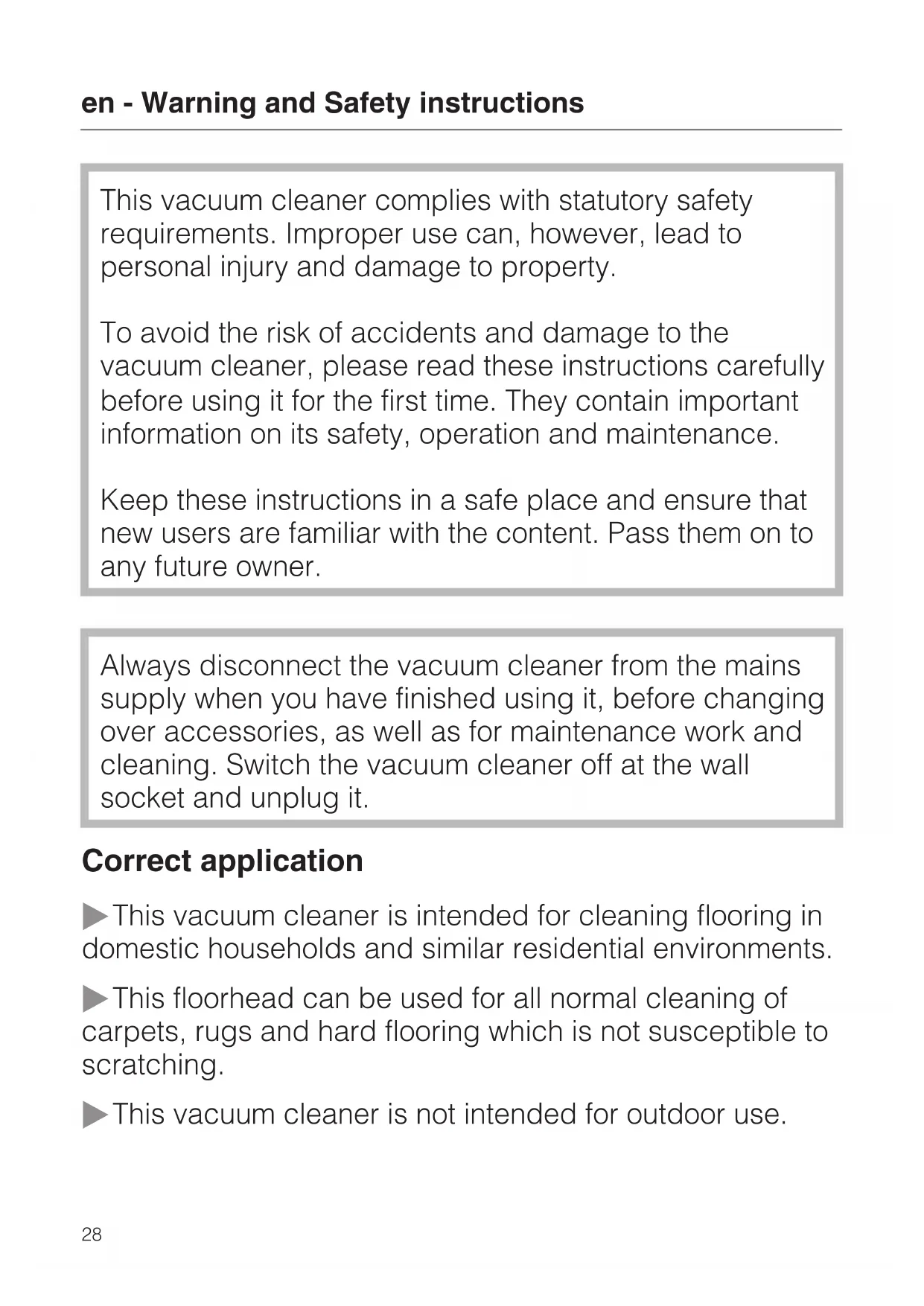

27This vacuum cleaner complies with statutory safety

requirements. Improper use can, however, lead to

personal injury and damage to property.

To avoid the risk of accidents and damage to the

vacuum cleaner, please read these instructions carefully

before using it for the first time. They contain important

information on its safety, operation and maintenance.

Keep these instructions in a safe place and ensure that

new users are familiar with the content. Pass them on to

Always disconnect the vacuum cleaner from the mains

supply when you have finished using it, before changing

over accessories, as well as for maintenance work and

cleaning. Switch the vacuum cleaner off at the wall

socket and unplug it.

This vacuum cleaner is intended for cleaning flooring in

domestic households and similar residential environments.

This floorhead can be used for all normal cleaning of

carpets, rugs and hard flooring which is not susceptible to

This vacuum cleaner is not intended for outdoor use.

en - Warning and Safety instructions

The vacuum cleaner must only be used to vacuum dry

floor surfaces. Do not use on people or animals. Any other

usage, modification or alteration is not supported by the

manufacturer and could be dangerous.

This vacuum cleaner can only be used by people with

reduced physical, sensory or mental capabilities, or lack of

experience or knowledge, if they are supervised whilst

using it or have been shown how to use it in a safe way

and understand and recognise the consequences of

incorrect operation.

Safety with children

Children under 8 years of age must be kept away from

the vacuum cleaner unless they are constantly supervised.

Children 8 years and older may only use the vacuum

cleaner unsupervised if they have been shown how to use

it safely and recognise and understand the consequences

of incorrect operation.

Children must not be allowed to clean or maintain the

vacuum cleaner unsupervised.

Please supervise children in the vicinity of the vacuum

cleaner and do not let them play with it.

Models with radio controls on the handle: Keep batteries

out of the reach of children.

en - Warning and Safety instructions

Before using the vacuum cleaner and its accessories,

check for any visible signs of damage. Do not use a

Ensure that the connection data on the data plate of the

vacuum cleaner (voltage and frequency) match the mains

electricity supply exactly.

The mains electrical plug must be fitted with a 13 A fuse

While the vacuum cleaner is under guarantee, repairs

should only be undertaken by a Miele authorised service

technician. Otherwise the guarantee will be invalidated.

Do not pull or carry the vacuum cleaner by the cable,

and be careful not to damage the cable when withdrawing

the plug from the socket.

Keep the cable away from sharp edges and do not let it

get squashed, for example, under a door.

Avoid running the vacuum cleaner over the cable. This

could damage the cable, plug or socket. The appliance

must not be used if any of these have suffered damage.

Do not use the vacuum cleaner if the cable is damaged.

If the cable is damaged it must be replaced together with a

complete cable rewind. For safety reasons this work must

be done by the Miele Service Department or a Miele

authorised service technician.

The socket on the vacuum cleaner (depending on

model) must only be used for the Miele Electrobrush listed

in these operating instructions.

en - Warning and Safety instructions

When vacuuming fine dust, e.g. sawdust, sand, plaster,

flour, talcum powder etc., electrostatic charges build up

naturally. Under certain conditions these charges will be

released. To avoid the unpleasant effects of these

discharges, a metal inlay has been incorporated into the

underside of the handle. Please make sure that you keep

your hand in constant contact with this metal strip during

Do not let the vacuum cleaner get wet. Clean only with a

dry cloth or slightly damp cloth when disconnected from

Repairs should only be carried out by a Miele authorised

service technician. Repairs and other work by unqualified

persons can cause considerable danger to users.

To avoid the risk of damage, do not use the vacuum

cleaner without the dustbag, dust compartment filter and

exhaust filter in place.

The dust compartment cover will not close without a

dustbag fitted. Do not force it.

Do not vacuum up anything which has been burning or

is still glowing e.g. cigarettes, ashes or coal, whether

glowing or apparently extinguished.

Do not use the vacuum cleaner to vacuum up any water,

liquid or damp dirt. Wait until any freshly cleaned or

shampooed carpets or floor coverings are completely dry

before attempting to vacuum.

en - Warning and Safety instructions

Do not use the vacuum cleaner to vacuum toner dust.

Toner, such as that used in printers and photocopiers, can

conduct electricity.

Do not vacuum up any inflammable or combustible

liquids or gases and do not vacuum in areas where such

substances are stored.

Floor attachments, accessories and tubes must not be

used at head level to avoid the risk of injury, e.g. to eyes

Important information on the handling of batteries (for

models with radio controls on the handle):

Do not short circuit or recharge the battery, or throw it

Disposing of the battery: Remove the battery from the

radio control handle and dispose of it in your recycling

bin. Do not dispose of it with the normal household

To avoid the risk of injury when vacuuming with a Miele

The Miele Electrobrush is a motor driven accessory for

use only with Miele vacuum cleaners. The cleaner must not

be used with an electrobrush produced by another

en - Warning and Safety instructions

It is not advisable to vacuum directly with the handle,

i.e. without an accessory attached as the rim could get

damaged and you could hurt yourself on sharp edges.

Only use genuine dustbags, filters and accessories with

the "Original Miele" logo on them. Otherwise the

manufacturer cannot guarantee the safety of the product.

Miele cannot be held liable for damage caused by

incorrect use or operation or by non-compliance with

these Warning and Safety instructions.

en - Warning and Safety instructions

33en - Guide to the appliance

34The illustration shows the maximum number of features available.

b Release button for accessories compartment

e Foot switch for automatic cable rewind

f Park system for pauses during vacuuming

g On/Off foot control s

k Park system for storage (on both sides of the vacuum)

l Dust compartment filter (for motor protection)

m Electrobrush socket cover holder

n Original Miele dustbag

s Dust compartment release catch

t Release button for the telescopic tube *

u Socket for Electrobrush *

v Hose connection socket

x Stand-by button for pauses in vacuuming *

y Suction power selector buttons + / -*

z Handle (some models have an air inlet valve in the handle) *

} Stand-by indicator light *

~ Maintenance indicator with reset button *

Features marked * depend on model and may vary or not be available on your

en - Guide to the appliance

35Disposal of packing material

The packaging is designed to protect

the vacuum cleaner from damage

during transportation. The packaging

materials used are selected from

materials which are environmentally

friendly for disposal and should be

Recycling the packaging reduces the

use of raw materials in the

manufacturing process and also

reduces the amount of waste in landfill

Ensure that any plastic wrappings,

bags, etc. are disposed of safely and

kept out of the reach of babies and

young children. Danger of suffocation.

Disposing of the dustbag and

These are made from environmentally

friendly materials. The filters can be

disposed of with the normal household

waste. The dustbag can also be

disposed of in this way if it has been

used exclusively for general household

Disposing of your old

Before disposing of your old appliance

remove the dustbag and all the filters

and dispose of them with your normal

Electrical and electronic appliances

often contain valuable materials. They

also contain materials which, if handled

or disposed of incorrectly, could be

potentially hazardous to human health

and to the environment. They are,

however, essential for the correct

functioning of your appliance. Please

do not therefore dispose of it with your

Please dispose of it at your local

community waste collection/recycling

centre, or contact your dealer for

Ensure that it presents no danger to

children while being stored for

en - Caring for our environment

36The illustrations referred to in the text

are shown on the fold-out pages at

the end of these operating

Insert the hose connector into the

suction socket on the vacuum

cleaner until it clicks into position. To

do this, line up the guides on the two

To detach the suction hose (dia. 2)

^ Press the release buttons at the side

of the hose connector, and lift the

hose from the socket.

Connect the handle to the suction

^ Insert the suction hose into the

handle until it clicks into position.

Attach the handle to the suction tube

Insert the handle into the suction tube

until it clicks into position. To do this,

line up the guides on the two pieces.

To release the handle from the

suction tube, press the release

button and pull the handle out of the

suction tube, twisting it slightly as you

To adjust the telescopic tube (dia. 5)

One part of this telescopic tube is

packed inside the other and can be

adjusted to suit your height for

comfortable vacuum cleaning.

Press the release button to release

the tubes and adjust to the required

Attach the standard floorhead (dia. 6)

Push the telescopic suction tube into

the floorhead and turn it clockwise or

anti-clockwise until it clicks into

^ To detach the floorhead from the

suction tube, press the release but-

ton and pull the suction tube away

To adjust the standard floorhead

This floorhead can be used for all

normal cleaning of carpets, rugs and

hard flooring which is not susceptible to

Miele offer a range of other floorheads,

brushes and accessories for other

types of flooring and special

requirements (see "Optional

Please observe the flooring

manufacturer's cleaning and care

37Vacuum carpets and rugs with the

Press the % foot control.

Clean hard flooring which is not

susceptible to scratching, as well as

flooring with gaps or deep crevices in it

with the brush protruding:

Press the ) foot control.

AirTeQ floorhead (dia. 8)

If the suction power of the AirTeQ

floorhead seems too high, reduce

the suction until the floorhead is

easier to manoeuvre (see "Use -

Regulating the suction power").

To activate the exhaust filter change

Depending on model, your vacuum

cleaner will be fitted as standard with

one of the following exhaust filters (dia.

b Active AirClean 50 (black)

c HEPA AirClean 50 (white)

If your vacuum cleaner is fitted with

filter b or c, you need to activate the

exhaust filter change indicator.

Press the release catch for the dust

compartment lid and raise the lid as

far as it will go (dia. 10).

Remove the indicator strips (dia. 11).

Press the exhaust filter change

indicator ~ (dia. 12).

After approx. 10 - 15 seconds a thin

red stripe will appear in the left hand

side of the display (dia. 13).

Close the dust compartment lid

securely, making sure it clicks into

position. Take care not to trap the

dustbag when doing so.

Exhaust filter change indicator

The exhaust filter change indicator

shows the remaining functional life of

the exhaust filter. After approx. 50

operating hours, or approx. one year of

average use, the display will be

completely filled with red (dia. 14).

Using the accessories

The following accessories are supplied:

For cleaning in folds, crevices or

b Dusting brush with natural bristles

(only available in selected countries)

For cleaning skirting boards, ornate

The head can be swivelled to adjust

For cleaning upholstery, mattresses,

cushions, curtains, covers etc.

Certain models are supplied as

standard with the following accessories

which are not illustrated on this page.

Classic Allergotec floorhead

These floorheads and brushes are

supplied with their own operating

compartment (dia. 16)

Press the release button to open the

accessories compartment lid.

Take out the accessory you require.

Press down firmly on the lid to close

For general use and also for vacuuming

For safety reasons when

vacuuming stairs it is best to start at

the bottom of the stairs and move

To unwind the mains cable (dia. 18)

^ Pull the mains cable out to the

required length (max. cable length

Insert the plug into the socket

correctly and switch on.

If vacuuming for longer than

30 minutes, the mains cable must

be pulled out to its fullest extent.

Otherwise there is a danger of

overheating and damage.

To rewind the cable (dia. 19)

Switch off at the wall socket and

Press the rewind foot switch briefly.

The cable will rewind automatically.

To switch on and off (dia. 20)

Press the On/Off foot control s.

Regulating the suction power

The suction power can be regulated to

suit the type of flooring being cleaned.

Reducing the suction power reduces

the amount of effort required to

manoeuvre the floorhead.

The vacuum cleaner has symbols on

the controls which indicate the type of

use the settings are suitable for.

The setting selected will light up yellow.

# - curtains, fabric

$ - upholstery, cushions

% - thick pile carpets, rugs and

* - for energy-saving vacuuming

(this setting is also very quiet)

( - loop pile carpet

) - heavily soiled hard flooring

and intensive cleaning of carpets

When using the AirTeQ floorhead, if

the suction seems too high, reduce

the suction until the floorhead is

easier to manoeuvre.

Depending on the model, your vacuum

cleaner will be fitted as standard with

one of the following suction power

Foot controls (dia. 21)

The first time the vacuum cleaner is

switched on, the highest setting will be

selected automatically.

39After that the vacuum cleaner will

switch on at the setting which was used

Press the + foot control to select a

Press the - foot control to select a

Radio-control handle (dia. 22)

When the vacuum cleaner is switched

on with the On/Off foot control s, the

Stand-by - indicator on the vacuum

cleaner will light up yellow.

^ Press the Stand-by button - on the

The Stand-by indicator - on the

vacuum cleaner will go out.

The first time the vacuum cleaner is

switched on, the highest setting will be

selected automatically.

After that the vacuum cleaner will

switch on at the setting which was used

Press the + button to select a higher

suction power level.

Press the - button to select a lower

suction power level.

Opening the air inlet valve (dia. 23, 24

(not on models with radio-controls on

It is easy to reduce the suction power

for a short time, e.g. to prevent rugs or

other objects being sucked into the

Open the air inlet valve on the handle

far enough to reduce the suction

The floorhead will be easier to

manoeuvre. Close the valve when you

are ready to use full power again.

During vacuuming (dia. 26 + 27)

When vacuuming, pull the cleaner

behind you on its wheels. You can

stand it upright for vacuuming stairs

When vacuuming fine dust, e.g.

sawdust, sand, plaster, flour, talcum

powder etc., electrostatic charges

build up naturally. Under certain

conditions these charges will be

released. To avoid the unpleasant

effects of these discharges, a metal

inlay has been incorporated into the

underside of the handle. Please

make sure that you keep your hand

in constant contact with this metal

strip during vacuuming.

Pauses in use (dia. 22)

(for models with radio controls on the

To pause the appliance during operation:

Press the Stand-by button - on the

The Stand-by button is designed

to pause the vacuum cleaner for

short periods of time whilst

vacuuming. After vacuuming the

vacuum cleaner must be switched

off and unplugged from the mains

electricity supply. Otherwise there is

a risk of overheating and damage.

enThe LED will light up each time a

button is pressed on the handle.

At the end of the pause you can do one

Press the Stand-by button - again to

switch the vacuum cleaner back on

at the setting you were using before

Press the + button to switch the

vacuum cleaner back on using the

highest power setting.

Press the - button to switch the

vacuum cleaner back on using the

lowest power setting.

Setting down, transportation

Park system for pauses in vacuuming

The Park system allows you to

conveniently park the suction tube and

floorhead during pauses.

Slot the floorhead into the parking

attachment at the back of the

If your vacuum cleaner is on a

sloping surface, e.g. a ramp, retract

the telescopic tube fully.

Switching on and off with the Park

Some models are fitted with an On/Off

switch in the Park system.

The vacuum cleaner switches off

automatically when the floorhead is

slotted into the Park system with the

When the floorhead is removed from

the Park system the vacuum cleaner

switches back on at the last selected

power level (not on models with radio

controls on the handle).

Park system for storage (dia. 29)

Always disconnect the vacuum

cleaner from the electrical supply

when you have finished using it.

Switch it off at the wall socket and

Stand the vacuum cleaner upright.

Retract the telescopic tubes fully so

that the vacuum cleaner takes up

less room for storage.

^ Slot the floorhead downwards into

one of the parking attachments on

either side of the vacuum cleaner.

This makes the vacuum cleaner easier

If your vacuum cleaner has an XXL

handle, you can detach this so that the

vacuum cleaner requires less storage

Detach the XXL handle from the

retracted suction tube.

Wind the suction hose around the

suction tube and then slot the XXL

handle into the second parking

Always disconnect the vacuum

cleaner from the electrical supply for

maintenance work and for cleaning.

Switch off at the wall socket and

The Miele filtration system consists of

Dust compartment filter (for motor

These will need to be replaced from

time to time to ensure that your vacuum

cleaner performs efficiently.

Only use genuine dustbags, filters

and accessories with the "Original

Miele" logo on them. This will ensure

that the suction power of the

vacuum cleaner is maintained,

giving the best possible cleaning

The use of dustbags made from

paper or paper-based materials, or

dustbags with a cardboard collar, or

dustbags that do not carry the

"Original Miele" logo, can seriously

damage the vacuum cleaner and

invalidate the warranty.

Purchasing new dustbags and filters

Original Miele dustbags and filters can

be ordered from Miele, your Miele

dealer or online at:

Ordering the correct dustbags and

Only use original Miele G/N dustbags

with a blue collar and original Miele

filters. These are identified by the

"Original Miele" logo on the packaging

or directly on the dustbag.

An AirClean filter and a dust

compartment filter are supplied with

every packet of Miele dustbags.

These can also be purchased

separately from your Miele Dealer, from

Miele or from the online shop. Please

quote the model number of your

vacuum cleaner when ordering to make

sure you get the correct filter.

When to change the dustbag (dia. 31)

Change the dustbag when the colour

marker in the dustbag change indicator

turns red, or sooner if it is no longer

effective (see possible reasons for this

42Miele dustbags are disposable and

designed for single use only.

Dispose of the dustbag when full.

Do not attempt to reuse. Blocked

pores in used dustbags will reduce

the suction power of the vacuum

Attach the standard floorhead to the

Switch the vacuum cleaner on and

select the highest power setting.

^ Lift the floorhead off the floor a little.

How the dustbag change indicator

The dustbag change indicator is set for

normal household dust. This generally

contains a mixture of dust, hair,

threads, carpet fluff, grit etc.

However, if the cleaner has been used

to vacuum up fine dust, such as

plaster, brick dust, cement or flour, the

pores of the dustbag will become

blocked very quickly. This affects the

air permeability of the bag, and the

marker will indicate that the bag is "full"

even when it is not. If this happens you

must still change the dustbag because

suction power will be greatly reduced

by blocked pores in the dustbag.

If, on the other hand, a large amount of

hair and carpet fluff which typically

contains a lot of air is vacuumed up, the

indicator may fail to react even though

the bag is full. You should still change

it. Both these extremes can occur.

How to replace the dustbag (dia. 32 +

Lift the release catch for the dust

compartment lid and raise the lid as

far as it will go (dia. 10).

The dustbag has a closing flap which

closes automatically when the dust

compartment lid is raised to prevent

Pull the dustbag out by the grip on

Fit the new dustbag into the blue

holder as far as it will go. Leave it

folded up when you take it out of the

^ It should be unfolded as far as

possible in the dust compartment.

^ Close the dust compartment lid

securely, making sure it clicks into

position. Take care not to trap the

dustbag when doing so.

The lid will not close without a

dustbag in place. Do not force it!

When to change the dust

compartment filter (for motor

Replace this filter every time you start a

new packet of dustbags. A dust

compartment filter is supplied with

every packet of Miele dustbags.

How to change the dust

compartment filter (dia. 34)

Open the dust compartment lid.

Pull the dustbag out by the grip on

Open the blue filter frame fully and

remove the old filter. Hold by the

clean, unsoiled section to remove it.

Replace with a new dust

Close the filter frame.

Fit the dustbag into the blue holder

as far as it will go.

Close the dust compartment lid

securely, making sure it clicks into

position. Take care not to trap the

dustbag when doing so.

When to replace the exhaust filter

Depending on model, your vacuum

cleaner will be fitted as standard with

one of the following exhaust filters

Replace this filter every time you start a

new packet of Miele dustbags.

An AirClean exhaust filter is supplied

with every packet of Miele dustbags.

b Active AirClean 50 (black)

c HEPA AirClean 50 (white)

Replace this filter if the exhaust filter

change indicator is completely red

This occurs after approx. 50 hours of

operation which is equivalent to about a

year of average use. The vacuum

cleaner can still be used. However, the

suction power will be reduced as will

the effectiveness of the filter if it is not

replaced in good time.

How to replace the AirClean filter

Do not use more than one exhaust

Open the dust compartment lid.

Press the release catch on the filter

grille and open the grille until it clicks.

Grasp the used AirClean filter by one

of the clean, unsoiled sections and

Replace it with a new AirClean filter.

If you wish to fit an Active AirClean

50 filter or a HEPA AirClean 50 filter

please see "Replacing one type of

exhaust filter with another".

^ Close the filter grille.

^ Close the dust compartment lid.

How to replace an Active AirClean 50

filter or a HEPA AirClean 50 filter

Do not use more than one exhaust

Open the dust compartment lid.

Lift the exhaust filter and remove it.

Insert a new exhaust filter making it

sure it goes in properly, then push it

Press the exhaust filter change

indicator ~ (dia. 12).

After approx. 10 - 15 seconds a thin

red stripe will appear in the left hand

side of the display (dia. 13).

44If you wish to fit an AirClean filter,

see "Replacing one type of exhaust

filter with another".

Close the dust compartment lid.

Replacing one type of exhaust filter

Depending on model, your vacuum

cleaner will be fitted as standard with

one of the following exhaust filters

b Active AirClean 50 (black)

c HEPA AirClean 50 (white)

When changing the filter please note:

1. If you wish to replace exhaust filter a

with filter b or c, it is essential that you

remove the filter grille before fitting the

new type of filter (dia. 38).

You will also need to press the exhaust

filter change indicator (dia. 12).

2. If you wish to replace exhaust filter b

or c with filter a, it is essential that you

also fit the filter grille * (dia. 36).

* Filter grille - see "Optional

Do not use more than one exhaust

Maintenance indicator with reset

Some models are fitted with a

maintenance indicator.

The indicator lights up after approx.

50 hours of operation, which is

equivalent to about a year of average

use. The level of soiling of the dust

compartment filter and the exhaust filter

must be checked at this point.

If the filters are replaced, the indicator

must be reset. To do this the vacuum

cleaner must be switched on.

Press the reset button.

The maintenance indicator will go out

The indicator can only be reset by

pressing the reset button after the

light has come on. Pressing the

button at any other time will have no

When to change the battery in the

radio-control handle

Approximately every 18 months.

One 3 V battery (CR 2032) is required.

The vacuum cleaner can still be

used when the battery has run out or

if there is no battery fitted.

To do so, switch the vacuum cleaner

on using the On/Off foot control s.

The Stand-by indicator - on the

vacuum cleaner will light up yellow.

Press the restart button on the

vacuum cleaner (dia. 40).

The vacuum cleaner can continue to be

used in this way, but only at maximum

45How to change the battery in the

radio-control handle

Open the cover to the battery

compartment using a screwdriver.

Replace with a new battery, making

sure the polarity is correct.

Dispose of the old battery

When to change the thread lifters

The thread lifters on the suction inlet to

the floorhead can be replaced.

Check them from time to time and

replace them if the pile has worn down.

How to replace the thread lifters

^ Use a suitable screwdriver to remove

the thread lifters from the slots.

^ Fit new thread lifters.

Upholstery nozzle SPD 10

(depending on model) (dia. 44)

Disengage the thread lifter unit at

each side of the upholstery nozzle

Fit a new thread lifter unit and lock

How to clean the roller on floorhead

SBD 285 AllTeQ (dia. 45)

a Release the bearing (with bayonet

fitting) using a coin.

b Press the bearing out, and remove.

c Remove the roller.

Remove any threads and hair,

replace the roller and refit the

bearing, locking it back into position.

Replacement parts are available from

your Miele Dealer or from Miele (see

end of booklet for contact details).

Always disconnect the vacuum

cleaner from the electrical supply

before cleaning it. Switch off at the

wall socket and unplug it.

Vacuum cleaner and accessories

The vacuum cleaner and all plastic

accessories can be cleaned with a dry

or a slightly damp cloth, or with a

proprietary cleaner suitable for plastic.

Do not use abrasive cleaning

agents, glass cleaning agents,

all-purpose cleaners or oil-based

conditioning agents.

The dust compartment can, if

necessary, be cleaned using a dry

duster, brush or, if available, a second

vacuum cleaner to vacuum the dust

Do not let the vacuum cleaner

get wet. If moisture gets into the

appliance, there is a risk of electric

The vacuum cleaner switches off

On certain models, the overheating

warning light also comes on ,.

A temperature limiter switches the

vacuum cleaner off automatically if it

gets too hot. Some models also have a

warning light , which comes on to

indicate that it has overheated.

This can occur if, for instance, large

articles block the suction tube or when

the dustbag is full or contains particles

of fine dust. A heavily soiled exhaust or

dust compartment filter can also be the

cause of overheating. Switch the

vacuum cleaner off immediately using

the On/Off foot control s. Disconnect

from the electricity supply. Switch off at

the wall socket and unplug it.

After removing the cause, wait for

approximately 20 - 30 minutes to allow

the vacuum cleaner to cool down. It

can then be switched on again.

In the event of a fault that you cannot

easily remedy, please contact

Miele (see end of booklet for contact

Please note that telephone calls may

be monitored or recorded for training

The appliance is guaranteed for a

period of 2 years from the date of

purchase. In the UK you must activate

your cover by calling 0845 365 6640 or

registering online at www.miele.co.uk.

For information on the appliance

guarantee specific to your country

please contact Miele. See end of

booklet for contact details.

47Optional accessories

Certain models are supplied as

standard with one or more of the

following accessories.

Please observe the flooring

manufacturer's cleaning and care

You can order these and many other

products on the internet at:

They can also be purchased from your

Electrobrushes can only be used on

models fitted with an electrobrush socket.

Electrobrush Electro Comfort

This electrobrush is particularly suitable

for intensive vacuuming of carpets

which are subject to hard wear. It is

very effective at removing deep seated

dirt and preventing areas of frequent

use being trodden into a path.

Floorheads / brushes

Classic Allergotec floorhead

This floorhead is suitable for daily

hygienic cleaning of all floor surfaces.

The level of cleanliness of the floor

shows in a colour "traffic light" display

Turbo Comfort turbobrush

This brush is ideal for cleaning cut pile

Hard floor brush (SBB 235-3)

This brush is designed for use on hard

flooring such as tiled or stone floors.

Parquet floor brush (SBB Parquet-3)

(only available in selected countries)

This brush has natural bristles and is

designed for use on parquet floors and

other surfaces which are susceptible to

scratching such as laminate flooring

Hard floor Twister floor brush with

swivel action (SBB 300-3)

This brush is suitable for a variety of

hard floor surfaces and has a swivel

joint enabling it to get into awkward

Parquet Twister XL floor brush with

swivel action (SBB 400-3)

(only available in selected countries)

This brush is extra wide making it

suitable for large areas of flooring and

has a swivel joint enabling it to get into

This set is specially designed for

cleaning small objects and difficult to

reach areas (such as PC keyboards,

stereo equipment, intricately carved

furniture and ornaments, models etc).

48CarCare Set (SCC 10)

Accessories for cleaning the interior of

Cat & Dog set (SCD 10)

For households with pets.

HomeCare Set (SHC 10)

Accessories for cleaning the living

Turbo Mini Compact turbobrush

For vacuuming upholstery, mattresses

Universal brush (SUB 20)

(only available in selected countries)

For dusting books, shelves, etc.

Radiator brush (SHB 30)

For dusting radiators, narrow shelves

Mattress nozzle (SMD 10)

For vacuuming upholstery, mattresses,

cushions, curtains, covers etc.

Crevice nozzle, 300 mm (SFD 10)

Extra long crevice nozzle for cleaning in

folds, crevices and corners.

Crevice nozzle, 560 mm (SFD 20)

Flexible crevice nozzle for vacuuming

hard to reach places.

Upholstery nozzle, 190 mm (SPD 10)

Extra wide upholstery nozzle for

cleaning upholstered furniture,

mattresses and pillows.

Flexible hose extension (SFS 10)

For extending the suction hose by

approximately 1.5 m.

Hygiene seal with active charcoal

Prevents dust and odours from

escaping when the suction hose is

Comfort handle with lighting

Lights up the area being vacuumed.

Active AirClean 50 exhaust filter

Absorbs odours from the dirt in the

HEPA AirClean 50 exhaust filter

Excellent filtration level for very clean

exhaust air. This filter is particularly

suitable for allergy sufferers.

The filter grille is required if you wish to

use an AirClean filter instead of an

Active AirClean 50 filter or HEPA AirClean 50 filter.

49Electrical connection for the UK All electrical work should be carried out

by a suitably qualified and competent

person in strict accordance with current

national and local safety regulations

(BS 7671 in the UK).

The voltage and frequency are given on

the data plate located underneath the

vacuum cleaner. Please ensure that

these match the household mains

supply. The fuse rating is quoted on the

The appliance is supplied with a cable

and moulded plug ready for connection

to a 230-240 V/50 Hz a.c. single phase

Non-rewireable plugs BS 1363

The fuse cover must be re-fitted when

changing the fuse, and if the fuse cover

is lost the plug must not be used until a

suitable replacement is obtained. The

colour of the correct replacement cover

is that of the coloured insert in the base

of the plug, or the colour that is

embossed in words on the base of the

plug, (as applicable to the design of

Replacement fuses should be ASTA

approved to BS1362 and have the

correct rating. Replacement fuses and

fuse covers may be purchased from

your local electrical supplier.

Electrical connection AU, NZ All work should be carried out by a

suitably qualified and competent

person in strict accordance with

national and local safety regulations.

The voltage and rated load are given

on the data plate located underneath

the vacuum cleaner. Please ensure that

these match the household mains

supply. The fuse rating is quoted on the

The appliance is supplied with a cable

and moulded plug ready for connection

to a 230V/50Hz AC single phase

Test Marks Electrical safety

Electrically suppressed

according to AS/NZS 1044

# - Rideaux, textiles

(croquis 23, 24 + 25)

cassette vol is (het venster is dan hele

89Controle of de stofcassette vol is
