USER MANUAL ND 6440 N NEFF

geräte (waste electrical and electronic equipment -

Environmental protection14

Environmentally-friendly disposal 14

Getting to know the appliance 15

Your new lava stone grill 15

Before using for the first time 16

Heating the grill 16

Grilling with water and lava stones16

Setting the grill 17

Switching the grill on and off 17

Pre-heating the grill 17

Topping up the water17

Switching Wipe protection on and off 17

Correcting the timer 19

Changing the basic settings20

Care and cleaning 20

Cleaning the appliance20

Do not use these cleaning agents 20

Eliminating faults 21

After-sales service 21

Additional information on products, accessories, replacement

parts and services can be found at

www.neff-international.com and in the online shop

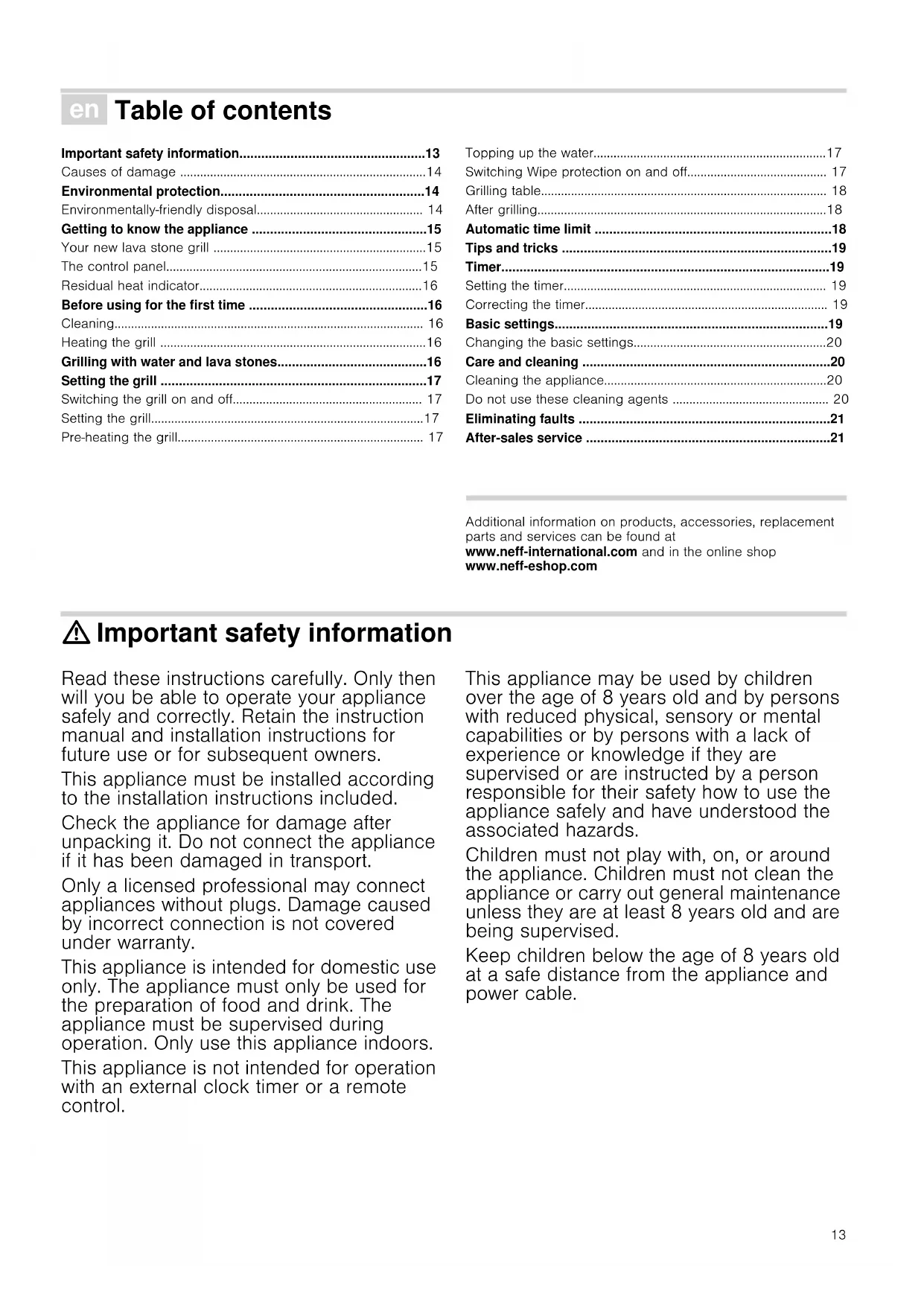

: Important safety information

Read these instructions carefully. Only then

will you be able to operate your appliance

safely and correctly. Retain the instruction

manual and installation instructions for

future use or for subsequent owners.

This appliance must be installed according

to the installation instructions included.

Check the appliance for damage after

unpacking it. Do not connect the appliance

if it has been damaged in transport.

Only a licensed professional may connect

appliances without plugs. Damage caused

by incorrect connection is not covered

This appliance is intended for domestic use

only. The appliance must only be used for

the preparation of food and drink. The

appliance must be supervised during

operation. Only use this appliance indoors.

This appliance is not intended for operation

with an external clock timer or a remote

This appliance may be used by children

over the age of 8 years old and by persons

with reduced physical, sensory or mental

capabilities or by persons with a lack of

experience or knowledge if they are

supervised or are instructed by a person

responsible for their safety how to use the

appliance safely and have understood the

Children must not play with, on, or around

the appliance. Children must not clean the

appliance or carry out general maintenance

unless they are at least 8 years old and are

Keep children below the age of 8 years old

at a safe distance from the appliance and

Hot oil and fat can ignite very quickly.

Never leave hot fat or oil unattended.

Never use water to put out burning oil or

fat. Switch off the hotplate. Extinguish

flames carefully using a lid, fire blanket or

something similar. Risk of fire! ■

The appliance becomes very hot and

flammable materials could catch fire.

Never store or use flammable

objects (e.g. spray cans, cleaning agents)

under the appliance or in its immediate

vicinity. Never place flammable items on

or in the appliance. Risk of fire! ■

The appliance becomes very hot and

flammable materials could catch fire. Do

not use any charcoal or similar fuels in this

The accessible parts become very hot

when in operation. Never touch hot parts.

Keep children at a safe distance. Risk of burns! ■

Dripping fat can catch fire quickly during

grilling. Do not bend over the appliance.

Keep a safe distance away. Risk of burns! ■

The grill remains hot for a long time after

being switched off. Do not touch the grill

for 30 - 45 minutes after switching it off. Risk of burns! ■

When the appliance cover is closed, heat

will accumulate. Only close the appliance

cover when the appliance has cooled

down. Never switch the appliance on with

the appliance cover closed. Do not rest

food on the appliance cover or use it to

Risk of electric shock!

Incorrect repairs are dangerous. Repairs

may only be carried out by one of our

trained after-sales engineers. If the

appliance is faulty, unplug the mains plug

or switch off the fuse in the fuse box.

Contact the after-sales service. Risk of electric shock and serious injury! ■

The cable insulation on electrical

appliances may melt when touching hot

parts of the appliance. Never bring

electrical appliance cables into contact

with hot parts of the appliance. Risk of electric shock! ■

Do not use any high-pressure cleaners or

steam cleaners, which can result in an

electric shock. Risk of electric shock! ■

A defective appliance may cause electric

shock. Never switch on a defective

appliance. Unplug the appliance from the

mains or switch off the circuit breaker in

the fuse box. Contact the after-sales

Caution! ■ Damage from unsuitable accessories: only use designated original accessories. Do not use grilling trays or aluminium

containers. This will damage the cast grill. ■ If hard or sharp objects fall on the glass ceramic panel or the glass ceramic cover, damage could occur.

Environmental protection

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

This appliance is labelled in accordance with

European Directive 2012/19/EU concerning used

electrical and electronic appliances (waste electrical

and electronic equipment - WEEE). The guideline

determines the framework for the return and recycling

of used appliances as applicable throughout the EU.15

Getting to know the appliance

Here you can gain an overview of your new appliance's

components and control panel.

Your new lava stone grill

1 Glass ceramic cover

Both heating elements

Front heating element

Rear heating element

Settings range for grill setting and timer

When you touch a symbol, the respective function is activated.

Notes ■ The settings will remain unchanged if you touch several symbols at once. This allows you to wipe up spills on the

control panel. ■ Always keep the controls dry. Moisture reduces their effectiveness.

Residual heat indicator

The grill has a two-stage residual heat indicator.

• appears in the display, the grill is still hot. As the grill

continues to cool down, the indicator switches to

indicator goes out when the grill has cooled down sufficiently.

Before using for the first time

In this section, you can find out what you must do before using

your grill to prepare food for the first time. Read the Safety

information section beforehand.

Clean the grill and accessories thoroughly before first use

using lukewarm soapy water.

Heat the empty grill for a few minutes at the highest setting.

This will eliminate the new odour. A slight development of

smoke is normal when the grill is used for the first time.

Grilling with water and lava stones

Fill the grill container with water before each use. The amount

of water depends on whether or not you wish to use lava

stones. The lava stones store the heat of the grill elements and

thus ensure intensive radiation of heat and even distribution of

Filling with water and lava stones

1. Remove the wire rack and fold up both grill elements.

Remove the lava stone container from the appliance.

2. Ensure the drain valve is closed.

3. Fill water into the grill container.

Grilling with lava stones: 1 litre (bottom mark)

Grilling without lava stones: 3.5 litres (top mark)

4. To grill with lava stones: Remove the lava stones from the

packaging and place them in the lava stone container. Insert

the lava stone container in the appliance.

5. Fold down the grill heating element, replace the wire rack.

The grill is ready for operation.17

In this section, you can find out how to set the grill.The table

shows grill settings and cooking times for various meals.

Switching the grill on and off

The main switch is used to switch the grill on and off.

To switch on: Touch the

# symbol. A signal sounds. The

display above the main switch lights up. The grill is ready to

To switch off: Touch the

# symbol until the display above the

main switch goes out. The grill has been switched off. The

residual heat display remains lit until the grill has cooled down

Note: The grill switches off automatically when the grill setting

remains at 0 for more than approx. 15 seconds.

Set the desired grill setting on the control panel.

Grill setting 1 = lowest output

Grill setting 9 = highest output

Setting the grill setting

Note: You can decide whether the heating zones should be

linked or not when the appliance is switched on; see Basic

settings. 1. Switch on the grill using the main switch. 2. To select a grill element, touch the ‹ grill settings display

A bar lights up under the grill settings display for the selected

grill element. 3. Touch the þ symbol. A bar lights up for both grill elements under the grill settings

displays. Both grill elements are linked. The same grill setting

is set for both grill elements. 4. Touch the þ symbol. The link between both grill elements is cancelled again.

5. Set the desired grill setting on the settings range using the @

A symbols. 6. Touch the @ symbol. Š lights up in the grill setting display.

} heating symbol lights up.

As soon as the set temperature has been reached, a signal

} heating symbol goes out.

Note: The grill regulates the temperature by switching the grill

element on and off. The grill element may be switched on and

off even at the highest setting.

Pre-heating the grill

Do not place the food to be grilled onto the grill until the pre-

heating time has elapsed. The heating symbol goes out. During

the pre-heating time, the grill heats at full power. Once the pre-

heating time has elapsed, the temperature is reduced by

switching the heating element on and off in order to achieve a

constant temperature for the relevant setting.

The pre-heating time is between 6 and 10 minutes, depending

on the grill setting which has been set.

Note: Do not leave the empty grill to heat up at the highest grill

setting for a prolonged period of time (approx. 6 – 10 minutes).

Heating up for prolonged periods of time may lead to the

appliance shutting down (overheating protection). Switch off the

appliance and allow it to cool down before you switch it back

Topping up the water

If there is too little water in the grill container, the overheating

protection switches the appliance off. Therefore, while grilling,

monitor the water level in the grill container and top it up as

Grilling with lava stones: bottom mark

Grilling without lava stones: top mark

If water touches the hot wire grilling rack or grill element during

topping up, hot steam will be generated. Do not reach over the

grill while topping up and do not pour water over the hot

Switching Wipe protection on and off

When the appliance is in use, you can activate the key lock for

approx. 30 seconds using the Wipe protection function in order

to clean the control panel. 1. Touch the " symbol to switch Wipe protection on. Note: When Wipe protection is switched on, all symbols are

locked, except for the

" Wipe protection symbol and the #

symbol for switching off the appliance.

The displays above the " symbol and above the # symbol

light up. 2. Clean the control panel with water and washing-up liquid.3. Touch the " symbol to switch off Wipe protection.18

The details given in the table are guidelines and apply to a

preheated grill. The values may vary depending on the type and

amount of items to be grilled.

Only place food on the grill when the preheating time has

Turn the food on the grill at least once.

Only close the glass ceramic cover after the grill has cooled

down completely. Leave damp lava stones to dry completely

before you close the glass ceramic cover or else mould could

If the water is still hot when being drained, first add cold water

to cool it down! To drain the water, place a heat-resistant

container underneath the drain tap. Open the tap by turning the

lever 90° downwards. Then close the tap by turning the lever

upwards to the stop.

Automatic time limit

If the appliance is in use for a prolonged period without the

setting being changed, the automatic time limit is activated.

Depending on the temperature set, the appliance may be

operated for between 2 and 4 hours before the automatic time

The heat is interrupted.

” and ‰ flash alternately in the display.

The display goes out when you touch any control. You can

reset the temperature.

Grilled food Setting for grilling over lava

Setting for grilling over

Pork neck steak, boned 6 - 7 7 - 8 12 - 16

Grilled sausage, 100 g each 3 - 4 4 - 5 10 - 20

Vegetables***** 1 - 2 2 - 3 8 - 12

* Cut along the bone

** Oil the wire grilling rack

*** Oil the skin well, oil again before turning

**** Turn frequently

***** E.g. aubergines, courgettes in 1 cm thick slices, peppers in quarters19

Tips and tricks ■ Always preheat the grill. In this way, due to the intensive heat radiation, a crust can form quickly and prevent the meat

juices from escaping. ■ You can brush or marinate the food with heat-resistant oil (e.g. peanut oil) before grilling. This will improve the flavour.

Ensure that you do not use too much oil/marinade, as this

could cause the food to catch fire and generate thick smoke. ■ Do not salt meat before grilling. Otherwise, soluble nutrients and meat juices could be lost. ■ Place the food directly on the wire rack. Do not use any aluminium foil or grill linings. ■ Only turn the food when it can be easily removed from the wire rack. If meat sticks to the wire rack, the fibres will be

destroyed and the meat juices will escape. ■ Do not prick meat during grilling or the meat juices will escape. ■ Cured meat, such as ham or smoked pork chops, is not suitable for grilling. A harmful compound can be produced. ■ Score chops several times at the bone and in the fat layer so that they do not bend during grilling. ■ We recommend removing the fat layer after grilling rather than before, as otherwise the meat will lose juice and flavour. ■ Poultry pieces will turn out particularly crispy and brown if you baste them towards the end of the grilling time with butter,

salted water or orange juice. ■ After grilling, fruit can be seasoned to taste with honey, maple syrup or lemon juice. ■ Before grilling, you can precook vegetables which take a long time to cook (e.g. corn on the cob). ■ Grill fish fillets skin side up first. Brush the skin with oil so that it does not stick to the wire rack. ■ Serve grilled food hot. Do not keep it warm or it will become tough. ■ Dripping fat can catch fire on the heating elements and can result in brief formation of flames and smoke. To reduce this,

very fatty foods should be grilled over a water bath.

The timer can be used as a kitchen timer. The timer does not

switch the grill on or off.

With the timer, you can set a time up to 99 minutes. You can

also use the timer when the grill is switched off.

1. Touch the 3 symbol until S and ‹‹ light up in the timer

2. Set the required time on the settings range using the @ and

‚‹ lights up in the timer display.

4. Touch the @ symbol.

The timer display is increased in increments of 1 minute.

5. Touch the A symbol.

The timer display is decreased in increments of 1 minute.

A signal sounds once the time has elapsed.

timer display and the

S symbol flashes. The signal and the

display switch off after approx. 1 minute.

You can change the duration of the signal in the basic settings;

see section Basic settings.

Correcting the timer

1. Touch the 3 symbol.

2. Set the required time on the settings range using the @ and

Your appliance has various basic settings. You can adapt these

settings to suit your own needs.

‹ The confirmation signal and operating error sig-

nal are switched off.

‚ Only the operating error signal is switched on.

ƒ The confirmation signal and operating error sig-

nal are switched on.*

Duration of the timer end signal

Switching off the rear heating zones

‹ When the appliance is switched on, the heating

zones are not linked.*

‚ When the appliance is switched on, the heating

ƒ When the appliance is switched on, the previ-

ous setting is retained.

Resetting to the basic setting

Changing the basic settings

The grill must be switched off. 1. Switch on the grill.2. Within the next 10 seconds, touch the 3 symbol for 4 seconds.

™ and ƒ flash alternately in the right-hand display; ƒ lights up

in the left-hand display. 3. Touch the 3 symbol repeatedly until the required display flashes on the right-hand display.

4. Set the required value on the settings range using the @ and

A symbols. 5. Touch the 3 symbol for at least 3 seconds. The setting has been saved.

Switching off without saving

To exit the basic setting, switch the appliance off at the main

switch. Changes are not saved.

In this chapter you will find tips on how to maintain and clean

your appliance correctly.

The appliance becomes hot during operation. Allow the

appliance to cool down before cleaning.

: Risk of electric shock!

Do not use high pressure washers or steam cleaners to clean

Cleaning the appliance

Clean the appliance after each use, once it has cooled down.

This will help prevent residues from burning on. Once residues

have burned on several times, they become more difficult to

Do not scrape burnt-on residues off, but leave them to soak in

Remove the wire rack and swivel the heating element upwards.

Remove the lava stone tray with the lava stones.

Do not use these cleaning agents ■ Scouring or chemically aggressive cleaners■ Acidic cleaners (e.g. vinegar, citric acid, etc)■ Cleaners containing chlorine or with a high content of alcohol■ Oven cleaner■ Hard and scratchy sponges, brushes or scouring pads■ Thoroughly wash out new sponge cloths before using them. Appliance part/

Recommended cleaning

Wire grilling rack Remove rough residues with a

washing-up brush. Soak the wire rack

in the sink. Clean with a washing-up

brush and washing-up liquid and dry

Brush stubborn dirt with our grill

cleaner gel (order no. 463582) and

leave to act for at least 2 hours, or

overnight in severe cases. Then rinse

thoroughly and dry. Note the

packaging instructions of the cleaner.

Do not clean in the dishwasher!

Remove lava stones or drain water.

Clean in the sink with water and

washing-up liquid using a washing-up

brush; dry with a soft cloth. Leave

stubborn dirt to soak or remove with

our grill cleaner gel (order no.

Lava stones Dry very damp lava stones

occasionally in the oven at 200°C.

This can help prevent the formation of

Replace lava stones when they

become black. The lava stones may

be fully saturated with fat and could

generate a lot of smoke during use or

the fat could catch fire.

You can obtain the correct lava stones

from your specialist retailer (order no.

00291050). When topping up, ensure

that the grill element does not lie

Clean with a soft, damp cloth and

some washing-up liquid; the cloth

should not be too wet. Dry off with a

Recommended cleaning21

Faults often have simple explanations. Please read the

following information before calling the after-sales service.

Our after-sales service is there for you if your appliance should

need to be repaired. We are committed fo find the best solution

also in order to avoid an unnecessary call-out.

E number and FD number:

Please quote the E number (product number) and the FD

number (production number) of your appliance when

contacting the after-sales service. The rating plate bearing

these numbers can be found on the appliance certificate.

Please note that a visit from an after-sales service engineer is

not free of charge, even during the warranty period.

Please find the contact data of all countries in the enclosed

customer service list.

To book an engineer visit and product advice

Rely on the professionalism of the manufacturer. You can

therefore be sure that the repair is carried out by trained service

technicians who carry original spare parts for your appliances.

Display Fault Measure

None The power supply has been discon-

Check the household fuse for the appliance. Check whether there is a

power cut by trying other electronic appliances.

The controls are damp or an object is

Dry the controls or remove the object. Then touch any control.

Appliance fault Switch off the appliance for at least 15 seconds. Switch the appliance

back on. Contact the after-sales service if this display appears again.

The electronics have overheated and

have switched off the front grill

Wait until the electronics have cooled down sufficiently. Then touch any

The electronics have overheated and

have switched off the appliance.

Wait until the electronics have cooled down sufficiently. Then touch any

The appliance was in operation for too

long and has switched itself off.

You can switch the grill back on again immediately.

No water in the grill's container. The

appliance has reduced the setting.

Fill the grill's container with water. If necessary, leave the appliance to

Excessively long pre-heating. Do not leave the empty grill to heat up at the highest grill setting for a

prolonged period of time (approx. 6 – 10 minutes). Heating up for

prolonged periods of time may lead to the appliance shutting down

(overheating protection). Switch off the appliance and allow it to cool

down before you switch it back on again.

Calls from a BT landline will be charged at up to

3 pence per minute. A call set-up fee of up to 6 pence

and electronic equipment - WEEE).

and electronic equipment - WEEE).

Interruptor principal
