USER MANUAL Domino NK 2445 N NEFF

Operating instructions

Technical Assistanse Service 15

Warranty conditions 15

Used appliances and packaging 15

Environmentally-friendly waste management 15

Safety precautions 3

5 Your new appliance

Switching on manually 6

Switching on automatically 7

Switching off a burner 7

Additional pan support 10

Cooking recommendations 10

Precautions for use 11

Cleaning and maintenance 12

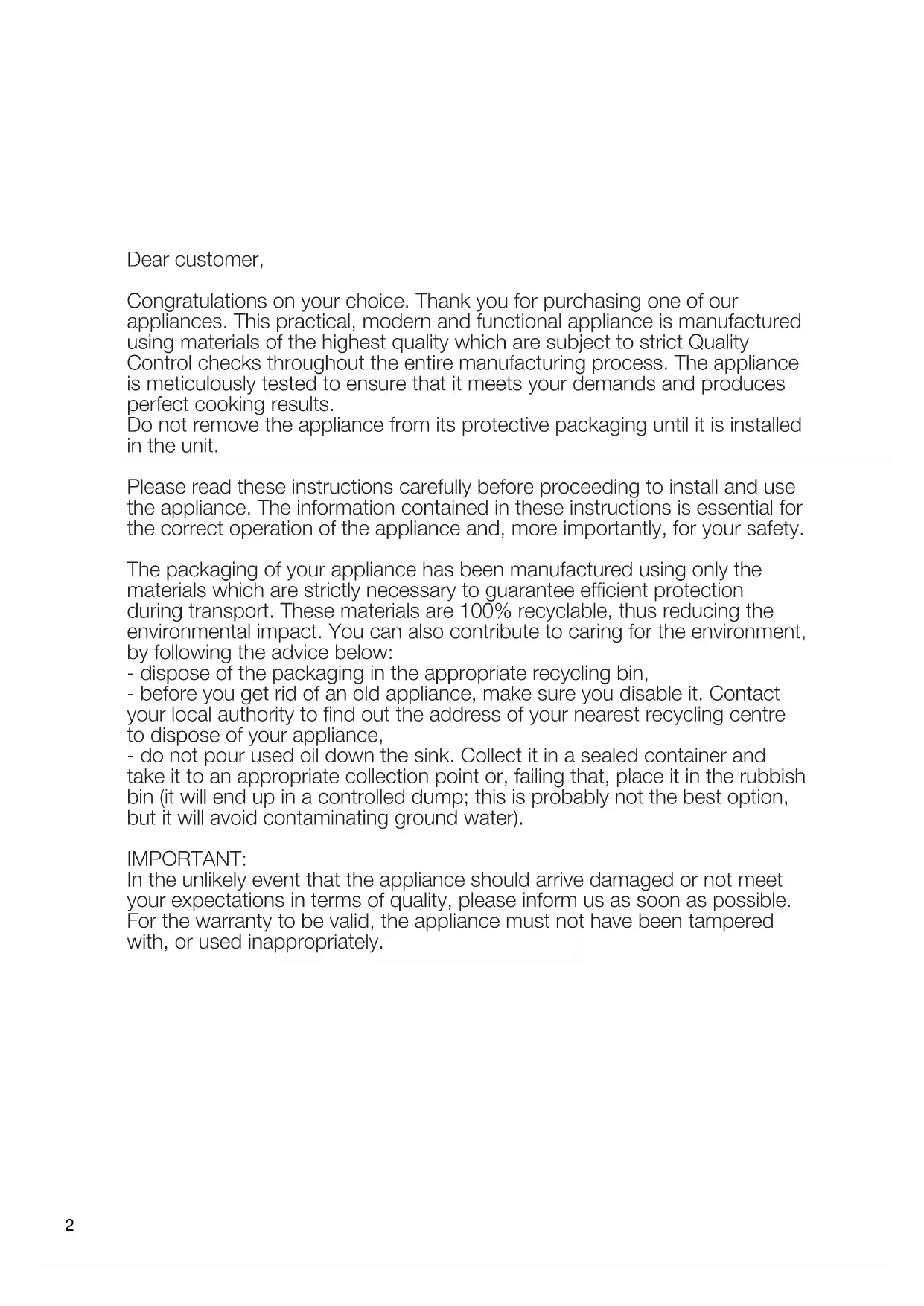

Unsuitable products 12Dear customer,

Congratulations on your choice. Thank you for purchasing one of our

appliances. This practical, modern and functional appliance is manufactured

using materials of the highest quality which are subject to strict Quality

Control checks throughout the entire manufacturing process. The appliance

is meticulously tested to ensure that it meets your demands and produces

perfect cooking results.

Do not remove the appliance from its protective packaging until it is installed

Please read these instructions carefully before proceeding to install and use

the appliance. The information contained in these instructions is essential for

the correct operation of the appliance and, more importantly, for your safety.

The packaging of your appliance has been manufactured using only the

materials which are strictly necessary to guarantee efficient protection

during transport. These materials are 100% recyclable, thus reducing the

environmental impact. You can also contribute to caring for the environment,

by following the advice below:

- dispose of the packaging in the appropriate recycling bin,

- before you get rid of an old appliance, make sure you disable it. Contact

your local authority to find out the address of your nearest recycling centre

to dispose of your appliance,

- do not pour used oil down the sink. Collect it in a sealed container and

take it to an appropriate collection point or, failing that, place it in the rubbish

bin (it will end up in a controlled dump; this is probably not the best option,

but it will avoid contaminating ground water).

In the unlikely event that the appliance should arrive damaged or not meet

your expectations in terms of quality, please inform us as soon as possible.

For the warranty to be valid, the appliance must not have been tampered

with, or used inappropriately.

Read these instructions carefully. Reading these

instructions will enable you to use your appliance safely

All operations relating to installation, regulation and

conversion to other types of gas must be carried

out by an authorised installation engineer, respecting

applicable regulations, standards and the specifications

of the gas and electricity providers.

You are recommended to contact the Technical

Assistance Service to convert to another type of gas.

Before installing your new hob, ensure that it is being

installed according to the assembly instructions.

This appliance can only be installed in a well ventilated

place in accordance with existing regulations and

ventilation specifications. The appliance must not be

connected to a combustion product removal device.

The place in which the appliance is installed must have

fully-functioning ventilation, in accordance with the

Do not subject the appliance to draughts. These might

This appliance leaves the factory set to the type of gas

Do not tamper with the appliance’s interior.

If necessary, call our Technical Assistance Service.

These operating and installation instructions should be

retained, and passed onto the buyer if the appliance is

Do not switch on the appliance if it is damaged in any

way. Contact our Technical Assistance Service.

that is indicated on the specifications plate. If this must

blow out the burners.

be changed, read the Assembly instructions.

This appliance has been designed for home use only,

not for commercial or professional use. This appliance

cannot be installed on yachts or in caravans. The

warranty will only be valid if the appliance is used for the

purpose for which it was designed.4

The surfaces of cooking appliances heat up during

use. Care must be taken when using these appliances.

Keep children well away from the appliance.

This appliance is only intended for cooking purposes,

not as a heating system.

Fat or oil which is overheated can catch fire easily. Do

not leave oil or fats to heat up unattended. If oil or fats

do catch fire, never use water to put the fire out. Risk

of burns! Put the fire out by covering the pan with a lid

and switch off the hotplate.

In the event of a malfunction, turn off the appliance’s

gas and electricity supply. For repairs, call our Technical

If one of the controls will not turn, do not force it. Call

the Technical Assistance Service immediately, so that

they can repair or replace it.

Never place unstable pans on the hob or the burners,

as they may accidentally tip over.

This appliance is class 3 type, according to the EN 30-

1-1 regulation for gas appliances: built-in appliance.

Do not store or use corrosive chemicals, products

which produce fumes, flammable materials or non-food

products below or near this domestic appliance.

The graphics in this instruction manual are given as a

The manufacturer is exempt from all responsibility if this

the requirements of this manual are not complied with.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory or

mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person

responsible for their safety.

kÉîÉê=äÉ~îÉ=íÜÉ=~ééäá~åÅÉ=ìå~ííÉåÇÉÇ=ÇìêáåÖ=çéÉê~íáçåK=

Do not clean the hob using a steam cleaner.

Risk of electrocution!Your new appliance

These individual appliances can be combined and/or with conventional hobs of the

same make, using the joint accessory. See the catalogue for details.

Dual double1. Press the chosen burner control and turn it

anticlockwise to the required setting.

2. Use any type of lighter or flame (cigarette lighter,

matches, etc.) and bring it close to the burner.

There are indications to show which burner each

control knob operates. Fig. 1.

Switching on manually

It is essential to ensure that all the burner parts

and the pan supports are correctly installed for the

appliance to work correctly. Fig. 2-3-4-5.

Turn the corresponding control clockwise to the 0

Switching off a burner

If your hob features the automatic ON function

(ignition sparkers):

1. Press the chosen burner control and turn it

anticlockwise to the maximum power setting.

While the control is still pressed down, sparks are

produced on all burners. The flame ignites (it is no

longer necessary to press down the control).

2. Turn the control to the required setting.

If it does not come on, turn the control to the off

setting and repeat the steps above. This time,

press and hold the control for longer (up to 10

Warning! If after 15 seconds have elapsed, the

open a nearby window or door. Wait at least one

minute before trying to switch the burner back on.

The progressive controls can be used to control

the power needed, from minimum to maximum

Depending on the model, your hob may have a

that this device is active, switch on the burner as

usual and, without releasing the control, press and

hold it down firmly for 4 seconds after lighting the

SettingLarge flameEconomy flameControl offMaximum capacity or aperture and electricity on Minimum capacity or aperture

of gas if the burners accidentally switch off. To ensure

flame does not ignite, switch off the burner and

safety system (thermocouple) that prevents the flowIt is normal to hear a whistling noise while the burner

When it is first used, it is normal for the burner to give

off fumes; this does not pose any risk and does not

indicate a malfunction; they will disappear in time.

Keep the burner as clean as possible. If the ignition

sparkers are dirty, they will not light properly. Clean

them periodically using a small non-wire brush. Bear

in mind that the ignition sparkers must not suffer any

An orange-coloured flame is normal. This is caused

by the presence of dust in the atmosphere, spilt

For dual double flame burners, the inner and outer

flames can be controlled separately.

The available power levels are as follows:

Inner and outer flame on full power.

Outer flame on minimum, inner flame on full power.

Inner flame on full power.

Inner flame on minimum.

means that the safety device is no longer operating.

sound (thud) will be produced. This is not a fault- this

A few seconds after the burner is switched off, aSuitable pans

The kitchen will become hot and humid when this

gas appliance is used. You must therefore ensure that

the kitchen is well-ventilated. Either keep the natural

ventilation apertures open, or install an extractor

If using the appliance intensively for prolonged periods

additional ventilation may be required, for example,

by opening a window; more effective ventilation may

also be required, for example, by increasing the hob’s

ventilation, if possible.

If the burner flames are accidentally blown out, switch

off the burner operating control and do not try to

relight it for at least one minute.

Food can be prepared in various ways in a wok: it can

be stewed, stir fried, cooked on a low heat, pan-fried,

or steamed. It could be said that woks serve as both

as a saucepan and a frying pan and, owing to their

shape and size, they can be used to cook quite large

When cooking with a wok, heat is diffused more

uniformly and gently; the intense heat which

accumulates means that food takes less time to

cook and also requires less oil, making it one of the

quickest and healthiest ways of cooking. Always

follow the manufacturer’s instructions when cooking

A wok is a cooking vessel originating in China; it is

a kind of deep, round, lightweight pan with handles

and a flat or concave base.

14 cm 20 cmThe manufacturer accepts no liability if these

additional pan supports are not used or are used

Depending on the model, the hob may include the

following accessories. These are also available from

Only for use on the double flame burner with pans

which are more than 26 cm in diameter (roasting

dishes, earthenware pots, etc.) and with pans with a

the Technical Assistance Service.

griddling, toasting,

Reheating and keeping things hot:

cooked and pre-cooked dishes.

vegetables. Semi-rapid burner Steaming potatoes, Escalopes, steaks, fresh vegetables, omelettes, frying, stews and pasta.Reheating, keeping things hot andmaking tasty casseroles.Precautions for use

energy and prevent cookware damage:

Use pans which are the right size for each burner.

Do not use damaged cookware, which does not sit

evenly on the hob. Pans may be overturned.

Only use a pan with thick, flat base.

Always place the cookware right over the burner, not

to one side. Otherwise it could be overturned.

Do not place large pans on the burners near the

controls. These may be damaged by the very high

Place the pans on the pan supports, never directly on

Pans should be placed on the hob carefully.

Do not strike the hob and do not place excessive

Make sure that the pan supports and burner covers

are correctly positioned before using the appliance.

The following advice is intended to help you save

aç=åçí=ìëÉ=ëã~ää=êÉÅÉéí~ÅäÉë=çå=ä~êÖÉ=ÄìêåÉêëK=qÜÉ=

ÅçîÉêáåÖ=êÉÅÉéí~ÅäÉëK=vçì=~êÉ=ï~ëíáåÖ=ÉåÉêÖóK=

=Never slide pans across the glass surface, as you may

scratch it. In addition, try not to drop heavy or sharp

objects on the glass. Never strike any part of the hob.

Do not use steam cleaners. This could damage the

Never use abrasive products, steel scourers, sharp

implements, knives, etc. to remove bits of hardened

If your hob is fitted with a glass or aluminium panel,

never use a knife, scraper or similar to clean the point

where it joins the metal.

Do not use knives, scrapers or similar implements

to clean the point where the glass meets the burner

trims, the metal frames or the glass/aluminium panels,

Once the appliance is cool, use a sponge to clean it

with soap and water.

After each use, clean the surface of the respective

burner parts once they have cooled down. If any

and more difficult to remove later. The holes and

If the pan supports are fitted with rubber rests, ensure

that these are also cleaned. The rests may come

loose and the pan support may scratch the hob.

Always dry the burners and pan supports completely.

Water droplets or damp patches on the hob at the

start of cooking may damage the enamel.

After cleaning and drying the burners, make sure the

burner covers are correctly placed on the burner flame

Cleaning and maintenance

The movement of some pans may leave metal residue on

bits are left (overcooked food, drops of grease etc.),

Clean the burners and pan supports using soapy water

however few, they will become stuck to the surface

and scrub with a non-wire brush.

grooves must be clean for the flame to ignite properly.Always clean off any liquid as soon as it is spilt: you

will save yourself any unnecessary effort.

Grains of sand that may come from cleaning fruits

and vegetables will scratch the glass surface.

Melted sugar, or foods which contain a lot of sugar

which may have spilt, should be cleaned off the

hotplate immediately, using the glass scraper.

13Sometimes certain faults detected can be easily

resolved. Before calling the Technical Assistance

Service, bear in mind the following advice:

Fault Possible cause Solution The generalelectrical system ismalfunctioning.Defective fuse.The automatic safety switch has tripped or a fuse hasblown.Check the fuse in the mainfuse box and change it if it isdamaged.Check the main controlpanel to see if the automaticsafety switch has tripped ora fuse has blown.The automatic ONfunction does not work.There may be food or cleaning products stuck between the ignition sparkers and the burners.The burners are wet.The burner covers are not correctly positioned.The appliance is either not earthed, not connected properly or the earth connection is faulty. The space between the ignitionsparker and the burner mustbe clean.Dry the burner covers carefully.Check that the covers are correctly positioned.Contact an electrical engineer. The burner flame is notuniform.The burner components are not correctly positioned.The grooves on the diffuser are dirty.Ensure the components arecorrectly positioned.Clean the grooves on the diffuser.The flow of gas doesnot appear normal or no gas comes out.The gas mains are turned off.If the gas is supplied from a gas bottle, check that this isnot empty.Turn on all stop cocks.Change the gas bottle.The kitchen smells of gas. A gas tap has been left on. There may be a leak from the coupling to the gas bottle.Turn off the gas taps.Check that the coupling issound.The safety valve on one of the burners is not working.The control knob was not held down for long enough. The grooves on the diffuser are dirty.Once the burner is lit, holdthe control knob down a fewseconds longer. Clean thegrooves on the diffuser.If the symbol is shown on the specifications

plate, bear in mind the following instructions.

When contacting our Technical Assistance Service,

please provide the product number (E-Nr.) and

production number (FD) of the appliance. This

information is given on the specifications plate located

on the lower section of the hob and on the label in the

Unpack the appliance and dispose of the packaging

by environmentally-friendly means.

This appliance complies with European Directive

2002/96/CE on Waste Electrical and Electronic

Used appliances and packaging

Technical Assistance Service

The applicable warranty conditions are those set out

by the company’s representative office in the country

of purchase. Detailed information is available from

retail outlets. Proof of purchase must be presented to

obtain the benefits of the warranty.

We reserve the right to introduce changes.

Omelett, Frittieren,

Service Technique 4 5Cher client,

automatique (bougies):

electronic equipment).

Recipienti adeguati 54

and electronic equipment).

Hervir, cocer, asar,

electronic equipment).

and electronic equipment).
