FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you

impeccable performance for many years, with innovative technologies that help

make life simpler features you might not find on ordinary appliances. Please

spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

Register your product for better service:

Buy Accessories, Consumables and Original spare parts for your appliance:

CUSTOMER CARE AND SERVICE Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

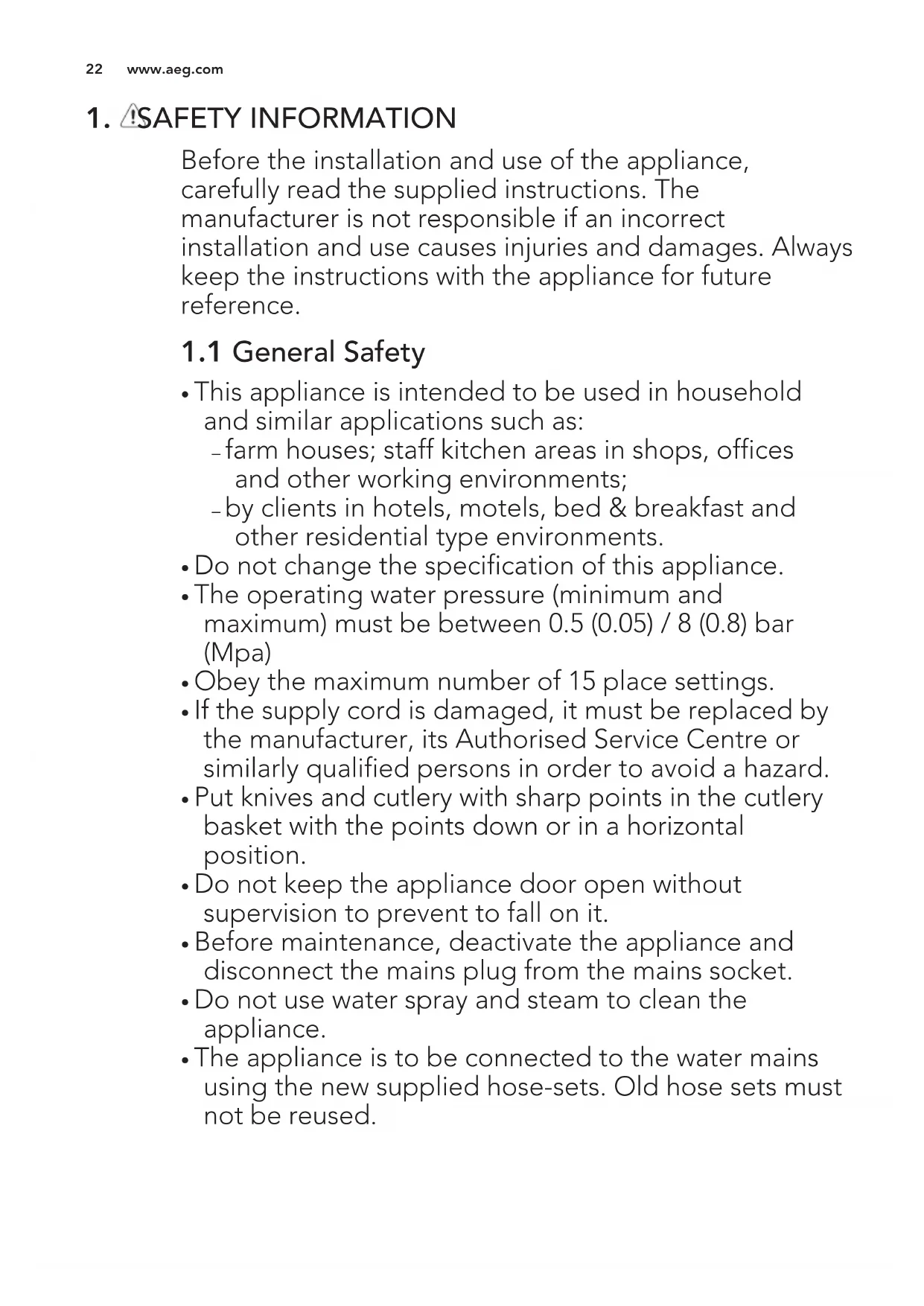

211. SAFETY INFORMATION Before the installation and use of the appliance,

carefully read the supplied instructions. The

manufacturer is not responsible if an incorrect

installation and use causes injuries and damages. Always

keep the instructions with the appliance for future

• This appliance is intended to be used in household

and similar applications such as:

– farm houses; staff kitchen areas in shops, offices

and other working environments;

– by clients in hotels, motels, bed & breakfast and

other residential type environments.

• Do not change the specification of this appliance.

• The operating water pressure (minimum and

maximum) must be between 0.5 (0.05) / 8 (0.8) bar

• Obey the maximum number of 15 place settings.

• If the supply cord is damaged, it must be replaced by

the manufacturer, its Authorised Service Centre or

similarly qualified persons in order to avoid a hazard.

• Put knives and cutlery with sharp points in the cutlery

basket with the points down or in a horizontal

• Do not keep the appliance door open without

supervision to prevent to fall on it.

• Before maintenance, deactivate the appliance and

disconnect the mains plug from the mains socket.

• Do not use water spray and steam to clean the

• The appliance is to be connected to the water mains

using the new supplied hose-sets. Old hose sets must

221.2 Children and vulnerable people safety

• This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe

way and understand the hazards involved.

• Do not let children play with the appliance.

• Keep all detergents away from children.

• Keep children and pets away from the appliance door

• Cleaning and user maintenance shall not be made by

children without supervision.

2. SAFETY INSTRUCTIONS

• Remove all the packaging.

• Do not install or use a damaged

• Do not install or use the appliance

where the temperature is less than 0

• Obey the installation instruction

supplied with the appliance.

• Make sure that the appliance is

installed below and adjacent to safe

2.2 Electrical connection

Risk of fire and electrical

• The appliance must be earthed.

• Make sure that the electrical

information on the rating plate agrees

with the power supply. If not contact

• Always use a correctly installed

• Do not use multi-plug adapters and

• Make sure not to cause damage to

the mains plug and to the mains

cable. Should the mains cable need

to be replaced, this must be carried

out by our Authorised Service Centre.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

• Do not pull the mains cable to

disconnect the appliance. Always pull

• This appliance complies with the

• Only for UK and Ireland. The

appliance has a 13 amp mains plug. If

it is necessary to change the fuse in

the mains plug, use a 13 amp ASTA

2.3 Water connection

• Make sure not to cause damage to

• Before you connect the appliance to

new pipes or pipes not used for a

long time, let the water flow until it is

• The first time you use the appliance,

make sure that there is no leakage.

• The water inlet hose has a safety valve

and a sheath with an inner mains

• If the water inlet hose is damaged,

immediately disconnect the mains

plug from the mains socket. Contact

the Authorised Service Centre to

replace the water inlet hose.

• Do not sit or stand on the open door.

• Dishwasher detergents are

dangerous. Obey the safety

instructions on the detergent

• Do not drink and play with the water

• Do not remove the dishes from the

appliance until the programme is

completed. There can be detergent

• The appliance can release hot steam

if you open the door while a

• Do not put flammable products or

items that are wet with flammable

products in, near or on the appliance.

Risk of injury or suffocation.

• Disconnect the appliance from the

• Cut off the mains cable and discard it.

• Remove the door catch to prevent

children and pets to get closed in the

Indicator Description

Washing phase. It comes on when the washing phase operates.

Rinsing phase. It comes on when the rinsing phase operates.

Drying phase. It comes on when the drying phase operates.

Salt indicator. It is always off while the programme operates. ENGLISH 25Indicator Description

Rinse aid indicator. It is always off while the programme operates.

TimeSaver indicator.

5. PROGRAMMES Programme Degree of soil

• Crockery, cutlery,

• Crockery, cutlery,

• Crockery, cutlery,

With this programme you have the most efficient use of water and energy consumption for crockery

and cutlery with normal soil. (This is the standard programme for test institutes).

The appliance senses the degree of soil and the quantity of items in the baskets . It automatically ad-

justs the temperature and the quantity of water, the energy consumption and the programme duration.

With this programme you can wash a load with mixed soil. Very heavy soil in the lower basket and

normal soil in the upper basket. The pressure and the temperature of the water in the lower basket are

higher than in the upper basket.

This programme has a high temperature rinsing phase for better hygiene results. During the rinsing

phase, the temperature stays at 70 °C for at least 10 minutes.

With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

This is the most silent programme. The pump works at a very low speed to decrease the level of noise.

Because of the low speed, the programme duration is long.

5.1 Consumption values

The pressure and the temperature of the water, the variations of the mains supply, the options and the

quantity of dishes can change the values.

5.2 Information for test

performance, send an email to:

info.test@dishwasher-production.com

Write down the product number (PNC)

that is on the rating plate.

ENGLISH 276. SETTINGS

6.1 Programme selection

When the appliance is in programme

selection mode it is possible to set a

programme and to enter the user mode.

In user mode, the following settings

• The level of the water softener

according to the water hardness.

• The deactivation of the rinse aid

dispenser when you want to use the

Multitab option without rinse aid.

• The level of rinse aid according to the

These settings will be saved until you

How to set the programme

The appliance is in programme selection

mode when the programme indicator

is on and the display shows the

When you activate the appliance, usually

it is in programme selection mode.

However, if this does not happen, you

can set the programme selection mode

in the following way:

Press and hold simultaneously Delay and

Option until the appliance is in

programme selection mode.

6.2 The water softener

The water softener removes minerals

from the water supply, which would have

a detrimental effect on the washing

results and on the appliance.

The higher the content of these minerals,

the harder your water is. Water hardness

is measured in equivalent scales.

The water softener should be adjusted

according to the hardness of the water in

your area. Your local water authority can

advise you on the hardness of the water

in your area. It is important to set the

right level of the water softener to assure

good washing results.

Do not use salt at this level.

www.aeg.com28How to set the water softener

The appliance must be in programme

1. To enter the user mode, press and

hold simultaneously Delay and

Option until the indicators ,

and start to flash and

the display is blank.

• The indicator continues to

• The display shows the current

3. Press Program again and again to

4. Press the on/off button to confirm

6.3 The rinse aid dispenser

The rinse aid helps to dry the dishes

without streaks and stains.

The rinse aid is automatically released

during the hot rinse phase.

You can set the released quantity of rinse

aid between level 1 (minimum quantity)

and level 6 (maximum quantity). Level 0

will deactivate the rinse aid dispenser

and no rinse aid will be released.

Factory setting: level 4.

How to set the rinse aid level

The appliance must be in programme

1. To enter the user mode, press and

hold simultaneously Delay and

Option until the indicators ,

and start to flash and

the display is blank.

• The indicator continues to

• The display shows the current

– The levels of rinse aid are

– Level 0 = no rinse aid is

3. Press Delay again and again to

4. Press the on/off button to confirm

6.4 Use of rinse aid and multi-

When you activate the option Multitab,

the rinse aid dispenser continues to

release rinse aid. However you can

deactivate the rinse aid dispenser. In this

case the drying results may not be

With the rinse aid dispenser deactivated,

the rinse aid indicator is always off.

How to deactivate the rinse

The appliance must be in programme

1. To enter the user mode, press and

hold simultaneously Delay and

Option until the indicators ,

and start to flash and

the display is blank.

• The indicators and go

3. Press Start to change the setting.

= rinse aid dispenser

The rinse aid indicator goes off.

4. Press the on/off button to confirm

297. OPTIONS Desired options must be

activated every time before

you start a programme. It is

not possible to activate or

deactivate options while a

programme is running.

compatible with each other.

If you have selected non

compatible options, the

appliance will automatically

deactivate one or more of

them. Only the indicators of

the options still active will

Activate this option when you use multi-

tablets that integrate the salt, rinse aid

and detergent functions. They can also

contain other cleaning or rinsing agents.

This option deactivates the release of

salt. The salt indicator does not come on.

With the use of this option the

programme duration is prolonged to

increase the cleaning and drying results

with the use of multi-tablets.

Multitab is not a permanent option and

must be selected at every cycle.

How to activate Multitab

Press Option until the indicator comes

This option increases the pressure and

the temperature of the water. The

washing and the drying phases are

The total programme duration decreases

by approximately 50%.

The washing results are the same as with

the normal programme duration. The

drying results can decrease.

How to activate TimeSaver

Press Option until the indicator

If the option is not applicable to the

programme, the related indicator does

not come on or it flashes quickly for a

few seconds and then goes off.

The display shows the updated

This option increases the water pressure

in the prewash and washing phases.

The washing results are very good also

with heavy soiled loads.

How to activate ProBoost

Press Option until the indicator

If the option is not applicable to the

programme, the related indicator does

not come on or it flashes quickly for a

few seconds and then goes off.

The display shows the updated

1. Make sure that the current level of

the water softener agrees with the

hardness of the water supply. If

not, adjust the level of the water

2. Fill the salt container.

4. Open the water tap.

5. Start a programme to remove any

processing residuals that can still be

inside the appliance. Do not use

detergent and do not load the

www.aeg.com30When you start a programme, the

appliance can take up to 5 minutes to

recharge the resin in the water softener.

It seems that the appliance is not

working. The washing phase starts only

after this procedure is completed. The

procedure will be repeated periodically.

8.1 The salt container

Only use salt specifically

designed for dishwashers.

The salt is used to recharge the resin in

the water softener and to assure good

washing results in the daily use.

How to fill the salt container

1. Turn the cap of the salt container

counterclockwise and remove it.

2. Put 1 litre of water in the salt

container (Only for the first time).

3. Fill the salt container with dishwasher

4. Remove the salt around the opening

of the salt container.

5. Turn the cap of the salt container

clockwise to close the salt container.

Water and salt can come out

from the salt container when

you fill it. Risk of corrosion.

To prevent it, after you fill

the salt container, start a

specifically designed for

1. Open the lid (C).

2. Fill the dispenser (B) until the rinse

aid reaches the marking ''MAX''.

3. Remove the spilled rinse aid with an

absorbent cloth to prevent too much

4. Close the lid. Make sure that the lid

locks into position.

Fill the rinse aid dispenser

1. Open the water tap.

2. Press the on/off button to activate

Make sure that the appliance is in user

3. Load the baskets.

ENGLISH 314. Add the detergent. If you use multi-

tablets, activate the option Multitab.

5. Set and start the correct programme

for the type of load and the degree

specifically designed for

1. Press the release button (A) to open

2. Put the detergent, in powder or

tablets, in the compartment (B).

3. If the programme has a prewash

phase, put a small quantity of

detergent on the inner part of the

4. Close the lid. Make sure that the lid

locks into position.

9.2 Setting and starting a

The Auto Off function

This function decreases energy

consumption by deactivating

automatically the appliance when it is not

The function comes into operation:

• 5 minutes after the completion of the

• After 5 minutes if the programme has

Starting a programme

1. Close the appliance door.

2. Press the on/off button to activate

the appliance. Make sure that the

appliance is in programme selection

3. Press Program again and again until

the indicator of the programme you

want to select comes on.

The display shows the programme

4. Set the applicable options.

5. Press Start to start the programme.

• The indicator of the running

• The programme duration starts to

decrease with steps of 1 minute.

Starting a programme with

2. Press Delay again and again until the

display shows the delay time you

want to set (from 1 to 24 hours).

3. Press Start to start the countdown.

• The delay indicator comes on to

confirm the start of the

• The countdown starts to decrease

with steps of 1 hour. Only the last

hour will decrease with steps of 1

When the countdown is completed, the

programme starts and the indicator of

the running phase comes on. The delay

Opening the door while the

If you open the door while a programme

is running, the appliance stops. When

you close the door, the appliance

continues from the point of interruption.

Cancelling the delay start while

the countdown operates

When you cancel the delay start you

have to set the programme and options

32Press simultaneously Delay and Option

until the appliance is in programme

Cancelling the programme

Press and hold simultaneously Delay and

Option until the appliance is in

programme selection mode.

Make sure that there is detergent in the

detergent dispenser before you start a

End of the programme

When the programme is completed the

display shows 0:00 and the end indicator

All buttons are inactive except for the

1. Press the on/off button or wait for

If you open the door before the

activation of Auto Off, the appliance

is automatically deactivated.

2. Close the water tap.

The following hints will ensure optimal

cleaning and drying results in daily use

and also help to protect the

• Remove larger residues of food from

the dishes into the waste bin.

• Do not pre-rinse dishes by hand.

When needed, use the prewash

programme (if available) or select a

programme with a prewash phase.

• Always use the whole space of the

• When loading the appliance, make

sure that the dishes can be

completely reached and washed by

the water released from the spray arm

nozzles. Make sure that items do not

touch or cover each other.

• You can use dishwasher detergent,

rinse aid and salt separately or you

can use the multi-tablets (e.g. ''3in1'',

''4in1'', ''All in 1''). Follow the

instructions written on the packaging.

• Select the programme according to

the type of load and degree of soil.

With the ECO programme you have

the most efficient use of water and

energy consumption for crockery and

cutlery with normal soil.

10.2 Using salt, rinse aid and

• Only use salt, rinse aid and detergent

for dishwasher. Other products can

cause damage to the appliance.

• Multi-tablets are usually suitable in

areas with a water hardness up to 21

°dH. In areas exceeding this limit,

rinse aid and salt must be used in

addition to the multi-tablets.

However, in areas with hard and very

hard water we recommend to use

solo-detergent (powder, gel, tablets

without additional functions), rinse aid

and salt separately for optimal

cleaning and drying results.

• If you use multi-tablets you can select

the Multitab option (if available). This

option increases the cleaning and

drying results with the use of multi-

• Detergent tablets do not fully dissolve

with short programmes. To prevent

detergent residues on the tableware,

we recommend that you use the

tablets with long programmes.

• Do not use more than the correct

quantity of detergent. Refer to the

instructions on the detergent

3310.3 What to do if you want to

stop using multi-tablets

Before you start to use separately

detergent, salt and rinse aid do the

following procedure.

1. Set the highest level of the water

2. Make sure that the salt and rinse aid

containers are full.

3. Start the shortest programme with a

rinsing phase. Do not add detergent

and do not load the baskets.

4. When the programme is completed,

adjust the water softener according

to the water hardness in your area.

5. Adjust the released quantity of rinse

10.4 Loading the baskets

• Only use the appliance to wash items

that are dishwasher-safe.

• Do not put in the appliance items

made of wood, horn, aluminium,

• Do not put in the appliance items that

can absorb water (sponges,

• Remove remaining food from the

• Make soft the remaining burned food

• Put hollow items (cups, glasses and

pans) with the opening down.

• Make sure that cutlery and dishes do

not bond together. Mix spoons with

• Make sure that glasses do not touch

• Put small items in the cutlery basket.

• Put light items in the upper basket.

Make sure that the items do not

• Make sure that the spray arm can

move freely before you start a

10.5 Before starting a

• The filters are clean and correctly

• The cap of the salt container is tight.

• The spray arms are not clogged.

• There is dishwasher salt and rinse aid

(unless you use multi- tablets).

• The position of the items in the

• The programme is applicable for the

type of load and for the degree of

• The correct quantity of detergent is

10.6 Unloading the baskets

1. Let the tableware cool down before

you remove it from the appliance.

Hot items can be easily damaged.

2. First remove items from the lower

basket, then from the upper basket.

programme water can still

remain on the sides and on

the door of the appliance.

11. CARE AND CLEANING WARNING!

deactivate the appliance and

disconnect the mains plug

from the main socket.

Dirty filters and clogged

spay arms decrease the

washing results. Make a

check regularly and, if

necessary, clean them.

11.1 Cleaning the filters

The filter system is made of 3 parts.

1. Turn the filter (B) counterclockwise

2. Remove the filter (C) out of filter (B).

3. Remove the flat filter (A).

4. Wash the filters.

5. Make sure that there are no residues

of food or soil in or around the edge

6. Put back in place the flat filter (A).

Make sure that it is correctly

positioned under the 2 guides.

7. Reassemble the filters (B) and (C).

8. Put back the filter (B) in the flat filter

(A). Turn it clockwise until it locks.

An incorrect position of the

filters can cause bad

washing results and damage

ENGLISH 3511.2 Cleaning the spray arms

Do not remove the spray arms. If the

holes in the spray arms are clogged,

remove remaining parts of soil with a thin

11.3 External cleaning

• Clean the appliance with a moist soft

• Only use neutral detergents.

• Do not use abrasive products,

abrasive cleaning pads or solvents.

11.4 Internal cleaning

• Carefully clean the appliance,

including the rubber gasket of the

door, with a soft moist cloth.

• If you regularly use short duration

programmes, these can leave

deposits of grease and limescale

inside the appliance. To prevent this,

we recommend to run long duration

programmes at least 2 times per

12. TROUBLESHOOTING If the appliance does not start or it stops

during operation. Before you contact an

Authorised Service Centre, check if you

can solve the problem by yourself with

the help of the information in the table.

With some problems, the display

shows an alarm code.

Problem and alarm code Possible solution

You cannot activate the ap-

• Make sure that the mains plug is connected to the

• Make sure that there is no a damage fuse in the fuse

The programme does not

• Make sure that the appliance door is closed.

• If the delay start is set, cancel the setting or wait for the

end of the countdown.

• The appliance has started the procedure to recharge

the resin inside the water softener. The duration of the

procedure is approximately 5 minutes.

The appliance does not fill

• Make sure that the water tap is open.

• Make sure that the pressure of the water supply is not

too low. For this information, contact your local water

• Make sure that the water tap is not clogged.

• Make sure that the filter in the inlet hose is not clogged.

• Make sure that the inlet hose has no kinks or bends.

The appliance does not

• Make sure that the sink spigot is not clogged.

• Make sure that the drain hose has no kinks or bends.

The anti-flood device is on.

• Close the water tap and contact an Authorised Service

www.aeg.com36Once you have checked the appliance,

deactivate and activate the appliance. If

the problem occurs again, contact an

Authorised Service Centre.

For alarm codes not described in the

table, contact an Authorised Service

12.1 The washing and drying results are not satisfactory

Problem Possible solution

There are whitish streaks or

bluish layers on glasses and

• The release quantity of rinse aid is too much. Adjust

the rinse aid selector to a lower position.

• The quantity of detergent is too much.

There are stains and dry water

drops on glasses and dishes.

• The released quantity of rinse aid is not sufficient. Ad-

just the rinse aid selector to a higher position.

• The quality of the rinse aid can be the cause.

The dishes are wet. • The programme does not have a drying phase or has

a drying phase with low temperature.

• The rinse aid dispenser is empty.

• The quality of the rinse aid can be the cause.

• The quality of the multi-tablets can be the cause. Try a

different brand or activate the rinse aid dispenser and

use rinse aid and multi-tablets together.

Refer to "Hints and tips" for

other possible causes.

13. TECHNICAL INFORMATION Dimensions Width / height / depth (mm) 596 / 818 - 898 / 575

Electrical connection

Cold water or hot water

Refer to the rating plate for other values.

f the hot water comes from alternative source of energy, (e.g. solar panels, aeolian energy), use the

hot water supply to decrease energy consumption.

14. ENVIRONMENTAL CONCERNS Recycle the materials with the symbol .

Put the packaging in applicable

containers to recycle it. Help protect the

environment and human health and to

recycle waste of electrical and electronic

appliances. Do not dispose appliances

ENGLISH 37marked with the symbol with the

household waste. Return the product to

your local recycling facility or contact

your municipal office.

www.aeg.com38TABLE DES MATIÈRES
