USER MANUAL Ideaphone A536 LENOVO

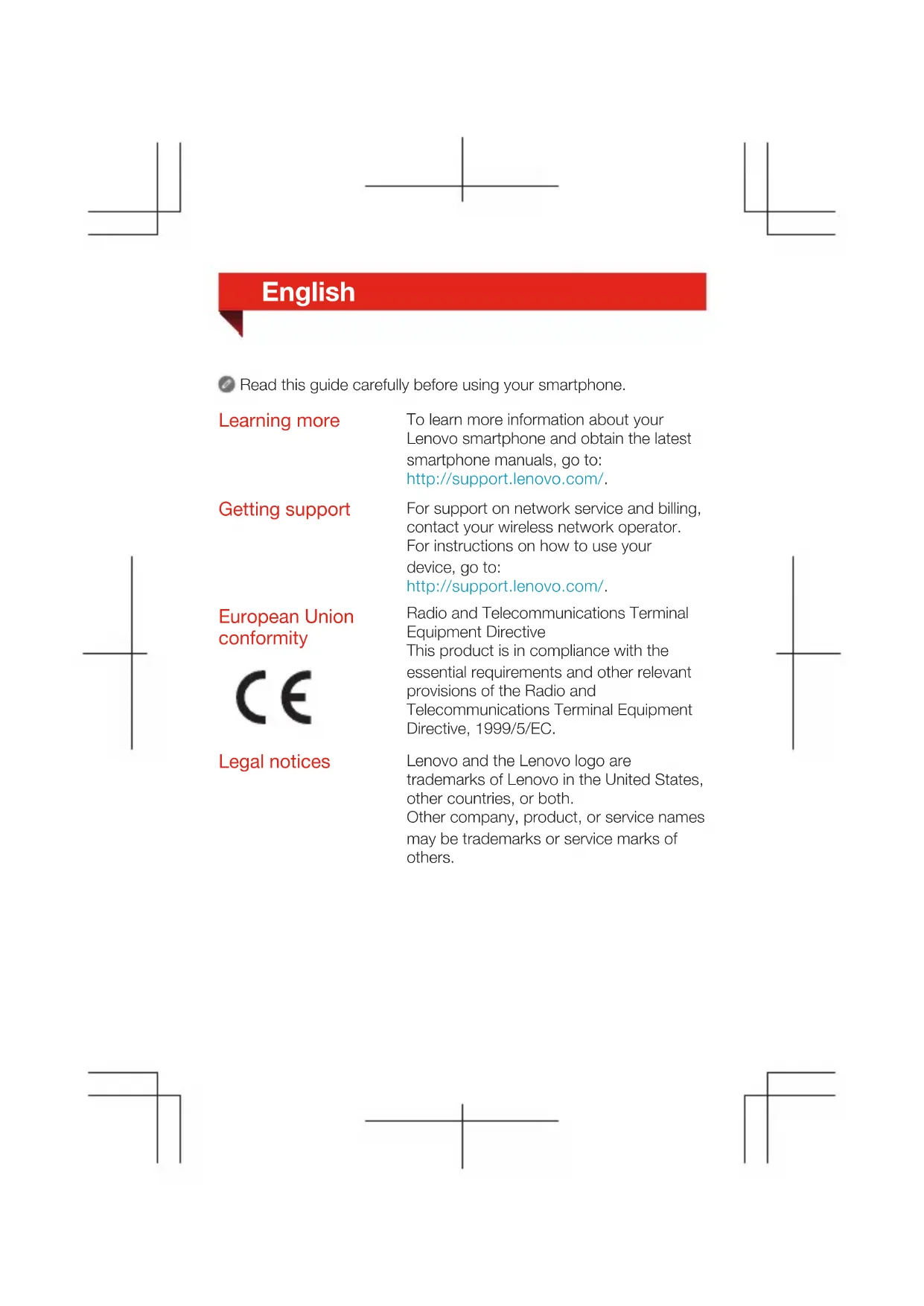

Read this guide carefully before using your smartphone.
Learning more
To learn more information about your Lenovo smartphone and obtain the latest smartphone manuals, go to: http://support.lenovo.com/.
Getting support
For support on network service and billing, contact your wireless network operator. For instructions on how to use your device, go to: http://support.lenovo.com/.
European Union conformity
Radio and Telecommunications Terminal Equipment Directive
This product is in compliance with the essential requirements and other relevant provisions of the Radio and Telecommunications Terminal Equipment Directive, 1999/5/EC.
Legal notices
Lenovo and the Lenovo logo are
trademarks of Lenovo in the United States,
other countries, or both.
Other company, product, or service names may be trademarks or service marks of others.
Technical specifications
Model and system
Model: Lenovo A536 System:Android
Dimensions and weight
Height: 139.6 mm (5.50 inches) Width: 72 mm (2.83 inches)
Depth: 9.95 mm (0.39 inch) Weight: Circa 148 g
Processor
CPU:MTK MT6582m,Quad Core,1.3 GHz
Camera
Type: CMOS
Pixels: 5 megapixels Auto focus (Rear)
2 megapixels Fix focus (Front)
Battery
Battery: 2000 mAh
Display
Size: 5.0 inches Screen: 2-touch
Resolution: 854 × 480 pixels LCD type: TN
Wireless Communication
Bluetooth 4.0; WLAN 802.11 b/g/n; WCDMA, GSM; GPS
① Depending on the measuring method, the dimensions and weight might vary slightly.

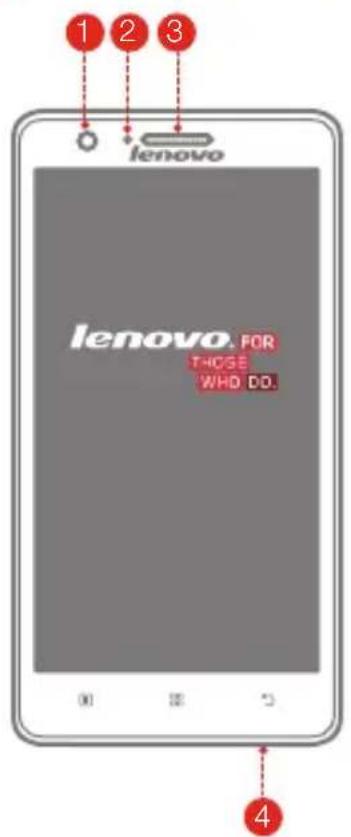

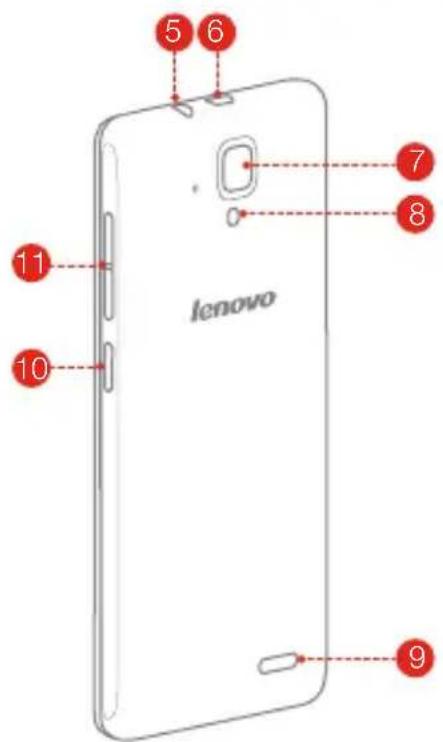

First glance
1 Front-facing camera
4 Microphone
7 Rear-facing camera
10 On/Off button
2 Indicator
5 Headset connector
8 Flashlight
Volume buttons
3 Receiver
Micro USB connector
9 Speaker
Preparing your smartphone
You must insert the SIM card provided by your carrier to use cellular services. Set up your smartphone as shown.
Step 1. Open the back cover.

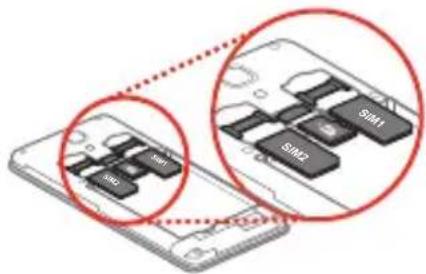

Step 2. Insert the SIM cards and the memory card.
Tip: Insert the (U)SIM card into SIM1 slot and SIM card into SIM2 slot.
Step 3. Install the battery.
a. Align the battery connectors on the battery with the pins in the battery compartment.
b. Push the battery down into place.
Step 4. Install the back cover.
Always turn off your smartphone first before you insert or remove a SIM card. Insert or remove a SIM card with your smartphone on may damage your SIM card or smartphone permanently.

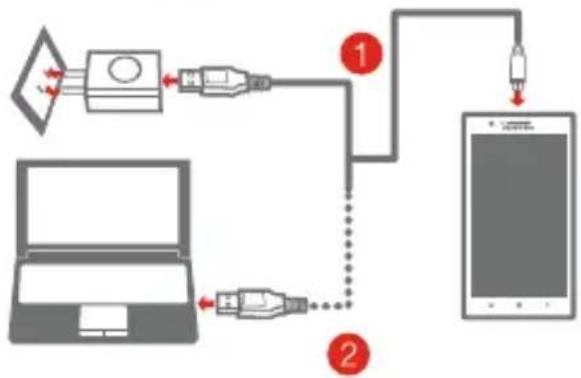

Charging the battery
Charge the battery as shown.
Method 1. Connect your smartphone to a power outlet using the cable and USB power adapter that come with your smartphone.
Method 2. Connect your smartphone to a computer using the cable that comes with your smartphone.
Low battery power
Fully charged
Charging
Turning on or turning off your smartphone
Turn on: Press and hold the On/Off button until the Lenovo logo appears.
Turn off: Press and hold the On/Off button for a few seconds, tap Power off and then tap OK.
Restart: Press and hold the On/Off button for about 10 seconds.
Your smartphone has a rechargeable battery. For more information about battery safety, see the "Rechargeable battery notice" in the Important Product Information Guide shipped with your smartphone.
