USER MANUAL VPLDX127 SONY

ProjectorStationforNetwork

ProjectorStationfor

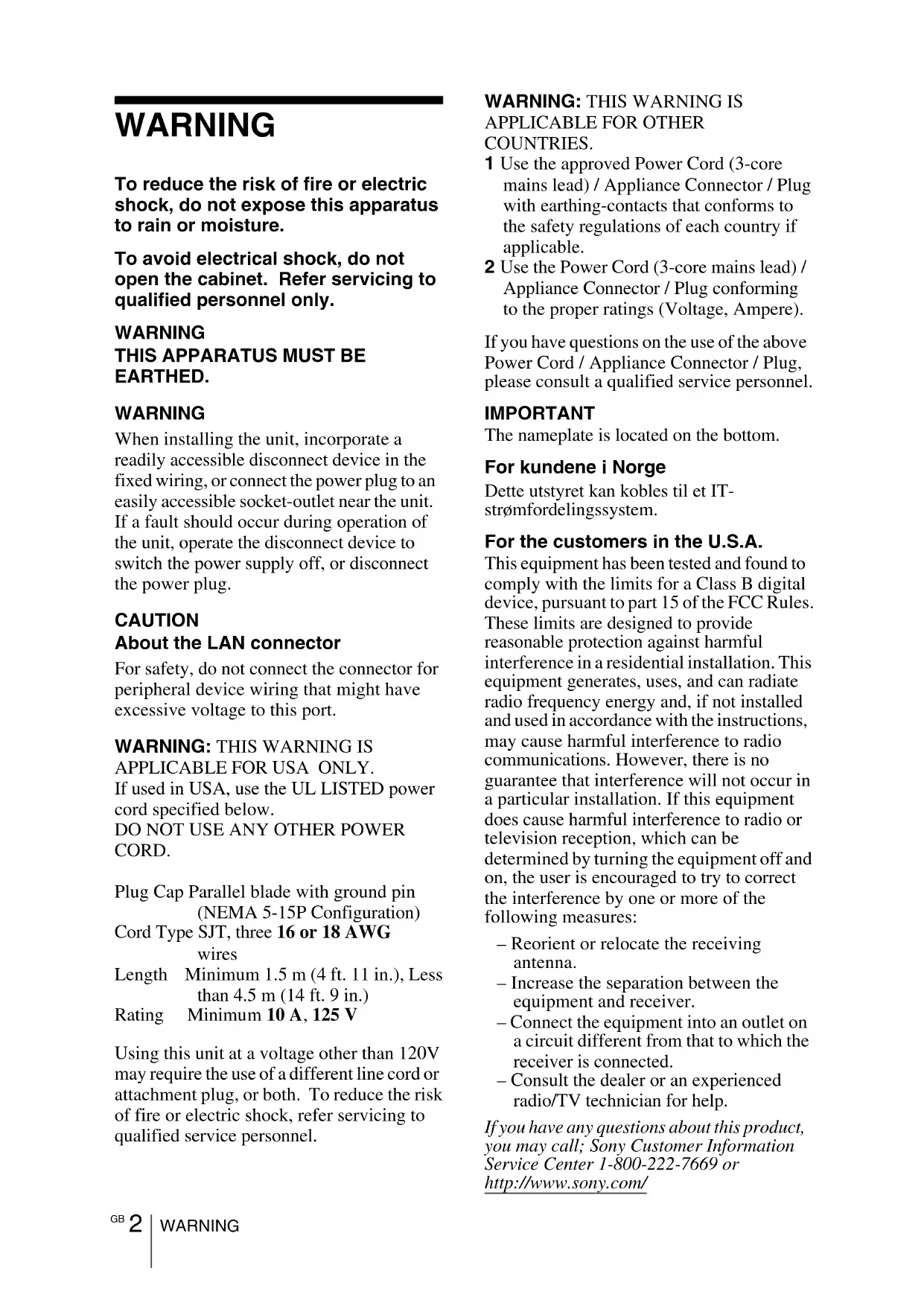

WARNING WARNING To reduce the risk of fire or electric

to rain or moisture.

To avoid electrical shock, do not

open the cabinet. Refer servicing to

qualified personnel only.

WARNING THIS APPARATUS MUST BE EARTHED.

WARNING When installing the unit, incorporate a

readily accessible disconnect device in the

fixed wiring, or connect the power plug to an

easily accessible socket-outlet near the unit.

If a fault should occur during operation of

the unit, operate the disconnect device to

switch the power supply off, or disconnect

CAUTION About the LAN connector

For safety, do not connect the connector for

peripheral device wiring that might have

excessive voltage to this port.

WARNING: THIS WARNING IS APPLICABLE FOR USA ONLY.

DO NOT USE ANY OTHER POWER CORD.

Plug Cap Parallel blade with ground pin

(NEMA 5-15P Configuration)

Cord Type SJT, three 16 or 18 AWG

Length Minimum 1.5 m (4 ft. 11 in.), Less

than 4.5 m (14 ft. 9 in.)

Rating Minimum 10 A, 125 V Using this unit at a voltage other than 120V

may require the use of a different line cord or

attachment plug, or both. To reduce the risk

of fire or electric shock, refer servicing to

qualified service personnel.

WARNING: THIS WARNING IS APPLICABLE FOR OTHER COUNTRIES.

1 Use the approved Power Cord (3-core

mains lead) / Appliance Connector / Plug

with earthing-contacts that conforms to

the safety regulations of each country if

2 Use the Power Cord (3-core mains lead) /

Appliance Connector / Plug conforming

to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above

Power Cord / Appliance Connector / Plug,

please consult a qualified service personnel.

IMPORTANT The nameplate is located on the bottom.

Dette utstyret kan kobles til et IT-

strømfordelingssystem.

For the customers in the U.S.A.

This equipment has been tested and found to

comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses, and can radiate

radio frequency energy and, if not installed

and used in accordance with the instructions,

may cause harmful interference to radio

communications. However, there is no

guarantee that interference will not occur in

a particular installation. If this equipment

does cause harmful interference to radio or

television reception, which can be

determined by turning the equipment off and

on, the user is encouraged to try to correct

the interference by one or more of the

– Reorient or relocate the receiving

– Increase the separation between the

equipment and receiver.

– Connect the equipment into an outlet on

a circuit different from that to which the

receiver is connected.

– Consult the dealer or an experienced

radio/TV technician for help.

If you have any questions about this product,

you may call; Sony Customer Information

Service Center 1-800-222-7669 or

http://www.sony.com/3

GB WARNING GB You are cautioned that any changes or

modifications not expressly approved in this

manual could void your authority to operate

All interface cables used to connect

peripherals must be shielded in order to

comply with the limits for a digital device

pursuant to Subpart B of part 15 of FCC Rules.

This device complies with part 15 of the

FCC Rules. Operation is subject to the

following two conditions: (1) This device

may not cause harmful interference, and (2)

This device must accept any interference

received, including interference that may

cause undesired operation.

For the customers in Canada

CAN ICES-3 (B)/NMB-3(B)

For the customers in Europe

This product has been manufactured by or

on behalf of Sony Corporation, 1-7-1 Konan

Minato-ku Tokyo, 108-0075 Japan.

Inquiries related to product compliance

based on European Union legislation shall

be addressed to the authorized

representative, Sony Deutschland GmbH,

Hedelfinger Strasse 61, 70327 Stuttgart,

Germany. For any service or guarantee

matters, please refer to the addresses

provided in the separate service or guarantee

For the customers in Taiwan only

For the State of California, USA only

Perchlorate Material - special handling may

www.dtsc.ca.gov/hazardouswaste/perchlorate

For the Customers in Brazil only

Responsible party : Sony Electronics Inc.

Telephone Number: 858-942-2230

This device complies with part 15 of the

FCC Rules. Operation is subject to the

following two conditions: (1) this device

may not cause harmful interference, and

(2) this device must accept any

interference received, including

interference that may cause undesired

For the customers in the U.S.A.

SONY LIMITED WARRANTY - Please visit

http://www.sony.com/psa/warranty

important information and complete terms

and conditions of Sony’s limited warranty

applicable to this product.

For the customers in Canada

SONY LIMITED WARRANTY - Please visit

http://www.sonybiz.ca/solutions/

Support.do for important information and

complete terms and conditions of Sony’s

limited warranty applicable to this

For the customers in Europe

Sony Professional Solutions Europe -

Standard Warranty and Exceptions on

Please visit http://www.pro.sony.eu/

warranty for important information and

complete terms and conditions.

For the customers in Korea

SONY LIMITED WARRANTY - Please visit

http://bpeng.sony.co.kr/handler/BPAS-

Start for important information and

complete terms and conditions of Sony’s

limited warranty applicable to this

• Check that the operating voltage of your

unit is identical with the voltage of your

local power supply. If voltage adaptation

is required, consult with qualified Sony

• Should any liquid or solid object fall into

the cabinet, unplug the unit and have it

checked by qualified Sony personnel

before operating it further.

• Unplug the unit from the wall outlet if it is

not to be used for several days.

• To disconnect the cord, pull it out by the

plug. Never pull the cord itself.

• The wall outlet should be near the unit and

• The unit is not disconnected from the AC

power source (mains) as long as it is

connected to the wall outlet, even if the

unit itself has been turned off.

• Do not look into the lens while the lamp is

• Do not place your hand or objects near the

ventilation holes — the air coming out is

• Be careful not to catch your fingers by the

front foot when you adjust the height of

the unit. Do not push hard on the top of the

unit with the front foot out.

• Avoid using an extension cord with a low

voltage limited since it may cause the

short-circuit and physical incidents.

• Do not catch your finger between the unit

and surface of the floor when moving the

projector installed on the floor.

• Do not carry the projector with the cabinet

on and with its cover open.

• Do not install the unit in a location near

heat sources such as radiators or air ducts,

or in a place subject to direct sunlight,

excessive dust or humidity, mechanical

• Never mount the projector on the ceiling

or move it by yourself. Be sure to consult

with qualified Sony personnel (charged).

• If the ventilation holes are blocked,

internal heat builds up, and it may cause a

fire or damage the unit. To allow adequate

air circulation and prevent internal heat

build-up, follow the items below:

• Leave space around the unit (page 6).

• Avoid using something to cover the

ventilation holes (exhaust/intake).

• Do not place the unit on surfaces such as

an original packing sheet, soft cloth,

papers, rugs, or scraps of paper. The

ventilation holes may take in such

• Do not place any object just in front of the

lens that may block the light during

projection. Heat from the light may

damage the object. Use the picture muting

function to cut off the picture.

On safetyGB 6 Precautions

• Do not use the Security bar for the purpose

of preventing theft for transporting or

installing the unit. If you lift the unit by the

Security bar or hang the unit by this bar, it

may cause the unit to fall and be damaged,

and may result in personal injury.

• Be sure to secure the cabinet cover firmly

when installing to the ceiling firmly.

• Never mount the projector on the ceiling

or move it by yourself. Be sure to consult

with qualified Sony personnel (charged).

• When installing the unit on a ceiling, be

sure to use a safety wire, etc., to prevent

the unit from falling. Entrust the

installation to an experienced contractor or

• When installing the unit, leave space

between any walls, etc. and the unit as

• Avoid using if the unit is tilted more than

15 degrees horizontally.

• Avoid using the unit in a location where

the temperature or humidity is very high,

or temperature is very low.

• Avoid installing the unit in a location

subject to direct cool or warm air from an

air-conditioner. Installing in such a

location may cause malfunction of the unit

due to moisture condensation or rise in

• Avoid installing the unit in a location near

a heat or smoke sensor. Installing in such a

location may cause malfunction of the

• Avoid installing the unit in a very dusty or

extremely smoky environment.

Otherwise, the air filter will become

obstructed, and this may cause a

malfunction of the unit or damage it.

Safety precautions for

installing the unit on a ceiling

On Installation More than 10 cm (4 inches)More than 30 cm (11

7 /8 inches)More than 30 cm (

• When using the unit at an altitude of 1,500

m or higher, set “High Altitude Mode” to

“On” in the Installation menu. Failing to

set this mode when using the unit at high

altitudes could have adverse effects, such

as reducing the reliability of certain

• Be sure to disconnect the AC power cord

from the AC outlet before cleaning.

• If you rub on the unit with a stained cloth,

the cabinet may be scratched.

• If the unit is exposed to volatile materials

such as insecticide, or the unit is in contact

with a rubber or vinyl resin product for a

long period of time, the unit may

deteriorate or the coating may come off.

• Do not touch the lens with bare hands.

• On cleaning the lens surface:

Wipe the lens gently-with a soft cloth,

such as a glass cleaning cloth. Stubborn

stains may be removed with a soft cloth

lightly dampened with water. Never use

solvent such as alcohol, benzene or

thinner, or acid, alkaline or abrasive

detergent, or a chemical cleaning cloth.

• On cleaning the cabinet:

Clean the cabinet gently with a soft cloth.

Stubborn stains may be removed with a

soft cloth lightly dampened with mild

detergent solution and wrung, followed by

wiping with a soft dry cloth. Never use

solvent such as alcohol, benzene or

thinner, or acid, alkaline or abrasive

detergent, or a chemical cleaning cloth.

To obtain the best picture, the front of the

screen should not be exposed to direct

lighting or sunlight.

The temperature of the projector’s cabinet

may increase during or immediately after

use; however, this is not a malfunction.

When using a screen with an uneven surface,

stripes pattern may rarely appear on the

screen depending on the distance between

the screen and the unit or the zooming

magnifications. This is not a malfunction of

Since the projector is equipped with a fan

inside to prevent internal temperature from

rising, there may be some noise. This is a

normal result of the manufacturing process

and does not indicate a malfunction. If,

however, in a case of abnormal noise,

consult with qualified Sony personnel.

The lamp used as a light source contains

mercury that has high internal pressure. A

high-pressure mercury lamp has the

following characteristics:

• Brightness of the lamp will be lowered as

the elapse of time used.

• The lamp may break with a loud noise as a

result of shock, damage, or deterioration

caused by the elapse of time. The lamp

may become unlit and may burn out.

• The lamp life varies with individual

differences or usage conditions of each

lamp. Therefore, it may break or will not

light even before the specified

• It may possibly break after the

replacement time has elapsed. Replace the

lamp with a new one as soon as possible if

a message displayed on the projected

image, even if the lamp normally lights.

This unit is precision equipment. When

carrying the unit, do not subject the unit to

shocks, or fall. It may damage the unit.

On cleaning the lens and the

The LCD projector is manufactured using

high-precision technology. You may,

however, see tiny black points and/or bright

points (red, blue, or green) that continuously

appear on the LCD projector. This is a

normal result of the manufacturing process

and does not indicate a malfunction. Also,

when you use multiple LCD projectors to

project onto a screen, even if they are of the

same model, the color reproduction among

projectors may vary, since color balance

may be set differently from one projector to

If the room temperature where the projector

is installed changes rapidly, or if the

projector is moved suddenly from a cold to a

warm place, condensation in the projector

may occur. As the condensation may cause

malfunction, be careful in adjusting

temperature settings of the air conditioner. If

condensation occurs, leave the projector

turned on for about two hours before use.

• Always verify that the unit is operating

GB Checking the Supplied Accessories Checking the Supplied Accessories RM-PJ8 Remote Commander (1)Lithium battery (CR2025) (1)The battery is already installed. Before using the remote commander, remove the insulation film.AC power cord (1)Mini D-sub 15 pin cable (1.8 m) (1) (1-970-584-11/Sony)Lens cap (1)Carrying case (1)Quick Reference Manual (this manual) (1)Operating Instructions (CD-ROM) (1)Projector Station for Network Presentation application (CD-ROM) (1)USB wireless LAN module IFU-WLM3 (1)Insert the supplied CD-ROM into the CD-ROM drive of your computer, and the CD-ROM will start automatically in a few moments. Select the Operating Instructions you want to read. If the CD-ROM does not start automatically, open the “index.html” file on the CD-ROM.You must have Adobe Acrobat Reader 5.0 or higher installed in your computer to read the Operating Instructions stored on the CD-ROM. 1 Close all running applications.

2 Insert the supplied CD-ROM into the

CD-ROM drive of the computer.

3 Open the CD-ROM and double-click

the .exe file. When the message “User Account Control” is displayed, click “Allow” or “Yes.” 4 Follow the on-screen instructions to

install the software.

Using the CD-ROM Manuals

Installing Projector Station

for Network PresentationGB 10 Checking the Supplied Accessories

1 Pull out the lithium battery

Pull out the battery compartment with a

stick as shown in the illustration.

2 Insert a lithium battery.

3 Close the lithium battery

CAUTION Danger of explosion if battery is incorrectly

Replace only with the same or equivalent

type recommended by the manufacturer.

When you dispose of the battery, you must

obey the law in the relative area or country.

Installing batteries

One lithium battery (CR2025) is supplied

for the RM-PJ8 Remote Commander. To

avoid risk of explosion, use a lithium battery

Installing Batteries With the 3 (plus) side facing up.11

GB Selecting the Menu Language Selecting the Menu Language The factory setting for the language for displaying menus, messages, etc. is English.To change the on-screen language, proceed as follows: 1 Plug in the AC power cord into a wall

2 Turn on the projector. Press the ?/1 key. 3 Press the MENU key to display the

menu. If the display cannot be properly seen, adjust the focus, size, and position of the projected image (page 16).

4 Select the menu language.

Press the V or v key to select the Operation ( ) menu then press the ENTER key. 2 Press the V or v key to select “Language ( )” then press the ENTER key. 3 Press the V/v/B/b key to select a language, then press the ENTER key.

5 Press the MENU key to turn off the

2 Language EnglishStatus OnStatus OnStatus Security Lock OffControl Key Lock OffOperationSel Set BackGB 12 Connecting the Projector

Connecting the Projector

You can connect the projector to external devices with an RGB or HDMI output connector. In

addition, you can use the following methods to connect the projector to external devices:

USB connector (Type B) ( )

For connecting to a computer with a USB connector (“Playing Video and Audio using USB Connection”).

USB connector (Type A) ( )

For connecting a USB memory device (“Using USB Media Viewer”).

For connecting to a computer, tablet PC, or smartphone via a hub or router (“Presentation

Function via Network”). USB A-B cable (not supplied)ComputerUSB connector (Type A)USB memory device (not supplied)LAN cable (straight type)(not supplied)Computer LAN connectorWired connectionTablet PC/SmartphoneComputerWireless connectionHub, router (wireless), etc.13

GB Connecting the Projector

USB connector (Type A) ( )

For connecting a USB wireless LAN module IFU-WLM3 (supplied) (“Presentation Function

• Undesignated USB wireless LAN modules do not work.

• When connecting/disconnecting the USB wireless LAN module, make sure that the projector is in

Standby mode (Standby Mode: “Low”), or the AC power cord is unplugged from the wall outlet.

• When wirelessly connecting a tablet PC/smartphone to the projector via USB wireless LAN Module IFU-WLM3 (supplied), set “Access Point Setup” to “Manual” in the projector’s “WLAN Settings”.

• The factory default settings for “Manual” are as follows.

SSID: VPL + MAC address for LAN Security Method: WEP(64bit)

Notes USB wireless LAN module IFU-WLM3 (supplied)Tablet PC/SmartphoneComputerGB 14 Projecting an Image

Projecting an Image The size of a projected image depends on the distance between the projector and screen. Install the projector so that the projected image fits the screen size. For details on projection distances and projected image sizes, see “Projection Distance.”

1 Plug the AC power cord into the wall

2 Connect all equipment to the

3 Press the ?/1 key to turn on the unit.

4 Turn on the connected equipment.

5 Select the input source. Press the INPUT key on the projector to display the menu for switching input signal on the screen. Press the INPUT key repeatedly, or press the V/v key to select an image to be projected. 6 When projecting a computer image,

switch your computer’s output to

external display. The method to switch the output varies depending on the type of computer.(Example)To project image files stored in a USB memory device, see “USB Media Viewer”. To play video and audio using USB Connection, see “Playing Video and Audio using USB Connection”. To use Presentation Function via Network, see “Presentation Function via Network”. For instructions regarding the above, refer to the Operating Instructions (CD-ROM). ComputerVideo equipmentProjectorWall outlet 1

GB Projecting an Image 7 Adjust the focus, size and position of

the projected image (page 16).

You can project JPEG images, PDF files, etc.

stored in a tablet PC/smartphone wirelessly

by using a specific application.

or detailed method of

using the application, access the following

http://PWPresenter.pixelworks.com *1: To use the application, one of the following conditions is required.• Connected to network where wireless connection can be established (page 12).• Connected to a wireless network via USB wireless LAN module IFU-WLM3 (supplied) that is connected to the projector (page 13).*2: Depending on your Internet connection, a data communication fee for downloading the application may apply. Displaying Images or Files

Sent from a Tablet PC/

SmartphoneGB 16 Projecting an Image

Adjusting the Projected image

Focus Size (Zoom) Position

Rear feet (adjustable)

GB Projecting an Image

Adjusting the tilt of the projector with the foot adjust button/rear feet

By changing the tilt of the projector with the foot adjust button/rear feet (adjustable), you can

adjust the position of the projected image.

1 Press and hold the foot adjust button,

then lift up the front of the projector to

When the desired angle is achieved,

release the foot adjust button to lock the

3 Set the angle of the projector precisely

by turning the rear feet (adjustable).

• Be careful not to let the projector down on your fingers.

• Do not push hard on the top of the projector with the front foot (adjustable) extended.

• Do not forcedly turn the rear feet (adjustable) more than they should be adjusted. Doing so may

Changing the aspect ratio of the projected image

Press the ASPECT key on the remote commander to change the aspect ratio of the projected

image. You can also change the setting in Aspect of the Screen menu.

NotesGB 18 Projecting an Image

Correcting trapezoidal distortion of the projected image (Keystone feature)

Keystone feature may not work automatically when the screen is tilted. In this case, set

1 Press the KEYSTONE key on the remote

commander or select V Keystone in the

2 Use the V/v/B/b the keys to set the value.

The higher the value, the narrower the top

of the projected image. The lower the

value, the narrower the bottom.

Since the Keystone adjustment is an electronic

correction, the image may be deteriorated.

Displaying a pattern

You can display a pattern for adjusting the projected image or a grid pattern with the PATTERN

key on the remote commander. Press the PATTERN key again to restore the previous image.

You can use a grid pattern as a guide to write text or to draw lines and shapes on the whiteboard

or blackboard without using a computer.

You cannot use this key when “Type A USB”, “Type B USB” or “Network” is selected as the input.

Automatically adjusts Phase, Pitch and Shift of projected image while a

signal is input from a computer (APA (Auto Pixel Alignment))

Press the APA key on the remote commander. Press again to cancel adjusting during the setting.

You can also set APA in the Screen Menu. If Smart APA in the Function menu is set to “On”,

executes APA automatically when a signal is input.

Note Increase the number towards plusIncrease the number towards minus Note19

GB Projecting an Image 1 Press the ?/1 key on the unit or the remote commander.

The projector starts shutdown and turns off. If you press the ?/1 key within 10 seconds of

the message being displayed, shutdown is canceled. Do not turn off the projector soon after the lamp lights. It may cause a malfunction of the lamp (does not light ,etc.). 2 Unplug the AC power cord from the wall outlet.

To turn off without displaying confirmation message

Press and hold the ?/1 key on the unit for a few seconds.

This gauge indicates the current effectiveness of the projector’s ECO function.

(For details on the ECO function, see “ECO MODE key” and “ECO.”)

The leaf icons are displayed when the projector is shut down. The number of displayed icons

varies according to how much energy is saved as a result of using the ECO function.

Turning Off the Power

Note ECO gaugeGB 20 Indicators

The indicators allow checking the status and notify you of abnormal operation of the projector.

If the projector exhibits abnormal status, address the problem in accordance with the table

Status Meaning/Remedies

Lights in red The projector is in Standby mode.

Flashes in green • The projector is ready to operate after having been turned on.

• The lamp cools after the projector is turned off.

Lights in green The projector’s power is on.

Lights in orange The projector is in With No Input (Lamp Cutoff).

Flashes in red The projector is in abnormal status. Symptoms are indicated by

number of flashes. Address the problem in accordance with the

following. If a symptom persists, despite having taken measures

below, consult with qualified Sony personnel.

Flashes twice The internal temperature is unusually high. Check the items below.

• Check if nothing is blocking the ventilation holes.

• Check if the air filter is not clogged. (page 23)

• Check if the Installation Attitude in the Installation menu is set

Flashes six times Unplug the AC power cord from a wall outlet. After checking that the

ON/STANDBY indicator goes out, plug the power cord to a wall

outlet again then turn on the projector.

Consult with qualified Sony personnel.

Status Meaning/Remedies

Flashes in red Symptoms are indicated by number of flashes. Address the problem in

accordance with the following.

Flashes twice The lamp cover is not attached securely. (page 21)

Flashes three times The temperature of lamp is unusually high. Turn off the power and

wait for lamp to cool then turn on the power again. If the symptom is

shown again, the lamp may be burnt out. In this case, replace the lamp

with a new one (page 21).21

GB Replacing the Lamp Replacing the Lamp Replace the lamp with a new one if a message displayed on the projected image.Use an LMP-D213 projector lamp (not supplied) for replacement.• The lamp remains hot after the projector is turned off. If you touch the lamp, you may burn your finger. When you replace the lamp, wait for at least an hour after turning off the projector for the lamp to cool sufficiently.• Do not allow any metallic or inflammable objects into the lamp replacement slot after removing the lamp, otherwise it may cause electrical shock or fire. Do not put your hands into the slot.• If the lamp breaks, contact qualified Sony personnel. Do not replace the lamp yourself.• When removing the lamp, be sure to pull it out straight, by holding the designated location. If you touch a part of the lamp other than the designated location, you may be burned or injured. If you pull out the lamp while the projector is tilted, the pieces may scatter if the lamp breaks any may cause injury. 1 Turn off the projector, and disconnect

the AC power cord from a wall outlet.

2 When the lamp has cooled

sufficiently, open the lamp cover by

loosening one screw. For safety reasons, do not loosen any other screws. 3 Loosen the two screws on the lamp

unit (1). Fold out the handle (2),

then pull out the lamp unit by the

3 Fold out the handle.GB 22 Replacing the Lamp Do not put your hands into the lamp replacement slot, and do not allow any liquid or other objects into the slot to avoid electrical shock or fire. 4 Insert the new lamp all the way in until

it is securely in place (1). Tighten the

two screws (2). Fold down the handle

to replace it (3). • Be careful not to touch the glass surface of the lamp and a inside conductor.• Insert the handle firmly to attach it securely.• The power will not turn on if the lamp is not secured properly. 5 Close the lamp cover and tighten the

6 Connect the AC power cord to a wall

outlet and turn on the projector.

7 Reset the lamp timer for notification of the next replacement time.Select “Lamp Timer Reset” on the Function menu then press the ENTER key. When a message appears, select “Yes” to reset the lamp timer. Disposal of the used lamp

For the customers in the USA Lamp in this product contains mercury.

Disposal of these materials may be

regulated due to environmental

considerations. For disposal or

recycling information, please contact

your local authorities or the

Telecommunications Industry

Association (www.eiae.org). CautionNotes 1

When a message appears on the projected image indicating time for a filter cleaning, clean the

If the dust cannot be removed from the air filter even after cleaning, replace the air filter with

a new one. For details on purchasing/fitting a new air filter, consult with the store where you

purchased the projector, or contact qualified Sony personnel. If you neglect to clean the air filter, dust may accumulate, clogging it. As a result, the temperature may rise inside the unit, leading to a possible malfunction or fire. 1 Turn off the projector, and disconnect

the AC power cord from the AC outlet.

2 Slide out and remove the air filter

cover from the unit.

3 Clean the air filter with a vacuum

Pull out and remove the air filter, and

clean it with a vacuum cleaner.

4 Reattach the air filter cover to the unit. Install the air filter with its open weave side facing the bottom of the unit, then place the air filter cover back in the unit.CautionAir filter cover Note ClawsAir filterFR

Luftfilter zu, was zu einer

Projector Station for Network
