USER MANUAL EasyClean FC8722 PHILIPS

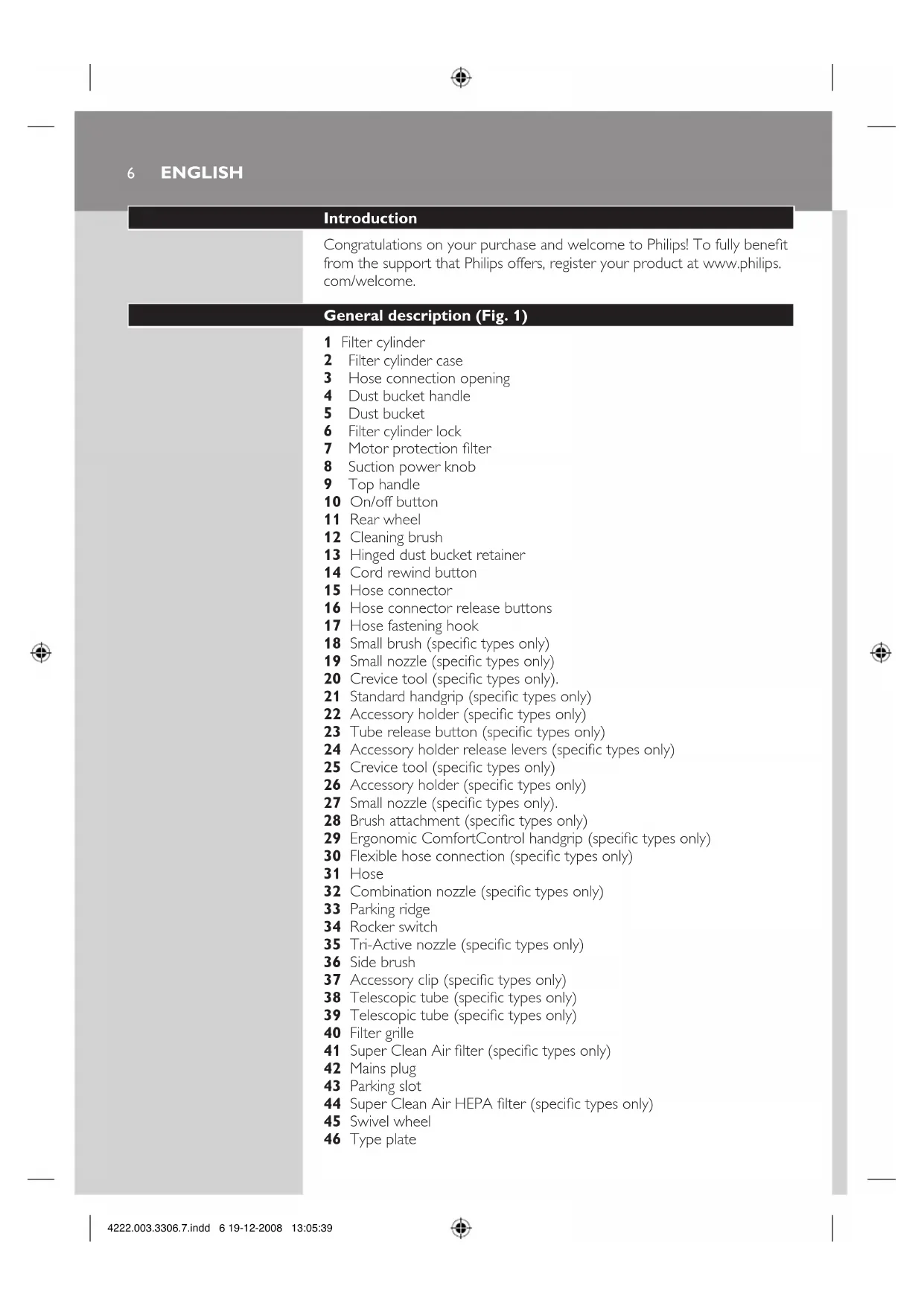

Congratulations on your purchase and welcome to Philips! To fully benet

from the support that Philips offers, register your product at www.philips.

Hose connection opening

Filter cylinder lock

13 Hinged dust bucket retainer

14 Cord rewind button

16 Hose connector release buttons

17 Hose fastening hook

18 Small brush (specic types only)

19 Small nozzle (specic types only)

20 Crevice tool (specic types only).

21 Standard handgrip (specic types only)

22 Accessory holder (specic types only)

23 Tube release button (specic types only)

24 Accessory holder release levers (specic types only)

25 Crevice tool (specic types only)

26 Accessory holder (specic types only)

27 Small nozzle (specic types only).

28 Brush attachment (specic types only)

29 Ergonomic ComfortControl handgrip (specic types only)

30 Flexible hose connection (specic types only)

32 Combination nozzle (specic types only)

35 Tri-Active nozzle (specic types only)

37 Accessory clip (specic types only)

38 Telescopic tube (specic types only)

39 Telescopic tube (specic types only)

41 Super Clean Air lter (specic types only)

44 Super Clean Air HEPA lter (specic types only)

Read this user manual carefully before you use the appliance and save it for

substances and do not suck up ashes until they are cold.

Check if the voltage indicated on the appliance corresponds to the

local mains voltage before you connect the appliance.

Do not use the appliance if the mains cord, the plug or the appliance

If the mains cord is damaged, you must have it replaced by Philips, a

service centre authorised by Philips or similarly qualied persons in

order to avoid a hazard.

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

Children should be supervised to ensure that they do not play with the

Do not point the hose, the tube or any other accessory at the eyes

or ears nor put it in your mouth when it is connected to the vacuum

cleaner and the vacuum cleaner is switched on.

Do not suck up large objects as this may cause the air passage in the

tube or hose to become obstructed.

When you use the vacuum cleaner to vacuum ashes, ne sand, lime,

cement dust and similar substances, the pores of the lter cylinder

become clogged. If you notice a strong decrease in suction power, clean

Never use the appliance if the lter cylinder, lter cylinder case and

the dust bucket are not properly installed or if the cover is not closed

Always unplug the appliance before you empty the dust bucket or

clean the lter cylinder.

Never use the appliance without the motor protection lter. This could

damage the motor and shorten the life of the appliance.

Only use the Philips lter cylinder supplied with the appliance.

Electromagnetic elds (EMF)

This Philips appliance complies with all standards regarding electromagnetic

elds (EMF). If handled properly and according to the instructions in this

user manual, the appliance is safe to use based on scientic evidence

ComfortControl handgrip (specic types only)

The unique ComfortControl handgrip is ergonomically designed to

give you sufcient comfort during vacuum cleaning.

To gain optimal benet from this handgrip, it is important that you do

not position your second hand on the tube. When you do so, you twist

and bend your back, which could result in back problems.

Our ergonomist advises you to adjust the length of the tube so that

the hand holding the standard handgrip is at hip level.

Attaching the ComfortControl handgrip (specic types only)

1 Attach the handgrip to the telescopic tube (‘click’).

2 To disconnect the handgrip from the tube, hold the handgrip with

one hand. With the other hand, hold the telescopic tube and press

the tube release button (1) and pull the tube off the handgrip (2).

Attaching the standard handgrip (specic types only)

1 To connect the telescopic tube to the handgrip, press the spring-

loaded lock button on the handgrip (1) and insert the handgrip into

the tube (2). Fit the spring-loaded lock button into the opening in the

2 To disconnect the tube from the handgrip, press the spring-loaded

lock button and pull the handgrip out of the tube.

4222.003.3306.7.indd 8 19-12-2008 13:05:43Hose

1 To connect the hose, insert the hose fastening hook into the opening

(1) and then push the hose connector downwards (‘click’) (2).

2 To disconnect the hose, press the release buttons (1) and pull the

hose connector out of the hose connection opening (2).

1 Positionthenozzleontheoorandholdthetubeatanangleof45°

2 Move the tube lock up or down until the handgrip is at hip level.

3 To connect the tube to a nozzle, press the spring-loaded lock button

on the tube and insert the tube into the nozzle. Fit the spring-loaded

lock button into the opening in the nozzle (‘click’).

To disconnect the tube from the handgrip, press the spring-loaded lock

button and pull the handgrip out of the tube.

1 Slide the accessory holder with accessories onto the handgrip

2 To detach the accessory holder, squeeze the release levers

together (1) and slide the accessory holder off the handgrip (2).

Accessory clip (specic types only)

The accessory clip can simply be snapped onto the tube.

You can snap the crevice tool and the small nozzle (specic types

only) onto the clip.

Accessory holder (specic types only)

The accessory holder can simply be snapped onto the handgrip.

You can store accessories in the accessory holder by pushing them into the

holder. To detach the accessories, pull them out of the holder.

You can store two accessories at a time in the accessory holder:

Please note the way in which the small nozzle must be placed in the

Crevice tool and small brush.

Crevice tool and small nozzle (specic types only)

1 Connect the crevice tool (1) or small nozzle (2) with or

without brush attachment (3) to the tube or directly to the handgrip.

Brush attachment (specic types only)

1 To assemble the brush attachment, slide it onto the bottom of the

small nozzle (‘click’).

2 To disassemble the brush attachment, slide it off the bottom of the

4222.003.3306.7.indd 11 19-12-2008 13:05:53Crevice tool, small nozzle and small brush (specic types only)

You can connect the crevice tool (1), the small nozzle (2) or the small

brush (3) directly to the handgrip or to the tube.

Tri-Active nozzle (specic types only)

The Tri-Active nozzle is a multi-purpose nozzle for carpets and hard oors.

The side brushes catch more dust and dirt at the sides of the nozzle

and allow you to clean better along furniture and other obstacles.

The opening at the front of the nozzle allows you to suck up larger

1 Usethehardoorsettingtocleanhardoors(forinstancefor

tiled,parqueted,laminatedandlinoleumedooring):pushtherocker

switch on top of the nozzle with your foot to make the brush strip

come out of the housing. At the same time, the wheel is lifted to

prevent scratching and to increase manoeuvrability.

2 Usethecarpetsettingtocleancarpets:pushtherockerswitchagain

to make the brush strip disappear into the nozzle housing. The wheel

is lowered automatically.

4222.003.3306.7.indd 12 19-12-2008 13:05:57Combination nozzle (specic types only)

You can use the combination nozzle on carpets (with the brush strips

folded in) or on hard oors (with the brush strips folded out).

1 Tocleanhardoors,pushtherockerswitchontopofthe

combination nozzle with your foot. The brush strips come out of the

2 To clean carpets, push the rocker switch again to make the brush

strips disappear into the nozzle housing again.

Pull the cord out of the appliance and put the mains plug in the wall

2 Press the on/off button to switch on the appliance.

During vacuuming, you can adjust the suction power with the suction

Use maximum suction power to vacuum very dirty carpets and hard

Use minimum suction power to vacuum curtains, table carpets, etc.

If you want to pause for a moment, insert the ridge on the nozzle into

the parking slot to park the tube in a convenient position.

4222.003.3306.7.indd 13 19-12-2008 13:06:00Cleaning and maintenance

Do not clean any parts of the appliance in the dishwasher.

Always switch off the appliance and unplug it before you remove and

Emptying the dust bucket

Empty the dust bucket as soon as the dust level has reached the round

disc of the lter cylinder case.

1 Disconnect the hose from the appliance.

2 Pull the dust bucket retainer downwards to release the dust bucket.

3 Grab the dust bucket handle and lift the dust bucket out of the

You can clean the dust bucket with cold tap water and some washing-up

6 Puttheltercylindercasebackintothedustbucketandputthe

bucket back into the appliance.

Makesureyouhaveinsertedtheltercylinderintotheltercylinder

case, otherwise it is not possible to close the dust bucket retainer.

Cleaning and maintenance of lters

Clean the lter cylinder every week.

lock(1)andlifttheltercylinderoutoftheltercylindercase(2).

oftheltercylinderdownwardsalongtheribs.

some washing-up liquid.

6 Ifyouwanttowashtheltercylinder,washitthoroughlywithonly

Do not use any soap, washing-up liquid or other detergent to clean the

lter cylinder. Let the lter cylinder dry completely before you reinsert it

dust bucket back into the appliance.

Motor protection lter

Clean the motor protection lter once a year.

4222.003.3306.7.indd 15 19-12-2008 13:06:061 Takethemotorprotectionlteroutoftheappliance.

If the motor protection lter is very dirty, you can also rinse it with cold tap

Do not use washing-up liquid or any other cleaning agent to clean the

motorprotectionlter!

Let the lter cylinder dry completely before you reinsert it into the

3 Pressthecleanmotorprotectionlterrmlybackintothelter

compartment to ensure that it is properly placed.

Super Clean Air lter (specic types only)

The Super Clean Air lter located in the back of the appliance has

electrostatically charged bres. These bres lter a large part of the smaller

particles from the exhaust air.

Replace the Super Clean Air lter every six months.

1 Opentheltergrille.

6 Closetheltergrille(‘click’).

Super Clean Air HEPA lter (specic types only)

Instead of with the Super Clean Air lter, some types are equipped with

the special Super Clean Air HEPA lter. This lter is able to remove 99.5%

of all particles down to 0.0003mm in size from the outlet air. This not only

includes normal house dust, but also harmful microscopic vermin such as

house dust mites and their excrements, which are well-known causes of

respiratory allergies.

Replace the Super Clean Air HEPA lter every six months.

You can replace this lter in the same way as the Super Clean Air lter.

Switch off the appliance and remove the mains plug from the wall

2 Press the cord rewind button to rewind the mains cord.

3 Always put the Tri-Active nozzle in the carpet setting when you store

it and prevent the side brushes from becoming bent.

4222.003.3306.7.indd 17 19-12-2008 13:06:134 Insert the ridge on the nozzle into the parking slot to attach the

nozzle to the appliance. Store the appliance in horizontal position,

withallwheelstouchingtheoor.

Ordering accessories and lters

If you have any difculties obtaining lters or other accessories for this

appliance, contact the Philips Consumer Care Centre in your country or

consult the worldwide guarantee leaet.

Philips lter cylinders are available under service number 4322 004

Super Clean Air lters are available under type number FC8032.

Super Clean Air HEPA lters are available under type number FC8044.

Do not throw away the appliance with the normal household waste

at the end of its life, but hand it in at an ofcial collection point for

recycling. By doing this, you help to preserve the environment.

If you need service or information or if you have a problem, please visit

the Philips website at www.philips.com or contact the Philips Consumer

Care Centre in your country (you nd its phone number in the worldwide

guarantee leaet). If there is no Consumer Care Centre in your country, go

to your local Philips dealer.

If you are unable to solve the problem by means of this troubleshooting

guide, contact the Consumer Care Centre in your country (see chapter

‘Guarantee & service’).

The suction power is

Make sure the suction power knob is in maximum position.

Perhaps the lter cylinder is dirty. Clean the lter cylinder.

Perahaps the other lters are dirty. Clean or replace the other lters.

4222.003.3306.7.indd 18 19-12-2008 13:06:14Problem Solution

To remove the obstruction, disconnect the blocked-up item and

connect it (as far as possible) the other way around. Switch on the

vacuum cleaner to suck the obstruction out of the blocked-up item.

The dust bucket retainer

Make sure you have inserted the lter cylinder properly into the lter

“World-Wide Guarantee”.
