USER MANUAL HWW 1400 VF INOX Güde

ENGLISH Please read the instructions carefully before starting the machine.

Service international 79

HWW1400VF

HWW1400VFINOX

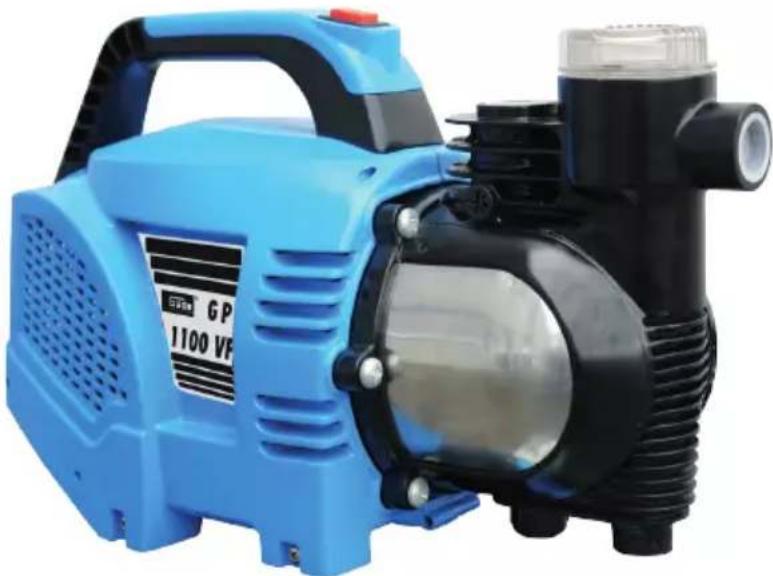

GP 1100VF

HWA1100VF

GP1100VF

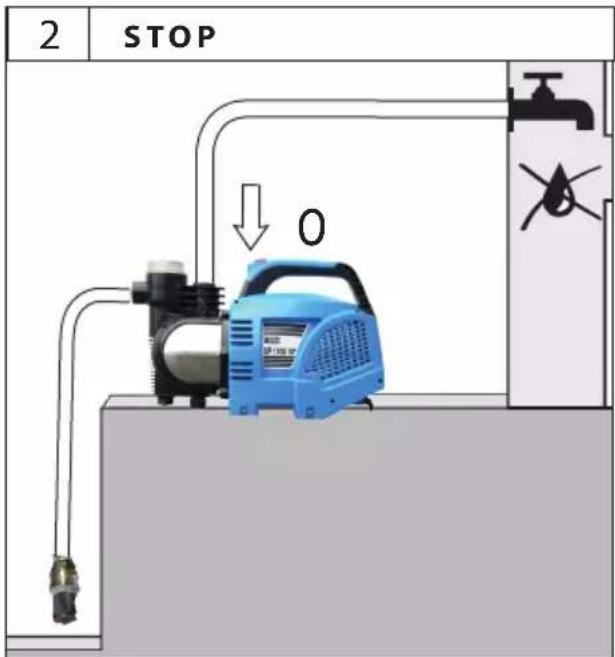

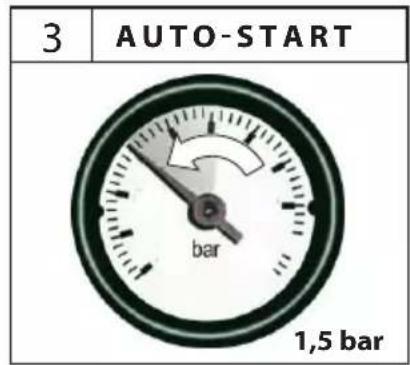

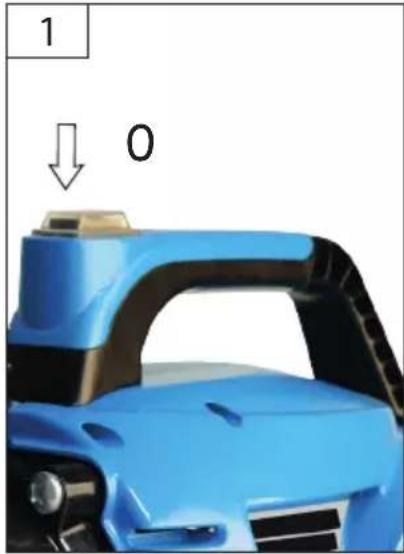

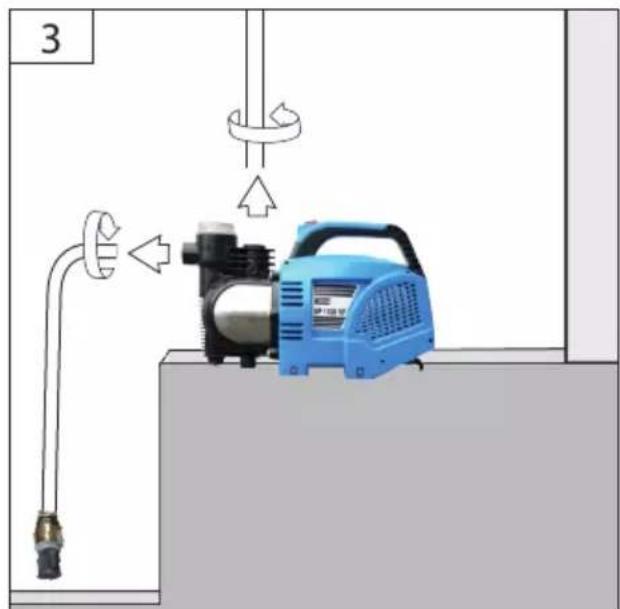

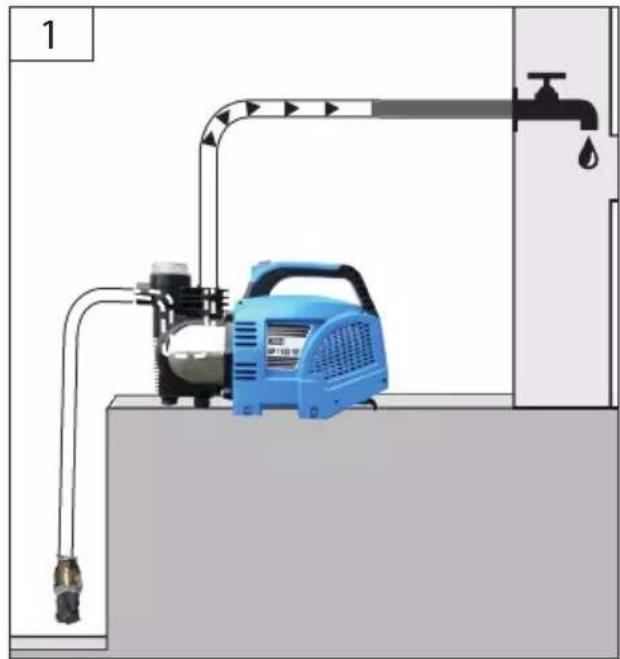

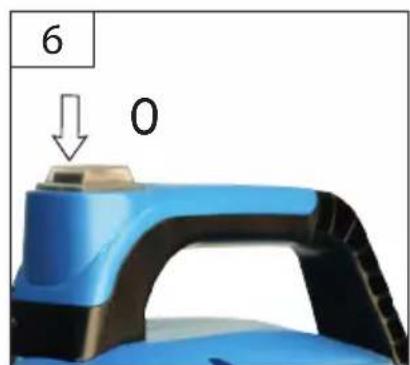

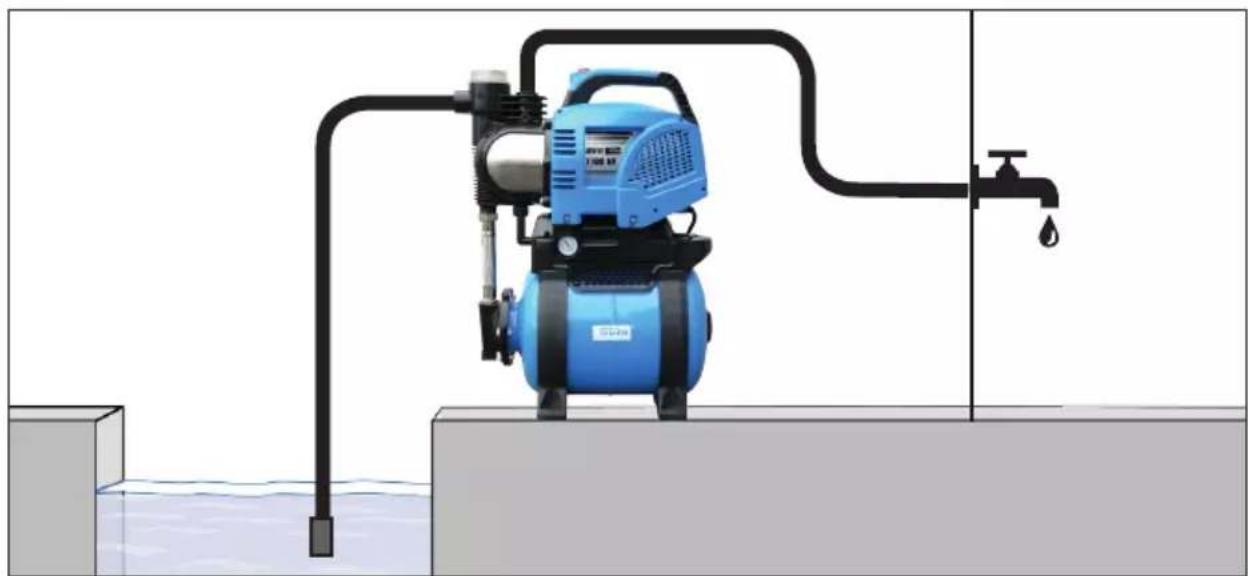

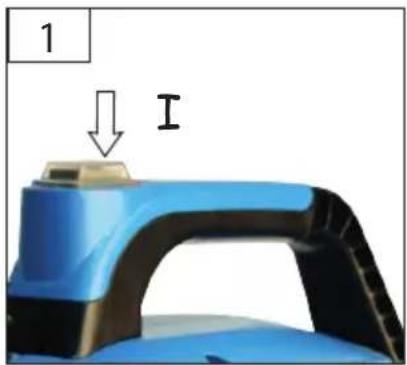

DE INBETRIEBNAHME HU UZEMBE HELYEZES

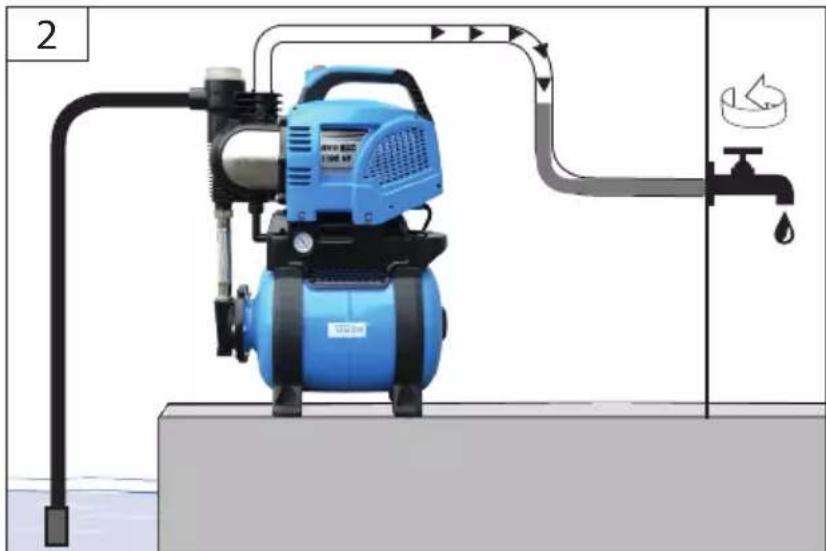

GB STARTING-UP THE MACHINE SI UVEDBAVPOGON

FR MISE EN SERVICE HR PUSTANJE U RAD

IT MESSA IN FUNZIONE BG IYCKAHE B DEICTBME

NL INBEDRIJFSTELLING RO PUNERAAIN FNCTI

CZ UVEDENI DO PROVOZU BA PUSTANJE U RAD

SK UVEDENIE DO PREVÁDZKY PL URUCHOMIENIE

2

3

GB The pump must not in any case run without fillings.

HWW 1400 VF·HWW 1400 VFINOX

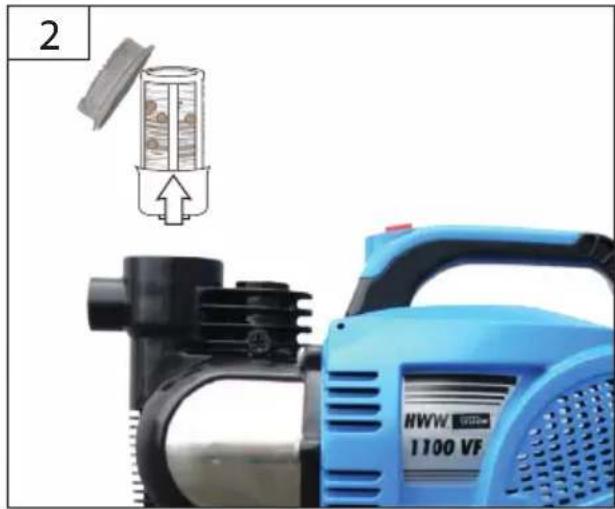

DE WARTUNG HU KARBANTARTÁS

GB MAINTENANCE SI VZDRŽEVANJE

FR ENTRETIEN HR ODRŽAVANJE

IT MANUTENZIONE BG ПОДРьЖKA

NL ONDERHOUD RO INTREŠINERE

CZ UDRŽBA BA ODRŽAVANJE

SK UDRZBA PL KONSERWACJA

GP1100VF HWA1100VF
HWW1400VF HWW1400VFINOX

HWW 1400VF

HWW 1400 VF INOX

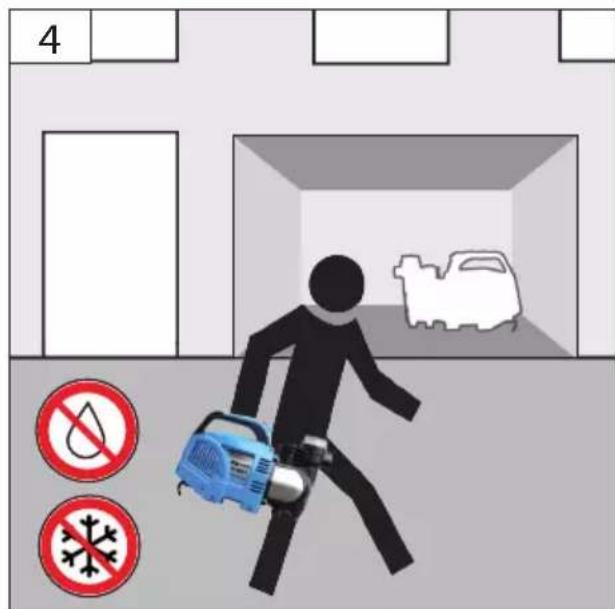

DE	TRANSPORT / AUFBEWAHRUNG	HU	SZÁLLITÁS / TÁROLÁS
GB	TRANSPORT / STORAGE	SI	TRANSPORT / SHRANJEVANJE
FR	TRANSPORT / STOCKAGE	HR	PRIJEVOZ / USKLADIŠTENJE
IT	TRASPORTO / STOCCAGGIO	BG	TPAHCPIOPTÍPAHE / CBXPAHEHNE
NL	TRANSPORT / BEWARING	RO	TRANSPORT / DEPOZITARE
CZ	PREPRAVA / ULOŽENİ	BA	PREVOZ / USKLADIŠTENJE
SK	TRANSPORT / ULOŽENIE	PL	TRANSPORT / PRZECHOWYWANIE

GP1100VF HWA1100VF
HWW1400VF HWW1400VFINOX

Technische Daten

Garden pump Domestic water supply system

Art.No 94228 94226
Service connection. 230V/50Hz 230V/50Hz
Motor output P1. 1100W 1100W
Max. delivered quantity 3600 l/h 3600 l/h
Max. head of delivery 45 m 45 m
Max.suction head. 8m .8m
35°C Max. Water temperature 35°C 35°C
Hose connection. 1"IG .1"IG
IPX4 Degree of protection. IPX4 IPX4
Weight. 12,5 kg 14,5 kg
Sound power level. 90 dB. 90 dB

Domestic water supply unit

HWW 1400 VF HWW 1400 VF INOX

Art.No 94231 94232
Service connection. 230V/50Hz 230V/50Hz
Motor output P1. 1400 W. 1400 W
Max. delivered quantity 3900 l/h 3900 l/h
Max. head of delivery 45 m. 46 m
Max.suction head. 8m.
35°C Max. Water temperature 35°C 35°C
Hose connection. 1"IG.. 1"IG
IPX4 Degree of protection. IPX4 IPX4
Weight. 20,8 kg 19,5 kg
Sound power level. 90 dB. 90 dB
tank capacity. 241 241

Read and understand the operating instructions before using the appliance. Abide by all the safety

measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The pump is designed for pumping clean water only to supply the home with water and to use it at home, in garden, courtyard and for fields. Respecting technical data and safety precautions.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

The pump is not suited for long-run operation (e.g. as a circulation pump in ponds or streams).
When used in this manner, its service life is curtailed correspondingly. In these cases, then, use a time switch to secure sufficient idle periods between cycles of operation.
Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it.
Do not use the pump for drinking water!
The pump must not be connected to the existing water-supply network as a pressure-boosting device.
Never use the pump as a pool circulation pump.

Safety Instructions

WARNING!

Electric shock! There is a risk of an injury caused by electric shock!

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Children should be supervised to ensure that they do not play with the device. Always keep children and unauthorised persons out of reach of the appliance.

Operation is only allowed with a safety switch against stray current (RCD max. stray current of mA).

Before putting into operation, a qualified electrician must check whether electric safety measures required are in place. Any national regulations in this regard must be complied with.

Electric connection to a socket.

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

It is necessary to make sure the connecting socket was not near water and humidity and the plug was protected against humidity.

Avoid installing the appliance in wet shafts (risk of short circuit, corrosion effects)!

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Only use splash proof extension cables approved for outdoor purposes.

Do not grab the feeder cable, plunge the pump, lift or carry it while it is connected to the grid!

Check the cable and/or socket for damages before the appliance putting into operation.

To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself.

Protect the feeder cable from excessive temperatures, oil and sharp edges.

If the pump is in operation, neither people nor animals can be present or plunged in the pumped pool (e.g. pools, cellars, etc.).

The pump must not in any case run without lungs.

Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it.

The temperature of the drained liquid must not exceed +35^

When using the pump for domestic water supply, alwaysobserve the local regulations of water managementauthorities and the waste water drainage.

If the pump is used in ponds, wells, etc. and appropriate pumping stations, standards valid for pumps in the given country must unconditionally be observed.

Do not use pump at outside temperatures over 40^ or under 0^

In cold weather, the pumping body motor should not be wrapped in a blanket or another piece of textile with intent to prevent the water freezing.

The user is responsible to third parties if pump (dumping stations, etc.) is used.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

Before carrying out any work on the machine, disconnect the plug from the socket.

Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug.

The machine must not be used under any circumstances if the machine or the safety devices are damaged.

Refer all servicing to customer service. Use only original accessories and original spare parts.

Caution: Standing water may corrode (brownish colour) in the pump according to design.

At winter storing, it is necessary to make sure there is no water in the appliance as the frost could damage the appliance. Prior to transportation, it is necessary to unplug the pump from the grid! The device has to be completely emptied and stored with frost-proof protection. Adhesion of mechanical seals can be prevented if you rinse the pump with appropriate oil (for example, with vegetable oil).

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

Guarantee claims as per guarantee card attached.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee..

GüDE cannot be held responsible for damages incurred in consequence of unqualified installation or unskilled handling of the pump.

The device has to be checked on a regular basis to ensure perfect functioning.

Let us refer to the fact we do not assume any responsibility - according to standards in force - for damage eventually caused by our appliances in the below-mentioned cases:

• Unprofessional repairs executed by unauthorised service centres;
• Use in conflict with the designed purpose, or failure to observe the use as designed;
• Pump overload with a continuous run;
• Damage as a result of icing or any other fault caused by climatic influences;
  Identical regulations apply for accessory parts.

To prevent damage (such as flooded rooms, etc.) as a result of faulty pump operation (failure or fault) the owner (user) is obliged to take reasonable safety measures (alarm assembly, spare pump, etc.).

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guide.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art.No:

Year of production:

Symbols

Read the Operating Instructions

Before carrying out any work on the machine, disconnect the plug from the socket.

Cable pulling / transport prohibited

Staying in the transportation medium prohibited

Warning against dangerous electric voltage

Warning against automatic starting

Accessory - Not included in standard equipment, available as an accessory.

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

Inspection and maintenance plan

Time interval Description Any other details

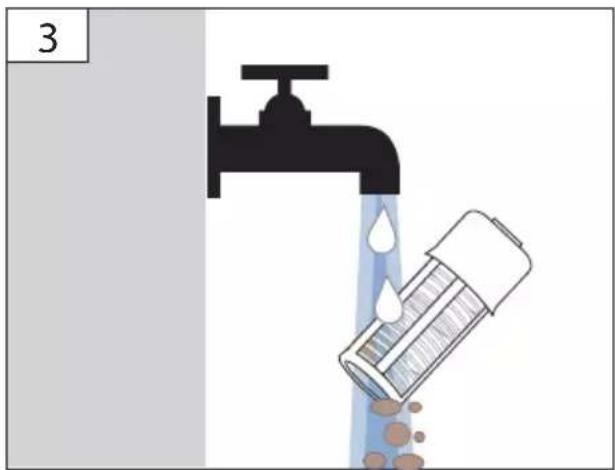

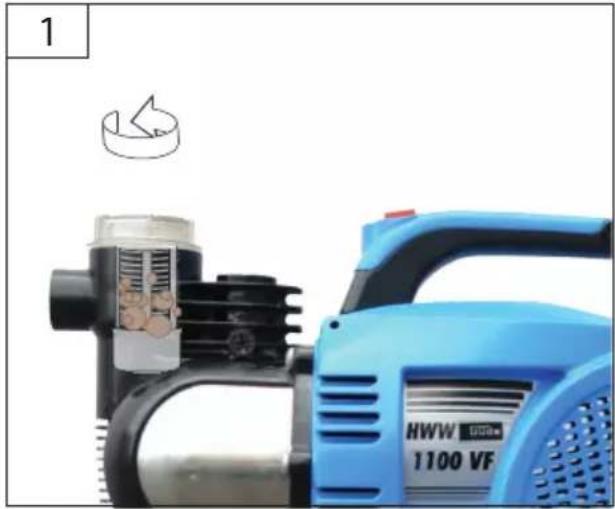

As needed Clean the check valve and the prefilter. Check the check valve function.

Failures - causes - removal

Failures Causes Removal
Engine does not start No power supply. Blocked pump wheel		Turn the engine shaft with screwdriver through the fan cover (to release friction circles sealing that may be stuck together).
Pump does not suck Missing, loose or blocked check valve Check valve is not in water. Pump without water Too high suction head. Air bubbles in the suction pipeline. Connections not sealed, pump sucks air, pump is notdeaerated. Prefilter clogged		Fix or clean the check valve. Immerse the check valve into water. Fill the pump shell with water. Check the suction head. Check the tighten of suction pipeline. Carefully repeat connection according to the chapter „Connection"! Clean the prefilter.→10
Thermal detector swit-ching the pump off →4	Pump is overheated and switched off by the thermal overloading protection. No electric power supply. Impurity particles (e.g. pebbles) have settled down in the suction hole.	Let the device getting cool! Check power supply. Disassemble and clean the suction hose, prevent from suction of foreign substances.
Insufficient amount of water pumped	Too high suction head. Strainer of the check valve dirty Water level quickly drops down	Check the suction head. Clean the strainer., Position the check valve lower. Clean the prefilter 10→10 Clean the pump and replace worn parts. (qualified workshop)

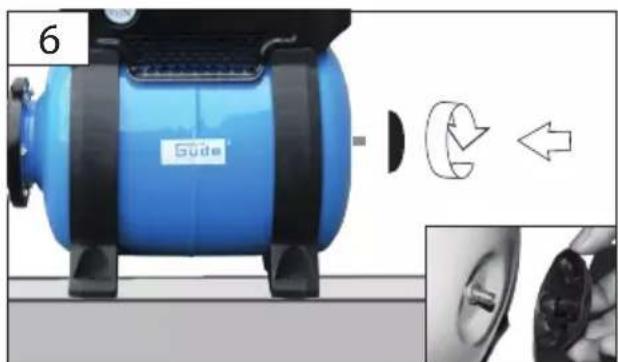

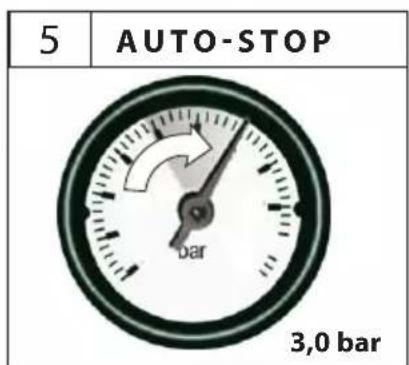

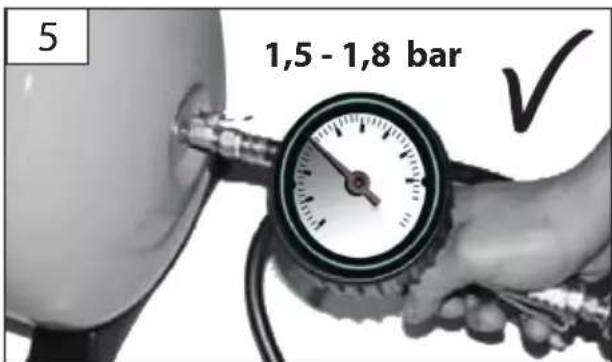

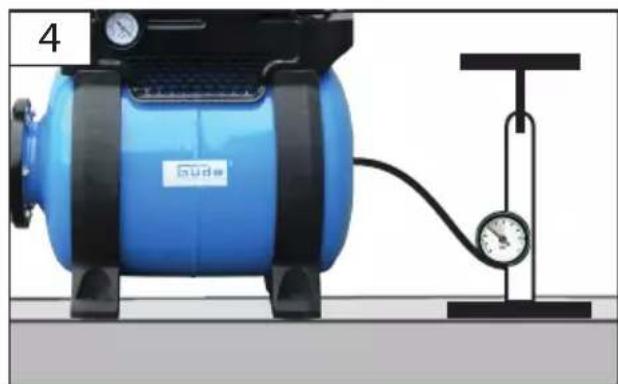

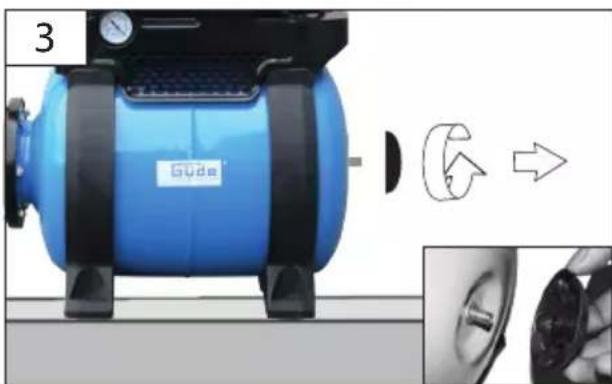

Reduced switching intervals	Air pressure in the receiver too low Control air pressure. →11

\section*{Caracteristiques Techniques}

Hnkora He xbaaaiTe 3a Ka6ena nomna BknUoyeha Bmpexkata, He notanayte n He yBnraTe e npehacryTe!

Ipei BkIOUbaHe Ha ypea B eKcNIOaTaun npOBepTe, daH He e Nobpehen eEeKtpueckn Ka6en nn uencelHaT a Kytn.

3a da ce npedotbpaTt ONachoctn, nobpeheny CbeHNHTeH INPOBdNk Tp6Ba Da ce 3aMeHn OT npOn3BOdnten.. B HNKaKbB CnyaH He N3BbPbWbAitc CaMOBOLH peMOHTn.

IanaTe Ka6eNa nped npekomepn TemnepaTpyn, Macno n octpn pb60be

Korato nomnata pa6OTN B n3nombaHaTa TeuhoCT Tp6Ba Da ce HAMpaT nn Da ce NotanrB He Ta HTO XNBOTHN (Hap. 6aceHN, Ma3n NT.H.).

B HnkaBb CnyaH nomnata He 6nBa da BoTn Ha cyxo.

He n3non3BaIte nomnata 6e3 Ha3Op, 3a da npedOTbpaITe nocneBbIu utn B pe3yIiTat

Ha eBeHTyaJIHn IORpeuHn FyHKuHn. KoraTo He n3NoJI3BaTe NOMNaTa 3aIbJIxKITeJIHO Y N3KJIIOUeTe OT MpeXaTa.

TemnepaTypaHaH3NOMnBaHaTaTeuHOCTHe Tp6Ba da HaBn+35°C.

Pn n3no3BaHeTo Ha nomnata 3a DomaHOn CHa6JaBaHe C BODa Tp6Ba Da ce Cna3BaT MeCTHInTe pa3Nope6n Ha HnCTHTuCnTE 3a CTOnaHnCBAHe C BODaTa N3nyCKaHETo Ha OTnAbYHnTE BODn.

Korato NOMnata ce n3noJI3Ba B e3epa, KlaedeHcN I T.H. IN B CbOTBETHN BOIOIPOBOIDH CTaHcN HeIpemEHHO Tp6Ba Da ce cna3BaT cbIeCTByBaUHTe HOpMn 3a yNoTpe6a Ha NOMn B daJeHaTa dbPxJaBa.

He ynoTpe6raBte nomnata npn BbHnH TemnepaTpyn noD 0^ nnnn ha4 40^

Motopa Ha nomnata npi ctydeHo BpeMe HNKORA He Tp6Ba Da ce 3aBbBA B OeJna IIN DpyrN TbKaHn CbC 3AmcBn Da ce ppeDTBpaTn 3ampb3BaHe Ha BOdaTa.

Iotppe6nteYOTROBAPcnpmo TpeTn Iua ce OTHacr do ynotpe6ata Ha nomnata (BOOONPOBOHn CTAHUN N T.H.)

EC-DECLARATION OF CONFORMITY

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

DECLARATION CE DE CONFORMITE

PROHLASENI O SHODE EU

Kolarov Technologic O.O.D.

Jordan Bogdar 4

BG-8800 Sliven
