USER MANUAL HWW 1400 VF Güde

Two blue industrial pumps with black and white branding, shown from different angles (no visible text or symbols)

GP 1100 VF

94228

HWA 1100 VF

94226

HWW 1400 VF

94231

HWW 1400 VF INOX

94232

Güde

®

GEWÄHRLEISTUNG GUARANTEE GARANTIE GARANZIA GARANTIE ZÄRUKA ZÄRUKA JÖTÄLLÁS

Blue and black industrial pump device with control panel (no visible text or symbols)

GP 1100 VF

Blue industrial pump with black control panel and digital display (no visible text or symbols)

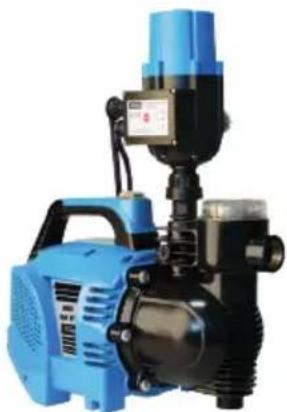

HWA 1100 VF

Blue and silver industrial air purifier with control panel and pressure gauge (no visible text or symbols)

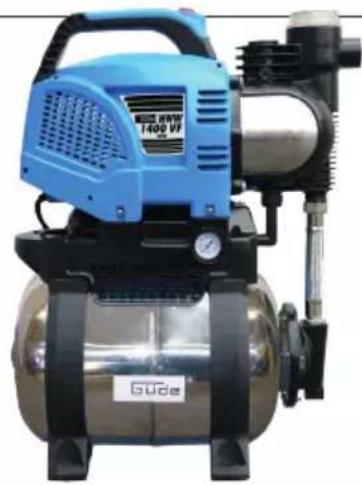

HWW 1400 VF HWW 1400 VF INOX

ENGLISH Please read the instructions carefully before starting the machine.

Service international 79

Blue industrial pressure vessel with control panel and mechanical components (no visible text or symbols)

HWW 1400 VF

Blue and silver industrial engine pump unit (no visible text or symbols)

HWW 1400 VF INOX

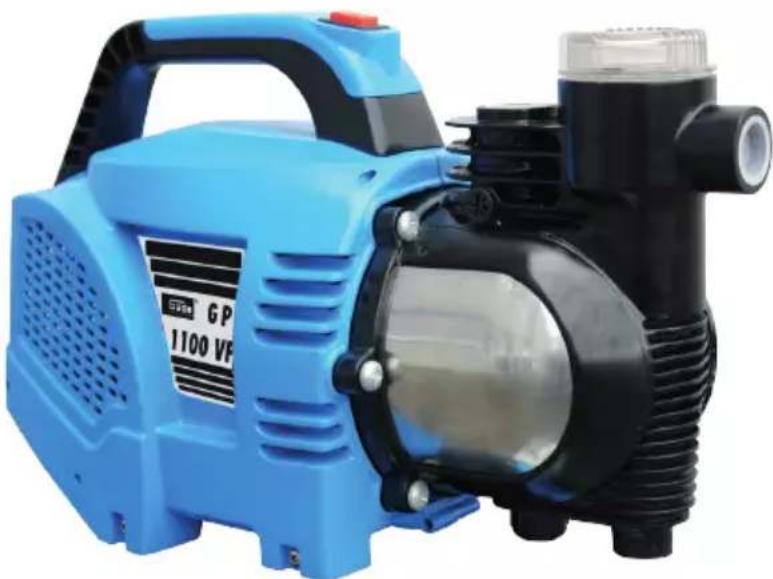

GP 1100VF

Blue industrial pump with black control panel and digital display (no visible text or symbols)

HWA 1100 VF

Blue industrial water purifier with black and white casing, no visible text or symbols on the device body

GP 1100 VF

DE INBETRIEBNAHME

GB	STARTING-UP THE MACHINE	SI	UVEDBA V POGON
FR	MISE EN SERVICE	HR	PUŠTANJE U RAD
IT	MESSA IN FUNZIONE	BG	ПУСКАНЕ В ДЕЙСТВИЕ
NL	INBEDRIJFSTELLING	RO	PUNEREA ÎN FUNCTIUNE
CZ	UVEDENÍ DO PROVOZU	BA	PUŠTANJE U RAD
SK	UVEDENIE DO PREVÁDZKY	PL	URUCHOMIENIE

HU ÜZEMBE HELYEZÉS

Blue industrial pump with mechanical components and a downward arrow indicating force or motion (no text or symbols)

2

DE ANSCHLUSS

GB	SERVICE CONNECTION	SI	PRIKLJUČEK
FR	ALIMENTATION	HR	PRIKLJUČAK
IT	ALLACCIAMENTO	BG	ПРИСЬЕДИНЕНИЕ
NL	AANSLUITING	RO	RACORD
CZ	PŘÍPOJKA	BA	PRIKLJUČAK
SK	PŘÍPOJKA	PL	PODŁĄCZENIE

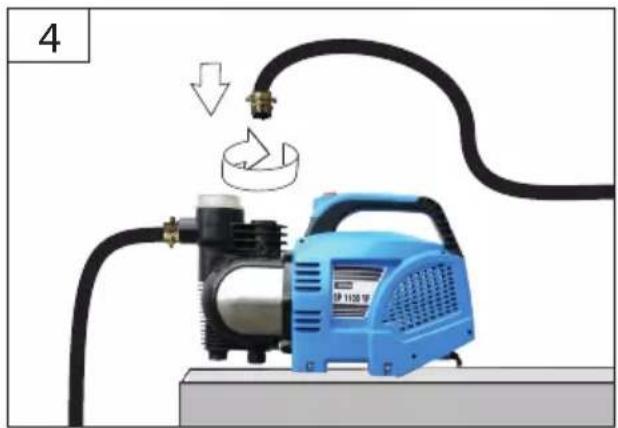

Close-up of a blue industrial pump with attached pipe fittings and valve (no visible text or symbols)

3

Close-up of a blue industrial pump with a thermometer above it, no visible text or symbols on the equipment itself.

4

DE BETRIEB HU ÜZEMELTETÉS

GB OPERATION SI DELOVANJE

FR FONCTIONNEMENT HR RAD

IT ESERCIZIO BG PABOTA

NL GEBRUIK RO FUNCTIONARE

CZ PROVOZ BA	RAD
SK PREVÁDZKA PL	EKSPLOATACJA

START STOP

5

DE WARTUNG

GB MAINTENANCE	SI VZDRŽEVANJE
FR ENTRETIEN	HR ODRŽAVANJE
IT MANUTENZIONE	BG ПОДДРЪЖКА
NL ONDERHOUD	RO ÎNTRETINERE
CZ ÚDRŽBA BA ODRŽAVANJE
SK ÚDRZBA	PL KONSERWACJA

Blue industrial pump with a wrench above it, no visible text or symbols

9

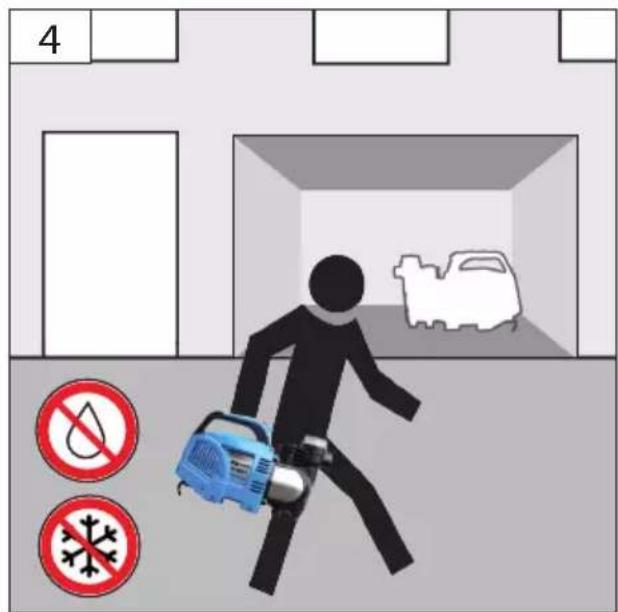

Silhouette of a person running with a blue device, next to a white car silhouette (no text or symbols)

10

	DE INBETRIEBNAHME HU ÜZEMBE HELYEZÉS
	GB STARTING-UP THE MACHINE SI UVEDBA V POGON
	FR MISE EN SERVICE HR PUŠTANJE U RAD
	IT MESSA IN FUNZIONE BG ПУСКАНЕ В ДЕЙСТВИЕ
	NL INBEDRIJFSTELLING RO PUNEREA ÎN FUNCTIUNE
	CZ UVEDENÍ DO PROVOZU BA PUŠTANJE U RAD
	SK UVEDENIE DO PREVÁDZKY PL URUCHOMIENIE

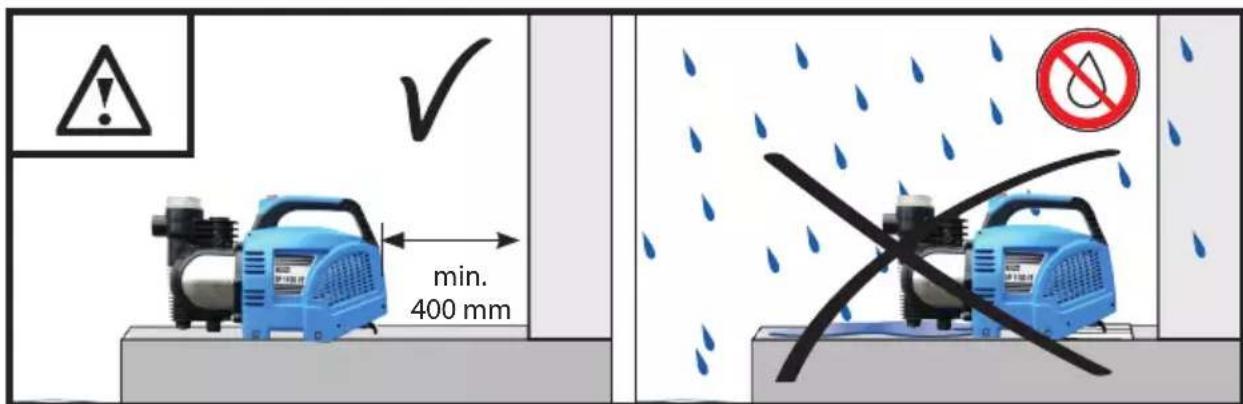

> 0° | < 40°

V min. 400 mm

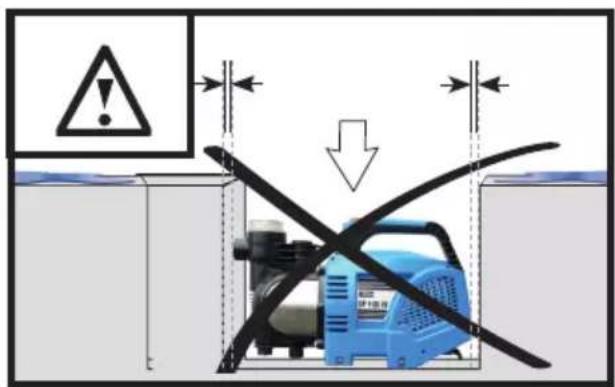

Safety warning diagram showing hazard and safety symbols for a mechanical device inside a water tank

DE	ANSCHLUSS	HU	FESZÜLTSÉG
GB	SERVICE CONNECTION	SI	PRIKLJUČEK
FR	ALIMENTATION	HR	PRIKLJUČAK
IT	ALLACCIAMENTO	BG	ПРИСЬЕДИНЕНИЕ
NL	AANSLUITING	RO	RACORD
CZ	PŘÍPOJKA	BA	PRIKLJUČAK
SK	PRÍPOJKA	PL	PODŁĄCZENIE

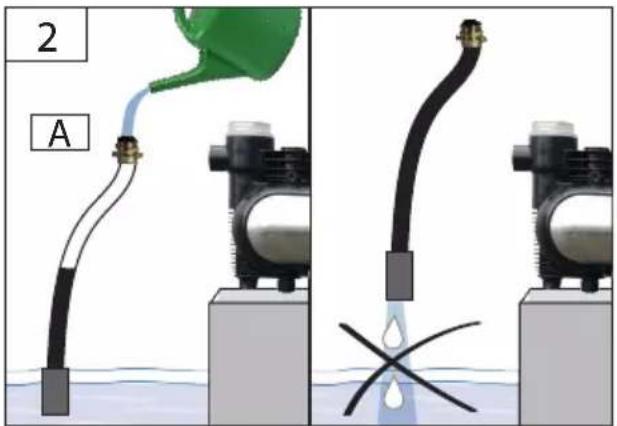

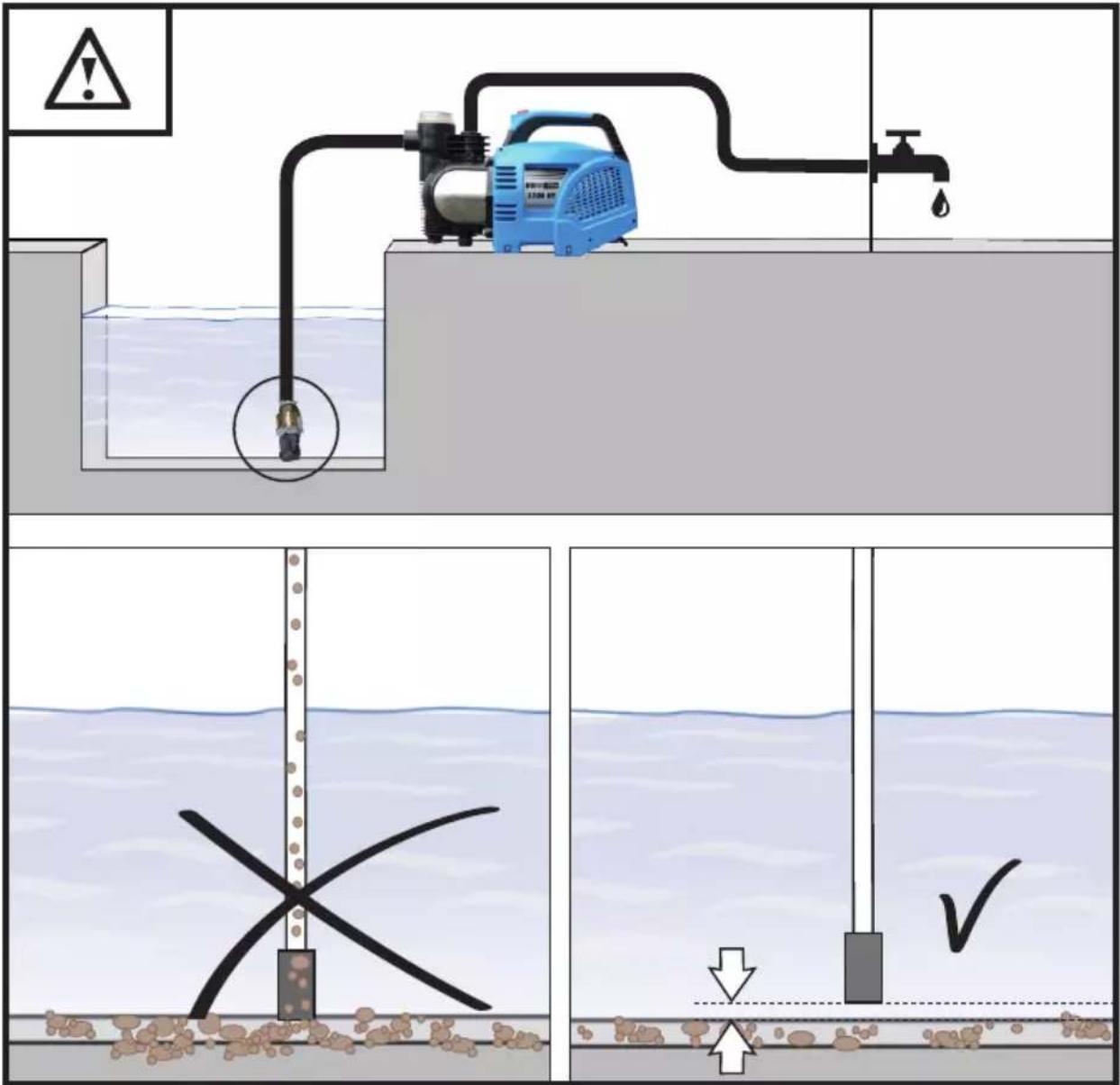

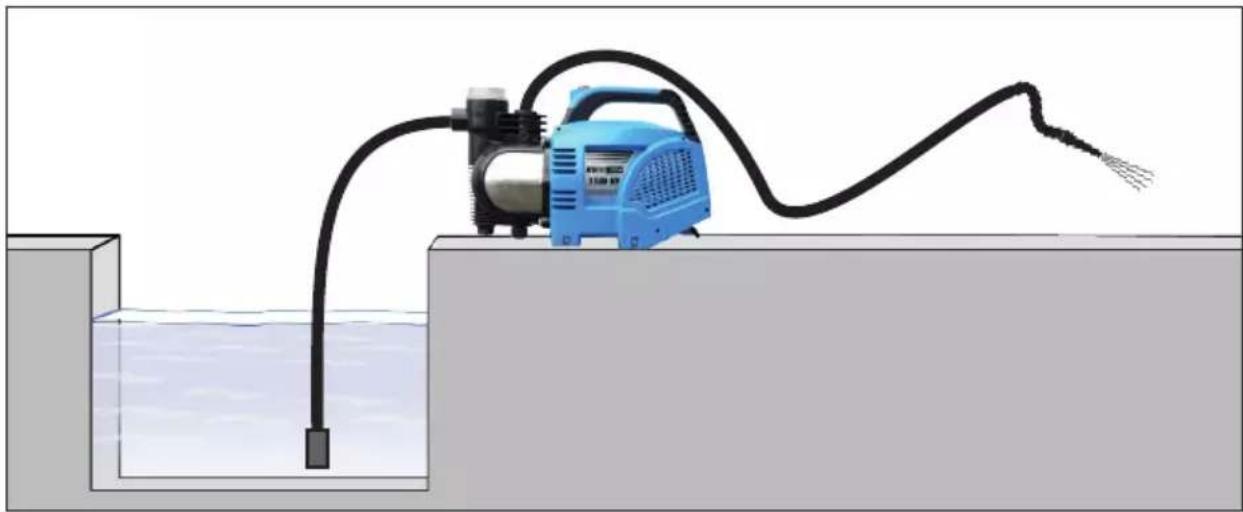

Illustration of a blue industrial pump connected to a green watering can, with a pipe and valve nearby (no text or symbols)

Blue industrial air purifier with hoses and valve, no visible text or symbols

DE	ANSCHLUSS	HU	FESZÜLTSÉG
GB	SERVICE CONNECTION	SI	PRIKLJUČEK
FR	ALIMENTATION	HR	PRIKLJUČAK
IT	ALLACCIAMENTO	BG	ПРИСЬЕДИНЕНИЕ
NL	AANSLUITING	RO	RACORD
CZ	PŘÍPOJKA	BA	PRIKLJUČAK
SK	PRÍPOJKA	PL	PODŁĄCZENIE

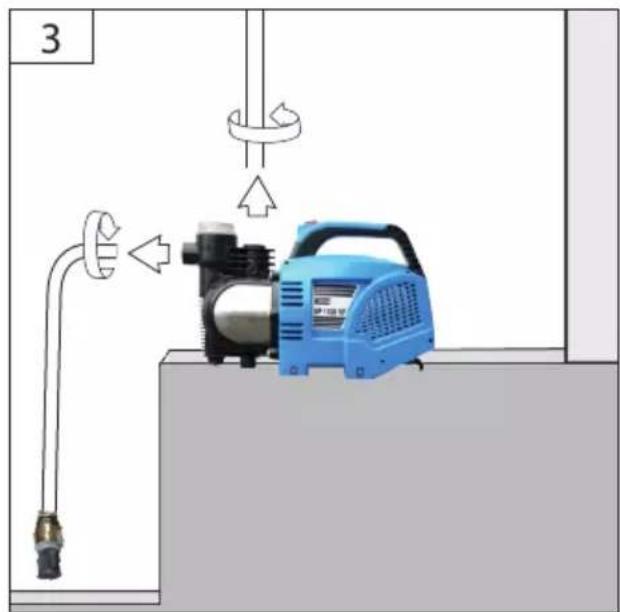

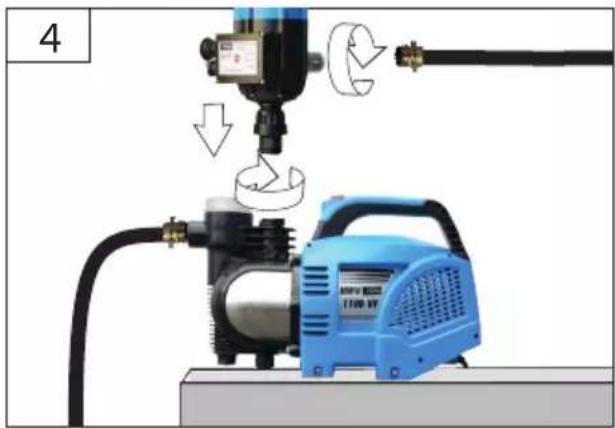

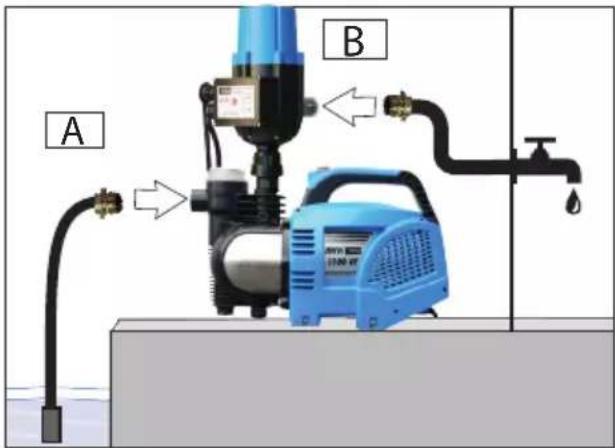

HWA 1100 VF

A B

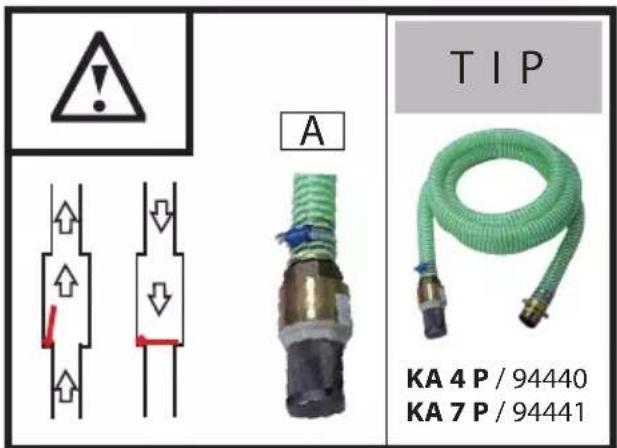

TIP KA 4 P / 94440 KA 7 P / 94441

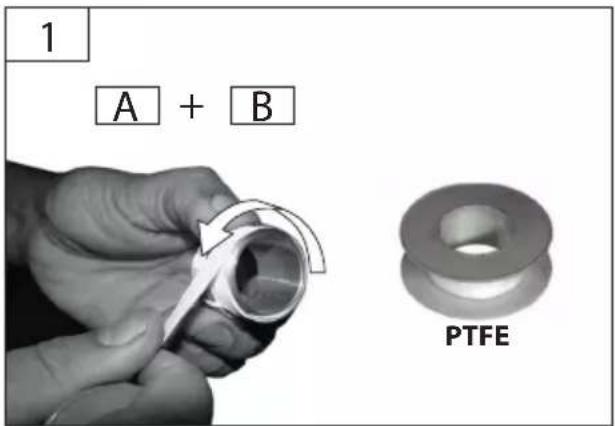

1 A + B PTFE

2 A

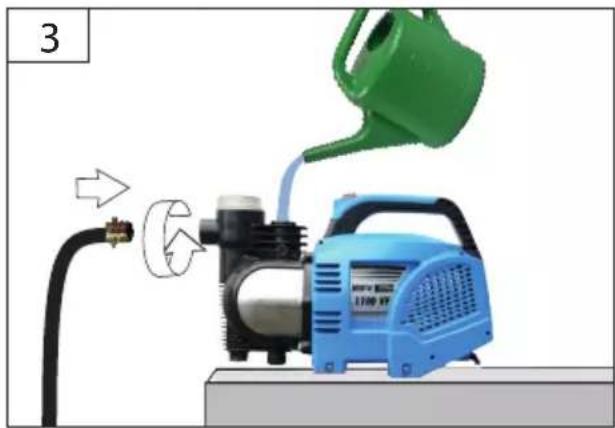

Illustration of a blue electric pump connected to a green watering can, with no visible text or symbols

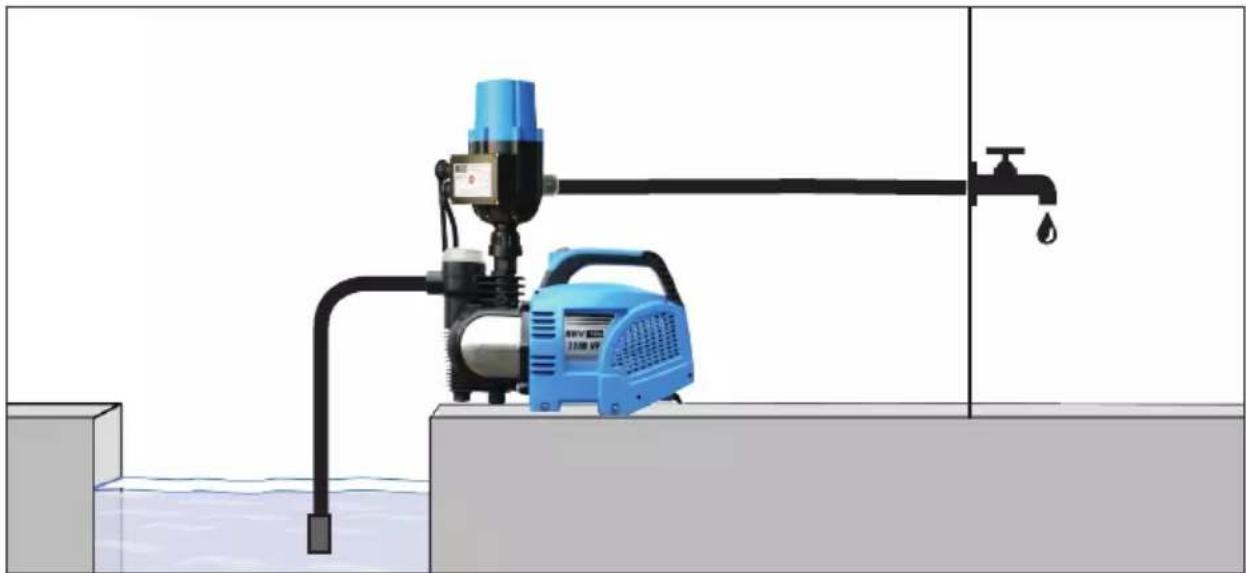

Industrial equipment setup showing a blue pressure pump connected to a black pressure vessel with piping and valve (no text or symbols visible)

DE	ÜBERLASTUNGSSCHUTZ	HU	TÜLTERHELÉS ELLENI VÉDELEM
GB	ENGINE PROTECTION	SI	ZAŠČITA PROTI PREOBREMENITVI
FR	PROTECTION CONTRE LA SURCHARGE	HR	ZAŠTITA OD PREOPTEREĆENJA
IT	PROTEZIONE CONTRO I SOVRACCARICHI	BG	ЗАЩИТА ПРОТИВ ПРЕТОВАРВАНЕ
NL	OVERBELASTINGSBEVEILIGING	RO	PROTECTIE İMPOTRIVA SUPRASOLICITĂRII
CZ	OCHRANA PROTI PŘETÍŽENÍ	BA	ZAŠTITA OD PREOPTEREĆENJA
SK	OCHRANA PROTI PREŤAŽENIU	PL	ZABEZPIECZENIE PRZECIAŽENIOWE

Close-up of a blue industrial machine with visible cooling pipes and a thermometer above it (no text or symbols)

START STOP

DE BETRIEB HU ÜZEMELTETÉS

GB OPERATION SI DELOVANJE

FR FONCTIONNEMENT HR RAD

IT ESERCIZIO BG РАБОТА

NL GEBRUIK RO FUNCTIONARE

CZ PROVOZ BA

RAD

SK PREVÁDZKA PL

EKSPLOATACJA

GP 1100 VF

HWA 1100 VF

HWW 1400 VF

HWW 1400 VF INOX

Diagram illustrating a water treatment or filtration system with labeled components and directional arrows, including a pump, tank, and sedimentation.

DE BETRIEB HU ÜZEMELTETÉS

GB OPERATION SI DELOVANJE

FR FONCTIONNEMENT HR RAD

IT ESERCIZIO BG РАБОТА

NL GEBRUIK RO FUNCTIONARE

CZ PROVOZ BA

RAD

SK PREVÁDZKA PL

EKSPLOATACJA

START STOP

HWA 1100 VF

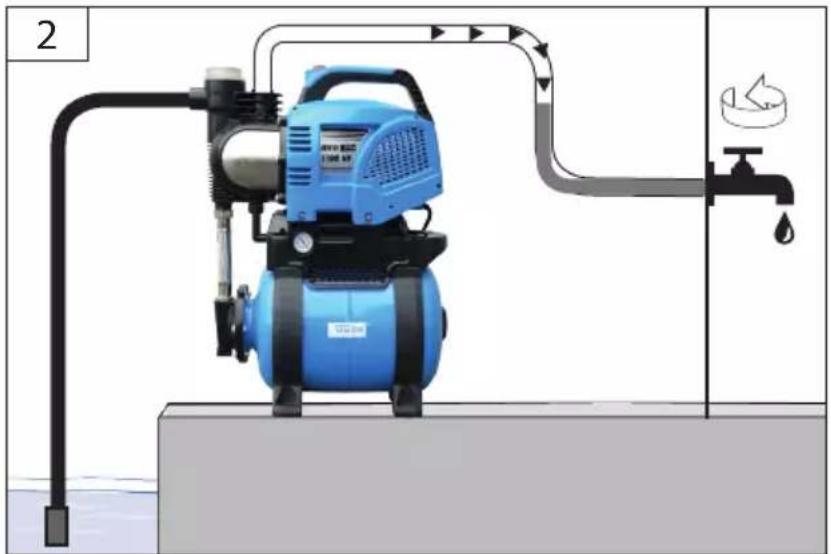

Illustration of a water pump system with a blue hydraulic cylinder connected to a water tank, showing fluid flow and a hanging faucet (no text or symbols)

1 AUTOSTART

Illustration of a faucet with water droplets falling, no text or symbols present

2

Close-up of a blue handheld device with a black handle and a small container, no visible text or symbols.

3 AUTOSTOP

4

Close-up of a blue industrial machine handle with a black handle and a small inset component, no visible text or symbols.

START STOP

DE BETRIEB HU ÜZEMELTETÉS

GB OPERATION SI DELOVANJE

FR FONCTIONNEMENT HR RAD

IT ESERCIZIO BG РАБОТА

NL GEBRUIK RO FUNCTIONARE

CZ PROVOZ BA

RAD

SK PREVÁDZKA

PL EKSPLOATACJA

GP 1100 VF

Illustration of a blue electric shock absorber connected to a wall-mounted device in a liquid container (no text or symbols)

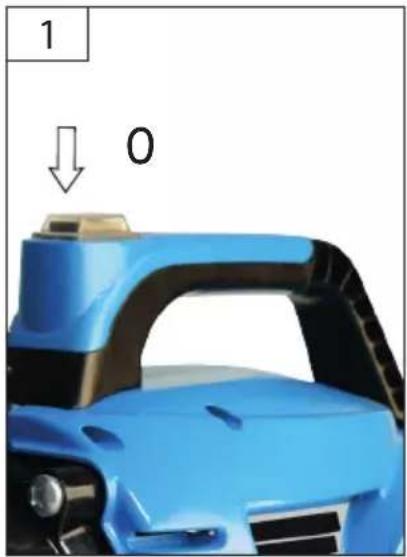

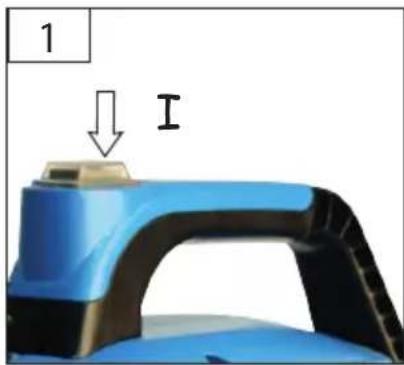

1 | START

Close-up of a blue electric washing machine with a black handle and internal components, no visible text or symbols.

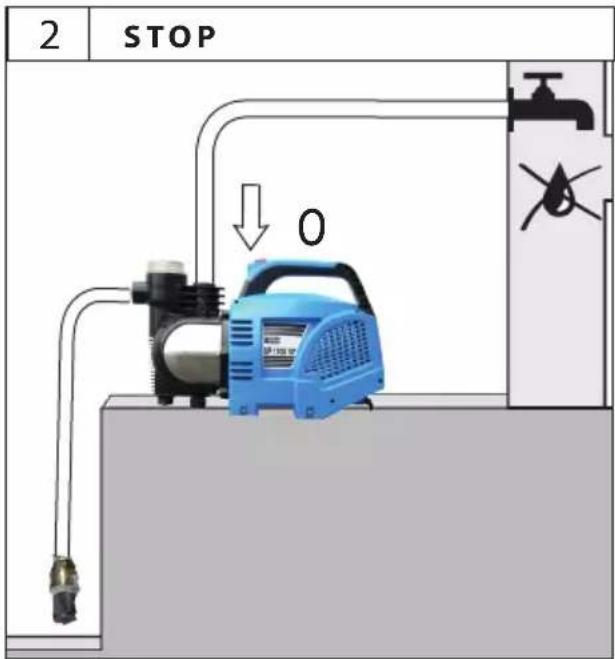

2 | STOP

Close-up of a blue electric washing machine with a black handle and internal components, no visible text or symbols

DE BETRIEB HU ÜZEMELTETÉS

GB OPERATION SI DELOVANJE

FR FONCTIONNEMENT HR RAD

IT ESERCIZIO BG PABOTA

NL GEBRUIK RO FUNCTIONARE

CZ PROVOZ BA

RAD

SK PREVÁDZKA PL

EKSPLOATACJA

START STOP

Illustration of a blue pressure pump connected to a water tank, with a water drop and pipe (no text or symbols)

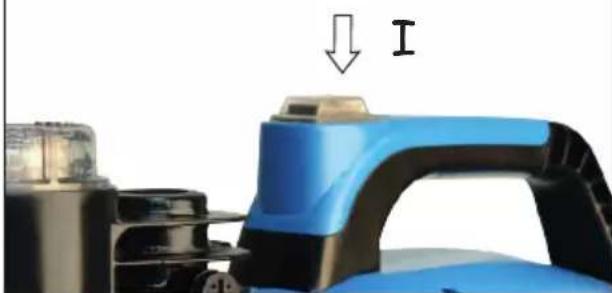

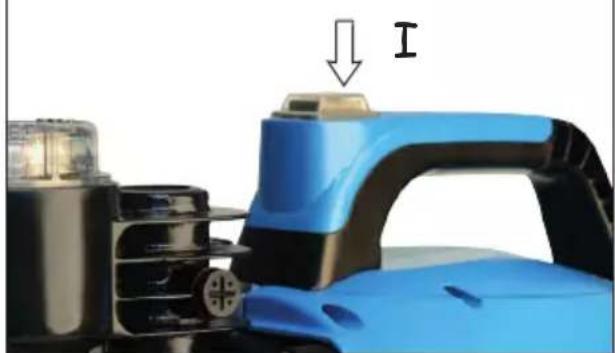

1 ↓ I

Illustration of a faucet with water droplets falling into the water, no text or symbols present

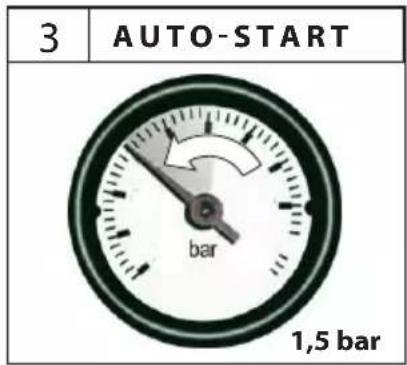

3 AUTO-START bar 1,5 bar

Simple black-and-white diagram of a faucet with a circular component above it, no text or symbols present.

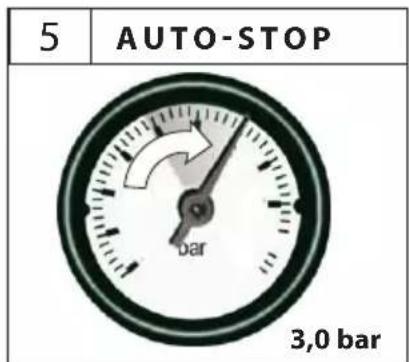

5 AUTO-STOP 3,0 bar

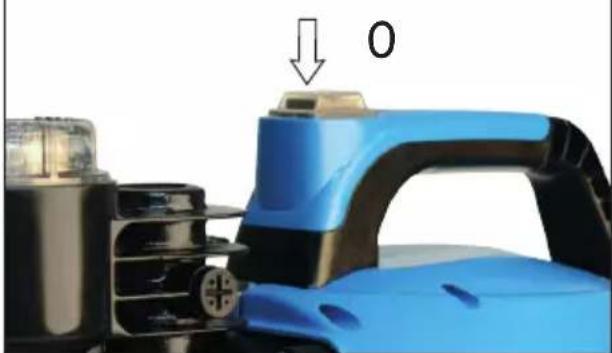

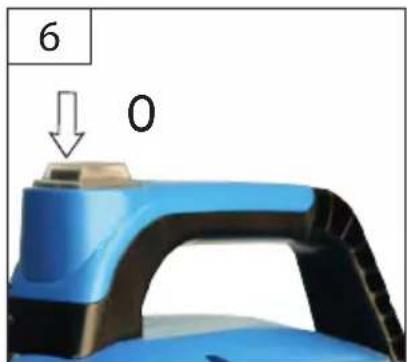

6 0

	DE WARTUNG HU KARBANTARTÁS
	GB MAINTENANCE SI VZDRŽEVANJE
	FR ENTRETIEN HR ODRŽAVANJE
	IT MANUTENZIONE BG ПОДДРЪЖКА
	NL ONDERHOUD	RO ÎNTREȚINERE
	CZ ÚDRŽBA BA ODRŽAVANJE
	SK ÚDRZBA PL KONSERWACJA

GP 1100 VF

HWA 1100VF

HWW 1400 VF

HWW 1400 VF INOX

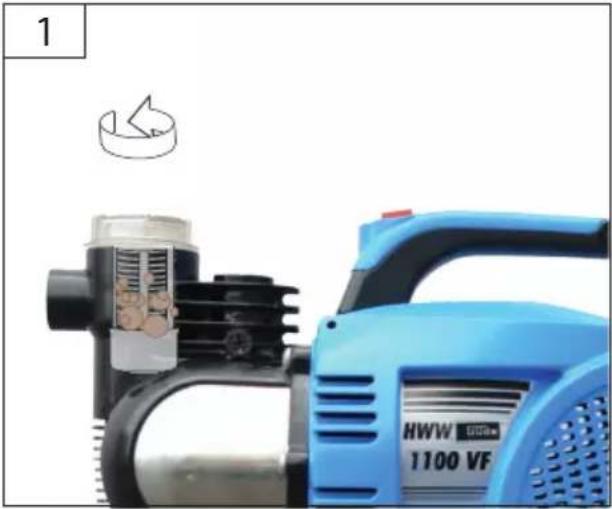

Blue HWW 1100 VF electric pump with internal components and a circular arrow symbol (no text or symbols on the pump body)

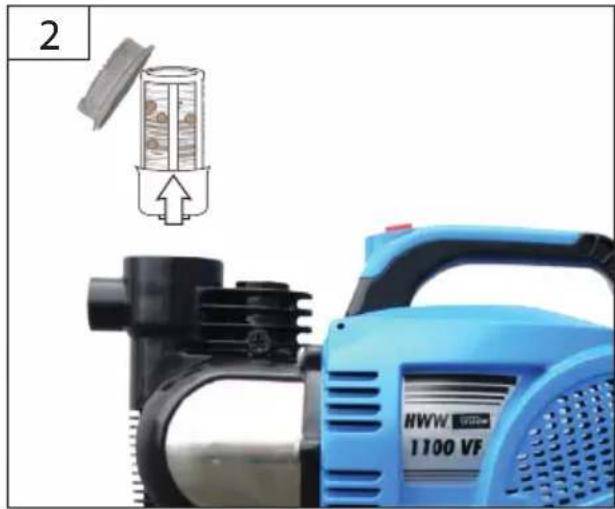

2 NWW 1100 VF

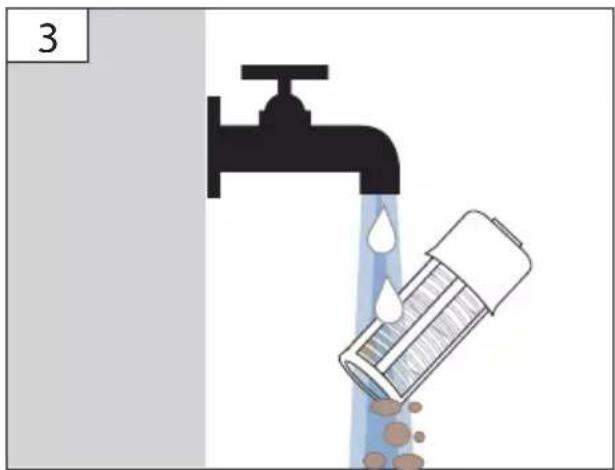

3

DE WARTUNG HU KARBANTARTÁS

GB MAINTENANCE SI VZDRŽEVANJE

FR ENTRETIEN HR ODRŽAVANJE

IT MANUTENZIONE BG ПОДДРЪЖКА

NL ONDERHOUD

RO ÎNTRETINERE

CZ ÚDRŽBA BA ODRŽAVANJE

SK ÚDRZBA PL KONSERWACJA

Blue industrial pump with a wrench icon above it, no visible text or symbols

HWW 1400 VF

HWW 1400 VF INOX

Close-up of a blue sports equipment vehicle with no visible text or symbols

Illustration of a blue air purifier connected to a water tap, with no visible text or symbols

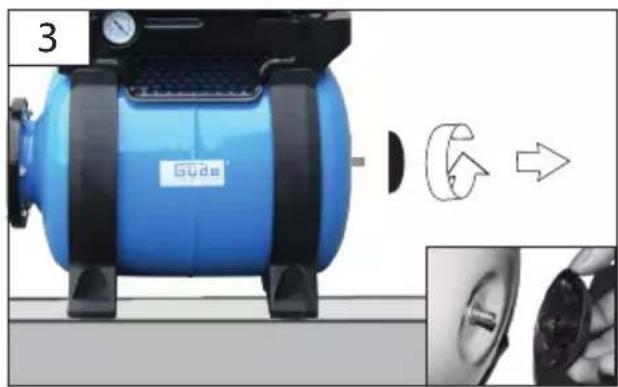

3 Gude

Blue industrial air compressor with pressure gauge and side-mounted stand (no text or symbols visible)

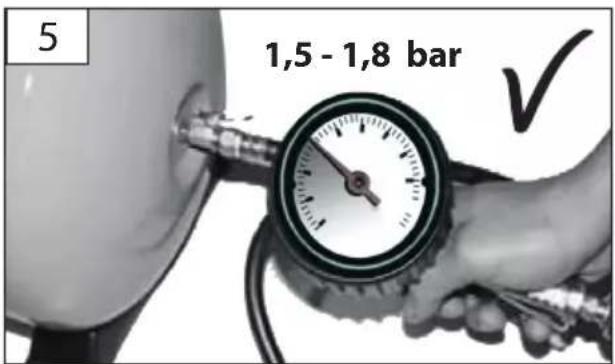

5 1,5 - 1,8 bar

6 Sūde

Silhouette of a person running with a blue bag, next to a white car (no text or symbols visible)

Diagram of a blue air purifier connected to a water tap, with pipes and valves (no text or labels)

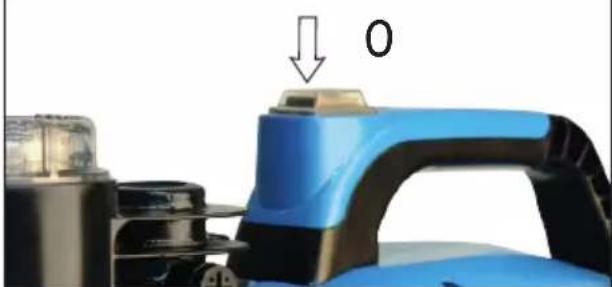

2 STOP 0

3

4 No No

Technische Daten

IPX4 Schutzgrad IPX4 IPX4

IPX4 Schutzgrad IPX4 IPX4

Garden pump Domestic water supply system

Service connection....230V/50Hz....230V/50Hz

Motor output P1....1100 W....1100 W

Max. delivered quantity....3600 l/h....3600 l/h

Max. head of delivery 45 m 45 m

Max. suction head....8 m....8 m

35°C Max. Water temperature....35°C....35°C

Hose connection....1" IG....1" IG

IPX4 Degree of protection....IPX4....IPX4

Weight....12,5 kg....14,5 kg

Sound power level....90 dB....90 dB

Domestic water supply unit

HWW 1400 VF HWW 1400 VF INOX

Art. No 94231 94232

Service connection....230V/50Hz....230V/50Hz

Motor output P1....1400 W....1400 W

Max. delivered quantity....3900 l/h....3900 l/h

Max. head of delivery 45 m 46 m

Max. suction head....8 m....8 m

35°C Max. Water temperature.... 35°C.... 35°C

Hose connection....1" IG....1" IG

IPX4 Degree of protection....IPX4....IPX4

Weight....20,8 kg....19,5 kg

Sound power level....90 dB....90 dB

tank capacity....24 |....24 |

Read and understand the operating instructions before using the appliance. Abide by all the safety

measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The pump is designed for pumping clean water only to supply the home with water and to use it at home, in garden, courtyard and for fields. Respecting technical data and safety precautions.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

The pump is not suited for long-run operation (e.g. as a circulation pump in ponds or streams). When used in this manner, its service life is curtailed correspondingly. In these cases, then, use a time switch to secure sufficient idle periods between cycles of operation.

Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it.

Do not use the pump for drinking water!

The pump must not be connected to the existing water-supply network as a pressure-boosting device.

⚠️ Never use the pump as a pool circulation pump.

Safety Instructions

WARNING!

Electric shock! There is a risk of an injury caused by electric shock!

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Children should be supervised to ensure that they do not play with the device. Always keep children and unauthorised persons out of reach of the appliance.

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Before putting into operation, a qualified electrician must check whether electric safety measures required are in place. Any national regulations in this regard must be complied with.

Electric connection to a socket.

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

It is necessary to make sure the connecting socket was not near water and humidity and the plug was protected against humidity.

Avoid installing the appliance in wet shafts (risk of short circuit, corrosion effects)!

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Only use splash proof extension cables approved for outdoor purposes.

Do not grab the feeder cable, plunge the pump, lift or carry it while it is connected to the grid!

Check the cable and/or socket for damages before the appliance putting into operation.

To avoid danger, a damaged mains supply pipe must be replaced by the manufacturer. Do not under any circumstances attempt any repair yourself.

Protect the feeder cable from excessive temperatures, oil and sharp edges.

⚠️ If the pump is in operation, neither people nor animals can be present or plunged in the pumped liquid (e.g. pools, cellars, etc.).

⚠ The pump must not in any case run without fillings.

Do not leave the pump unattended while in operation in order to prevent subsequent damages caused by eventual malfunctions. Make sure to disconnect the device from the grid if you do not plan on using it.

The temperature of the drained liquid must not exceed +35 °C.

When using the pump for domestic water supply, always observe the local regulations of water management authorities and the waste water drainage.

If the pump is used in ponds, wells, etc. and appropriate pumping stations, standards valid for pumps in the given country must unconditionally be observed.

Do not use pump at outside temperatures over 40 °C or under 0 °C

In cold weather, the pumping body motor should not bewrapped in a blanket or another piece of textile with intent to prevent the water freezing.

The user is responsible to third parties if pump (dumping stations, etc.) is used.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

⚠️ Before carrying out any work on the machine, disconnect the plug from the socket.

Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug.

The machine must not be used under any circumstances if the machine or the safety devices are damaged.

Refer all servicing to customer service. Use only original accessories and original spare parts.

Caution: Standing water may corrode (brownish colour) in the pump according to design.

At winter storing, it is necessary to make sure there is no water in the appliance as the frost could damage the appliance. Prior to transportation, it is necessary to unplug the pump from the grid! The device has to be completely emptied and stored with frost-proof protection. Adhesion of mechanical seals can be prevented if you rinse the pump with appropriate oil (for example, with vegetable oil).

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

Guarantee claims as per guarantee card attached.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee..

GÜDE cannot be held responsible for damages incurred in consequence of unqualified installation or unskilled handling of the pump.

The device has to be checked on a regular basis to ensure perfect functioning.

Let us refer to the fact we do not assume any responsibility – according to standards in force – for damage eventually caused by our appliances in the below-mentioned cases:

• Unprofessional repairs executed by unauthorised service centres;
• Use in conflict with the designed purpose, or failure to observe the use as designed;
• Pump overload with a continuous run;
• Damage as a result of icing or any other fault caused by climatic influences; Identical regulations apply for accessory parts.

To prevent damage (such as flooded rooms, etc.) as a result of faulty pump operation (failure or fault) the owner (user) is obliged to take reasonable safety measures (alarm assembly, spare pump, etc.).

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Symbols

Read the Operating Instructions

Before carrying out any work on the machine, disconnect the plug from the socket.

Cable pulling / transport prohibited

Staying in the transportation medium prohibited

Warning against dangerous electric voltage

Warning against automatic starting

Accessory - Not included in standard equipment, available as an accessory.

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

Inspection and maintenance plan

Time interval Description Any other details

As needed Clean the check valve and the prefilter. Check the check valve function.

Failures – causes - removal

Failures Causes Removal
Engine does not start No power supply. Blocked pump wheel		Turn the engine shaft with screwdriver through the fan cover (to release friction circles sealing that may be stuck together).
Pump does not suck Missing, loose or blocked check valve Check valve is not in water. Pump without water Too high suction head. Air bubbles in the suction pipeline. Connections not sealed, pump sucks air, pump is not deaerated. Prefilter clogged		Fix or clean the check valve. Immerse the check valve into water. Fill the pump shell with water. Check the suction head. Check the tighten of suction pipeline. Carefully repeat connection according to the chapter „Connection“! Clean the prefilter.→10
Thermal detector switching the pump off →4	Pump is overheated and switched off by the thermal overloading protection. No electric power supply. Impurity particles (e.g. pebbles) have settled down in the suction hole.	Let the device getting cool! Check power supply. Disassemble and clean the suction hose, prevent from suction of foreign substances.
Insufficient amount of water pumped	Too high suction head. Strainer of the check valve dirty Water level quickly drops down	Check the suction head. Clean the strainer., Position the check valve lower. Clean the prefilter 10→10 Clean the pump and replace worn parts. (qualified workshop)
Reduced switching intervals	Air pressure in the receiver too low Control air pressure. →11

IPX4 Raccord de tuyau....1" IG ....1" IG

Degré de protection IPX4 IPX4

Alimentation....230V/50Hz....230V/50Hz

IPX4 Raccord de tuyau....1" IG....1" IG

Degré de protection IPX4 IPX4

Poids 20,8 kg 19,5 kg

EC-DECLARATION OF CONFORMITY

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

DECLARATION CE DE CONFORMITE

PROHLASENI O SHODE EU

Kolarov Technologic O.O.D.

Jordan Bogdar 4

BG-8800 Sliven

Tel: [phone]

Fax: [phone]

10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 1234567891111111111111111111111111111111111111111111111111111111111111111111111111111111111111 2345678911111111111111111111111111111111111111111111111111111234567892345678923456789234567892345678923456789234567892345678923456789234567892345678923456789234567892344444444444444444444444444444444444444444444444444444444444444444444 234567892345678923456789234567892345678923456789234567892345678923456789234567892345678923456789234 23456789234567892345678923456789234567892345678923456789234567892345678923 23456789234567892345678923456789234567892345678923 234567892345678923456789234567892345678923 234567892345678923456789234567892345678923 2345678923456 2345678923456 2345678923456 2345678923456 2345678923 2345678923 2345678923 2345678923 2345678923 2345678923 2345678923 2345678923 2345678923 2345678923

10.0%

10.0%

10.0%

10.0%

10.0%

10.0%

10.0%

10.0%

10.0%

10.0%

10.0% (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10, 10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (10.0%) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (1) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2) (2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(2)(3)

(4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,(59,(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(6),(59,(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(59),(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,( LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPEG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG,(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),(LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPG),( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( LPGA;( I ) , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , |

(4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44; | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I | I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I I

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(4.4)

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I ) (I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

(I )

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland
