USER MANUAL DS18DSAL HITACHI

SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL

REMOVAL AND INSTALLATION METHOD

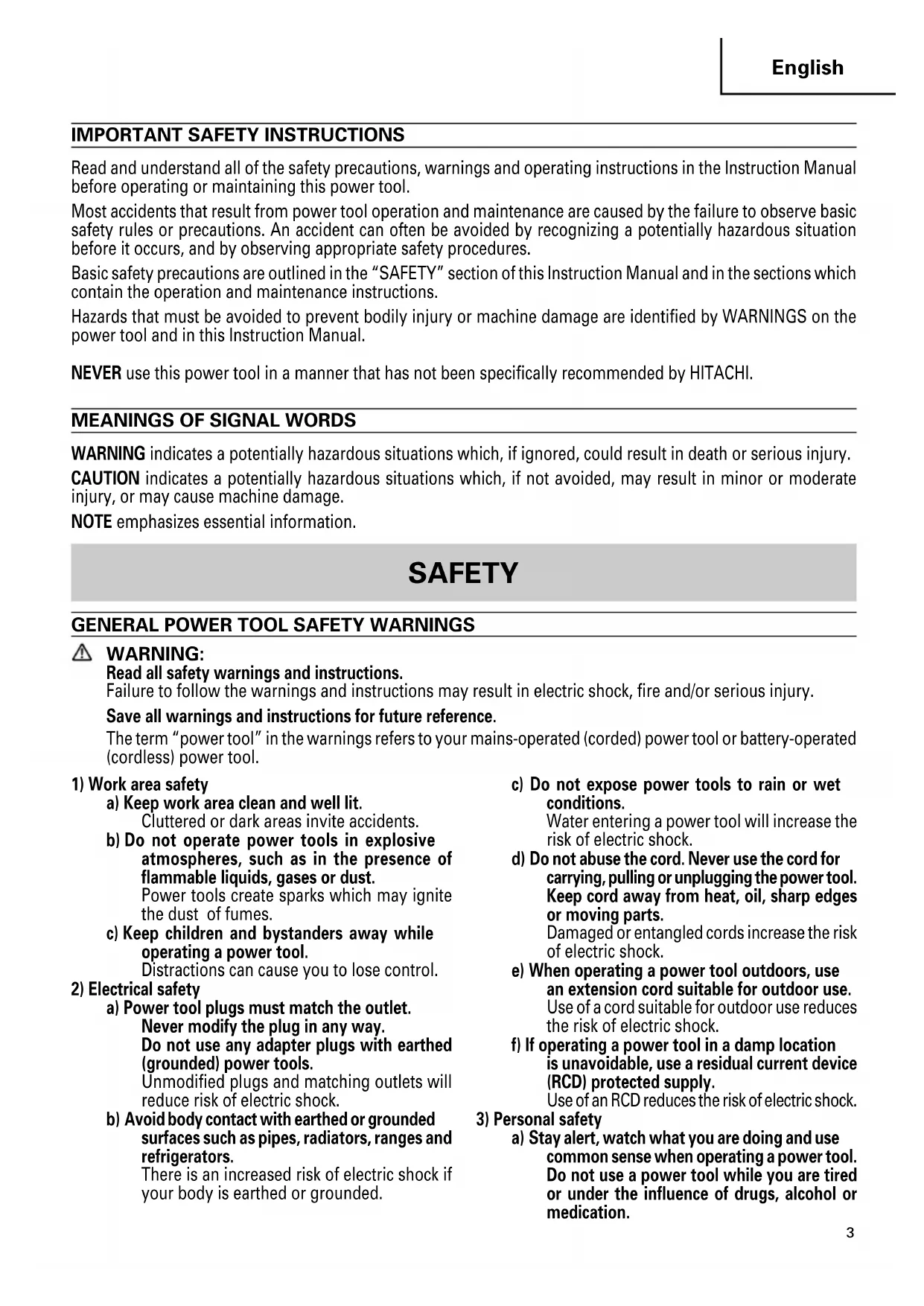

Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool. Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures. Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions. Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual. NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.

MEANINGS OF SIGNAL WORDS

WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information. SAFETY

Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust of fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. 01Eng_DS14DSAL_US 10/7/08, 16:163English

A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non- skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. 01Eng_DS14DSAL_US 10/7/08, 16:164English

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

Lead from lead-based paints,

Crystalline silica from bricks and cement and other masonry products, and

Arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

SPECIFIC SAFETY RULES AND SYMBOLS

1. Wear ear protectors with impact drills.

Exposure to noise can cause hearing loss.

2. Use auxiliary handles supplied with the tool.

Loss of control can cause personal injury.

3. Hold power tools by insulated gripping surfaces

when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.

4. NEVER place hands or other body parts near the

drill bit or chuck during operation. Hold the drill by its handle only.

5. Because the cordless driver drill operates by battery

power, be aware of the fact that it can begin to operate at any time.

6. When working at elevated locations, clear the area

of all other people and be aware of conditions below you.

7. NEVER touch moving parts.

NEVER place your hands, fingers or other body parts near the tool’s moving parts.

8. NEVER operate without all guards in place.

NEVER operate this tool without all guards or safety features in place and in proper working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.

Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.

10. NEVER use a power tool for applications other

than those specified. NEVER use a power tool for applications other than those specified in the Instruction Manual.

11. Handle tool correctly.

Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.

12. Keep all screws, bolts and covers tightly in place.

Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.

13. Do not use power tools if the plastic housing or

handle is cracked. Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.

14. Blades and accessories must be securely mounted

to the tool. Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.

15. NEVER use a tool which is defective or operating

abnormally. If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.

16. Carefully handle power tools.

Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.

17. Do not wipe plastic parts with solvent.

Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.

18. ALWAYS wear eye protection that meets the

requirement of the latest revision of ANSI Standard Z87.1.

19. This product contains a strong permanent magnet

in the motor. Observe the following precautions regarding adhering of chips to the tool and the effect of the permanent magnet on electronic devices. 01Eng_DS14DSAL_US 10/7/08, 16:165English

Death or serious bodily injury could result from improper or unsafe use of battery chargers. To avoid these risks, follow these basic safety instructions:

READ ALL INSTRUCTIONS

1. This manual contains important safety and

operating instructions for battery charger Model UC18YGSL.

2. Before using battery charger, read all instructions

and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

3. To reduce risk of injury, charge HITACHI

rechargeable battery types BSL14 and BSL18 series. Other type of batteries may burst causing personal injury and damage.

4. Do not expose battery charger to rain or snow.

5. Use of an attachment not recommended or sold

by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.

6. To reduce risk of damage to electric plug and cord,

pull by plug when disconnecting battery charger.

7. Make sure cord is located so that it will not be

stepped on, tripped over, or otherwise subjected to damage or stress.

8. An extension cord should not be used unless

absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must be used make sure: a. That blades of extension cord are the same number, size, and shape as those of plug on battery charger: b. That extension cord is properly wired and in good electrical condition; and c. That wire size is large enough for AC ampere rating of battery charger as specified in Table 1. Table 1

AC Input Rating Amperes* AWG Size of Cord Equal to or but less Length of Cord, Feet (Meter) greater than than 25 (7.5) 50 (15) 100 (30) 150 (45)

Do not place the tool on a workbench or work area where metal chips are present. The chips may adhere to the tool, resulting in injury or malfunction.

If chips have adhered to the tool, do not touch it. Remove the chips with a brush. Failure to do so may result in injury.

If you use a pacemaker or other electronic medical device, do not operate or approach the tool. Operation of the electronic device may be affected.

Do not use the tool in the vicinity of precision devices such as cell phones, magnetic cards or electronic memory media. Doing so may lead to misoperation, malfunction or loss of data.

• If the input rating of a battery charger is given in watts rather than in amperes, the corresponding ampere rating is to be determined by dividing the wattage rating by the voltage rating–for example: 1,250 watts 125 volts = 10 amperes

9. Do not operate battery charger with damaged cord

or plug-replace them immediately.

10. Do not operate battery charger if it has received a

sharp blow, been dropped, or otherwise damaged in any way; take it to a qualified serviceman.

11. Do not disassemble battery charger; take it to a

qualified serviceman when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.

12. To reduce risk of electric shock, unplug charger

from receptacle before attempting any maintenance or cleaning. Removing the battery will not reduce this risk.

CHARGER You must charge the battery before you can use the power tool. Before using the model UC18YGSL battery charger, be sure to read all instructions and cautionary statements on it, the battery and in this manual. CAUTION: USE ONLY HITACHI BATTERY TYPES BSL14 AND BSL18 SERIES. OTHER TYPES OF BATTERIES MAY BURST AND CAUSE INJURY! Follow these instructions to avoid the risk of injury:

Improper use of the battery or battery charger can lead to serious injury. To avoid these injuries:

1. NEVER disassemble the battery.

2. NEVER incinerate the battery, even if it is

damaged or is completely worn out. The battery can explode in a fire.

3. NEVER short-circuit the battery.

4. NEVER insert any objects into the battery

charger’s air vents. Electric shock or damage to the battery charger may result.

5. NEVER charge outdoors. Keep the battery away

from direct sunlight and use only where there is low humidity and good ventilation.

6. NEVER charge when the temperature is below

32°F (0°C) or above 104°F (40°C). Charging the battery at temperatures outside the range of 32°F – 104°F (0°C – 40°C) may prevent proper charging and reduce battery life.

7. NEVER connect two battery chargers together.

8. NEVER insert foreign objects into the hole for the

battery or the battery charger.

11. NEVER store the battery or battery charger in

places where the temperature may reach or exceed 104°F (40°C).

ALWAYS operate charger on standard household electrical power (120 volts). Using the charger on any other voltage may overheat and damage the charger.

ALWAYS wait at least 15 minutes between charges to avoid overheating the charger.

ALWAYS disconnect the power cord from its receptacle when the charger is not in use.

CAUTION ON LITHIUM-ION BATTERY

To extend the lifetime, the lithium-ion battery equips with the protection function to stop the output. In the cases of 1 to 3 described below, when using this product, even if you are pulling the switch, the motor may stop. This is not the trouble but the result of protection function.

1. When the battery power remaining runs out, the

motor stops. In such case, charge it up immediately.

2. If the tool is overloaded, the motor may stop. In this

case, release the switch of tool and eliminate causes of overloading. After that, you can use it again.

3. If the battery is overheated under overload work,

the battery power may stop. In this case, stop using the battery and let the battery cool. After that, you can use it again. (BSL1415X, BSL1815X, BSL1830) Furthermore, please heed the following warning and caution. WARNING In order to prevent any battery leakage, heat generation, smoke emission, explosion and ignition beforehand, please be sure to heed the following precautions.

1. Make sure that swarf and dust do not collect on

During work make sure that swarf and dust do not fall on the battery.

Make sure that any swarf and dust falling on the power tool during work do not collect on the battery.

Do not store an unused battery in a location exposed to swarf and dust.

Before storing a battery, remove any swarf and dust that may adhere to it and do not store it together with metal parts (screws, nails, etc.).

2. Do not pierce battery with a sharp object such as a

nail, strike with a hammer, step on, throw or subject the battery to severe physical shock. 01Eng_DS14DSAL_US 10/7/08, 16:177English

3. Do not use an apparently damaged or deformed

4. Do not use the battery in reverse polarity.

5. Do not connect directly to an electrical outlets or

car cigarette lighter sockets.

6. Do not use the battery for a purpose other than

7. If the battery charging fails to complete even when

a specified recharging time has elapsed, immediately stop further recharging.

8. Do not put or subject the battery to high

temperatures or high pressure such as into a microwave oven, dryer, or high pressure container.

9. Keep away from fire immediately when leakage

or foul odor are detected.

10. Do not use in a location where strong static

electricity generates.

11. If there is battery leakage, foul odor, heat

generated, discolored or deformed, or in any way appears abnormal during use, recharging or storage, immediately remove it from the equipment or battery charger, and stop use.

SAVE THESE INSTRUCTIONS

AND OWNERS OF THIS TOOL! CAUTION

1. If liquid leaking from the battery gets into your

eyes, do not rub your eyes and wash them well with fresh clean water such as tap water and contact a doctor immediately. If left untreated, the liquid may cause eye- problems.

2. If liquid leaks onto your skin or clothes, wash well

with clean water such as tap water immediately. There is a possibility that this can cause skin irritation.

3. If you find rust, foul odor, overheating, discolor,

deformation, and/or other irregularities when using the battery for the first time, do not use and return it to your supplier or vendor. WARNING If an electrically conductive foreign object enters the terminals of the lithium ion battery, a short-circuit may occur resulting in the risk of fire. Please observe the following matters when storing the battery.

Do not place electrically conductive cuttings, nails, steel wire, copper wire or other wire in the storage case.

Either install the battery in the power tool or store by securely pressing into the battery cover until the ventilation holes are concealed to prevent short-circuits (See Fig. 1). 01Eng_DS14DSAL_US 10/7/08, 16:178English

FUNCTIONAL DESCRIPTION NOTE: The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool. NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual. Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.

Battery Housing Switch trigger Handle Push button Clutch dial Battery Nameplate Keyless chuck Hook LED Light Fig. 1 Latch Ventilation holes Terminals Battery cover

<BSL1415X> <BSL1815X>

Latch Ventilation holes Terminals Battery cover mark Shift knob

1. Cordless Driver Drill

Fig. 2 Model DS14DSAL DS18DSAL Motor DC motor No-load speed Low 0–300/min 0–350/min High 0–1,500/min Capacity Drilling Wood (Thickness 1-1/2" (38 mm) 1-3/4" (45 mm) 11/16" (18 mm)) (Soft Wood) (Soft Wood) Metal (Thickness 1/2" (13 mm) 1/16" (1.6 mm)) Screw Wood screw #20 × 3" #20 × 4" Driver (8 mm × 75 mm) (8 mm × 100 mm) Small screw 1/4" (6 mm) Drill chuck capacity Maximum gripping diameter 1/2" (13 mm) Battery Model BSL1415X BSL1815X Type Li-ion battery Voltage DC 14.4 V DC 18 V Weight (without hook) 3.1 lbs. (1.4 kg) 3.3 lbs. (1.5 kg) Nameplate Pilot lamp Guide rail Input power source Single phase: AC 120 V 60 Hz Charging time Approx. 40 min. (At a temperature of 68°F (20°C)) Charging voltage DC 14.4 V – 18 V Charger Charging current DC 2.0 A Weight 0.9 lbs. (0.4 kg) NOTE: The charging time may vary according to temperature and power source voltage.

2. Battery Charger (UC18YGSL)

2. Battery Charger (UC18YGSL)

Use as a drill Drilling of soft steel, wood, plastic and aluminum materials.

Use as a screwdriver Tightening and loosening of machine screws, wood screws and tapping screws.

REMOVAL AND INSTALLATION METHOD

Hold the handle tightly and push the battery latch to remove the battery (See Fig. 3). CAUTION Never short-circuit the battery.

2. Battery installation

Insert the battery while observing its polarities (see Fig. 3). CHARGING METHOD NOTE: Before plugging into the receptacle, make sure the following points.

The power source voltage is stated on the nameplate.

The cord is not damaged. Latch Battery push Pull out Insert Fig. 3

Do not charge at voltage higher than indicated on the nameplate. If charged at voltage higher than indicated on the nameplate, the charger will burn up.

1. Connect the charger’s power cord to a receptacle.

When the power cord is connected, the charger’s pilot lamp will blink in red. (At 1-second intervals)

Do not use the electrical cord if damaged. Have it repaired immediately.

2. Insert the battery into the charger.

Firmly insert the battery into the charger as shown in Fig. 4 . Fig. 4 Handle BSL1415X BSL1815X

When the battery is connected to the battery charger, charging will commence and the pilot lamp will light in red. (See Table 2) NOTE: If the pilot lamp flikers in red, pull out the plug from the receptacle and check if the battery is properly mounted. When the battery is fully charged, the pilot lamp will blink in red slowly. (At 1-second intervals) (See Table 2) 01Eng_DS14DSAL_US 10/7/08, 16:1711English

(2) Regarding the temperature of the rechargeable battery. The temperatures for rechargeable batteries are as shown in the Table 3, and batteries that have become hot should be cooled for a while before being recharged. (3) Regarding recharging time (At 68°F (20°C)) Depending on the combination of the charger and batteries, the recharging time will become as shown in Table 3. Table 4 Charging time (At 20°C) NOTE: The charging time may vary according to temperature and power source voltage.

4. Disconnect battery charger from the receptacle.

Do not pull the plug out of the receptacle by pulling on the cord. Make sure to grasp the plug when removing from receptacle to avoid damaging cord. Table 3 Recharging ranges of batteries Rechargeable Temperatures at which the batteries battery can be recharged

5. Remove the battery from the battery charger.

Supporting the battery charger with hand, pull out the battery from the battery charger. NOTE: After operation, pull out batteries from the charger first, and then keep the batteries properly. How to make the batteries perform longer (1) Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter. (2) Avoid recharging at high temperatures. A rechargeable battery will be hot immediately after use. If such a battery is recharged immediately after use, its internal chemical substance will deteriorate, and the battery life will be shortened. Leave the battery and recharge it after it has cooled for a while. CAUTION

When the battery charger has been continuosly used, the battery charger will be heated, thus constituting the cause of the failures. Once the charging has been completed, give 15 minutes rest until the next charging.

If the battery is charged while it is heated because it has been left for a long time in a location subject to direct sunlight or because the battery has just been used, the pilot lamp of the charger lights for 1 second, does not light for 0.5 seconds (off for

0.5 seconds). In such a case, first let the battery

cool, then start charging. (1) Pilot lamp indication The indications of the pilot lamp will be as shown in Table 2, according to the condition of the charger or the rechargeable battery. Charger UC18YGSL Battery BSL1415X, BSL1815X Approx. 40 min. Table 2 Indications of the pilot lamp Before Blinks Lights for 0.5 seconds. Does not light charging for 0.5 seconds. (off for 0.5 seconds) Lights Lights continuously Blinks Lights for 0.5 seconds. Does not light for 0.5 seconds. (off for 0.5 seconds) Blinks Lights for 1 second. Does not light for 0.5 seconds. (off for 0.5 seconds) Overheat standby While charging Charging complete Battery overheated. Unable to charge. (Charging will commence when battery cools) Pilot lamp (red) 01Eng_DS14DSAL_US 10/7/08, 16:1712English

Since the built-in micro computer takes about 3 seconds to confirm that the battery being charged with UC18YGSL is taken out, wait for a minimum of 3 seconds before reinserting it to continue charging. If the battery is reinserted within 3 seconds, the battery may not be properly charged. BEFORE USE Check the work area to make sure that it is clear of debris and clutter. Clear the area of unnecessary personnel. Ensure that lighting and ventilation is adequate. OPERATION How to make the batteries perform longer

Recharge the batteries before they become completely exhausted. When you feel that the power of the tool becomes weaker, stop using the tool and recharge its battery. If you continue to use the tool and exhaust the electric current, the battery may be damaged and its life will become shorter.

1. Installing the bit

Loosen the sleeve by turning it toward the left (in the counterclockwise direction as viewed from the front) to open the clip on the keyless chuck. After inserting a driver bit, etc., into the keyless drill chuck, and tighten the sleeve by turning it toward the right (in the clockwise direction as viewed from the front). (See Fig. 5) Fig. 5

If the sleeve becomes loose during operation, tighten it further. The tightening force becomes stronger when the sleeve is tightened additionally.

Loosen the sleeve by turning it toward the left (in the counterclockwise direction as viewed from the front), and then take out the bit ect. (See Fig. 5) CAUTION When it is no longer possible to loosen the sleeve, use a vise or similar instrument to secure the bit. Set the clutch mode between 1 and 11 and then turn the sleeve to the loose side (left side) while operating the clutch. It should be easy now to loosen the sleeve.

3. Automatic spindle-lock mechanism

This unit has automatic spindle-lock mechanism for quick bit changes.

4. Confirm that the battery is mounted correctly

5. Confirm the clutch dial position (See Fig. 6)

The tightening torque of this unit can be adjusted according to the clutch dial position, at which the clutch dial is set. Fig. 6 (1) When using this unit as a screwdriver, line up the one of the numbers “1, 3, 5 ... 22” on the clutch dial, or the dots, with the triangle mark on the outer body. (2) When using this unit as a drill, align the clutch dial drill mark “ ” with the triangle mark on the outer body. CAUTION

The clutch dial cannot be set between the numbers “1, 3, 5 ... 22” or the dots.

Do not use with the clutch dial numeral between “22” and the line at the middle of the drill mark. Doing so may cause damage. (See Fig. 7) Fig. 7 Driver bit Triangle mark Drill mark Weak Clutch dial Loosen Tighten Strong Sleeve Line Triangle mark Drill mark 01Eng_DS14DSAL_US 10/7/08, 16:1713English

The push button can not be switched while the power tool is turning. To switch the push button, stop the power tool, then set the push button.

8. Change rotation speed

Operate the shift knob to change the rotational speed. Move the shift knob in the direction of the arrow (See Fig. 9). When the shift knob is set to “LOW”, the drill rotates at a low speed. When set to “HIGH”, the drill rotates at a high speed. CAUTION

When changing the rotational speed with the shift knob, confirm that the switch is off. Changing the speed while the motor is rotating will damage the gears.

If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt. Be sure to turn the shift knob. Fig. 9

When the trigger switch is depressed, the tool rotates. When the trigger is released, the tool stops.

The rotational speed can be controlled by varying the amount that the trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more. NOTE: A buzzing noise is produced when the motor is about to rotate; this is only a noise, not a machine failure.

The hook is used to hang up the power tool to your waist belt while working. CAUTION

When using the hook, hang up the power tool firmly not to drop accidentally. If the power tool is dropped, it may lead to an accident.

6. Tightening torque adjustment

(1) Tightening torque Tightening torque should correspond in its intensity to the screw diameter. When too strong torque is used, the screw head may be broken or be injured. Be sure to adjust the clutch dial position according to the screw diameter. (2) Tightening torque indication (See Fig. 6) The tightening torque differs depending on the type of screw and the material being tightened. The unit indicates the tightening torque with the numbers “1, 3, 5 ... 22” on the clutch dial , and the dots. The tightening toque at position “1” is the weakest and the torque is strongest at the highest number. (3) Adjusting the tightening torque (See Fig. 6) Rotate the clutch dial and line up the numbers “1, 3, 5, ... 22” on the clutch dial, or the dots, with the triangle mark on the outer body. Adjust the clutch dial in the weak or the strong torque direction according to the torque you need. CAUTION

The motor rotation may be locked to cease while the unit is used as drill. While operating the driver drill, take care not to lock the motor.

If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery may be burnt.

Too long hammering may cause the screw broken due to excessive tightening.

7. Check the rotational direction

The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the push button. The L-side of the push button is pushed to turn the bit counterclockwise. (See Fig. 8). (The

When carrying the power tool with hooked to your waist belt, do not fit any bit to the tip of power tool. If the sharp bit such as drill is fitted to the power tool when carrying it with hooked to your waist belt, you will be injured.

Install securely the hook. Unless the hook is securely installed, it may cause an injury while using. (1) Removing the hook. Remove the screws fixing the hook with Philips screw driver. (Fig. 10) Fig. 10 (2) Replacing the hook and tightening the screws. Install securely the hook in the groove of power tool and tighten the screws to fix the hook firmly. (Fig. 11) Fig. 11 Hook Screw

Pull the trigger switch to light up the light. The light keeps on lighting while the trigger switch is being pulled. The light goes out after releasing the trigger switch. (Fig. 12) Fig. 12 CAUTION: Do not look directly into the light. Such actions could result in eye injury.

12. The scope and suggestions for uses

The usable scope for various types of work based on the mechanical structure of this unit is shown in Table 5. Screw Hook Trigger switch Light Table 5 Work Clutch dial position Suggestions Wood Drilling Steel Use for drilling purpose. Aluminum Screw Small 1 – 22 Use the bit and socket matching the screw tightening screw diameter. Wood 1 – Use after drilling a pilot hole. screw 01Eng_DS14DSAL_US 10/7/08, 16:1715English

Table 6 Use Clutch dial position Rotating speed selection (Position of the shift knob) LOW (Low speed) HIGH (High speed) Machine screw 1 – 22 For 4 mm or smaller diameter screws. Driving Wood screw 1 – For 8 mm or smaller nominal diameter screws. For 45 mm or smaller diameters. (DS18DSAL) Drilling Wood For 24 mm or smaller diameters. (DS14DSAL) Metal For 6 mm or smaller diameter screws. For 4.8 mm or smaller nominal diameter screws. For 38 mm or smaller diameters. (DS18DSAL) For 18 mm or smaller diameters. (DS14DSAL) For drilling with a metal working drill bit.

13. How to select tightening torque and rotational speed

The selection examples shown in Table 6 should be considered as general standard. As different types of tightening screws and different materials to be tightened are used in actual works proper adjustments are naturally necessary. NOTE: The use of the battery BSL1415X and BSL1815X in a cold condition (below 0 degree Centigrade) can sometimes result in the weakened tightening torque and reduced amount of work. This, however, is a temporary phenomenon, and returns to normal when the battery warms up. CAUTION

While operating the cordless driver drill, take care not to lock the motor. If the motor is locked, immediately turn the power off. If the motor is locked for a while, the motor or battery will be burnt.

Do not tighten too strongly as the screw heads will be damaged. 01Eng_DS14DSAL_US 10/7/08, 16:1716English

Pull out battery before doing any inspection or maintenance.

1. Checking the condition of the bit

The bits should be checked regularly. If worn or broken bits can slip or decrease the efficiency of the motor and burn it out. Replace worn bits with new ones. CAUTION

If you use a driver bit of which point is worn or broken, it will be dangerous since it slips. So replace it with a new one.

Loose screws are dangerous. Regularly inspect them and make sure they are tight. CAUTION

Using this power tool with loosened screws is extremely dangerous.

3. Maintenance of the motor

The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.

4. Inspecting the carbon brushes (Fig. 13)

The motor employs carbon brushes which are consumable parts. Since and excessively worn carbon brush can result in motor trouble, replace the carbon brush with new ones when it becomes worn to or near the “wear limit”. In addition, always keep carbon brushes clean and ensure that they slide freely within the brush holders. NOTE: When replacing the carbon brush with a new one, be sure to use the Hitachi Carbon Brush, Code No.

5. Replacing carbon brushes

Take out the carbon brush by first removing the brush cap and then hooking the protrusion of the carbon brush with a flat head screw driver, etc., as shown in Fig. 15. When installing the carbon brush, choose the direction so that the nail of the carbon brush (See Fig. 14) agrees with the contact portion outside the brush tube. Then push it in with a finger as illustrated in Fig. 16. Lastly, install the brush cap. CAUTION

Be absolutely sure to insert the nail of the carbon brush into the contact portion outside the brush tube. (You can insert whichever one of the two nails provided.)

Caution must be exercised since any error in this operation can result in the deformed nail of the carbon brush and may cause motor trouble at an early stage. Fig. 15 Fig. 13 Wear limit 0.12" (3mm) 0.45" (11.5mm) Fig. 16 Contact portion outside brush tube Nail of carbon brush Protrusion of carbon brush Fig. 14 01Eng_DS14DSAL_US 10/7/08, 16:1717English

Dust may be removed with a soft cloth or a cloth dampened with soapy water. Do not use bleach, chlorine, gasoline or thinner, for they may damage the plastics.

7. Disposal of the exhausted battery

Do not dispose of the exhausted battery. The battery must explode if it is incinerated. The product that you have purchased contains a rechargeable battery. The battery is recyclable. At the end of it’s useful life, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for recycling options or proper disposal.

Storing in a place below 104°F (40°C) and out of the reach of children.

9. Service and repairs

All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a HITACHI AUTHORIZED SERVICE CENTER, ONLY.

Repair, modification and inspection of Hitachi Power Tools must be carried out by a Hitachi Authorized Service Center. This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed. MODIFICATIONS: Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements. Accordingly, some parts may be changed without prior notice. 01Eng_DS14DSAL_US 10/7/08, 16:1718English

ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage. NOTE: Accessories are subject to change without any obligation on the part of the HITACHI. STANDARD ACCESSORIES DS14DSAL

OPTIONAL ACCESSORIES.....sold separately

40 LED HOLDER 1 Item No. Part Name Q’TY
