USER MANUAL Lido Design 2 900 Murale ROBLIN

Instructions for use and installation

GB Thank you for buying a ROBLIN product which has been manufactured to the highest quality standards to

meet your requirements.

We recommend you carefully read this booklet in which you will nd instructions for installation, hints for

use and maintenance.

The Instructions for Use apply to several versions of this appliance. Accordingly, you may nd descrip-

tions of individual features that do not apply to your specic appliance.

• This cooker hood is tted with a 3-core mains cable with a standard 10/16A earthed plug.

• Alternatively the hood can be connected to the mains supply via a double-pole switch having 3mm

minimum contact gap on each pole.

• Before connecting to the mains supply ensure that the mains voltage corresponds to the voltage on

the rating plate inside the cooker hood.

• Technical Specication: Voltage 220-240, single phase ~50/60Hz.

2 INSTALLATION ADVICE

• Ensure the cooker hood is tted in compliance with the recommended xing heights.

• To ensure the safe operation of this cooker hood, we recommend that the hood should not be tted

below 65cm (for electric) or (70cm for gas) the measurements taken from the surface of the cooking

appliance to the underside of the cooker hood.

• It is a possible re risk if the hood is not sited as recommended.

• To ensure the best results, the cooking fumes should be able to rise naturally towards the inlet grilles

on the underside of the cooker hood and the cooker hood should be positioned away from doors and

windows, which will create turbulence.

• If the room where the hood is to be used contains a fuel-burning appliance such as a central heating

boiler then its ue must be of the room sealed or balanced ue type.

• If other types of ue or appliances are tted ensure that there is an adequate supply of fresh air to the

room. Ensure the kitchen is tted with an airbrick, which should have a cross-sectional measurement

equivalent to the diameter of the ducting being tted, if not larger.

• The ducting system for this cooker hood must not be connected to any existing ventilation system,

which is being used for any other purposes or to a mechanically controlled ventilation ducting.

• The ducting used must be made from re retardant materials and the correct diameter must be used,

as incorrect sized ducting will affect the performance of this cooker hood.

• When the cooker hood is used in conjunction with other appliances supplied with energy other than

electricity, the negative pressure in the room must not exceed 0.04 mbar to prevent the fumes from

combustion being drawn back into the room.

• The appliance is for domestic use only and should not be operated by children or people who are

inrm without supervision.

• This appliance must be positioned so that the wall socket is accessible.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

3 FITTING Any permanent electrical installation must comply with the latest regulations concerning this type of

installation and a qualied electrician must carry out the work. Non-compliance could cause serious

accidents or injury and would deem the manufacturers guarantee null and void.

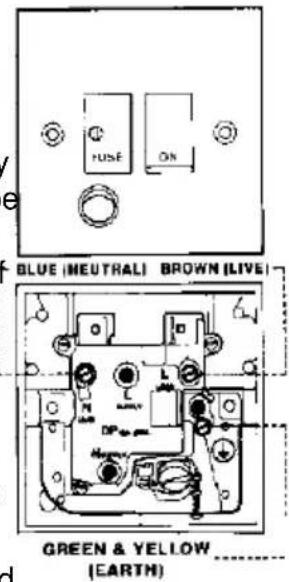

IMPORTANT - The wires in this mains lead are coloured in accordance with the following code :

- green / yellow : earth - blue : neutral - brown : live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured7

markings identifying the terminals in your plug, proceed as follows.

- The wire which is coloured green and yellow must be connected to the terminal in the plug which is

marked with the letter E or by the earth symbol or coloured green or green and yellow.

- The wire which is coloured blue must be connected to the terminal which is marked with the letter N or

- The wire which is coloured brown must be connected to the terminal which is marked with the letter L or

ATTENTION: Do not forget to use adequate plugs to the support brackets. Enquire after the manu-

facturers. Do an embedding if necessary. The manufacturer accepts no responsibility in case of a

faulty hanging due to the drilling and the setting up of plugs.

1) Draw a vertical line onto the wall from the centre of the cooking appliance up to the ceilling, using a

spirit level and a marker pen as illustrated in Fig. 1 - item 1. This is to ensure the correct alignment

of the chimney hood.

2) Place the brackets item 2 on the wall about 1 or 2 mm from the ceiling or from the upper limit, aligning

its centre on the vertical line. Mark the two eyelet holes of the bracket onto the wall. Drill the holes

for the xing bracket using an 8 mm masonry bit. Fix the chimney bracket item 2 using the 4.5 x 50

mm screws and rawl plugs supplied.

3) Draw a horizontal line through the vertical at 650 + item A when tting above an electric hotplate

orat 700 + item A when tting above a gas hotplate as illustrated in Fig. 1. Mark the hole centres for

the canopy xing brackets item 4 at item B mm as illustrated in Fig. 3. Drill the 4 holes for the xing

brackets using an 8 mm masonry bit. Fix the wall brackets item 4 using the 4.5 x 45 mm screws and

rawl plugs supplied.

4) Hook the canopy item 5 onto the wall brackets item 4 as illustrated in Fig. 3. To ensure the cooker

hood is aligned correctly adjust the screws on the top of the canopy as illustrated in Fig. 3. When the

hood is aligned correctly mark the hole centre on the wall for the security xing screw item8, which

is located in the right hand bracket on the top of the canopy. Unhook the canopy from the wall and

drill the hole for the security xing screw. Hook the canopy onto the wall and x the No 4,5 x 50mm

headed screw and rawl plug to secure the canopy to the wall.

The hood is more effective when used in the extraction mode (ducted to the outside). When the cooker

hood is ducted to the outside, charcoal lters are not required.The ducting used must be 150 mm (6

INS), rigid circular pipe and must be manufactured from re retardant material, produced to BS.476

or DIN 4102-B1. Wherever possible use rigid circular pipe which has a smooth interior, rather than

the expanding concertina type ducting.

Maximum length of ducting run:

- 4 metres with 1 x 90° bend.

- 3 metres with 2 x 90° bends.

- 2 metres with 3 x 90° bends.

The above assumes our 150 mm (6 INS) ducting is being installed. Please note ducting components and

ducting kits are optional accessories and have to be ordered, they are not automatically supplied

with the chimney hood.

IN THE EXTRACTION MODE:

a. Place the anti-backow ats item 8 over the round outlet item 6 and connect the ducting 150mm (6

INS) over the round outlet on top of the canopy and secure the connections with appropriate clamp-

ing rings or adhesive tape (Fig. 6).

b. Remove the grease lters (see paragraph Maintenance) Fig. 5 being sure that the connector of the

mains cable is correctly inserted in the socket placed on the sides of the fan. Before tting the chimney

to the canopy make the electrical connection as described in the section titled ELECTRICAL. When

the electrical connection has been made, test the lights and the fan motor.

c. Each chimney stack consists of two sections. Fit the upper sections (Fig. 1 - item 7a & b) rst

byexpanding the chimneys slightly to allow them to clamp around the bracket item 2 and secure the8

chimney stacks to the brackets using the two M4 screws item 12c provided. Fit the lower chimney

sections by expanding the chimneys slightly to allow them from the top of the canopy to clamp around

the upper chimney sections.

b. Connect the ducting 150mm (6 INS) not provided between motors item 6 and the recirculation spigot

and secure the connections with appropriate clamping rings or adhesive tape.

c. Remove the grease lters (see paragraph Maintenance) Fig. 5 being sure that the connector of the

feeding cable is correctly inserted in the socket placed on the side of the fan. Before tting the chimney

to the canopy make the electrical connection as described in the section titled ELECTRICAL. When

the electrical connection has been made, test the lights and the fan motor.

d. Insert the charcoal lter into the base of the motor housing and secure the lter with two metal secur-

ing straps item A as illustrated in Fig. 4.

e. Each chimney stack consists of two sections. Fit the upper sections (Fig. 1 - item 7a & b) rst by

expand-ing the chimneys slightly to allow them to clamp around the bracket item 2 and secure the

chimney stacks to the brackets using the two M4 screws item 12c provided. Fit the lower chimney

sections by expanding the chimneys slightly to allow them from the top of the canopy to clamp around

the upper chimney sections.

A Turns the suction motor on and off at the last

Displays the speed set

B Decrease the working speed.

C Increase the working speed.

D Activates intensive speed from any other

speed even with the motor off. This speed is

timed to run for 10 minutes, after which the

system returns to the previous speed. Suitable

to deal with maximum cooking fumes.

Displays HI and the bottom right hand spot

flashes once a second.

E Activates the motor at a speed that allows

/h for 10 minutes every

hour, after which the motor stops.

When the filter alarm is on, press the button

for approximately 3 seconds to reset the

alarm. These indications are only visible

when the motor is turned off.

Displays 24 and the bottom right hand spot

flashes, while the motor is turned on

On completing the procedure the previous

indicator is turned off:

FF indicates that the metal grease filters

need washing. The alarm is triggered

after the Hood has been in operation

EF indicates that the activated charcoal

filter needs changing and the metal

grease filters need washing. The

alarm is triggered after the Hood has

been in operation for 200 hours.

F Activates automatic shutdown after 30’. Suit-

able to complete elimination of residual

odours. Can be activated from any position,

and is turned off by pressing the button or

switching the motor off.

Alternately displays the working speed and

the time remaining before the hood turns

off. The bottom right hand spot flashes.

G H Turns the main lighting system on and off.

Turns the ambiance lighting system on and off.10

• To obtain the best performance it is advisable to switch ‘ON’ the cooker hood a few minutes (in the

boost setting) before you start cooking and you should leave it running for approximately 15 minutes after

• IMPORTANT: NEVER DO FLAMBÉ COOKING UNDER THIS COOKER HOOD

• Do not leave frying pans unattended during use as over-heated fat and oil might catch re.

• Do not leave naked ames under this cooker hood.

• Switch ‘OFF’ the electric and gas before removing pots and pans.

• Ensure heating areas on your hotplate are covered with pots and pans when using the hotplate

and cooker hood simultaneously.

6 MAINTENANCE Before carrying out any maintenance or cleaning isolate the cooker hood from the mains supply.

The cooker hood must be kept clean; a build up of fat or grease can be a re hazard.

• Wipe the cooker hood frequently with a clean cloth, which has been immersed in warm water containing

a mild detergent and wrung out.

• Never use excessive amounts of water when cleaning particularly around the control panel.

• Never use scouring pads or abrasive cleaners.

• Always wear protective gloves when cleaning the cooker hood.

Metal Grease Filters

The metal grease lters absorb grease and dust during cooking to help keep the cooker hood clean

inside. The grease lters should be cleaned once a month or more frequently if the hood is used for more

than 3 hours per day.

To remove and replace the metal grease lters

• Remove the metal grease lters one at a time by releasing the catches on the lters; the lters can

• The metal grease lters should be washed, by hand, in mild soapy water or in a dishwasher.

• Allow to dry before replacing.

Active Charcoal Filter

The charcoal lter cannot be cleaned. The lter should be replaced at least every three months or more

frequently if the hood is used for more than three hours per day.

To remove and replace the lter

• Remove the metal grease lters.

• Press against the two retaining clips, which hold the charcoal lter in place and this will allow the lter

to drop down and be removed.

• Clean the surrounding area and metal grease lters as directed above.

• Insert the replacement lter and ensure the two retaining clips are correctly located.

• Replace the metal grease lters.

Check every 6 months that the dirty air is being extracted correctly. Comply with local rules and regula-

tions with regard to the extraction of ventilated air.

If the lamp fails to function check to ensure it is tted correctly into the holder. If lamp failure has occurred

then it should be replaced with identical replacement.

Do not replace with any other type of lamp and do not t a lamp with a higher rating.

7 GUARANTEE AND AFTER SALES SERVICE

• In the event of any malfunction or anomaly, notify your tter who will have to check the appli-

ance and its connection.

• In the event of damage to the mains supply cable, this can only be replaced by at approved repair

centre appointed by the manufacturer who have the necessary tools and equipment to carry out any

repairs properly. Repairs carried out by other persons will invalidate the guarantee.

• Use only genuine spare parts. Should these warnings fail to be observed it could affect the safety of

• When ordering spare parts quote the model number and serial number written on the rating plate,

which is found on the casing behind the grease lters inside the hood.

• Proof of purchase will be required when requesting service. Therefore, please have your receipt

available when requesting service as this constitutes the date from which your guarantee commenced.

This Guarantee does not cover :

- Damage or calls resulting from transportation, improper use or neglect, the replacement of any light

bulbs or lters or removable parts of glass or plastic.

These items are considered to be consumable under the terms of this guarantee.

8 REMARKS This appliance complies with European regulations on low voltages Directive 2006/95/CE on electrical

safety, and with the following European regulations: Directive 2004/108/CE on electromagnetic compat-

ibility and Directive 93/68 on EC marking.

When this crossed-out wheeled bin symbol

is attached to a product it means the product is covered

by the European directive 2002/96/EC.Your product is designed and manufactured with high quality materi-

als and components, which can be recycled and reused.Please inform yourself about the local separate

collection system for electrical and electronic product. Please act according to your local rules and do not

dispose of your old products with your normal household waste. The correct disposal of your old product

will help prevent potential negative consequences for the environment and human health.

OPERATION GBComposants

ECLAIRAGE LIGHTING BELEUCHTUNG L1UK ELECTRICAL CONNECTION ELECTRICAL REQUIREMENTS Any permanent electrical installation must comply

with the latest I.E.E. Regulations and local Electricity

Board regulations. For your own safety this should be

undertaken by a qualified electrician e.g. your local

Electricity Board, or a contractor who is on the roll of

the National Inspection Council for Electrical

Installation Contracting (NICEIC).

ELECTRICAL CONNECTION Before connecting to the mains supply ensure that

the mains voltage corresponds to the voltage on the

rating plate inside the cooker hood.

This appliance is fitted with a 2 core mains cable and

must be permanently connected to the electricity supply

via a double-pole switch having 3mm minimum contact

gap on each pole. A Switched Fuse Connection Unit

to BS.1363 Part 4, fitted with a 3 Amp fuse, is a

recommended mains su

pply connection accessory to

ensure compliance with the Safety Requirements

le to fixed wiring instructions.

The wires in this mains

lead are coloured in

As the colours of the wires

in the mains lead of this

identifying the terminals in

your connection unit,

proceed as follows:-

The wire which is coloured blue must be connected

to the terminal which is marked with the letter ‘N’ or

is coloured brown must be connected

to the terminal which is marked with the letter ‘L’ or

Rating plate of the cookerhood
