USER MANUAL UE46F6670SS SAMSUNG

© 2013 Samsung Electronics Co., Ltd. All rights reserved.

BN68-04779P-02 LED TV

user manual Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register Model _____________Serial No. _____________ e-Manual

MORE Contact SAMSUNG WORLD WIDEIf you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.CountryCustomer Care Centre Web SiteAUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.comBELGIUM 02-201-24-18 www.samsung.com/be (Dutch)www.samsung.com/be_fr (French)BOSNIA 051 331 999 www.samsung.comBULGARIA 07001 33 11 , share cost tariff www.samsung.com/bgCROATIA 062 SAMSUNG (062 726 786) www.samsung.com/hrCZECH 800 - SAMSUNG (800-726786) www.samsung.com Samsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24, 148 00 - Praha 4DENMARK 70 70 19 70 www.samsung.comFINLAND 030-6227 515 www.samsung.comFRANCE 01 48 63 00 00 www.samsung.com/frGERMANY 0180 6 SAMSUNG bzw. 0180 6 7267864*(*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)www.samsung.comCYPRUS 8009 4000 only from landline www.samsung.com/grGREECE 80111-SAMSUNG (80111 726 7864) only from land line(+30) 210 6897691 from mobile and land linewww.samsung.com/grHUNGARY 06-80-SAMSUNG (726-7864) http://www.samsung.com/huITALIA 800-SAMSUNG (726-7864) www.samsung.comLUXEMBURG 261 03 710 www.samsung.comMONTENEGRO 020 405 888 www.samsung.com NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) www.samsung.com NORWAY 815 56480 www.samsung.comPOLAND0 801-172-678* lub +48 22 607-93-33 ***(całkowity koszt połączenia jak za 1 impuls według taryfy operatora)** (koszt połączenia według taryfy operatora)www.samsung.com/plPORTUGAL 808 20-SAMSUNG (808 20 7267) www.samsung.comROMANIA 08008 SAMSUNG (08008 726 7864)TOLL FREE No.www.samsung.com/roSERBIA 011 321 6899 www.samsung.com/rsSLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.comSPAIN 902172678 www.samsung.comSWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com SWITZERLAND 0848 - SAMSUNG(7267864, CHF 0.08/min) www.samsung.com/ch (German) www.samsung.com/ch_fr (French)U.K 0330 SAMSUNG (7267864) www.samsung.comEIRE 0818 717100 www.samsung.comLITHUANIA 8-800-77777 www.samsung.com/ltLATVIA 8000-7267 www.samsung.com/lvESTONIA 800-7267 www.samsung.com/eeTURKEY 444 77 11 www.samsung.com0_BN68-04779P-Cover.indd 1 2013-11-15  1:36:17English - 2

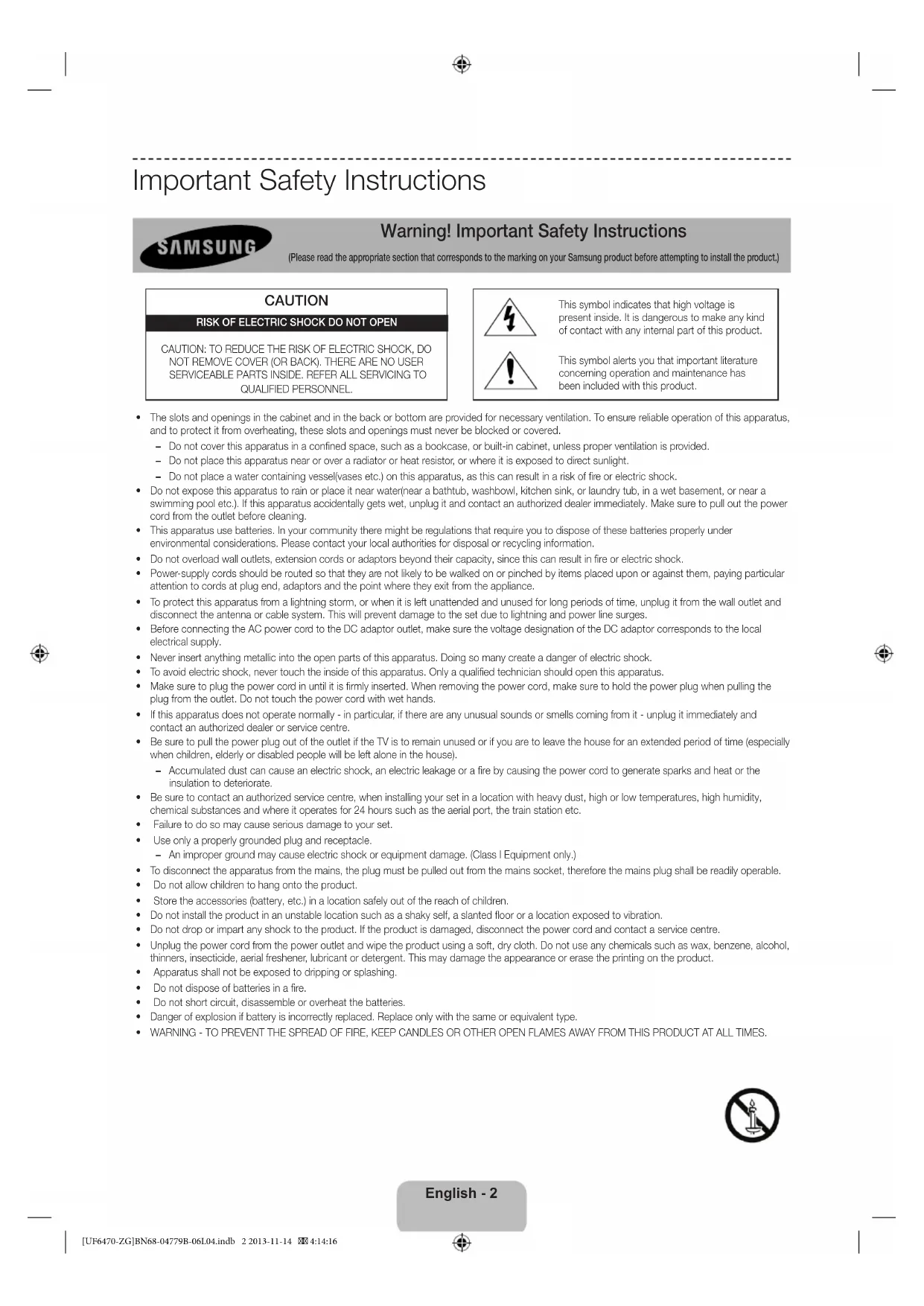

Important Safety Instructions

Warning! Important Safety Instructions

(Please read the appropriate section that corresponds to the marking on your Samsung product before attempting to install the product.)

CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that high voltage is

present inside. It is dangerous to make any kind

of contact with any internal part of this product.

This symbol alerts you that important literature

concerning operation and maintenance has

been included with this product.

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus,

and to protect it from overheating, these slots and openings must never be blocked or covered.

− Do not cover this apparatus in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilation is provided.

− Do not place this apparatus near or over a radiator or heat resistor, or where it is exposed to direct sunlight.

− Do not place a water containing vessel(vases etc.) on this apparatus, as this can result in a risk of fire or electric shock.

• Do not expose this apparatus to rain or place it near water(near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a

swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately. Make sure to pull out the power

cord from the outlet before cleaning.

• This apparatus use batteries. In your community there might be regulations that require you to dispose of these batteries properly under

environmental considerations. Please contact your local authorities for disposal or recycling information.

• Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire or electric shock.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular

attention to cords at plug end, adaptors and the point where they exit from the appliance.

• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and

disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local

• Never insert anything metallic into the open parts of this apparatus. Doing so many create a danger of electric shock.

• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus.

• Make sure to plug the power cord in until it is firmly inserted. When removing the power cord, make sure to hold the power plug when pulling the

plug from the outlet. Do not touch the power cord with wet hands.

• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and

contact an authorized dealer or service centre.

• Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time (especially

when children, elderly or disabled people will be left alone in the house).

− Accumulated dust can cause an electric shock, an electric leakage or a fire by causing the power cord to generate sparks and heat or the

insulation to deteriorate.

• Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity,

chemical substances and where it operates for 24 hours such as the aerial port, the train station etc.

• Failure to do so may cause serious damage to your set.

• Use only a properly grounded plug and receptacle.

− An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

• Do not allow children to hang onto the product.

• Store the accessories (battery, etc.) in a location safely out of the reach of children.

• Do not install the product in an unstable location such as a shaky self, a slanted floor or a location exposed to vibration.

• Do not drop or impart any shock to the product. If the product is damaged, disconnect the power cord and contact a service centre.

• Unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such as wax, benzene, alcohol,

thinners, insecticide, aerial freshener, lubricant or detergent. This may damage the appearance or erase the printing on the product.

• Apparatus shall not be exposed to dripping or splashing.

• Do not dispose of batteries in a fire.

• Do not short circuit, disassemble or overheat the batteries.

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

[UF6470-ZG]BN68-04779B-06L04.indb 2 2013-11-14  4:14:16English - 3

Figures and illustrations in this User Manual are provided for reference only and may differ from the actual product

appearance. Product design and specifications may change without notice.

CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product, since this is manufactured for

customers in EU region.

Features for your new TV

• 3D: This new feature enables you to view 3D content.

This TV features Smart Hub, a multi-purpose entertainment and family centre. With Smart Hub, users can surf

the web, download applications, and stay in touch with family and friends through social networking services. In

addition, you can enjoy photo, video, and music files stored on external storage devices.

™ Press to launch Smart Hub. Choose a service using the icons displayed in the top part of the screen.

Social: Watch the latest YouTube videos and you and your friends' video posts on Facebook and Twitter. You can

also make video calls to friends by connecting the TV to a camera (sold separately).

Apps: Download and install applications such as WebBrowser.

On TV: Check a listing of programmes that are currently aerialing and are scheduled to aerial. (Depending on the

Films and TV Shows: Purchase and watch movies and series without a separate external device. (Depending on

Photos, Videos & Music: Play back photo, video, and music files from an external storage device.

• Anynet+ (HDMI-CEC): This allows you to control all connected Samsung devices that support Anynet+ with your

Samsung TV’s remote.

• e-Manual: Provides a detailed, on-screen user's manual built into your TV. (page 12)

• Voice Recognition: Voice Recognition lets you access and control specific functions of the TV using voice

Voice Interaction in the German language is available in Switzerland.

• Device Manager: Use the TV features with a USB or Bluetooth keyboard and mouse.

• Screen Mirroring: Displays mobile device screens on your TV wirelessly.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset,

USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the

environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle

them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of

where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its

electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other

household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains

mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these

substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them

through your local, free battery return system. [UF6470-ZG]BN68-04779B-06L04.indb 3 2013-11-14  4:14:16English - 4

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

The items’ colours and shapes may vary depending on the models.

Cables not included in the package contents can be purchased separately.

Check that there is no accessory hidden behind packing materials when you open the box.

• Remote Control & Batteries (AAA x 2) • Regulatory Guide

• User Manual • Samsung 3D Active Glasses (40 inch model and above)

• Warranty Card (Not available in some locations) Cable managerHolder-Ring (Depending on the Model)CI Card Adapter IR Extension Cable • An administration fee may be charged if either

− (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual)

− (b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or home visit is carried out.

Warning: Screens can be damaged from

direct pressure when handled incorrectly.

We recommend lifting the TV by the edges,

as shown. Don't Touch This Screen! Caution of the cover-jack

The rear panel may differ depending on the model.

CAUTION: The cover-jack is for use by qualified

service personnel only. To reduce the risk of electric

shock or fire hazard, do not use the cover jack, unless

you are qualified to do so. Cover-jack TV Rear Panel[UF6470-ZG]BN68-04779B-06L04.indb 4 2013-11-14  4:14:17English - 5

Using the Smart Touch Control

✎ Depending on the model.

Connecting to the TV In order to operate the TV using a Smart Touch Control , you must fi rst pair it to the TV via Bluetooth. However, the Smart Touch Control is only available for the paired Samsung TV. ✎

We recommend to use the Smart Touch Control in less than 6m. A usable distance may differ depending on the wireless environmental conditions.

1. When the TV is off, point the Smart Touch Control at the remote control receiver of the TV and press the TV button for the fi rst pairing. Only this buttons sends an IR signal. The remote control receiver's location may vary depending on the model. 2. A Bluetooth icon will appear at the bottom left of the screen as shown below. The TV will then attempt to connect to the Smart Touch Control automatically. <Attempting to connect and completion icons> Reconnecting the Smart Touch Control <The Smart Touch Control's pairing button> If the Smart Touch Control stops operating or works abnormally, replace the battery as this may be caused by insuffi cient

battery power. If the problem persists, press the PAIRING button on the Smart Touch Control to restore pairing with the TV. The

PAIRING button cannot be accessed without removing the Smart Touch Control's battery cover. Within a distance between

30cm to 4m, point the Smart Touch Control to the TV receiver and press the PAIRING button. When pairing is complete, the pairing image displays at the bottom left of the TV screen. Touch Pad• Drag on the Touch Pad to move the focus on the screen.• Press the Touch Pad to run, activate, or select the highlighted item.• Press and hold the touch pad to display the Channel List. VOICE˜ Take your voice command and enter a text using your voice. You can use the MIC to give Voice Recognition commands. Simply press the VOICE˜ button.

Voice Recognition function can be affected by unclear pronunciation, voice level, or surrounding noise. Displays a virtual remote control on the screen. See the e-Manual chapter, Controlling TV > Using the Virtual Remote Control.Press and hold the MORE button to select a desired function (e.g. MENU (m), TOOLS (T), INFO (`), etc.) easily. Changes channels. View each digital channel's programming schedule, including showtimes. In addition, sets a Schedule Viewing or Schedule Recording to press the touch pad on the programme entry scheduled to air later. Turn on and off the satellite or cable set-top box connected to the TV. For this, the Smart Touch Control must be confi gured as a universal remote control. Turns the TV on and off. Displays and selects the available video sources. Adjusts the volume. MUTE Turns the TV sound on/off.Press and hold this button to select Audio Description and Subtitle.(Depending on the country or region.) Returns to the previous menu. Press and hold this button to exit all currently running applications. Brings up Smart Hub applications. See the e-Manual chapter, SMART TV Features > Smart Hub. To exit an application that is running, press the ™ button.The colour buttons work differently, depending on the function that the TV is currently performing.Press and hold the { button while watching TV to view information about the current programme.Toggles this button between Recommended and Search.[UF6470-ZG]BN68-04779B-06L04.indb 5 2013-11-14  4:14:17English - 6

If the battery becomes and blanks low while using the Smart Touch Control, the following alarm

window blinks and appears at the bottom left of the screen. If the alarm window pops up, replace

the batteries of the Smart Touch Control. Use alkaline batteries for longer usage.

Inserting the Batteries (AAA X 2)

1. Slightly lift the battery cover using a plastic card. Next, pull on the cover’s notch with a fingernail to remove the cover

Check the location of the battery cover groove. The groove's location may vary depending on the type of

Smart Touch Control is provided with the product.

2. Insert 2 AAA batteries, making sure to align the positive and negative ends correctly.

3. Align the battery cover with the back of the remote control and press down along the edges until it is cleanly

attached to the remote control.

Use the touchpad to perform various commands. Navigate to Tutorial (Screen Menu > System > Device Manager >

Smart Touch Control Settings > Tutorial) to view an on-screen guide to using the Smart Touch Control. Dragging Press

Drag on the touchpad in the desired direction.Move the focus or the pointer in the direction the finger is dragging.Press the touchpad. This selects the focused item. Changing Channels by Entering Numbers

While watching TV, tap on the protruding line on the left or right edge of the touchpad to bring up

the numerical input window on the screen. Use your finger to enter the number for the channel

you want to watch. The recognised number is displayed on the screen and the TV switches to the

corresponding channel. However, the number you have entered may not be recognised properly by

the TV. Refer to the guide below to ensure that your numerical entries are recognised accurately.

Numerical Input Guide

Show Status and Notification Banner

Press the MORE button on the Smart Touch Control and then select STATUS on the virtual control panel to display the

status and notification banner at the top of the screen.

Recommendations, History and Searching

Press the RECOMM. / SEARCH button and then select Recommended from the list displayed at the bottom

of the screen. Select a programme that is currently airing to jump to the corresponding channel or a programme

that is scheduled to air to set up a Schedule Viewing or Schedule Recording setting. Refer to the "Scheduled

Recommended Programme Info" for more information.

Select an application to launch. Samsung Apps will launch if the selected application is not installed on the TV. Refer to

the "Samsung Apps" for more information.

Press the RECOMM. / SEARCH button and then select History from the list displayed at the bottom of the screen. This

displays an interactive list of recently accessed channels, media content and applications.

Press the RECOMM. / SEARCH button twice. Enter search criteria to search not only many apps and their contents on

the TV but also the Web.

Adjusting the Touchpad

Screen Menu > System > Device Manager > Smart Touch Control Settings > Touch Sensitivity

Users can adjust the sensitivity of the Smart Touch Control’s touchpad. Set Touch Sensitivity to adjust sensitivity and

make it more convenient to use.

Using the Virtual Remote Control

Press MORE button to display the virtual remote panel on the screen. The virtual remote panel consists of a number

panel, a playback control panel, and a quick access panel. Use the Touch Pad to select numbers and buttons. Press

and hold the MORE button. A quick access panel of virtual remote panel appears. You can select screen buttons easily.

Changing the Virtual Remote Control Panel

Choose the number panel, playback control panel, or quick access panel as the panel to be shown on the screen.

Use the touchpad to keep moving the focus left or right. The panel changes when the focus is moved beyond the

leftmost or rightmost edge.

Use left/right scroll function on the touchpad to change the panel easily.

Using the Number Panel

Use the number panel to enter numbers on a keypad screen or webpage or to change the channel while watching TV.

Changing the channel using the number pad leaves a record, allowing you to easily return to previous channels.

Using the Playback Control Panel

Use the playback control panel to pause, rewind, fast forward, skip to the next file, and much more while enjoying media

Using the Quick Access Panel

Quickly access the INFO, MENU and e-Manual buttons. However, the availability of buttons vary depending on the

operating mode of the Smart Touch Control (with the TV only, as a universal remote, etc.).

[UF6470-ZG]BN68-04779B-06L04.indb 7 2013-11-14  4:14:18English - 8

Using the Remote Control

Learn where the function buttons are on your remote. Especially note these: SOURCE, MUTE, Y, < P >,

MENU, TOOLS, E, INFO, CH LIST, RETURN, GUIDE and EXIT.

This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually

Your TV also comes with a Smart Touch Control. For information about the Smart Touch Control, refer to the

Displays and selects the available video

Returns to the previous channel.

Cuts off the sound temporarily.

Brings up Smart Hub applications. See the

e-Manual chapter, SMART TV Features >

Displays the EPG (Electronic Programme

Displays information on the TV screen.

Turns the TV on and off.

Gives direct access to channels.

Opens the OSD (Menu).

Quickly selects frequently used functions.

Returns to the previous menu.

Use these buttons according to the

directions on the TV's screen.

Use these buttons in a specific feature. Use

these buttons according to the directions

Moves the cursor, selects the on-screen

menu items, and changes the values seen

Displays channel lists on the screen.

Alternately select Teletext ON Double, Mix

REC: Records whatever you are currently

: Turns the 3D function on or off. See

e-Manual chapter TV Viewing > 3D TV.

AD/SUBT.: Turns the audio description on

and off (not available in some locations).

Installing batteries (Battery size: AAA)

Match the polarity of the batteries to the symbols in the battery compartment.

− Use the remote control within 23 feet of the TV.

− Bright light may affect the performance of the remote control. Avoid using when near special fluorescent lights or

− The colour and shape may vary depending on the model.

Turning on the TV Turn on the TV using the P button on the remote control or TV panel.

The product Colour and shape may vary depending on the model.

The TV’s Controller, a small joy stick like button on the rear right side of the TV, lets you control the TV without the

mR P Function menuTV ControllerThe image is drawn by facing the front side of the TV.Remote control sensorWhen you use the Smart Touch Control, a standby LED does not work (except P button).

SETUP The initial setup dialog appears when the TV is first activated. Follow the on-screen instructions to finish the initial setup

process, including menu language choice, channel scan, network connection, and more. At each step, either make a

choice or skip the step. Users can manually perform this process at a later time under the Screen Menu > System >

If you connect any device to HDMI1 before starting the installation, the Channel Source will be changed to

Settop box automatically.

Press SOURCE button to switch between devices

connected to the TV.

For example, to switch to a game console connected

to the second HDMI connector, press SOURCE button.

From the Source list, select HDMI2. The connector

names may vary depending on the product. Select Tools

button at the upper-right corner of the screen to access

the following functions.

View detailed information about the connected

You can rename devices connected to the TV to more

easily identify external sources.

With a computer connected to the TV's HDMI (DVI)

port via an HDMI cable, for example, you can change

With a computer connected to the TV's HDMI (DVI)

port via an HDMI-to-DVI cable, for example, you can

change Edit Name to DVI PC.

With an AV device connected to the TV's HDMI (DVI)

port via an HDMI-to-DVI cable, for example, you can

change Edit Name to DVI Devices.

• Anynet+ (HDMI-CEC)

A list appears showing Anynet+ compatible ones of

external devices connected to the TV.

This function is only available Anynet+ (HDMI-

CEC) function set to On.

• Disconnect USB Device

Remove the USB device from the list safely. This

function is only available when the USB device

• Universal remote setup

To add a new external device to control it with the

Touch Remote Control, press the SOURCE button

and select Universal remote setup on the top right

of the screen. Using the universal remote control,

users can control external devices connected to the

TV, such as a settop box, Blu-ray player, and AV

Universal Remote Control Setup

This TV has a universal remote control feature that lets you control cable boxes, Blu-ray players, home theatres, and

other third-party external devices connected to the TV using the TV's remote control.

Some or new models of the external device connected to the TV, may not be supported the Universal remote

Keep a distance of 5 cm at least between the IR Extender and the external device, as the illustration shows. Face the

IR Extender toward the external device’s remote control signal receiver. Note that it should be no obstacle between

IR Extender and external device. The presence of an obstacle will interfere with the transmission of the remote control

Add the External Device

1. Turn on the external device you wish to set up universal remote function for and then press SOURCE to bring up the

2. Select Universal remote setup from the top of the screen. This initiates the universal remote setup process.

3. Follow the on-screen instruction and set up the universal remote control. If it does not work, set up the remote

control by entering the model number manually. [UF6470-ZG]BN68-04779B-06L04.indb 10 2013-11-14  4:14:19English - 11

Connecting to a COMMON INTERFACE slot (Your TV

Turn the TV off to connect or disconnect a CI card or CI card adapter.

Attaching the CI Card Adapter

Attach the adapter as shown side.

To install the CI CARD Adapter, please remove the sticker

To connect the CI CARD Adapter, follow these steps.

We recommend attaching the adapter before installing the

wall mount, or inserting the “CI or CI+ CARD”.

1. Insert the CI CARD Adapter into the two holes on the product 1.

Please find two holes on the rear of the TV, beside the COMMON INTERFACE port.

2. Connect the CI CARD Adapter into the COMMON INTERFACE port on the product 2.

3. Insert the “CI or CI+ CARD”.

We recommend that you insert the CI card before you mount the TV on a wall. It may be difficult to

insert after mounting. Insert the card after attaching the CI Card Adapter on TV. It is difficult to attach

the module if you insert the card before attaching.

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

• If you don’t insert the “CI or CI+ CARD”, some channels will display the

message “Scrambled Signal”.

• The pairing information containing a telephone number, the “CI or CI+

CARD” ID the Host ID and other information will be displayed in about

2~3 minutes. If an error message is displayed, please contact your service

• When the configuration of channel information has finished, the message

“Updating Completed” is displayed, indicating the channel list is updated.

• You must obtain a “CI or CI+ CARD” from a local cable service provider.

• When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD”

may cause damage to it.

• Insert the “CI or CI+ CARD” in the direction marked on the card.

• The location of the COMMON INTERFACE slot may be different depending on the model.

• “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

• If you have any problems, please contact a service provider.

• Insert the “CI or CI+ CARD” that supports the current aerial settings. The screen will be distorted or will not be

seen. TV Rear[UF6470-ZG]BN68-04779B-06L04.indb 11 2013-11-14  4:14:20English - 12

Network Configuration

Viewing the e-Manual The embedded e-Manual contains information about your TV's key features.This TV has a built-in user guide. To read it, use one of the following methods: • Open the Support menu and choose e-Manual (Troubleshooting).

• Press the E-MANUAL button on the standard remote control.

• Press the MORE button on the Smart Touch Control to display control buttons on the screen. Flick the Touch Pad until e-Manual appears and select it. ✎ Words in blue refer to screen menu options and words in light blue refer to remote control buttons. ✎ A printable version of this guide is also available at www.samsung.com/support. Scrolling a Page To scroll a page, use of one of the following methods: • Press the or button on the scroll bar at the right edge of the screen. • Drag or flick up or down the line on either the left or right edge of the touchpad. • Place the focus on the or button at the right edge of the screen, drag or flick up or down on the touchpad. Using the Top Icons

Use the Back, Forward, and Opened page icons on the top left of the screen to navigate through pages. These icons are available when two or more pages are passed. Returning to the Home Page To return to the home page, press the a button or select on the top right of the screen. Searching the Index

Press the b button or select on the top right of the screen to display the index. Select a term to display the page containing the term. Searching Pages

Press the { button or select on the top of the screen to access the search screen. Enter a search phrase and select Done. Select an item from the search results list to navigate to the relevant page. Closing the e-Manual

To close the e-Manual, press and hold the RETURN button or select at the upper-right corner of the screen or press EXIT button. Jumping to a Menu Item To directly jump to the menu item that is described in the current section, select . It is possible to jump from a menu item directly to the related section in the e-Manual. If you want to read an e-Manual entry on a specific screen

menu feature, press the Virtual Remote panel's or the regular remote's E-MANUAL button to load the corresponding e-Manual page. ✎ This feature may not be available, depending on the menu.[UF6470-ZG]BN68-04779B-06L04.indb 12 2013-11-14  4:14:21English - 13

Updating the e-Manual

Open the Smart Hub and select Apps, and then select More Apps. The e-manual can be updated in the same way

with an application update.

On the More Apps screen, select Apps to update. Select e-Manual from the list. The e-Manual starts updating to the

latest version. However, Apps to update appears on the screen only when the update is required.

Connecting to a Network

Connecting the Smart TV to a network gives you access to online services such as the Smart Hub, as well as software

Network Connection - Wireless

Connect the TV to the Internet using a standard router or modem. Wireless IP Router or Modem that has a DHCP ServerLAN Cable (Not Supplied)The LAN Port on the Wall Wireless Network Precautions

• This Smart TV supports the IEEE 802.11a/b/g /n communication protocols. Samsung recommends using IEEE

802.11n. Otherwise when you play video over a network connection, the video may not play smoothly.

• To use a wireless network, the TV must be connected to a wireless router or modem. If the wireless router supports

DHCP, the TV can use a DHCP or static IP address to connect to the wireless network.

• Select a channel that is not currently in use for the wireless router. If the channel set for the wireless router is

currently being used by another device, the result is usually interference and/or a communications failure.

• Most wireless networks have an optional security system. To enable a wireless network's security system, you need

to create a security key using characters and numbers. This security key is then needed to connect to the wireless

network. [UF6470-ZG]BN68-04779B-06L04.indb 13 2013-11-14  4:14:21English - 14

Network Security Protocols

The TV only supports the following wireless network security protocols and is unable to connect to non-certified wireless

• Authentication Modes: WEP, WPAPSK, WPA2PSK

• Encryption Types: WEP, TKIP, AES If the wireless router has been set to Pure High-throughput (Greenfield) 802.11n mode and the Encryption Type to

WEP or TKIP, Samsung Smart TVs will not support the connection in compliance with the new Wi-Fi certification

If the wireless router supports WPS (Wi-Fi Protected Setup), it is possible to connect to the network using PBC (Push

Button Configuration) or a PIN (Personal Identification Number). WPS automatically configures the SSID and WPA key

Network Connection - Wired

There are three main ways to connect your TV to your network using cable, depending on your network setup. They are

illustrated starting below:

The Modem Port on the Wall

Modem Cable (Not Supplied) LAN Cable (Not Supplied)

The Modem Port on the Wall

IP Router that has a

The LAN Port on the Wall

LAN Cable (Not Supplied)

The TV does not support network speeds less than or equal to 10Mbps.

✎ This feature is only available on 40 inch model and higher. Features Samsung's SSG-5100GB 3D glasses enable you to view 3D images on your 3D TV. The Samsung 3D glasses communicate with Samsung 3D TVs via the 2.4GHz RF band. ✎ The Samsung 3D glasses are only compatible with Samsung D, E, and F series 3D TV's that were released in 2011, 2012, and 2013. These 3D glasses cannot be connected to other Bluetooth devices. Parts LED Indicator & Power ButtonLiquid crystal shutterBattery CoverFor details on how to attach the glass temples and how to pair the glasses with the TV, refer to the separate 3D glasses manual. Replacing the Battery If the red LED blinks every two seconds continually, replace the battery with a new one. ✎ Insert the "+" side of the battery into the side marked with "+" in the battery compartment. ✎ To check the remaining battery capacity, refer to the pairing section in this manual.Pull the battery cover downwardOpen the battery cover Remove the batteryReplace the battery Push the battery cover downwardClose the battery cover

Pairing 3D Active Glasses

✎ What is Pairing? Pairing is the process of connecting 3D glasses and a 3D TV so that the two devices can exchange data. ✎ Ensure your Samsung TV and 3D glasses are no farther than 19.5 in (50 cm) apart from each other while pairing is in progress. • Turning the glasses on Press the power button briefly. The green LED is turned on for 3 seconds. (Make sure that 3D is activated on the TV before using the 3D glasses.) • Turning the glasses offPress the power button briefly. The red LED is turned on for 3 seconds. • Performing the pairing processTurn the TV on and let it power up completely. Press and hold the Power button on the glasses. The green and the red LEDs blink alternately for 2 seconds. • Operating range

2~6m 50cmRecommended pairing distanceRecommended viewing distanceRecommended viewing distance2~6m (6.5 to 19.5 ft)Recommended pairing distance50 cm or less (19.5 in) ✎ Once the 3D glasses are paired, the remaining battery capacity is displayed on the TV screen. (This feature only applies to Samsung F series 3D TVs and 3D glasses that have been available since 2013.) ✎ If you keep trying to pair the glasses and the TV, the battery level will decrease significantly. However, the battery level will recover to a certain degree in about a minute. 3D Active Glasses [UF6470-ZG]BN68-04779B-06L04.indb 15 2013-11-14  4:14:22English - 16

The working distance depends on the existence of

obstacles (a person, metal, walls, etc.) between the

glasses and the TV and the strength the Bluetooth

Turn off the 3D glasses while they are not in use. If

you leave the 3D glasses on, the battery lifespan

1. Turn on the TV, and then move the glasses within

19.5 inches of the TV.

2. Press the power button on the 3D glasses briefly. The

3D glasses will power on and pairing will start.

3. The message “3D glasses are connected to TV.” will

be displayed on the TV screen when the pairing is

successfully completed.

• If pairing fails, the 3D glasses will power off.

• If the first attempt to pair fails, power the TV off

and on again and perform step 2.

• How to pair again: Press the power button on the

3D glasses for more than 1 second.

Pairing is needed again in the following situations:

• If the 3D glasses do not function, even when the

power button is pressed, especially with a 3D TV

• If you want to play 3D content on another

Samsung 3D TV model that belongs to the D, E,

or F series released in 2011 through 2013. You

must pair the glasses with the other TV.

Some 3D modes may not be available depending on the

format of the image source.

To watch in 3D, you must wear 3D Active Glasses and

turn the glasses on by pressing the power button.

1. Go to the 3D screen. (Picture > 3D)

2. Select the 3D Mode. The 3D Mode screen appears.

3. Set the 3D Mode of the image you want to view.

If you encounter... Try this...

My 3D glasses do not work.

Replace the battery.

The 3D glasses should be close to the TV. Make sure that the distance between

the TV and your 3D glasses is less than 19.5 feet (6m) in a straight line.

Check the 3D function settings of your TV.

The LED keeps blinking The battery is dead. Replace the battery.

2 ~ 6 m (6.5 to 19.5 ft) Field Rate 120 fields/second

Weight Glasses 21.5 g/.76 oz. (including the battery: 24.0±0.5 g/.85.±.018oz. )

Power Glasses One 3 V lithium/manganese dioxide battery 3 V(CR2025)

Operating time 150 hours

Product specifications may be changed without notice in order to enhance product performance.

The continuous operating time may differ depending on the wireless communication environment and

Recommendation - EU Only

Hereby, Samsung Electronics, declares that this 3D Active Glasses is in compliance with the essential requirements and

other relevant provisions of Directive 1999/5/EC.

This equipment may be operated in all EU countries.

What is Remote Support?

Samsung Remote Support service offers you one-on-one support with a Samsung Technician who can remotely.

• Adjust the TV settings for you

• Perform a factory reset your TV

• Install recommended firmware updates

Having a Samsung Tech remotely service your TV is really pretty simple

2. Open the menu on your

TV and go to the Support

Provide the Pin# to the

4. The agent will then

access your TV. That's

Screen Menu > System > Change PIN Change the TV's password.

1. Run Change PIN and then enter the current password in the password field. The default password is 0000.

2. Enter a new password and then enter it again to confirm it. The password change is complete.

If you forget the PIN code, press the buttons in the following sequence which resets the PIN to “0-0-0- 0”:

For Standard Remote Control: In Standby mode: MUTE → 8 → 2 → 4 → POWER (on).

For Smart Touch Control: When the TV turns on: MUTE → Volume up → RETURN → Volume down →

Troubleshooting and Other Information

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit

“www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV. • Make sure the wall outlet is working. • Try pressing the P button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “Remote control does not work” below. There is no picture/video. • Check the cable connections. Remove and reconnect all cables connected to the TV and external devices. • Set the video outputs of your external devices (Cable/Sat Box, DVD, Blu-ray etc) to match the TV's input connections. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV. • Make sure your connected devices are powered on. • Be sure to select the correct input source. • Reboot the connected device by unplugging it, and then reconnecting the device’s power cable.

The remote control does not work. • Replace the remote control batteries. Make sure the batteries are installed with their poles (+/–) in the correct direction.• Clean the sensor’s transmission window on the remote. • Try pointing the remote directly at the TV from 5~6 feet away.The cable/set top box remote control doesn’t turn the TV on or off or adjust the volume. • Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set-Top-Box user manual for the SAMSUNG TV code. ✎

This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce.

There may be, however, be a few bright or dark pixels on the screen. These pixels will have no impact on the

performance of the product.

To keep your TV in optimum condition, upgrade to the latest firmware on the Samsung web site by USB

(Samsung.com > Support > Downloads).

Some of above pictures and functions are available at specific models only.

Mounting the TV on the Wall Using the Wall Mount Kit

Wall or Ceiling Mounting

If you mount this product on a wall, it should be mounted only as recommended by the manufacturer.

Unless it is correctly mounted, the product may slide or fall, causing serious injury to a child or adult,

and serious damage to the product.

Installing the Wall Mount Kit

The wall mount kit (sold separately) lets you mount the TV on the wall.

For detailed information about installing the wall mount, see the instructions provided with the wall mount. We

recommend you contact a technician for assistance when installing the wall mount bracket. We do not advise you to do

it yourself. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you

select to install the wall mount on your own. [UF6470-ZG]BN68-04779B-06L04.indb 18 2013-11-14  4:14:23English - 19

Remove the screws from the Wall Mount hole, before installing the Wall Mount. (65 inches

The wall mount kit is not supplied, but sold separately. Install your wall mount on a solid wall perpendicular to the

floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or

slanted wall, it may fall and result in severe personal injury.

− Standard dimensions for wall mount kits are shown in the table below.

− When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are

− Do not use screws that do not comply with the VESA standard screw specifications.

− Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw

specifications. Screws that are too long may cause damage to the inside of the TV set.

− For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may

differ depending on the wall mount specifications.

− Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall,

leading to personal injury. Samsung is not liable for these kinds of accidents.

− Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is

used or the consumer fails to follow the product installation instructions.

− Do not mount the TV at more than a 15 degree tilt. Product FamilyInch VESA Spec.(A * B) Standard Screw QuantityLED-TV32 ~ 40 200 X 200 M8 4 46 ~ 75 400 X 400 Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to

electric shock. [UF6470-ZG]BN68-04779B-06L04.indb 19 2013-11-14  4:14:23English - 20

Storage and Maintenance

If a sticker was attached to the TV screen, some debris can remain after you remove the sticker. Please clean the

debris off before watching TV.

The exterior and screen of the product can get scratched during cleaning. Be sure to wipe the exterior and screen

carefully using a soft cloth to prevent scratches.

Do not spray water directly onto the product. Any liquid

that goes into the product may cause a failure, fire, or

Clean the product with a soft cloth dampened with a

small amount of water. Do not use a flammable liquid (e.g.

benzene, thinners) or a cleaning agent.

Providing Proper Ventilation for Your TV When you install your TV, maintain a distance of at least 10 cm between the TV and other objects (walls, cabinet sides,

etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a fire or a problem with the product

caused by an increase in its internal temperature.

Whether you install your TV using a stand or a wall-mount, we strongly recommend you use parts provided by

Samsung Electronics only.

• If you use parts provided by another manufacturer, it may cause difficulties with the product or result in injury

caused by the product falling. Installation with a stand. Installation with a wall-mount.10 cm10 cm 10 cm10 cm10 cm10 cm10 cm Other Warnings

The actual appearance of the TV may differ from the images in this manual, depending on the model.

Be careful when you touch the TV. Some parts can be somewhat hot. [UF6470-ZG]BN68-04779B-06L04.indb 20 2013-11-14  4:14:24English - 21

Assembling the Cable manager

Eco Sensor and Screen Brightness

Eco Sensor measures the light in your room and optimizes the brightness of the TV automatically to reduce power

consumption. This causes the TV to brighten and dim automatically. If you want to turn this function off, go to Screen

Menu > System > Eco Solution > Eco Sensor

Do not block the sensor with any material. It can decrease picture brightness.

1. Eco Sensor: This power-saving feature automatically adjusts the screen brightness of the TV according to the

ambient light intensity detected by the Light Sensor.

2. To enable or disable Eco Sensor, go to Screen Menu > System > Eco Solution > Eco Sensor and select On or

3. Precaution: If you find the screen too dark while watching the TV in a dark area, this may be caused by the Eco

[UF6470-ZG]BN68-04779B-06L04.indb 21 2013-11-14  4:14:24English - 22

Tip Prevention – Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In

particular, ensure your children do not hang on or destabilize the TV. Doing

so may cause the TV to tip over, causing serious injuries or death. Follow all

safety precautions provided in the Safety Flyer included with your TV. For

added stability and safety, you can purchase and install the anti-fall device

To Avoid the TV from Falling

1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly

installed onto the wall.

You may need additional material such as an anchor depending on the type of wall.

Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

2. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto

Screws may not be supplied with the product. In this case, please

purchase the screws of the following specifications.

Screw Specifications

• For a 32 ~ 75 inches: M8

3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall

with a strong cable and then tie the string tightly.

− Install the TV near to the wall so that it does not fall backwards.

− It is safe to connect the string so that the clamps fixed on the wall are

equal to or lower than the clamps fixed on the TV.

− Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check the

connections for any sign of fatigue or failure. If you have any doubt about

the security of your connections, contact a professional installer.

Wall [UF6470-ZG]BN68-04779B-06L04.indb 22 2013-11-14  4:14:25English - 23

Specifications - TV Display Resolution 1920 x 1080

Environmental Considerations

Operating Temperature

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)

5% to 95%, non-condensing

Stand Swivel (Left /

-20˚ ~ 20˚ ( 75 inches: 0˚ )

10 W X 2 ( 75 inches: 15 W X 2 )

Dimensions (W x H x D)

Dimensions (W x H x D)

1470.1 x 935.8 x 375.3 mm

Dimensions (W x H x D)

Dimensions (W x H x D)

Dimensions (W x H x D)

Dimensions (W x H x D)

Dimensions (W x H x D)

Dimensions (W x H x D)

Display Resolution 1920 x 1080

Environmental Considerations

Operating Temperature

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)

5% to 95%, non-condensing

Dimensions (W x H x D)

Dimensions (W x H x D)

Design and specifications are subject to change without prior notice.

For information about the power supply, and more about power consumption, refer to the label attached to the

Typical power consumption is measured according to IEC 62087 Ed.2

To decrease power consumptionunplug the power cord when you don't use the TV for a long time.

Recommendation - EU Only

• Hereby, Samsung Electronics, declares that this LED TV is in compliance with the essential requirements and other

relevant provisions of Directive 1999/5/EC.

• The official Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product

Support and enter the model name.

• This equipment may only be used indoors.

• This equipment may be operated in all EU countries.

Avoid displaying still images (such as jpeg picture files), still image elements (such as TV channel logos, stock or news

bars at the screen bottom etc.), or programmes in panorama or 4:3 image format on the screen. Constantly displaying

still pictures can cause image burn-in on the LED screen, which will affect image quality. To reduce risk of this effect,

please follow the recommendations below:

• Avoid displaying the same TV channel for long periods.

• Always try to display any image in full screen. Use the TV set’s picture format menu for the best possible match.

• Reduce brightness and contrast to avoid the appearance of after-images.

• Use all TV features designed to reduce image retention and screen burn. Refer to the e-Manual for details. [UF6470-ZG]BN68-04779B-06L04.indb 25 2013-11-14  4:14:26Deutsch - 2

Wichtige Sicherheitshinweise

SOURCE, MUTE, Y, < P >, MENU, TOOLS, E, INFO, CH LIST, RETURN, GUIDE and EXIT.

la “SCHEDA CI o CI+.”

Montaggio Cable manager

Dimensioni (L x A x P)

Dimensioni (L x A x P)

Dimensioni (L x A x P)

Dimensioni (L x A x P)

Dimensioni (L x A x P)

Dimensioni (L x A x P)

Dimensioni (L x A x P)

Dimensioni (L x A x P)

Dimensioni (L x A x P)

Dimensioni (L x A x P)
