USER MANUAL DO906KN DOMO

sind nicht in der Garantie eingeschlossen.

WARRANTY This appliance has a two year warranty period. During this period the manufacturer is

responsible for any failures which are the direct result of construction failure. When these

failures occur the appliance will be repaired or replaced if necessary. The warranty will

not be valid when the damage to the appliance is caused by wrong use, not following the

instructions or repairs executed by a third party. The warranty will only be valid if the

warranty application has been completed by the dealer at the time of purchase. All parts,

which are subject to wear, are excluded from the warranty

Geschäft, in dem Sie das Produkt gekauft haben.

RECYCLING INFORMATION The symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it shall be brought to the applicable collection

point for recycling of electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate

waste handling of this product. For more detailed information about recycling of this

product, please contact your local city ofce, your household waste disposal service or

the shop where you purchased the product.DO906K/N Wanneer het elektrisch snoer beschadigd is, moet het vervangen worden door de

oder einer gleichartig geschulten Person ersetzt werden, um Unglücke zu verhindern.

If the supply cord is damaged, it must be replaced by manufacturer of its service

agent or a similarly qualied person in order to avoid a hazard.

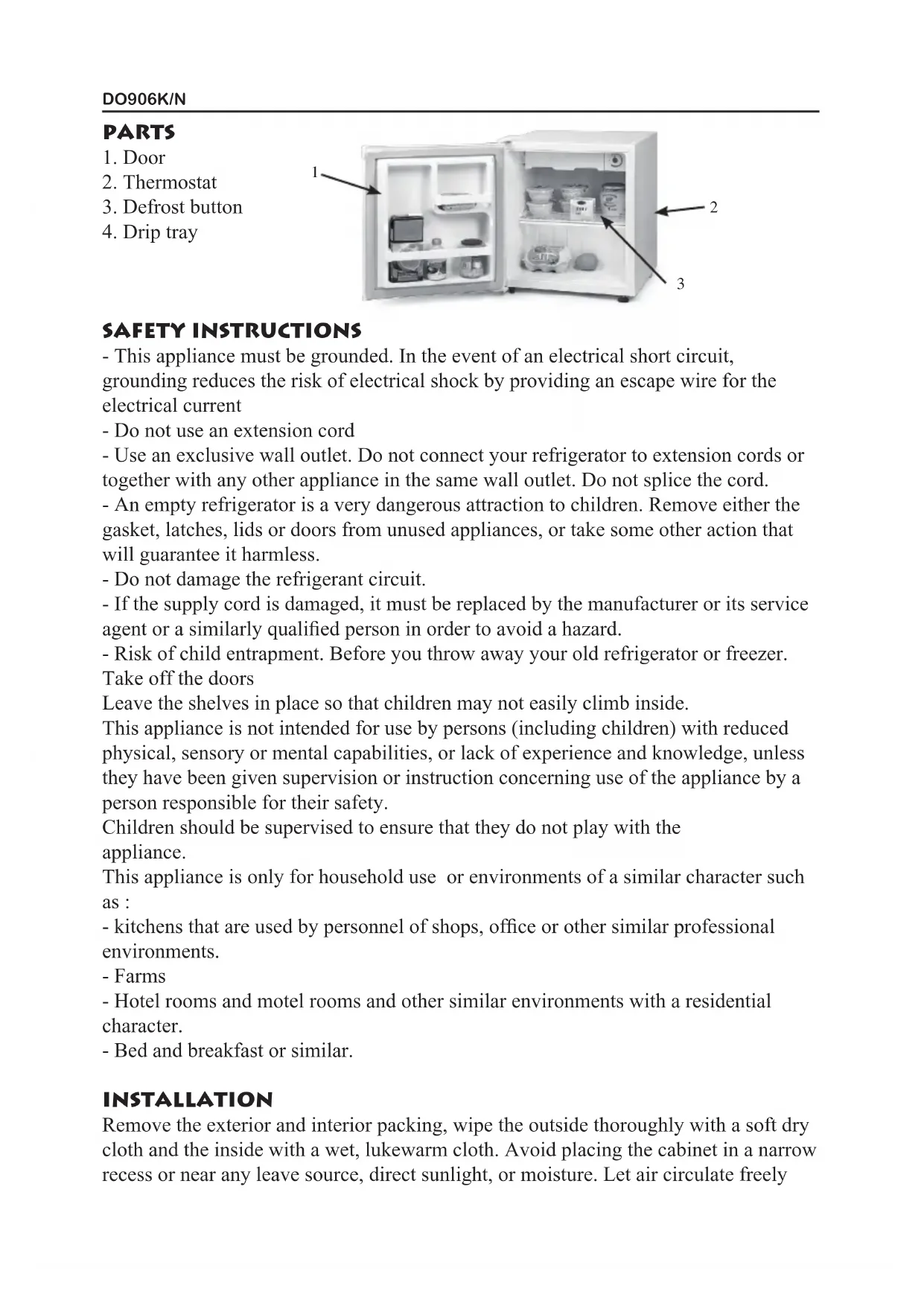

5DO906K/N ONDERDELEN

worden in glazen containers.

- This appliance must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electrical shock by providing an escape wire for the

- Do not use an extension cord

- Use an exclusive wall outlet. Do not connect your refrigerator to extension cords or

together with any other appliance in the same wall outlet. Do not splice the cord.

- An empty refrigerator is a very dangerous attraction to children. Remove either the

gasket, latches, lids or doors from unused appliances, or take some other action that

will guarantee it harmless.

- Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service

agent or a similarly qualied person in order to avoid a hazard.

- Risk of child entrapment. Before you throw away your old refrigerator or freezer.

Leave the shelves in place so that children may not easily climb inside.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

Children should be supervised to ensure that they do not play with the

This appliance is only for household use or environments of a similar character such

- kitchens that are used by personnel of shops, ofce or other similar professional

- Hotel rooms and motel rooms and other similar environments with a residential

- Bed and breakfast or similar.

INSTALLATION Remove the exterior and interior packing, wipe the outside thoroughly with a soft dry

cloth and the inside with a wet, lukewarm cloth. Avoid placing the cabinet in a narrow

recess or near any leave source, direct sunlight, or moisture. Let air circulate freely

around the cabinet. Keep the rear of the refrigerator 127mm away from the wall.

1. Select a place with a strong, level oor.

2. Allow 13 cm of space between the back of the refrigerator and any adjacent wall.

3. Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating. Heat

sources nearby will cause higher electricity consumption.

4. Avoid very moist places. Too much moisture in the air will cause frost to from very

quickly on the evaporator, and your refrigerator.

CARE AND MAINTENANCE Cleaning

Disconnect the power supply before cleaning

Wash ice cube tray, drip tray, and shelves in a mild detergent solution, then dry and

wipe with a soft cloth. Clean the outside with a soft damp cloth..

TEMP CONTROLLER The temperature inside the refrigerator could be adjusted by the thermostat.

“0”position stands for stopping operation, Set the temperature by turning the

thermostat knob at the back of the unit clockwise.

DEFROSTING Defrosting of your refrigerator should take place whenever ice build-up inside

the freezer compartment reaches “6mm”thick. Defrosting may take a few hours,

depending on the amount of accumulated ice and ambient indoor temperature. To

speed-up the defrosting process, remove all frozen section. Leaving the door partially

ajar for a “short” period of time will also speed-up the process.

Important: You must remember to close the refrigerator door before the defrost cycle

terminates and normal operating conditions resume automatically. The drip tray should

be in position directly below the freezer compartment to catch evaporated water

Important Notice: Never use sharp or pointed instruments to defrost/remove ice from

the evaporator/freezer compartment. The evaporator/freezer compartment contains

refrigerated gas lines and if accidentally punched/pierced,will render the refrigerator

inoperable and “void” the manufacturers warranty. Do not allow the refrigerator to

continue operation if the freezer compartment is pierced. After defrosting is complete,

set the control to maximum for 2 to 3 hours before turning to the desired position.

When the refrigerator is not to be used for a long period of time, disconnect the

appliance from the electrical supply and leave the door partially open. This will help

to reduce mold and mildew build-up.

Note: Wait 3 to 5 minutes before attempting to restart the refrigerator if operation has

been interrupted.DO906K/N VACATION TIME For short vacation periods, leave the control knobs at their usual settings. During

(a) remove all foods,

(b) disconnect from electrical outlet,

(c) clean the refrigerator thoroughly, including defrost pan,

(d) leave door open to avoid possible formations of condensate, mold or odors.

POWER FAILURE Most power failures are corrected within an hour or two and will not affect your

refrigerator temperatures. However, you should minimize the number of door

openings while the power is off. During power failures of longer duration, take steps

to protect your food by blacking dry ice on top of packages.

If you Move the appliance

Disconnected the power plug, Remove or securely fasten down all loose items inside

the refrigerator, To avoid damaging the leveling legs, turn them all the way into the

SOME IMPORTANT RULES FOR THE CORRECT USE OF THE REFRIGERATOR Never place hot foods in the refrigerator,

Beverages should be stored in sealed containers.

Foods to be stored for a long time should be wrapped in cellophance or polyethylence,

or kept in glass containers.

Never place spoiled foods in the cabinet.

Don’t overload the cabinet.

Don’t open the door unless necessary.

Caution: please keep the products away from the re or similar glowing substance

before you dispose the refrigerator.

Caution : Not for outer camping use (ex. Tent)

Caution: For indoor use only.

Caution: The appliance can not be used in public transportation.

The appliance shall not be used by children without supervisor.

TROUBLE SHOOTING Frequently, a problem is minor and a service call may not be necessary, use this

trouble shooting guide for a possible solution.

Check connection of power cord to power source.

Use proper voltage.DO906K/N

2. Cools too frequently

Check temperature setting and adjust as needed.

Close door securely.

Be sure that food is cool before inserting.

Do not keep door open for too long and MINIMIZE door openings.

Do not place unit close to heat sources Or direct sunlight.

3. Intemal temperature Too cold

Check setting and adjust as needed.

4. Intemal temperature Not cold enough

Check connection of power cord to Power source.

Check setting and adjust as needed.

Close door securely.

Be sure that food is cool before inserting.

Do not keep door open for too long and MINMIZE, door openings.

Allow room for airto circulate around unit..

Do not place unit close to heat sources or direct sunlight.

5. Freezer is not cold enough

Check setting and adjust as needed

Close door securely.

Be sure that food is cool before inserting.

Do not keep door open for too long.

Use proper voltage.LINEA 2000 - Industriezone Klein Gent - Bouwelven 12A - 2280 Grobbendonk - Tel 014/21.71.91 - Fax : 014/21,54,63
