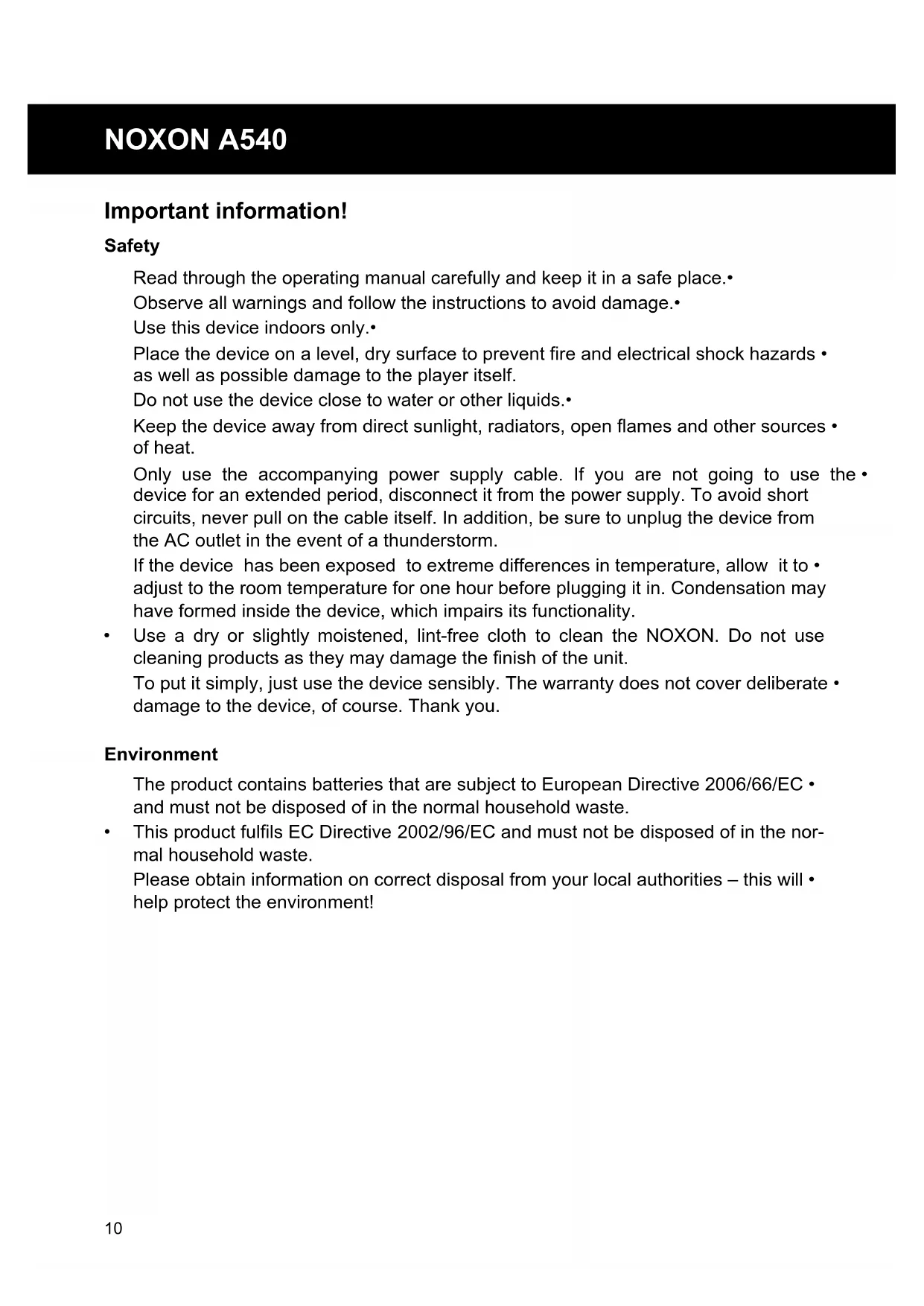

USER MANUAL Noxon A540 TERRATEC

Read through the operating manual carefully and keep it in a safe place.

Observe all warnings and follow the instructions to avoid damage.

Use this device indoors only.

Place the device on a level, dry surface to prevent fire and electrical shock hazards as well as possible damage to the player itself.

Do not use the device close to water or other liquids.

Keep the device away from direct sunlight, radiators, open flames and other sources of heat.

Only use the accompanying power supply cable. If you are not going to use the device for an extended period, disconnect it from the power supply. To avoid short circuits, never pull on the cable itself. In addition, be sure to unplug the device from the AC outlet in the event of a thunderstorm.

If the device has been exposed to extreme differences in temperature, allow it to adjust to the room temperature for one hour before plugging it in. Condensation may have formed inside the device, which impairs its functionality.

• Use a dry or slightly moistened, lint-free cloth to clean the NOXON. Do not use cleaning products as they may damage the finish of the unit.

To put it simply, just use the device sensibly. The warranty does not cover deliberate damage to the device, of course. Thank you.

Environment

The product contains batteries that are subject to European Directive 2006/66/EC and must not be disposed of in the normal household waste.

• This product fulfils EC Directive 2002/96/EC and must not be disposed of in the normal household waste.

Please obtain information on correct disposal from your local authorities - this will help protect the environment!

Scope of delivery

Start by making sure that the contents of the package are complete. The NOXON package should contain at least the following items:

NOXON A540

Power supply cable

Remote control with battery inserted

WLAN antenna

Operating manual (DE, EN)

Quick Start Guide (DE, EN, FR, IT, ES, NL)

Quick Start Guide for pros

This Quick Start Guide shows you how to get started using your NOXON device. For detailed descriptions and special configurations, refer to the information in your manual (depending on the scope of delivery, available in printed form or on the accompanying CD and online at www.terratec.com).

Pretest

Like any network device, your NOXON needs to be connected to your network before you can get started.

What do you need?

• A fast Internet connection (for example, DSL, ideally with a flat rate).
• A router for Internet access; for wireless operation, what is called a WLAN (Wireless LAN) router
• A network cable, if you do not want a wireless Internet connection for your device
• For WLAN integration: your network key (WEP, WPA or WPA2)

This key, just like any key, protects your network from unauthorised access and was generated when your network was set up. To allow NOXON access to a key-protected network, you will need to enter the network key into NOXON in a later step. If your network does not have a key, the NOXON can connect to the Internet without a network key.

Note: If you are not sure whether you are using a key of this type in your network, just give it a try without entering anything! If this does not work, repeat the setup process from the beginning. However, you will need to know your network key at this point. Please ask the person who set up your network for assistance.

NOXON A540

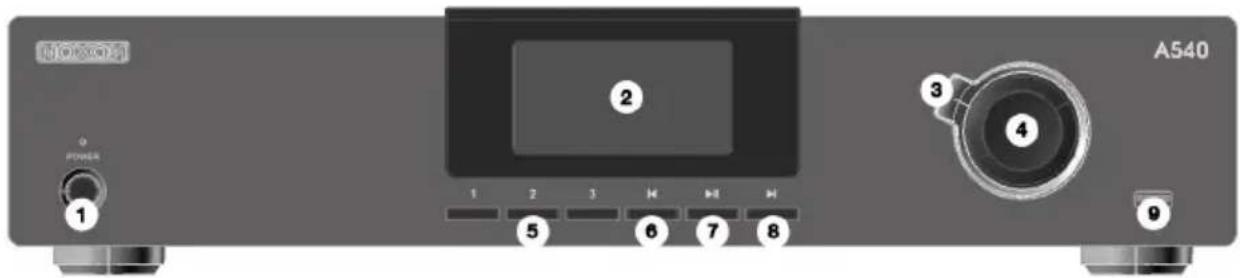

Overview: front

Power On/Off:1. Here, you can wake up the A540 or put it back to sleep.

Display2.

Back-Button:3. This takes you one step back in the selection.

Navigation dial with push function for selection: 4. Scroll through the menu by turning the dial in the list view. Turning the dial during playback changes the volume. To select a menu item, press the dial once.

Presets:5. Here, you can save up to three of your favourite stations for quick access.

Skip Back: 6. Jumps to the previous track.

Play/Pause:7. Starts and pauses playback.

1. Skip Forward: Jumps to the next track.
2. USB: Here, you can connect USB mass storage media.

back

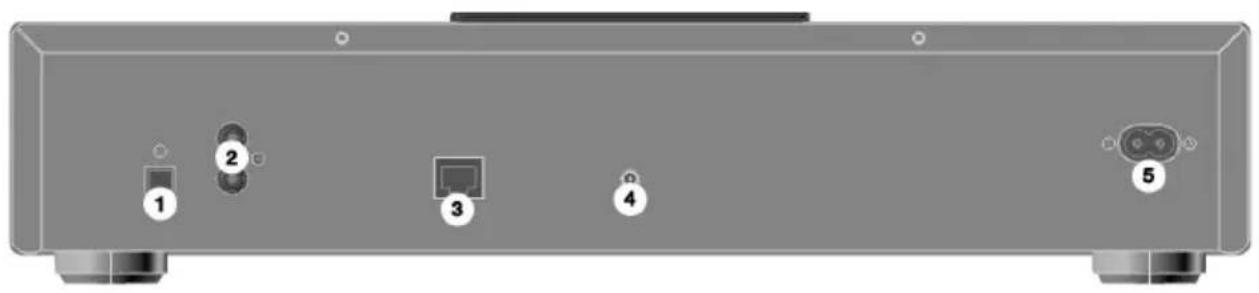

1. DIGITAL OUT: Connect this optical jack (TOSlink) to a digital amplifier that understands the S/PDIF protocol.

ANALOG OUT:2. Connect this analog jack (RCA) with a analog amplifier.

LAN:3. For wired network operation, use this RJ45 jack.

WLAN antenna: For wireless reception, you have to connect the WLAN antenna provided here.

1. POWER: Connect the provided power adapter to this jack.

NOXON A540

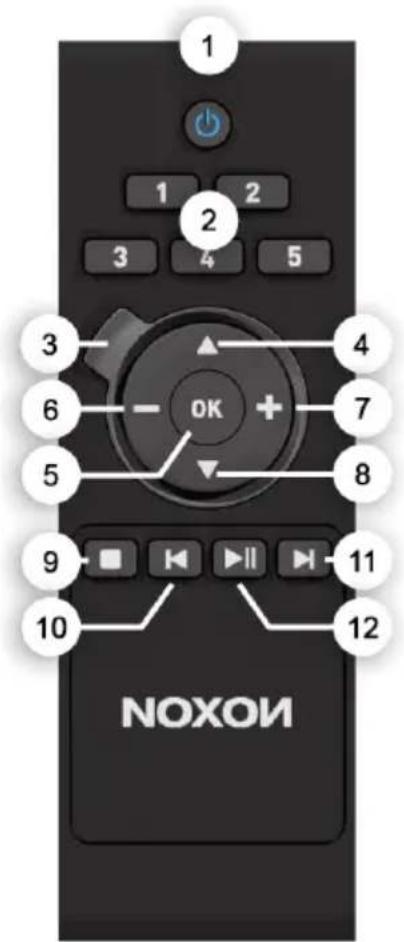

The remote control

The operating elements and functions provided here are almost identical to those on the NOXON A540.

Note: Before using the device for the first time, you have to remove the retaining tab of the battery.

Standby On/Off1.

Station keys 1 to 52.

Back Button3. (navigate back)

Navigate up4.

Selection5.

Volume lower6.

Volume higher7.

Navigate down8.

Stop9.

Skip Back10.

Skip Forward11.

Play/Pause12.

Setup

Once your NOXON has been activated initially, follow these steps to link it to your network for the first time:

You are greeted by the setup wizard, which asks politely if you want to start it up.

Setup wizard

Start now?

YES

Use the navigation dial to select a language for the menu and confirm - as in all other menus - the selection by pressing the navigation dial.

Then, enter the time format (12/24-hour).

However, we recommend that you set the date and time immediately (Day, Month, Year, Time), as well as the WLAN region you are located in.

Once you have done so, all that remains to be done is to connect to the network. Don't worry, even this should not be complicated – the network wizard will give you all the help you need.

We'll explain the ins and outs of this in the detailed manual later on. For now, we offer just a brief overview (after all, you are still in the „Overview“ chapter), as we do not want to bore anybody.

SSID

Your WiFi network

WiFi network of your neighbor...

[Rescan]

[Wired]

[Manual Config]

The setup wizard gives you the ability to choose between the cable connection and the wireless WLAN port.

If you prefer the cable version, select [Wired]. The setup wizard connects to your router automatically and that's it - you're in!

However, if the NOXON A540 is integrated via WLAN, please select your WLAN network on the display.

After selecting the desired network, you then have to enter the password to connect to the WLAN.

Key:

1. @,

abcdefghijklmn

opqrstuvwxyzABC

DEFGHIJKLMNOPQR

BKSP

OK

CANCEL

Navigate through the selection in the usual way using the navigation dial, push function and Back button.

When you have finished entering the key, confirm with OK. You likewise reach this field via the navigation dial.

NOXON A540

There, you're finished already! Just press the navigation dial again to go to the main menu - and use your NOXON A540 to plunge into the wonderful world of Internet radio.

Note: We recommend checking the device's firmware from time to time to ensure that you have the latest version and to update it if necessary - only in this way can you access the latest functions of your device. We'll explain how to do so later on in this manual.

Listen and enjoy

After you have set the device up successfully, the (almost) infinite variety of Internet radio is at your fingertips.

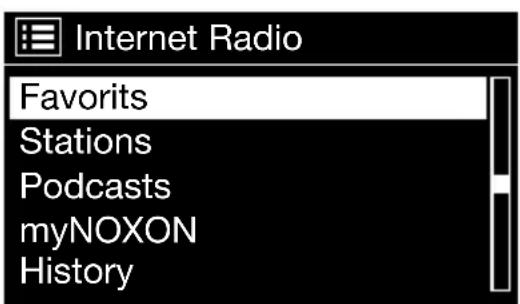

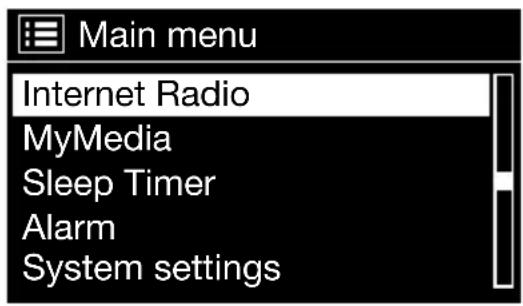

From the main menu, select „Internet Radio“ and confirm the selection.

In the submenu that follows, navigate to the station of your choice according to your personal taste.

To accommodate the large number of stations available from around the world, our database is conveniently sorted into countries, genres, popular stations etc. and is updated on an ongoing basis.

Internet radio 09:23

SWR 3

German radio network featuring rock and pop music.

To accommodate the large number of stations available from around the world, our database is conveniently sorted into countries, genres, popular stations etc. and is updated on an ongoing basis.

Volume

15

To adjust the volume during playback, use the navigation dial or the + and 其 keys on the remote control.

Have fun with your new NOXON A540!

Here's how to reach TERRATEC:

http://www.terratec.net/en/drivers-and-support.html
