USER MANUAL LC42LE540U SHARP

ENGLISH FRANÇAISESPAÑOL IMPORTANT : Please read this operation manual before starting operating the equipment.

IMPORTANTE : Lea este manual de operación antes de comenzar a operar el equipo.

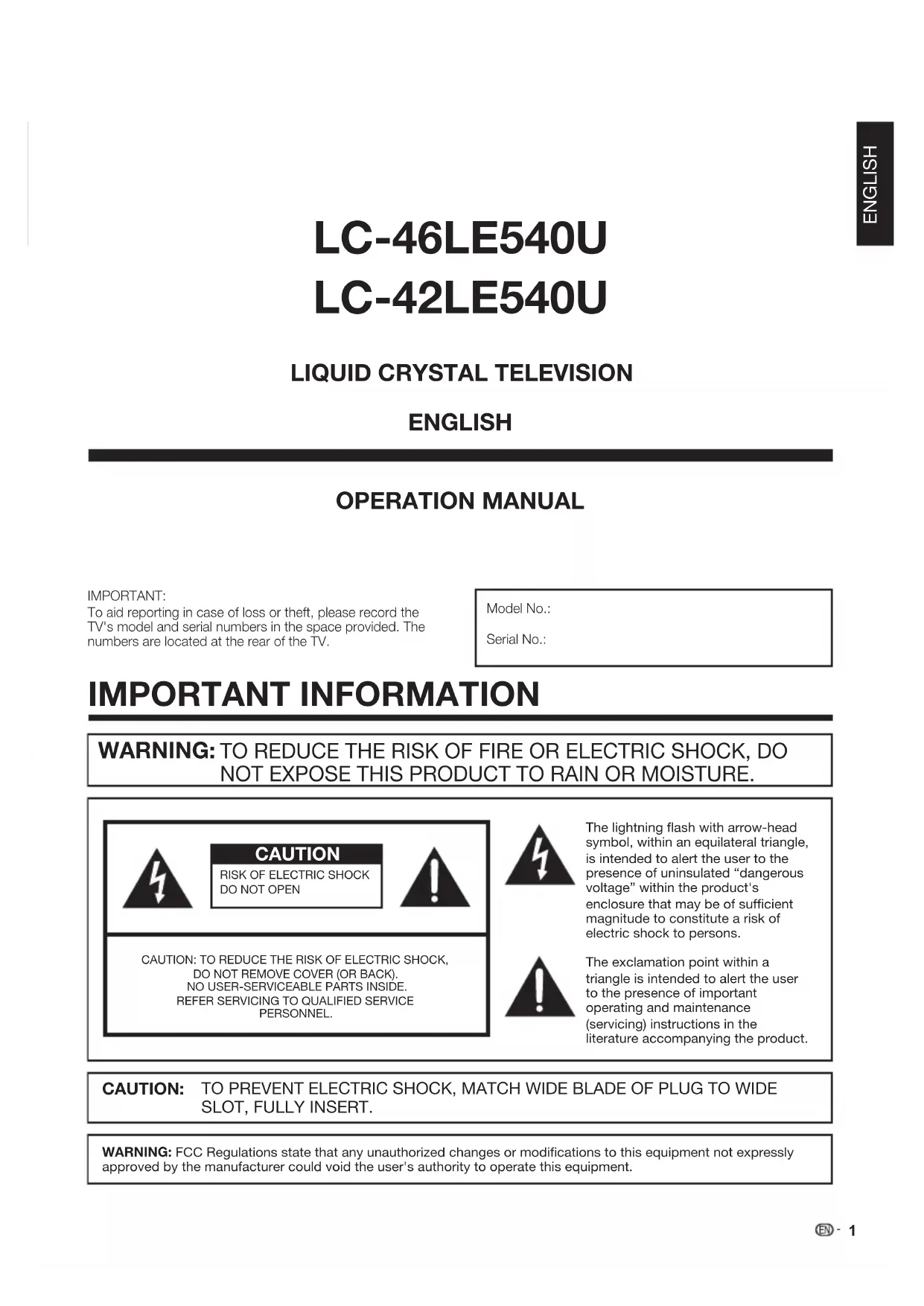

LC-46LE540U LC-42LE540U LIQUID CRYSTAL TELEVISION TÉLÉVISEUR ACL TELEVISOR CON PANTALLA DE CRISTAL LÍQUIDO OPERATION MANUAL MODE D'EMPLOI MANUAL DE OPERACIÓN ENGLISH FRANÇAISESPAÑOL ENGLISH FRANÇAISESPAÑOLTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

WARNING: The lightning flash with arrow-head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.CAUTIONRISK OF ELECTRIC SHOCK DO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICEPERSONNEL.TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.CAUTION: WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment. 1

OPERATION MANUAL IMPORTANT:To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located at the rear of the TV.Model No.:Serial No.:

LIQUID CRYSTAL TELEVISION ENGLISH IMPORTANT INFORMATION ENGLISH LC-42LE540U LC-46LE540UINFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

DECLARATION OF CONFORMITY:

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-46LE540U/LC-42LE540U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07495-1163

TEL: 1-800-BE-SHARP For Business Customers: URL http://www.sharpusa.com

“Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820 of the National

Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.” This product qualifies for ENERGY STAR when "Home" is selected for "TV Location".

Setting "TV Location" to "Home" allows the TV to achieve an energy-saving status for household use.

FCC Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

For product available in the USA/Canada market, only channel 1–11 can be operated. Selection of other channels is not possible.

This device is going to be operated in 5.15–5.25GHz frequency range, it is restricted in indoor environment only.

Important: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Industry Canada Statement

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

For product available in the USA/Canada market, only channel 1–11 can be operated. Selection of other channels is not possible.

The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure.

Note that this is not intended to prohibit transmission of control or signaling information or the use of repetitive codes where

required by the technology.

Important: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s

authority to operate the equipment.

IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other

equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded

cables and connectors for connections.

IMPORTANT INFORMATION3

DEAR SHARP CUSTOMER IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

10) Only use attachments/accessories specified by the manufacturer.

11) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

12) Unplug this apparatus during lightning storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been

14) WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15) Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device

shall remain readily operable.

16) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, suchas

vases, shall be placed on the apparatus.

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate

normally, or has been dropped.

Additional Safety Information

17) Power Sources—This product should be operated only from the type of power source indicated on the

marking label. If you are not sure of the type of power supply to your home, consult your product dealer or

local power company. For products intended to operate from battery power, or other sources, refer to the

operating instructions.

18) Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this

can result in a risk of fire or electric shock.

19) Object and Liquid Entry—Never push objects of any kind into this product through openings as they may

touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill

liquid of any kind on the product.

20) Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualified

service personnel under the following conditions:

a) When the AC cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the product,

c) If the product has been exposed to rain or water,

d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment

of other controls may result in damage and will often require extensive work by a qualified technician

to restore the product to its normal operation,

e) If the product has been dropped or damaged in any way, and

f) When the product exhibits a distinct change in performance - this indicates a need for service.

21) Replacement Parts—When replacement parts are required, be sure the service technician has used

replacement parts specified by the manufacturer or have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock, or other hazards.

22) Safety Check—Upon completion of any service or repairs to this product, ask the service technician to

perform safety checks to determine that the product is in proper operating condition.

23) Wall or ceiling mounting—Use a wall mount bracket that has been listed by an independent laboratory

(such as UL, CSA, ETL).

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years

of trouble-free operation of your product, please read the Important Safety Instructions carefully before

using this product.4

• Outdoor Antenna Grounding — If an outside antenna is

connected to the television equipment, be sure the antenna

system is grounded so as to provide some protection against

voltage surges and built-up static charges.

Article 810 of the National Electrical Code, ANSI/NFPA 70,

provides information with regard to proper grounding of the

mast and supporting structure, grounding of the lead-in wire

to an antenna discharge unit, size of grounding conductors,

location of antenna-discharge unit, connection to grounding

electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

(NEC SECTION 810-20)

• Water and Moisture — Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or

laundry tub; in a wet basement; or near a swimming pool; and the like.

• Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base

can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart,

stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product

on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the

• Selecting the location — Select a place with no direct sunlight and good ventilation.

• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents

and openings since insuffi cient ventilation can cause overheating and/or shorten the life of the product. Do not place

the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not

designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper

ventilation is provided or the manufacturer's instructions are followed.

• The front panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with

impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

• Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other

products (including amplifi ers) that produce heat.

• The Liquid Crystal panel is a very high technology product with 2,073,600 pixels, giving you fi ne picture details.

Occasionally, a few non-active pixels may appear on the screen as a fi xed point of blue, green or red. Please note that

this does not affect the performance of your product.

• Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to

the equipment due to lightning and power-line surges.

• Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system,

extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

• To prevent fi re, never place any type of candle or fl ames on the top or near the TV set.

• To prevent fi re or shock hazard, do not place the AC cord under the TV set or other heavy items.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• To prevent fi re or shock hazard, do not expose this product to dripping or splashing.

No objects fi lled with liquids, such as vases, should be placed on the product.

result in fi re or electric shock. Exercise special caution when using the product around children.

Precautions when transporting the TV

• When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always

carry the TV by two people holding it with two hands — one hand on each side of the TV.

Caring for the cabinet

• Use a soft cloth (cotton, fl annel, etc.) and gently wipe the surface of the cabinet.

• Using a chemical cloth (wet/dry sheet type cloth, etc.) may deform the components of the main unit cabinet or cause

• Wiping with a hard cloth or using strong force may scratch the surface of the cabinet.

• If the cabinet is very dirty, wipe with a soft cloth (cotton, fl annel, etc.) soaked in neutral detergent diluted with water and

thoroughly wrung out, and then wipe with a soft dry cloth.

• Avoid using benzene, thinner, and other solvents, as these may deform the cabinet and cause the paint to peel off.

• Do not apply insecticides or other volatile liquids.

Also, do not allow the cabinet to remain in contact with rubber or vinyl products for a long period of time. Plasticizers

inside the plastic may cause the cabinet to deform and cause the paint to peel off.

IMPORTANT SAFETY INSTRUCTIONS Do not insert foreign objects into the product. Inserting objects in the air vents or other openings mayIMPORTANT SAFETY INSTRUCTIONS

Caring for the front panel

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Gently wipe the surface of the front panel with a soft cloth (cotton, fl annel, etc.).

To protect the front panel, do not use a dirty cloth, liquid cleaners, or a chemical cloth (wet/dry

sheet type cloth, etc.). This may damage the surface of the front panel.

• Wiping with a hard cloth or using strong force may scratch the surface of the front panel.

• Use a soft damp cloth to gently wipe the front panel when it is really dirty.

(It may scratch the surface of the front panel when wiped strongly.)

• If the front panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved cleaning cloths are

available directly from Sharp in single (00Z-LCD-CLOTH) or triple (00Z-LCD-CLOTH-3) packs. Call 1-800-BE-SHARP for

ordering, or VISIT http://www.sharpusa.com/SharpDirect.

It Makes A Difference How and Where You Use Your Flat Panel Display

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

• The home theater entertainment experience is a growing trend and larger fl at panel displays

are popular purchases. However, fl at panel displays are not always supported on the proper

stands or installed according to the manufacturer’s recommendations.

• Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks,

speakers, chests or carts may fall over and cause injury.

THIS MANUFACTURER CARES!

• The consumer electronics industry is committed to making home entertainment enjoyable

• One size does NOT fi t all. Follow the manufacturer’s recommendations for the safe installation

and use of your fl at panel display.

• Carefully read and understand all enclosed instructions for proper use of this product.

• Don’t allow children to climb on or play with furniture and television sets.

• Don’t place fl at panel displays on furniture that can easily be used as steps, such as a chest

• Remember that children can become excited while watching a program, especially on a

“larger than life” fl at panel display. Care should be taken to place or install the display where it

cannot be pushed, pulled over, or knocked down.

• Care should be taken to route all cords and cables connected to the fl at panel display so that

they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Follow all instructions supplied by the display and wall mount manufacturers.

• If you have any doubts about your ability to safely install your fl at panel display, contact your retailer about professional

• Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be

mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.

• A minimum of two people are required for installation. Flat panel displays can be heavy.

Note: CEA is the preeminent trade association promoting growth in the $161 billion U.S.

consumer electronics industry. More than 2,200 companies enjoy the benefi ts of CEA

membership, including legislative advocacy, market research, technical training and

education, industry promotion and the fostering of business and strategic relationships

• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from

Installing Batteries in the Remote Control Unit

Introduction to Connections

Types of Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Displaying an External Equipment Image . . . . . . . 12

Connecting to External Equipment

Connecting a Blu-ray Disc/DVD Player or

HD Cable/Satellite Set-top Box . .

. . . . . . . . . 13-14

Connecting a VCR, Game Console,

Direct Button Operation

Connecting a USB Memory Device/

on a Home Network (DLNA) Server . .. .. .. 38-39

Other Viewing Options

Presetting Remote Control Function

. . . . . . . . . . . 40

Operating the Connected Equipment .. . . . . . 40-41

Displaying Updated Information and

Information on the Software License for

Calling for Service .. .. .. .. .. .. .. .. .. . . .. . . .. . . .. . 62

Dimensional Drawings

The dimensional drawings for the LCD TV set are shown

on the inside back cover.

Supplied Accessories

Make sure the following accessories are provided with the product. Remote control unit (

g 1) Page 8“AAA” size battery (

g 2) Page 9Operation manual (

1) • Always use the AC cord supplied with the TV.• The illustrations above are for explanation purposes and may vary slightly from the actual accessories.

QUICK REFERENCE Attaching/Detaching the Stand • Before attaching (or detaching) the stand, unplug the AC cord. • Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged. • To detach the stand, perform the steps in reverse order. Put the TV face down on a safe surface that is covered by a soft and smooth cloth.1.

Adjust the TV stand to the bottom of the TV.2.

Fasten the screws by using a cross-head screwdriver (Not supplied).3.

2 • Attach the stand in the correct direction. • Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

• Do not push too hard or put excessive pressure to the stand neck to avoid the damages when you turn the TV for the most comfortable viewing angle.Stand unit (

g 1) Page 7CAUTIONCAUTION8

Using the Remote Control Unit

Use the remote control unit by pointing it towards the

remote control sensor on the TV. Objects between the

remote control unit and the remote control sensor may

prevent proper operation.

Cautions regarding the remote control unit • Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the remote control unit.• The remote control unit may not work properly if the remote control sensor on the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the TV, or operate the remote control unit closer to the remote control sensor.IF THE UNIT DOES NOT POWER ON - UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE INSTALLATION STEPS.IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP. QUICK INSTALLATION TIPS

2 Connect the AC plug for the television into the AC

outlet. AC outlet • Place the TV close to the AC outlet, and keep the power

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED.

When turning on the TV for the fi rst time, press

POWER on the television.

Insert the batteries into the remote control unit. (See

• Speakers cannot be detached from the TV.

• The TV angle cannot be adjusted.

QUICK REFERENCE POWERIMPORTANT: 1 Attach your antenna to the back of the television.

(See page 9.) 30º 30º 30º

30º 17´ (5 m)Remote control sensor9

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections

that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector,

plug it into the antenna terminal at the rear of the TV set. For connecting the antenna cable to the TV, use

commercially available cables. 300-ohm twin-lead cable75-ohm coaxial cable (round)75-ohm coaxial cable

IN OUT 300-ohmtwin-lead cable VHF NTENNA UHF ANTENNACombinerTo TV antenna terminal300/75-ohm adapter300-ohm twin-lead cable (flat)75-ohm coaxial cable (round)Cable TV lead-InCoaxial cableCoaxial cableHome Antennaterminal (75-ohm)Home Antennaterminal (75-ohm) or

Installing Batteries in the Remote Control Unit

If the remote control fails to operate TV functions, replace the batteries in the remote control unit.

1 Open the battery cover. 2 Insert two “AAA” size batteries (supplied with

the product). • Place the batteries with their terminals corresponding to the ( e

) and ( f ) indications in the battery compartment. 3 Close the battery cover. CAUTIONImproper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.• Do not mix batteries of different types. Different types of batteries have different characteristics. • Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries. • Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you fi nd any chemical leakage, wipe thoroughly with a cloth.• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.• If you will not be using the remote control unit for an extended period of time, remove batteries from it. Preparation

Connecting Antenna Cable

• Connect the antenna cable to the TV using one of the methods in the illustration as shown (

1 Cable without a CATV converter 3 Combination VHF/UHF antenna 4 Separate VHF/UHF antenna 2 VHF/UHF antenna 1. A 75-ohm system is generally a round cable with F-type connector

that can easily be attached to a terminal without tools.

2. A 300-ohm system is a fl at “twin-lead” cable that can be attached

to a 75-ohm terminal through a 300/75-ohm adapter. F-type connector300-ohm twin-lead cable (fl at)F-type connector75-ohm coaxial cable (round)75-ohm coaxial cable

NOTICE When connecting the RF cable to the TV set, do not tighten F-type

connector with tools.

If tools are used, it may cause damage to your TV set. (The breaking

of internal circuit, etc.)

F-type connector should be fi nger-tightened only. ANT./CABLEINPUT 310

*1 See pages 13 to 16 and 42 for external equipment connection.

DIGITAL AUDIO OUTPUT Antenna/Cable in

terminal (shared for

1 POWER: Switch the TV power on or enter standby. (See

2 TV, STB, DVD•VCR, AUDIO: Switches the remote

control for TV, STB, DVD, BD, VCR and AUDIO operation.

(See pages 40 to 41 for details.)

* To enter the code registration mode, you need to press

an appropriate button (STB, DVD•VCR or AUDIO) and

DISPLAY at the same time.

3 External equipment operational buttons: Operate the

4 OPTION: Display the Link Operation Menu screen. This

button will function only when AQUOS LINK is used. (See

pages 44 to 45 for details.)

8 CC: Display captions from a closed-caption source. (See

AV MODE: Select an audio or video setting.

17 A, B, C, D: Select 4 preset favorite channels in 4 different

categories. (See page 28.)

While watching, you can toggle the selected channels by

pressing A, B, C and D The every key of the favorite can .

18 DISPLAY: Display the channel information.

Turns the power of the external

equipment on and off.

Set the still image. Press again to return to

normal screen. (See page 19.)

21 AUDIO: Display the MTS/SAP setting menu.

22 ENT: Jumps to a channel after selecting with the 0–9

25 INPUT: Select a TV input source. (TV, HDMI1, HDMI2,

/ : Select the channel. (See page 18.)

27 APPS: Display the application window. (See page 19.)

28 RETURN: Return to the previous menu screen.

29 NETFLIX: NETFLIX HOT KEY.

30 FAV APP 1, 2, 3: You can assign your favorite

applications to these buttons. (See page 28.)

• When using the remote control unit, point it at the TV.

select the many channels.12

Experiencing HD Images

An HDTV without an HD source is just an ordinary TV.

To enjoy HD images on the TV, you should get HD programming from the following:

• Over-the-air broadcasting via HD quality antenna

• HD cable/satellite subscription

• HD compatible external equipment

• For information on updating to HD programming, ask your cable/satellite service provider.

Image quality differs depending on the terminal used. To enjoy clearer images, check the output terminals of your

external equipment and use its appropriate terminals for higher quality images.

For connecting the TV to external equipment, use commercially available cables.

• The illustrations of the terminals are for explanation purposes and may vary slightly from the actual products.

Introduction to Connections

• The INPUT list screen displays.

to select the input source.

• You can also select the input source by pressing

INPUT. Each time INPUT is pressed, the input source

• An image from the selected source automatically

Displaying an External Equipment Image

To view external source images, select the input source by pressing INPUT on the remote control unit or on the TV.

PC IN USB DLNA INPUT 2 HDMI 213

Connecting to External Equipment

You can connect many types of external equipment to your TV. To view external source images, select the input

source from INPUT on the remote control unit or on the TV. (See pages 12 and 19.)

For connecting the TV to external equipment, use commercially available cables. CAUTION • To protect equipment, always turn off the TV before connecting any external equipment.

• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.

Connecting a Blu-ray Disc/DVD Player or HD Cable/Satellite Set-top Box

When using HDMI cable (INPUT 1, 2, 3 or 4):

The HDMI (High Defi nition Multimedia Interface) terminal is an audio-video interface that enables a connection for audio and video

signals using a single cable. The HDMI terminal supports high-resolution video input.

• Blu-ray disc player • DVD player

• HD cable/satellite set-top box HDMI OUT HDMI-certified cable

• To enjoy 1080p display capability, connect your external equipment using an HDMI-certifi ed cable or a component cable and

set the equipment to 1080p output.

• Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz.

DVI-HDMI conversion cable

• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to

connecting a DVI-HDMI conversion cable to the INPUT 1, 2, 3 or 4 terminal, connect a Ø 3.5 mm stereo minijack cable to

the AUDIO PC/HDMI terminal and set "Audio Select" to "HDMI+Analog". (See page 47.) INPUT 3INPUT 4INPUT 3INPUT 4AUDIOPC/HDMI14

Connecting to External Equipment

• To enjoy 1080p display capability, connect your external equipment using an HDMI-certifi ed cable or a component cable and

set the equipment to 1080p output.

• See page 13 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal.

Connecting a VCR, Game Console, Camcorder or Cable/Satellite Set-top Box

When using Composite cable (INPUT 5):

Connecting to External Equipment

Connecting an Audio Amplifi er

When using Digital coaxial cable:

It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. (See page 26 for details.) PCM audio

outputs from the terminal. DIGITAL AUDIO INPUT Digital coaxial cable

• Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI connection.

In this case, set the audio formats of the connected equipment to PCM, 32/44.1/48 kHz.

When using audio cable: ANALOG AUDIO IN Audio cable

• See page 27 for details on the Output Select function.

HDMI OUT HDMI IN HDMI OUT HDMI-certified cable

• If the image is not in sync with the audio, check the settings of the connected surround system.

If the equipment to be connected is not compatible with the ARC, connect a digital coaxial cable.

• Coaxial digital audio will be output in 2-ch stereo when it is from the external equipment connected to the TV using an HDMI

Connecting a PC Refer to page 47 for a list of PC signals compatible with the TV.

When using HDMI cable (INPUT 1, 2, 3 or 4): HDMI OUT HDMI-certified cable

• Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certifi ed cable

to the INPUT 1, 2, 3 or 4 terminal, connect a Ø 3.5 mm stereo minijack cable to the AUDIO PC/HDMI terminal and set

"Audio Select" to "HDMI+Analog". (See page 27.)

The HDMI terminals only support digital signal.

When using DVI-HDMI conversion cable (INPUT 1, 2, 3 or 4): DVI OUTAUDIO DVI-HDMI conversion cable

Ø 3.5 mm stereo minijack cable

• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to

connecting a DVI-HDMI conversion cable to the INPUT 1, 2, 3 or 4 terminal, connect

a Ø 3.5 mm stereo minijack cable

to the AUDIO PC/HDMI terminal and set "Audio Select" to "HDMI+Analog". (See page 27.)

• When connecting a PC to the PC IN, set "Audio Select" to "Video+Audio". (See page 27.)

Connecting to External Equipment INPUT 3INPUT 4INPUT 3INPUT 4AUDIOPC/HDMIAUDIOPC/HDMIPC IN17

Turning On/Off the Power POWERPOWER (On/Standby) Press POWER on the TV or on the remote control unit

to turn the power on. • The Initial Installation starts when the TV powers on for the fi rst time. If the TV has been turned on before, the Initial Installation will not be invoked. For changing the settings of the Initial Installation, perform "EZ setup" on the Initial Setup menu on page 28. Press POWER on the TV or on the remote control unit

again to turn the power off. • The TV enters standby and the image on the screen disappears.• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet.• Weak electric power is still consumed even when the TV is turned off. Initial Installation

When you turn on the TV for the fi rst time, it will

automatically memorize the broadcasting channels

available in the region where you live. Perform the

following steps before you press POWER on the

remote control unit.

1. Insert the batteries into the remote control unit. (See page 9.)2. Connect the antenna cable to the TV. (See page 9.)3. Plug in the AC cord to the AC outlet. (See page 8.) Language (Language setting)

Select from among 3 languages: English, French and

to select the desired language listed

on the screen, and then press ENTER.

Select "Home" or "Store" for the location where you

plan to install the TV. This product qualifi es for ENERGY STAR in Home mode default setting.

Press to select "Home" or "Store".

Press ENTER to enter the setting. Home: “Power Saving” is set to "On", and AV MODE is set

to "STANDARD".Store: “Power Saving” is set to "Off" and AV MODE is set to "DYNAMIC (Fixed)". • ENERGY STAR qualifi cation is based on AV MODE "STANDARD". Home StoreSelect where the TV will be placed. the picture will be optimized for that location. a

Watching TV Air/Cable (Antenna setting)

Make sure what kind of connection is made with your

TV when selecting "Air" or "Cable".

to select "Air" or "Cable".

Press ENTER to enter the setting.

CH Search (Channel search)

Channel auto search makes the TV look for all

channels viewable in the set area.

When "Air" or "cable" is selected in Antenna

After setting complete.the screen will show EZ

• If no channel is found, confi rm the type of connection made with your TV and try "EZ Setup" again. (See page 28.) • For changing the settings of the Initial Installation, perform "EZ setup" on the Initial Setup menu on page 28. EZ Setup Completed CancelStartCable Air

to select "Start", and then press ENTER.

b EnglishEspañolFrançaisSleep Timer

Allows you to set a time when the TV automatically

switches to standby.

Each time you press SLEEP, the remaining time switches

as shown below. Off 30 60 90 120 •

When set, the time automatically starts counting down.

If you want to adjust the sleep timer, you can press SLEEP

twice then change the time setting.

Select "Off" by pressing SLEEP to cancel the sleep timer.

The TV will enter standby when the remaining time reaches 0.

AUDIO Changing Channels

You can change channels in several ways.

on the remote control unit or on the TV.

Using remote control buttons 0-9, • (DOT). Examples:To select a 1 or 2-digit channel number (e. g., Channel 5): Press 5 ENT.To select a 3-digit channel number (e. g., Channel 115): Press 1 1 5 ENT.To select a 4-digit channel number (e. g., Channel 22.1): Press 2 2 • (DOT) 1 ENT. •

When selecting a 1-digit channel number, it is not

necessary to press 0 before the number.

When you enter 0-9 only, channel selection will be made if

there is no operation within a few seconds.

If you push "0" by itself, nothing will happen.

Complete the above steps within a few seconds.

When you enter 0-9 and • (DOT), channel selection will be

made if there is no operation within a few seconds.

You can change the volume by pressing VOL

the TV or on the remote control unit.

Direct Button Operation

" " will be displayed on the screen , and the sound is

canceled by pressing VOL

The TV has a feature that allows reception of sound

other than the main audio for the program. This feature

is called Multi-channel Television Sound (MTS). The TV

with MTS can receive mono sound, stereo sound

and Secondary Audio Programs (SAP). The SAP feature

allows a TV station to broadcast other information,

which could be audio in another language or something

completely different like weather information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts

• Stereo broadcasts: View programs like live sporting

events, shows and concerts in dynamic stereo sound.

• SAP broadcasts: Receive TV broadcasts in either MAIN

MAIN sound: The normal program soundtrack (either in

SAP sound: Listen to a second language, supplementary

commentary or other information. (SAP is mono sound.)

If stereo sound is diffi cult to hear.

• Obtain a clearer sound by manually switching to fi xed

You can change MTS as shown below to match the

television broadcast signal.

Press ENTER to toggle between audio modes.

Examples: when receiving MTS and SAP STEREO mode: STEREO MONO STEREO + SAP mode: ST(SAP) SAP(ST) MONO MAIN + SAP mode:

MAIN SAP MONO mode: MONO Digital broadcasting audio mode

The types of audio transmitted in a digital broadcast include

SURROUND as well as MONO and STEREO. In addition, it

is possible for multiple audio tracks to accompany a single

Press ENTER to toggle between audio modes.

Example: when receiving Digital broadcasting STEREO (Audio1) STEREO (Audio2) SURROUND (Audio3) • MTS only operates while in TV mode.

The remaining time displays when the sleep timer has been set.19

Direct Button Operation

INPUT To view external source images, select the input source by

pressing INPUT on the remote control unit or on the TV.

or press INPUT again to select the

input source. • An image from the selected source automatically displays.• Each time INPUT is pressed, the input source toggles. • See pages 12 to 16 and 42 for external equipment connection.

Your TV is equipped with an internal Closed Caption

decoder. It allows you to view conversations, narration

and sound effects as subtitles on your TV. Closed

Captions are available on some TV programs and on

some VHS home video tapes at the discretion of the

Digital Closed Caption service is a new caption service

available only on digital TV programs (also at the

discretion of the service provider). It is a more fl exible

system than the original Closed Caption system,

because it allows for a variety of caption sizes and font

styles. When the Digital Closed Caption service is in

use, it will be indicated by the appearance of a 3-letter

abbreviation that also indicates the language of the

Digital Closed Captions: ENG (English), SPA (Spanish),

FRA (French) or other language codes.

Not all programs and VHS videotapes offer closed

captions. Please look for the “

that captions will be shown.

In the Closed Caption system, there can be more than

one caption service provided. Each is identifi ed by its

own number. The “CC1” and “CC2” services display

subtitles of TV programs superimposed over the

In the Closed Caption system, the “Text1” or “Text2”

services display text that is unrelated to the program

being viewed (e.g., weather or news). These services

are also superimposed over the program currently

Closed Captions and Digital Closed Captions

This will present the Closed Caption information display.

Press CC while the Closed Caption information is

still on the screen.

• Press repeatedly until you select the desired closed

caption service. Closed Caption information 69

ANALOG ANALOG StereoCC:CC4480i SDMPAA-R • In the Closed Caption system, there can be more than

one caption service provided. Each is identified by its

own number. The “CC1” to “CC4” services display

subtitles of TV programs superimposed over the

program's picture. In the Closed Caption system, the

“TEXT1” to “TEXT4” services display text that is unrelated

to the program being viewed (e.g., weather or news).

These services are also superimposed over the program

currently being viewed.

OFF FLASHBACK Press FLASHBACK to switch to the previously tuned

Press FLASHBACK again to switch back to the currently

FLASHBACK will not work if no channel has been

changed after the TV is turned on.

FREEZE Allows you to capture and freeze a moving image that

A moving image is captured.

Press FREEZE again to cancel the function.

When this function is not available, "No Function." will

If you are using the freeze function and a broadcast

activates the V-CHIP BLOCK, the freeze function will be

canceled and a V-CHIP BLOCK message will appear. • You can have the same settings by choosing "Freeze" on the menu items. (See page 26.)

APPS Allows you to directly activate various types of

Press APPS to display the application window.

to select the desired application,

and then press ENTER. • If " " is displayed after you switch to USB mode, check the USB connection. • If " " or " " is displayed after you switch to Home • See pages 35 to 39, 53 for details of viewable applications.You can display the application window by choosing"APPS" on the menu items. (See page 26.)When this function is not available, "Can not operate thisfunction now" will display. •

Network (DLNA) mode or after you connect to the Internet, check your TV's network settings and connection.

The View Mode menu displays.

The menu lists the View Mode options selectable for the type of video signal currently

while the View Mode menu is displayed to select a

desired item on the menu.

• You can sequentially select a View Mode that has its own aspect ratio.

You can have the same settings by choosing "View Mode" on the menu items. (See page 26.)

Direct Button Operation

AV MODE gives you several viewing options to choose from to best match the surrounding environment of the TV,

which can vary due to factors like room brightness,type of program watched or the type of image input from

Press AV MODE again before the mode displayed on the screen disappears. The mode changes as shown below:

Example: When the input source is TV, COMPONET/AV, PC IN or HDMI 1 to 4

For a highly defi ned image in a normal lighting.

GAME: Lowers image brightness for easier viewing.

USER: Allows the user to customize settings as desired. You can set the mode for each input source.

DYNAMIC: For a clear-cut image emphasizing high contrast, useful for sports viewing.

DYNAMIC (Fixed): Changes the image and sound settings to the factory preset values. No adjustments are allowed.

When you play games, "GAME" is recommended for AV MODE.

You cannot set "GAME" or "PC" when the TV is connected to the Internet or when the input source is "Home Network (DLNA)" or

• You can have the same settings by choosing "AV MODE" on the menu items. (See page 24.)

Press AV MODE. Current AV MODE displays. DYNAMICDYNAMIC (Fixed) USERSTANDARD MOVIE GAME PC STANDARD external equipment.

Stretch Dot by Dot (Full Screen) S.Stretch (Smart stretch) Zoom

Suitable for viewing wide-

screen 1.78:1 aspect ratio

program, stretch mode will still

show very thin black bands

at the top and bottom of the

Dot by Dot (1080i/p only):

Detects the resolution of the

signal and displays an image

with the same number of

pixels on the screen.

Full Screen (720p only): You

can select "Full Screen" only

when receiving a 720p signal.

Suitable for stretching 4:3

programs to fi ll the screen.

Suitable for viewing wide-

screen 2.35:1 aspect-ratio

programs in full screen.

When using Dot by Dot or Full Screen, it is possible to see noise or bars around different outer portions of the screen. Please

change view mode to correct this.21

Direct Button Operation

Connect the PC before making adjustments. Selectable screen size may vary with input signal type. Example: Screen size images

• Input signal Normal Cinema 4:3 Keeps the original aspect ratio in a full screen display.For viewing widescreenprograms. The top and bottom of the image is cropped.An image fully fills the screen.Detects the resolution of the signal and displays an image with the same number of pixels on the screen.Input signal16:9 An image fully fills the screen.Detects the resolution of the signal and displays an image withthe same number of pixels on the screen.Full Screen Dot by DotDot by DotNormal For 4:3 programs

Example: Screen size images

hctertSmooZ)hcterts tramS( hctertS.SNormal

Suitable for viewing

conventional 4:3 programs in

their normal format.

Suitable for stretching 4:3

programs to fi ll the screen.

Suitable for viewing wide-

screen 2.35:1 anamorphic

DVDs in full screen.

This mode is useful for 1.78:1

DVDs. When viewing 1.85:1

DVDs, stretch mode will still show

very thin black bands at the top

and bottom of the screen.

hctertSmooZ)hcterts tramS( hctertS.S Suitable for viewing

conventional 4:3 programs in

their normal format.

Suitable for stretching 4:3

programs to fi ll the screen.

Suitable for viewing wide-

screen 2.35:1 anamorphic

DVDs in full screen.

This mode is useful for 1.78:1

DVDs. When viewing 1.85:1

DVDs, stretch mode will still show

very thin black bands at the top

and bottom of the screen.AV MODE [USER] OPC [ON]BacklightContrastBrightnessColor Tint SharpnessAdvancedReset 1

• This indicates the buttons that can be operated on the

displayed screen. The guide display varies depending

on the menu setting screen.

The operations for some selected items may be displayed

in the operational guide bar at the bottom of the screen.

Item displayed in blue

• This indicates the item currently selected.

Press ENTER to go to the adjustment screen for this item.

• This indicates the current setting for the item.

Item displayed in white

• This indicates that the item can be selected.

Item displayed in gray

• This indicates that the item cannot be selected.

There are various reasons why the items cannot be

selected, but the main reasons are as follows:

—Nothing is connected to the selected input terminal.

The function is not compatible with the current input signal.

On-Screen Display Menu Operation

Menu Operation Buttons

Using the control panel of the main unit

You can also operate the menu with the control panel

Button operations on the control panel correspond to

the ones on the remote control as shown below.

Using the remote control

Use the following buttons on the remote control to

: Press to select a desired item on the screen or

adjust a selected item.

ENTER: Press to go to the next step or complete the

RETURN: Press to return to the previous step.

• Menu options differ in the selected input modes, but the operating procedures are the same.

• The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly

from the actual screens.

• The order of explanations for each menu item in the following pages is not necessarily in accordance with the alignment of

the items on the screen.

• Additional related adjustment items may be

Adjust the item while referring to the guide

• Operations vary depending on the function or item.

menu setting screen for button operations.

AV MODE (Changing Pic.Quality) Page 24

Power Saving Page 25

Page 27• You can select AV MODE by pressing AV MODE on the

remote control unit. See page 20 for details of AV MODE

AV MODE (Changing Pic.Quality)

The audio and video settings can be changed to suit

the program or input content being watched.

Select from the following AV modes.

When the input source is TV,COMPONENT/AV STANDARD/MOVIE/GAME/PC/USER/DYNAMIC/DYNAMIC(Fixed)

OPC Automatically adjusts the brightness of the screen. Off: The brightness is fi xed at the value set in "Backlight".On: Automatically adjusts. •

When set to "On", the Optical Picture Control (OPC)

senses the surrounding light and automatically adjusts

the backlight brightness. Make sure nothing obstructs

the OPC sensor, which could affect its ability to sense

Advanced Picture Settings

This TV provides various advanced functions for

optimizing the picture quality

Adjusts the picture to your preference with the

following picture settings.

Menu PictureSettingsAV MODE[USER] OPC [OFF]Backlight[ 87]Contrast[ 30]Brightness [ Color [

to select "Picture Settings".

) to select the desired setting,

Press MENU to exit. Selected item c button d buttonBacklight The screen dims The screen brightensContrast For less contrast For more contrastBrightness For less brightnessFor more brightnessColor For less color intensityFor more color intensityTint Skin tones become reddishSkin tones become greenishSharpness For less sharpnessFor more sharpness • For resetting all Picture adjustment items to the factory

to select "Yes", and then press ENTER.

For resetting all adjustment items to the factory preset

to select "Reset", and then press

Use Motion Enhancement to view fast-action video

more clearly. 120Hz Low/120Hz Medium/120Hz Hight: For obtaining Off: Normal imagea clearer image. For a better white balance, use color temperature correction. Warm: White with reddish tone Standard:Cool: White with bluish tone User: White balance can be adjusted manually through the

R/G/B Gain between a maximum of 255 and a

minimum of 0 for user color temperature. • "Motion Enhancement" may cause image noise. If this occurs, turn the function "Off".• When AV MODE is set to "GAME" or "PC", or PC format is being input, "Motion Enhancement" is not available. Active Contrast

Automatically adjusts the image contrast according to

the scene. On: Automatically adjusts the image contrast.Off: No adjustment. DI Film Mode

Automatically detects a fi lm-based source (originally

encoded at 24 frames/second), analyzes it then recreates

each still fi lm frame for high-defi nition picture quality. Auto: Detects, analyzes, converts film source.Off: Normal viewing mode. PC IN or HDMI 1 to 4:•

"DI Film Mode" does not function depending on input signal

"Auto" does not function when channel display shows

an input signal resolution of 480p, 720p, or 1080p.

"DI Film Mode" is not available during PC format input.

Digital Noise Reduction

Produces a clearer video image. Auto: Automatically adjusts the level of noise reduction.High/Medium/Low: Select a desired level for viewing a clearer video image.Off: No adjustment.• "Digital Noise Reduction" is not available when you set PC format is being input. 25

On-Screen Display Menu

You can adjust the sound quality to your preference

with the following settings. Example Menu AudioSettings Bass [ 50][ 0]Treble[ 50]Balance[ Surround [On] ResetAudio Settings 1

Press MENU to display the MENU screen, and then

to select "Audio Settings".

to select a specifi c adjustment item. • Select "Surround", and then press ENTER to set each item. 3

to select the desired setting, and then

Press MENU to exit. Selected item c button d buttonTreble For weaker treble For stronger trebleBass For weaker bass For stronger bassBalance Decrease audio from the right speakerDecrease audio from the left speaker •

For resetting Audio adjustment items to the factory preset

to select "Yes", and then press ENTER.

The surround function produces Surround effect from

the speakers. On: Makes it possible to enjoy natural, realistic surround sound.Off: Outputs the normal sound. •

For some discs, setup may be required on your DVD/BD

player. In this case, please refer to the operation manual of

to select the desired setting, and then

This function allows you to set the Power Saving level

in order to decrease the power consumption and

increase the backlight lifespan. On: Optimizes power reduction based upon video content. Off: This function does not work. •

"Power Saving" does not function when you set AV MODE

to "DYNAMIC (Fixed)".

This function allows the TV to automatically shut the

power down when there is no signal received. Enable: The power will automatically shut down if there is no signal for 15 minutes.Disable: This function does not work. •

When it is 5 seconds before the power shuts down,the

screen will display"No signal. The power will be turned off."

to select a specifi c adjustment item and

) to select the desired setting,

Select "View Option" on the menu to display the View

The View Mode menu varies depending on the input source.

• You can select View Mode by pressing VIEW MODE on

the remote control unit.

— See pages 20 and 21 for adjusting the video being input

from a TV, other audiovisual equipment, USB-Video,

Allows you to capture and freeze a moving image that

• You can select Freeze by pressing FREEZE on the remote

control unit. See page 19 for details of Freeze function.

• You can select MTS by pressing AUDIO on the remote

Allows you to change the audio when multiple audio is

available for the program you are watching.

Change CC Allows you to change the Closed Caption display.

Select "Change CC" on the menu to display the Closed

Caption information.

• The information displayed varies depending on the program

• You can change Closed Caption by pressing CC on the

remote control unit. See page 19 for details of Closed

You can output digital audio to an AV amplifi er or

similar device whose DIGITAL AUDIO INPUT terminal

is connected to the DIGITAL AUDIO OUTPUT terminal

on the TV. Please select an audio output format

compatible with the audio format of the program you

are watching and the equipment connected. PCM: The output terminal outputs audio signal in PCM Off: Disables SPDIF output.form. If your digital audio system does not support Dolby Digital, select "PCM".Dolby Digital: The output terminal outputs audio signal in Dolby Digital form. It reproduces sound from surround program of digital. View Option

These functions are useful for adjusting the audio

and video settings. The View Option functions can be

operated with the remote control unit.

APPS The application window can be displayed by selecting

"APPS" on the MENU screen.

• You can display the application window by pressing APPS

on the remote control unit. (See page 19.)

MTS Select the MTS mode from Stereo, SAP or Mono.

Gives you the possibility to swap between main and

(See page 18 for details of this function.)

alternative language, when it is available in digital

On-Screen Display Menu

PC Input(For PC only) Auto Sync:

For automatically adjusting the PC image.Fine Sync: Ordinarily you can easily adjust the picture as necessary to change image position using "Auto Sync.". In some cases, however, manual adjustment is needed to optimize the image. •

Audio Select only shows when the input source is HDMI

HDMI Setup（For HDMI only）

HDMI Mode only shows and is available when HDMI

device is connected. Select from Auto, Graphic, or

Audio Select Gaphic: HDMI input timing set to Graphic mode (PC). The image is full scan Auto: The HDMI input timing is set to Video mode or Graphic mode automatically Video: Select this when the TV and PC are connected using an analog RGB cable and the audio is not input.Video+Audio: Select this when the TV and PC are

connected suing an analog RGB cable and the

audio is input via a Ø 3.5 mm stereo minijack .

Video: HDMI input timing set to Video mode. The image is over scan.

Choose to turn on or off the TV internal speaker. The

audio output signals will not be turned off even though

the TV speaker is off. The default setting is On.

This function allows you to adjust the closed caption

screen appearance to suit your preference. You can

• Caption Style: Set to As Default or Custom mode. If Custom mode is selected, user can modify the detail styles described below. The setting result will be shown immediately on the bottom of the submenu OSD.Note: This feature is only available in Digital TV (ATSC) mode. • Caption Size: Selects this option to choose a caption display size according to your own preference. Select “Small”, “Standard”, or “Large”. • Foreground Color: Choose the caption display text color. • Foreground Opacity: Select the text opacity. • Background Color: Choose the backgrond color. • Background Opacity: Choose one of the background opacity options.

• Window Color: Choose one of the display windows color. • Window Opacity: Choose the backgrond opacity. HDMI Mode is only workable for HDMI Video & Progressive

timing as followed: 1920x1080p,1280x720p,720x480p,

720x576p. • Be sure to connect the PC to the TV and switch it on before starting "Auto Sync.".H-Pos.: Centers the image by moving it to the left or right.V-Pos.: Centers the image by moving it up or down.Clock: Adjust when the image fl ickers with vertical stripes.Phase: Adjust when characters have low contrast or when the image fl ickers.• The default cursor position may not be in the center, because the screen position variable ranges may be asymmetrical. • This function will be canceled when you press EXIT/MENU• “Demo Mode” will be automatically play on store Mode.• The screen position variable ranges depend on the View Mode or the signal type. The ranges can be seen on the position- setting screen. HDMI(Digital): Select this when the TV and PC are connected using an HDMI-certified cable and audio is input via the same cable.HDMI+Analog: Select this when the TV and PC are connected using a DVI-HDMI conversion cable and the audio is input via a Ø 3.5 mm stereo minijack. Select the path of audio output. For HDMI only:For PC only:Auto: Audio path is set to HDMI or PC line in automatically Initial Setup Example Menu EZ SetupInternet SetupLanguageIndividual SetupBroadcasting SetupFAV APP Key AssignResetInitial SetupInitialSetup[English] 1

Press MENU to display the MENU screen, and then

to select "Initial Setup".

and then press ENTER.

It can Auto play the image from several types of demo

mode. Connected TV/Feature Demoon the remote control unit.28

• When you select "Individual Setup", you can enter the

) to select the desired setting,

You can run EZ Setup again, even after setting up the

Language: Select from among 3 languages (English,

French and Spanish).

TV Location: Select "Home" or "Store" for the location

where you plan to install the TV. This product qualifi es

for ENERGY STAR in Home mode default setting. Home: “Power Saving” is set to "Advanced", and AV MODE is set to "STANDARD".Store:“Power Saving” is set to "Off" and AV MODE is set to "DYNAMIC (Fixed)". • ENERGY STAR qualifi cation is based on AV MODE "STANDARD". Air/Cable: Make sure what kind of connection is made

with your TV when selecting "Air" or "Cable".

CH Search: Channel auto search makes the TV look for

all channels viewable in the set area. • If "Cable" is selected for Antenna setting, scrambled channels are removed after the Channel search has been completed. Completed:

The settings confi rmation screen is displayed.

Confi rm the information displayed on the screen.

See Initial Installation on page 17 for setting each item.

If no channel is found, confi rm the type of connection

made with your TV and try "EZ Setup" again.

If Initial Installation does not memorize all the channels

in your region, follow the instructions below to manually

memorize the channels.

Air/Cable: Make sure what kind of connection is made

with your TV when selecting "Air" or "Cable".

CH Search: Channel auto search makes the TV look for

all channels viewable in the set area.

CH Memory: You can select the channels to skip in each

ANALOG (Air), ANALOG (Cable), DIGITAL (Air) and

DIGITAL (Cable). The indicator displayed in blue: Skips channels. (Channel / .) The indicator displayed in gray: Does not skip channels. CH / .) •

If no channel is found, confi rm the type of connection

made with your TV and try channel search again.

On-Screen Display Menu

Favorite CH (Favorite Channel Setting)

This function allows you to program 4 favorite

channels, in 4 different categories. By setting the

favorite channels in advance, you can select your

favorite channels easily.

To register your favorite channel:

1. Press MENU on the remote control and select

“Initial Setup "/"Favorite channels".

2. Press to select the category that you want to

store your favorite channel.

3. Press to select your desired channel and

Press to select "All data clear" and press OK to

To delete your favorite channel:

While watching, you can toggle the selected channels by

pressing the A, B, C, and D button on the remote control.

You can also select a language from the Initial Setup

menu. Select from among 3 languages: English,

You can assign your favorite applications to the FAV APP 1, 2, and 3 buttons on the remote control. After

assigning an application to a button, you can press

that button to display the top screen of the assigned

Current Setup: Checks the current setting.

APP1/APP2/APP3: You can assign your favorite

applications displayed on the screen to these buttons.

• For resetting adjustments to the factory preset values,

• The default password is 0000.

to select "Reset", and then press ENTER.

4-digit secret number here. See page 29 for setting a

Before entering the Individual Setup sub-menu, user has

to key in the password first.After entering the Individual

Setup sub-menu, the user can modify the restricted table.

While exiting the sub-menu, below the Individual Setup

function is activated.

Enter a 4-digit password with the number buttons on the

remote control. selection disabled using CH (Channel selection enabled using29

Allows you to use a secret number to protect certain

settings from being accidentally changed.

Enter a 4-digit Secret No. with the number buttons on

Enter you new 4-digit Secret No. again to confirm.

the remote control to change you secret No..

As a precautionary measure, make a note of your secret

number and keep it in a familiar place.

(Parental Control Setting)

Used to enable or disable the parental control function.

you do not fi rst confi gure your secret number.

V-CHIP is an electronic fi ltering device built into your

TV. This tool gives parents a great degree of control

over broadcasts accessed by their children. It allows

parents to select programs judged suitable for child

viewing while blocking ones judged not suitable. It

does so automatically once you activate the V-CHIP

feature in your TV. "V-Chip" and "Status" will not be

selectable from the menu if you do not fi rst confi gure

The U.S. has two rating systems for viewing content: TV Parental Guidelines and movie ratings.

The TV Parental Guidelines work in conjunction with the

V-CHIP to help parents screen out inappropriate television

shows from their children.

Movie ratings are used for original movies rated by the

Motion Picture Association of America (MPAA) as watched

on cable TV and not edited for television. The V-CHIP can

also be set to block MPAA-rated movies.

The setting automatically enters "Block" for any ratings

below your selection.

If Status is not set to "Yes", the confi guration settings will

MPAA (Voluntary movie rating system)

to adjust the item to your desired position.

" " indicates the item is blocked. Press MENU to exit.

G: General audiences. All ages admitted.

PG: Parental guidance suggested. Some material may not be

suitable for children.

PG-13: Parents strongly cautioned. Some material may be

inappropriate for children under 13.

R: Restricted. Under 17 requires accompanying parent or

adult guardian (age varies in some jurisdictions).

NC-17: No one 17 and under admitted.

X: X is an older rating that is unifi ed with NC-17 but may be

encoded in the data of older movies.

Voluntary movie rating system only uses an age-based

to adjust the item to your desired position.

" " indicates the item is blocked. Press MENU to exit.

TV-Y7: Directed to older children.

TV-G: General audience.

TV-PG: Parental Guidance suggested.

TV-14: Parents strongly cautioned.

TV-MA: Mature audience only.30

When setting an individual content-based rating item:

or ENTER to access blocked content

items from the currently selected age-based rating

to select an individual item, and then

press ENTER to unblock it (" " is removed). Repeat

the same steps for the other items.

or RETURN to register after all individual

content rating items are set.

FV: Fantasy violence.

S: Sexual situation.

D: Sexually suggestive dialog.

FV V S L D Suggested

: The content rating can be set, but this rating is not

normally broadcast by TV stations.

: Content rating can be set.

On-Screen Display Menu

Canadian Rating Systems (Canadian English ratings

and Canadian French ratings)

The TV rating systems in Canada are based on the

Canadian Radio-Television and Telecommunications

Commission (CRTC) policy on violence in television

While violence is the most important content element to

be rated, the structure developed takes into consideration

other program content like language, nudity, sexuality and

When setting the V-CHIP on the Canadian system you

can choose either the Canadian English ratings or the

Canadian French ratings.

Canadian English Ratings

to adjust the item to your desired position.

" " indicates the item is blocked. Press MENU to exit.

E: Exempt: Includes news, sports, documentaries and other

information programming; talk shows, music videos, and

variety programming.

C: Children: Intended for younger children under the age of 8

years. Pays careful attention to themes that could threaten

their sense of security and well-being.

C8+: Children over 8 years old: Contains no portrayal

of violence as the preferred, acceptable, or only way

to resolve confl ict; nor encourage children to imitate

dangerous acts which they may see on the screen.

G: General: Considered acceptable for all age groups.

Appropriate viewing for the entire family, contains very little

violence, physical, verbal or emotional.

PG: Parental Guidance: Intended for a general audience, but

may not be suitable for younger children (under the age of 8)

because it could contain controversial themes or issues.

14+: Over 14 years: Could contain themes where violence

is one of the dominant elements of the storyline, but it

must be integral to the development of plot or character.

Language usage could be profane and nudity present

within the context of the theme.

18+: Adults: Intended for viewers 18 years and older and

might contain depictions of violence, which while related to

the development of plot, character or themes, are intended

for adult viewing. Could contain graphic language and

portrayals of sex and nudity.

Canadian French Ratings

to adjust the item to your desired position.

" " indicates the item is blocked. Press MENU to exit.

E: Exempt programming.

G: General: All ages and children, contains minimal direct

violence, but may be integrated into the plot in a humorous

or unrealistic manner.

8ans+: General but inadvisable for young children: May

be viewed by a wide public audience, but could contain

scenes disturbing to children under 8 who cannot

distinguish between imaginary and real situations.

Recommended for viewing with parent.

13ans+: Over 13 years: Could contain scenes of frequent

violent scenes and therefore recommended for viewing with

Example TV Guidelines TV-G TV-PGTV-14TV-MA NONE TV-Y7

TV-Y L S V FV D Example Can. English Ratings

16ans+: Over 16 years: Could contain frequent violent scenes

and intense violence.

18ans+: Over 18 years: Only for adult viewing. Could contain

frequent violent scenes and extreme violence.

How to temporarily release the V-CHIP BLOCK When the V-CHIP BLOCK is working and censors a

broadcast, "V-CHIP HAS BEEN ACTIVATED." displays.

Press ENTER while the V-CHIP is working, and

then the secret number setting menu displays.

Input the 4-digit secret number by using 0–9. At this

time V-CHIP BLOCK temporarily releases.31

Reactivating the temporarily released V-CHIP BLOCK You can reactivate the temporarily released V-CHIP BLOCK as shown below.

Select "Status" setting from the Parental CTRL menu to

English Ratings" or "Can. French Ratings") from the

Parental CTRL to reactivate BLOCK. (See pages 29 to 31.)

Switch off the TV power.

Performing any of the three above will activate the V-CHIP BLOCK.

) to select the desired setting,

The current version of the TV software is displayed.

This is used to upgrade the system software to

enhance the TV functions.

to select “Software Update”, and then

ENTER. • If you have already set the Secret No., go to step 3.

to select “Manual Update” or “Auto

Update Setting”, and then press ENTER. • The operations thereafter vary depending on the setting. Manual Update

Select the method for manually updating the software. Network Update: Downloads the update file via the network and then updates the software. (See page 32.)• A broadband connection and Internet Setup are required to update the software using the network. (See pages 49 to

53.) • It may take time to access and download the update depending on the Internet connection and other factors. Auto Update Setting

When the TV enter Standby, this function enables the

TV to connect to the network and check for updates

automatically. Yes: Enables Auto Update Setting.No: Disables Auto Update Setting.USB Update: Updates the software using a USB memory device containing the update file. (See page 32 to 33.)Input Secret No.32

Updating the Software via the Network

on the Manual Update screen to select

"Network Update", and then press ENTER.

The TV connects to the network and checks for updates.

• To cancel, press ENTER. AbortConnecting to Internet..Checking for the latest software version..Accessing.. 2

The current version of the TV and the latest version

of software are displayed. To update the TV

software, select “Yes”, and then press ENTER. Latest software version has been found.A software update is available.Proceed with update?Current Version：UXXXXXX1：UXXXXXX2Update VersionNoYes • When a server connection cannot be established or an

update is not available, a message is displayed.

If a server connection cannot be established, check the

broadband connection and Internet Setup. Cannot reach the server.Check the network settings and try again.

OK OK The TV does not need to be updated. 3

After the update file is downloaded, the software

update process begins. Downloading the latest software..AbortUpdate Version 50% Do not unplug AC cord.Remote control operation is disabled during update process.Updating to the latest software..Update Version • Do not unplug the AC cord while the software is

When the software is successfully updated, a

Press ENTER. the TV automatically turns off and then

screen is displayed indicating that the update

process is completed. Software update is complete.Update Version • If the software was not updated successfully, check the

broadband connection and Internet Setup, and then try

updating the software again.

OK OK Failed to complete update.Please retry from Software Update menu. On-Screen Display Menu

Updating the Software with a USB Memory Device Downloading...：UXXXXXX2：UXXXXXX2：UXXXXXX2 To check for the availability of a software update, visit

http://www.sharpusa.com/products/support/. If you

have any questions, please

call 1-800-BE-SHARP (800-237-4277). CAUTION • Do not remove the USB memory device or unplug

the AC cord while the software is being updated.

• Be sure to properly follow the whole procedure

described below, step by step. Otherwise, for

example, the TV cannot read the data in the USB

memory device and software updating will fail.

Insert the USB memory device with the update fi le

into the USB terminal on the TV.

on the Manual Update screen to select

"USB Update", and then press ENTER. System software was successfully update. OK Press [Enter], the TV automatically turns offand then turns on again.33

On-Screen Display Menu

to select "Information", and then press

to select "Netflix Help", and then press

to select "OK/Deactivate", and then

to select "Information", and then press

to select "VUDU Help", and then press

to select "Yes/No", and then press

Press ENTER to start checking the data in the USB

memory device. Insert the USB memory device containing the software update file. OK

During the data checking, “Checking” blinks. Now checking the data in the USB memory device.Checking • The current version of the TV software and the version

of the update fi le on the USB memory device are

Example Software update file is detected in the USB memory device.Start update?NoYesCurrent Version : UXXXXXX1Update Version : UXXXXXX2 • If the USB memory device is not properly installed or

the correct update fi le cannot be found on the USB

memory device, an error message is displayed.

Check the fi le on the USB memory device, and then

reinsert the USB memory device correctly. Software update file is not detected in the USB memory device.Confirm that you have transferred the fileto the USB memory device and retry software update. OK

To update the TV software with the update fi le,

select “Yes”, and then press ENTER. Software update file is detected in the USB memory device.Start update?NoYesCurrent Version : UXXXXXX1Update Version : UXXXXXX2 Example

30% Now updatingUpdate Version : UXXXXXX2Do not unplug AC cord.Remote Control operation is disabled during Update process.CAUTION • Do not remove the USB memory device or unplug

the AC cord while the software is being updated.

When the software is successfully updated, a

screen is displayed indicating that the update

process is completed.

Example Software update is complete. OK Update Version : UXXXXXX2 • If the update has failed, check the fi le in the USB

memory device and try Software Update again. Failed to complete update.Retry Software Update.If system Update fails again,contact the customer service center. OK Update Version : UXXXXXX2 7

Please remove the USB memory device. Press

ENTER. the TV automatically turns off and then

turns on again. System software was successfully update.Remove the USB memory device. OK Press [Enter], the TV automatically turns offand then turns on again.You can connect the TV to a USB memory device, USB hard drive or home network (DLNA) server to enjoy

viewing pictures, listening to music, and watching videos.

• Depending on the USB memory device/USB hard drive/home network (DLNA) server, the TV may not be able to recognize the

• It may take time to read the recorded data if the USB memory device/USB hard drive/home network (DLNA) server contains

many files or folders.

• Use only alphanumeric characters for naming files.

Connecting a USB Memory Device/USB Hard Drive

Insert the USB memory device with recorded photos, music or videos into the USB terminal on the TV.

• Do not remove a USB memory device or memory card from the TV while using the slide show function, or

switching screens, or before you exit "USB" from the INPUT list.

• Do not insert and remove a USB memory device/USB hard drive to and from the TV repeatedly.

• When using a card reader, be sure to insert Memory first before using the card reader. CAUTION • Do not use a USB extension cable when connecting a USB memory device to the USB terminal on the TV.

• Using a USB extension cable with the USB memory device may prevent the TV from performing correctly.

Connecting a Home Network (DLNA) Server

Connect the TV to the home network (DLNA) server using an ETHERNET cable.

Home network (DLNA) server

• Do not disconnect a home network (DLNA) server from the TV while transferring files, when a screen is switching to another or

before you exit "Home Network (DLNA)" from the INPUT list.

• Do not connect and disconnect a home network (DLNA) server from the TV repeatedly.

Enjoying Photo/Music/Video PlaybackSelect the Files to Play Back

USB memory device on the TV If the input source is USB，

• Use the following procedure to switch back to USB mode

after switching from USB mode to another mode.

Select "USB" or "Home Network (DLNA)" from

to select the desired folder, and then

When displaying the data with the APPS The Media screen can be displayed even by using the

Press APPS to display the application window.

to select "USB Media" or "Home

Network (DLNA)", and then press ENTER.

• If " " is displayed after you switch to USB mode,

check the USB connection.

• If " " is displayed after you switch to Home

Network (DLNA) mode, check your TV's network settings

• You can also display the Media screen by pressing

FAV APP on the remote control unit. See page 28 for

details on the FAV APP Key Assign function. PhotoVideoUSB Media 35

files by the following options.

Buttons for thumbnails operations

Select a desired item.

RETURN/EXIT Return to the previous process.

ENTER When selecting a folder icon: Enter this directory.

• You can see the file name, shooting date, file size and pixel

size of the selected photo in the top-left corner of the screen

(shooting date is only available in the EXIF file format).

When selecting a photo thumbnail: Slide show.

The photo selected on the thumbnail selection screen by

pressing ENTER Buttons for slide show operation

Press MENU to display the sub-menu. You can select the

following options to display the photos

• The key guide display disappears automatically after a set time.

To display the key guide display again, press DISPLAY.

• Rotating photos only applies to the temporarily selected item and

this setting is not saved.

Viewing Individual Photos

The photo in slide show by pressing

Buttons for viewing Individual Photos operation

Press MENU to display the sub-menu. You can select the

following options to display the photos

• Show Info Photo 1xNone G%25C3%2592TIC-DESCAN5ANT.jpgShort 5/29 Menu

Buttons for music mode

Buttons for playing music 2011-05-27 001001 1.mp3 2.mp3 3.mp3 4.mp30035.mp3 6.mp3 7.mp3 Press MENU to display the sub-menu. You can browse the files

by the following options.

• Thumbnail size Music 00:00:03 00:04:492.mp3 3/8

following options to play the music.

Go to the previous/next photo.

Return to the thumbnail selection screen.

B(green) Select slide show interval.

C(blue) Select slide show effect.

Play the photo in random order.

None/Repeat One/Repeat All.

RETURN/EXIT Return to the previous process.

ENTER When selecting a folder icon: Enter this directory.

When selecting a music file: Play music. EnterEnterSelect c d

Back RETURN D(yellow)

Go to the previous/next photo.

Return to the thumbnail selection screen.

B(green) Rotate the photo by 90 degrees to the right.

Play the photo in random order.

None/Repeat One/Repeat All.

RETURN/EXIT Play the music in random order.

Go to the previous/next photo.

Return to the thumbnail selection screen.

None/Repeat One/Repeat All.

by the following options.

Menu RepeatA B CRepeat AB D OK.Youknow,mostof thecollectionherewasputtogetherduringtheChingdynasty.So,whatdidyou think? Iwasimpressedwith thelandscape paintings,and allthe jade carvings. Thatjadecabbagejustcan't be beat! Someofthebronzepieces go backto the 17thcenturyB.C.,butthecollectionitselfwas

setupbythe first emperor of the Sung dynasty over a thousandyears ago.

That'sthesame style roof as on the Chiang Kai-shek Memorialand the

ConcertHall,right? It seems l ike I've seen it before.

OK. You know, most of the collection here was put together during the Ching dynasty.

So, what did you think?

I was impressed with the landscape paintings, and all the jade carvings.

That jadecabbage just can't be beat!

Some of the bronze pieces go back to the 17th century B.C., but the collection itself was

set up by the first emperor of the Sung dynasty over a thousand years ago.

That's the same style roof as on the Chiang Kai-shek Memorial and the

Concert Hall, right? It seems like I've seen it before.

USB Device Compatibility

USB device USB Memory, USB card reader (Mass

Storage class), USB hard drive

File system FAT/FAT32

• USB 1.1 devices may not be played properly.

• Operation using USB hubs is not guaranteed.

• Some video file formats may not be played depending on

RETURN/EXIT Return to the previous process.

ENTER When selecting a folder icon: Enter this directory.

When selecting a photo thumbnail: Slide show.

Repeat AB.Select the part you want to play

Go to the previous/next photo.

Return to the thumbnail selection screen.

None/Repeat One/Repeat All.

Buttons for thumbnail operations

• You can see the fi le name, shooting date, fi le size and pixel

size of the selected photo in the lower-left corner of the

screen (shooting date is only available in the EXIF fi le format).

Viewing Individual Photos

The photo selected on the thumbnail selection screen

Buttons for individual display operation

• Rotating photos only applies to the temporarily selected

item and this setting is not saved.

The photos displayed on the thumbnail selection

screen are displayed as a slide show.

Buttons for slide show operation

• The slide show continues until you press RETURN.

• For setting the slide show speed, display the Home

files by the following options.

RETURN/EXIT Return to the previous process.

ENTER When selecting a folder icon: Enter this directory.

When selecting a photo thumbnail: Slide show.

Go to the previous/next photo.

Return to the thumbnail selection screen.

B(green) Rotate the photo by 90 degrees to the right.

Play the photo in random order.

None/Repeat One/Repeat All.

following options to display the photos

following options to display the photos

Go to the previous/next photo.

Return to the thumbnail selection screen.

B(green) Select slide show interval.

C(blue) Select slide show effect.

Play the photo in random order.

None/Repeat One/Repeat All.

files by the following options.

RETURN/EXIT Return to the previous process.

ENTER When selecting a folder icon: Enter this directory.

When selecting a music file: Play music. EnterEnterSelect c d

Enjoying Photo/Music/Video Playback

• The displayed play time may differ slightly from the actual

play time depending on the fi les.

Buttons for playing music Music 00:00:03 00:04:492.mp3 3/8 Repeat A Show InfoEnter D Shuffle

B Press MENU to display the sub-menu. You can select the

following options to play the music.

Play the music in random order.

Go to the previous/next photo.

Return to the thumbnail selection screen.

None/Repeat One/Repeat All.

• Progressive format jpeg fi les are not supported.

• Some video fi le formats may not be played depending on

the fi le or the server.

files by the following options.

• Thumbnail size Vedio 1x 1/1 Menu

RepeatA B CRepeat AB D OK. You know, most of the collection here was put together during the Ching dynasty.

So, what did you think?

I was impressed with the landscape paintings, and all the jade carvings.

That jadecabbage just can't be beat!

Some of the bronze pieces go back to the 17th century B.C., but the collection itself was

set up by the first emperor of the Sung dynasty over a thousand years ago.

That's the same style roof as on the Chiang Kai-shek Memorial and the

Concert Hall, right? It seems like I've seen it before.

OK. You know, most of the collection here was put together during the Ching dynasty.

So, what did you think?

I was impressed with the landscape paintings, and all the jade carvings.

That jadecabbage just can't be beat!

Some of the bronze pieces go back to the 17th century B.C., but the collection itself was

set up by the first emperor of the Sung dynasty over a thousand years ago.

That's the same style roof as on the Chiang Kai-shek Memorial and the

Concert Hall, right? It seems like I've seen it before.

1/1 00:00:08 00:19:23 _ _Epic-Putin paws women voters_-1

Press MENU to display the sub-menu. You can ollow the

RETURN/EXIT Return to the previous process.

ENTER When selecting a folder icon: Enter this directory.

When selecting a photo thumbnail: Slide show.

Repeat AB.Select the part you want to play

Go to the previous/next photo.

Return to the thumbnail selection screen.

None/Repeat One/Repeat All.

le format MPEG, ASF, MP4, MOV, AVI Buttons for playing Video40

Presetting Remote Control Function

You can operate the connected AV products (AV

receiver, cable box, SAT tuner, DTV, VCR, DVD, BD,

LD) using the presetting manufacturer function of your

remote control unit.

Presetting manufacturer codes

Press an appropriate button (STB, DVD

AUDIO) to operate the connected equipment.

Press an appropriate button (STB, DVD

AUDIO) and DISPLAY at the same time to enter

the code registration mode.

Press 0–9 to enter the manufacturer code. (See

page 41.) • Preset mode is fi nished once the LED no longer lights up.

After registering the code, the LED will stop blinking

then turn off after one second. (If you perform an

incorrect operation, the LED will blink quickly then

Operating the Connected Equipment

To operate the connected equipment, press STB,

DVD•VCR or AUDIO to select your device. (STB

(cable/satellite set-top box), DVD, BD, VCR or AUDIO.)

The remote control unit button will function as follows. • When you operate VCR, DVD or BD, press INPUT to select the terminal connected to your device. • CABLE and SAT cannot be selected at the same time. 1 POWER (SOURCE) • Turns the connected equipment power on and off. 2 • Starts playback. (VCR, DVD, BD) 3 • Rewinds the tape and allows picture search. (VCR)• Hold down to go in reverse. (DVD, BD) 4 • Stops the tape transport. (VCR)• Playback stops when pressed. With some DVD/Blu-ray disc players, pressing the button twice may open the disc tray. (DVD, BD) 5 • Pressing quickly once takes you to the start of the chapter currently playing. Each time you press it, you move back to the start of the previous chapter. (DVD, BD) 6 0–9, • (DOT) (STB) • Press a button (or buttons) that corresponds to the channel that you wish to watch. 7 • Rapidly advances the tape and allows picture search. (VCR)• Hold down to fast forward. (DVD, BD) 8 • Sets pauses and still pictures. (VCR, DVD, BD) 9 • Pressing quickly once takes you to the start of the next chapter. Each time you press it, you move ahead to the start of the next chapter. (DVD, BD) 10 REC • Starts recording. (VCR) 11 FLASHBACK • Press to switch between the current channel and the channel you were watching immediately before. Some manufacturers do not preset FLASHBACK. (STB) 12 CH /• Press CH or CH to tune in to a higher or lower channel. (STB)• Press to select the channel of the TV tuner on the VCR. (VCR) 13 MENU • When this button is pressed, the DVD/BD menu will display. (DVD, BD) 14

Other Viewing Options

REMOTE CONTROL CODE NUMBER DVD/BD/LD BRAND

• Depending on the brand, the codes of some BD players

may not be supported.

ANVISION CABLE STAR EAGLE G.INSTRUMENT GERROLD JERROLD MAGNAVOX MOTOROLA OKA SIGMA PANASONIC PHILIPS PIONEER RANDTEK RCA S.ATLANTA VIEWSTAR ZENITH

02, 03, 10, 11, 17, 20

02, 03, 10, 11, 12, 20,

04, 05, 08, 12, 15, 16,

04, 05, 08, 13, 15, 16,

04, 05, 08, 13, 15, 16,

• Numbers marked with * are SAT codes, all others are STB

DISH NETWORKControlling HDMI Equipment Using AQUOS LINK What’s AQUOS LINK?

• Using the HDMI CEC (Consumer Electronics Control) protocol, with AQUOS LINK you can interactively operate

compatible system equipment (Blu-ray disc equipment, AV amplifi er, DVD).

• By connecting AQUOS LINK-compatible devices with HDMI-certifi ed cables to the TV, you can control a

recorder or AV amplifi er using the remote control of the TV.

• AQUOS LINK allows you to operate the HDMI-connected equipment with one remote control. • For connecting the TV to AQUOS LINK-compatible equipment, use commercially available cables.• Point the remote control toward the TV, not to connected HDMI equipment.• Video noise may occur depending on the type of HDMI cable used. Make sure to use an HDMI-certifi ed cable.• Up to 3 pieces of HDMI recording equipment and one AV amplifi er can be connected using this system. • These operations affect the HDMI equipment selected as the current input source. If the equipment does not operate, turn on the equipment and select the appropriate input source using INPUT. Connected AQUOS LINK-compatible devices can be operated without

changing the settings of the remote control unit.

OPTION button will function only when AQUOS LINK is used.

While the TV is in standby mode, it automatically turns on and plays back the

image from the HDMI source.

Press REC while you are viewing a broadcast received with the AQUOS LINK-compatible recorder. The AQUOS LINK automatically recognizes the

connected HDMI device and starts recording.

Single remote control

The AQUOS LINK automatically recognizes the connected HDMI device and

you can control the TV and the devices as if using a universal remote control.

Control the AQUOS LINK-compatible audio system

to select “AQUOS LINK Setup”, and

) to select the desired setting,

function even when an AQUOS LINK-compatible HDMI

device is connected to the TV. This function prevents

the device from starting to operate unexpectedly.

On: You can operate AQUOS LINK-compatible

Off: AQUOS LINK function does not work.

If this is activated, the One Touch Play function is

Yes: While the TV is in standby mode, it automatically

turns on and plays back the image from the HDMI

No: This function does not work.

When multiple AQUOS LINK-compatible devices are

connected, this function allows you to set the recorder

for recording when you press REC on the TV’s

remote control unit.

to select the recorder for recording.

• When an AQUOS LINK-compatible audio system or other

equipment is connected between the TV and recorder,

This function can be set for each input terminal.

On: The remote control unit of the TV can be used to

select the channel, display program information, and

perform other operations of a connected AQUOS LINK-compatible recorder.

Off: This function does not work.

Audio Return Channel

This function allows you to listen to the TV audio via

audio equipment without using an Digital Coaxial cable,

which conventionally is required.

Requirements for using an ARC-compatible AV

compatible HDMI terminal (HDMI 1).

(Refer to the operation manual of the ARC-compatible

equipment for details.)

• Use of an ARC-compatible cable.

Auto: You can listen to the TV audio with ARC-

compatible audio equipment.

Off: This function does not work.

• If the TV audio cannot be output from the AV amplifi er even

after making the necessary settings, connect the TV to the

AV amplifi er with an Digital Coaxial cable and select “Off”.

AQUOS LINK allows you to operate the HDMI-

connected equipment with one remote control.

to start playing back a title.

• The last played program is played back. You can use the

following buttons during broadcast viewing. noitpircseDsnottuBPOWER(SOURCE)Turns the power of the HDMI connected devices on and off.Hold down to go in reverse.Starts playback.Hold down to fast forward.Playback stops.Sets pauses and still pictures.Pressing quickly once takes you to the start of the chapter currently playing. Each time you press it, you move back to the start of the previous chapter.Pressing quickly once takes you to the start of the next chapter. Each time you press it, you move ahead to the start of the next chapter. • The buttons / do not function with the following

Blu-ray disc players currently available.

- BD-HP20U, BD-HP50U

You can manually turn on/off the power of connected

AQUOS LINK-compatible equipment.

Press OPTION to display the Link Operation Menu

to select “Recorder Power On/Off”, and

Select “On” (or “Off”) and press ENTER to turn on

(or off) the equipment.

This function allows easy one-touch recording of the

program being viewed on the TV to AQUOS LINK-

compatible equipment with a recording function by

REC on the remote control.

Prepare the connected AQUOS LINK-compatible

recorder for recording. Check the following items.

• Make sure that the antenna cable is connected.

• Check that there is suffi cient available space on the

recording media (HDD, DVD, etc.).

• On the TV, use “AQUOS LINK Setup” and “Selecting

Recorder” to select the equipment for recording.

• By default, the recorder connected to HDMI 1 is selected

Press REC to start recording.

• When you are viewing a broadcast received with the

AQUOS LINK-compatible recorder selected in "Selecting

Recorder", recording to the AQUOS recorder of the

broadcast being viewed starts.

• When you are viewing a broadcast received with

equipment other than the AQUOS LINK-compatible

recorder selected in "Selecting Recorder" or other

external input equipment, pressing REC on the remote

control does not start recording.

Use the Link Operation Menu to stop recording.

Press OPTION to display the Link Operation

to select “Stop Recording”, and

Start/Stop Recording

You can also use the Link Operation Menu for

recording on the connected AQUOS LINK-compatible

Press OPTION to display the Link Operation Menu

Select “Start Recording”, and then press ENTER to

• You can also start recording by pressing REC on the

remote control unit.

Select “Stop Recording”, and then press ENTER to

Playback of Titles Using AQUOS LINK This section explains how to play back a title in the

Press OPTION to display the Link Operation Menu

to select “Play from Rec. List”, and

• The title list data from the connected

compatible equipment

Select the title with

equipment is connected.

Displaying the Setup Menu of AQUOS LINK-Compatible Equipment

You can call up a setup menu from the connected

AQUOS LINK-compatible equipment.

Press OPTION to display the Link Operation Menu

to select "Show Start Menu", and then

• The setup menu of the AQUOS LINK-compatible

equipment is displayed.

• Depending on the status of the equipment (recording or in

standby mode, etc), the setup menu will not be displayed.

• The setup menu will not be displayed with the player

BD-HP20U currently available.

Selecting Media Type for AQUOS LINK-

or recording on the AQUOS LINK-compatible recorder.

Press OPTION to display the Link Operation Menu

to select “Change Media of Device”,

and then press ENTER.

Select the desired media such as HDD or DVD.

• The Media type toggles each time you press ENTER in

“Change Media of Device”.

• Select the media to be operated by the player.

Select the program to record.

, ENTER, RETURN, EXIT and

the colored buttons.

• This function works only when an AQUOS LINK-compatible

recorder is connected.

• Refer to the operation manual of the recorder for details.

Listening with the AQUOS AUDIO Speaker System

You can select to listen to the TV sound only from the

AQUOS LINK-compatible audio system and manually

change its sound mode.

Press OPTION to display the Link Operation Menu

to select “Change Audio Output

to select “By AQUOS audio SP”, and

• The sound from the TV speaker is muted and only the

Select “By AQUOS SP”, and then press ENTER to

listen to the TV sound.

HDMI Device Selection

Displaying the Link Operation Menu

If multiple HDMI devices are connected in a daisy

chain, you can specify which device to control here.

Press OPTION to display the Link Operation Menu

to select “HDMI Device Selection”,

to select “AQUOS LINK Setup”, and

• The AQUOS LINK Setup menu screen is displayed.

Press OPTION to display the Link Operation Menu

to select “Link Booking (Rec. Book)”,

and then press ENTER.

• The recorder’s EPG is displayed.

Press OPTION to display the Link Operation Menu

and then press ENTER. The HDMI device toggles

each time you press ENTER.VIEW MODE You can select the screen size.

Press VIEW MODE. • The View Mode menu displays.• The menu lists the View Mode options selectable for the type of video signal currently being received. 2

while the View Mode menu is displayed to select a

desired item on the menu. • You can sequentially select a View Mode that has its own aspect ratio.• Connect the PC before making adjustments. (See page 16.)• Selectable screen size may vary with input signal type.• You can have the same settings by choosing "View Mode" on the menu items. (See page 26.) Displaying a PC Image on the Screen

Using a PC Input signal Normal Zoom Stretch Dot by Dot 4:3 Keeps the original aspect ratio in a full screen display.For viewing widescreenprograms. The top and bottom of the image is cropped.An image fully fi lls the screen.Detects the resolution of the signal and displays an image with the same number of pixels on the screen.Input signal Stretch Dot by Dot16:9 An image fully fi lls the screen.Detects the resolution of the signal and displays an image with the same number of pixels on the screen.Example: Screen size imagesExample

to select "Input Terminal Setting", and

to select "PC input" or "Audio Select",

) to select or adjust the desired

setting, and then press ENTER.

Adjusting the PC Image

Auto Sync. (for Analog PC Input Mode Only)

For automatically adjusting the PC image. Yes: Auto Sync. start and "Auto adjusting ..." displays.No: This function does not work.• "Auto Sync." may fail if the computer image has low resolution, has unclear (black) edges, or is moved while executing "Auto Sync.".• Be sure to connect the PC to the TV and switch it on before starting "Auto Sync.". Fine Sync.

Ordinarily you can easily adjust the picture as necessary

to change image position using "Auto Sync.". In some

cases, however, manual adjustment is needed to

optimize the image. H-Pos.: Centers the image by moving it to the left or right.V-Pos.: Centers the image by moving it up or down.Clock: Adjust when the image fl ickers with vertical stripes.Phase: Adjust when characters have low contrast or when the image fl ickers.• It is not necessary to adjust the "Clock" or "Phase" when a digital signal is being input, so it cannot be selected.• The default cursor position may not be in the center, because the screen position variable ranges may be asymmetrical.• The screen position variable ranges depend on the View Mode or the signal type. The ranges can be seen on the position-setting screen. PC Compatibility Chart

It is necessary to set the PC correctly to display XGA

and WXGA signal. VGA and XGA are registered trademarks of International Business Machines Corp.31.5 kHz31.5 kHz37.5 kHz37.9 kHz48.1 kHz46.9 kHz48.4 kHz56.5 kHz60.0 kHz640 x 480720 x 400 VGA 800 x 600 SVGA XGA 1024 x 76870 Hz60 Hz75 Hz60 Hz72 Hz75 Hz60 Hz70 Hz75 Hz

This function sets the terminal to output the computer

The adjustment items vary depending on the input

source. Select the input source corresponding to the

terminal connected to the PC and then adjust the

PC IN Video: Select this when the TV and PC are connected

using an analog RGB cable and the audio is not input.

Video+Audio: Select this when the TV and PC are

connected using an analog RGB cable and the audio is

input via a Ø 3.5 mm stereo minijack.

HDMI IN HDMI(Digital): Select this when the TV and PC are

connected using an HDMI-certifi ed cable and audio is

Auto: Audio selected automatic the default setting is

input via the same cable.

HDMI+Analog: Select this when the TV and PC are

connected using a DVI-HDMI conversion cable and the

audio is input via a Ø 3.5 mm stereo minijack.

• When "Audio Select" is set to "HDMI(Digital)", sound will

not be produced if you use only an HDMI-certifi ed cable to

connect HDMI-compatible equipment. To produce sound,

you should make an analog audio connection.

• If you want to connect HDMI-compatible equipment

using only an HDMI-certifi ed cable, set "Audio Select" to

"HDMI(Digital)".RS-232C Port Specifi cations

PC control of the TV

• The TV can be controlled from a PC using the RS-

• Use a cross-type RS-232C cable (commercially

available) for the connections.

• This operation system should be used by a person who is

accustomed to using computers.

Communication conditions

Set the RS-232C communication settings on the PC to

match the TV's communication conditions.

The TV's communication settings are as follows:

Baud rate: 9,600 bps

Communication procedure

Send the control commands from the PC via the RS-

The TV operates according to the received command

and sends a response message to the PC.

Do not send multiple commands at the same time.

Wait until the PC receives the OK response before

sending the next command.

Command 4-digits: Command. The text of four characters.

blank(s) for the remainder. (Be sure that 4 values are

input for the parameter.)

When the input parameter is not within an adjustable

range, “ERR” returns. (Refer to “Response code format”.)

Any numerical value can replace the “x” on the table.

3 0 0 0 0 9 0 ? ? ? ? ?

When “?” is input for some

Problem response (communication

error or incorrect command)

O K E R R Command table

• Commands not indicated here are not guaranteed to operate. CONTROL ITEM COMMANDPARAMETERCONTROL CONTENTSPOWER ON COMMAND SETTINGPOWER SETTINGThe Power On command rejected.It input-switches by the toggle. (It is the same as an input change key)It input-switches to TV. (A channel remains as it is. (Last memory))It input-switches to INPUT1-INPUT7Although it can choose now, it is toggle operation in inside.The screen position variable ranges depend on the View Mode or the signal type. The ranges can be seen on the position-setting screen.0: Although it can choose now, it is toggle operation in available items.1: Available in [AV] SD timing and [PC] except some timing (*1).2,3,4: Only available when [AV] signal is being input.5: Available in [AV] 720p and [PC] except 1280X720,1920X1080 timming. 6: Available in [AV] 1080i and 1080p timming and [PC] except 1600X1200. 7: Only available in [PC] except some timng (*2).(*1) 1360X768, 1366x768, 1280X1024, 1400X1050, 1600X1200, 1920X1080(*2) 1360X768, 1366x768, 1280X720, 1920X1080.(Toggle)0: (Toggle), 1: STANDARD, 2: MOVIE , 3: GAME, 4: PC, 5: DYNAMIC, 6: DYNAMIC (Fixed), 7: USERVolume (0–60)Only PC mode. (0–100,menu disolay range+/-50)Only PC mode. (0–40,menu display range+/-20)Only PC mode. (0–180,menu display range+/-90)Only PC mode. (0–40,menu display range+/-20)An input change is included if it is not TV display.In Air, 2–69ch is effective.In Cable, 1–135ch is effective.If it is not TV display, it will input-switch to TV. (same function as CH )If it is not TV display, it will input-switch to TV. (same function as CH )Toggle operation of a closed caption.0: (Toggle), 1: On, 2: Off0: Off, 1: OFF TIMER – 30 MIN., 2: OFF TIMER – 60 MIN., 3: OFF TIMER – 90 MIN., 4: OFF TIMER – 120 MIN.The channel number of TVThe channel number of TV +1The channel number of TV –

D C 2 L * * * _ DIGITAL Cable (One-Part numbers, 5-digit, less than 10,000) D C 1 0 * * * * DIGITAL Cable (One-Part numbers, 5-digit, more than 10,000) D C 1 1 * * * *

Off The Power On command accepted.1 _ _ _ OnThe Power On Command must be waited until system is complatelyPower Off (LED power indicator turn to be Red) 1 _ _ _ Power On It shifts to standby.P O W R 0 _ _ _Power Off _

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

• Any numerical value can replace the “x” on the table.

Using a PC 0: (Toggle) 1: Normal 2: S.Stretch 3: Zoom 4: Zoom5: Full Screen 6: Dot by Dot 7: CinemaBy connecting your TV to a broadband system, you can access the Internet from the TV.

• Display the latest Internet information and access a range of useful information for AQUOS users from the

original home page*.

• You can enjoy a variety of streaming content and Internet applications.

* About the original home page

• The original home page is a website set up specifi cally for AQUOS owners.

• The website is worth visiting as it provides a range of useful information, including tips on using your AQUOS

and a frequently asked questions section.

Connecting to the Internet

• To connect your TV to the Internet, you must have a broadband Internet connection.

• If you do not have a broadband Internet connection, consult the store where you purchased your TV or ask your

Internet service provider or telephone company.

• When an Internet connection is made, an Ethernet and wireless connection cannot be used at the same time.

Use only one of the connection types.

Using an ETHERNET cable

Use an ETHERNET cable (commercially available) to connect the ETHERNET terminal on the TV to your broadband

router (commercially available).

PC LAN Broadband router ETHERNET(10/100) 49

Using the InternetUsing the wireless LAN This TV is equipped with a wireless LAN function.

For a wireless LAN connection, you must use "Wireless Setup" to connect the access point and TV.

PC Wireless LAN router/

• This TV has a built-in wireless LAN function. Using a separate wireless USB LAN adapter may result in radio communications

that do not comply with regulations on radio communications. Therefore, do not use a separate wireless LAN adapter.

• This TV has received the following certifications.

- Wi-Fi CERTIFIED™ (certification program from the Wi-Fi Alliance

- Wi-Fi Protected Setup™ (certification program from the Wi-Fi Alliance

• Operations cannot be guaranteed when used with access points that do not have Wi-Fi

• A wireless LAN router/access point is required to connect the TV to the Internet using a wireless LAN. See the operation

manual of your access point for setup.

• If your access point is set to a stealth mode (that prevents detection by other devices), you may not be able to establish a

connection. In this case, disable the stealth mode on the access point.

• A wireless LAN connection and performance cannot be guaranteed for all residential environments. In the following cases, the

wireless LAN signal may be poor or drop, or the connection speed may become slower.

- When used in buildings made with concrete, reinforced steel, or metal

- When placed near objects that obstruct the signal

- When used with other wireless devices that emit the same frequency

- When used in the vicinity of microwave ovens and other devices that emit a magnetic field, electrostatic charge, or

electromagnetic interference

• When there is significant interference in the 2.4-GHz frequency (such as from other wireless LAN devices, Bluetooth

2.4-GHz cordless telephones, and microwave ovens), it is recommended that you use a wireless LAN router/access point that

supports IEEE802.11a/n (5 GHz) and set the access point to transmit at 5 GHz. For setup details, see the operation manual of

• For users outside the United States, be sure to select your country before using the wireless LAN function. (See page 59.)

• A stable connection speed is required to play back streaming content. Use an Ethernet connection if the wireless LAN speed

• Before transferring to a third party or disposal, be sure to initialize the wireless LAN settings.

• Please follow the legislation in your country when using the wireless LAN outdoors.

to select "Initial Setup".

to select "Internet Setup", and then

Press to select ''Wired'' or ''Wireless'' at

If your access point supports Wi-Fi Protected Setup

(WPS), it is recommended that you use this function

for the wireless connection. You can press the WPS

button on the access point to confi gure the settings

• The name of the WPS button function may differ depending

on the access point. See the operation manual of the

access point for details.

Confi rm the current settings in "Interface".

to select "Wireless".

to select "Wireless Setup", and then

• Confi rm the settings. If each setting item is correct,

• If you are confi guring the wireless setup for the fi rst

time or changing the settings, go to step 3.

If you do not want other people to connect to the

Internet in your absence, you can make settings to

keep the TV away from the Internet.

to select “Initial Setup”.

to select “Internet Setup”, and then

to select “Interactive Service”.

to select “No”, and then press ENTER.

• If you want to allow Internet connection, select “Yes”,

Press MENU to exit. LanguageIndividual Setup c

If you cannot connect to the Internet

Perform the procedures below to check your TV's

to select “Initial Setup”.

to select “Internet Setup”, and then

to select “Network Setup”, and then

• Check that numbers are displayed for each setting.

• If there are any settings without numbers, specify the

numbers by following the on-screen instructions.

Displaying Updated Information and

This function can be used to display up-to-date

information on the original home page and allow you to

receive support service over the network.

ENTER if ''Interactive Service'' is selected ‘’YES''.

''Connection Type''. IP Address :Setting information[Current setup]Auto setupNetmask :Auto setupGateway :Auto setupDNS :Auto setupWireless MAC :12:34:56:78:9A:BCChange52

When you are editing an input screen or specifying the

Ethernet settings used for accessing the Internet, enter

text from the software keyboard.

• You can enter up to 128 characters for text. noitpircseDsnottuB a Moves the focus up. When the focus is at the top edge, this moves the focus to the opposite edge (bottom edge). b Moves the focus down. When the focus is at the bottom edge, this moves the focus to the opposite edge (top edge). c Moves the focus left. When the focus is at the left edge, this moves the focus to the opposite edge (right edge).When the focus is on “Character Set”, this selects the character type (moving backwards).When the focus is in an input box, this moves the cursor in the input box to the left. d Moves the focus right. When the focus is at the right edge, this moves the focus to the opposite edge (left edge).When the focus is on “Character Set”, this selects the character type (moving forwards).When the focus is in an input box, this moves the cursor in the input box to the right.ENTER Performs the processing for the button currently in the focus. EXIT Closes the software keyboard and current setting menu.

RETURNCloses the software keyboard without applying the original input elements for the entered test.Erases the text in the input box where the cursor is currently located.

Applies the entered information and closes the software

Erases the character string.

• When the cursor is somewhere in a line: the character

string to the right of the cursor will be erased.

• When the cursor is at the right end of a line: the entire line

If the cursor is at the right end of a line, this erases text one

character at a time.

You can also delete text by pressing RETURN on the

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Back RETURN Press to select the type of characters entered;

Using Applications via the Internet

By connecting the TV to the Internet, you can enjoy a

variety of broadband content, including videos, movies,

music, photos, and games.

Please check that the most current software is

http://www.sharpusa.com/products/support/

newest software version.

loaded on TV by selecting "Auto Update Setting

" on "Software Update" (see pages 31 to 33)

to check for adownload of the

Press APPS to display the application window. Example• These applications are provided by content providers. The available applications vary depending on your country or region. • The delivery speed of applications varies depending on the network speed. Check the web site of the provider for details on application setup and other information. 2

to select the desired application,

• If " " or " " is displayed after you connect to the • When using this TV to access an Internet application for the fi rst time, the Disclaimer appears on the screen. Press a

b to select "Agree", and then press ENTER • Additional applications will be available in the future. 3

The screen for the selected application is displayed.

Follow the on-screen instructions for each

application. • Check the web site of the provider for details on setup and use of the functions. Press

and then press ENTER. Internet, check your TV's network settings and connection. (You must select "Agree" to use the application.)APP1 APP2 APP354

When you access the Internet application for the first time, the following appears.

• This message is available only in English.

DISCLAIMERS This Sharp device facilitates the access to content and services provided by third parties. The content and

services accessible via this device belong to and may be proprietary to third parties. Therefore, any use of such

third party content and services must be in accordance with any authorization or terms of use provided by

such content or service provider. Sharp shall not be liable to you or any third party for your failure to abide by

such authorization or terms of use. Unless otherwise specifi cally authorized by the applicable content or service

provider, all third party content and services provided are for personal and non-commercial use; you may not

modify, copy, distribute, transmit, display, perform, reproduce, upload, publish, license, create derivative works

from, transfer or sell in any manner or medium any content or services available via this device.

Sharp is not responsible, nor liable, for customer service-related issues related to the third party content or

services. Any questions, comments or service-related inquiries relating to the third party content or service

should be made directly to the applicable content or service provider.

You may not be able to access content or services from the device for a variety of reasons which may be

unrelated to the device itself, including, but not limited to, power failure, other Internet connection, or failure to

confi gure your device properly. Sharp, its directors, offi cers, employees, agents, contractors and affi liates shall

not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause

or whether or not it could have been avoided.

ALL THIRD PARTY CONTENT OR SERVICES ACCESSIBLE VIA THIS DEVICE IS PROVIDED TO YOU ON AN “AS-IS” AND “AS AVAILABLE” BASIS AND SHARP AND ITS AFFILIATES MAKE NO WARRANTY OR REPRESENTATION OF ANY KIND TO YOU, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE OR ANY WARRANTIES OF SUITABILITY, AVAILABILITY, ACCURACY, COMPLETENESS, SECURITY,

• Is the AC cord disconnected?

• Has the power been turned on?

• Unit cannot be operated. • External infl uences such as lightning, static electricity, may cause improper

operation. In this case, operate the unit after fi rst turning off the power of the TV or

unplugging the AC cord and replugging it in after 1 or 2 minutes.

• Remote control unit does not

• Is the equipment to be operated by the remote control unit set correctly? Press TV

to set the remote control unit to the setting for operating the TV.

• Are batteries inserted with polarity (

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fl uorescent lighting?

• Is a fl uorescent light illuminated near the remote control sensor?

• Picture is cut off/with sidebar

• Is the image position correct?

• Are screen mode adjustments such as picture size made correctly?

Pages 20 to 21 and 24

• Strange color, light color, or color

• Adjust the picture tone.

• Is the room too bright? The picture may look dark in a room that is too bright.

• Power is suddenly turned off. • Is the sleep timer set?

• Check the power control settings.

• The unit's internal temperature has increased. Remove any objects blocking vent or

?tcerroc stnenopmoc rehto ot noitcennoc sI •dnuos oN •

Pages 12 to 16 and 42

• Is the volume too low?

• Have you pressed MUTE on the remote control unit?

• Check the audio output of the connected external equipment. Is the volume too

• When external equipment is connected via an HDMI cable, you may need to

confi gure the audio to be output through the HDMI cable.

• When audio is not output from external equipment connected to the PC IN or HDMI

1 terminal, check the "Audio Select" setting.

• Even when external equipment is connected using an HDMI-certifi ed cable, an audio

cable connection may be required depending on the type of equipment and the

media being played back. In this case, in addition to connecting an HDMI-certifi ed

cable to the HDMI 1 terminal, connect a Ø 3.5 mm stereo minijack cable to the

AUDIO IN terminal and set "Audio Select" to "HDMI+Analog".

• When connecting a PC via an HDMI-certifi ed cable, check the following:

- Is the audio output of the PC confi gured correctly? Check the audio output

settings and output audio format in Sound Properties on the PC.

Only PCM format audio can be output. Compressed audio (with a sampling rate

of 32kHz, 44.1kHz, or 48kHz) and DTS format audio cannot be output.

- Depending on the board, only video signals may be output. In this case, in

addition to connecting an HDMI-certifi ed cable to the HDMI 1 terminal, connect a

Ø 3.5 mm stereo minijack cable to the AUDIO IN terminal and set "Audio Select"

• If you are using a DVI-HDMI conversion cable to connect external equipment to the

TV, check the following:

- Is an audio cable connected? The DVI-HDMI conversion cable is for video only.

Connect a Ø 3.5 mm stereo minijack cable to listen to the audio.

- Is HDMI 1 being used? When the TV is connected to another HDMI terminal, the

audio and video are not output together even if a Ø 3.5 mm stereo minijack cable

is connected to the shared AUDIO IN terminal for PC IN and HDMI 1.

Check the "Audio Select" setting. Set "Audio Select" to "HDMI+Analog".

noituloSelbissoPmelborP

• Is the correct input selected?

• If the PC image is not displayed, check the following:

- When connecting a laptop PC to the TV, check that display output mode of the

PC is set to external monitor.

- Check the resolution setting on the PC. Is a non-compatible signal being input?

• Picture quality of HD programs is

• To enjoy HD images from external equipment, you are required to set up HDMI

connection or component connection.

• If the program content is not of HD quality, HD images cannot be displayed. Check

that the program you are viewing provides HD images.

• The HD cable/satellite set-top box may need to be configured to output HD images

via cable/satellite.

• The cable/satellite broadcast may not support a signal resolution of 1080p.

• The TV sometimes makes a

• This is not a malfunction. This happens when the cabinet slightly expands and

contracts according to change in temperature. This does not affect the TV's

• The original home page cannot

CLEARING THE SECRET NUMBER If you forget the secret number, clear the secret number using the following procedure.

Select Initial Setup.

• As a precautionary measure, make a note of your secret number above, and keep it in a safe place.

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby

• “HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”

• Products that have earned the ENERGY STAR

are designed to protect the environment through superior energy

and LC logo mark are registered trademarks of SHARP Corporation.

This product is embedded with LC Font technology, which was developed by SHARP Corporation for clearly

displaying easy-to-read characters on LCD screens. However, other fonts are used for some screen pages, too.

• Netfl ix and the Netfl ix logo are the registered trademarks of Netfl ix, Inc.

• VUDU™ is a trademark of VUDU, Inc.

• The Wi-Fi CERTIFIED Logo is a certifi cation mark of the Wi-Fi Alliance.

• The Wi-Fi Protected Setup Mark is a mark of the Wi-Fi Alliance.

, the DLNA Logo and DLNA CERTIFIED™ are trademarks, service marks, or certifi cation marks of the Digital

Resolution 2,073,600 pixels (1,920

CATV 1-135ch (non-scrambled channel only)

1-135ch (non-scrambled channel only)

OSD language English/French/Spanish

Power Requirement AC 120V,60Hz

Power Consumption 160W

(0.7 W Standby with AC 120 V)

(0.7 W Standby with AC 120 V)

Operating temperature

Emergency alert messages via Cable are unreceivable.

The dimensional drawings are shown on the inside back cover.

• As part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for

product improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of production

units. There may be some deviations from these values in individual units.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, offi ce), the picture may leave trails or appear slightly delayed.

This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a

heater, as this may cause the cabinet to deform and the front panel to malfunction.

Storage temperature:

HDMI in with HDCP INPUT4

2,073,600 pixels (1,920

Wireless LAN FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. Changes or modifi cations not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment. To comply with the FCC RF exposure compliance

requirements, this device and its antenna must not be co-located or operated in conjunction with any other antenna or

The device for the band 5150-5250 MHz is only for indoor usage to reduce potential for harmful interference to co-channel

mobile satellite systems;

The maximum antenna gain permitted (for devices in the bands 5250-5350 MHz and 5470-5725 MHz) to comply with the e.i.r.p.

limit; and High-power radars are allocated as primary users (meaning they have priority) of the bands 5250-5350 MHz and

5650-5850 MHz and these radars could cause interference and/or damage to LE-LAN devices.

COFETEL This equipment operates on a secondary basis and, consequently, must accept harmful interference, including from station of

the same kind, and may not cause harmful interference to systems operating on a primary basis.

CONTAINS TRANSMITTER MODULE COFETEL ID: RCPRART10-0859

Static WEP (64/128 bit key Index 1 only)

Software composition

The software included in this product is comprised of various software components whose individual copyrights

are held by SHARP or by third parties.

Software developed by SHARP and open source software

The copyrights for the software components and various relevant documents included with this product that were

developed or written by SHARP are owned by SHARP and are protected by the Copyright Act, international treaties,

and other relevant laws. This product also makes use of freely distributed software and software components

whose copyrights are held by third parties. These include software components covered by a GNU General Public

License (hereafter GPL), a GNU Lesser General Public License (hereafter LGPL) or other license agreement.

Obtaining source code

Some of the open source software licensors require the distributor to provide the source code with the executable

software components. GPL and LGPL include similar requirements. For information on obtaining the source code

for the open source software and for obtaining the GPL, LGPL, and other license agreement information, visit the

http://www.sharpusa.com/gpl

We are unable to answer any questions about the source code for the open source software. The source code for

the software components whose copyrights are held by SHARP is not distributed.

The following are some of the open source software components included in this product:

U-Boot/WMDRM/AGG(ver2.3)/device-mapper/libfreetype/cURL/libxml2/lua/lua-xmlreader/lua-slncrypto/

For the complete list, please see the URL above.

This software is copyright © 1991-1998, Thomas G. Lane.

Portions of this software are based in part on the work of the Independent JPEG Group.

OpenSSL Copyright © 1998-2008 The OpenSSL Project.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)

Copyright © 1995-1998 Eric Young (eay@cryptsoft.com)

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).

Copyright © 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper.

Copyright © 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.

The Qt GUI Toolkit is Copyright © 2010 Nokia Corporation and/or its subsidiary(-ies).

Contact: Nokia Corporation (qt-info@nokia.com)

WMDRM Content owners use Windows Media digital rights management technology (WMDRM) to protect their

intellectual property, including copyrights. This device uses WMDRM software to access WMDRM-

protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft

to revoke the software’s ability to use WMDRM to play or copy protected content.

Revocation does not affect unprotected content. When you download licenses for protected content,

you agree that Microsoft may include a revocation list with the licenses. Content owners may require

you to upgrade WMDRM to access to their content. If you decline an upgrade, you will not be able to

access content that requires the upgrade.

Copyright © 2006, 2007, 2008, 2009, 2010 by David Turner, Robert Wilhelm, and Werner Lemberg.

cURL Copyright © 1996-2010, Daniel Stenberg, (daniel@haxx.se)

Copyright © 1998-2003 Daniel Veillard. All Rights Reserved.

Copyright © 1994-2008 Lua.org, PUC-Rio

Copyright © 2008 A.S. Bradbury

Copyright © 1998 by the Massachusetts Institute of Technology.

Portions copyright © 1995-1996 Jean-loup Gailly and Mark Adler.

MD5.CPP - RSA Data Security, Inc., MD5 message-digest algorithm. Copyright © 1991-2, RSA Data

Security, Inc. Created 1991. All rights reserved.

Fraunhofer IIS and Thomson Multimedia

MPEG Layer-3 audio compression technology licensed by Fraunhofer IIS and Thomson Multimedia.

You cannot use the MP3 compressed audio within the Software for real time or live broadcasts.

If you require an MP3 decoder for real time or live broadcasts, you are responsible for obtaining this

MP3 technology license.

Speech compression and decompression technology licensed by Nellymoser, Inc.

video compression and decompression technology licensed from Sorenson Media,

Sun Microsystem, Inc

ADPCM speech compression algorithm is used with the permission of Sun Microsystems, Inc.

Information on the Software License for This Product

Portions copyright © 2000 Group 42, Inc. and the Contributing Authors.62

CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand Liquid Crystal Display product (the

“Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option,

either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the

purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product or if the serial number or model number affixed to the Product has

been removed, defaced, changed, altered or tampered with. This warranty does not cover installation or signal reception problems. This

limited warranty will not apply if the Product has been or is being used in a commercial setting or application; this warranty is meant solely

for the non-commercial, household use of the Product by consumers in their home or residence. If you intend to or already use this Product

for commercial purposes or in a commercial setting, there are warranties available to cover your use of this Product, the terms of which may

vary. Please contact 1-888-BE-SHARP for further information.

In order to enforce your rights under this limited warranty, you should follow the steps set forth below. You must be able to provide proof of

purchase to the servicer, which proof must include the date of purchase.

To the extent permitted by applicable state law, the warranties set forth are in lieu of, and exclusive of, all other warranties, express or

implied. Specifically ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED, ALL EXPRESS AND IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. IF, UNDER APPLICABLE STATE LAW, IMPLIED WARRANTIES MAY NOT VALIDLY BE DISCLAIMED OR EXCLUDED, THE DURATION OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

The warranties given herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy

available to the purchaser and only for the time periods set forth herein. No other representations or promises made by anyone are

permitted. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all

liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,

whether based on contract, negligence, strict liability or otherwise. Sharp does not warrant nor shall Sharp be liable, or in any way

responsible, for Products which have been subject to abuse (including, but not limited to, improper voltage), accident, misuse, negligence,

lack of reasonable care, alteration, modification, tampering, misuse, improper operation or maintenance or any damages or defects in the

Product which were caused by repairs or attempted repairs performed by anyone other than a Sharp authorized servicer. Nor shall Sharp

be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow limits on

warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply.

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO.

Model Specific Section

TO OBTAIN PRODUCT INFORMATION OR PURCHASE ACCESSORIES , CALL 1-800-BE-SHARP Additional Exclusions from

Warranty Coverage (if any):

What to do to Obtain Service:

Warranty Period for this Product: One (1) year parts and labor from the date of purchase.

Your Product Model Number & Description: LC-46LE540U/LC-42LE540U LCD Color Television

(Be sure to have this information and Proof of Purchase available when you

need service for your Product.)

For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or

customer assistance, please call 1-800-BE-SHARP.

LIMITED WARRANTY Image Retention resulting from a fixed image being displayed for long periods

of time is not covered by this Limited Warranty (see Operation Manual on how

Service is provided by a Sharp Authori zed Service Center in the United States.

To find the location of the nearest Sharp Authorized Service Center, call Sharp

toll free at 1-800-BE-SHARP. Sharp will provide instructions on service options

available for your Product.

If it is deemed the Product is to be shipped for servicing, be sure it is insured

and packaged securely. Please use two persons to carry the Product, transport

it in original packaging or packaging that provides comparable protection of the

Product , and ensure that the Product is covered to avoid scratches and damage.

Sharp shall not be responsible for lost, stolen or misdirected mail or for damage

to the product incurred during shipping.

For Products that are deemed in home service, a servicer will come to your

location. I f necessary, the servicer may remove the unit for repair at the

service facility and return it once completed. In home service is not available

in all areas and Sharp may, at our option, elect to provide transportation of the

Product to and from an Authorized Service Center in those areas.

OR VISIT www.sharpusa.com63FRANÇAIS IMPORTANT :Pour faciliter la déclaration de perte ou de vol, veuillez noter les numéros de modèle et de série dans l'espace prévu à cet effet. Vous trouverez ces numéros au dos du téléviseur.N° de modèle :N° de série :

personnel (DLNA) 38-39

c d AnteriorRETOURR menu2 Microsoft GIF... images_169 Araxis Merge v... Music Photo _Epic_puti..

OK.Youknow,mostof thecollectionherewasputtogetherduringtheChing dynasty.

So,whatdidyou think?

Iwasimpressedwith thelandscape paintings,and allthe jade carvings.

Thatjadecabbagejustcan't be beat!

Someofthebronzepieces go backto the 17thcenturyB.C.,butthecollectionitselfwas

setupbythe first emperor of the Sung dynasty over a thousandyears ago.

That'sthesame style roof as on the Chiang Kai-shek Memorialand the

ConcertHall,right? It seems l ike I've seen it before.

A Répéter AB D OK. You know, most of the collection here was put together during the Ching dynasty.

So, what did you think?

I was impressed with the landscape paintings, and all the jade carvings.

That jadecabbage just can't be beat!

Some of the bronze pieces go back to the 17th century B.C., but the collection itself was

set up by the first emperor of the Sung dynasty over a thousand years ago.

That's the same style roof as on the Chiang Kai-shek Memorial and the

Concert Hall, right? It seems like I've seen it before.

1/1 00:00:08 00:19:23 _ _Epic-Putin paws women voters_-1 ExempleB C D(jaune)

RepeatA B CRepeat AB D OK.Youknow,mostof thecollectionherewasputtogetherduringtheChingdynasty.

So,whatdidyou think?

Iwasimpressedwith thelandscape paintings,andall the jade carvings.

Thatjadecabbagejustcan't be beat!

Someofthebronzepieces go backto the 17thcenturyB.C.,butthecollectionitselfwas

setupbythe first emperor of the Sung dynasty over a thousandyears ago.

That'sthesame style roof as on the Chiang Kai-shek Memorial andthe

ConcertHall,right? It seems l ike I've seen it before.

OK. You know, most of the collection here was put together during the Ching dynasty.

So, what did you think?

I was impressed with the landscape paintings, and all the jade carvings.

That jadecabbage just can't be beat!

Some of the bronze pieces go back to the 17th century B.C., but the coll

set up by the first emperor of the Sung dynasty over a thousand years ago.

That's the same style roof as on the Chiang Kai-shek Memorial and the

Concert Hall, right? It seems like I've seen it before.

1/1 00:00:08 00:19:23 _ _Epic-Putin paws women voters_-1

02, 03, 10, 11, 17, 20

02, 03, 10, 11, 12, 20,

04, 05, 08, 12, 15, 16,

04, 05, 08, 13, 15, 16,

04, 05, 08, 13, 15, 16,

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

applications. Exemple 2

• Ce message est disponible seulement en anglais.

DISCLAIMERS This Sharp device facilitates the access to content and services provided by third parties. The content and

services accessible via this device belong to and may be proprietary to third parties. Therefore, any use of such

third party content and services must be in accordance with any authorization or terms of use provided by

such content or service provider. Sharp shall not be liable to you or any third party for your failure to abide by

such authorization or terms of use. Unless otherwise specifi cally authorized by the applicable content or service

provider, all third party content and services provided are for personal and non-commercial use; you may not

modify, copy, distribute, transmit, display, perform, reproduce, upload, publish, license, create derivative works

from, transfer or sell in any manner or medium any content or services available via this device.

Sharp is not responsible, nor liable, for customer service-related issues related to the third party content or

services. Any questions, comments or service-related inquiries relating to the third party content or service

should be made directly to the applicable content or service provider.

You may not be able to access content or services from the device for a variety of reasons which may be

unrelated to the device itself, including, but not limited to, power failure, other Internet connection, or failure to

confi gure your device properly. Sharp, its directors, offi cers, employees, agents, contractors and affi liates shall

not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause

or whether or not it could have been avoided.

ALL THIRD PARTY CONTENT OR SERVICES ACCESSIBLE VIA THIS DEVICE IS PROVIDED TO YOU ON AN “AS-IS” AND “AS AVAILABLE” BASIS AND SHARP AND ITS AFFILIATES MAKE NO WARRANTY OR REPRESENTATION OF ANY KIND TO YOU, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE OR ANY WARRANTIES OF SUITABILITY, AVAILABILITY, ACCURACY, COMPLETENESS, SECURITY,

This software is copyright © 1991-1998, Thomas G. Lane.

Portions of this software are based in part on the work of the Independent JPEG Group.

OpenSSL Copyright © 1998-2008 The OpenSSL Project.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)

Copyright © 1995-1998 Eric Young (eay@cryptsoft.com)

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).

Copyright © 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper.

Copyright © 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.

The Qt GUI Toolkit is Copyright © 2010 Nokia Corporation and/or its subsidiary(-ies).

Contact: Nokia Corporation (qt-info@nokia.com)

WMDRM Content owners use Windows Media digital rights management technology (WMDRM) to protect their

intellectual property, including copyrights. This device uses WMDRM software to access WMDRM-

protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft

to revoke the software’s ability to use WMDRM to play or copy protected content.

Revocation does not affect unprotected content. When you download licenses for protected content,

you agree that Microsoft may include a revocation list with the licenses. Content owners may require

you to upgrade WMDRM to access to their content. If you decline an upgrade, you will not be able to

access content that requires the upgrade.

Copyright © 2006, 2007, 2008, 2009, 2010 by David Turner, Robert Wilhelm, and Werner Lemberg.

cURL Copyright © 1996-2010, Daniel Stenberg, (daniel@haxx.se)

Copyright © 1998-2003 Daniel Veillard. All Rights Reserved.

Copyright © 1994-2008 Lua.org, PUC-Rio

Copyright © 2008 A.S. Bradbury

Copyright © 1998 by the Massachusetts Institute of Technology.

UPnP Portions copyright © 2004 Intel Corporation

Portions copyright © 2000 Group 42, Inc. and the Contributing Authors.

Portions copyright © 1995-1996 Jean-loup Gailly and Mark Adler.

MD5.CPP - RSA Data Security, Inc., MD5 message-digest algorithm. Copyright © 1991-2, RSA Data

Security, Inc. Created 1991. All rights reserved.

Fraunhofer IIS and Thomson Multimedia

MPEG Layer-3 audio compression technology licensed by Fraunhofer IIS and Thomson Multimedia.

You cannot use the MP3 compressed audio within the Software for real time or live broadcasts.

If you require an MP3 decoder for real time or live broadcasts, you are responsible for obtaining this

MP3 technology license.

Speech compression and decompression technology licensed by Nellymoser, Inc.

video compression and decompression technology licensed from Sorenson Media,

Sun Microsystem, Inc

ADPCM speech compression algorithm is used with the permission of Sun Microsystems, Inc.

menu2 Microsoft GIF... images_169 Araxis Merge v... Music Photo _Epic_puti..

OK.Youknow,mostof thecollectionherewasputtogetherduringtheChing dynasty.

So,whatdidyou think?

Iwasimpressedwith thelandscape paintings,and allthe jade carvings.

Thatjadecabbagejustcan't be beat!

Someofthebronzepieces go backto the 17thcenturyB.C.,butthecollectionitselfwas

setupbythe first emperor of the Sung dynasty over a thousandyears ago.

That'sthesame style roof as on the Chiang Kai-shek Memorialand the

ConcertHall,right? It seems l ike I've seen it before.

Botones para el modo Video Botones Descripción Menú

A Repetir AB D OK. You know, most of the collection here was put together during the Ching dynasty.

So, what did you think?

I was impressed with the landscape paintings, and all the jade carvings.

That jadecabbage just can't be beat!

Some of the bronze pieces go back to the 17th century B.C., but the collection itself was

set up by the first emperor of the Sung dynasty over a thousand years ago.

That's the same style roof as on the Chiang Kai-shek Memorial and the

Concert Hall, right? It seems like I've seen it before.

1/1 00:00:08 00:19:23 _ _Epic-Putin paws women voters_-1

B C Presione MENU (MENÚ) para visualizar el submenú.

menu2 Microsoft GIF... images_169 Araxis Merge v... Music Photo _Epic_puti..

OK.Youknow,mostof thecollectionherewasputtogetherduringtheChing dynasty.

So,whatdidyou think?

Iwasimpressedwith thelandscape paintings,and allthe jade carvings.

Thatjadecabbagejustcan't be beat!

Someofthebronzepieces go backto the 17thcenturyB.C.,butthecollectionitselfwas

setupbythe first emperor of the Sung dynasty over a thousandyears ago.

That'sthesame style roof as on the Chiang Kai-shek Memorialand the

ConcertHall,right? It seems l ike I've seen it before. Vedio 1/1 Menu

A Repetir AB D OK. You know, most of the collection here was put together during the Ching dynasty.

So, what did you think?

I was impressed with the landscape paintings, and all the jade carvings.

That jadecabbage just can't be beat!

Some of the bronze pieces go back to the 17th century B.C., but the collection itself was

set up by the first emperor of the Sung dynasty over a thousand years ago.

That's the same style roof as on the Chiang Kai-shek Memorial and the

Concert Hall, right? It seems like I've seen it before.

1/1 00:00:08 00:19:23 _ _Epic-Putin paws women voters_-1 B C Puede

02, 03, 10, 11, 17, 20

02, 03, 10, 11, 12, 20,

04, 05, 08, 12, 15, 16,

04, 05, 08, 13, 15, 16,

04, 05, 08, 13, 15, 16,

75,0 kHzUXGA 1600 x 1200

(*1)1360x768, 1366x768, 1280x1024, 1400x1050, 1600x1200, 1920x1080

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

DISCLAIMERS This Sharp device facilitates the access to content and services provided by third parties. The content and

Cuando accede a la aplicación Internet por primera vez, aparecerá lo siguiente

services accessible via this device belong to and may be proprietary to third parties. Therefore, any use of such

third party content and services must be in accordance with any authorization or terms of use provided by

such content or service provider. Sharp shall not be liable to you or any third party for your failure to abide by

such authorization or terms of use. Unless otherwise specifi cally authorized by the applicable content or service

provider, all third party content and services provided are for personal and non-commercial use; you may not

modify, copy, distribute, transmit, display, perform, reproduce, upload, publish, license, create derivative works

from, transfer or sell in any manner or medium any content or services available via this device.

Sharp is not responsible, nor liable, for customer service-related issues related to the third party content or

services. Any questions, comments or service-related inquiries relating to the third party content or service

should be made directly to the applicable content or service provider.

You may not be able to access content or services from the device for a variety of reasons which may be

unrelated to the device itself, including, but not limited to, power failure, other Internet connection, or failure to

confi gure your device properly. Sharp, its directors, offi cers, employees, agents, contractors and affi liates shall

not be liable to you or any third party with respect to such failures or maintenance outages, regardless of cause

or whether or not it could have been avoided.

ALL THIRD PARTY CONTENT OR SERVICES ACCESSIBLE VIA THIS DEVICE IS PROVIDED TO YOU ON AN “AS-IS” AND “AS AVAILABLE” BASIS AND SHARP AND ITS AFFILIATES MAKE NO WARRANTY OR REPRESENTATION OF ANY KIND TO YOU, EITHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OF MERCHANTABILITY, NON-INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE OR ANY WARRANTIES OF SUITABILITY, AVAILABILITY, ACCURACY, COMPLETENESS, SECURITY,

This software is copyright © 1991-1998, Thomas G. Lane.

Portions of this software are based in part on the work of the Independent JPEG Group.

OpenSSL Copyright © 1998-2008 The OpenSSL Project.

This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit. (http://www.openssl.org)

Copyright © 1995-1998 Eric Young (eay@cryptsoft.com)

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com).

Copyright © 1998, 1999, 2000 Thai Open Source Software Center Ltd and Clark Cooper.

Copyright © 2001, 2002, 2003, 2004, 2005, 2006 Expat maintainers.

The Qt GUI Toolkit is Copyright © 2010 Nokia Corporation and/or its subsidiary(-ies).

Contact: Nokia Corporation (qt-info@nokia.com)

WMDRM Content owners use Windows Media digital rights management technology (WMDRM) to protect their

intellectual property, including copyrights. This device uses WMDRM software to access WMDRM-

protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft

to revoke the software’s ability to use WMDRM to play or copy protected content.

Revocation does not affect unprotected content. When you download licenses for protected content,

you agree that Microsoft may include a revocation list with the licenses. Content owners may require

you to upgrade WMDRM to access to their content. If you decline an upgrade, you will not be able to

access content that requires the upgrade.

Copyright © 2006, 2007, 2008, 2009, 2010 by David Turner, Robert Wilhelm, and Werner Lemberg.

cURL Copyright © 1996-2010, Daniel Stenberg, (daniel@haxx.se)

Copyright © 1998-2003 Daniel Veillard. All Rights Reserved.

Copyright © 1994-2008 Lua.org, PUC-Rio

Copyright © 2008 A.S. Bradbury

Copyright © 1998 by the Massachusetts Institute of Technology.

Portions copyright © 2000 Group 42, Inc. and the Contributing Authors.

Portions copyright © 1995-1996 Jean-loup Gailly and Mark Adler.

MD5.CPP - RSA Data Security, Inc., MD5 message-digest algorithm. Copyright © 1991-2, RSA Data

Security, Inc. Created 1991. All rights reserved.

Fraunhofer IIS and Thomson Multimedia

MPEG Layer-3 audio compression technology licensed by Fraunhofer IIS and Thomson Multimedia.

You cannot use the MP3 compressed audio within the Software for real time or live broadcasts.

If you require an MP3 decoder for real time or live broadcasts, you are responsible for obtaining this

MP3 technology license.

Speech compression and decompression technology licensed by Nellymoser, Inc.

video compression and decompression technology licensed from Sorenson Media,

Sun Microsystem, Inc

ADPCM speech compression algorithm is used with the permission of Sun Microsystems, Inc.26

SHARP CORPORATION Printed in Mexico
