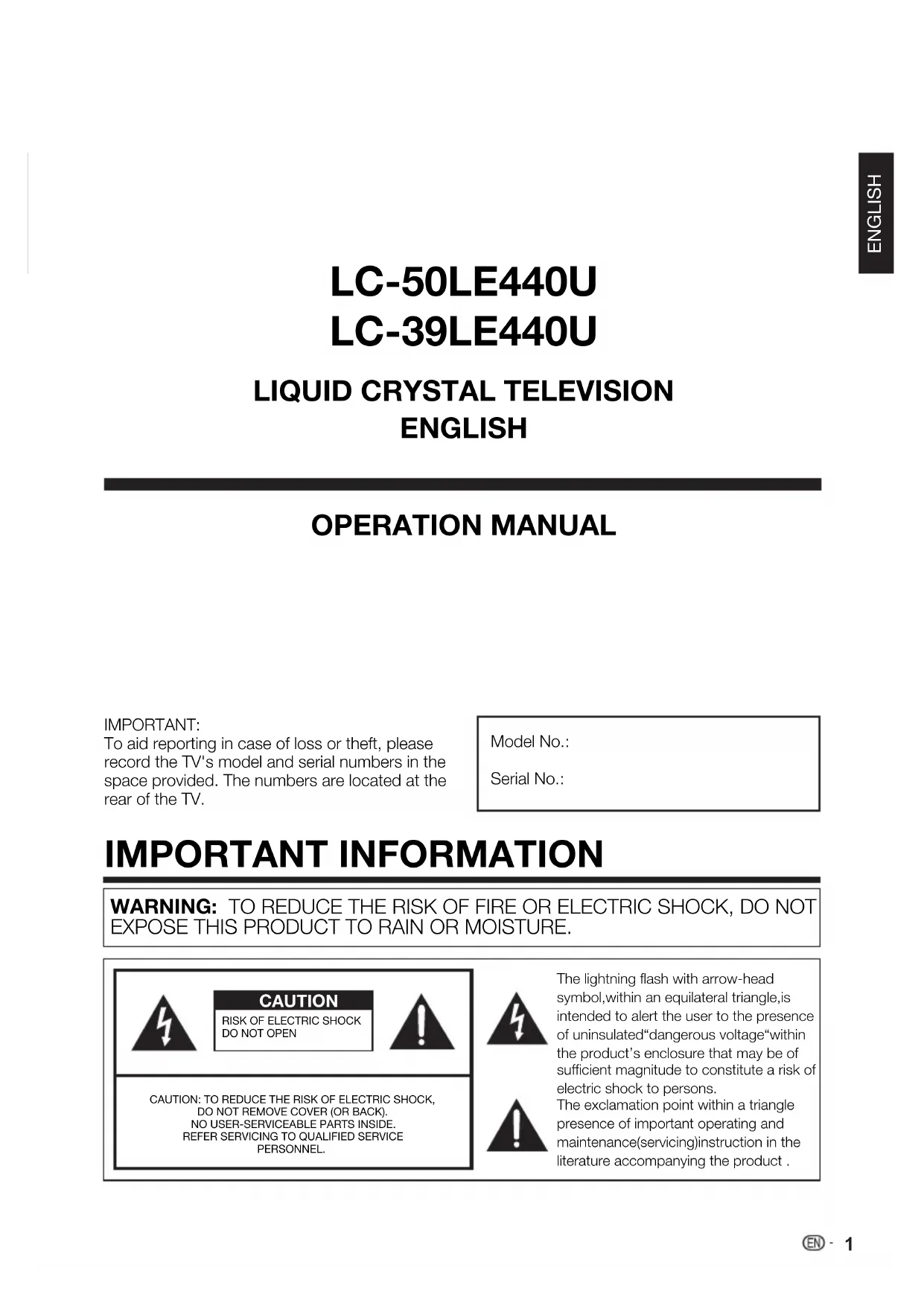

LIQUID CRYSTAL TELEVISION ENGLISH IMPORTANT INFORMATION WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICEPERSONNEL.The lightning flash with arrow-headsymbol,within an equilateral triangle,isintended to alert the user to the presenceof uninsulated“dangerous voltage“withinthe product’s enclosure that may be ofsufficient magnitude to constitute a risk ofelectric shock to persons.The exclamation point within a triangle presence of important operating andmaintenance(servicing)instruction in theliterature accompanying the product . ENGLISH

TRADEMARKS INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is

— Consult the dealer or an experienced radio/TV technician for help.

Note to CATV system installer: This reminder is provided to call the CATV system installer’s

attention to Article 820 of the National Electrical Code that provides guidelines for proper

grounding and, in particular, specifies that the cable ground shall be connected to the grounding

system of the building, as close to the point of cable entry as practical.

• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo

are trademarks or registered trademarks of HDMI Licensing LLC in the United States

and other countries.

• Manufactured under license from Dolby Laboratories.Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this

equipment not expressly approved by the manufacturer could void the user’s authority to operate

This product satisfies FCC regulations when shielded cables and connectors are used to connect

the unit to other equipment. To prevent electromagnetic interference with electric appliances such

as radios and televisions, use shielded cables and connectors for connections.

CAUTION: TO PREVENT ELECTRIC SHOCK,MATCH WIDE BLADE OF PLUG TO WIDE SLOT,

DECLARATION OF CONFORMITY:

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-50LE440U / LC-39LE440U This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired operation.

SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07495-1163

TEL: 1-800-BE-SHARP For Business Customers: URL http://www.sharpusa.com

This product qualifies for ENERGY STAR when "Home" is selected for "TV Location".

Setting "TV Location" to "Home" allows the TV to achieve an energy-saving status for household

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

9) Protect the power cord from being walked on or pinched particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

10) Only use attachments/accessories specified by the manufacturer.

11) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

12) Unplug this apparatus during lightning storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as power-supply cord

or plug is damaged, liquid has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

14) WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain

15) Where the MAINS plug or an appliance coupler is used as the disconnect device, the

disconnect device shall remain readily operable.

16) The apparatus shall not be exposed to dripping or splashing and that no objects filled with

liquids, suchas vases, shall be placed on the apparatus.

Additional Safety Information

17) Power Sources—This product should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power supply to your

home, consult your product dealer or local power company. For products intended to

operate from battery power, or other sources, refer to the operating instructions.

18) Overloading—Do not overload wall outlets, extension cords, or integral convenience

receptacles as this can result in a risk of fire or electric shock.

19) Object and Liquid Entry—Never push objects of any kind into this product through

openings as they may touch dangerous voltage points or short-out parts that could result

in a fire or electric shock. Never spill liquid of any kind on the product.

20) Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to

qualified service personnel under the following conditions:

a) When the AC cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the product,

c) If the product has been exposed to rain or water,

d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper

adjustment of other controls may result in damage and will often require extensive work

by a qualified technician to restore the product to its normal operation,

e) If the product has been dropped or damaged in any way, and

f) When the product exhibits a distinct change in performance - this indicates a need for

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and

many years of trouble-free operation of your product, please read the Important Safety

Instructions carefully before using this product.

DEAR SHARP CUSTOMERIMPORTANT SAFETY INSTRUCTIONS

21) Replacement Parts—When replacement parts are required, be sure the service technician

has used replacement parts specified by the manufacturer or have the same

characteristics as the original part. Unauthorized substitutions may result in fire, electric

shock, or other hazards.

22) Safety Check—Upon completion of any service or repairs to this product, ask the service

technician to perform safety checks to determine that the product is in proper operating

23) Wall or ceiling mounting—Use a wall mount bracket that has been listed by an

independent laboratory (such as UL, CSA, ETL). EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70ANTENNA LEAD IN WIREGROUND CLAMPNEC — NATIONAL ELECTRICAL CODEGROUNDING CONDUCTORS(NEC SECTION 810-21)GROUND CLAMPSPOWER SERVICE GROUNDING ELECTRODE SYSTEM(NEC ART 250)ELECTRIC SERVICE EQUIPMENTANTENNADISCHARGE UNIT(NEC SECTION 810-20) CAUTION

4 • These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. • Outdoor Antenna Grounding — If an outside

antenna is connected to the television

equipment, be sure the antenna system is

grounded so as to provide some protection

against voltage surges and built-up static

Article 810 of the National Electrical Code,

ANSI/NFPA 70, provides information with

regard to proper grounding of the mast

and supporting structure, grounding of the

lead-in wire to an antenna discharge unit,

size of grounding conductors, location

of antenna-discharge unit, connection to

grounding electrodes, and requirements for

the grounding electrode.

• Warning statement indicating that Class I apparatus shall be connected to a mains socket outlet

with a protective earthing connection.

• Statement indicating that when the mains plug or appliance coupler shall remain readily operable.

• Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect

device shall remain readily operable.

• Where an all-pole MAINS SWITCH is used as the disconnect device, the location on the

apparatus and the function of the switch shall be described, and the switch shall remain readily

• Water and Moisture — Do not use this product near water - for example, near a bath tub, wash

bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

• Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product

on an unstable base can cause the product to fall, resulting in serious personal injuries as well as

damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the

manufacturer or sold with the product. When mounting the product on a wall, be sure to follow

the manufacturer’s instructions. Use only the mounting hardware recommended by the

• Selecting the location — Select a place with no direct sunlight and good ventilation.

• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not

cover or block these vents and openings since insufficient ventilation can cause overheating and/

or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar

surface, since they can block ventilation openings. This product is not designed for built-in

installation; do not place the product in an enclosed place such as a bookcase or rack, unless

proper ventilation is provided or the manufacturer’s instructions are followed.

• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the

product is dropped or applied with impact. Be careful not to be injured by broken glass pieces

in case the panel breaks.IMPORTANT SAFETY INSTRUCTIONS

• Heat — The product should be situated away from heat sources such as radiators, heat registers,

stoves, or other products (including amplifiers) that produce heat.

• The Liquid Crystal panel is a very high technology product with 2,073,600 pixels , giving you fine

picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point

of blue, green or red. Please note that this does not affect the performance of your product.

• Lightning — For added protection for this television equipment during a lightning storm, or when

it is left unattended and unused for long periods of time, unplug it from the wall outlet and

disconnect the antenna. This will prevent damage to the equipment due to lightning and

• Power Lines — An outside antenna system should not be located in the vicinity of overhead

power lines or other electric light or power circuits, or where it can fall into such power lines or

circuits. When installing an outside antenna system, extreme care should be taken to keep

from touching such power lines or circuits as contact with them might be fatal.

• To prevent fire, never place any type of candle or flames on the top or near the TV set.

• To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• To prevent fire or shock hazard, do not expose this product to dripping or

No objects filled with liquids, such as vases, should be placed on the product.

• Do not insert foreign objects into the product. Inserting objects in the air

vents or other openings may result in fire or electric shock. Exercise special

caution when using the product around children.

Precautions when transporting the TV

• When transporting the TV, never carry it by holding or otherwise putting pressure onto the display.

Be sure to always carry the TV by two people holding it with two hands — one hand on each side

Caring for the Cabinet

• Use a soft cloth (cotton, flannel, etc.) and gently wipe the surface of the cabinet.

• Using a chemical cloth (wet/dry sheet type cloth, etc.) may deform the components of the main

unit cabinet or cause cracking.

• Wiping with a hard cloth or using strong force may scratch the surface of the cabinet.

• If the cabinet is very dirty, wipe with a soft cloth (cotton, flannel, etc.) soaked in neutral detergent

diluted with water and thoroughly wrung out, and then wipe with a soft dry cloth.

• The cabinet is primarily made of plastic. Avoid using benzene, thinner, and other solvents, as

these may deform the cabinet and cause the paint to peel off.

• Do not apply insecticides or other volatile liquids.

Also, do not allow the cabinet to remain in contact with rubber or vinyl products for a long period

of time. Plasticizers inside the plastic may cause the cabinet to deform and cause the paint to

Caring for the Liquid Crystal panel

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Gently wipe the surface of the display panel with a soft cloth (cotton, flannel, etc.).

To protect the display panel, do not use a dirty cloth, liquid cleaners,

or a chemical cloth (wet/ dry sheet type cloth, etc.). This may damage

the surface of the display panel.

• Wiping with a hard cloth or using strong force may scratch the surface

of the display panel.

• Use a soft damp cloth to gently wipe the display panel when it is really

dirty. (It may scratch the surface of the display panel when wiped strongly.)

• If the display panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved

cleaning cloths are available directly from Sharp in single (00Z-LCD-CLOTH) or triple (00Z-LCD-

Call 1-800-BE-SHARP for ordering, or VISIT http://www.sharpusa.com/SharpDirect.IMPORTANT SAFETY INSTRUCTIONS CHILD SAFETY It Makes A Difference How and Where You Use Your Flat Panel Display

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips

THE ISSUE The home theater entertainment experience is a growing trend and larger •

flat panel displays are popular purchases. However, flat panel displays are

not always supported on the proper stands or installed according to the

manufacturer’s recommendations.

Flat panel displays that are inappropriately situated on dressers, bookcases, •

shelves, desks, speakers, chests or carts may fall over and cause injury.

THIS MANUFACTURER CARES!

The consumer electronics industry is committed to making home •

entertainment enjoyable and safe.

TUNE INTO SAFETY One size does NOT fit all. Follow the manufacturer’s recommendations for •

the safe installation and use of your flat panel display.

Carefully read and understand all enclosed instructions for proper use of this •

Don’t allow children to climb on or play with furniture and television sets.•

Don’t place flat panel displays on furniture that can easily be used as steps, •

such as a chest of drawers.

Remember that children can become excited while watching a program, •

especially on a “larger than life” flat panel display. Care should be taken

to place or install the display where it cannot be pushed, pulled over, or

Care should be taken to route all cords and cables connected to the flat•

panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY,

Follow all instructions supplied by the display and wall mount manufacturers.•

If you have any doubts about your ability to safely install your flat panel display, contact your retailer •

about professional installation.

Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not •

designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure,

contact a professional installer.

A minimum of two people are required for installation. Flat panel displays can be heavy.•

Note: CEA is the preeminent trade association promoting growth in

the $161 billion U.S. consumer electronics industry. More than 2,200

companies enjoy the benefits of CEA membership, including legislative

advocacy, market research, technical training and education, industry

promotion and the fostering of business and strategic relationships.

6QUICK REFERENCE • Always use the AC cord supplied with the TV.• The illustrations above are for explanation purposes and may vary slightly from the actual accessories. Make sure the following accessories are provided with the product. CAUTION • Do not push too hard or put excessive pressure to the stand neck to avoid the damages

when you turn the TV for the most comfortable viewing angle. • To detach the stand, perform the steps in reverse order.Remote control unit ( X 1)Page 8“AAA” size battery ( X 2)Page 10Stand ( X 1)with ScrewsPage 7

Operation manual ( X 1) ( X 1) x4

Attaching/Detaching the Stand

• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it

from being damaged. CAUTION • Attach the stand in the correct direction.

• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV

1. Put the TV face down on a safe surface that is covered by a soft and smooth cloth.

2. Adjust the TV stand to the bottom of the TV.

3. Fasten the screws by using a cross-head screwdriver (Not supplied).

Using the Remote Control Unit

Insert the batteries into the remote control

unit. (See page 10.)

1. Attach your antenna to the back of the

television. (See page 9.)

2. Connect the AC plug for the television into

the AC outlet. • Place the TV close to the AC outlet, and keep the power plug within reach.• This product must only be connected to a 120V, 60Hz AC outlet. Connecting it to any other kind of outlet will damage the product and invalidate the warranty.

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED. 3.

How to turn on the television for the first

A) Press POWER on the television.

B) The POWER indicator on the front of

the television lights Green. POWER

indicator 8 POWER Use the remote control unit by pointing it towar

ds the remote control sensor on the TV. Objects

between the remote control unit and the remote

control sensor may prevent proper operation. IMPORTANT:IF THE UNIT DOES NOT POWER ON - UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE INSTALLATION STEPS.IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP. ■ Cautions regarding the remote control

unit • Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the remote control unit.• The remote control unit may not work properly if the remote control sensor on the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the TV, or operate the remote control unit closer to the remote control sensor.INPUT 2

sensor • Speakers cannot be detached from the TV.

PC IN AUDIO PC/HDMI INPUT 4

Y/VIDEOPBPR R-AUDIO-L ANT./CABLE INPUT 2PC INAUDIOPC/HDMIINPUT 4Y/VIDEOPBPRR-AUDIO-LANT./CABLEINPUT 2 Antennas

1. A 75-ohm system is generally a round cable

with F-type connector that can easily be

attached to a terminal without tools

(Commercially available).

2. A 300-ohm system is a flat “twin-lead” cable

that can be attached to a 75-ohm terminal

through a 300/75-ohm adapter (Commercially

Connecting Antenna Cable

Connect the antenna cable to the TV using one of the methods in the illustration as •

75-ohm coaxial cable (round)

(commercially available)

(commercially available)

300-ohm twin-lead cable (flat)

75-ohm coaxial cable (round)

Cable without a CATV converter1

(commercially available)

(commercially available)

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types

of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial

cable with an F-type connector, plug it into the antenna terminal at the rear of the TV set.

When connecting the RF cable to the TV set, do not tighten

F-type connector with tools. If tools are used, it may cause

damage to your TV set.

(The breaking of internal circuit, etc.)

ANT./CABLEInstalling Batteries in the Remote Control Unit

CAUTION Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries come in contact with skin can cause a rash. If

you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove batteries from it.

• The batteries (batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

1 Open the battery cover.

Place the batteries with their terminals •

corresponding to the ( ) and ( )

indications in the battery compartment.

2 Insert two “AAA” size batteries (supplied

3 Close the battery cover.

If the remote control fails to operate TV functions, replace the batteries in the remote control unit.

Supplied Accessories 7

Attaching/Detaching the Stand 7

Quick Installation Tips 8

Using the Remote Control Unit 8

Connecting Antenna Cable 9

Installing Batteries in the Remote Control Unit 10

Remote Control Unit 13

Introduction to Connections 14

Turning On/Off the Power 19

Experiencing HD Images 14

Types of Connection 14

Connecting to External Equipment 15

Connecting a Blu-ray Disc/DVD Player or HD Cable/Satellite Set-top Box 15

Connecting a Game Console, VCR, Camcorder or Cable/Satellite Set-top Box 16

Connecting an Audio Amplifier 17

Connecting an AV Amplifier 17

Direct Button Operation 21

Calling for Service 43

LIMITED WARRANTY 44

Dimensional Drawings

• The dimensional drawings for the LCD TV set are shown on the inside back cover.Part Names

*1: See pages 14 to 18 and 35 for external equipment connection.

*1: Optical Picture Control (See Page 27)

*2: See page 14, 19 and 26 for button operations.

• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

Remote control sensor

• When using the remote control unit, point it at

1. INPUT: Select a TV input source.

2. 0–9: Set the channel.

3. ENT: Jumps to a channel after selecting with

4. FLASHBACK: Press to switch to the

previously tuned channel or external input

mode. Press again to switch back to the

currently tuned channel or external input

A,B,C,D: Selects preset favorite channels in

four different categories. While watching, you

can toggle the selected channels by pressing

A, B, C and D. The every key of the favorite

can select the many channels.

13. AV MODE: Select an adjusted picture

settings. User, Standard, Movie,Game, PC,

Dynamic, Dynamic(Fixed). (See page 22.)

18. DISPLAY: Display the current channel (or

input source) information on the screen.

19. FREEZE: Set the still image. Press again to

25. SLEEP: Allows you to set a time when the TV

automatically switches to standby. This display

will disappear after a few seconds, and the

sleep timer automatically starts counting down.

26. CC: Display captions during closed-caption

source.(See page 22.)

Remote Control UnitIntroduction to Connections

An HDTV without an HD source is just an ordinary TV.

To enjoy HD images on the TV, you should get HD programming from the following:

• Over-the-air broadcasting via HD quality antenna

• HD cable/satellite subscription

• HD compatible external equipment

Types of Connection • For information on updating to HD programming, ask your cable/satellite service provider. HD QualityStandardQualityTerminalon the TVCableTerminal on externalequipmentImageQualityComponent video cable(commerciallyavailable)Audio cable(commercially available)HDMI-certified cableØ 3.5 mm stereo minijack cable AUDIODVI OUTDVI-HDMI conversion cableAV cable (commercially available)INPUT 1, 2, 3Page 15Page 15 Page 16Page 16INPUT 1, 2, 3 Displaying an External Equipment Image Display

To view external source images, select the input source by pressing INPUT on the remote control

Image quality differs depending on the terminal used. To enjoy clearer images, check the output

terminals of your external equipment and use its appropriate terminals for higher quality images.

For connecting the TV to external equipment, use commercially available cables.

• The illustrations of the terminals are for explanation purposes and may vary slightly from the actual products.

• The Input source list screen displays.

2. Press / to select the input source.

• You can also select the input source by

pressing INPUT. Each time INPUT is

pressed, the input source toggles.

INPUT4TV USB PC IN INPUT1 INPUT2 INPUT3

• An image from the selected source

Y/VIDEOPBPR R-AUDIO-L INPUT 4

Y/VIDEOPBPR R-AUDIO-LYou can connect many types of external equipment to your TV. To view external source images,

select the input source from INPUT on the remote control unit or on the TV. (See pages 13 and 21.)

For connecting the TV to external equipment, use commercially available cables.

CAUTION • To protect equipment, always turn off the TV before connecting any external equipment.• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections. Connecting a Blu-ray Disc/DVD Player or HD Cable/Satellite Set-top Box

When using HDMI cable (INPUT 1, 2, or 3):

The HDMI (High Definition Multimedia Interface) terminal is an audio-video interface that enables a

connection for audio and video signals using a single cable. The HDMI terminal supports

high-resolution video input.

• Blu-ray disc player • DVD player

• HD cable/satellite set-top box

When using DVI-HDMI conversion cable (INPUT 1, 2, or 3):

• Blu-ray disc player • DVD player

• HD cable/satellite set-top box

• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to connecting

a DVI-HDMI conversion cable to the INPUT 1,2,3 (HDMI) terminal, connect a Ø 3.5 mm stereo minijack cable to the AUDIO PC/HDMI terminal. Connecting to External Equipment HDMI OUT HDMI-certified cable AUDIO DVI OUTØ 3.5 mm stereo minijack cableDVI-HDMI conversion cable 15

• Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI connection. In this case, set the audio formats of the connected equipment to PCM, 32/44.1/48 kHz. • Optical digital audio will be output in 2-ch stereo when it is from the external equipment connected to the TV using an HDMI cable INPUT 2INPUT 3INPUT 2INPUT 3When using Component cable (INPUT 4):

• Blu-ray disc player • DVD player

• HD cable/satellite set-top box

• To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component cable and set the equipment to 1080p output. • See page 15 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal.

Connecting a Game Console, VCR, Camcorder or Cable/Satellite Set-top Box

When using Composite cable (INPUT 4):

Connecting to External Equipment

COMPONENT OUT AUDIO-R (Red)

Component video cable COMPONENT OUTAUDIO-R (Red)AUDIO-L (White)VIDEO (Yellow)AUDIO-R (Red)AUDIO-L (White)VIDEO (Yellow)INPUT 4

Connecting an AV Amplifier

HD Cable/Satellite set-top box

Connecting to External Equipment DIGITAL AUDIO INPUTOPTICALCoaxial Cable When using coaxial cable:

It is possible to output audio through the DIGITAL AUDIO terminal. PCM audio outputs from the

• Digital Audio output is not available when using an HDMI input.• If the image is not in sync with the audio, check the settings of the connected surround system.• Letting the TV output the audio to an AV amplifier.INPUT 2INPUT 3Connecting a PC Refer to page 41 for a list of PC signals compatible with the TV.

When using HDMI cable (INPUT 1, 2 or 3): • The HDMI terminals only support digital signal. When using DVI-HDMI conversion cable (INPUT 1,2,3):

• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to connecting a DVI-HDMI conversion cable to the INPUT 1,2,3 (HDMI) terminal, connect a Ø 3.5 mm stereo minijack cable to the AUDIO PC/HDMI terminal.

Watching TV Press POWER on the TV, or POWER on the remote control

unit to turn the power on.

• POWER indicator: Power on, Green; Power off, red.

• If you are not going to use this TV for a long period of time, be sure to remove the

AC cord from the AC outlet.

• Small amount of electric power is still consumed even when the TV is turned off.

• If there is no signal input for 15 minutes, the power will turn to standby mode

2 POWER When you turn on the TV for the first time, the

Initial Setup will guide you through the setup

process. Perform the following steps before

you press POWER on the remote control unit.

1. Insert the batteries into the remote control

unit. (See page 10.)

2. Connect the antenna cable to the TV. (See

3. Plug in the AC cord to the AC outlet. (See

• The Initial Setup screen display at the first

use. Press ENTER to start the EZ setup.

TV US B PC MENU NRUTERTIXEENTER Thank You for Your Purchase of our SHARP Liquid Crystal Television

Please press [Enter] to start the Wizard.

Select "Home" or "Store" for the location where

you plan to install the TV. This product qualifi es for

• Press / to select “Home” or “Store”

and press to the next step.

• Select the OSD menu language from

English, Spanish, or French.

• Press / to select the desired

language listed on the screen, and then

press the to the next step. Language

Select Enter Back Exit

Enter Return EXIT Language TV EZ Setup

Select where the TV will be placed.

The picture will be optimized for

Select Enter Back Exit

Enter Return EXIT TV Location • ENERGY STAR qualifi cation is based on AV MODE

ENERGY STAR in Home mode default setting.

Press POWER on the TV, or POWER on the remote control

unit again to turn the power off.

• The TV enters standby and the image on the screen

disappears.Watching TV

Home: “Power Saving” is set to "On", and AV MODE

is set to "STANDARD".

Store: “Power Saving” is set to "Off" and AV MODE is

set to "DYNAMIC (Fixed)".

4. Air/Cable(Antenna setting)

• Make sure what kind of connection is

made with your TV when selecting “Air”

• Press / to select “Air” or “Cable” and

press to the next step.

TV EZ Setup Air/Cable Selecting Air/Cable channels Air CableSelect Enter Back ExitEnter Return EXIT CH Search (Channel search)

Channel auto search makes the TV look for all

channels viewable in the set area.

5. When "Air" or "Cable" is selected

Press / to select "Start", and then

TV EZ Setup CH Search Searching receivable channelsStartCancelSelect Enter Back ExitEnter Return EXIT 6. Start channel searching

• Wait until the channel scan to complete.

• If you press EXIT, the process will return

to the previous step.

• If you skip this step, the channel search

can be performed in the TV Menu. (See

TV EZ Setup CH Search Searching receivable channels.Now tuning Channels automatically..Analog: 0Digital: 0 22% Cancel EXIT

After setting complete, the screen will

show "EZ Setup Completed", press

ENTER to finish the EZ Setup. The TV will

then switch to the first channel found.

TV EZ Setup Completed EZ Setup Completed Exit Enter Back Return • Auto programming may take 20+ minutes to complete.

Please wait until you see the Auto programming complete

message.Direct Button Operation

MUTE Mutes the current sound output.

Press MUTE. • Mute can be canceled by using the method below. Mute will be canceled if you press VOL + / - or MUTE.

SLEEP Allows you to set a time when the TV

automatically switches to standby.

• The remaining time displays when the

sleep timer has been set.

• Each time you press SLEEP, the remaining

time switches as shown below.

• When set, the time automatically starts

• If you want to adjust the sleep timer, you

can press SLEEP twice then change the

time setting. • Select "Off" by pressing SLEEP to cancel the sleep timer.• The TV will enter standby mode (power indicator lights red) when the remaining time reaches zero. Changing Channels

You can change channels by pressing CH /

ENT. • When selecting a 1-digit channel number, it is not necessary to press 0 before the number. Changing Volume

You can change the volume by pressing

VOL / on the TV or on the remote control

source using INPUT on the remote control unit

• A list of selectable sources appears.

again to select the input

• An image from the selected source

automatically displays.

• Each time INPUT is pressed, the input

POWER FAV ORI TE CHSL EE P CC VIEWMODEAV MODENRUTERTIXE LCDTV GJ221 A B C D ENTER • See page 14-18 for external equipment connection.

FLASHBACK Press FLASHBACK to switch to the previously

tuned channel or input.

• Press FLASHBACK again to switch back

to the currently tuned channel or input.

SURROUND The surround function produces Surround effect

from the speakers. Each time you press

SURROUND, the mode changes between On

• On: Makes it possible to enjoy natural,

realistic surround sound.

• Off: Outputs the normal sound. • You can have the same settings by choosing “Surround” on the menu items. (See page 28.)

FREEZE Allows you to capture and freeze a moving

image that you are watching.

• A moving image is captured.

• Press FREEZE again to cancel the

function.Direct Button Operation

AV MODE AV MODE gives you several viewing options to

choose from to best match the surrounding

environment of the TV, which can vary due to

factors like room brightness, type of program

watched or the type of image input from

■ MTS/SAP stereo mode

The TV has a feature that allows reception of

sound other than the main audio for the

program. This feature is called Multi-channel

Television Sound (MTS). The TV with MTS can

receive mono sound, stereo sound and

Secondary Audio Programs (SAP). The SAP

feature allows a TV station to broadcast other

information, which could be audio in another

language or something completely different like

weather information.

You can enjoy Hi-Fi stereo sound or SAP

broadcasts when available.

• Stereo broadcasts: View programs like live

sporting events, shows and concerts in

dynamic stereo sound.

• SAP broadcasts: Receive TV broadcasts in

either MAIN or SAP sound.

MAIN sound: The normal program soundtrack

(either in mono or stereo).

SAP sound: Listen to a second language,

supplementary commentary or other information.

(SAP is mono sound.)

If stereo sound is difficult to hear.

• Obtain a clearer sound by manually switching

to fixed mono-sound mode.

You can change MTS as shown below to match the

television broadcast signal.

Press AUDIO to toggle between audio modes.

Examples: when receiving MTS and SAP MAIN + SAP mode:

MAIN SAP MONO mode: MONO

■ Digital broadcasting audio mode

The types of audio transmitted in a digital

broadcast include SURROUND as well as

MONO and STEREO. In addition, it is possible

for multiple audio tracks to accompany a single

Press MTS/SAP to toggle between audio

Example: when receiving Digital broadcasting

STEREO (Audio1) STEREO (Audio2)

SURROUND (Audio3) • MTS only operates while in TV mode. Closed Captions (CC)

Your TV is equipped with an internal Closed

Caption decoder. It allows you to view

conversations, narration and sound effects as

subtitles on your TV. Closed Captions are

available on some TV programs and on some

VHS home video tapes at the discretion of the

Digital Closed Caption service is a new caption

service available only on digital TV programs

(also at the discretion of the service provider). It

is a more flexible system than the original

Closed Caption system, because it allows for a

variety of caption sizes and font styles. When

the Digital Closed Caption service is in use, it

will be indicated by the appearance of a 3-letter

abbreviation that also indicates the language of

the Digital Closed Captions: ENG (English), SPA

(Spanish), FRA (French) or other language

Not all programs and VHS videotapes offer

In the Closed Caption system, there can be

more than one caption service provided. Each

is identified by its own number. The “CC1” to

“CC4” services display subtitles of TV programs

superimposed over the program's picture.

In the Closed Caption system, the “TEXT1” to

“TEXT4” services display text that is unrelated

to the program being viewed (e.g., weather or

news). These services are also superimposed

over the program currently being viewed.

• This will display the current Closed Caption

information. Press CC to turn the Closed

Caption on or off. • Caption Display will not work when viewing a 480i, 480p, 720p, 1080i or 1080p input via the COMPONENT: Y-PbPr or HDMI inputs.• This feature is only available in TV,AV and component mode.• Closed Captions and Digital Captions availability and content depends on the broadcaster. Closed Caption are available when the Closed Caption icon is displayed on screen. Example:

• You can have the same settings by choosing "AV MODE" on the menu items. (See page 27.)• Press AV MODE again before the mode displayed on the screen disappears.VIEW MODE Direct Button Operation

The View Mode menu displays.

The menu lists the View Mode options selectable for the type of video signal currently

while the View Mode menu is displayed to select a

desired item on the menu.

• You can sequentially select a View Mode that has its own aspect ratio.

You can have the same settings by choosing "View Mode" on the menu items. (See page 29.)

Connect the PC before making adjustments.

• Selectable screen size may vary with input signal type.

Example: Screen size images

Keeps the original aspect

ratio in a full screen display.

For viewing widescreen

programs. The top and

bottom of the image is

An image fully fills the screen.

Detects the resolution of the

signal and displays an image

with the same number of

pixels on the screen.

16:9 An image fully fills the

Detects the resolution of the

signal and displays an image

with the same number of

pixels on the screen.

Full Screen Dot by Dot

Example: Screen size images

hctertSmooZ)hcterts tramS( hctertS.SNormal

Suitable for viewing conventional 4:3

programs in their normal format.

Suitable for stretching 4:3 programs

Suitable for viewing wide-screen

2.35:1 anamorphic DVDs in full

This mode is useful for 1.78:1 DVDs.

When viewing 1.85:1 DVDs, stretch

mode will still show very thin black

bands at the top and bottom of the

Stretch Dot by Dot (Full Screen) S.Stretch (Smart stretch) Zoom

Suitable for viewing wide-screen

1.78:1 aspect ratio program, stretch

mode will still show very thin black

bands at the top and bottom of the

Dot by Dot (1080i/p only): Detects the

resolution of the signal and displays an image

with the same number of pixels on the screen.

Full Screen (720p only): You can select

"Full Screen" only when receiving a 720p signal.

Suitable for stretching 4:3

programs to fi ll the screen.

Suitable for viewing wide-screen

2.35:1 aspect-ratio programs in

When using Dot by Dot or Full Screen, it is possible to see noise or bars around different outer portions of the screen. Please

Connecting a USB Memory Device/

Playing Back Files on a USB Memory Device ...35

Select the Files to Play Back 35

AV MODE (Changing Pic.Quality) 27

Color Temp. (Color Temperature) 27

Auto Sync. (for Analog PC Input Mode Only) ....30

Broadcasting Setup 32

adjustment item, and then press ENTER. • Additional related adjustment items may be displayed. Press / to select the desired item. Adjust the item while referring to the

Guide display • This indicates the buttons that can be operated on the displayed screen. The guide display varies depending on the menu setting screen. • The operations for some selected items may be displayed in the operational guide bar at the bottom of the screen. Item displayed in blue • This indicates the item currently selected. •

Press / to go to the adjustment screen for

Item in brackets • This indicates the current setting for the item. Item displayed in gray • This indicates that the item can be selected. Item displayed in black • This indicates that the item cannot be selected. There are various reasons why the items cannot be selected, but the main reasons are as follows:—Nothing is connected to the selected input terminal. —

The function is not compatible with the current

input signal. Example 1

• Menu options differ in the selected input modes, but the operating procedures are the same.

• The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly from the

• The order of explanations for each menu item in the following pages is not necessarily in accordance with the alignment of the items

on the screen. AV MODE [STANDARD]

[On] Contrast [ 51 Backlight [ 82] Brightness [ 50] Color [ 50]

[ 0] Sharpness [ 10] AdvancedResetExample Menu InformationInitialSetupSystemOptionsPictureSettingsAV MODE [STANDARD]

[On] Contrast [ 51] Backlight [ 82] Brightness [ 50] Color [ 50]

Press to open or close the menu

Press to select a desired item on

the screen or adjust a selected

ENTER: Press to go to the next step or

complete the setting.

RETURN: Press to return to the previous

Using the control panel of the main unit

You can also operate the menu with the control

panel of the main unit.

Button operations on the control panel

correspond to the ones on the remote control

Using the remote control

Use the following buttons on the remote control

to operate the menu.

control or EXIT on the

remote control while OSD

Backlight[ 80] 1. Press MENU to display the MENU screen,

and then press ◄/► to select "Picture

Settings" and press ENTER or ▼ to enter it.

▲/▼ to select a specific adjustment

◄/► to adjust the setting.

4. Press MENU to exit.

• Backlight control is disabled when OPC is “On”.

Selected item button button

Backlight The screen

Color For less color

Adjusts the picture to your preference with the

following picture settings.

TV US B PC MENU RETURNEXIT ENTER FAV ORI T E CH SLEEP CC VIEW MODEAV MODE A B C DOn-Screen Display Menu

AV MODE (Changing Pic.Quality)

The audio and video settings can be changed

to suit the program or input content being

Select from the following AV modes.

USER/STANDARD/MOVIE/GAME/PC/

DYNAMIC/DYNAMIC (Fixed)

VGAActive Contrast • You can select AV MODE by pressing AV MODE on the remote control unit. See page 22 for details of AV MODE settings. Automatically adjusts the brightness of the

Off: The brightness is fixed at the value set in

On: Automatically adjusts. • When set to "On", the Optical Picture Control (OPC) senses the surrounding light and automatically adjusts the backlight brightness. Make sure nothing obstructs the OPC sensor, which could affect its ability to sense surrounding light. This TV provides various advanced functions

for optimizing the picture quality. • For resetting all adjustment items to the factory preset values, press / to select "Reset", and then press ENTER.• For resetting all adjustment items to the factory preset values, press / to select "Reset", and then press ENTER. Automatically adjusts the image contrast

according to the scene.

On: Automatically adjusts the image

VGADigital Noise Reduction

Automatically detects a film-based source

(originally encoded at 24 frames/second),

analyzes it then recreates each still film frame

for high-definition picture quality.

Auto: Detects, analyzes, converts film

Off: Normal viewing mode. • "DI Film Mode" does not function depending on input signal type.• "Auto" does not function when channel display shows an input signal resolution of 480p, 720p, or 1080p.• "DI Film Mode" is not available during PC format input. Produces a clearer video image.

Auto: Automatically adjusts the level of

High/Medium/Low: Select a desired level

for viewing a clearer video image.

Off: No adjustment. • "Digital Noise Reduction" is not available when you set PC format is being input.• This feature is only available in ATV,AV and component mode.

Color Temp. (Color Temperature)

For a better white balance, use color

temperature correction.

White with reddish tone

White with bluish tone

White balance can be adjusted manually through

the R/G/B Gain between a maximum of 255 and a

minimum of 0 for each color temperature.

When the input source is TV, COMPONET/AV,

PC IN or HDMI 1 to 4 STANDARD: For a highly defi ned image in a normal lighting.MOVIE: For a movie.GAME: Lowers image brightness for easier viewing.PC: For PC.USER: Allows the user to customize settings as desired. You can set the mode for each input source. DYNAMIC: For a clear-cut image emphasizing high contrast, useful for sports viewing. DYNAMIC (Fixed): Changes the image and sound settings to the factory preset values.No adjustments are allowed. DYNAMICDYNAMIC (Fixed) USER STANDARD MOVIE GAME PCSTANDARDOn-Screen Display Menu

You can adjust the sound quality to your

preference with the following settings.

1. Press MENU to display the MENU screen,

and then press / to select "Audio

2. Press / to select a specific adjustment

• Select "Surround" and then press /

3. Press / (or / ) to select the desired

setting, and then press ENTER.

4. Press MENU to exit.

• For resetting Audio adjustment items to the factory preset

values, press / to select "Reset", press ENTER, press

/ to select "Yes", and then press ENTER.

Menu AudioSettings Bass [ 50]Treble[ 50]Balance[ 0]Surround[Off]STANDARDResetAudio Settings

TV US B PC MENU RETURNEXITENTER The surround function produces Surround

effect from the speakers.

On: Makes it possible to enjoy natural,

realistic surround sound.

Off: Outputs the normal sound.

• For some discs, setup may be required on your DVD/BD player.

In this case, please refer to the operation manual of your

and then press / to select "Power

2. Press / to select a specific adjustment

item, and then press ENTER.

3. Press / ( or / ) to select the desired

setting, and then press ENTER.

4. Press MENU to exit.

TV US B PC MENU RETURNEXITENTER This function allows the TV to automatically shut

the power down when there is no signal

Enable: The power will automatically shut

down if there is no signal for 15 minutes.

Disable: This function does not work.

This function allows you to set the Power

Saving level in order to decrease the power

consumption and increase the backlight

On: Optimizes power reduction based upon

Off: This function does not work.

• "Power Saving" does not function when you set AV MODE to DYNAMIC (Fixed)".

• You cannot select a different Power Saving item for

These functions are useful for adjusting the

audio and video settings. The View Option

functions can be operated with the remote

This function changes the screen size.

Select "View Option" on the menu to display

the View Mode menu screen.

The View Mode menu varies depending on the

input source. • You can select View Mode by pressing VIEW MODE on the remote control unit. See page 23 for adjusting the video being input from a TV, PC, other audiovisual equipment, USB-Video. Allows you to capture and freeze a moving

image that you are watching. • You can select Freeze by pressing FREEZE on the remote control unit. See page 21 for details of Freeze function. Menu View OptionSystem OptionsCaption SetupInput Terminal SettingSystemOptions

1. Press MENU to display the MENU screen,

and then press / to select "System

2. Press / to select a specific adjustment

item and then press ENTER.

3. Press / (or / ) to select the desired

setting, and then press ENTER.

4. Press MENU to exit.

The TV has a feature that allows reception of

sound other than the main audio for the program.

This feature is called Multi-channel Television

Sound (MTS). The TV with MTS can receive

mono sound, stereo sound and Secondary

Audio Programs (SAP). The SAP feature allows a

TV station to broadcast other information, which

could be audio in another language or something

completely different like weather information.

You can enjoy Hi-Fi stereo sound or SAP

broadcasts where available.

• Stereo broadcasts: View programs like live

sporting events, shows and concerts in dynamic

• SAP broadcasts: Receive TV broadcasts in either

MAIN sound: The normal program soundtrack

(either in mono or stereo).

SAP sound: Listen to a second language,

supplementary commentary or other information.

(SAP is mono sound.)

If stereo sound is difficult to hear.

• Obtain a clearer sound by manually switching to

fixed mono-sound mode.

You can change MTS as shown below to match the

television broadcast signal.

Press ENTER to toggle between audio modes.

Examples: when receiving MTS and SAP STEREO mode:

STEREO MONO STEREO + SAP mode: ST(SAP) SAP(ST) MONO MAIN + SAP mode: MAIN SAP MONO mode: MONO Digital broadcasting audio mode

The types of audio transmitted in a digital broadcast

include SURROUND as well as MONO and STEREO.

In addition,it is possible for multiple audio tracks to

accompany a single video track.

Press ENTER to toggle between audio modes.

Example: when receiving Digital broadcasting

STEREO (Audio 1) STEREO (Audio 2)

SURROUND (Audio 3) • MTS only operates while in TV mode.

Change CC Allows you to change the Closed Caption

display. Select "Change CC" on the menu to

display the Closed Caption information.

Gives you the possibility to swap between main

and alternative language, when it is available in

digital channel. • You can change Closed Caption by pressing CC on the remote control unit. See page 22 for details of Closed Caption function. 29 DI SPL AY FRE EZEFLASHBACKMU TESURROUNDTV US B PC ME NUFAV ORITE CHSLE EP CC VIEW MODEAV MODEAUDIOVOL CH +

Auto Sync. (for Analog PC Input Mode Only)

This allows you to configure the way you

choose to view digital captioning. Select one of

the digital service channels made available by

the caption provider. There are six standard

services. Service 1 is designated as the Primary

Caption Service. This service contains the

verbatim, or near-verbatim captions for the

primary language being spoken in the

accompanying program audio. Service 2 is

designated as the Secondary Language Service.

This service contains captions in a secondary

language, which is a translation of the captions

in the primary Caption Service. The other

service sub channels are not pre-assigned. It is

up to the discretion of the individual caption

provider to utilize the remaining service

You can output digital audio to an AV amplifi er

or similar device whose DIGITAL AUDIO INPUT

terminal is connected to the DIGITAL AUDIO OUTPUT terminal on the TV. Please select an

audio output format compatible with the audio

format of the program you are watching and

the equipment connected.

PCM: The optical output terminal outputs

audio signal in PCM form. If your digital

audio system does not support Dolby

Digital, select "PCM".

Digital Closed Caption

Input Terminal Setting

The Auto Sync. is only available when the input

source is PC and your TV is receiving a

computer signal. Select Auto Sync. for

adjusting the settings automatically. • Be sure to connect the PC to the TV and switch it on before starting "Auto Sync.". Ordinarily you can easily adjust the picture as

necessary to change image position using

"Auto Sync.". In some cases, however, manual

adjustment is needed to optimize the image.

H-Pos.: Centers the image by moving it to

V-Pos.: Centers the image by moving it up

Clock: Adjust when the image flickers with

Phase: Adjust when characters have low

contrast or when the image flickers.

This function sets the terminal to output the

The adjustment items vary depending on the

input source. Select the input source

corresponding to the terminal connected to the

PC and then adjust the desired item. • The default cursor position may not be in the center, because the screen position variable ranges may be asymmetrical.• The screen position variable ranges depend on the View Mode or the signal type. The ranges can be seen on the position -setting screen. Analog Closed Caption

This allows you to select the Closed Captions

service levels of analog broadcasting to be

displayed. Closed captioning allows you to read

the voice content of television programs on the

TV screen. Designed to help the hearing

impaired, this feature uses on-screen “text

boxes“ to show dialogues and conversations

while the TV program is in progress. Captions

will appear on the screen during captioned

Dialogues (and descriptions) for the action on the

captioned TV program shows on screen. Usually

CC1 is the most used. CC2 can be used for

alternate languages if they are being transmitted.

Often used for channel guide, schedules, bulletin

board information for Closed captions programs,

news, weather information, or stock market reports.

Not all Caption services are necessarily being used

by a TV channel during the transmission of a Closed

Dolby Digital: The optical output terminal

outputs audio signal in Dolby Digital form. It

reproduces sound from surround program

Choose to turn on or off the TV internal speaker.

The audio output signals will not be turned off

even though the TV speaker is off. The default

This function allows you to adjust the closed

caption screen appearance to suit your

preference. You can adjust 8 items:

HDMI Mode only shows and is available when

HDMI device is connected. Select from Auto,

Graphic or Video. Auto: The HDMI input timing is set to Video mode or Graphic mode automatically.Graphic: HDMI input timing set to Graphic mode (PC). The image is full scan.Video: HDMI input timing set to Video mode. The image is over scan.• HDMI Mode is only workable for HDMI Video & Progressive timing as followed: 1920x1080p,1280x720p, 720x480p, 720x576p.

PC IN Video: Select this when the TV and PC are

connected using an analog RGB cable and the

Video+Audio: Select this when the TV and PC

are connected using an analog RGB cable and

the audio is input via a Ø 3.5 mm stereo minijack.

HDMI IN Auto: Audio path is set to HDMI or PC line in

HDMI(Digital): Select this when the TV and PC

are connected using an HDMI-certified cable and

audio is input via the same cable.

HDMI+Analog: Select this when the TV and PC

are connected using a DVI-HDMI conversion

cable and the audio is input via a Ø 3.5 mm

stereo minijack. • When "Audio Select" is set to "HDMI(Digital)", sound will not be produced if you use only an HDMI-certified cable to connect HDMI-compatible equipment. To produce sound, you should make an analog audio connection.• If you want to connect HDMI-compatible equipment using only an HDMI-certified cable, set "Audio Select" to "HDMI(Digital)". Initial Setup

You can run EZ Setup again, even after setting

up the preset channels. Language: Select from among 3 languages (English, French and Spanish). TV Location: Select "Home" or "Store" for the location where you plan to install the TV. Home: “Power Saving” is set to "On", and AV MODE is set to "STANDARD". Store: “Power Saving” is set to "Off" and AV MODE is set to "DYNAMIC (Fixed)". 1. Press MENU to display the MENU screen,

and then press / to select "Initial Setup".

2. Press / to select a specific adjustment

item, and then press ENTER.

• When you select Individual Setup, you can

enter the 4-digit secret number here. See

page 32 for setting a secret number.

3. Press / (or / ) to select the desired

setting, and then press ENTER.

4. Press MENU to exit.

Menu EZ SetupLanguageBroadcasting SetupIndividual SetupResetInitial SetupInitialSetup[English]

TV US B PC MENU RETURNEXIT ENTER EZ Setup • Caption Style: Set to As Default or Custom mode. If Custom mode is selected, user can modify the detail styles described below. The setting result will be shown immediately on the bottom of the submenu OSD. Note : This feature is only available in TV, AV and component mode.• Caption Size: Selects this option to choose a caption display size according to your own preference. Select “Small”, “standard”, or “Large”.• Foreground Color: Choose the caption display text color.• Foreground Opacity: Select the text opacity.• Background Color: Choose one of the background color.• Background Opacity: Choose one of the background opacity options.• Window Color: Choose one of the display windows color.• Window Opacity: Select one of the display window opacity options. 31 • ENERGY STAR qualifi cation is based on AV MODE "STANDARD".On-Screen Display Menu

You can also select a language from the Initial

Setup menu. Select from among 3 languages:

English, French and Spanish.

If complex adjustments are made and the

settings cannot be restored to normal, you can

reset the settings to the factory preset values. • The Channel Setup settings will not be changed.• The Language settings will not be changed.• The Secret number settings will not be changed.• The TV Location settings will not be changed. Allows you to use a secret number to protect

certain settings from being accidentally changed.

Enter a 4-digit Secret No. with the number

buttons on the remote control to change your

Enter your new 4-digit Secret No. again to

Before entering the Individual Setup, user has to

key in the Secret No. first.Enter a 4-digit Secret

No. with the number buttons on the remote

control. The default Secret No. is 0000. • As a precautionary measure, make a note of your secret number and keep it in a familiar place. Used to enable or disable the parental control

function. This function will not be selectable

from the menu if you do not fi rst confi gure your

secret number. Yes: Enables Parental CTRL.No: Disables Parental CTRL. The “V-Chip (DTV Only)” will only be selectable

when a new rating system can be downloaded

via digita broadcasting in the U.S.

If Initial Installation does not memorize all the

channels in your region, follow the instructions

below to manually memorize the channels.

Air/Cable: Make sure what kind of connection

is made with your TV when selecting "Air" or

CH Search: Channel auto search makes the

TV look for all channels viewable in the set area.

CH Memory: You can select the channels to

skip in each ANALOG (Air), ANALOG (Cable),

DIGITAL (Air) and DIGITAL (Cable). • If no channel is found, confirm the type of connection made with your TV and try channel search again.• If you press ENTER after CH search finish, CH search is re-start. This function allows you to program 4 favorite

channels, in 4 different categories. By setting

the favorite channels in advance, you can select

your favorite channels easily. To register your favorite channel: 1. Press MENU on the remote control and select “Initial Setup”/“Broadcasting Setup”/ “Favorite CH”. 2. Press / to select the category that you want to store your favorite channel.3. Press / to select your desired channel and press ENTER button to confirm.To delete your favorite channel 1. Press MENU on the remote control and select “Initial Setup”/“Broadcasting Setup”/ “Favorite CH”.2. Press / to select “All data clear” and press ENTER to start clearing all favorite channel data. Broadcasting Setup

Favorite CH (Favorite Channel Setting) • While watching, you can toggle the selected channels by pressing the A,B,C, and D button on the remote control. Air/Cable: Make sure what kind of connection is made with your TV when selecting "Air" or "Cable". CH Search: Channel auto search makes the TV look for all channels viewable in the set area. • If "Cable" is selected for Antenna setting, scrambled channels are removed after the Channel search has been completed. Completed: The settings confirmation screen is displayed. Confirm the information displayed on the screen. •

See EZ Setup on pages 19 to 20 for setting each item.• If no channel is found, confirm the type of connection made with your TV and try "EZ Setup" again.

32On-Screen Display Menu

V-CHIP is an electronic filtering device built into

your TV. This tool gives parents a great degree

of control over broadcasts accessed by their

children. It allows parents to select programs

judged suitable for child viewing while blocking

ones judged not suitable. It does so

automatically once you activate the V-CHIP

feature in your TV. "V-Chip" and "Status" will

not be selectable from the menu if you do not

first configure your secret number. • The U.S. has two rating systems for viewing content: TV Parental Guidelines and movie ratings.• The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate television shows from their children.• Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies.• The setting automatically enters "Block" for any ratings below your selection.• If Status is not set to "On", the confi guration settings will not work. MPAA (Voluntary movie rating system) Example

MPAA TV GuidelinesCan. English RatingsCan. French RatingsPG-13 R NC-17

X NONE PG G • Voluntary movie rating system only uses an age-based rating. Press / to adjust the item to your desired

position." " indicates the item is blocked.

Press MENU to exit. G: General audiences. All ages admitted.PG: Parental guidance suggested. Some material may not be suitable for children.PG-13: Parents strongly cautioned. Some material may be inappropriate for children under 13.R: Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some jurisdictions).NC-17: No one 17 and under admitted.X: X is an older rating that is unifi ed with NC-17 but may be encoded in the data of older movies. TV Parental Guidelines Example MPAA TV GuidelinesCan. English RatingsCan. French Ratings TV-G TV-PGTV-14TV-MA NONE TV-Y7

TV-Y L S V FV D Example MPAA TV GuidelinesCan. English RatingsCan. French Ratings TV-G TV-PGTV-14TV-MA NONE TV-Y7

TV-Y L S V FV D When setting an individual content-based rating

1. Press or ENTER to access blocked

content items from the currently selected

age-based rating item.

2. Press / to select an individual item, and

then press ENTER to unblock it (" " is

removed). Repeat the same steps for the

3. Press or RETURN to register after all

individual content rating items are set.

FV: Fantasy violence.

S: Sexual situation.

D: Sexually suggestive dialog. RatingContentFV V S L D Suggested age

TV-Y TV-Y7 TV-G TV-PGTV-14TV-MA Press / to adjust the item to your desired

position." " indicates the item is blocked.

TV-Y7: Directed to older children.

TV-G: General audience.

TV-PG: Parental Guidance suggested.

TV-14: Parents strongly cautioned.

TV-MA: Mature audience only.

33On-Screen Display Menu

: The content rating can be set, but this

rating is not normally broadcast by TV stations.

: Content rating can be set.

Canadian Rating Systems (Canadian English

ratings and Canadian French ratings) • The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy on violence in television programming.• While violence is the most important content element to be rated, the structure developed takes into consideration other program content like language, nudity, sexuality and mature themes.• When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the Canadian French ratings. Canadian English Ratings Example MPAA TV GuidelinesCan. French Ratings

NONE Can. English Ratings Press / to adjust the item to your desired

position. " " indicates the item is blocked.

Press MENU to exit. E: Exempt: Includes news, sports, documentaries and other information programming; talk shows, music videos, and variety programming.C: Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being.C8+: Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve confl ict; nor encourage children to imitate dangerous acts which they may see on the screen.G: General: Considered acceptable for all age groups. Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional.PG: Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues.14+: Over 14 years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be profane and nudity present within the context of the theme.18+: Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity. Reactivating the temporarily released

V-CHIP BLOCK You can reactivate the temporarily released

V-CHIP BLOCK as shown below. • Select "Status" setting from the Parental CTRL menu to reactivate BLOCK. (See page 32.)• Select "V-Chip" setting ("MPAA", "TV Guidelines", "Can. English Ratings" or "Can. French Ratings") from the Parental CTRL to reactivate BLOCK. (See pages 33 to 34.)• Switch off the TV power.• Performing any of the three above will activate the V-CHIP BLOCK. 1. Press MENU to display the MENU screen, and

then press / to select "Information".

2. Press / to select a specific adjustment item,

3. Press / (or / ) to select the desired

setting, and then press ENTER.

4. Press MENU to exit.

Press / to adjust the item to your desired

position. " " indicates the item is blocked. Press

MENU to exit. E: Exempt programming.G: General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner.8ans+: General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with parent.13ans+: Over 13 years: Could contain scenes of frequent violent scenes and therefore recommended for viewing with parent.16ans+: Over 16 years: Could contain frequent violent scenes and intense violence.18ans+: Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

How to temporarily release the V-CHIP BLOCK When the V-CHIP BLOCK is working and

censors a broadcast, "V-CHIP HAS BEEN ACTIVATED." displays.

1. Press ENTER while the V-CHIP is working, and

then the secret number setting menu displays.

2. Input the 4-digit secret number by using 0–9.

At this time V-CHIP BLOCK temporarily releases.

The current version of the TV software is displayed.

TV US B PC MENU RETURNEXIT ENTER Canadian French Ratings Example MPAA TV GuidelinesCan. French RatingsCan. English Ratings8ans+13ans+16ans+18ans+

NONE G E Identification

Enjoying Photo/Music/Video Playback

You can connect the TV to a USB memory

device, USB hard drive to enjoy viewing

pictures, listening to music, and watching

Connecting a USB Memory Device/

USB Hard Drive • Depending on the USB memory device/USB hard drive, the TV may not be able to recognize the recorded data.• It may take time to read the recorded data if the USB memory device/USB hard drive contains many files or folders.• Use only alphanumeric characters for naming files.• File names over 80 characters (may vary depending on character set) may not be displayed. Insert the USB memory device with recorded

photos, music or videos into the USB terminal

on the TV. • When connecting a USB hard drive, be sure to use a hard drive with an AC adapter.• Do not remove a USB memory device or memory card from the TV while transferring files, using the slide show function, or switching screens, or before you exit "USB" from the INPUT list.• Do not insert and remove a USB memory device/ USB hard drive to and from the TV repeatedly.• When using a card reader, be sure to insert Memory first before using the card reader. CAUTION • Do not use a USB extension cable when connecting a USB memory device to the USB terminal on the TV.• Using a USB extension cable with the USB memory device may prevent the TV from performing correctly. 2. Press / to select "Photo", "Music" or

"Video", and then press ENTER. MusicPhoto Video Example 3. Press / to select the desired folder,

and then press ENTER. • 16GB is the maximum number of USB drives that can be displayed.• "VIEW MODE" is fixed during the Photo or Music mode. During "Video mode", is depending on the type of video signal currently being received.(see page 25)• The key guide display disappears automatically after a set time. To display the key guide display again, press DISPLAY.INPUT1INPUT2INPUT3INPUT4

TV PC INInput SourceHDMI1HDMI2HDMI3COMP/AV USB Playing Back Files on a USB Memory Device Example Photo Mode

1. Press INPUT to select USB from the input

list or press USB direct button to enter it.

Select the Files to Play Back

Buttons for thumbnails operations

Select a desired item.

RETURN Return to the previous process.

ENTER When selecting a folder icon: Enter this directory.

When selecting a photo thumbnail: Slide show.

Buttons for slide show operation Photo 1xIMG_9690.jpgNoneShort 1/29Menu Repeat Duration Effect ShuffleMenu A B C DButtons DescriptionEXIT Return to the thumbnail selection screen.Menu Sub Menu.DISPLAY Display the information.A (red) Repeat one / Repeat all.B (green) Select slider show interval.C (blue) Select slide show effect.D (yellow) Play the photo in random order.Go to the previous/next photo.Viewing individual photo. Buttons for viewing Individual Photos

operation Buttons DescriptionEXIT Return to the thumbnail selection screen.Menu Sub MenuDISPLAY Display the information.A (red) Repeat one / Repeat all B (green) Rotate the photo by 90 degrees to the right. C (blue) Zoom photo.D (yellow) Play the photo in random order.Go to the previous/next photo.Slider show. The photo selected on the thumbnail selection

screen by press ENTER.

Buttons for music mode

Press MENU to display the sub-menu. You can

browse the files by the following options.

browse the files by the following options.

• Thumbnail size • When there are invalid photo files, the X mark will be display for the file.• You can see the file name, shooting date, file size and pixel size of the selected photo in the top-left corner of the screen (shooting date is only available in the EXIF file format).• The key guide display disappears automatically after a set time. To display the key guide display again, press DISPLAY. The photo in slide show by pressing .

/ Photo 1xG%25C3%2592TIC-DESCANSANT.jpgNoneShort 5/29 Menu Repeat Rotate Zoom ShuffleMenu A B C D Viewing Individual Photos

/ • The key guide display disappears automatically after a set time. To display the key guide display again, press DISPLAY.• Rotating photos only applies to the temporarily selected item and this setting is not saved. ▲/▼/

Music 00:00:03 00:04:49

Buttons for playing VideoButtons for playing music

Press MENU to display the sub-menu. You can

browse the files by the following options.

When selecting a folder icon: Enter this

When selecting a video file: Play video.

ENTER Return to the previous process.

Return to the thumbnail selection screen.

Repeat AB. Select the part you want to

Go to the next/previous video.

USB Device Compatibility • Operation using USB hubs is not guaranteed.• Some video file formats may not be played depending on the file.• Some images may not be displayed in the appropriate aspect ratio depending on the file format. USB device USB Memory, USB card reader (Mass

Storage class), USB hard drive

FAT/FAT32/NTFS (USB hard drive only)File system

select the following options to play the musics.

Return to the thumbnail selection screen.

EXIT Repeat one / Repeat all

Play the music in random order.

Go to the next/previous photo.

Menu Repeat Backward Forward Repeat ABMenu A B C D Vedio 1/1

OK. You know, most of the collection here was put together during the Ching dynasty.

So, what did you think?

I was impressed with the landscape paintings, and all the jade carvings.

That jadecabbage just can't be beat!

Some of the bronze pieces go back to the 17th century B.C., but the collection itself was

set up by the first emperor of the Sung dynasty over a thousand years ago.

That's the same style roof as on the Chiang Kai-shek Memorial and the

Concert Hall, right? It seems like I've seen it before.

OK.Youknow,mostofthecollectionherewasputtogetherduringtheChing dynasty.

Iwasimpressedwiththelandscapepaintings,andallthejadecarvings.

• Check if you pressed POWER on the remote control unit. (See page

19.) If the indicator on the TV is still red, press POWER on the TV.

• Is the AC cord disconnected? (See page 8.)

• Has the power been turned on? (See page 19.)

• External influences such as lightning, static electricity, may cause

improper operation. In this case, operate the unit after first turning

off the power of the TV or unplugging the AC cord and re-plugging

it after 1 or 2 minutes.

• Remote control unit

• Are batteries inserted with polarity ( +, - ) aligned? (See page 10.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Picture is cut off/with

• Are screen mode adjustments such as picture size made correctly?

• This is not a malfunction. This happens when the cabinet slightly

expands and contracts according to change in temperature. This

does not affect the TV’s performance.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave

trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the

temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed

to direct sunlight or near a heater, as this may cause the cabinet to deform and the Liquid

Crystal panel to malfunction.

Storage temperature: -4°F to +140°F (-20°C to +60°C)

• Adjust the picture tone. (See page 26 and 27.)

• Is the room too bright? The picture may look dark in a room that

• Is the sleep timer set? (See page 21.)

• The unit’s internal temperature has increased. Remove any

objects blocking vent.

• Is connection to other components correct? (See page 16.)

• Is the correct input selected? (See page 14.)

• Is the volume too low? (See page 21.)

• Have you pressed MUTE on the remote control unit? (See page 21.)

CLEARING THE MASTER PASSWORD If you forgot the password number, reset the secret number by following the procedures below:

5. Select "Secret No."

6. Enter new password

• As a precautionary measure, make a note of your secret number above, cut it from this manual, and keep it in a safe place.Specifications

CATV 1-135ch (non-scrambled channel only)

1-135ch (non-scrambled channel only)

Audio in (Ø 3.5 mm jack)

75Ω Unbalance, F Type x 1 for Analog And Digital (VHF/ UHF/ CATV)

English/French/SpanishOSD language

AC 120V, 60HzPower Requirement

120W (0.7W Standby with AC 120V)Power Consumption

Operating temperature +32°F to +104°F (0°C to +40°C)

INPUT 1 HDMI in with HDCP, Audio in (Ø 3.5 mm stereo jack)

INPUT 2 HDMI in with HDCP, Audio in (Ø 3.5 mm stereo jack)

INPUT 3 HDMI in with HDCP, Audio in (Ø 3.5 mm stereo jack)

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product

improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units. 45

*1 Emergency alert messages via Cable are unreceivable. 1

16 *2 The dimensional drawings are shown on the inside back cover.PC Compatibility Chart

It is necessary to set the PC correctly to display XGA and WXGA signal. PC ResolutionHorizontal FrequencyVertical FrequencyVESA Standard

RS232 Port Specifications

PC control of the TV • Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-Sub RS-232C for the connections.This operation system should be used by a person who is accustomed to using computers. Communication conditions Set the RS-232C communication settings on the PC to match the TV's communication conditions.The TV's communication settings are as follows: •

Communication procedure Send the control commands from the PC via the RS-232C connector.The TV operates according to the received command and sends a response message to the PC.Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command. Parameter Input the parameter values, aligning left, and fi ll with blank(s) for the remainder. (Be sure that 4 values are input for the parameter.)When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.)Any numerical value can replace the “x” on the table. 3 0 0 0 0 9 0 ? ? ? ? ? When “?” is input for some commands, the present setting value responds. Command format Eight ASCII codes +

CR Command 4-digitsParameter 4-digitsReturn codeC1 C2 C3 C4 P1 P2 P3 P4Command 4-digits: Command. The text of four characters.Parameter 4-digits: Parameter 0–9, x, blank, ?Baud rate: 9,600 bpsData length: 8 bitsParity bit: NoneStop bit: 1 bitFlow control: None Response code format Normal responseReturn code (0DH)Return code (0DH)Problem response (communication error or incorrect command)

O K E R RD C 1 0 * * * * Appendix

Commands not indicated here are not guaranteed to operate. CONTROL ITEM COMMAND PARAMETERCONTROL CONTENTSPOWER ON COMMAND SETTINGPOWER SETTINGThe Power On command rejected.It input-switches by the toggle. (It is the same as an input change key)It input-switches to TV. (A channel remains as it is. (Last memory))It input-switches to INPUT1~INPUT6.Although it can choose now, it is toggle operation in inside.The screen position variable ranges depend on the View Mode or the signal type. The ranges can be seen on the position-setting screen.(Toggle)Input terminal number (1–6)An input change is included if it is not TV display.In Air, 2–69ch is effective.In Cable, 1–135ch is effective.0: (Toggle), 1: On, 2: Off0: Off, 1: OFF TIMER – 30 MIN., 2: OFF TIMER – 60 MIN., 3: OFF TIMER – 90 MIN., 4: OFF TIMER – 120 MIN.The channel number of TVThe channel number of TV +1The channel number of TV –1 (1–135)R S P WI T G DI T V DI A V DINPUT SELECTION AAV MODE SELECTIONVOLUMEPOSITIONVIEW MODESURROUNDSLEEP TIMERCHANNELREMOTE CONTROL BUTTONSDIRECT(ANALOG)(DIGITAL)CH UPCH DOWNCHANNELH-POSITIONV-POSITIONCLOCKPHASEA V M DV O L MH P O SV P O SC L C KP H S EA C S UO F T MD C C HC H U PR C K Y0-9: 0-9, 10: dot, 11: ENT, 12: POWER, 13: DISPLAY,16: / ,19: ,20: ,21: , 24: SLEEP, 27: CC, 28: AV MODE, 30: FLASHBACK, 31: MUTE, 32: VOL - ,33: VOL + , 34: CH , 35: CH , 36: INPUT, 38: MENU, 40:ENTER, 41: , 42: , 43 ,44: , 45: RETURN, 46: EXIT, 48:SURROUND, 49: AUDIO, 50: A (red), 51: B (green), 52: C (blue), 53: D (yellow), 54: FREEZE, 60: TV, 61:USB, 62: PC. C H D WW I D 0

* DIGITAL Air (Two-Part numbers, 2-digit plus 2-digit)(0100-9999)(1-999)(0-999)(0-9999)(0-6383)DIGITAL Cable (Two-Part numbers, 3-digit plus 3-digit)DIGITAL Cable (Two-Part numbers, 3-digit plus 3-digit)Front half of DIGITAL CABLE CHANNEL NO. (Designate major channel)Rear half of DIGITAL CABLE CHANNEL NO. (Designate minor channel)DIRECTCHANNELD A 2 P * * * *D C 2 U * * * _D C 2 L * * * _DIGITAL Cable (One-Part numbers, 5-digit, less than 10,000)DIGITAL Cable (One-Part numbers, 5-digit, more than 10,000)D C 1 1 * * * *Toggle operation of a closed caption.(Toggle) CC C L C P x (Toggle)AUDIO SELECTIONA C H A x _ _ _0: (Toggle), 1: On, 2: Off MUTE M U T E * _ _ _ OffThe Power On command accepted.1 _ _ _ OnThe Power On Command must be waited until system is completely Power Off (LED powerindicator turns to be Red)1 _ _ _ Power OnIt shifts to standby.P O W R 0 _ _ _ Power Off TV INPUT1-6If an underbar (_) appears in the parameter column, enter a space. • If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS. • Any numerical value can replace the “x” on the table. •

< If it is not TV display, it will input-switch to TV. (same function as CH )0: Although it can choose now, it is toggle operation in available items.1: Available in [AV] SD timing and [PC] except some timing (*1)2,3,4: Only available when [AV] signal is being input.5: Available in [AV] 720p and [PC] except 1280x720, 1920x1080 timing.6: Available in [AV] 1080i and 1080p timing and [PC] except 1600x1200, 1280x1024(LC-32SV40U) and 1400x1050(LC-32SV40U).7: Only available in [PC] except some timing(*2)(*1)1360x768, 1366x768, 1280x1024, 1400x1050, 1600x1200, 1920x1080(*2)1360x768, 1366x768, 1280x720, 1920x1080Only PC mode. (0–40,menu display range+/-20)Only PC mode. (0–180,menu display range+/-90)Only PC mode. (0–40,menu display range+/20)Only PC mode. (0–100,menu disolay range+/-50)Volume (0–100)0:(Toggle) 1:Normal 2:S.Stretch 3:Stretch 4:Zoom 5:Full Screen 6:Dot by Dot 7:Cinema)0:(TOGGLE) ,1:STANDARD,2:MOVIE,3:GAME,4:PC,5:DYNAMIC,6:DYNAMIC(FIXED),7:USERTOGGLE

This device complies with Part 15 of the FCC Rules. Operation of this product is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply within the limits for a class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined

by turning the equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance with the

FCC Rules could void the user’s authority to operate this equipment.

Connections to this device must be made with shielded cables with metallic RF/EMI connector

hoods to maintain compliance with FCC Rules and Regulations.

This Class B digital apparatus complies with Canadian ICES-003.

42For location of the nearest Sharp Authorized Service, or to obtain product literature,

accessories, supplies, or customer assistance, please call 1-800-BE-SHARP.

LIMITED WARRANTY Calling for Service CONSUMER LIMITED WARRANTY SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand Liquid Crystal Display product (the

“Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either

repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below. This warranty does not apply to any appearance items of the Product or if the serial number or model number affixed to the Product has been

removed, defaced, changed, altered or tampered with. This warranty does not cover installation or signal reception problems. This limited warranty

will not apply if the Product has been or is being used in a commercial setting or application; this warranty is meant solely for the non-commercial,

household use of the Product by consumers in their home or residence. If you intend to or already use this Product for commercial purposes or in a

commercial setting, there are warranties available to cover your use of this Product, the terms of which may vary. Please contact 1-800-BE-SHARP for further information. In order to enforce your rights under this limited warranty, you should follow the steps set forth below. You must be able to provide proof of purchase to the servicer, which proof must include the date of purchase. To the extent permitted by applicable state law, the warranties set forth are in lieu of, and exclusive of, all other warranties, express or implied. Specifically ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED, ALL EXPRESS AND IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. IF, UNDER APPLICABLE STATE LAW, IMPLIED WARRANTIES MAY NOT VALIDLY BE DISCLAIMED OR EXCLUDED, THE DURATION OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. The warranties given herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the

purchaser and only for the time periods set forth herein. No other representations or promises made by anyone are permitted. Correction of

defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp

to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability

or otherwise. Sharp does not warrant nor shall Sharp be liable, or in any way responsible, for Products which have been subject to abuse

(including, but not limited to, improper voltage), accident, misuse, negligence, lack of reasonable care, alteration, modification, tampering, misuse,

improper operation or maintenance or any damages or defects in the Product which were caused by repairs or attempted repairs performed by

anyone other than a Sharp authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or

property damage. Some states do not allow limits on warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply.THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50) UNITED STATES, THE DISTRICT OF COLUMBIA. AND PUERTO RICO TO OBTAIN PRODUCT INFORMATION OR PURCHASE ACCESSORIES, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com

SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07495-1163

SHARP CORPORATION Model Specific SectionWhat to do to Obtain Service:Additional Exclusions fromWarranty Period for this Product:Your Product Model Number & Description:Warranty Coverage (if any):LC-50LE440U, LC-39LE440U LCD Color Television(Be sure to have this information and Proof of Purchase available when youneed service for your Product.)One (1) year parts and labor from date of purchase.Image Retention resulting from a fixed image being displayed for long periods of time is not covered by this Limited Warranty (see Operation Manual on how to prevent this).Service is provided by a Sharp Authorized Service Center in the United States. To find the location of the nearest Sharp Authorized Service Center, call Sharp toll free at 1-800-BE-SHARP. Sharp will provide instructions on service options available for your Product.If it is deemed the Product is to be shipped for servicing, be sure it is insured and packaged securely. Please use two persons to carry the Product, transport it in original packaging or packaging that provides comparable protection of the Product, and ensure that the Product is covered to avoid scratches and damage. Sharp shall not be responsible for lost, stolen or misdirected mail or for damage to the product incurred during shipping. For Products that are deemed in home service, a servicer will come to your location. If necessary, the servicer may remove the unit for repair at the service facility and return it once completed. In home service is not available in all areas and Sharp may, at our option, elect to provide transportation of the Product to and from an Authorized Service Center in those areas. 4344MANUEL DE L'UTILISATEUR IMPORTANT :Pour vous permettre de rapporter plus facilement la perte ou le vol de votre appareil, veuillez inscrire le numéro de modèle et le numéro de série du téléviseur dans l'espace prévu. Ces numéros sont situés à l'arrière du téléviseur.No de modèle :No de série :

Standard, Movie (Film), Game (Jeu), PC,

existe six services standards. Le Service 1 est

OK.Youknow,mostofthecollectionherewasputtogetherduringtheChing dynasty.

Iwasimpressedwiththelandscapepaintings,andallthejadecarvings.

ConcertHall,right?ItseemslikeI'veseenitbefore.

Boutons du mode Vidéo Touches DescriptionPour sélectionner une icône de dossier: Entrez dans ce directoire.Pour sélectionner un fichier vidéo: Lecture vidéo. Sélectionnez le morceau voulu.ENTRERRevenir à la procédure précédente.RETURNSous-menu Menu ▲/▼/◄/►Exemple Boutons de lecture Vidéo

Menu Répéter Reculer Avancer Répéter ABMenu A B C D Vedio 1x 1/1 OK. You know, most of the collection here was put together during the Ching dynasty. So, what did you think? I was impressed with the landscape paintings, and all the jade carvings. That jadecabbage just can't be beat! Some of the bronze pieces go back to the 17th century B.C., but the collection itself was set up by the first emperor of the Sung dynasty over a thousand years ago.

OK.Youknow,mostofthecollectionherewasputtogetherduringtheChing dynasty.

Iwasimpressedwiththelandscapepaintings,andallthejadecarvings.

ConcertHall,right?ItseemslikeI'veseenitbefore.

Botones para el modo Video Botones DescripciónAl seleccionar un icono de carpeta: Ingresa en este directorio.Al seleccionar un archivo de video: Reproducción del video. Selección de un elemento deseado.ACEPTARRegresa al proceso anterior.RETURNSubmenú Menu ▲/▼/◄/►EjemploBotones para la reproducción de videos

Menu Repetir Retroceso Avance Repetición ABMenu A B C D Vedio 1x 1/1

OK. You know, most of the collection here was put together during the Ching dynasty.

So, what did you think?

I was impressed with the landscape paintings, and all the jade carvings.

That jadecabbage just can't be beat!

Some of the bronze pieces go back to the 17th century B.C., but the collection itself was

set up by the first emperor of the Sung dynasty over a thousand years ago.

That's the same style roof as on the Chiang Kai-shek Memorial and the

Concert Hall, right? It seems like I've seen it before.

SHARP CORPORATION Printed in China
