USER MANUAL DA300 SCANSONIC

DAB+DAB/FM Digital Radio & Dual Alarm Clock w/ Bluetooth

UK User Manual

DK Brugervejledning

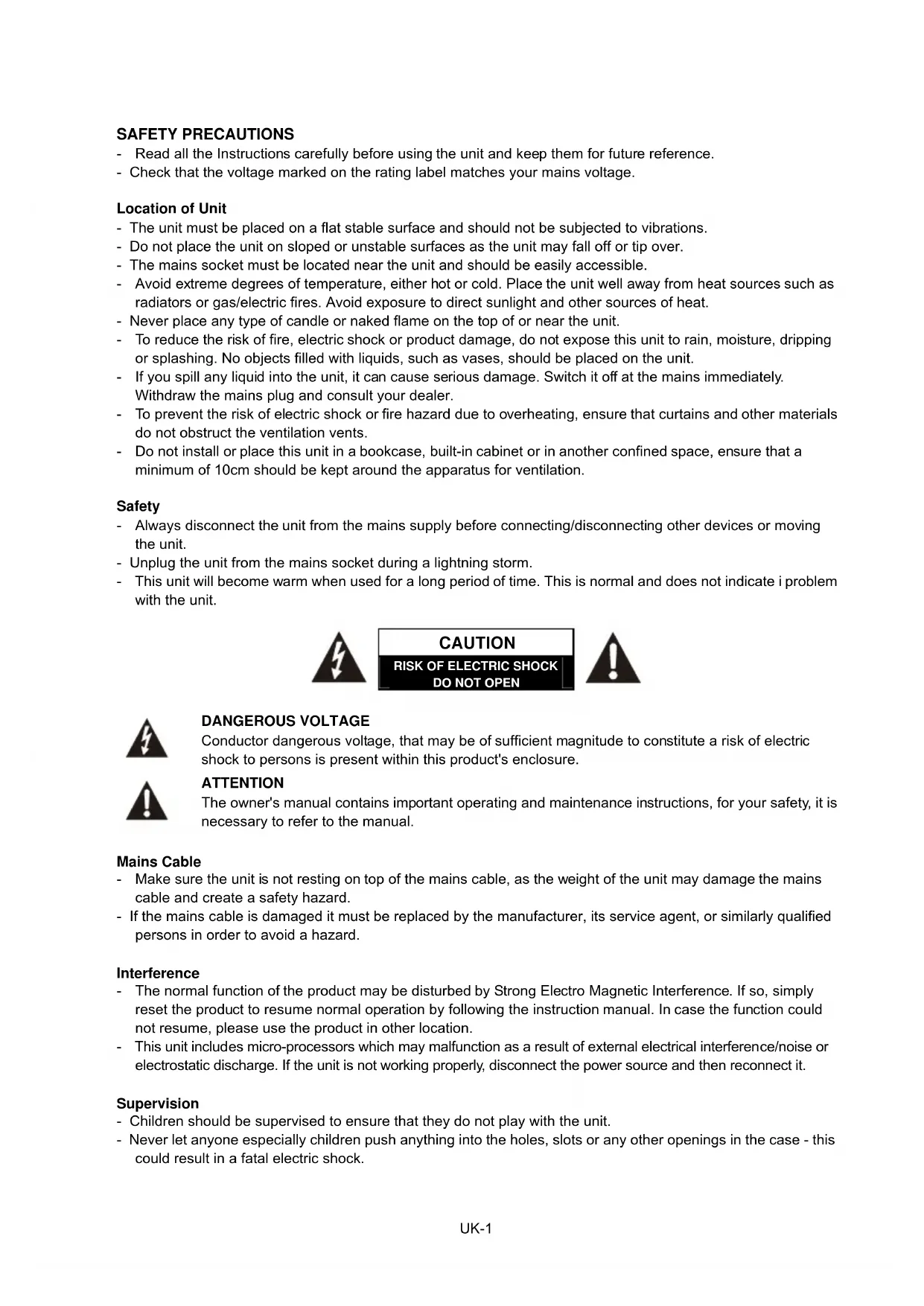

• Read all the Instructions carefully before using the unit and keep them for future reference.
• Check that the voltage marked on the rating label matches your mains voltage.

Location of Unit

• The unit must be placed on a flat stable surface and should not be subjected to vibrations.
• Do not place the unit on sloped or unstable surfaces as the unit may fall off or tip over.
• The mains socket must be located near the unit and should be easily accessible.
• Avoid extreme degrees of temperature, either hot or cold. Place the unit well away from heat sources such as radiators or gas/electric fires. Avoid exposure to direct sunlight and other sources of heat.
• Never place any type of candle or naked flame on the top of or near the unit.
• To reduce the risk of fire, electric shock or product damage, do not expose this unit to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, should be placed on the unit.
• If you spill any liquid into the unit, it can cause serious damage. Switch it off at the mains immediately.
  Withdraw the mains plug and consult your dealer.
• To prevent the risk of electric shock or fire hazard due to overheating, ensure that curtains and other materials do not obstruct the ventilation vents.
• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space, ensure that a minimum of 10cm should be kept around the apparatus for ventilation.

Safety

• Always disconnect the unit from the mains supply before connecting/disconnecting other devices or moving the unit.
• Unplug the unit from the mains socket during a lightning storm.
• This unit will become warm when used for a long period of time. This is normal and does not indicate i problem with the unit.

DANGEROUS VOLTAGE

Conductor dangerous voltage, that may be of sufficient magnitude to constitute a risk of electric shock to persons is present within this product's enclosure.

ATTENTION

The owner's manual contains important operating and maintenance instructions, for your safety, it is necessary to refer to the manual.

Mains Cable

• Make sure the unit is not resting on top of the mains cable, as the weight of the unit may damage the mains cable and create a safety hazard.
• If the mains cable is damaged it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Interference

• The normal function of the product may be disturbed by Strong Electro Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
• This unit includes micro-processors which may malfunction as a result of external electrical interference/noise or electrostatic discharge. If the unit is not working properly, disconnect the power source and then reconnect it.

Supervision

• Children should be supervised to ensure that they do not play with the unit.
• Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.

Service/Maintenance

• To reduce the risk of electric shock, do not remove screws. The unit does not contain any user-serviceable parts. Please leave all maintenance work to qualified personnel.
• Do not open any fixed covers as this may expose dangerous voltages.
• Ensure to unplug the unit from the mains socket before cleaning.
• Do not use any type of abrasive pad or abrasive cleaning solutions as these may damage the unit's surface.

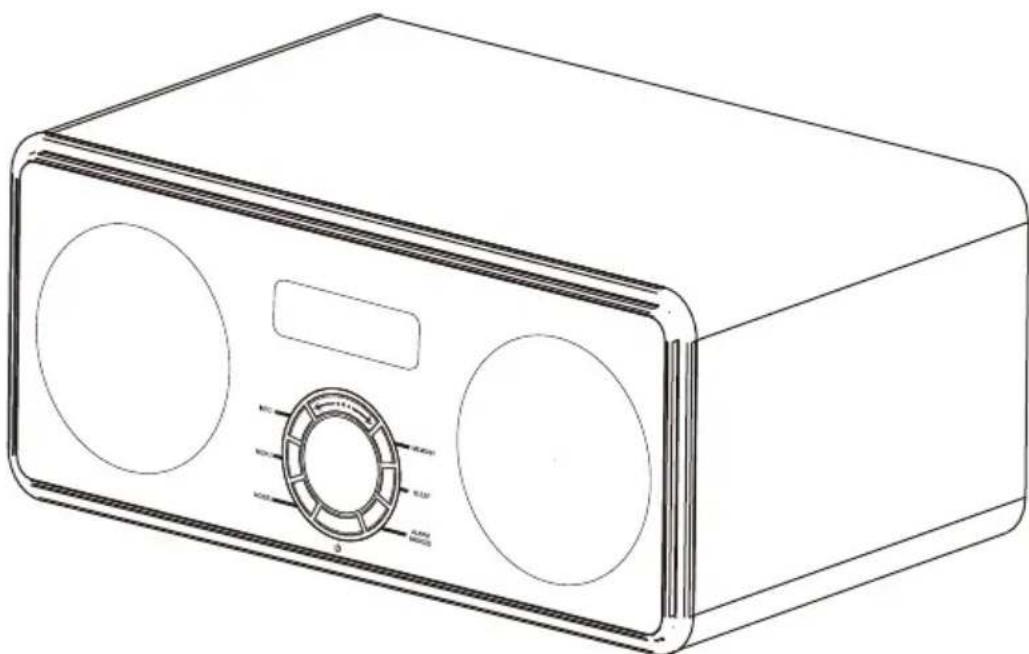

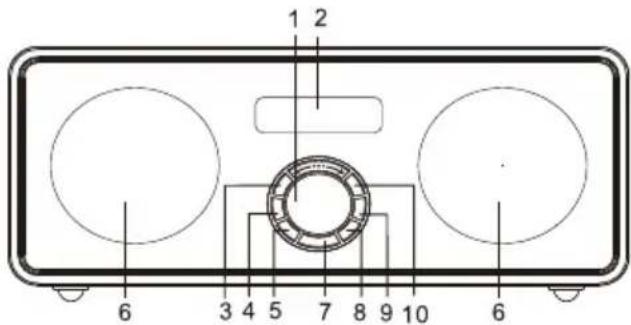

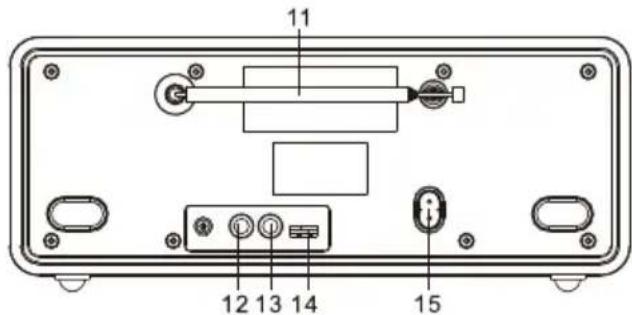

FEATURES AND CONTROLS

1. VOLUME/SCROLL CONTROL
   & OK/
2. SPEAKER
3. ① BUTTON
4. HEADPHONE JACK
5. AUXIN SOCKET
6. LCD DISPLAY
7. ALARM/SNOOZE BUTTON
8. USB PORT
9. INFO/ BUTTON
10. SLEEP BUTTON
11. AC CORD SOCKET
12. MENU/按钮
13. MEMORY BUTTON
14. MODE BUTTON
15. RODANTENNA

SWITCHING YOUR RADIO ON FOR THE FIRST TIME

When the radio is connected to the AC power for the first time, it will be in standby mode. The display backlight will be on for a few seconds, the display will first show the greetings and finally the clock. Press the button once to turn the radio on, it will then automatically enter into the DAB mode and perform auto scan function.

Clock setting

The clock will only set and be updated if you can receive DAB signals in your location. In order for the clock to synchronise to the current local time you must leave it one DAB station for a short period. Manual clock setting is not required.

Hints for better reception

This radio carries a single DAB/FM telescopic antenna, to obtain the best performance, you should fully extend the antenna and adjust its position as well as the direction until you find the best reception. For ideal DAB reception, always maintain the antenna in an upright vertical position is highly recommended.

DAB mode

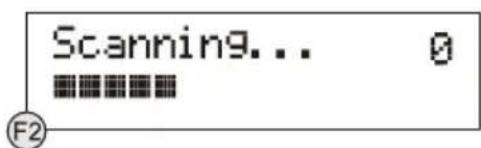

If the radio is powered up and switched on for the first time, it will automatically enter into the DAB mode and perform auto scan function. During the scan the display will show "Scanning ..." together with a slide bar that indicates the progress of the scan and the amount of stations that have been found so far. (F1) (F2).

Once the scan has finished, the radio will select the first alphanumericly found station. To explore the found stations, first press the SCROLL control once, then rotate the same control, and when you find a station that you would like to listen to, press on the SCROLL control.

Note: If there is no stations found after auto scan, the radio will then enter into the Tune Select Menu, you can now rotate the SCROLL control followed by pressing on the same control to select "Manual tune" or "Autoscan" for stations.

DAB auto scan

The auto scan will search for the entire DAB Band III channels. After the scan has finished, the first alphanumeric found station will be automatically selected.

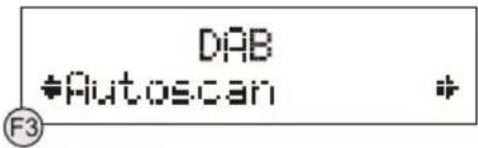

1. To activate auto scan, first press the MENU button to enter into the Tune Select Menu, then rotate the SCROLL control to select "Autoscan", finally press on the same control to confirm, the display will show "Scanning ..." and a progressing slide bar. (F3)

2. All the stations that have been found will be stored automatically, to explore and select listening to the found stations, rotate the SCROLL control followed by pressing on the same control.

DAB manual tune

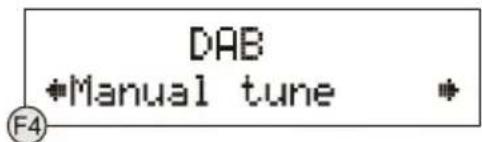

1. To select manual tune, first press the MENU button to enter into the Tune Select Menu, then press on the SCROLL control to select "Manual tune". (F4) (F5)

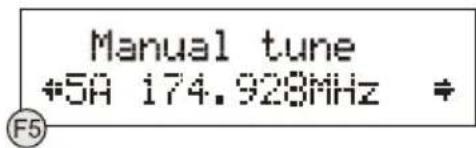

2. Rotate the SCROLL control to move through the DAB channels, the display will show "5A to 13F" and their associated frequencies.
3. When your desired frequency appears in the display, press on the SCROLL control to confirm. The name of the station group (ensemble/multiplex) will be displayed.
4. To listen to the station selected, press on the SCROLL control again.

DAB secondary services

On some occasions you will see a " > " symbol directly after the name of the station, this indicates that there are secondary services available to that station. These secondary services contain extra services that relate to the primary station. E.g. a sports station may want to add extra commentaries. The secondary services are inserted directly after the primary station. To select the secondary station, press on the SCROLL control.

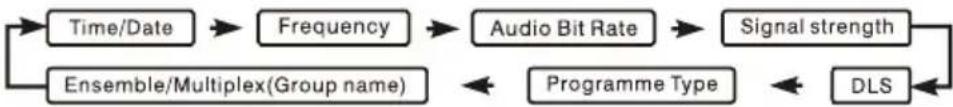

DAB display modes

Every time you press the INFO button, the display will cycle through the following display modes:

Time and date

The time and date will be automatically updated by the broadcasted information; it is no need to set the clock manually. In the unlikely event that no clock information is received, the display will show "<TIME/DATE)".

Frequency

The frequency of the present station will be displayed.

Audio bit rate

The display will show the digital audio bit rate being received.

Signal strength

The display will show a slide bar to indicate the signal strength, the stronger the signal, the longer the bar will be from left to right.

DLS

DLS stands for Dynamic Label Segment which is a scrolling message that the broadcaster may include in their transmissions. The message usually includes information such as programme details ...etc.

Programme type

This describes the style of the programme that is being broadcast. If the information is not available, the display will show "<Programme Type)".

Ensemble/Multiplex (Group name)

The Ensemble/Multiplex is a collection of radio stations that are bundled and transmitted together in a single frequency. There are national and local multiplexes, local ones contain stations that are specific to that area.

Note: Press and hold the INFO button for longer than 2 seconds, the software version number will be displayed.

FM radio

1. To select FM, repeatedly press the MODE button until the display shows "Switch to FM"; the FM frequency will be finally displayed.
2. To activate auto search, press and hold the SCROLL control until it starts to scan up or down the frequency band, the display will show "Searching ... >." or "Searching ... < .", and it will stop automatically once a station has been found. (F6) (F7)
3. To activate manual tuning, first press on the SCROLL control once and when the display shows < Tuning > , rotate the SCROLL control to your desired frequency.
4. To select the FM stereo/mono reception, first press on the MENU button once, and when the display shows "FM Audio setting", press the SCROLL control to enter into the menu, then rotate the SCROLL control followed by pressing on it to confirm between the "Auto" or "Mono" selection.

Note: The radio will automatically switch between stereo and mono mode, but you can override this and switch this function manually which is helpful for poor signal reception.

Searching..>

Searching..<.

STORING AND RECALLING STORED STATIONS

In either DAB or FM mode, you can store up to 10 stations to the favourite presets; this will enable you to get direct access to your favourite stations.

1. To store a preset, first tune to your desired station, then press and hold the MEMORY button, the display will show "Empty preset 1", and the preset number will flash. (F8)
2. Rotate the SCROLL control to select your desired station preset number followed by pressing on the same control to confirm your selection, the display will show "Preset # saved". (F9)
3. To recall a preset station, first press the MEMORY button once, then rotate the SCROLL control to scroll up or down the presets that you have stored. When the display shows your desired preset number, stop the rotation and press on the SCROLL control to confirm. If the preset hasn't been allocated a station, the display will show "Empty preset #".

FACTORY RESET

When you move the radio to another part of the country, your pre-tuned and stored DAB stations may no longer be available. If this is the case then you will need to reset your radio back to its original factory settings; to perform a factory reset, please do the following:

1. Plug the radio to the AC mains and press the button to turn the radio on.
2. Press and hold the MENU button until the display shows "Press SELECT to confirm reset".

3. Release the MENU button and press on the SCROLL control once, the display will first show "Restarting ..." and after the reset is completed, the radio will go to standby.

4. Press the button to turn the radio on again, it will then automatically enter into the DAB mode and perform auto scan function. After the scan has finished, the radio will select and display the first alphanumericly found station.

ALARM FUNCTION

This unit incorporates an identical Dual Alarm function. You can have two individual alarm wake-up time and wake-up mode settings to wake you to an electronic buzzer tone or your favourite radio station (DAB/FM).

Setting the alarm time and wake-up mode

1. Press the ALARM button once to enter into the Alarm Menu, then rotate the SCROLL control followed by pressing on the same control to select Alarm (1 or 2).
2. Again rotate the SCROLL control followed by pressing on the same control to select "Alarm Setting". The display will show "Alarm # Setting" and the hour digit of the alarm time will flash. (F10)
3. Rotate the SCROLL control followed by pressing on the same control to adjust and confirm your desired alarm time - first set the hour and then the minute.
4. After the confirmation of the minute setting, the alarm time is set and you will enter into the wake-up mode settings.
5. Rotate the SCROLL control followed by pressing on the same control to adjust and confirm the wake-up mode settings - first set the DAB and FM Preset (1-10), then the Buzzer Tone (1 or 2), finally the alarm Volume level. (F11)
6. After the selection of the alarm volume level, the wake-up mode settings are completed and the alarm function is now ready for you to activate.
7. Repeat the above procedures to set the other Alarm (1 or 2).

Activating the alarm function

1. To activate the alarm function, press the ALARM button to enter into the Alarm Menu and select Alarm (1 or 2).
2. Rotate the SCROLL control followed by pressing on the same control to select "Alarm Source".
3. Again rotate the SCROLL control and the associated alarm wake-up mode will be displayed and changed in the below sequence:

1. When the display shows your desired alarm wake-up mode, press the SCROLL control, the alarm function is now activated and the associated alarm icon will be displayed.
2. When the alarm time arrives, the selected wake-up mode will be on and the alarm icon in the display will flash to indicate the alarm is triggered. To stop the alarm sooner, press the button.

Note 1: If you have activated the alarm function and the wake-up mode is DAB or FM, make sure that the alarm volume level is set at a sufficient level for you to hear.

Note 2: The alarm comes first will have the priority and it would continue for a duration of one hour, the snooze will just switch off this alarm temporary during this duration, so if the second alarm comes In this period, it will not function. But if the first alarm is switched off before the second alarm arrives, then the second alarm will be activated.

Automatic Alarm Repeat

The alarm will automatically repeat each day at the selected time as long as the alarm icon is displayed. To cancel this function, go to the Alarm Menu and select "Alarm # off" in the associated "Alarm Source" menu.

Snoopze function

When the alarm has triggered, press the SNOOZE button will temporary switch off the alarm for 5 minutes, the display will show "Zz" to indicate snooze on. This is repeatable in the one hour alarm duration.

BLUETOOTH MODE

Bluetooth connectivity performance may vary with brand and model of the connected device. For best performance, please connect newer Bluetooth devices incorporating Bluetooth 2.1 and using the latest firmware update available from the device vendor. Compatibility with all devices and media types is not guaranteed.

Bluetooth performance considerations

Ensure all Bluetooth devices within 30 feet have Bluetooth transmission disabled. The presence of other functioning Bluetooth devices during connection may lead to operational difficulties.

Bluetooth is a short-range radio communication standard. The Bluetooth transmitter and receiver hardware in this unit has an approximate operational range of 30 feet in open space. Generally Bluetooth devices can communicate with each other clearly within a regular sized room or office. Operation between different rooms will depend on the construction of the room. It is important to recognize the fact that Bluetooth communication range may be substantially reduced if the signal passes through a solid object. Human bodies, brick and concrete walls, and heavy furniture or bookcases will reduce the operational range of your Bluetooth devices. Glass, dry-wall or wood paneled walls and office partitions may have a less severe but noticeable effect. You should position your Bluetooth devices closer to each other if you observe communication difficulties.

Supported Bluetooth profiles

The Bluetooth capabilities of this radio enable it to receive audio from many Bluetooth- capable devices Including mobile phones, personal computers and PDAs. It supports the following Bluetooth profiles and functionality. Only one device per profile can be connected concurrently.

Advanced Audio Distribution Profile (A2DP)

• High-quality stereo audio connection
• Streaming of stereo music from PC, mobile phones...etc

Audio Video Remote Control Profile (AVRCP)

Device remote control
- Control connected device

Stereo music connection to your mobile phones

This connection requires a mobile phone supporting the Bluetooth A2DP profile for stereo music connection. In order to create new Bluetooth connection you will need some familiarity with the Bluetooth functions of your mobile phone. As each phone operates slightly differently, please familiarize yourself with the Bluetooth capabilities of your device before connecting.

1. Ensure that the Bluetooth on your mobile phone is powered on. You might need to refer to the phone user manual for details.
2. Place the radio and the phone where they are no more than 3 feet apart.
3. Repeatedly press the MODE button to select Bluetooth mode, the display will show "Bluetooth" together with the "flashing icon".
4. Set the A2DP-capable phone to search for Bluetooth devices and follow the instructions on the phone's screen. You will recognize the radio by its Bluetooth name "BT Speaker". In case that you are prompted for a passkey, enter "0000".
5. Select and confirm the pairing on your phone, the connection will be completed in a few seconds and the radio will produce a double beep confirmation tone, the "flashing icon" on the display will change to and you can now start your Bluetooth music streaming operation.
6. Press the SCROLL control on the radio or select starting playback on your phone to start the music playback.
7. To interrupt playback, press the SCROLL control again or select "pause" on your phone.
8. To skip forward or back to other songs during playback, press the or buttons on the radio or select the "skip controls" on your phone.

Note: Some mobile phones may connect and disconnect as you make and end calls. This is not an indication of a problem with your unit.

Stereo music connection to other Bluetooth devices

This connection requires a device supporting the Bluetooth A2DP profile for stereo music connection. Please ensure your device has the latest versions of software drivers and/or firmware supporting Bluetooth functionality. Compatibility with all devices is not guaranteed. In addition to the procedures described above for mobile phones,

this radio can receive stereo music from many other Bluetooth source devices including personal computers, PDAs, Bluetooth enabled music players. The exact connection procedures may vary from device to device, please refer to the device user manual for specific operations.

Note: An increasing number of computing devices include support for Bluetooth, and many include support for stereo music over Bluetooth (A2DP). For best performance from your particular device, please ensure that you are using the latest update of software drivers and/or firmware available. In certain circumstances, updating the software drivers or firmware of your device to the latest release may add support for A2DP that was not available in a previous release. Please contact the vendor of your device for such updates and refer to the device user manual for update procedures. Please remember that system updates should only be performed by qualified individuals after performing a full system backup.

SLEEP FUNCTION

This function allows you to program the radio to switch off itself after a set period of time.

1. To activate the sleep function, repeatedly press the SLEEP button, the display will show "Sleep Timer" and the time will change in the below sequence on every press:

1. When your desired sleep time appears in the display, release the button and the sleep function will be activated in two seconds. The display will show "s#" where "s1" is to represent "10 minutes" sleep time and so on.
2. When the sleep time counts to zero, the unit will go off. To put the sleep function off during sleep timer on, repeatedly press the SLEEP button until the display shows "Sleep Timer Off".
3. To check the sleep timer status, press the SLEEP button once.

AUXINPUT

There is a 3.5mm stereo aux input socket located at the back of the unit; analogue audio sound signals from other sources can be input to the radio through this socket.

To select AUX function, repeatedly press the MODE button until you see "Switch to AUX" is displayed, the audio will be switched to the aux input signal and you can adjust the volume control for your desired sound output level.

Note: To further enhance energy saving, if the unit is left in AUX mode and without any user operation for three hours, the unit will switch itself to standby automatically; To toggle select this function between on & off During unit on, press and hold the MODE button for longer than two seconds, the display will show "ECO ON" or "ECO OFF".

USB PORT

There is an USB port located at the back of the unit, a standard 5V/500mA output is provided for normal USB charging capability. USB data communication is not available through this port.

DISPLAY BACKLIGHT

The backlight level is defaulted to "Low" in standby and "High" during operation. This is resumed only when the factory reset has taken place. There are four backlight levels for you to set in unit operation.

1. To set the backlight during operation, first press the MENU button once, then rotate the SCROLL control followed by pressing on it to enter into the "Backlight" menu.
2. In the "Backlight" menu, rotate the SCROLL control to select the backlight level - High/Medium/Low/Off.
3. In either standby or operation, the backlight will be turned on to "High" for 5 seconds on every key press.

HEADPHONE JACK

A 3.5mm type stereo headphone jack is located at the back of the unit. Connect a set of stereo headphones (not included) to this jack for private listening without disturbing others. The speakers are automatically disconnected when the headphones are in use.

IMPORTANT: When using headphones always set the volume to a low level before you put the headphones on. Then insert the headphones and gradually increase the volume to a comfortable listening level.

SPECIFICATION

POWERSUPPLY: AC 100-240V~60/50Hz

OUTPUT POWER: 2 × 5 W

FREQUENCY RANGE: DAB 174-240 MHz

FM

87.5-108

UNIT DIMENSION: 300 (L) x 158 (W) x 120 (H) mm

MHz

SPECIFICATION SUBJECT TO CHANGE WITHOUT FURTHER NOTICE.

DA300

DAB manuel kanalsogning

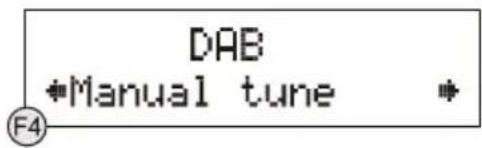

1. Hvis du vil aktivere manuel kanalsogning, skal du forst trykke pa knappen MENU for at abne menuen Tune Select (sogemade), dernast dreje SCROLL og vaelge "Manual tune". (F4) (F5)
2. Drei SCROLL for at bladre gennem DAB-kanalerne, displayet viser "5A to 13F" og de tilhorende frekyenser.
3. Nár den ønskede frekvens vises på displayet, skal du trykke på SCROLL for at bekråfte. Navnet på den gruppe, stationen tilhører, (ensemble/multiplex) vises på displayet.
4. Tryk på SCROLL igen, hvis du vil lytte til den valgte station.

DAB sekundaere tjenester
