USER MANUAL RT77BBPN1 SAMSUNG

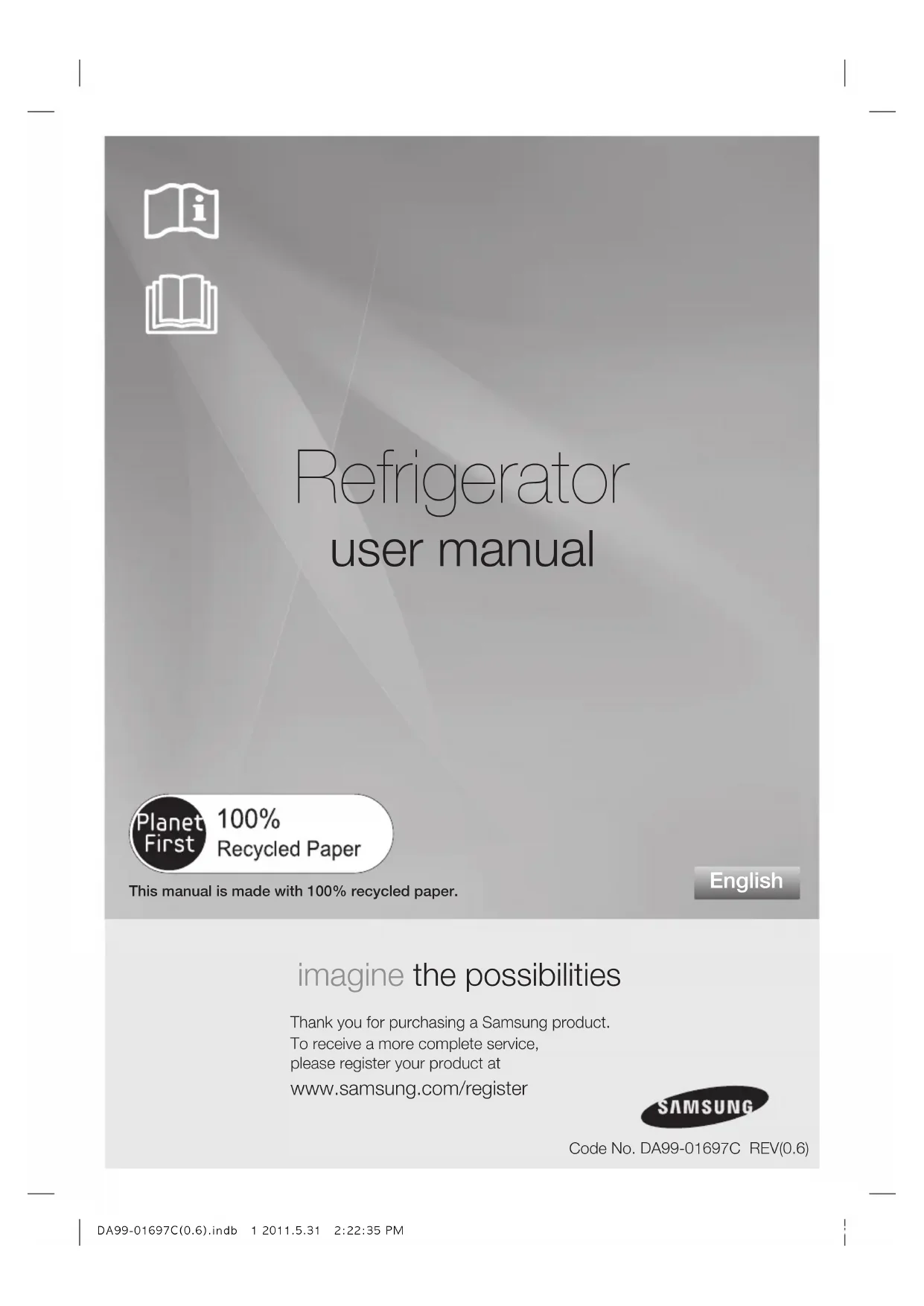

imagine the possibilities Thank you for purchasing a Samsung product.To receive a more complete service, please register your product at www.samsung.com/register

English Code No. DA99-01697C REV(0.6)This manual is made with 100% recycled paper. DA99-01697C(0.6).indb 1 2011.5.31 2:22:35 PMThese warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

• This refrigerator must be properly installed and located in accordance with the manual

• Use this appliance only for its intended purpose as described in this instruction manual.

• We strongly recommend that any servicing be performed by a qualied individual.

• Please dispose of the packaging material for this product in an environmentally friendly

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

2_ safety information

• Before operating the appliance, please read this manual thoroughly and retain it for

Because these following operating instructions cover various models, the characteristics of

your refrigerator may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED OTHER SYMBOLS USED Represents something you must NOT do.

Represents something you must NOT disassemble.

Represents something you must NOT touch.

Represents something you must follow.

Indicates that you must disconnect the power plug from the socket.

Represents a ground is needed to prevent electric shock.

It is recommended that this symbol be handled by service man. WARNINGWARNING Indicates that a danger of death or serious injury exists.

Indicates that a risk of personal injury or material damage exists. WARNINGCAUTIONWARNING DA99-01697C(0.6).indb 2 2011.5.31 2:22:36 PMsafety information _3

sEVErE wArning signs

Do not install the refrigerator in a damp place or place where it may come in contact with water.

- Deteriorated insulation of electrical parts may cause an electric shock or re.

• Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room

heaters or other appliance.

• Do not plug several appliances into the same multiple power board. The refrigerator

should always be plugged into its own individual electrical which has a voltage rating that

matched the rating plate.

- This provides the best performance and also prevents overloading house wiring

circuits, which could cause a re hazard from overheated wires.

Make sure that the power plug is not squashed or damaged by the back of the refrigerator.

• Do not bend the power cord excessively or place heavy articles on it.

- This constitutes a re hazard.

• Have the power cord repaired or replaced immediately by the manufacturer or its service

agent if power cord has become frayed or damaged.

Do not use a cord that shows cracks or abrasion damage along its length or at either end.

• If the power cord is damaged, have it replaced immediately by the manufacturer or its

• When moving the refrigerator, be careful not to roll over or damage the power cord.

• Do not insert the power plug with wet hands.

• Unplug the refrigerator before cleaning and making repairs.

• Do not use a wet or damp cloth when cleaning the plug.

• Remove any foreign matter or dust from the power plug pins.

- Otherwise there is a risk of re.

• If the refrigerator is disconnected from the power supply, you should wait for at least ten

minutes before plugging it back.

• If the wall socket is loose, do not insert the power plug.

- There is a risk of electric shock or re.

• The appliance must be positioned so that the plug is accessible after installation.

• The refrigerator must be grounded.

- You must ground the refrigerator to prevent any power leakages or electric

shocks caused by current leakage from the refrigerator.

Never use gas pipes, telephone lines or other potential lightening rods as ground.

- Improper use of the ground plug can result in electric shock.

• Do not dissemble or repair the refrigerator by yourself.

- You run risk of causing a re, malfunction and/or personal injury.

• If you smell pharmaceutical or smoke, pull out power plug immediately and contact your

Samsung electronics service center.

Keep ventilation opening in the appliance enclosure or mounting structure clear of obstruction.

• Do not use mechanical devices or any other means to accelerate the defrosting process,

other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not place or use electrical appliance inside the refrigerator/freezer, unless they are of a

type recommended by the manufacturer.

• Before changing the interior light, unplug the appliance from the power supply.

• If you experience difculty when changing the light, contact your service center.

• The appliance is not intended for use by children or inrm persons without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

• Do not let children hang on the door. If not, a serious injury may occur.

Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.

- This may cause frostbite.

• If the refrigerator is not to be used for a long period of time, pull out the power plug.

- Deterioration in the insulation may cause re.

• Do not store articles on the top of the appliance.

- When you open or close the door, the articles may fall and cause personal injury and or

WARNING DA99-01697C(0.6).indb 3 2011.5.31 2:22:36 PM4_ safety information

• This product is intended only for the storage of food in a domestic environment.

• Manufacturer’s recommended storage times should be adhered to.

Refer to relevant instructions

• Bottle should be stored tightly together so that they do not fall out.

• Do not put bottles or glass containers in the freezer.

- When the contents freeze, the glass may break and cause personal injury.

• Do not spray inammable gas near the refrigerator.

- There is a risk of explosion or re.

• Do not directly spray water inside or outside the refrigerator.

- There is a risk of re or electric shock.

• Do not store volatile or ammable substances in the refrigerator.

- The storage of benzene, thinner, alcohol, ether, LP gas and other such products

may cause explosions.

• If you have a long vacation planned, you must empty the refrigerator and turn it off.

• Do not store pharmaceuticals products, scientic materials or temperature-sensitive

products in the refrigerator.

Products that require strict temperature controls must not be stored in the refrigerator.

• Do not put a container lled with water on the refrigerator.

- If spilled, there is a risk of re or electric shock.

Be careful not to damage the door switches on the inside walls or middle of the refrigerator.

- If they are damaged, refrigerator does not operate well.

CAuTion signs for CLEAning

• Never put ngers or other objects into the dispenser hole.

- It may cause personal injury or material damage.

• Do not use a wet or damp cloth when cleaning the plug, remove any foreign

material or dust from the power plug pins.

- Otherwise there is a risk of re.

• If the refrigerator is disconnected from the power supply, you should wait for at least

ve minutes before plugging it back.

wArning signs for DisPosAL

When disposing of this or other refrigerator/s, remove the door/door seals, door

latch so that small children or animals cannot become trapped inside.

Leave the shelves in place so that children may not easily climb inside.

Cyclopentane is used as a insulation blowing gas. The gases in insulation

material require special disposal procedure. Please contact your local authorities

in regard to the environmentally safe disposal of this product. Ensure that none

of the pipes on the back of the appliances are damaged prior to disposal. The

pipes shall be broke in the open space.

Contains uorinated greenhouse gases covered by the Kyoto Protocol.

Hermetically sealed system.

Do not vent gases into the atmosphere.

Refrigerant type: R-134a

Global Warming Potential (GWP) = 1300

CAUTION DA99-01697C(0.6).indb 4 2011.5.31 2:22:37 PMsafety information _5

ADDiTionAL TiPs for ProPEr usAgE

To get best performance of product,

- Do not place foods too closely in front of the vents at the rear of the appliance

as it can obstruct free air circulation in the freezer compartment.

Wrap the food up properly or place it in airtight containers before put it into the fridge freezer.

- Do not put any newly introduced food for freezing near to already frozen food.

Do not place carbonated or zzy drinks in the freezer compartment.

Please observe maximum storage times and expiry dates of frozen goods.

There is no need to disconnect the refrigerator from the power supply if you will be

away for less than three weeks. But, remove all the food if you are going away for

the three weeks or more. Unplug the refrigerator and clean it, rinse and dry.

In the event of a power failure, call the local ofce of your Electricity Company

and ask how long it is going to last. Most power failures that are corrected in an

hour or two will not affect your refrigerator temperatures. However, you should

minimize the number of door openings while the power is off. But should the

power failure last more than 24hours, remove all frozen food.

If the key is provided with refrigerator, the keys should be kept out of the reach

of children and not in the vicinity of the appliance.

The appliance might not operate consistently (possibility of defrosting of

contents or temperature becoming too warm in the frozen food compartment)

when sited for an extended period of time below the cold end of the range of

temperatures for which the refrigerating appliance is designed.

Do not store food which goes bad easily at low temperature, such as bananas, melons.

Place the ice tray at the originally provided position by manufacturer in order to

achieve optimal ice-freezing.

Your appliance is frost free, which means there is no need to manually defrost

your appliance, as this will be carried out automatically.

Temperature rising during the defrost can comply with ISO requirement. But If you want

to prevent an undue rise in the temperature of the frozen food while defrosting the

appliance, please wrap the frozen food in several layers of paper such as newspaper.

Any increase in temperature of frozen food during defrosting can shorten its storage life.

DA99-01697C(0.6).indb 5 2011.5.31 2:22:37 PM6_ contents

setting up your refrigerator

gETTing rEADy To insTALL THE rEfrigErATor Congratulations on the purchase of your Samsung Refrigerator. We hope you will enjoy the many state-of-the-art features and efciencies that this new appliance has to offer. Selecting the best location for the refrigerator

• Select a location without direct exposure to sunlight. • Select a location with level (or nearly level) ooring. • Select a location with enough space for the refrigerator doors to open easily. - Overall space required in use. Refer to drawing and dimension as below. sETTing uP your

6 6 Getting ready to install the refrigerator7 Leveling the refrigerator7 Installing and Disassembling the door handle8 Setting up the refrigeratorOPERATING THE sAMsUNG REfRIGERATOR 8 8 Using the digital display10 Controlling the temperature12 Making ice12 Using water dispenser14 Removing the refrigerator accessoriesTROUBLEsHOOTING 15

contents at least 50mm 1,440mm1,495mmat least 50mm

• Allow sufcient space to the right, left, back and top for air circulation. This will help reduce power consumption and keep your energy bills lower.• Do not install the refrigerator where the temperature will go below 10°C.• Please ensure that appliance can be moved freely in the event of maintenance & service.

DA99-01697C(0.6).indb 6 2011.5.31 2:22:39 PMINSTALLING AND DISASSEMBLING THE DOOR HANDLE Installing the Door Handle

1. Match the Handle Locking Tabs installed on the left hand side of the door and

Fix the handle by pulling it down or tapping it lightly with a tool like a rubber hammer.

Check whether the locking tabs inside the handle are assembled by pulling it up and down.

01 SETTING UP Leg Screw Driver Leg Screw Driver <case 1> <case 2>

When installing, servicing, or cleaning behind the refrigerator, be sure to

pull the unit straight out and push back in straight after nishing.

Also, make sure your oor supports the full-load refrigerator.

Otherwise, it may cause oor damage.

CAUTION LEVELING THE REFRIGERATOR If the front of the appliance is slightly higher than the rear, the door can be opened and

case 1) The appliance tilts down to the left.

Turn the left adjusting leg in the direction of the arrow until the appliance is level.

case 2) The appliance tilts down to the right.

Turn the right adjusting leg in the direction of the arrow until the appliance is level.

• Please tie up the extra length of the power

cord at the back of the refrigerator so as not

to be touched on the oor preventing the

power cord from being crushed by the rollers

upon relocation. CAUTION DA99-01697C(0.6).indb 7 2011.5.31 2:24:23 PMsETTing uP THE rEfrigErATor

Now that you have your new refrigerator installed and in place, you are ready to set up and

enjoy the full features and functions of the appliance.

By completing the following steps, your refrigerator should be fully operational. If not, rst check

the power supply and electricity source or try the troubleshooting section at the back of this

user guide. If you have any further questions, contact your Samsung Electronics service center.

Place the refrigerator in an appropriate location with reasonable clearance between

the wall and the refrigerator. Refer to installation instructions in this manual.

2. Once the refrigerator is plugged in, make sure the interior light comes on when

3. Set the temperature control to the coldest temperature and wait for an hour.

The freezer should get slightly chilled and the motor should run smoothly.

After powering the refrigerator, it will take a few hours to reach the appropriate temperature.

Once the refrigerator temperature is sufciently cool, you can store food and

drink in the refrigerator.

8_ operating using THE DigiTAL DisPLAy

This icon will light up when you activate the “Power freeze” feature. “Power freeze” is great for

times when you need a lot of ice. Press the Power freeze button and ice production will increase.

When you have enough, just press the button again to cancel the “Power freeze” mode.

1 <TyPE 1> <TyPE 3> 1

operating the SAMSUNG

"Fresh(3°C)", "Soft Freeze(-5°C)" and "Frozen Vegetable(-12°C)" indicates the

status of the Coolselect Turbo.

1. When "Frozen Vegetable(-12°C)" selected on the Coolselect

Turbo, regardless of the overall temperature setting of the

refrigerator. This feature helps keep frozen vegetable fresh for

2. When "Soft Freeze(-5°C)" selected on the Coolselect Turbo,

regardless of the overall temperature setting of the refrigerator.

this feature helps keep meat and sh fresh for longer.

3. When "Fresh(3°C)" selected on the Coolselect Turbo,

regardless of the overall temperature setting of the refrigerator.

this feature helps keep vegetable and fruit fresh for longer.

1. When “Soft Freeze(0°C)” selected on the Coolselect Turbo,

regardless of the overall temperature setting of the refrigerator.

this feature helps keep meat and sh fresh for longer.

2. When “Fresh(3°C)” selected on the Coolselect Turbo,

regardless of the overall temperature setting of the refrigerator.

this feature helps keep vegetable and fruit fresh for longer.

When you use this function the energy consumption of the refrigerator will increase.

Remember to turn it off when you don’t need it and return the freezer to your original

temperature setting.

This function must be activated before putting large amount of food stuff in the freezer

compartment at least 24 hours before.

DA99-01697C(0.6).indb 9 2011.5.31 2:24:26 PMConTroLLing THE TEMPErATurE

(ELECTroniC ConTroL)

CONTROLLING THE FREEZER TEMPERATURE The freezer temperature can be set between -14°C and -24ºC to suit your particular needs. Press the Freezer button repeatedly until the desired temperature is shown in the temperature display. Keep in mind that foods like ice cream may melt at -16ºC.The temperature display will move sequentially from -14°C and -24ºC. When the display reaches -14°C, it will begin again at -24ºC.Five seconds after the new temperature is set the display will again show the actual current freezer temperature. However, this number will change as the Freezer adjusts to the new temperature.

CONTROLLING THE FRIDGE TEMPERATURE The refrigerator temperature can be set between 7ºC and 1ºC to suit your particular needs. Press the Fridge button repeatedly until the desired temperature is shown in the temperature display. The temperature control process for the Fridge works just like the Freezer process. Press the Fridge button to set your desired temperature. After a few seconds, the Fridge will begin tracking towards the newly set temperature. This will be reected in the digital display. Vacation

• If you are going on a long vacation or business trip or you do not need to use the refrigerator, press the fridge button for selecting the Vacation mode.• The fridge is switched off but the freezer remains on.• The Vacation indicator ( ➂ ) remains on while the Vacation function is operating.- You must empty the refrigerator before pressing the selecting the Vacation Mode.- There is no need to disconnect the refrigerator from the power supply if you will be away for less than three weeks. But remove all the food if you are going away for three weeks or more, unplug the refrigerator and clean, rinse and dry it. Child lock

By pressing the child lock button for 3 seconds, all buttons will be locked. To cancel this function, press the child lock button again for 3 seconds again. Door Alarm

When you press the Door alarm button, Door alarm icon will light up. The alarm will go off after a certain period of time(about 2 minutes) when the refrigerator door kept open. if you want to turn off the Alarm, press the button again. 3

5 CAUTION10_ operating DA99-01697C(0.6).indb 10 2011.5.31 2:24:27 PMConTroLLing THE TEMPErATurE

(sEMi ELECTroniC ConTroL)

CONTROLLING THE FREEZER TEMPERATURE The freezer temperature can be set between -17°C and -24°C to suit your

particular needs. Press the Freezer button repeatedly until the desired

temperature is shown in the temperature display. Keep in mind that foods like ice

cream may melt at -16°C.

The temperature display will move sequentially from -17°C and -24°C. When the

display reaches -17°C, it will begin again at -24°C.

Five seconds after the new temperature is set the display will again show the

actual current freezer temperature. However, this number will change as the

Freezer adjusts to the new temperature.

-17°C6°F-18°C3°F-19°C0°F-20°C-2°F-21°C-4°F-22°C-7°F-24°C

-11°F FREEZER TEMPERAT URE CONTROL COLD COLDER COLDEST The temperature of the freezer or the refrigerator may rise from opening the

doors too frequently, or if a large amount of warm or hot food is placed in

either side. This may cause the digital display to blink. Once the freezer and

refrigerator return to their normal set temperatures the blinking will stop. If the

blinking continues, you may need to “reset” the refrigerator. Try unplugging

the appliance, wait about 10 minutes and then plug back in.

CONTROLLING THE FRIDGE TEMPERATURE The refrigerator temperature can be set between 7°C and 1°C to suit your particular need.

Turn the Fridge lever clockwise or counter clockwise until

the desired temperature is shown in the cover damper.

When storing large quantities of food to be refrigerated or

temperature is not cold enough, Adjust the temperature

control to the "COLDER" position.

When using MID range, adjust the temperature control to

the halfway position between COLDER and COLD.

When the food refrigerated is frozen, or there is a small

quantity of food, adjust the temperature control to the

If you are going on a long vacation or business trip or you

do not need to use the refrigerator, adjust the temperature

control to the“VACATION”position. The refrigerator is

switched off but the freezer remains on. CAUTION You must empty the

adjusting the Vacation

position. operating _1102 oPErATing DA99-01697C(0.6).indb 11 2011.5.31 2:24:35 PMMAKing iCE (oPTionAL)

- TWIST ICE MAKER Making Ice Cubes

Remove the ice cube tray by pulling it towards you.

Fill the tray with water up to the maximum water level

marked on the rear of the tray.

Slide the tray back into the holder, taking care not to

Wait until the ice cubes are formed.

Removing the Ice Cubes

Make sure that the ice cube storage bin is in place

under the ice cube tray. If not, slide it into place.

Twist one of the levers rmly in the clockwise direction

until the tray twists slightly.

Result : The ice cubes fall into the storage bin.

Repeat Step 2 for the other half of the tray, if necessary.

Remove the storage bin by:

• Lifting it slightly

• Pulling it towards you

- REMOVABLE ICE TRAY Making ice cubes

Remove the ice cube tray by pulling it towards you.

Fill the tray with water up to the maximum water

level marked on the rear of the tray.

Slide the tray back into the holder,taking care not to

Removing the ice cubes

To remove ice cubes, hold the tray at its ends

using wATEr DisPEnsEr(oPTionAL)

With the water dispenser, you can obtain chilled water easily without opening the refrigerator door.

Lift up and pull out the water tank.

• Hold the handgrips on both sides to lift out the

• Clean the inside of water tank when using it for

Fill the water tank with water, ensuring that it is in a stable position,

allowing for the extended water supply outlet.

• Fill with water up to 2.8

. If it is lled higher than this, it may overow when the

• It is impossible to ll the tank with water while it is positioned in the refrigerator.

DA99-01697C(0.6).indb 12 2011.5.31 2:24:44 PMMethod 1.

Fill the water lifting the round lid in the

arrow direction to open.

Please ll the water after holding and

lifting the large lid to open it.

Close the refrigerator door after

fitting the water tank.

• Conrm that the dispenser cock is

outside after closing the door.

Fix water tank to the fridge door tightly.

If not, water tank may not be operated well.

CAUTION Place a glass underneath the water outlet and push gently against the

dispenser lever with your glass. Make sure the glass is in line with the

dispenser to prevent the water from bouncing out.

Check that the locking device is set to "unlock".

Water can only be dispensed on this setting.

To get more space, you can remove the TWIST ICE MAKER, ICE STORAGE BIN and ICE CUBE TRAY. It does not affect therma and mechanical

characteristics. A declared storage volume of frozen food storage

compartment is calculated with these components removed.

DA99-01697C(0.6).indb 13 2011.5.31 2:24:48 PM14_ operating

• If you plan to go away for a signicant time, empty the refrigerator and turn it off.

Wipe the excess moisture from the inside of the appliance and leave the doors

open. This helps keep odor and mold from developing.

If the refrigerator is not to be used for a long period of time, pull out the power plug.

- Deterioration in the insulation may cause re.

WARNING Before removing any accessories, make sure that no food is in the way.

When possible, remove the food altogether to reduce the risk of accidents.

To get the best energy efciency of this product, please leave all selves,

drawers and baskets on their original position like as illustration in page (13.)

3. Lift up the vegetable bin lid and pull it forward.

Pull out vegetable box while lifting it up pulling

forward after it has reached the middle of the

4. Lift up and pull out the water tank(optional)

as shown in the diagram.

5. Pull it out while pressing the end of the sill

on the low temperature catalyzing deodorizer.

6. Lift up and pull out the door guards.

2. Lift up the fridge shelf and pull it forward up

the fridge shelf and pull it forward.

rEMoVing THE rEfrigErATor ACCEssoriEs

1. Pull out the ice tray rst and then lift up the

front part of freezer shelf and pull it out forward.

Do not spray the refrigerator with water while it is plugged in, as it may

cause an electric shock. Do not clean the refrigerator with benzene,

thinner or car detergent for risk of re. CAUTION CLEAning THE rEfrigErATor WARNING Do not use Benzene, Thinner or Clorox™ for cleaning. They may

damage the surface of the appliance and can create a risk of re.

rEPLACing THE inTErior LigHT For LED lamp, please contact service engineer to replace it.

CAUTION DA99-01697C(0.6).indb 14 2011.5.31 2:24:52 PMPROBLEM sOLUTION The appliance is not

operating at all or the

• Check that the power plug is correctly connected.

• Is the temperature control on the front panel correctly set?

• Does sun shine on the appliance or are there heat sources nearby?

• Is the back of the appliance too near to the wall?

refrigerator is frozen.

• Is the temperature control on the front panel set to the coldest

• Is the surrounding temperature too low?

• Did you put food with a high water content in the refrigerator?

• Check that the appliance is installed on a stable, level oor.

• Is the back of the appliance too near to the wall?

• Have any foreign objects fallen behind or under the appliance?

• Is the noise coming from the compressor in the appliance?

• A ticking sound may be heard inside the appliance; this is normal.

This sound occurs when the various accessories contract or

• Heat-proof pipes are installed in the front corners of the appliance to

prevent condensation from forming.

When the surrounding temperature rises, this may not always be

effective. However, this is not abnormal.

• In very humid weather, condensation may form on the outer surface

of the appliance when the moisture in the air comes into contact with

the cool surface of the appliance.

You can hear a liquid

• This is the refrigerant, which cools the inside of the appliance.

There is a bad smell

inside the appliance.

• Has a food item spoiled?

• Make sure that strong smelling food (for example, sh) is wrapped so

that it is airtight.

• Clean out your freezer periodically and throw away any spoiled or

frost on the appliance

• Is the air outlet on the appliance plugged in?

• Space the food out as much as possible to improve ventilation.

• Is the door fully closed?

on the inside wall of

• Food with a high water content is stored uncovered with a high

humidity level or the door has been left open for a long time.

• Store the food with a cover or in sealed containers.

DA99-01697C(0.6).indb 15 2011.5.31 2:24:53 PMAmbient Room Temperature Limits

This fridge/freezer is designed to operate in ambient temperatures specied by its

temperature class marked on the rating plate.

Class Symbol Ambient Temperature range(°C)

Extended Temperate SN +10 to +32

Temperate N +16 to +32

Subtropical ST +16 to +38

Tropical T +16 to +43

Internal temperatures may be affected by such factors as the location of the refrigerator,

ambient temperature and the frequency with which you open the door. Adjust the

temperature as required to compensate for these factors.

DA99-01697C(0.6).indb 16 2011.5.31 2:24:53 PMfrançais
