USER MANUAL SR8896 SAMSUNG

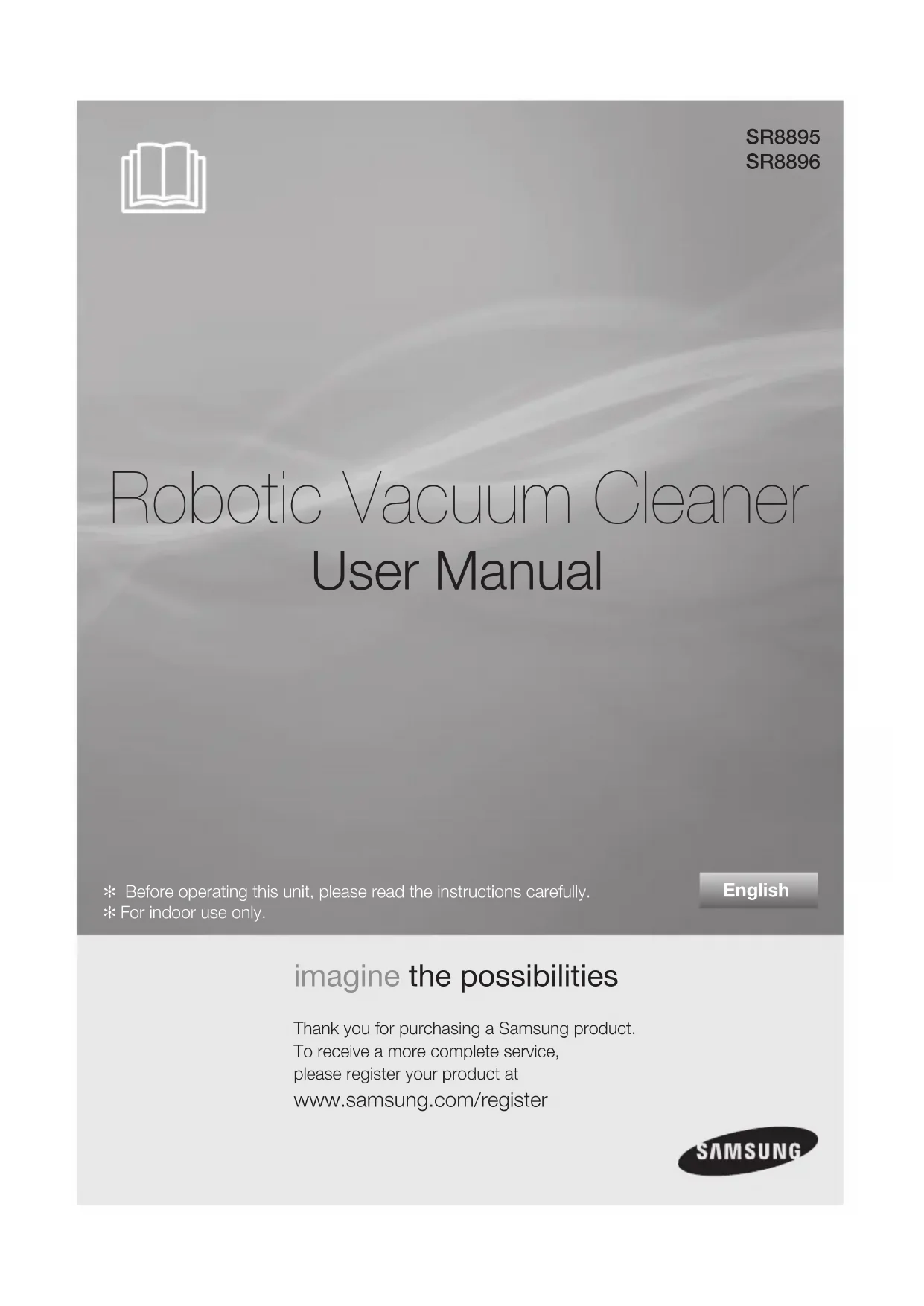

Robotic Vacuum Cleaner
User Manual ✻ Before operating this unit, please read the instructions carefully.✻ For indoor use only. English
imagine the possibilities Thank you for purchasing a Samsung product.To receive a more complete service, please register your product at www.samsung.com/register
CAUTION/WARNING SYMBOLS USED WARNING Indicates that a danger of death or serious injury exists. CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED NOTE Explains terms to help users understand how use the product properly.
• Before operating the appliance, please read this manual thoroughly and retain
it for your reference.
• Because these following operating instructions cover various models, the
characteristics of your vacuum cleaner may differ slightly from those described
in this manual. WARNINGWARNING DJ68-00558X(0.0).indb2 2011.4.142:13:33PMSafety information _3
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should be observed, including the
READ ALL INSTRUCTIONS BEFORE USING YOUR ROBOTIC VACUUM CLEANER.
Unplug from outlet when not in use and before conducting maintenance.
WARNING: to reduce the risk of fire, electric shock, or injury:
• Use only as described in this manual.
Do not operate the robotic vacuum cleaner or charger if it has been damaged in any way.
• If the cleaner is not working as it should, has been dropped, damaged, left outdoors,
or dropped in water, return it to a customer care center.
• Do not handle the charger or robotic vacuum cleaner with wet hands.
• Use only on dry, indoor surfaces.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not modify the polarized plug to t a non-polarized outlet or extension cord.
• Do not use outdoors or on wet surfaces.
• Unplug the charger from the outlet when not in use and before servicing.
• Use only the charger supplied by the manufacturer to recharge.
• Do not use with a damaged cord or plug.
• Do not pull or carry by the cord, use the cord as a handle, close the door on the cord,
or pull the cord around sharp edges or corners. Keep the cord away from heated
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
• Do not mutilate or incinerate batteries as they will explode at high temperatures.
• Do not attempt to open the charger. Repairs should only be carried out by a qualied
customer care centre.
• Do not expose the charger to high temperatures or allow moisture or humidity of any
kind to come into contact with the charger.
ROBOTIC VACUUM CLEANER
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.
• Do not use without a lter in place. When servicing the unit, never put ngers or other
objects into the fan chamber in case the unit accidentally turns on.
• Do not put any objects into openings. Do not use with any openings blocked; keep
openings free of dust, lint, hair, and anything that may reduce air flow.
• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not pick up anything that is burning or smoke, such as cigarettes, matches, or hot
• Do not use to pick up ammable or combustible liquids such as gasoline, nor use on
areas where they may be present.
• Do not use robotic vacuum cleaner in an enclosed space lled with vapours given off
by oil based paint, paint thinner, moth proong substances, ammable dust, or other
explosive or toxic vapours.
• Leaks from battery cells can occur under extreme usage or temperature conditions.
If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes,
flush them immediately with clean water for a minimum of 10 minutes. Seek medical
11 Cleaning and maintenance
43 Checklist before svc calls
16 Name of each part
OPERATING THE CLEANER
20 Installing robotic vacuum cleaner
20 Installation order
20 Turning the power switch on or off
21 Installing the charger
23 About the battery
25 Installing the VIRTUAL GUARD
28 Using robotic vacuum cleaner
28 Starting/stopping cleaning
34 Scheduled cleaning
35 Setting daily cleaning
36 Using additional functions
(Turbo Mode, Edge Mode)
MAINTAIN TOOLS ANd FILTER
36 Cleaning robotic vacuum cleaner
36 Please keep the cleaning and
maintenance methods in mind
37 Cleaning the sensor window and the
37 Emptying the dust bin quickly
38 Cleaning the dust bin and the lter
39 Cleaning the power brush
41 Cleaning the edge-cleaning side rotating
42 Cleaning the driving wheel
42 Caring for the mop
PROdUCT SPECIFICATION
POWER RELATED Do not bend the power cord forcefully or place a
heavy object on it that could break it.
- This may result in re or electric shock.
Do not use a damaged power cord, plug, or a loose
- This may result in re or electric shock.
Do not use multiple plugs in a single socket.
(Do not leave the cord lying exposed on the floor.)
- This may result in re or electric shock.
Do not pull the power plug by the cord or touch the
plug with wet hands.
- This may result in re or electric shock.
Make sure to remove any dust or water from the
- Failing to do so may result in a malfunction or electric
01 SAFETY INFORMATION CAUTION CAUTION CAUTION CAUTION CAUTION CAUTION BEFORE USE Before activating the robotic vacuum cleaner, make sure
that the dust bin is assembled.
- If the dust bin is not inserted, robotic vacuum cleaner will not
Never use robotic vacuum cleaner in locations with
combustible material such as:
- Locations with candles or desk lamps on the oor.
- Locations with unattended res (re or embers).
- Locations with gasoline, distilled alcohol, thinner, ashtrays
with burning cigarettes, etc.
Robotic vacuum cleaner is for domestic use only. Do not use it in the following
- Attics, basements, warehouses, industrial buildings, separate rooms distant from the
main building, locations exposed to wet or damp conditions such as bathrooms or
wash rooms, and narrow and highly situated locations such as tables or shelves. Critical
damage (abnormal operation and breakage) may occur when used in these locations.
Open all doors to clean all rooms.
- When a door is closed, the robotic vacuum cleaner will not be able to enter that room.
However, make sure to close the doors to the main entrance, the veranda and the
bathroom, and any other rooms where the robotic vacuum cleaner may fall to a lower floor.
For carpets with long tassels, fold the tassels under the
- Unfolded tassels may result in critical damage to the carpet
and the machine itself, as they get caught in the driving wheel
When the cliff sensor is polluted, the robotic
vacuum cleaner may be in danger of falling
This may cause personal injury and critical
damage to the product.
To prevent risk, install the VIRTUAL GUARDs
(Fence Mode setting) in front of dagerous
areas. Clean the sensor window and camera.
DJ68-00558X(0.0).indb7 2011.4.142:13:39PM8_ Safety information
BEFORE USE Remove objects scattered on the floor before cleaning.
Robotic vacuum cleaner is designed to detect obstacles 5cm away
- Bath towels, pads in front of bathrooms and sinks, entrances, utility
rooms, power cords, table cloths or belts can become entangled in
the driving wheel or power brush. This can cause objects to fall from
Remove small objects or brittle items from the area to be
- Make sure to clear any objects before cleaning.
- Make sure to remove fragile items such as china, glass objects,
- Robotic vacuum cleaner does not recognize coins, rings or other
valuable items such as jewelry.
Inform all family members (or relevant parties) to be cautious
before cleaning or when using the Scheduled Cleaning Mode.
- Robotic vacuum cleaner may run into children, causing them to fall.
Ensure that children do not step or sit on the robotic vacuum.
- Children may fall and injure themselves or critical damage may occur
When a child or pet is left alone, make sure to turn off the
Power Switch of the robotic vacuum cleaner.
- Robotic vacuum cleaner may attract their attention.
- When the rotating wheel or brush catches ngers, feet, clothing or hair,
this may result in injury.
- If a child or pet is in the way of the robotic vacuum cleaner, it may be
identied as an obstacle and the area may not cleaned.
- When the Power Switch is turned off, it will cut off the power supply and
deactivate all functions.
When installing the charger station, do not leave the power
cord exposed on the floor.
- When the robotic vacuum cleaner automatically recharges or passes
by the charger station, it may drag the power cord around with it.
Always keep the power cord of the charger plugged into the
- Although the robotic vacuum cleaner has a self-charging function, if
the power cord of the charger station is unplugged, it cannot charge
its battery automatically.
CAUTION CAUTION CAUTION CAUTION CAUTION CAUTION CAUTION DJ68-00558X(0.0).indb8 2011.4.142:13:43PMSafety information _9
01 SAFETY INFORMATION CAUTION BEFORE USE Install the charger in a location that can be easily accessed
by the robotic vacuum cleaner.
- If the charger is installed in a corner, this may cause extra
movements and may disturb the automatic recharging process.
Do not use the charger for other purposes.
- This may result in critical damage to the charger or cause a re.
WARNING Make sure the robotic vacuum cleaner does not vacuum or
move over liquids such as water, oil or pet litter.
This may result in critical damage to the product.
Liquids may spread through the wheels resulting in contamination.
WARNING Objects in front of the charger will prevent the robotic
vacuum cleaner from auto-charging itself.
CAUTION There should be no obstacles 0.5 m to the left and
right and within 1 m of the front.
WARNING Make sure that there is no trace of liquids on the charger
- Failing to do so may result in re or electric shock.
WARNING Do not short-circuit the charge pins with metal objects such
as chopsticks, screwdrivers, and etc.
- This will result in critical damage to the charger.
WARNING about 0.5mabout 0.5mabout 1mabout 1mabout 0.5mabout 0.5m
DJ68-00558X(0.0).indb9 2011.4.142:13:50PM10_ Safety information
NOTE IN USE You cannot use the robotic vacuum cleaner on thick carpets.
- This may result in problems with the robotic vacuum cleaner.
- This may result in damage to carpets.
Robotic vacuum cleaner may not be able to continue its
operation if it is stuck at the entrance or veranda doorsill.
- Robotic vacuum cleaner stops operating for safety reasons if it
cannot move for more than 5 minutes.
- To resume operating, turn the Power Switch off and then on again
after moving it to a location where it can continue cleaning.
If an unusual sound, smell or smoke is emitted from the robotic
vacuum cleaner, immediately turn off the Power Switch and call
the customer care center.
WARNING Do not use the robotic vacuum cleaner on a table or other high
- This may result in damage when the unit accidentally drops.
CAUTION Robotic vacuum cleaner may bump into furniture such as chair
legs, table legs, thin and long furniture, etc. while operating.
- For a quicker and cleaner performance, place the chairs on top of
Immediately remove any large pieces of
paper or plastic bags from the machine while cleaning.
- Using the machine for an extended period of time with its inlet port
obstructed may result in critical damage to the product.
Do not place any objects on top of the robotic vacuum cleaner.
- This may result in malfunction.
CAUTION CAUTION CAUTION CAUTION DJ68-00558X(0.0).indb10 2011.4.142:14:1PMSafety information _11
01 SAFETY INFORMATION NOTE IN USE Robotic vacuum cleaner cannot completely clean locations that
it cannot reach, such as corners, and spaces between sofas
- Please clean these locations occasionally.
NOTE Dust clusters may remain after cleaning, when the robotic vacuum cleaner fails to
pick up dust clusters that were formed while cleaning.
- In this case, sweep up the dust with another cleaning tool.
This product is not suitable for wet mops.
CAUTION The cleaning robot cannot move over carpets after the mop
- To clean a carpet, remove the mop and mop plate rst.
CAUTION CLEANING AND MAINTENANCE When cleaning the product, do not spray water directly onto the
exterior or wipe it with a volatile material such as benzene,
- This may result in critical damage to the product.
CAUTION The unit must not be disassembled or reconstructed by anyone
other than a qualified service engineer.
- This may result in damage to the product.
CAUTION Do not forcefully press the bumper on the robotic vacuum
- If the bumper sensor gets damaged, the robotic vacuum cleaner may
bump into walls or furniture.
CAUTION DJ68-00558X(0.0).indb11 2011.4.142:14:16PM12_ Safety information
CLEANING AND MAINTENANCE If the power cord is damaged, have it replaced by a qualified
service engineer from the customer care center.
- Failing to do so may result in re or electric shock.
WARNING Before cleaning the charger, make sure to disconnect the
power cord for safety.
After cleaning, wash the mop and dry it completely before
- Failing to do so may result in bad odors.
WARNING WARNING When removing foreign substances, always use the cleaning
brush after turning the Power Switch off.
- Failing to do so may result in sudden operation of the unit and
cause an injury or critical damage to the product.
WARNING Edge-cleaning
Contact the Samsung Electronics customer care center to
replace the battery.
- Failing to use original batteries will result in product failure.
Remove any foreign substances accumulated on the Obstacle
and Cliff sensors on a regular basis.
- Dirt accumulated on the sensors will result in inaccurate functioning
EASY DUST OUTLET The dust output at the top enables emptying the dust bin easily using
a normal vacuum cleaner without dust flying around.
VARIOUS CLEANING MODES Various cleaning modes are provided to meet all your needs.
Cleans all rooms automatically.
Cleans a localized area intensely.
It can be used to clean bread or
Runs until the battery is nearly depleted.
You can clean the floor manually by moving the cleaning robot.
Since the power brush rotates at maximum speed in this mode, the
product will clean more effectively.(You can switch the mode with the remote control.)
6. Edge Mode : When the Obstacle Sensor detects an obstacle during the cleaning,
the Robot Cleaner reduces its speed to minimize the bumping impact and the Bumper
Sensor also helps it lower the bumping impact. And, it cleans the corners by reaching
to them as close as possible.
7. Scheduled Cleaning Mode :
At the specied time, the cleaning robot cleans the oor.
8. Daily Cleaning Mode : The cleaning robot cleans the oor everyday at the specied time.
CONVENIENT VIRTUAL GUARD FUNCTION You can conne the robotic vacuum cleaner to a particular section by using the Fence (virtual
wall) mode or by cleaning several sections one by one using the Guard (virtual door) mode.
• What is ceiling shape recognition
This function recognizes the shape of the ceiling
using the camera on top to identify the area to
be cleaned and determines the best way to pass
over and clean every section of the floor.
DELICATE CLEANING OF EVERY CORNER Since the robotic vacuum cleaner cleans the oor in a sequential way ( ) along the map
determined by the ceiling shape recognition function, it cleans every corner of the floor.
2 Approximately 1.5 mApproximately 1.5 m
DJ68-00558X(0.0).indb13 2011.4.142:15:12PM14_ Product Features
dOORSILL CROSSING The robotic vacuum cleaner’s innovative driving system
makes it possible for it to cross over doorsills with a height
of about 1.5cm and clean all rooms. The robotic vacuum
cleaner may not be able to pass a 1.5cm doorsill depending
on the shape of the doorsill.
ANTI-CRASH The robotic vacuum cleaner detects and avoids obstacles
in 2 stages. First, the 8 obstacle sensors detect obstacles in
stage 1 and if the robotic vacuum cleaner does crash into an
obstacle, the 2 bumper sensors absorb the impact.
EdGE-CLEANING SIdE ROTATING BRUSH The edge-cleaning side rotating brush cleans dust from the
AUTO CHARGING When the battery is low, the robotic vacuum cleaner is
automatically guided to the charger to enable it to perform a
ANTI-FALLING SAFETY dEVICE The 3 Cliff sensors detect downward steps such as stairs or
the front door threshold to prevent robotic vacuum cleaner
from falling down stairs.
When the robotic vacuum cleaner is lifted up while cleaning,
the driving wheels, power brush, suction motor, and side
rotating brush are stopped autonati(all) by sensor.
Stair type Vertical type
Assembling the cleaner
2 Battery (AAA-Type Batteries) Remote Control
Assembling the cleaner
Assembling the cleaner
02 ASSEMBLING THE CLEANER NAME OF EACH PART
[ Charger (Station) ]
Batteries are not supplied with the product. You have to purchase the batteries
separately. Install the alkaline batteries (type D) before use.
Installing the batteries
Lift the cover of the
pressing the locking tab.
Install the batteries into the
VIRTUAL GUARD as shown
by the gure below. (If the
batteries are installed with
the incorrect polarity, the
VIRTUAL GUARD will not work.)
After inserting the tip of
the cover into the slot,
push the other end to
close it until it clicks into
Assembling the cleaner
compartment cover at
the back of the remote
control, while pressing
Install the batteries into the
remote control as shown
by the gure below. (If the
batteries are installed with
the wrong polarity, the
remote control will not work.)
After inserting the tip of
the cover into the slot,
push the other end to
close it until it clicks into
1 2 3 ✽ Specication: AAA type batteries Batteries are not installed in the remote control when purchasing the product.
Install the batteries (type AAA) before use.
Installing the Remote Control Batterise (moving backwards is not supported.)PowerRecharging Max
Spot Timer/DailyClockStart/Stop Edge
Auto DirectionalButtonsManualTurbo DJ68-00558X(0.0).indb18 2011.4.142:15:49PMAssembling the cleaner _19
Assembling the cleaner
02 ASSEMBLING THE CLEANER NAME OF EACH PART DISPLAY PART
1. Number Display - Shows the timer display, progress status, and error codes using numbers, letters and graphics. 2. Battery Level Indicator - Charging : Shows the charging progress in 3 steps. - In Use : Shows the battery charge level. The battery charge level is reduced by each level from FULL while operating. (When the battery is fully discharged, one level will ash to display “LO”.) 3. Scheduled Cleaning - When cleaning is scheduled, the Scheduled Cleaning icon is lit. 4. Daily - When daily cleaning is scheduled, the Daily icon is lit. 5. Recharging - This icon turns on when the cleaning robot returns to the charger station to charge its battery. 6. Cleaning Mode Display - Each time the Cleaning Mode button is pressed, the corresponding cleaning mode is displayed. (a) Auto Mode : This icon turns on when Auto cleaning mode is selected. (b) Spot Mode : This icon turns on when Spot cleaning mode is selected. (c) Max Mode : This icon turns on when Max cleaning mode is selected. (d) Manual Mode : This icon turns on when Manual cleaning mode is selected. BUTTON PART
7. Start/Stop - Press to start/stop cleaning. 8. Cleaning Mode - Press to select a cleaning mode. After selecting a cleaning mode, press the ( ) button to start cleaning. 9. Timer/Daily - Press to set a scheduled or daily cleaning. 10. Recharging - When this button is pressed, the Recharging icon is turned on and the cleaning robot will return to the charger station to charge its battery. 1
Operating the cleaner
1. Turning the Power Switch on or off
To use the robotic vacuum cleaner, you must turn on the Power Switch at the
bottom of the main unit.
2. Installing the Charger
To charge the robotic vacuum cleaner, you must rst install the
Since the battery is discharged when the product is purchased,
you must fully charge the battery before use.
3. Charging the Battery
You should charge the battery completely before using the
robotic vacuum cleaner.
You should set the time to use the scheduled and daily cleaning options.
5. Installing the VIRTUAL GUARD You can conne the robotic vacuum cleaner to a particular section by using Fence
(virtual wall) mode or clean several sections one by one using Guard (virtual door)
Attach the mop to the bottom of the cleaning robot.
INSTALLING THE ROBOTIC VACUUM CLEANER CAUTION If the Power Switch is turned off, the robotic vacuum cleaner will not be charged
even if it is docked with the charger station.
To use the robotic vacuum cleaner, you must turn the
If you turn the Power Switch off, all settings will be reset.
Turn over the main unit and turn the Power Switch on.
- If the icons are not turned on, it indicates that the
battery charge is depleted. In this case, dock the
robotic vacuum cleaner to the charger station after
turning the Power Switch on.
- The congured time may be different from the current
time. If the congure time is incorrect, set the time to
✽ If no key is pressed for approximately 5 minutes after turning the power on,
the power is automatically cut to prevent the battery discharging. To turn the
power on again, press and hold the power (Run/Stop) button on the main
body or on the remote control for a short while.
TURNING THE POWER SWITCH ON OR OFF DJ68-00558X(0.0).indb20 2011.4.142:15:52PMOperating the cleaner _21
Operating the cleaner
03 OPERATING THE CLEANER INSTALLING THE ROBOTIC VACUUM CLEANER INSTALLING THE CHARGER Always keep the power cord of the charger
plugged into the power outlet.
- If no power is supplied to the charger, the robotic
vacuum will not be able to nd the charger and will
not be able to charge automatically.
- If the robotic vacuum cleaner is separated from the
charger, the battery is automatically discharged.
2. There should be no obstacles 0.5m to the left and
right and within 1 m of the front.
1. Install the charger on a flat surface.
3. Install the charger in a location where it can be easily
accessed by the robotic vacuum cleaner.
4. Arrange the power cord along the wall.
5. When the floor is made of wood, install the charger
in the same direction as the grain of the wood. Power LampCharging Lamp
NOTE DJ68-00558X(0.0).indb21 2011.4.142:15:53PM22_ Operating the cleaner
Operating the cleaner
INSTALLING THE ROBOTIC VACUUM CLEANER CHARGING
Check the charge status of the robotic vacuum
- When charging starts, the battery level indicator and
” will be displayed in sequence in the display panel.
When charging is complete, the battery level indicator and
“FULL” will be displayed in the display panel.
1. After aligning the charge pins of the main unit with
the charge pin of the charger station, press the main
unit until you hear a “Recharging power” sound from
- The Charging Lamp turns green.
When the product is initially purchased, the battery
is fully discharged, and you must charge the robotic
vacuum cleaner manually. Power LampCharging LampPower Lamp Charging Lamp NOTE
● When the product is initially purchased, it will take about 120 minutes to fully charge the battery
and will run for about 90 minutes.
● When charging the battery while the battery is over-heated, the charging time can increase.
● Measures to take when charging is not smooth.
When the robotic vacuum cleaner cannot be automatically charged, check the following:
- Turn the Power Switch at the bottom of the robotic vacuum cleaner off and on (Reset).
- Re-plug the power of the charger (Reset).
- Check whether there are any foreign substances on the charge connector and wipe the
charge connector on the main unit and the charger with a dry cloth.
- Check whether there are objects near the charger that are strong reectors.
● When separating the robotic vacuum cleaner from the charger, it will discharge naturally.
- Charge the robotic vacuum cleaner through the charger, if possible. (When leaving your home
unattended for a long period of time due to a business trip, travelling etc., turn off the Power
Switch of the robotic vacuum cleaner and unplug the power of the charger to store them.)
Turn on the Power Switch at the bottom of the product.
When the battery level display flashes
while cleaning, the robotic vacuum
cleaner stops vacuuming and
automatically charges itself at the charger.
When the battery level ashes and “LO” is displayed while cleaning,
robotic vacuum cleaner cannot be operated by the remote control or
the buttons on the main unit. In this case, directly carry the robotic
vacuum cleaner to the charger to charge the battery. (This is when
the battery is completely discharged.) Charge completeCharging Required charging<Charge display>Charging Fully chargedFlashFlash DJ68-00558X(0.0).indb22 2011.4.142:16:5PMOperating the cleaner _23
Operating the cleaner
03 OPERATING THE CLEANER INSTALLING THE ROBOTIC VACUUM CLEANER ABOUT THE BATTERY
- This battery is only for Samsung robotic vacuums. It is strictly prohibited to use it for other
appliances or for other purposes.
- Do not disassemble or modify the battery.
- Charge it in a location with good ventilation.
- Do not expose the battery to re and do not heat it.
- Do not connect any metallic objects to the (+) or (-) terminals of the battery.
- Keep it indoors (0℃~40℃).
- Before you discard product, dispose of batteries in an environmentally safe manner.
- Do not discard this batteries with your regular household trash.
- Follow all local regulations when disposing of old batteries.
The robotic vacuum cleaner is powered by an environment-friendly Nickel Metal Hydride
(NiMH) rechargeable battery, and an over-charge prevention function guarantees an
The battery warranty period is 6 months from the
When purchasing a battery, ask the customer care
center for the genuine part symbol (
model number before purchasing it.
✽ If the battery is out of order, do not disassemble it. Contact your nearest customer care
✽ An increased charging time and a shorter battery life indicates the near end of the battery
life. Please contact an authorized customer care center to replace your battery.
The rechargeable battery incorporated in this product is not user replaceable.
For information on its replacement, please contact your service provider.
DJ68-00558X(0.0).indb23 2011.4.142:16:7PM24_ Operating the cleaner
Operating the cleaner
Enter the current “hour”.
Enter the current “minutes”.
INSTALLING THE ROBOTIC VACUUM CLEANER SETTING THE TIME To use the Scheduled Cleaning and Daily Cleaning functions properly, setting
the time is necessary.
You can only set the time using the remote control.
You can only set the time using the remote control. Suppose current time is07:00 Remote Control Configuration Sequence
- Press the ( ) button instead of the Time Set button while setting the time to exit Time
- When a Scheduled Cleaning is set, you cannot change the time setting. BlinksBlinksBlinksBlinksDecreaseIncreaseDecreaseIncrease DJ68-00558X(0.0).indb24 2011.4.142:16:11PMOperating the cleaner _25
Operating the cleaner
03 OPERATING THE CLEANER INSTALLING THE ROBOTIC VACUUM CLEANER INSTALLING THE VIRTUAL GUARD You can conne the robotic vacuum cleaner to
a particular section by using Fence (virtual wall)
mode or clean several sections one by one
using Guard (virtual door) mode.
1. Mode lamp operations
- Fence (virtual wall) Mode: The red lamp ashes.
- Guard (virtual door) Mode: The green lamp ashes.
- Off :The lamp is turned off.
- Whenever you press the Mode/Power button, Fence
Power off is selected in this sequence.
The distance of virtual wall is 2.5M at minimum
and may differ depending on surroundings and
movement status of the robot.
Forming a Fence (virtual wall)
VIRTUAL GUARD creates an invisible barrier that the
robotic vacuum cleaner cannot cross.
E.g. in front of pots, furniture, the front door, and so on.
1. Select Fence (virtual wall) mode using the Mode/
- The mode lamp ashes red.
2. Install the VIRTUAL GUARD in front of the area
you want to block access from the robotic
- Install the VIRTUAL GUARD so that the distance detection sensor can form an
invisible barrier that the robotic vacuum cleaner cannot cross. A fence (virtual wall) is formed.DistanceSensorMode/Power ButtonMain Body Detection SensorMode LampDistance Detection Sensor DJ68-00558X(0.0).indb25 2011.4.142:16:14PM26_ Operating the cleaner
Operating the cleaner
About the IrDA sensor.
● The infrared signal transmission may
not be smooth in locations exposed to
halogen lamps or in outdoor locations.
● Robotic vacuum cleaner uses 3 types of
infrared devices and a device may not
work in front of another device with a
When controlling the robotic vacuum cleaner with the remote control, the robotic vacuum
cleaner may cross the virtual fence of the VIRTUAL GUARD or run against an obstacle,
because the remote control signal has a higher priority than the VIRTUAL GUARD signal.
● When using the robotic vacuum cleaner in a small location or at a close distance, it
may malfunction due to interference of the infrared signals.
● Install the VIRTUAL GUARD away from the charger as auto charging may be
interrupted if the VIRTUAL GUARD is near the charger.
● If more than one robotic vacuum is used simultaneously, they may malfunction due
to interference of the infrared signals.
✽ Since an invisible barrier is
formed to prevent the robotic
vacuum cleaner from running
against the VIRTUAL GUARD,
installing the VIRTUAL GUARD
within 30 cm of the outside walls
[Infrared Signal Priority]
vacuum cleaner cannot cross until current room is completly
cleaned. The VIRTUAL GUARD opens the invisible door
when cleaning the of room is complete.
- Install the VIRTUAL GUARD so that the distance
detection sensor can form an invisible barrier that
the robotic vacuum cleaner cannot cross. ChargerVIRTUAL GUARD Room1
A guard (virtual door) is formed.
• When not using the VIRTUAL GUARD, turn the power off.
(When not using the robotic vacuum cleaner for long
periods of time, separate the batteries to avoid discharging
• If the Mode/Power button does not work, it indicates
that the batteries have worn out. In this case, replace the
batteries. (Specications: Type D (LR20) alkaline batteries )
• You can additionally purchase a VIRTUAL GUARD from
Samsung Electronics customer care Co., Ltd.
DJ68-00558X(0.0).indb26 2011.4.142:16:22PMOperating the cleaner _27
Operating the cleaner
03 OPERATING THE CLEANER USING THE ROBOTIC VACUUM CLEANER ATTACHING A MOP You can effectively remove dust with the microfiber mop.
1. Attach the mop to the Velcro fastener of the mop
- Attach the mop making sure that the mop
attachment line is not covered.
2. Align the holes of the mop plate with the parts
at the bottom of the cleaning robot and push the
parts until they ‘click’ into place.
- Note that if you install the mop plate incompletely,
it may separate while cleaning.
3. Place the mop plate to which the mop is
attached on the floor and push it down. Parts to install the mop plateMop plate fixing holesMop attachment line ✽ Attach the mop making sure it is level with the mop attachment line.CAUTION ● Since the cleaning robot cannot move over
carpets after attaching a mop, remove the mop
and mop plate from the cleaning robot before
● After cleaning, wash the contaminated mop.
● Use the mop only after completely drying it.
(You cannot use a wet mop.)
● If there is liquid such as coffee on the oor, do
not use the mop to clean it to prevent secondary
contamination of the oor by the liquid.
Mop attachment procedures
DJ68-00558X(0.0).indb27 2011.4.142:16:46PM28_ Operating the cleaner
Operating the cleaner
USING THE ROBOTIC VACUUM CLEANER STARTING/STOPPING CLEANING Turning the power on
- Remote control : Press the [Power] button.
- Main unit: Press the (
Turning the power off
- Remote control: Press the [Power] button.
- Main unit: Press and hold the (
You can run or stop all robotic vacuum functions.
Each robotic vacuum function only runs when the Power
Switch is turned on.
When the robotic vacuum is operating, press the ( )
button to cancel the operation and select a function.
Turning the power on or off
) button and then pressing the ( )
- When cleaning begins, the robotic vacuum cleaner
Pressing the ( ) button without selecting cleaning
mode starts to perform the Auto mode cleaning.
- When cleaning is stopped, the robotic vacuum
Starting or stopping cleaning
DJ68-00558X(0.0).indb28 2011.4.142:16:48PMOperating the cleaner _29
Operating the cleaner
1. Press the Recharging button.
- The main unit icon (
) is turned on and the robotic
vacuum cleaner will return to the charger.
2. To stop the robotic vacuum cleaner while it is
returning to the charger, press the (
3. To test the auto charge function, press the
Recharging button when the robotic vacuum cleaner
is less than 1.5m from the charger.
You can have the robotic vacuum cleaner return
to the charger to charge the battery by using the
When the robotic vacuum cleaner is operating, press
) button to cancel the operation and press the
Troubleshooting when the robotic vacuum cleaner
does not return to the charger
Check the installation of the charger
- When the charger is in a location where the charger
cannot guide the robotic vacuum cleaner to the
- When the charger is more than 5m away from robotic
: It may require a longer time for the robotic vacuum
cleaner to return to the charger.
● Manually charge the robotic vacuum cleaner in the following
- When the charger is installed in a corner.
- When the battery is fully discharged.
- When the robotic vacuum cleaner is trapped by an
obstacle (furniture etc.)
- When the robotic vacuum cleaner cannot pass over the
doorsill to the location where the charger is installed.
DJ68-00558X(0.0).indb29 2011.4.142:17:20PM30_ Operating the cleaner
Operating the cleaner
USING THE ROBOTIC VACUUM CLEANER AUTO CLEANING The robotic vacuum cleaner will move by itself and
automatically clean the house until cleaning is completed
If cleaning begins when the robotic vacuum cleaner is docked with
the charger station, the time to return to the charger is decreased
since the robotic vacuum cleaner remembers its original position
If the battery level becomes too low while cleaning, the robotic
vacuum cleaner will automatically return to the charger station and resume cleaning after
charging its battery. (Number of cleaning operations resumed : Once) ● Do not move the robotic vacuum cleaner when it is cleaning or press a button while it is cleaning. Otherwise, the robotic
vacuum cleaner judges cleaning to be complete and starts
cleaning again from the beginning. ● When you press the Turbo remote control button, either On turbo (
) or Off turbo ( ) is displayed on
the display panel in turns. When On turbo is displayed, you
can clean the floor in Turbo Mode. ● When you press the Edge remote control button, On Edge (
) or Off Edge ( ) is displayed on the
display panel in turns. When On Edge is displayed, you can
clean the floor in Edge Mode. ● If you select both Turbo Mode and Edge Mode at the same time, the (
) is display on the display panel in
Set the mode. Main unit buttonRemote control button Configuration Sequence ▶ 1timeCAUTION About the Resume Cleaning function ● If the robotic vacuum cleaner has evaluated that cleaning is complete, the resume cleaning function is not performed. ● If you move the robotic vacuum cleaner when it is being charged or press a button, the robotic vacuum cleaner
judges cleaning to be complete and does not resume
DJ68-00558X(0.0).indb30 2011.4.142:17:24PMOperating the cleaner _31
Operating the cleaner
03 OPERATING THE CLEANER USING THE ROBOTIC VACUUM CLEANER SPOT CLEANING You can conveniently clean a specific area that has a a
lot of cookie crumbs, dust, and etc.
Move the robotic vacuum cleaner to the location where you
want to perform a spot clean.
- In Spot cleaning mode, the robotic vacuum cleaner cleans
an area with a length of 1.5m and a width of 1.5m.
- When cleaning is completed, the robotic vacuum cleaner
will display End, Stop, and Stand by.
When the robotic vacuum cleaner is docked with the
charger station, spot cleaning is not supported.
Turbo Mode ● When you press the Turbo remote control button, either On turbo (
) or Off turbo ( ) is displayed on
the display panel in turns. When On turbo is displayed, you
can clean the floor in Turbo Mode. ● When you press the Edge remote control button, On Edge (
) or Off Edge ( ) is displayed on the
display panel in turns. When On Edge is displayed, you can
clean the floor in Edge Mode. ● If you select both Turbo Mode and Edge Mode at the same time, the (
) is display on the display panel in
turns. CAUTION DJ68-00558X(0.0).indb31 2011.4.142:17:27PM32_ Operating the cleaner
Operating the cleaner
USING THE ROBOTIC VACUUM CLEANER MAx CLEANING CAUTION● Do not move the robotic vacuum cleaner while it is cleaning or press a button while cleaning. Otherwise, the robotic
vacuum cleaner judges cleaning to be complete and starts
cleaning again from the beginning. ● When you press the Turbo remote control button, either On turbo (
) or Off turbo ( ) is displayed on
the display panel in turns. When On turbo is displayed, you
can clean the floor in Turbo Mode. ● When you press the Edge remote control button, On Edge (
) or Off Edge ( ) is displayed on the
display panel in turns. When On Edge is displayed, you can
clean the floor in Edge Mode. ● If you select both Turbo Mode and Edge Mode at the same time, the (
) is display on the display panel in
About the Resume Cleaning function ● If the robotic vacuum cleaner judges cleaning to be complete, resume cleaning is not performed. ● If you move the robotic vacuum cleaner while it is being charged or press a button, robotic vacuum cleaner judges
cleaning to be complete (cleaning is not resumed).
The robotic vacuum cleaner automatically moves and
cleans until the battery runs out and the battery level
flashes only one level.
If cleaning begins when the robotic vacuum cleaner is docked
with the charger station, the time to return to the charger is
decreased since the robotic vacuum cleaner remembers its
original position while moving.
If the battery level becomes low while cleaning, the robotic
vacuum cleaner automatically returns to the charger station and resumes cleaning after
charging the battery. (Number of resumed cleaning operations: Once)
Set the mode. Main unit buttonRemote control button Configuration Sequence ▶ 3time DJ68-00558X(0.0).indb32 2011.4.142:17:29PMOperating the cleaner _33
Operating the cleaner
03 OPERATING THE CLEANER USING THE ROBOTIC VACUUM CLEANER MANUAL CLEANING You can move the robotic vacuum cleaner to clean a
particular location directly by using the remote control.
Move the robotic vacuum cleaner to the location where you want
to perform manual cleaning.
You can manually clean using the remote control only. Directional Buttons (Forwards, Left, Right) A backwards function is not supported.● When the robotic vacuum cleaner is docked with the
charger station, manual cleaning is not supported.
Turbo Mode CAUTION● When you press the Turbo remote control button, either On turbo (
) or Off turbo ( ) is displayed on
the display panel in turns. When On turbo is displayed, you
can clean the floor in Turbo Mode. ● When you press the Edge remote control button, On Edge (
) or Off Edge ( ) is displayed on the
display panel in turns. When On Edge is displayed, you can
clean the floor in Edge Mode. ● If you select both Turbo Mode and Edge Mode at the same time, the (
) is display on the display panel in
Set the mode. Main unit buttonRemote control button Configuration Sequence ▶ 4time DJ68-00558X(0.0).indb33 2011.4.142:17:33PM34_ Operating the cleaner
Operating the cleaner
Cancel the settings.
USING THE ROBOTIC VACUUM CLEANER SCHEDULED CLEANING You can schedule robotic vacuum cleaner to start
cleaning from a particular time.
Scheduled cleaning is only performed when robotic
vacuum cleaner is docked with the charger station. The icon is turned off. Enter Scheduled
Complete the settings.
6 Main unit buttonRemote control buttonConfiguration Sequence(Example) The current time: 07:00 a.m. The desired cleaning start time: 09:30 a.m.DecreaseIncreaseDecreaseIncreaseBlinksBlinksBlinksBlinks
NOTE When completing the settings, and you press the ( ) button instead of the Delay/
Daily button, Scheduled Cleaning mode is exited.
DJ68-00558X(0.0).indb34 2011.4.142:17:39PMOperating the cleaner _35
Operating the cleaner 03 OPERATING THE CLEANER
3 Second Cancel the settings.
USING THE ROBOTIC VACUUM CLEANER SETTING DAILY CLEANING You can schedule the cleaning robot to start
cleaning everyday from a particular time.
Daily cleaning is only performed when the cleaning robot
is docked with the charger station.
Enter Daily Cleaning
mode and confirm that
the configured time is
correct. (Check the daily
Complete the settings.
6 Main unit buttonRemote control buttonConfiguration Sequence(Example) The current time: 07:00 a.m. The desired cleaning start time: 09:30 a.m. Mon
The icon is turned off.
Increase BlinksBlinksBlinksBlinks 3 Second 3 Second 3 Second
NOTE When completing the settings, and you press the ( ) button instead of the Delay/
Daily button, Daily Cleaning mode is exited.
DJ68-00558X(0.0).indb35 2011.4.142:17:45PM36_ Maintain tools and lter
Maintain tools and filter
When you press the Turbo remote control button, On turbo ( )
) is displayed on the display panel in turns.
On turbo (Turbo Mode) : The power brush rotates at maximum
Off turbo (Normal Mode) : The power brush rotates at normal speed.
USING ADDITIONAL FUNCTIONS You can use the cleaning robot more easily and conveniently using various
additional functions.
You can only congure the additional functions with the remote control.
CLEANING THE ROBOTIC VACUUM CLEANER PLEASE KEEP THE CLEANING AND MAINTENANCE METHODS IN MIND
When the Power Switch is damaged, please contact
the service agent so that it does not cause any
Do not use any means or mechanical devices not
installed by the manufacturer that could accelerate the
deformation of the robotic vacuum cleaner.
Always turn off the power switch
at the bottom of the main unit
before cleaning the robotic vacuum.
The robotic vacuum cleaner could
operate suddenly and cause an injury.
NOTE When Off Edge (Evasion Mode) is displayed, the cleaning robot may bump into thin
) is displayed on the display panel in turns.
Maintain tools and filter
04 MAINTAIN TOOLS ANd FILTER CLEANING THE ROBOTIC VACUUM CLEANER EMPTYING DUST QUICKLY
You can easily empty the dust bin using a normal vacuum
cleaner, without separating the dust bin.
1. Open the dust outlet cover.
2. If you hold the air inlet of the vacuum cleaner to the dust
outlet, it will vacuum the dust directly from the dust bin. Display PanelFront Sensor windowCamera
CLEANING THE SENSOR WINDOW AND THE CAMERA You must turn off the Power Switch at the bottom of the main unit before
cleaning the robotic vacuum.
Never spray water, thinner, benzene etc. directly onto the main unit of robotic
Lightly wipe the sensor window or
camera using a soft cloth.
Front Sensor Window and
Rear Sensor WindowCliff Sensor Window
DJ68-00558X(0.0).indb37 2011.4.142:17:49PM38_ Maintain tools and lter
Maintain tools and filter
5. Install the filter into the dust bin.
- Make sure that the grid pattern of the lter is facing
downwards. It cannot be installed in the wrong direction.
4. Wipe the dust from the filter and the dust bin.
✽ You can wash them with water.
6. Close the dust bin cover and install it into the main unit.
CLEANING THE DUST BIN AND THE FILTER
2. Separate the dust bin cover by pulling it in the direction of
the arrow in the figure.
1. Press the Dust Bin Eject (PUSH) button and pull the dust
bin to separate the dust bin.
3. Separate the filter from the dust bin by pulling it in the
direction of the arrow in the figure.
First, empty the dust bin before cleaning it.
When separating the dust bin, take care not to spill the dust out of
Empty the dust bin in the following cases.
1. When dust has accumulated inside the dust bin.
2. When the suction power suddenly becomes weak.
3. When the noise suddenly increases.
DJ68-00558X(0.0).indb38 2011.4.142:17:51PMMaintain tools and lter _39
Maintain tools and filter
04 MAINTAIN TOOLS ANd FILTER CLEANING THE ROBOTIC VACUUM CLEANER CLEANING THE POWER BRUSH
2. After checking whether there are any foreign substances,
press the hook that is fixing the brush cover to separate it.
1. Separate the dust bin by pressing the Dust Bin Eject
You must turn off the Power Switch at the bottom of the
main unit before cleaning the robotic vacuum. CAUTION● Because the dust in the dust bin may come out, separate the dust bin rst before cleaning the power
[ Structure of the dust Bin ]
Maintain tools and filter
CLEANING THE ROBOTIC VACUUM CLEANER
6. After inserting the 3 tips at the top of the cover, push
the other end in until it “clicks” into place.
● To prevent the robotic vacuum cleaner from becoming clogged, be careful not to
vacuum tooth picks or cotton swabs.
When removing foreign substances becomes difcult, contact a customer care center.
● Because the power brush vacuums the dust on the floor, long strings or hair can
become wrapped around the brush. Check and clean the power brush regularly.
3. Lift the power brush up from the main unit.
4. Remove any foreign substances such as long hairs or
strings wrapped around the power brush using a cleaning
brush or a vacuum cleaner.
5. When cleaning is complete, fix the Power Switch side of
the power brush first and then fix the other side of the
brush in the same way.
DJ68-00558X(0.0).indb40 2011.4.142:17:56PMMaintain tools and lter _41
Maintain tools and filter
04 MAINTAIN TOOLS ANd FILTER CLEANING THE ROBOTIC VACUUM CLEANER CLEANING THE EDGE-CLEANING SIDE ROTATING BRUSH
2. Wearing rubber gloves, wrap the side rotating brush
with a cloth using hot water for about 10 seconds
and wipe it on the cloth.
1. Check whether the side rotating brush is bent or
whether there are any foreign substances stuck on
You must turn off the Power Switch at the bottom of the
main unit before cleaning the robotic vacuum.
3. Turning the side rotating brush, repeat the
procedures in Step 2.
4. If hair or string is wrapped between the main unit
and the side rotating brush, undo the screw of the
side rotating brush using a (+) driver to remove it.
When reassembling the brush, check the “L” mark
on the edge-cleaning side rotating brush and the
“L” mark on the main unit and then reassemble the
side rotating brush.
( Letter “R” is carved at the right side rotating
NOTE Because the side rotating brush easily attracts hair and other foreign substances,
make sure to clean it frequently.
Excessive foreign substances on the side rotating brush can damage the brush.
L DJ68-00558X(0.0).indb41 2011.4.142:18:23PM42_ Maintain tools and lter
Maintain tools and filter
CLEANING THE ROBOTIC VACUUM CLEANER CLEANING THE DRIVING WHEEL CARING FOR THE MOP
2. Check for foreign substances and remove them using a
stick or a pair of blunt nippers if necessary.
2. Remove the mop from the mop plate.
3. Wash the mop with clean water.
4. Dry the mop completely in a well-ventilated location before
1. When cleaning the driving wheel, place a soft cloth on the
floor and flip the main unit, placing it down carefully.
You must turn off the Power Switch at the bottom of the
main unit before cleaning the robotic.
If the robotic vacuum cleaner suddenly starts to zigzag, there
may be foreign substances stuck on the driving wheel.
Since a contaminated mop may smell badly, keep the mop
1. Separate the mop plate from the bottom of the cleaning
Is the dust bin assembled?
Turn on the Power Switch.
Is cleaning mode ( ) in the
display panel turned on?
Press the ( ) button. (To turn it
off, press and hold the (
down for 3 seconds or longer.)
Is the battery level flashing
only one level and is ‘LO’
displayed in the display panel?
Lift up the robotic vacuum
cleaner, and manually dock the
robotic vacuum onto the charger
Robotic vacuum cleaner will not
operate when the battery in the
remote control is depleted.
Replace the batteries in the
remote control. (AAA type)
Is the battery level flashing only
one level and is ‘LO’ displayed in
Lift up the robotic vacuum
cleaner, manually dock the
the charger to charge it.
Has the robotic vacuum cleaner
become hooked on wires on the
Turn off the Power Switch and
Is the robotic vacuum cleaner
stuck to the floor where there is a
- The driving wheel is lifted.
Turn off the Power Switch and
move the cleaning robotic
vacuum to another place to
Is there a thin towel (cloth)
wrapped around the driving
Turn off the Power Switch and
remove the thin towel.
Is the robotic vacuum cleaner
stuck on the doorsill?
Turn off the Power Switch and
move the robotic vacuum cleaner
to another place to clean.
Stop the robotic vacuum cleaner
inlet is clogged by foreign
Turn off the Power Switch and
remove the foreign substances
on the suction inlet.
Check whether the lter is
Clean the lter well.
Check whether the power
plug of the charger is plugged
correctly into the outlet.
If there are any obstacles within
a range of about 1m in front of
the charger and about 0.5m
range to the left and right of the
charger, you should remove the
If there are any foreign
substances on the change pin,
wipe them off with a dry towel.
place so that the robotic
vacuum cleaner can charge
Is the Mode lamp turned off?
Check if the VIRTUAL GUARD
is turned off and then set the
Replace the batteries with new
Is the robotic vacuum cleaner
forced to seperate from charger
or pressed during charging?
When the robotic vacuum
cleaner is seperated or pressed
during the charging, after
30-second it returns to the
charger for automatic recharging.
Robotic vacuum cleaner is
caught, stuck or trapped
Turn off the Power Switch at the bottom
and move the robotic vacuum cleaner to a
A foreign substance (string,
paper, toy etc.) is caught in
Turn off the Power Switch at the bottom
and remove the foreign substance from the
A foreign substance (string,
paper, toy etc.) is caught in
the left driving wheel.
Turn off the Power Switch at the bottom and
remove the foreign substance from the left
A foreign substance (string,
paper, toy etc.) is caught in
the right driving wheel.
Turn off the Power Switch at the
bottom and remove the foreign substance
from the right driving wheel.
Check bumper sensor.
Slightly pull the stuck bumper outward.
A foreign substance (dust,
stain etc.) is on the Obstacle
Turn off the Power Switch at the bottom and
wipe the foreign substance from the front
and rear sensor windows using a soft cloth.
A foreign substance (Dust,
stain etc.) is on the Cliff
Turn off the Power Switch at the bottom
and wipe the foreign substance on the cilff
sensor window with a soft cloth.
Dust bin not inserted.
Insert the dust bin until you hear a “Click”
A foreign substance (String,
cloth etc.) is caught on the
edge-cleaning side rotating
Turn off the Power Switch at the bottom and
wipe the foreign substance from the edge-
cleaning side rotating brush.
✽ If you press the Start/Stop button or turn off the Power Switch, the error code is cleared.
Charge power consumption 50 W Main unit power consumption 40 W Battery specications 14.4V / 2,000 mA Cleaning
Dust bin capacity About 0.6 ℓ
Auto Charging/Manual
Scheduled, Setting Daily
Charging time About 120 minutes
(on the basis of hard oor)
Cleaning method Ceiling shape recognition
Main unit button type Touch type
This Vacuum cleaner is approved the following.
Electromagnetic Compatibility Directive : 2004/108/EEC Low Voltage Directive : 2006/95/EC DJ68-00558X(0.0).indb47 2011.4.142:18:39PMContact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
Customer Care Center
station de recharge.
le bouton Recharging.
du(Setting daily) nettoyage
soffitto (Visionary mapping
