USER MANUAL VCC54Q0V3G SAMSUNG

(ON (EIN)) MIN (MIN)

www.samsung.com/be (Dutch)

MISE SOUS/HORS TENSION

REMPLACEMENT DES PILES (EN OPTION)

A Fabricant Samsung Electronics., Co. Ltd

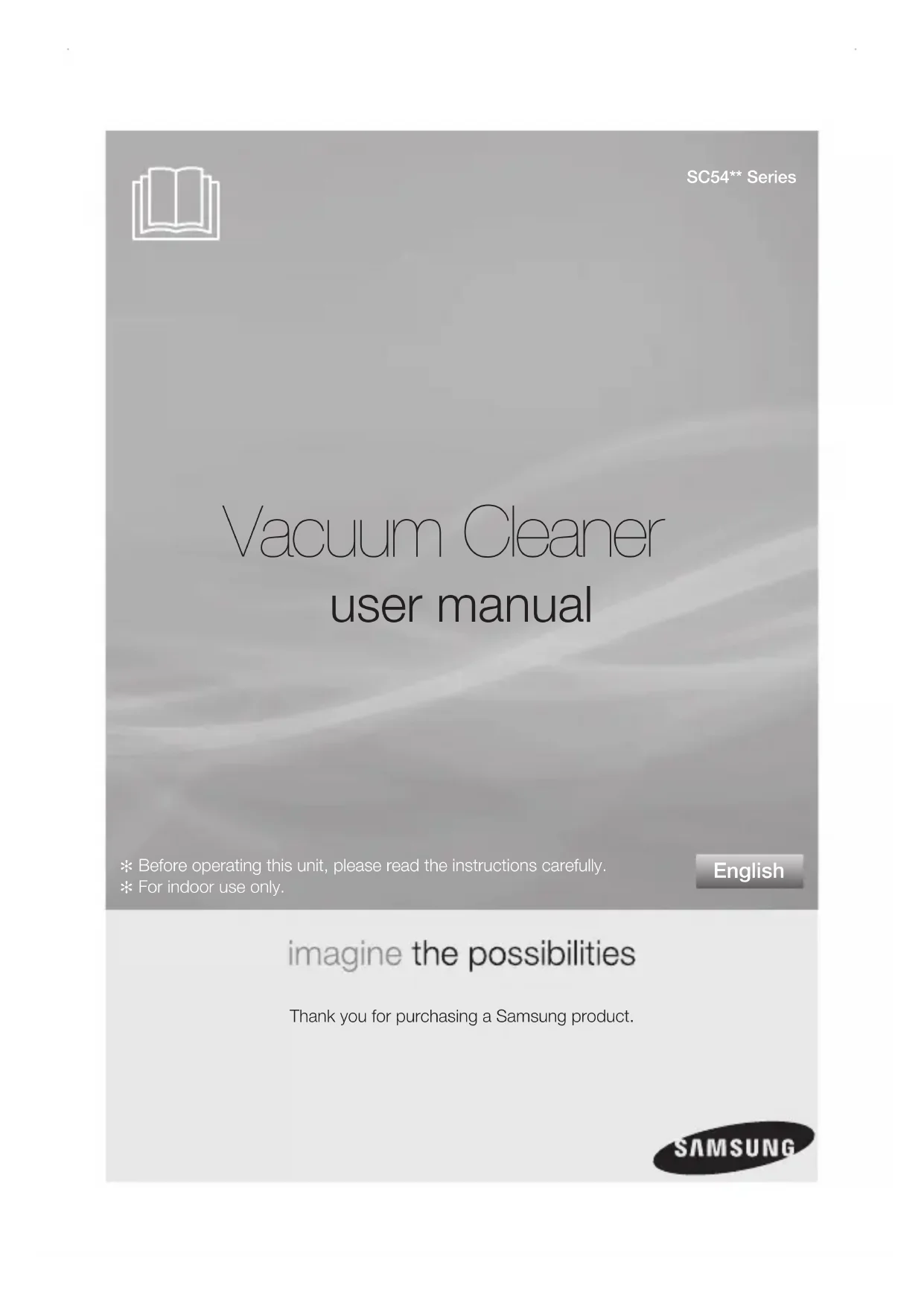

Before operating this unit, please read the instructions carefully.

For indoor use only.

Thank you for purchasing a Samsung product.

• Before operating the appliance, please read this manual thoroughly and

retain it for your reference.

• Because these following operating instructions cover various models,

the characteristics of your vacuum cleaner may differ slightly from those

described in this manual.

CAUTION/WARNING SYMBOLS USED WARNING Indicates that a danger of death or serious injury exists. CAUTION Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED Represents something you must NOT do.

Represents something you must follow.

Indicates that you must disconnect the power plug from the socket.

Notes on the energy label

• Declared energy effi ciency and cleaning performance class on

carpet can be met with the enclosed 2-Step Brush.

• When the hard fl oor has joints and gaps, please use the

enclosed "Eco Hard Floor" brush which is designed to meet

the energy effi ciency and cleaning performance class on hard

fl oor with joints and gaps.

• The values provided on the energy label have been

determinded according to the prescribed measuring process

(in accordance with EN60312 - 1).

Eco Hard Floor WARNINGWARNING DJ68-00688D-00.indb 02DJ68-00688D-00.indb 02 2014. 8. 29.  8:492014. 8. 29.  8:49safety information _03

IMPORTANT SAFEGUARDS

1. Read all instructions carefully. Before switching

on, make sure that the voltage of your electricity

supply is the same as that indicated on the rating

plate on the bottom of the cleaner.

2. WARNING : Do not use the vacuum cleaner when

rug or floor is wet. Do not use to suck up water.

3. Do not use the vacuum cleaner without a dust

bag. Change the dust bag before it is full in order

to maintain the best efficiency.

4. Slide to the Stop(or Min)position before inserting a

plug into the electrical outlet.

5. Do not use the vacuum cleaner to pick up

matches, live ashes or cigarette butts.

Keep the vacuum cleaner away from stoves

and other heat sources. Heat can deform and

discolour the plastic parts of the unit.

6. Avoid picking up hard, sharp objects with the

vacuum cleaner as they may damage the cleaner

parts. Do not stand on the hose assembly.

Do not put weight on the hose.

Do not block the suction or the exhaust port.

7. Switch the vacuum cleaner off on the body of the

machine before unplugging from the electrical

outlet. Disconnect the plug from the electrical

outlet before changing the dust bag or dust

container. To avoid damage, please remove the

DJ68-00688D-00.indb 03DJ68-00688D-00.indb 03 2014. 8. 29.  8:492014. 8. 29.  8:4904_ safety information

plug by grasping the plug itself, not by pulling on

8. This appliance can be used by children aged from

8 years and above and persons with reduced

physical, sensory or mental capabilities or lack

of experience and knowledge if they have been

given supervision or instruction concerning use of

the appliance in a safe way and understand the

9. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made

by children without supervision.

10. The plug must be removed from the socket outlet

before cleaning or maintaining the appliance.

11. The use of an extension cord is not

12. If your vacuum cleaner is not operating correctly,

switch off the power supply and consult an

authorized service agent.

13. If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a

similarly qualified person in order to avoid a

14. Don’t carry the vacuum cleaner by holding the

hose. Use the handle on the vacuum cleaner set.

15. Unplug the cleaner when not in use. Turn off the

power switch before unplugging.

DJ68-00688D-00.indb 04DJ68-00688D-00.indb 04 2014. 8. 29.  8:492014. 8. 29.  8:49contents _05

10 Maintain floor tools

11 Cleaning the cyclone filter (optional)

11 Dust full indicator

12 Changing the dust bag

12 Cleaning inlet filter

13 Cleaning the outlet filter

14 Change the battery (optional)

DJ68-00688D-00.indb 05DJ68-00688D-00.indb 05 2014. 8. 29.  8:492014. 8. 29.  8:4906_ assembling

assembling the cleaner

For storage, park the floor nozzle.

OPTION Features may vary according to model.

OPTION DJ68-00688D-00.indb 06DJ68-00688D-00.indb 06 2014. 8. 29.  8:492014. 8. 29.  8:49operating _07

operating the cleaner

1) BODY CONTROL TYPE

2) ON/OFF TYPE 3) HANDLE CONTROL TYPE

• When removing the plug from the electrical outlet, grasp

the plug, not the cord.

POWER CORD CAUTION DJ68-00688D-00.indb 07DJ68-00688D-00.indb 07 2014. 8. 29.  8:492014. 8. 29.  8:4908_ operating

POWER-CONTROL BODY-CONTROL TYPE / ON/OFF TYPE

• HOSE To reduce suction for cleaning draperies,

small rugs, and other light fabrics, pull

the tap air until the hole is open.

• BODY (BODY-CONTROL TYPE ONLY)

MIN = For delicate surface e.g. net

MAX = For hard floors and heavily soiled

• HOSE Vacuum cleaner MODE (MIN/MID,MAX)

Press the MODE button repeatedly

to select the correct mode.

The cleaner is controlled by

using infrared signals.

DJ68-00688D-00.indb 08DJ68-00688D-00.indb 08 2014. 8. 29.  8:492014. 8. 29.  8:49maintain _09

maintain tools and filter

USING ACCESSORY Pipe (Option)

• Adjust the length of the telescopic pipe by

sliding the length control button located in the

center of the telescopic pipe back and forth.

• To check for blockages, separate the

telescopic pipe and adjust to shorten. This

allows for easier removal of waste clogging the

• Dusting brush for furniture. shelves, books,

• Crevice tool for radiators, crevices, corners,

DJ68-00688D-00.indb 09DJ68-00688D-00.indb 09 2014. 8. 29.  8:492014. 8. 29.  8:4910_ maintain

MAINTAIN FLOOR TOOLS

2-Step Brush (Option)

• Adjust the inlet lever according to the floor

• Remove waste matter

completely if the inlet is

For improved pick-up of pet hair and fibre on carpets.

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to

matters tangled around the drum. In this case, clean the drum with care.

Blanket brush (Option)

Clogs on turbine keep brush from turning, thus need to be unclogged

as follows. For picking up pet hair and fibre on upholstery and bed

Remove waste matter completely when inlet is blocked.

Turn the lock button to ‘UNLOCK’, and remove waste

To reassemble, align the cover to the front of the main

body and close. After closing the cover, ensure that the

lock button is turned to the ‘LOCK’ position.

Use for bedclothes only. Be cautious not to

damage brush during unclogging.

maintain tools and filter

CLEANING THE CYCLONE FILTER (OPTIONAL)

DUST FULL INDICATOR When the indicator color has changed, you have to

It is necessary to use

Cyclone Filter while

cleaning. CAUTION DJ68-00688D-00.indb 11DJ68-00688D-00.indb 11 2014. 8. 29.  8:492014. 8. 29.  8:4912_ maintain

CHANGING THE DUST BAG OPTIONAL

After using, if the cloth bag is full of dust, clean the cloth bag and use it

You can purchase dust bags in the shops where you bought this vacuum

Paper bag can be used as you prefer. (Paper-bag:VP-54)

CLEANING INLET FILTER Don’t throw away the fi lter.

maintain tools and filter

CLEANING THE OUTLET FILTER Replacement filters are available at your local

Samsung distributor.

OPTION Press the fixed frame part at

the back of the main body to

OPTION - MICRO FILTER Remove and replace the blocked

DJ68-00688D-00.indb 13DJ68-00688D-00.indb 13 2014. 8. 29.  8:492014. 8. 29.  8:4914_ maintain

CHANGE THE BATTERY (OPTIONAL)

1. When the vacuum cleaner dows not work, replace the batteries. If the

problem persists, please contact our authorized dealer.

2. Use 2 batteries of size AA.

1. Never disassemble or recharge the

2. Never heat up the batteries or throw

3. Do not reverse (+), (-) poles

4. Dispose of the batteries property. WARNING BATTERY TYPE : AA Size

Suction force is gradually

• Check for blockage and remove.

Cord does not rewind fully.

• Pull the cord out 2-3m and push down the cord

Vacuum cleaner dows not pick

• Check hose and replace if required.

Low or decreasing suction

• Please check fi lter and, if required, clean as

illustrated in the instructions. if fi lters are out of

condition change them to new ones.

• Please check fi lters, If required clean as

illustrated in the instruction.

Static electicity discharge • Please decrease power suction.

This Vacuum cleaner is approved the following.

EMC Directive : 2004/108/EEC Low Voltage Directive : 2006/95/EC DJ68-00688D-00.indb 15DJ68-00688D-00.indb 15 2014. 8. 29.  8:492014. 8. 29.  8:49product fiche

According to Commission Regulation (EU) No 665/2013 and No 666/2013

A Supplier Samsung Electronics., Co. Ltd

C Energy Efficiency Class B D Annual Energy Consumption (kWh/yr) 34

E Carpet Cleaning Performance Class E F Hardfloor Cleaning Performance Class A G Dust Re-Emission Class B H Sound Power Level (dBA) 81

I Rated Input Power (W) 750

J Type General purpose vacuum cleaner

1) Indicative annual energy consumption (kWh per year), based on 50 cleaning

tasks.Actual annual energy consumption will depend on how the appliance is

2) Measurements for power consumption and performance are based on methods
