USER MANUAL SC15F30WB SAMSUNG

www.samsung.com/be (Dutch)

A Fabricant Samsung Electronics., Co. Ltd

Thank you for purchasing a Samsung product.

✻ Please read the User Manual thoroughly before operating the vacuum.

✻ For indoor use only.

12 Changing the dust bag

13 Cleaning the motor filter

14 Cleaning the exhaust filter

15 Cleaning the cyclone filter (Option)

17 Maintain floor tools

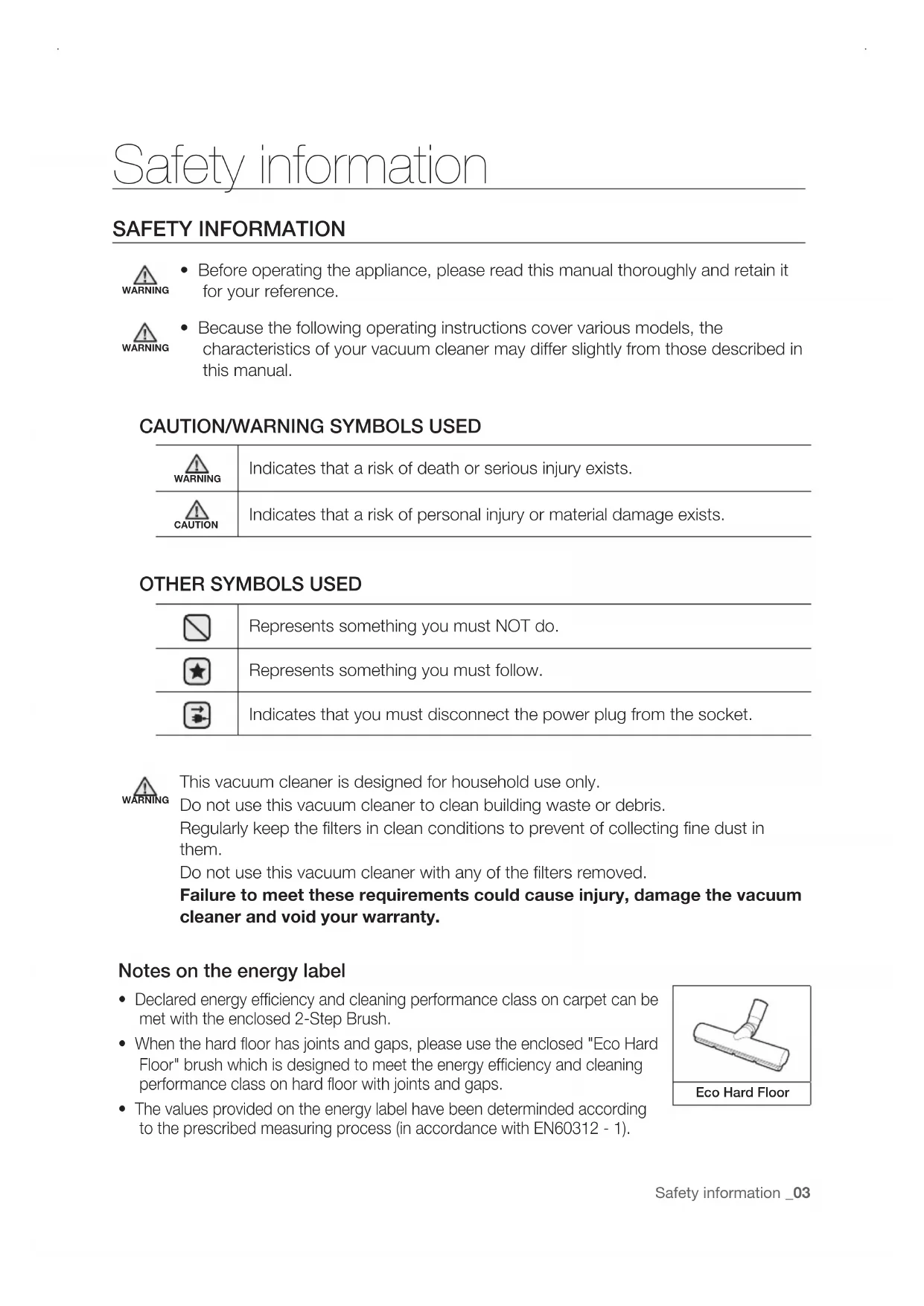

SAFETY INFORMATION WARNING • Before operating the appliance, please read this manual thoroughly and retain it

for your reference. WARNING • Because the following operating instructions cover various models, the

characteristics of your vacuum cleaner may differ slightly from those described in

CAUTION/WARNING SYMBOLS USED WARNING Indicates that a risk of death or serious injury exists. CAUTION Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED Represents something you must NOT do.

Represents something you must follow.

Indicates that you must disconnect the power plug from the socket. WARNING This vacuum cleaner is designed for household use only.

Do not use this vacuum cleaner to clean building waste or debris.

Regularly keep the filters in clean conditions to prevent of collecting fine dust in

Do not use this vacuum cleaner with any of the filters removed.

Failure to meet these requirements could cause injury, damage the vacuum

cleaner and void your warranty.

Notes on the energy label

• Declared energy efficiency and cleaning performance class on carpet can be

met with the enclosed 2-Step Brush.

• When the hard floor has joints and gaps, please use the enclosed "Eco Hard

Floor" brush which is designed to meet the energy efficiency and cleaning

performance class on hard floor with joints and gaps.

• The values provided on the energy label have been determinded according

to the prescribed measuring process (in accordance with EN60312 - 1). Eco Hard Floor DJ68-00710G-03.indb 3 2014. 8. 28. �� 6:0704_ Safety information

IMPORTANT SAFEGUARDS GENERAL

• Read all instructions carefully. Before switching on, make sure

that the voltage of your electricity supply is the same as that

indicated on the rating plate on the bottom of the cleaner.

• WARNING : Do not use the vacuum cleaner when rug or floor is

wet. Do not use to suck up water.

• Close supervision is necessary when any appliance is used by

or near children. Do not allow the vacuum cleaner to be used

as a toy. Do not allow the vacuum cleaner to run unattended at

any time. Use the vacuum cleaner only for its intended use as

described in these instructions.

• Do not use the vacuum cleaner without a dust bag.

Change the dust bag before it is full in order to maintain the best

• Do not use the vacuum cleaner to pick up matches, live ashes or

cigarette butts. Keep the vacuum cleaner away from stoves and

other heat sources. Heat can deform and discolour the plastic

• Avoid picking up hard, sharp objects with the vacuum cleaner as

they may damage the cleaner parts.

Do not stand on the hose assembly. Do not put weight on the

Do not block the suction or the exhaust port.

• Switch the vacuum cleaner off on the body of the machine

before unplugging from the electrical outlet. Disconnect the plug

from the electrical outlet before emptying the dust bin. To avoid

damage, please remove the plug by grasping the plug itself, not

by pulling on the cord.

• This appliance can be used by children aged from 8 years and

above and people with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

DJ68-00710G-03.indb 4 2014. 8. 28. �� 6:07Safety information _05

Children shall not play with the appliance. Cleaning and user

maintenance shall not be done by children without supervision.

• Children should be supervised to ensure that they do not play

• The plug must be removed from the socket outlet before

cleaning or maintaining the appliance.

• The use of an extension cord is not recommended.

• If your vacuum cleaner is not operating correctly, switch off the

power supply and consult an authorized service agent.

• If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person in

order to avoid a hazard.

• Don’t carry the vacuum cleaner by holding the hose.

Use the handle on the vacuum cleaner set.

• Unplug the cleaner when not in use.

Turn off the power switch before unplugging.

DJ68-00710G-03.indb 5 2014. 8. 28. �� 6:0706_ Your vacuum cleaner

3-in-1 accessory * Pipe *

BEFORE USING THE VACUUM CLEANER ASSEMBLY Connecting the Hose

Connecting the handle and pipe

Connecting the brush

Before using the vacuum cleaner

DJ68-00710G-03.indb 7 2014. 8. 28. �� 6:0708_ Before using the vacuum cleaner

USING ACCESSORY Accessory (Option)

Crevice tool - For cleaning in folds, crevices and corners.

Dusting brush - For cleaning moldings, carved articles. etc.

Upholstery tool - For cleaning furniture and fabric.

After using accessory, make sure to keep it at handle.

DJ68-00710G-03.indb 8 2014. 8. 28. �� 6:07Before using the vacuum cleaner _09

BEFORE USING THE VACUUM CLEANER Pipe (Option)

Adjust the length of the pipe by sliding the

length control button located in the center of

the telescopic pipe.

For storage, park the floor nozzle

POWER CORD CAUTION When removing the plug from the electrical outlet, grasp the plug,

ON/OFF CHECK FILTER If the filter check indicator turns red, check

and eliminate possible blockages in brushes,

pipe, hoses, filters and if necessary. Empty

and replace dust bag.

OPERATING CLEANER POWER CONTROL Hose

To reduce suction for leaning draperies, small

rugs, and other light fabrics, pull the tap air

until the hole is open.

To control power level, just slide the power

control right and left.

MIN = For delicate fabrics, e.g.net curtains.

MAX = For hard floors and heavily soiled

CHANGING THE DUST BAG Open the lid.

Lift out the bag holder.

After Lift up the ring to remove the bag from

the holder, Insert the cardboard of new bag to

the end of the dust bag holder.

Place the dust bag holder back into the dust

compartment and close the lid.

Please don’t place the dust bag out of dust compartment.

It will cause low suction.

You can purchase dust bags in the shops where you bought this vacuum cleaner or

your local samsung distributor.

04 MAINTENANCE CLEANING THE MOTOR FILTER Pull out the motor filter holder.

Remove the filter from the holder.

Shake the filter to clean.

Place the filter into the holder and install

DJ68-00710G-03.indb 13 2014. 8. 28. �� 6:0714_ Maintenance

CLEANING THE EXHAUST FILTER Lift out the exhaust filter.

Shake the filter to clean.

Install the exhaust filter.

• Please replace the filter 1~2 times a year.

• When suction is noticeably reduced continuously or vacuum cleaner abnormally

overheats, please clean the outlet filter.

If cleaning does not resolve the problem, please replace outlet filter.

• Replacement filters are available at your local Samsung distributor.

• Do not wash filter.

DJ68-00710G-03.indb 14 2014. 8. 28. �� 6:07Maintenance _15

04 MAINTENANCE CLEANING THE CYCLONE FILTER (Option)

Release the handle and pipe from cyclone

Rotate dust bin to counterclockwise and pull

Turn the grille and take out it.

Clean the cyclone filter body.

DJ68-00710G-03.indb 15 2014. 8. 28. �� 6:0716_ Maintenance

Clean the dust bin and grille with water.

Leave the dust bin and body in the shade

until completely dry

Take the dust bin out by lifting the handle.

Install the dust bin and turn to clockwise.

CAUTION It is necessary to use cyclone filter while cleaning.

04 MAINTENANCE MAINTAIN FLOOR TOOLS

Adjust the inlet lever according to the floor

Remove waste matter completely if the inlet

DJ68-00710G-03.indb 17 2014. 8. 28. �� 6:0718_ Maintenance

For improved pick-up of pet hair and fibre on carpets.

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters

tangled around the drum. In this case, clean the drum with care.

Turn the key to withdraw brush roll

Clean the brush roll.

Turn the key clockwise.

Parquet Master Brush (Option)

Vacuum dust in wide area at once.

Remove waste matter completely if the inlet

DJ68-00710G-03.indb 18 2014. 8. 28. �� 6:07Troubleshooting _19

PROBLEM SOLUTION Motor does not start.

gradually decreasing.

• Check for blockage and remove.

Cord does not rewind

• Please check filter and, if required, clean as illustrated in the

instructions. if filters are out of condition change them to new

• Please check filters, if required clean as illustrated in the

• Please decrease power suction.

• This can also occur when air in the room is very dry.

Please ventilate the room to air humidity become a normal.

This Vacuum cleaner is approved the following.

EMC Directive : 2004/108/EC Low Voltage Directive : 2006/95/EC DJ68-00710G-03.indb 19 2014. 8. 28. �� 6:07Product fiche

According to Commission Regulation (EU) No 665/2013 and No 666/2013

A Supplier Samsung Electronics., Co. Ltd

SC15F30WG SC15F30WH SC15F30WJ SC15F30WL SC07F30WG SC07F30WH SC07F30WJ SC07F30WL C Energy Efficiency

J Type General purpose vacuum cleaner

1) Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks.

Actual annual energy consumption will depend on how the appliance is used.

2) Measurements for power consumption and performance are based on methods in

EN 60312-1 and EN 60704.
