USER MANUAL LC46950 SIEMENS

Illustration of a kitchen air conditioner unit with ventilation grilles and a chimney (no text or symbols)

LC 46650/950/955 LC 47650/750/950

de Seite 3-13

en page 14 – 24

fr pages 25 - 35

nl pagina 36 – 46

it pagina 47 - 57

es página 58 – 68

pt página 69 - 79

SV sid 80 - 90

no side 91 - 101

fi Sivu 102 - 112

da side 113–123

Abb. 1

GAS

GAZ

KAASU

GASS

ELEKTRO

ELECTR.

ELETT.

EL.

min. 650

min. 550

Gebrauchsanleitung

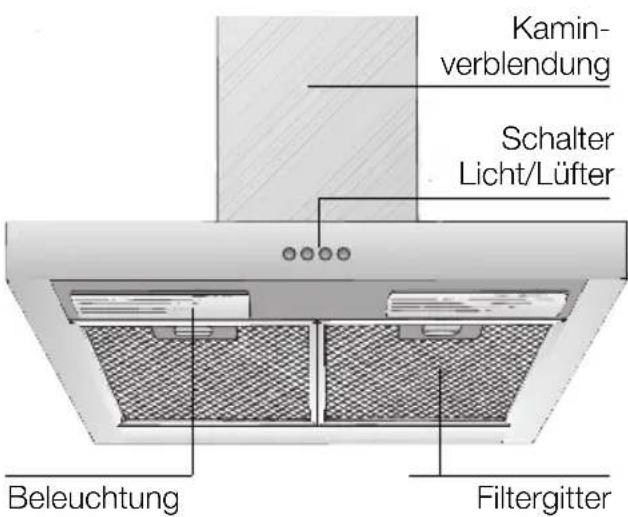

Gerätebeschreibung

Diagram showing a window with mesh patterns and two circular insets illustrating structural details (no text or symbols present)

Illustration of a hand inserting a component into a ceiling-mounted device (no text or symbols visible)

Diagram of a hand inserting a component into a ventilation duct (no text or symbols visible)

Hand inserting a card into a cabinet (no text or symbols visible)

Hand holding a tool interacting with a ceiling fixture (no text or symbols visible)

3D technical illustration of a mechanical component with a dome-shaped housing and mounting base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a meshed base with a small inset view (no text or symbols)

Diagram showing airflow or fluid flow through a stepped structure with directional arrows and labeled parameters.

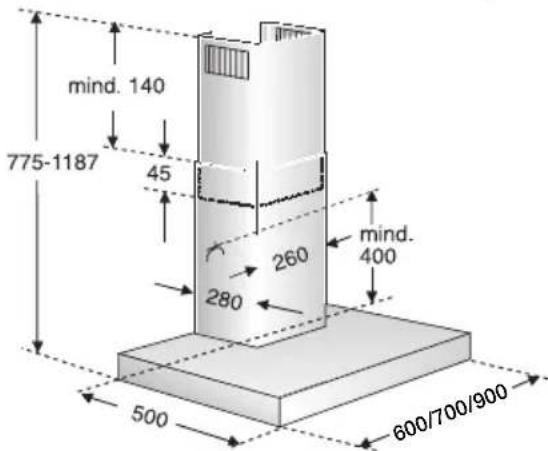

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

Technical illustration of a mechanical device with screw fasteners and a magnified inset showing a close-up of a component (no text or symbols present)

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring.

Operating Instructions

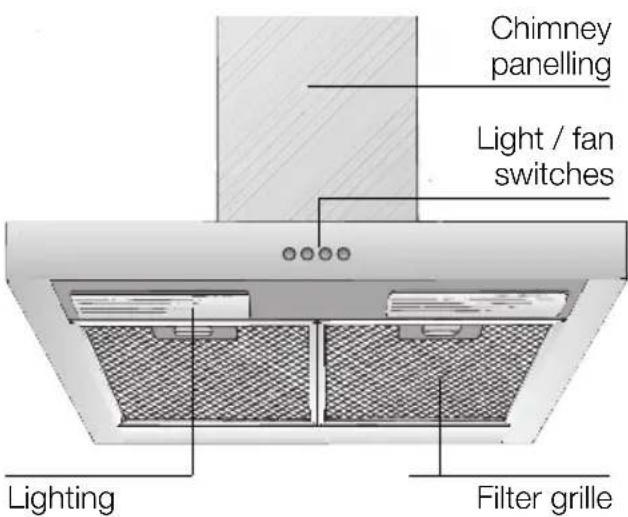

Appliance description

Chimney panelling Light / fan switches Lighting Filter grille

Operating modes

Exhaust-air mode:

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.
☐ The grease filter absorbs the solid particles in the kitchen vapours.
☐ The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

Operating modes

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

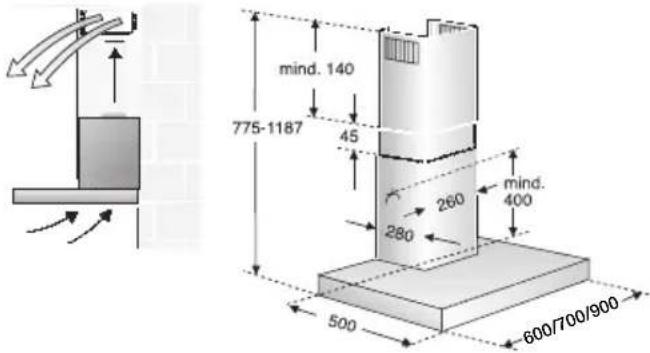

Circulating-air mode:

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).

⚠ The complete installation set and replacement filters can be obtained from specialist outlets.

The corresponding accessory numbers can be found at the end of these operating instructions.

☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.

☐ The grease filter absorbs the grease particles in the kitchen vapours.

☐ The activated carbon filter binds the odorous substances.

⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

⚠️ Do not use the appliance if damaged.
⚠ The appliance may be connected to the mains by a qualified technician only.
⚠ The appliance is not intended for use by young children or infirmed persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.
⚠ Dispose of packaging materials properly (see Installation instructions).
⚠ This extractor hood is designed for domestic use only.
Light bulbs must always be fitted when the extractor hood is in use.
⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.
⚠️ Never operate the extractor hood without a grease filter.
⚠️ Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.
⚠ Do not flambé food directly under the extractor hood.

! Risk of grease filter catching fire due to flames.

☐ Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.

⚠️ The hotplates must always be covered with a utensil.
⚠️ Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

If you encounter a problem

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

Operating procedure

⚠ The most effective method of removing vapours produced during cooking is to:

□ Switch the ventilator ON as soon as you begin cooking.

□ Switch the ventilator OFF a few minutes after you have finished cooking.

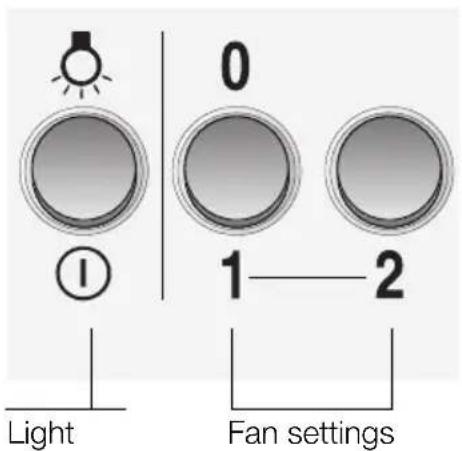

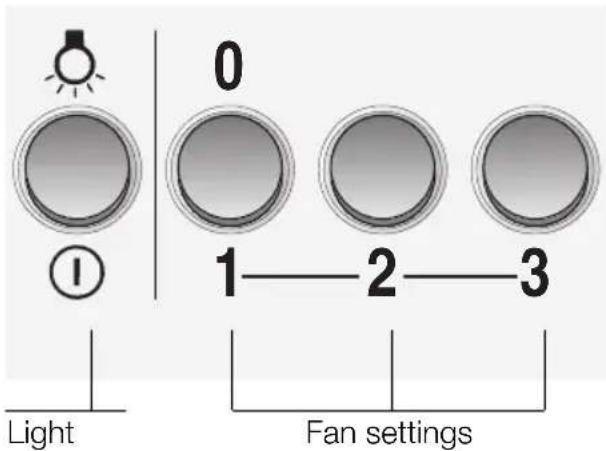

Light 0 1—2—3 Fan settings

Light 0 1—2 Fan settings

Setting the required fan speed:

□ Press the corresponding button.

Lighting:

☐ The light can be switched on at any time, even though the fan is switched off.

Filters and maintenance

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Cleaning the metal grease filters:

☐ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned after 8 to 10 weeks.

☐ The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.

☐ The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

□ When cleaning the filters by hand, soak them in hot soapy water first of all. Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

Filters and maintenance

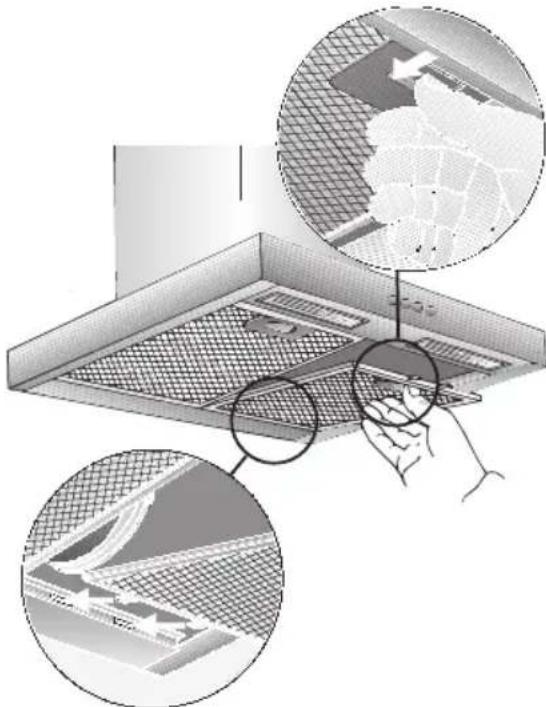

Removing and inserting the metal grease filters:

1. Press the catch on the grease filters inwards and fold the filters down.

Diagram showing a window with mesh patterns and two circular insets illustrating structural details (no text or symbols present)

1. Clean the filters.
2. Insert the clean filters back into the hood.

Activated carbon filter:

For neutralizing odours in recirculating mode.

Caution:

As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired.

Important:

Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting.

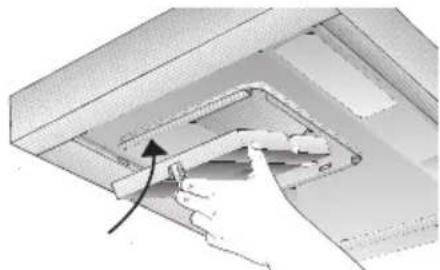

Inserting the filter:

1. Remove the metal filters (see "Removing and inserting the metal grease filters").
2. Insert the activated carbon filter.

Hand inserting a component into a ceiling fixture (no text or symbols visible)

1. Engage the lug.
2. Insert the metal grease filters (see "Removing and inserting the metal grease filters").

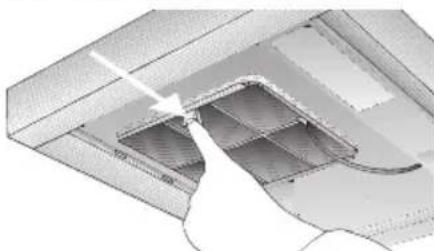

Removing the filter:

1. Remove the metal filters.
2. Press in the lug and remove the activated carbon filter.

Technical diagram of a ceiling structure with an arrow pointing to a component (no text or symbols present)

1. Insert the metal grease filters.

Replacing the activated carbon filter:

☐ During normal operation (1 to 2 hours per day) the activated carbon filters should be replaced approximately 1 x year.
☐ A replacement filter can be obtained from any authorized dealer (see optional accessories).
□ Use original filters only. By doing so you will obtain maximum performance from your extractor hood.

Disposing of the old activated carbon filter:

☐ There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse.

Cleaning and care

Disconnect the extractor hood from the electricity supply by pulling out the mains plug or switching it off at the fuse box.

☐ At the same time as you clean the grease filters, clean off any grease from all accessible parts of the housing. This significantly reduces the fire hazard and ensures that the extractor hood performs as effectively as possible.
□ Use a hot detergent solution or a mild window cleaner to clean the canopy of the extractor hood.
☐ Do not scrape off any dirt that has dried on but loosen it up with a damp cloth.
☐ Do not use abrasive cleaning agents or sponges that could cause scratches.
☐ Note: Do not use alcohol (spirit) on plastic parts, otherwise the surface may become matt in appearance.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

□ Use a mild non-abrasive stainless steel cleaner.
□ Clean the surface in the same direction as it has been ground and polished.

Do not use any of the following to clean stainless steel surfaces: abrasive sponges, cleaning agents containing sand, soda, acid or chloride!

Aluminium and plastic surfaces:

□ Use a soft, non-linting window cloth or micro-fibre cloth.
□ Do not use dry cloths.
□ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.
☐ Do not use abrasive agents.

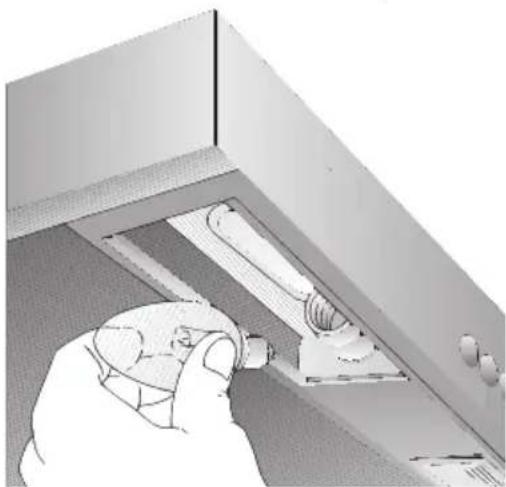

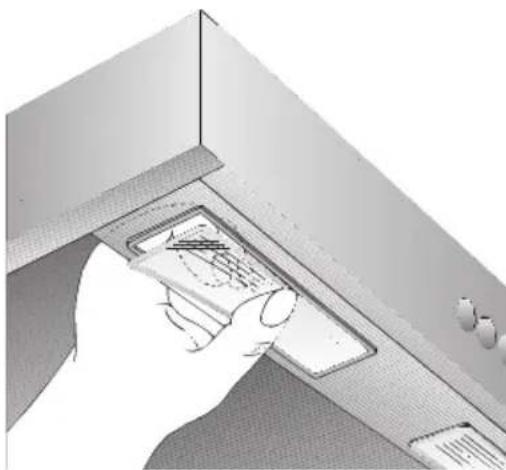

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
2. Remove the grease filters (see Filters and Maintenance).
3. Press down the bulb cover and disconnect from the light strip.

Illustration of a hand holding a small electronic device mounted on a kitchen fixture (no text or symbols visible)

1. Replace the bulb (standard filament bulb, max 40 W, E14 bulb holder).

Hand holding a tool interacting with a mounted component (no visible text or symbols)

1. Attach the lamp cover again.
2. Re-insert the grease filters.
3. Plug the appliance into the mains or switch it on at the fuse box.

Important information

⚠️ Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.

⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

⚠ The extractor hood can be used in exhaust air or circulating air mode.

⚠️ Always mount the extractor hood over the centre of the hob.

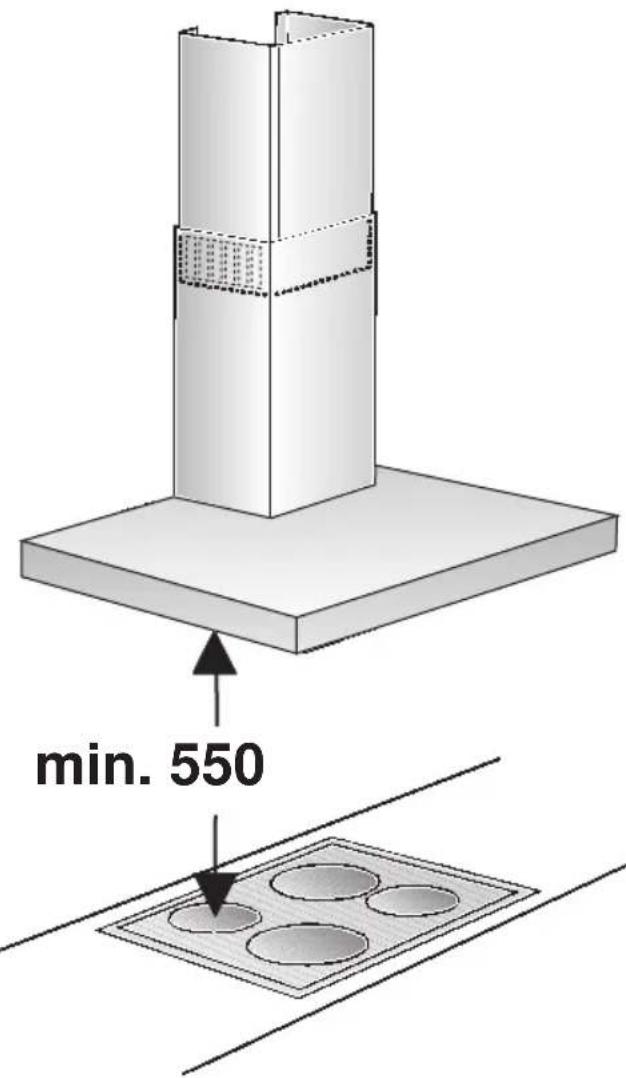

⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 550 mm, Fig. 1.

⚠ The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.

⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

⚠ When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).

⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.

⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.

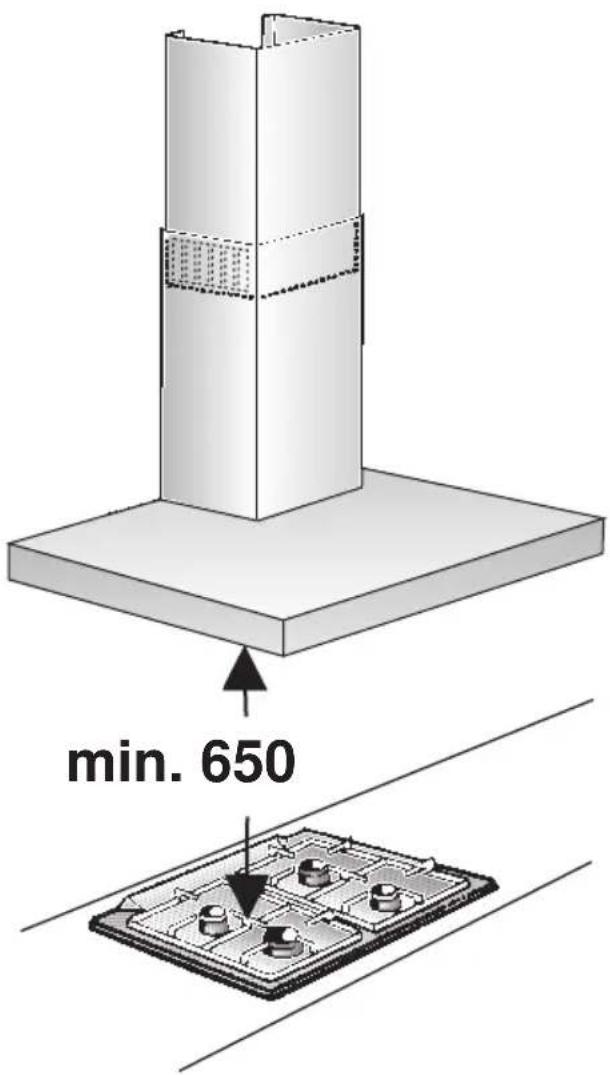

⚠️ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1.

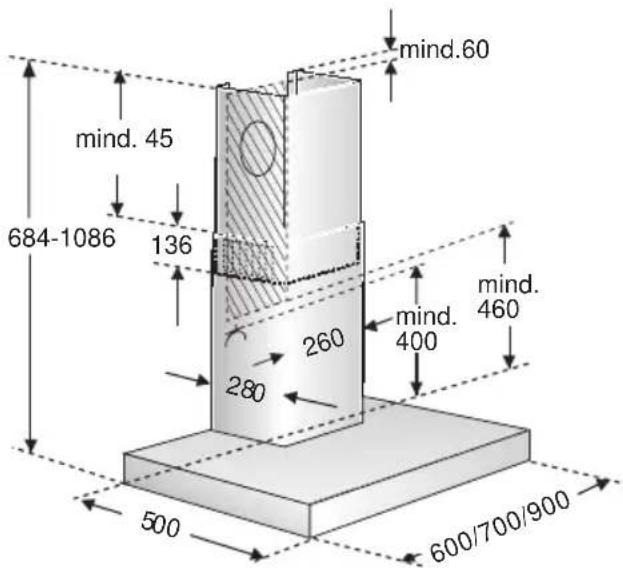

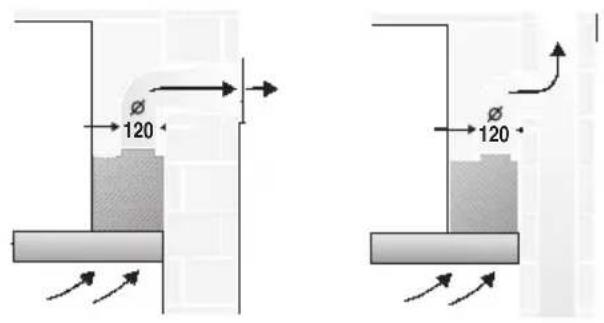

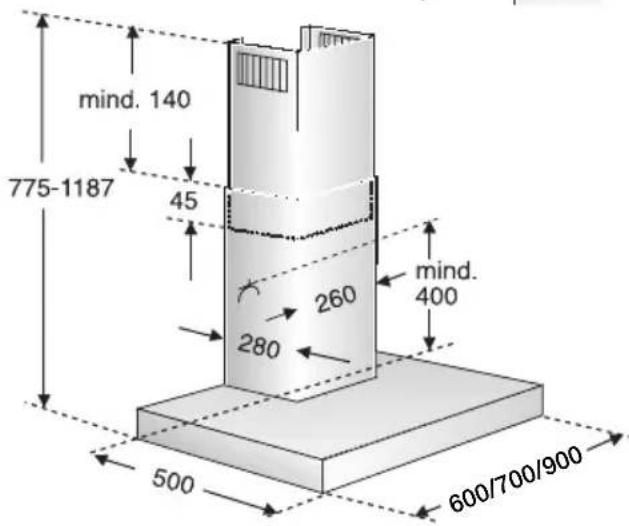

Exhaust-air mode

Ø 120 Ø 120

mind.60 mind. 45 684-1086 136 260 mind. 400 mind. 460 280 500 600/700/900

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations).

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

Prior to installation

For operating in exhaust-air mode, a one-way flap should be mounted inside the extractor hood unless there is already one fitted in the outlet duct or wall ventilation box.

If no one-way flap was enclosed with the hood, it can be obtained from a specialist retailer.

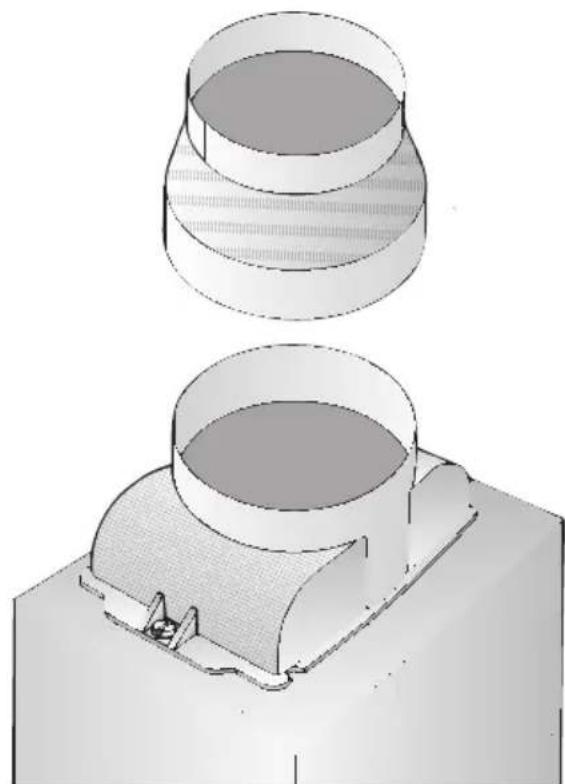

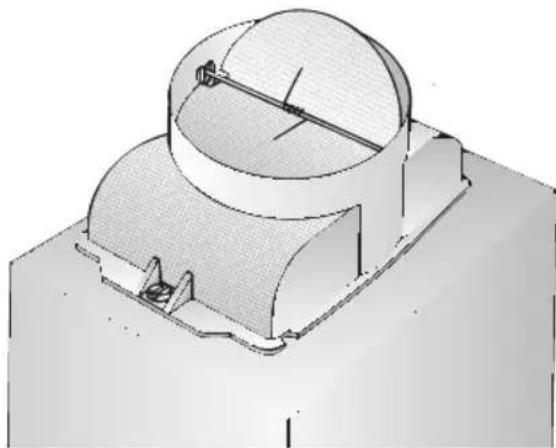

Installing the one-way flap:

□ Snap the one-way flap into the air pipe.

3D technical illustration of a mechanical component with a dome-shaped housing and mounting base (no text or symbols)

⚠ The two lightly sprung flaps must be able to move upwards.

If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

For optimum extractor hood efficiency:

☐ Short, smooth air exhaust pipe.
☐ As few bends in the pipe as possible.
☐ Diameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

□ Round pipes:

We recommend Internal diameter: 125 mm (at least 100 mm).

☐ Flat ducts must have an internal cross-section that equates to that of round pipes.

There should be no sharp bends.

∅ 100 mm approx. 78 cm

∅ 125 mm approx. 113 cm

☐ If pipes have different diameters: Insert sealing strip.
☐ For exhaust-air mode, ensure that there is an adequate supply of fresh air.

Connecting a 125 mm exhaust-air pipe:

□ Mount the pipe directly onto the air outlet on the hood.

Connecting a 100 mm exhaust-air pipe:

□ Attach the reducing connector (enclosed or available from specialist retailer) to the air pipe and then attach to the exhaust-air duct.

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a flanged base with a small hole (no text or symbols)

Prior to installation

Circulating-air mode

□ With activated carbon filter if exhaust-air mode is not possible.

mind. 140 775-1187 45 260 mind. 400 280 500 600/700/900

⚠ The complete installation set can be obtained from specialist outlets. The corresponding accessory numbers can be found at the end of these operating instructions.

Preparing the wall

☐ The wall must be flat and perpendicular.

☐ Ensure that the wall is capable of providing a firm hold for mounting screws and plugs.

Weight in kg:

	Exhaust air	Recirculating air
	15,060 cm	17,0
70 cm	16,0 18,0
90 cm	17,5 19,5

We reserve the right to construction changes within the context of technical development.

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow – Earth Blue – Neutral Brown – Live

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

Electrical connection

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (≡), or coloured green or green and yellow.

2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.

3. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations.

If possible, site the earthed socket directly behind the chimney panelling.

Electrical data:

Are to be found on the name plate inside the appliance after removal of the filter frame.

⚠️ Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m. If it is necessary to wire the extractor hood directly into the mains:

The extractor hood should only be connected to the electricity supply by a properly qualified electrician.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

This extractor hood corresponds to EC regulations concerning RF interference suppression.

Installation

This extractor hood is intended to be mounted onto the kitchen wall.

1. Remove the grease filter (refer to Operating Instructions).

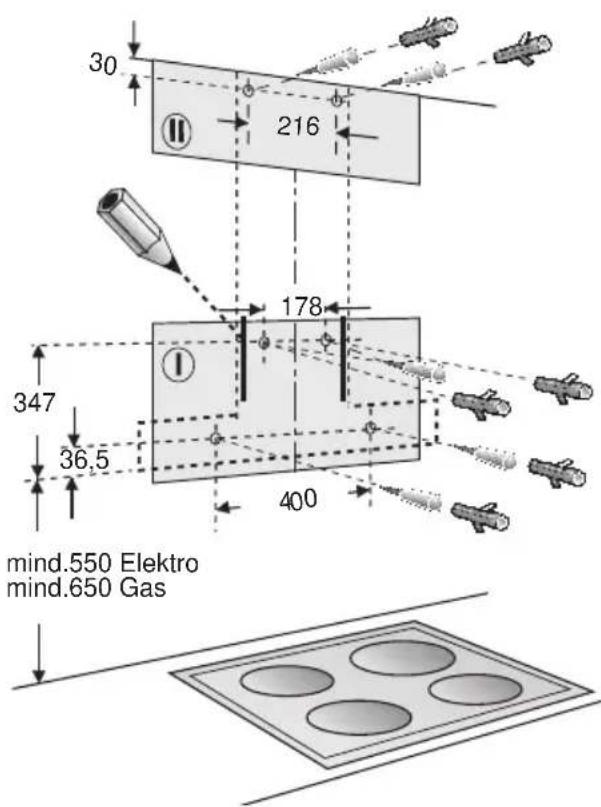

2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted.
3. Using the template, mark positions on the wall for the screws.

⚠ Ensure that the minimum distance between the hob and the extractor hood is maintained – 550 mm for an electric hob and 650 mm for a gas hob. The bottom edge of the template equates to the lower edge of the extractor hood.

1. Drill 4 x ∅ 8 mm holes for the extractor hood and 2 x ∅ 8 mm holes for the chimney panelling. Insert plugs into the holes so that they are flush with the wall.

30 216 178 347 36.5 400 mind.550 Elektro mind.650 Gas

Note: Take into account any special accessories that are going to be fitted.

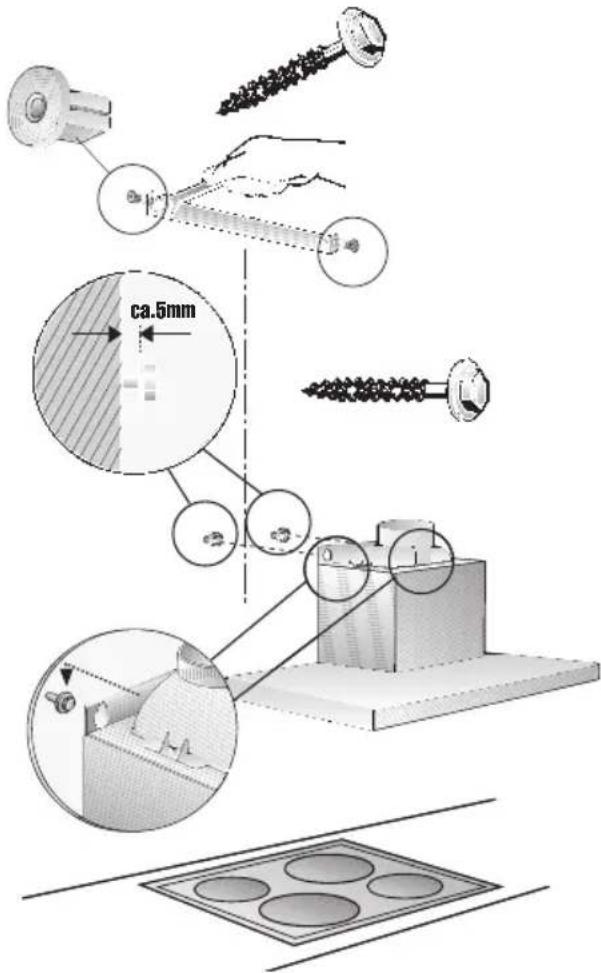

1. Attach the 2 enclosed spacers to the fixing bracket for the flue duct panelling. Attach the fixing bracket for the chimney panelling using two hexagon head cap screws.
2. Screw in the two upper hexagon head cap screws leaving them extended by approx. 5 mm.
3. Attach the extractor hood to the screws.

ca.5mm

Installation

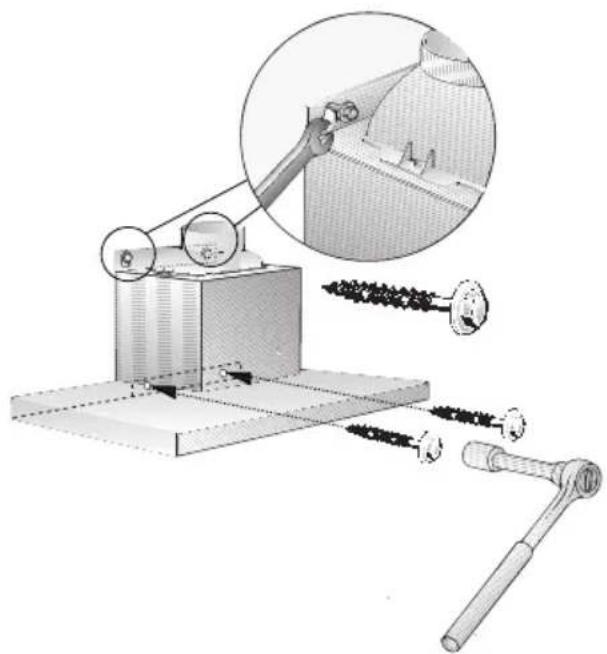

1. Screw in the two lower hexagon head cap screws.

⚠️ Before the 4 screws are tightened down, align the extractor hood properly.

Technical illustration of a mechanical device with screw fasteners and a magnified inset showing a close-up of a component (no text or symbols present)

1. Connect up the air outlet pipe.

2. Connect the hood to the electricity supply.

3. Remove the protective film from the two flue ducts.

⚠️ Take care not to damage the stainless steel surfaces which are susceptible to scratches etc.

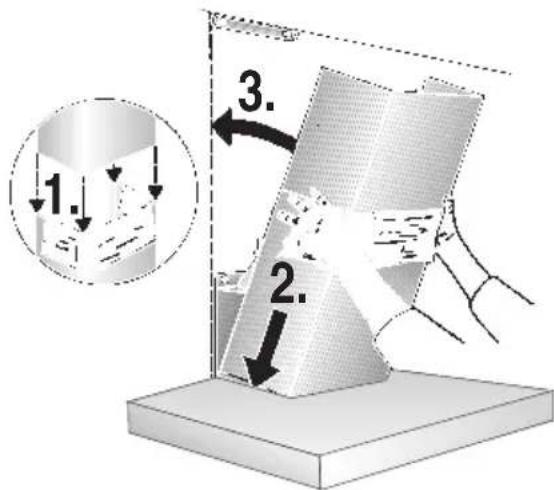

1. Push both sections of the flue panelling together (slots in the upper section must be pointing downwards) and insert into the opening in the extractor hood.

⚠️ Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.

1. 2. 3.

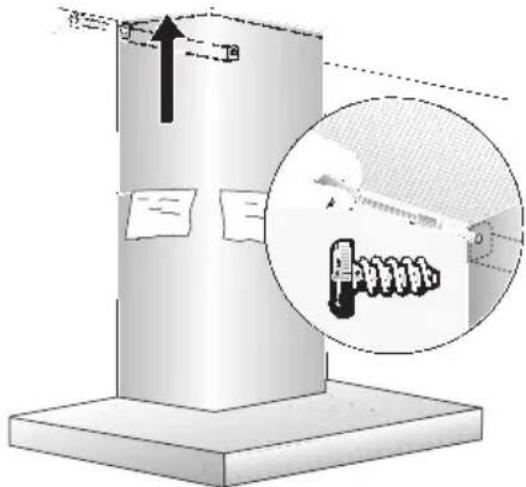

1. Slide out the upper section and attach it to the mounting brackets at the sides with two screws.

Diagram illustrating a mechanical or electrical component with labeled parts and an inset magnified view showing a device.

1. Insert the grease filter (refer to Operating Instructions).

Mode d'emploi

Diagram showing a window with mesh patterns and two circular insets illustrating structural details (no text or symbols present)

Technical diagram of a ceiling fixture with a hand inserting a component (no text or symbols visible)

Hand inserting a component into a ceiling-mounted panel (no text or symbols visible)

Hand inserting a card into a door panel (no text or symbols visible)

Hand holding a tool interacting with a ceiling fixture (no text or symbols visible)

3D technical illustration of a mechanical component with layered structure and mounting base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a flanged base with a handle (no text or symbols)

Avant le montage

Mode Air recyclé

Diagram showing airflow or fluid flow through a stepped structure with directional arrows and labeled parameters.

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

ca.5mm 0 i-

Encastrement

Mechanical device with screw and pulley assembly, magnified inset showing detail of a mechanical component (no text or symbols)

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device.

Diagram of a kitchen ventilation system with hand holding a grid-patterned panel and two circular insets showing structural details (no text or symbols present)

Illustration of a hand inserting a component into a ceiling fixture (no text or symbols visible)

Diagram of a hand inserting a component into a grid-like structure (no text or symbols visible)

Illustration of a hand holding a smartphone with a screen, placed inside a kitchen appliance (no text or symbols visible)

Hand holding a tool interacting with a mounted fixture (no visible text or symbols)

3D technical illustration of a mechanical component with a dome-shaped housing and mounting base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a flanged base with a small protrusion (no text or symbols)

Voor de montage

Diagram showing airflow or fluid flow through a stepped structure with directional arrows and labeled parameters.

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

Technical illustration of a mechanical testing setup with tool, screwdriver, and clamping mechanism (no text or symbols)

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a handle.

Diagram of a kitchen ventilation system with hand holding a grid-patterned panel and close-up insets showing structural details (no text or symbols)

Hand inserting a component into a ceiling fixture (no text or symbols visible)

Diagram of a hand inserting a component into a ceiling panel (no text or symbols visible)

Illustration of a hand holding a small electronic device mounted on a cabinet (no text or symbols visible)

Hand installing or adjusting a ceiling light fixture mounted on a cabinet (no text or symbols visible)

3D technical illustration of a mechanical component with a dome-shaped housing and mounting base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a flanged base with a small protrusion (no text or symbols)

Prima del montaggio

Diagram showing airflow or fluid flow through a stepped structure with directional arrows and labeled parameters.

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

Technical illustration of a mechanical device with labeled parts and a magnified inset showing a close-up of a component (no text or symbols present)

Diagram illustrating a mechanical or electrical device with labeled parts and an inset magnified view showing a device with a spring-like component.

Illustration of a kitchen fan with mesh patterns and magnified views showing structural details (no text or symbols)

Technical diagram of a ceiling structure with an arrow indicating direction (no text or symbols present)

Close-up of a ceiling grating with a lightning bolt indicating a point of interest (no text or symbols visible)

Illustration of a hand inserting a device into a kitchen appliance (no text or symbols visible)

Hand holding a tool interacting with a mounted fixture (no visible text or symbols)

3D technical illustration of a mechanical component with a dome-like top and flange base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a flanged base with mesh texture (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols present)

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

ca.5mm 0 1

Montaje

Mechanical assembly diagram showing a tool interacting with a spring and screwdriver, with an inset close-up of the component (no text or symbols present)

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a handle.

Hand inserting a component into a ceiling fixture, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a ceiling structure with an arrow pointing to a component, no visible text or symbols

1. Montar os filtros de gordura.

Illustration of a hand opening a door with a mounted device (no text or symbols visible)

Hand inserting a bulb into a cabinet (no text or symbols visible)

3D technical illustration of a mechanical component with layered structure and mounting base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a flanged base with a small protrusion (no text or symbols)

Antes da Montagem

Diagram showing airflow or fluid flow through a stepped structure with directional arrows and labeled parameters.

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

	Saída de ar	Circulação de ar
	15,060 cm	17,0
70 cm	16,0 18,0
90 cm	7,5 19,5

Mechanical assembly diagram showing a tool interacting with a base, with magnified detail of a component (no text or symbols visible)

Diagram illustrating a mechanical or electrical component with labeled parts and an inset magnified view showing a device with a spring.

Diagram showing structural components of a roof eave with magnified views of grid and window details (no text or symbols)

Hand inserting a component into a ceiling fixture (no text or symbols visible)

Technical diagram of a mechanical component with a hand pointing to a section (no text or symbols visible)

Illustration of a hand opening a door with a mounted device (no text or symbols visible)

Hand holding a tool interacting with a ceiling-mounted fixture (no text or symbols visible)

3D technical illustration of a mechanical component with a dome-shaped top and base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a meshed base with a small protrusion (no text or symbols)

Före monteringen

Kolfilter

Diagram showing airflow or particle movement between two layered structures with directional arrows (no text or symbols)

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

Technical illustration of a mechanical assembly with screws and a magnified inset showing a close-up of a component (no text or symbols present)

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring-like component.

Architectural diagram showing structural components with magnified views of grid and roof details (no text or symbols)

Hand inserting a component into a ceiling fixture (no text or symbols visible)

Diagram of a hand inserting a component into a device housing (no text or symbols visible)

Illustration of a hand opening a door with a mounted device (no text or symbols visible)

Hand inserting a component into a cabinet (no text or symbols visible)

3D technical illustration of a mechanical component with a dome-shaped housing and mounting base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a flanged base with a small inset detail (no text or symbols)

Før montasjen

Resirkulasjonsdrift

Diagram showing airflow or fluid flow between two rectangular blocks with directional arrows, no text or symbols present.

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

⚠️ Det komplette monteringssettet fåes i faghandelen.

ca.5mm 0 i-1

Montasje

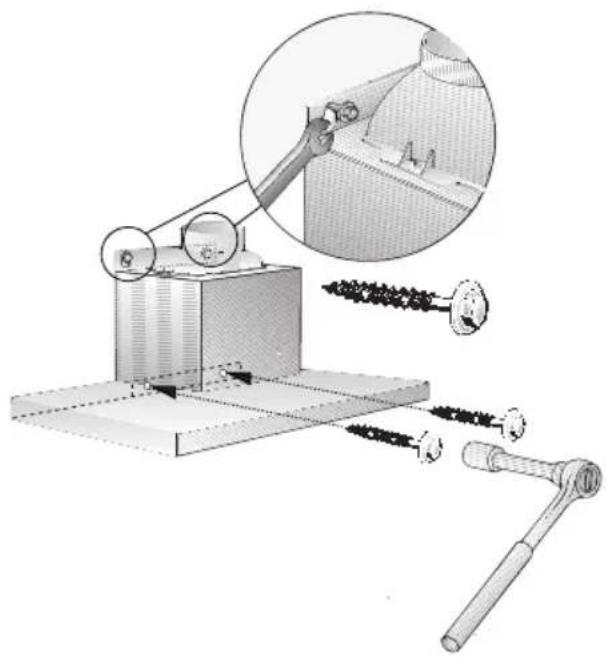

1. Skru inn de to underste sekskantskruene.

⚠️ Før de 4 skruene skrus fast må damphetten rettes på plass.

Technical illustration of a mechanical device with labeled parts and an inset showing a close-up of a component (no text or symbols present)

1. Legg opp rørforbindelsen.

2. Foreta den elektriske tilkoplingen.

3. Trekk av beskyttelsesfolien på begge sider av pipeblenden.

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring-like component.

Diagram showing a kitchen ventilation system with close-up views of the roof and window (no text or symbols present)

Hand inserting a component into a ceiling fixture (no text or symbols visible)

Illustration of a hand inserting a component into a ventilation duct (no text or symbols)

Illustration of a hand opening a door with a paper clip, showing interior lighting and ventilation (no text or symbols)

Hand inserting a component into a wall-mounted device (no text or symbols visible)

3D technical illustration of a mechanical component with layered structure and mounting base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a flanged base with a small protrusion (no text or symbols)

Ennen asennusta

Diagram showing airflow or fluid flow through a stepped structure with directional arrows and labeled parameters.

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

Diagram of a tray with four circular indentations and an arrow pointing downward (no text or symbols)

Mechanical assembly diagram showing a tool holder with screw fasteners and a magnified inset of a mechanical component (no text or symbols)

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device interacting with a wall.

Architectural diagram showing structural components with magnified views of a roof and window (no text or labels)

Illustration of a hand inserting a component into a ceiling fixture (no text or symbols visible)

Diagram of a hand inserting a component into a ventilation duct (no text or symbols visible)

1. Sæt fedtfiltrene ind.

Illustration of a hand opening a ceiling-mounted door with a mounted device (no text or symbols visible)

Hand inserting a component into a cabinet or fixture (no text or symbols visible)

3D technical illustration of a mechanical component with layered structure and mounting base (no text or symbols)

Technical illustration of a mechanical component with two views: top shows a cylindrical housing, bottom shows a meshed base with a small protrusion (no text or symbols)

Inden monteringen

Luftcirkulation

Diagram showing airflow or fluid flow between two rectangular blocks with directional arrows, no text or symbols present.

mind. 140 775-1187 45 260 280 mind. 400 500 600/700/900

Technical illustration of a mechanical device with a magnified inset showing a close-up of a component (no text or symbols present)

Diagram illustrating a mechanical or electrical setup with labeled components and an inset magnified view showing a device with a spring.

Family Line 018 0 5-2223

€ 0,12/min. DTAG

Siemens-Hausgeräte
