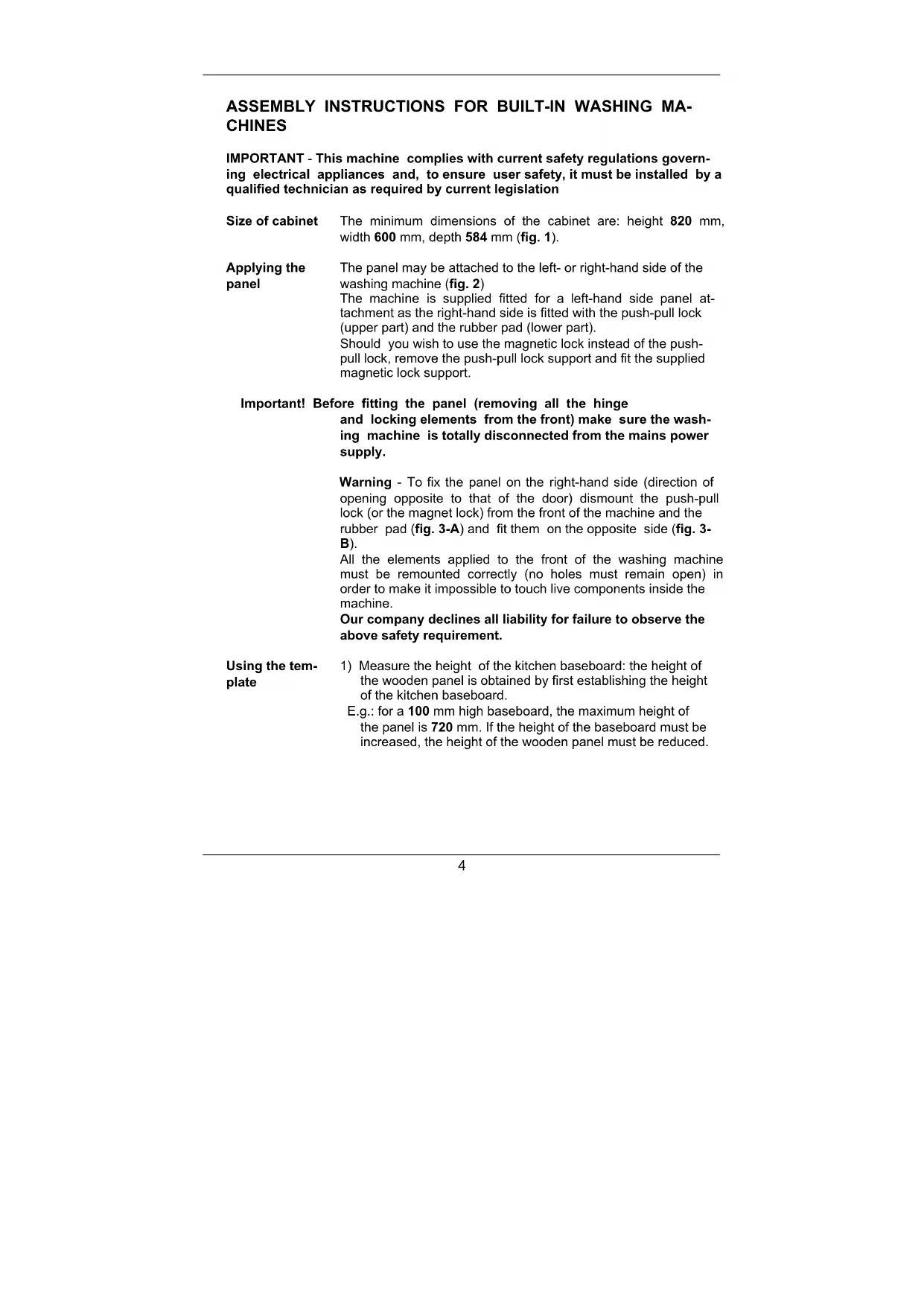

ASSEMBLY INSTRUCTIONS FOR BUILT-IN WASHING MA-

CHINES IMPORTANT - This machine complies with current safety regulations govern-

ing electrical appliances and, to ensure user safety, it must be installed by a

qualified technician as required by current legislation

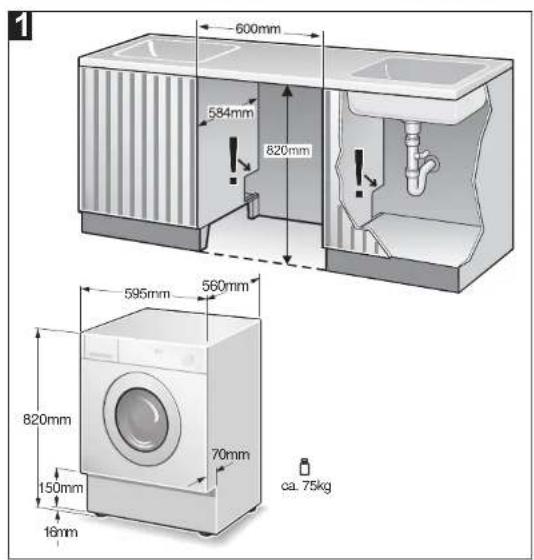

The minimum dimensions of the cabinet are: height 820 mm,

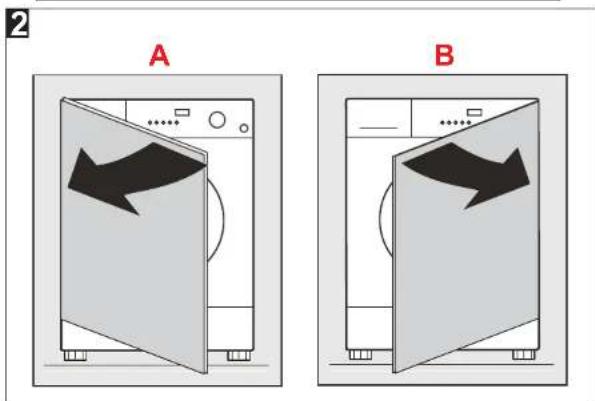

The panel may be attached to the left- or right-hand side of the

washing machine (fig. 2)

The machine is supplied fitted for a left-hand side panel at-

tachment as the right-hand side is fitted with the push-pull lock

(upper part) and the rubber pad (lower part).

Should you wish to use the magnetic lock instead of the push-

pull lock, remove the push-pull lock support and fit the supplied

magnetic lock support.

Important! Before fitting the panel (removing all the hinge

and locking elements from the front) make sure the wash-

ing machine is totally disconnected from the mains power

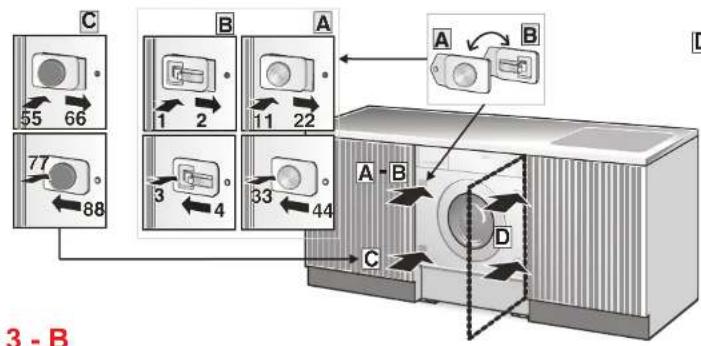

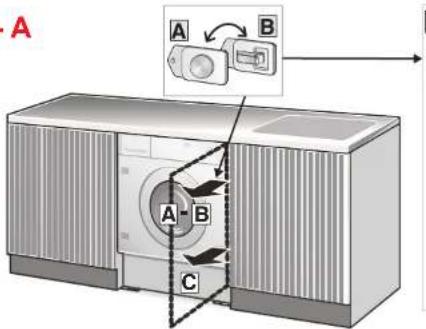

Warning - To fix the panel on the right-hand side (direction of

opening opposite to that of the door) dismount the push-pull

lock (or the magnet lock) from the front of the machine and the

rubber pad (fig. 3-A) and fit them on the opposite side (fig. 3-

All the elements applied to the front of the washing machine

must be remounted correctly (no holes must remain open) in

order to make it impossible to touch live components inside the

Our company declines all liability for failure to observe the

above safety requirement.

1) Measure the height of the kitchen baseboard: the height of

the wooden panel is obtained by first establishing the height

of the kitchen baseboard.

E.g.: for a 100 mm high baseboard, the maximum height of

the panel is 720 mm. If the height of the baseboard must be

increased, the height of the wooden panel must be reduced.5

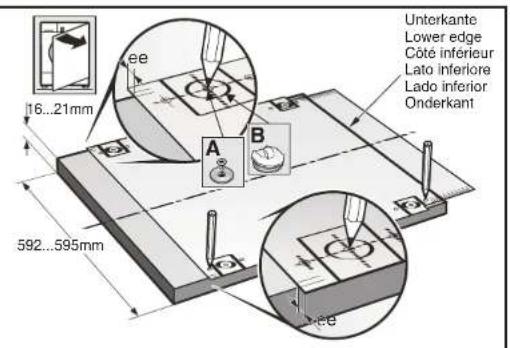

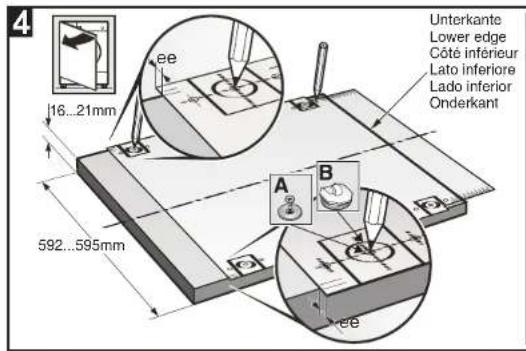

Place the template of the inner side of the panel and match the

height of the baseboard with the lower edge of the panel (fig. 4)

using the graduated scale. Make sure the template is horizon-

tally centred with reference to the vertical lines marked at the

After placing the template in the correct position, trace the posi-

tions of the following holes, pushing in with the tip of your pen-

• holes for the hinges and hinge screws (fig. 4)

holes for fixing the metal plate (if the magnetic lock is

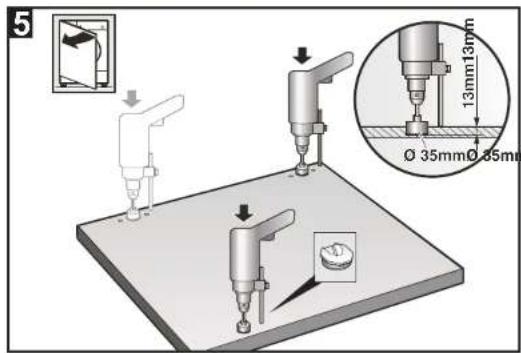

1) Drill the holes for the hinges (fig. 5), the hook for the push-

pull lock (fig. 5), or the metal plate if you decide to use the

magnetic lock (fig. 6), and the holes for fixing the hinges

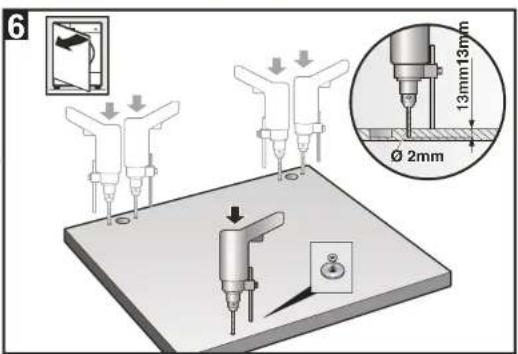

2) The 13 mm depth of the 2 mm holes, for fixing the hinges

and a metal plate for the magnet lock, only applies to the

solid wood panel. For the chipboard panel, simply drill the

upper coating – fig. 6.

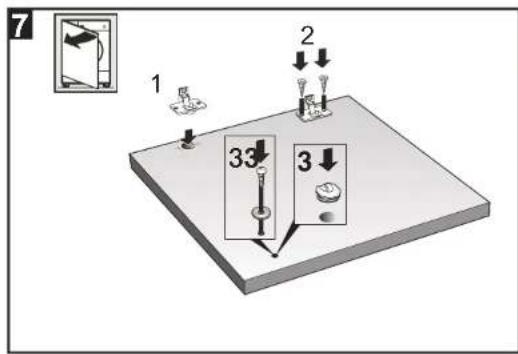

3) Screw the two hinges to the panel (fig. 7)

4) Mount the hook for the push-pull lock or the metal plate for

the magnet lock on the side opposite the hinges (fig. 7).

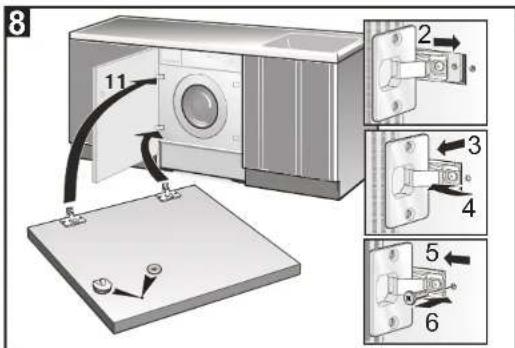

5) Fix the panel to the washing machine following the instruc-

tions shown in fig. 8.

If, after applying the panel to the washing machine, it is slightly

inclined or off-centre with respect to the front of the machine,

correct its position by adjusting the mobile part of the hinges

Position the washing machine in the cabinet and, if necessary,

adjust the feet to level it and lock them with the relative locknut.

To prevent the vibrations generated by the washing machine

from being transmitted to the cabinet, make sure the sides and

top do not touch the cabinet. There must be a gap of at least

2 mm. The back of the machine must also remain detached

from the rear panel.

If the cabinet is 870 mm high, the washing machine height-

ening kit on sale from the Spare Parts Service, must be

To comply with safety legislation, any gaps between the floor

and the bottom of the baseplate and between the floor and the

sides of the machine when it is positioned at the end of a line of

furniture must be completely closed.

The cover must be installed in such a way as to make it

impossible to touch live components and a tool must be6

required to remove it.

Our company declines all liability for failure to observe the

above safety requirement.

It must be possible to remove the continuous kitchen baseboard

to allow the drain pump to be cleaned if necessary.

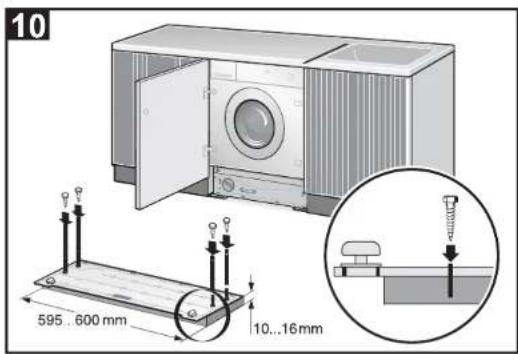

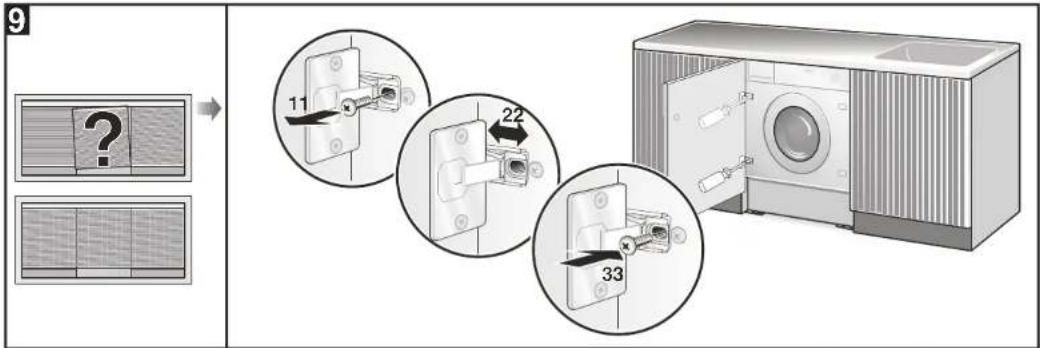

In some cases, the baseboard is not continuous but limited to

the width of the washing machine. In this case, the kitchen

baseboard can be fixed to the washing machine baseboard with

4 screws, respecting the 4 reference marks (see fig. 9-10-11).

When applying the kitchen baseboard, the washing ma-

chine baseboard may not be removed or adapted as, for

reasons of safety, it must remain as it is, in one piece and

fixed to the washing machine.ca. 75kg 70mm 820mm 16mm 560mm595mm150mm 70mm 820mm !
