USER MANUAL CDR4550URD ROADSTAR

Roadstar Management SA, via Passeggiata 7, CH 6883 Novazzano (Switzerland)

Roadstar AUDIO VIDEO

Is a registered Trademark of Roadstar S.A. - Switzerland All rights reserved

INDEX

English	Page	1
Deutsch	Seite	9
Français	Page	17
Italiano	Pagina	25
Español	Página	33
Portuguès	Pagina	41

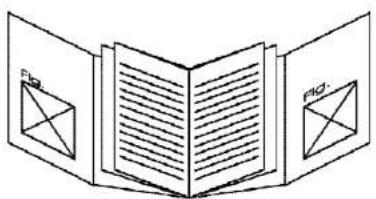

Diagram of a folded paper or document with two labeled sections (no text or symbols present)

- Your new unit was manufactured and assembled under strict ROADSTAR quality control. Thank-you for purchasing our product for your music enjoyment. Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

Invisible laser radiation when the unit is opened or interlocks defeated. Avoid exposure to laser beam. Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

This unit operates on 230V \~ 50Hz. If the unit is not used for a long period of time, remove the plug from the AC mains.

This unit must not be exposed to moisture or rain.

Ensure all connections are properly made before operating the unit.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Make sure all batteries are inserted according to the proper polarity. Do not mix old batteries with new ones.

If the unit is not used for a long period of time (more than 1 month), remove all batteries from their compartment to avoid possible leaking.

Playability of self-made CDs on Roadstar CD drive mechanisms.

CD-R/CD-RW in CD-DA and in MP3 format can be played back. However it can occur, due to differences in the quality of the media as well as the characteristics of the recording, that individual self-made CDs cannot be read. This does not indicate an incorrect function of the playback unit in these cases.

2

CDR-4550U

Portable Stereo Radio with CD/CD-R/CD-RW/MP3 player and USB Port.

INSTRUCTION MANUAL

Please read this instruction manual carefully and familiarize yourself with your new Radio/CD/USB Player before using it for the first time. Please retain this manual for future reference.

LOCATION OF CONTROLS

1 Speakers
2 CD Program / P-Mode Button
3 CD Stop Button
4 Function Switch (RADIO/OFF/CD/MP3/USB)
5 LCD Display
6 CD Play/Pause/USB Button
7 FM Antenna (wire)
8 CD Open / Close corner
9 CD Compartment
10 Handle
11 Volume Control
12 Battery Compartment
13 CD BACKSkip/Search Button (◀)
14 CD NEXT Skip/Search Button (▶)
15 CD FOLDER Button
16 USB Port
17 Band Switch (AM/FM)
18 Dial Scale
19 Tuning Control
20 AC Socket

English En

sb

CONNECTING TO POWER

Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

For your own safety read the following instructions carefully before attempting to connect this unit to the mains.

This unit is designed to operate on AC 230V 50Hz current only. Connecting it to other power sources may damage the unit.

Caution

To prevent electric shock disconnect from the mains before removing cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

Safety Precaution

Do not allow this unit to be exposed to rain or moisture.

Mains Supply: AC230Volts / 50Hz - AC only

This symbol means that this unit is double insulated. An earth connection is not required.

POWER SUPPLY

• Remove the stereo carefully from the box, retaining the packaging for future use.
• Please read this instruction book carefully before operating this unit.

AC Power Operation

- Plug the supplied AC power cord into the AC power socket on the back of this portable stereo. Connect the AC Power Cord to your AC household mains outlet and switch on the mains supply. Make sure the voltage is compatible.

Battery Operation

• Remove mains lead from the unit for battery operation.
• Open the Battery Compartment (12) at the back of the stereo and insert 6 UM-2 batteries following the polarity diagram shown inside the battery compartment.
• Batteries should be removed from the compartment if the unit is not to be used for some time.
• Flat batteries should be removed from the unit to avoid leakage.

4

RADIO OPERATION

1. Set the Function Selector (4) to the RADIO position.
2. Select the desired frequency band with the Band Selector (17).
3. Tune to the desired radio station by turning the Tuning control (19).
4. Adjust the Volume (11) control to the desired level.
5. To turn off the radio, set the Function Selector (4) to the OFF position.

Antenna

For FM reception there is a built-in wired FM antenna (7) at the rear of the unit. Extend the antenna and move it around to obtain the best reception.

For MW reception the signals are picked up through a built-in ferrite antenna. Your may have to orient the unit to obtain the best reception.

VERY IMPORTANT: This unit has a built-in circuit to switch OFF automatically the unit after 10 minutes that NO Audio is played from CD or USB.

- To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges.

Line drawing showing two hands holding circular objects with a downward arrow, no text or symbols present

• Fingerprints and dust should be carefully wiped off the disc's recorded surface with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and microscopic debris so gently wiping with a soft cloth should remove most particles. Wipe in a straight line from the inside to the outside of the disc. Small dust particles and light stains will have absolutely no effect on reproduction quality.
• Never use chemicals such as record sprays, antistatic sprays, benzine, or thinners to

English En

s5

clean compact discs. These chemicals can irreparably damage the disc's surface.

• Discs should be returned to their cases after use. This avoids serious scratches that could cause the Laser pickup to skip.
• Do not expose discs to direct sunlight, high humidity, or high temperatures for extended periods. Long exposure to high temperatures can warp the disc.
• Do not stick paper or write anything with a ballpoint pen on the label side of the disc.

CD/MP3/USB PLAYBACK

Loading and Unloading Compact Discs

1. Set the Function Selector (4) to the CD/MP3/USB Position.
2. Open the disc compartment by lifting the CD OPEN corner (8).
3. When the door has opened, remove a disc from its case and place it carefully in the compartment with the label side facing up. Locate 3" discs, on the central spindle in the compartment.
4. Close the door by pressing on the corner of the CD door.

The total number of tracks appears on the display. Press PLAY/PAUSE/ Button (▶ II) (6) During playback, the actual track appears.

1. Adjust the VOLUME control to your desired listening level.

2. To stop playback temporarily, press the PLAY/PAUSE (▶ II) button (6) once. The Play indicator will flash on the display. Press the PLAY/PAUSE (▶ II) button again to resume playback.

3. To stop playback, press the STOP (■) (3) button once.

4. To switch OFF the unit select OFF with the Function Selector (4).

Notes:

• When the CD door is accidentally opened during playback, "OP" will appear on the display.
• Wait until the disc is fully stopped before opening the CD (9) compartment.
• This unit can play 3" (8cm) single CDs without an adaptor.

Loading MP3 files from a USB memory Stick

1. Set the function switch to CD/MP3/USB.
2. Press the PLAY/PAUSE/USB button (6) until 'USB' is shown on the display.
3. Connect the MP3 player to the USB port (16) to switch it on.
4. Once playing, the USB MP3 track can be selected in the same way as the CD tracks.

6

FOLDER FUNCTION IN MP3 MODE

1. Press and hold 2 seconds the FOLDER button (15) to select the desired ALBUM number.

LOCATING APARTICULAR TRACK OR POINT OF THE TRACK

1. Press the SKIP DN (◀)(13) button once to go back to the beginning of the current track.
2. Press the SKIP DN button repeatedly to go back to previous tracks.
3. Press the SKIP UP (▶)(14) button repeatedly to go to next tracks.
4. Press and hold either SKIP UP or SKIP DN button to search backwards or forwards, at high speed, a particular point of track.
   Note: Low level audio will be heard during the search process to assist in locating the correct point in the track.

REPEAT PLAYBACK WITH AUDIO CD

1. Press the PLAY/PAUSE button (6).
2. To repeat the same track, press the PROGRAM/P-MODE button (2) once. The indicator <>' will flash on the display.
   The CD will start single repeat playback until STOP button (3) is pressed. Press the PROGRAM/P-MODE button button 4 times more to cancel single repeat. The indicator disappears from the display.
3. To repeat the entire disc, press the PROGRAM/ P-MODE button twice. <> will appear on the display.
   Press the PROGRAM/ P-MODE button button 3 times more to cancel all disc repeat. The indicator <> disappears from the display.

REPEAT PLAYBACK WITH CD/MP3

1. Press the PLAY/PAUSE button (6).
2. To repeat the same track, press the PROGRAM/P-MODE button (2) once. The indicator will flash on the display.
   The CD will start single repeat playback until STOP button (3) is pressed. Press the PROGRAM/P-MODE button button 4 times more to cancel single repeat. The indicator

English En

sR

disappears from the display.

1. To repeat the FOLDER (ALBUM), press the PROGRAM/ P-MODE button 2 times.

FOLDER will appear on the display.

Press the P-MODE button 3 times more to cancel FOLDER repeat. The indicator FOLDER disappears from the display.

1. To repeat the entire disc, press the PROGRAM/ P-MODE button 3 times will appear on the display.

Press the PROGRAM/ P-MODE button button 2 times more to cancel all disc repeat.

The indicator <> disappears from the display.

PROGRAMMED PLAYBACK FOR CD/USB

IN CD/USB

1. Press the PLAY/PAUSE button (6) and after 5 seconds the STOP button (3).
2. Press the PROGRAM/P-MODE button (2). The track number "P-01" will appear and "PROG" will appear on the display indicating the first selection.
3. Press SKIP DN (◀) or SKIP UP (▶) button to select the desired track to be programmed. The track number which will be programmed will appears on the display.
4. Press once the PROGRAM/P-MODE button to enter the track into memory. "P-02" will appear.
5. Repeat the steps 3 and 4 to program up to 20 tracks in CD or 99 tracks in MP3.
6. Press PLAY/PAUSE (▶ II) button (6) once to start programmed playback.
7. To cancel programmed playback, press the STOP button (3) twice.
   Note: During program playback, if you wish to repeat the entire programmed playback, press the PROGRAM/P-MODE button (2) repeatedly until the <> indicator appears on the display.

IMPORTANT

Since movement of the CD mechanism and the sensitive circuitry may cause interference to a radio tuner nearby switch this unit off while operating other radio devices.

This product utilizes a laser

Danger - Invisible laser radiation when opened and interlock failed or defeated. Avoid direct exposure to the beam.

Caution - Use of controls, adjustments, or procedures not listed in this manual may result in hazardous radiation exposure.

Concerning Compact Discs

Only compact discs identified with this mark can be used with this player.

8

SPECIFICATIONS

Power Supply

AC: 230V \~ 50Hz

Batteries: 6 x UM-2

Radio Frequency Coverage

FM: 87.5 - 108 MHz

MW: 540 - 1600 kHz

General

Output Power 2 x 1.5 Watt

CD Player

Pick Up: 3-Beam. Semiconductor Laser

Encoding: 16-Bit Linear

Power Consumption 12,5 W

Note: Specifications and the design are subject to possible modifications without notice due to improvement.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
