Product Type	Jukebox
Brand	Ricatech
Model	RR900
Power Supply	Alternating Current (AC)
Main Functions	CD Player, Radio, Decorative Lighting
CD Playback	Standard audio CD
Radio	AM/FM (long/medium wave)
Sound Control	Volume, Bass, Treble
Display	Digital display for CD
Connectivity	AUX IN (auxiliary input), terminals for external speakers
Lighting	Light button, LED/Neon/Bulb modes depending on version
CD Functions	Play, pause, stop, next/previous track, fast forward/rewind, program, repeat, random
Mute Function	Sound cut-off button
Safety	Protection against electric shock, do not expose to humidity
Condensation	Allow 1 to 2 hours before use if condensation occurs
Maintenance	Clean with a soft dry cloth
Repairability	Refer to a qualified professional; no user-serviceable parts
Warranty	Ricatech customer service ([e-mail], [phone])
Operating Temperature	Moderate climate (non-tropical)
Installation	Flat and even surface, unobstructed ventilation

Frequently Asked Questions - RR900 Ricatech

How to play a CD on the Ricatech RR900?

Turn on the device, select the CD mode using the mode selector. Open the half-circle CD door, insert a disc onto the tray, then close the door. Press Play/Pause to start playback.

How to program track playback?

First press Stop. Then press Program, select a track with the Next/Previous track buttons, then press Program again to confirm. Repeat for all desired tracks. To clear the program, press Stop or turn off the device.

How to use the radio?

Turn the mode selector to the radio position (AM/FM). Adjust the volume with the Volume knob. Use the Radio tuning knob to tune stations. To turn off the radio, press the power switch.

How to turn on the decorative lights?

Press the Light button to turn on all lights. Press again to turn off. For LED versions, use the mode selector behind the device to change modes (HOLD to freeze a color, PLAY to cycle automatically).

What to do if condensation forms inside?

If condensation forms, the device may not work properly. Let it rest for 1 to 2 hours before turning it on, or gradually warm the room and dry the device before use.

How to connect an external source (MP3, iPod)?

Connect your external source to the AUX IN jack at the back of the device using a stereo cable (not included). Set the ON/OFF switch next to the jack to the ON position. Select CD-AUX mode on the mode selector. Adjust the volume with the Volume knob or the external source.

How to clean the Ricatech RR900?

Unplug the device before cleaning. Use a soft dry cloth to wipe the surface. Do not use chemical or abrasive products. Do not let water enter the interior.

What are the important safety precautions?

Do not remove the casing (no user-serviceable parts inside). Do not expose the device to rain or humidity. Install it in a well-ventilated place on a flat surface. Unplug the power cord if not used for a long period.

What to do if the CD does not play or makes noise?

Check that the disc is not scratched or dirty. Insert it correctly centered on the tray. If the problem persists, try another CD. If a rubbing noise appears, recenter the disc.

How to contact Ricatech customer service?

You can send an email to [e-mail] mentioning the model and serial number, or call [phone]. Also visit the website www.ricatech.com for more information.

USER MANUAL RR900 Ricatech

RICATECH®

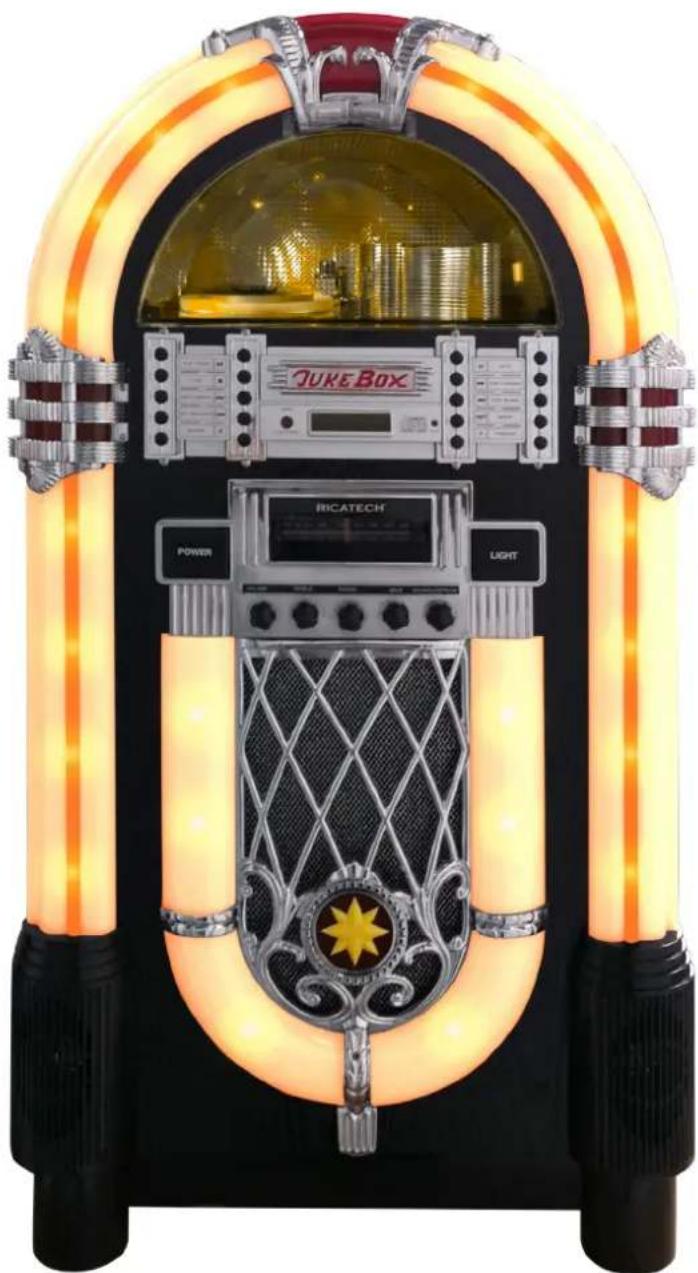

RR900 Retro XXL Jukebox

Illustration of a juke box with ornate arches, illuminated gold coins, and control panel (no text or symbols visible)

USER MANUAL GEBRUIKERSHANDLEIDING MODE D'EMPLOI BEDIENUNGSANLEITUNG MANUAL DEL USUARIO

USER MANUAL

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS RISQUE DE CHOC ELECTRIQUE NE PAS QUVRIR

The Lighting flash with an arrowhead symbol, within the equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to cause an electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance(servicing) instructions in this owner manual.

WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. (USA AND CANADA ONLY)

Should any trouble occur, disconnect the AC power cord and refer servicing to a qualified technician. Do not place anything directly on the top of the unit. Damage to the unit can result. In case of malfunction due to electrostatic discharge the apparatus has to be reset by disconnecting it from mains supply.

FCC Information (USA VERSION ONLY)

This device complies with Part 15 of FCC Rules.

Operation is subject to the following two conditions:

1. Device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesirable operation.

On Placement

Do not use the unit in places which are extremely hot, cold, dusty, or humid.

Place the unit on a flat and even surface.

Do not restrict the air flow of the unit by placing it in a place with poor air flow, by covering it with a cloth.

Do not place naked flame sources, such as lighted candles on the apparatus.

Do not place objects filled with liquids, such as vases, on the apparatus.

On AC Voltage

Before use, check that the rated voltage of your unit matches your local voltage.

On Safety

When connecting or disconnecting the AC cord, grip the plug and not the cord itself. Pulling the cord may damage it and create a hazard.

When you are not going to use the unit for a long period of time, disconnect the AC power cord.

On Condensation

When left in a heated room where it is warm and damp, water droplets or condensation may form inside the unit. When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1 to 2 hours before turning the power on, or gradually heat the room up and dry the unit before use.

ATTENTION SHOULD BE DRAWN TO THE ENVIRONMENTAL ASPECTS OF BATTERY DISPOSAL.

LASER SAFETY

THIS UNIT EMPLOYS A LASER.

ONLY A QUALIFIED SERVICE PERSONNEL SHOULD OPEN COVER IN ATTEMPT TO SERVICE THIS DEVICE DUE TO POSSIBLE EYE INJURY.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CLASS 1 LASER PRODUCT

APPAREIL A LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCKS DEFECTED.

AVOID EXPOSURE TO BEAM

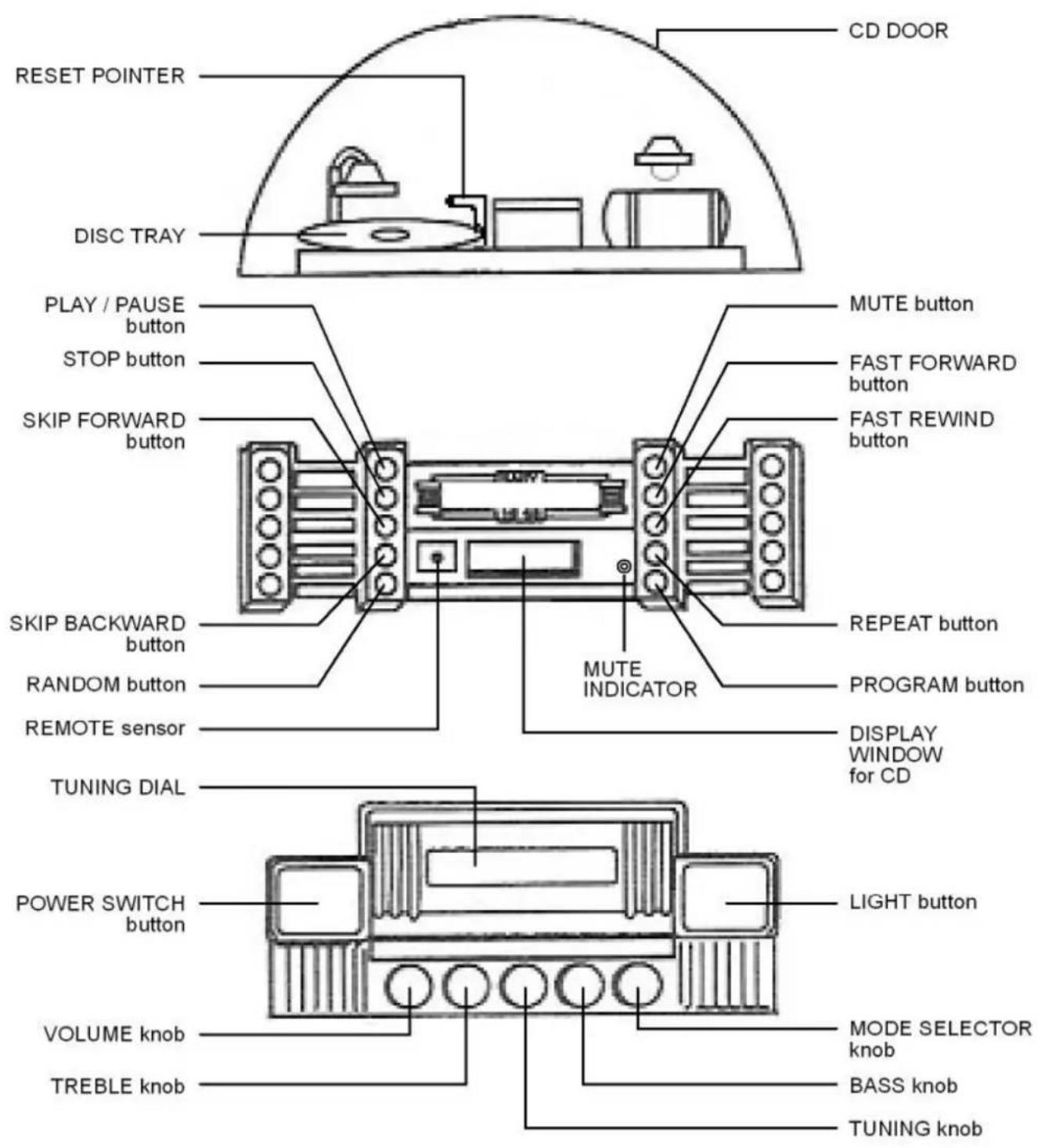

Location of Control (Main Unit)

RESET POINTER DISC TRAY PLAY / PAUSE button STOP button SKIP FORWARD button SKIP BACKWARD button RANDOM button REMOTE sensor TUNING DIAL POWER SWITCH button VOLUME knob TREBLE knob CD DOOR MUTE button FAST FORWARD button FAST REWIND button MUTE INDICATOR REPEAT button PROGRAM button DISPLAY WINDOW for CD LIGHT button MODE SELECTOR knob BASS knob TUNING knob

REMOTE CONTROL FUNCTION (FOR CD PLAYER ONLY)

PLAY/PAUSE	▶||
STOP	■
SKIP FORWARD	▶▶|
SKIP BACKWARD	|◀◀
FAST FORWARD	▶▶
FAST REWIND	◀◀
RANDOM	RAN
REPEAT	REP
PROGRAM	PRG

TO PLAY A CD

1. Press the POWER switch and select MODE SELECTOR to CD.
2. Flip open the semi circle "CD DOOR".
3. Turn the "RESET" pointer to "OFF" position and insert a disc onto the disc tray.
   **(Make sure the "RESET" pointer in "ON" position after disc loaded.)
4. Press the PLAY/PAUSE button to play the CD, press once again to temporarily stop disc play.
5. Press STOP to stop playing the CD.
6. Adjust listening level and sound effect with Volume, Treble and Bass knob
7. Press SKIP FORWARD to skip ahead to next track. Press SKIP BACKWARD to skip back to previous track. The track number will be displayed in readout.
8. During disc play mode, press the FAST FORWARD or FAST REWIND to search a particular point quickly.

NOTE:

If the disc is seriously scratched, or too dirty, disc play may not start.

If an improperly centered disc is played, noise can be heard in the mechanism. The use of such discs should be avoided.

PROGRAMMED DISC PLAY

It is not possible to enter programs during disc play. Press the STOP button first, then enter a program.

1. Press the STOP button.
2. Press the PROGRAM button. Select a track number using SKIP FORWARD or SKIP BACKWARD button, press PROGRAM button again
3. Repeat step 2 until all the desired tracks are programmed in memory

NOTE:

To modify the program, press the STOP button and restart from step 2.

-To clear the program, press the STOP or power is switched off

REPEAT DISC PLAY

REPEAT DISC PLAY

1. Press REPEAT button once to repeat disc play of one track.
2. Press REPEAT button twice to repeat all the track on the disc.
3. Select the desired track for disc play using SKIP FORWARD or SKIP BACKWARD button.
4. Press the PLAY/PAUSE button to play
5. Press STOP button to cancel repeat mode.

RANDOM DISC PLAY

1. Press the RANDOM button to play CD in random order.
2. To cancel RANDOM, press STOP button

MUTE DISC PLAY

1. Press MUTE button to muting the sound while playing disc. *The MUTE indicator on the CD control panel will be lighted up.

2. To resume press MUTE again and the MUTE indicator will goes off

RADIO OPERATION

1. Set the MODE selector to your desired band.
2. Adjust the sound with the VOLUME knob.
3. Tune to the desired radio station by using the TUNING knob.
4. To turn off the radio, press the POWER button.

LIGHT OPERATION

1. Press the LIGHT button to turn on all the light.
2. To Turn off the light, press the LIGHT button again.

NOTE:

1. (FOR "NEON LIGHTS" VERSION ONLY)

Please note that Neon lights will not work while in AM / MW radio mode. This is due to interference caused by neon lighting and is a usual occurrence.

2. LIGHT MODE (IF EQUIPPED "BULB LIGHTS" VERSION ONLY)

Switch the MODE selector at back cover to change light mode.

3. LIGHT MODE (IF EQUIPPED AT BACK COVER "LED LIGHTS" VERSION ONLY)

The colors of the lights change overtime, switch to HOLD position to remain static to your favourite color. Switch to PLAY position to resume

\*IMPORTANT NOTE: (LED LIGHTS VERSION ONLY)

The changing colors sequences of lights are controlled by IC, the lights maybe turned off when the light mode in HOLD position is normal.

EXTERNAL SPEAKER CONNECTION (IF EQUIPPED)

Connect each speaker wire to the speaker terminal at the back cover, switch the speaker switch to external.

AUXILIARY CONNECTION "AUX IN" (IF EQUIPPED)

1. Connect your own device (i.e. MP3 player or IPOD) to the "AUX IN connection" (located at the back of cabinet) with stereo plug and detachable rack (packed separately).
2. Adjust the ON / OFF switch next to the jack to the 'ON' position.
3. Rotate the mode selector to "CD-AUX".
4. Adjust the sound with the VOLUME knob or the volume control of the device.
5. When change to another mode, the device will continue to play with no sound until the ON / OFF switch is adjusted to 'OFF' position and switch off the device.

IMPORTANT NOTE:

1. Adjust the ON / OFF switch to the 'OFF' position when not in use.
2. The CD function will resume to normal only after the ON / OFF switch is adjusted to 'OFF' position.

Warranty :

Ricatech BV covers all products (Excl. accessories) with a 2 year warranty applying to all faults caused by a factory-error. External physical damage will not be covered by our warranty

Warranty :

All hardware errors occurring within 2 years after purchase unless caused by points mentioned below.

No Warranty :

Faults caused by:

* Dismountal by any other service center then ours.
*Water and moisture damage
*Drop and bump damage
*Usage with non approved Ricatech accessories.
*Short-circuit or over-voltage
*Physical damage, loss or damage to accessories

Out of warranty repairs

Please be so kind to contact us for out-of-warranty repairs. We will provide you with a quotation with the expected costs.

Goods out of warranty cannot be returned to your reseller.

CUSTOMER SUPPORT

You can contact the Ricatech customer service when you have a question or a problem with your Ricatech product. You can contact us by telephone and email.

Email

For customer support by email, please sent a email to [e-mail] Please make sure that you mention the model number and serial number of the product, mention your name & address and describe your question or problem clearly.

Telephone

For customer support by telephone, please dial [phone]. One of our service staff will be ready to serve you.

For full procedure please visit the website of Ricatech at: www.ricatech.com

Row of six recycling and waste management icons including recycling symbol, FCC, CE, QR scanning, Green Party Invt, and a trash bin.

GEBRUIKERSHANDLEIDING

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS RISQUE DE CHOC ELECTRIQUE NE PAS QUVRIR

CLASS 1 LASER PRODUCT

APPAREIL A LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

VOORZICHTIG

ONZICHTBARE LASER RADIATIE WANNEER GEOPENED. VOORKOM BLOOTSTELLING AAN DE STRAAL.

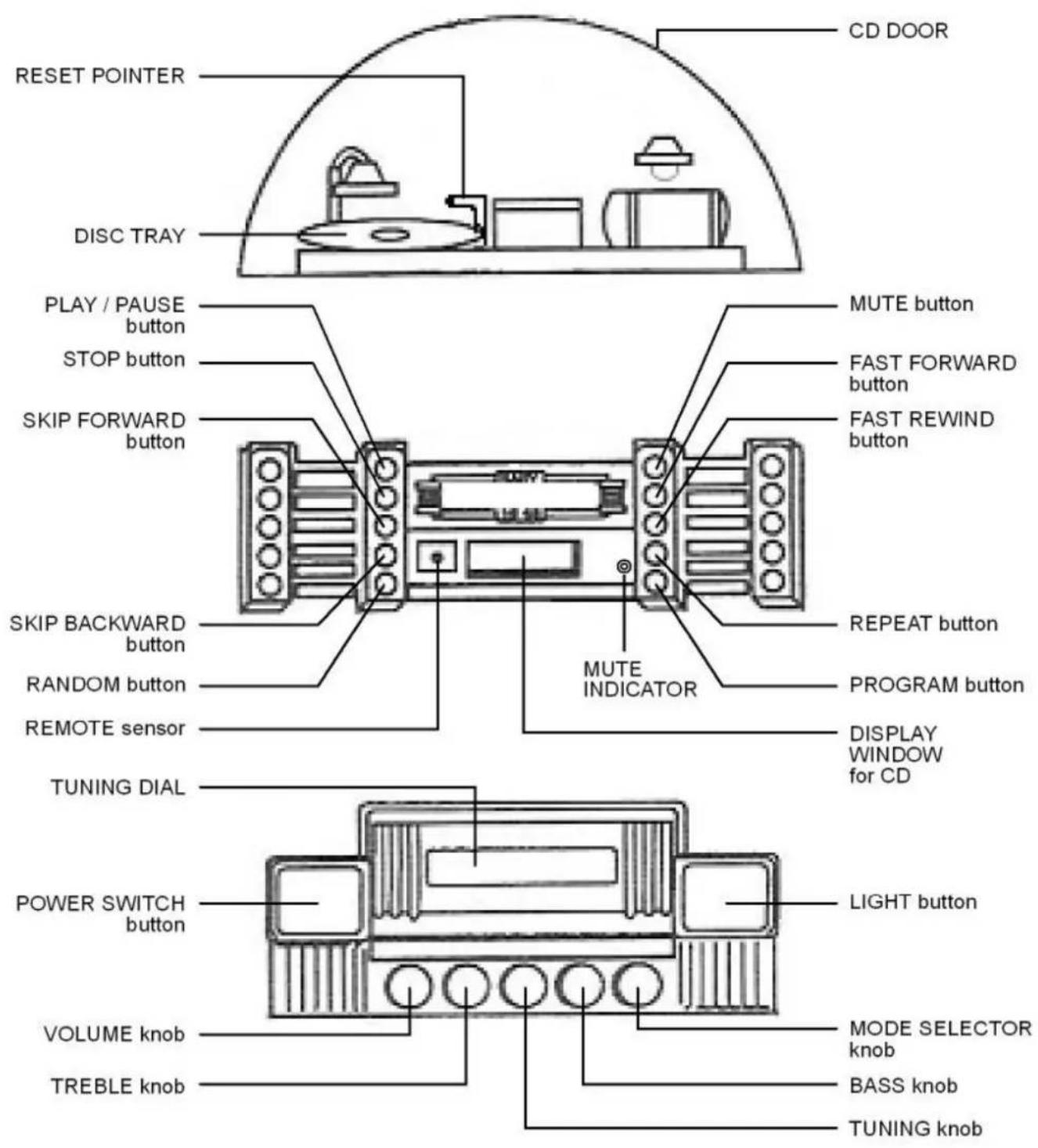

Location of Control (Main Unit)

RESET POINTER DISC TRAY PLAY / PAUSE button STOP button SKIP FORWARD button SKIP BACKWARD button RANDOM button REMOTE sensor TUNING DIAL POWER SWITCH button VOLUME knob TREBLE knob CD DOOR MUTE button FAST FORWARD button FAST REWIND button MUTE INDICATOR REPEAT button PROGRAM button DISPLAY WINDOW for CD LIGHT button MODE SELECTOR knob BASS knob TUNING knob

REMOTE CONTROL FUNCTION (FOR CD PLAYER ONLY)

AFSPELEN/PAUZE	▶||
STOP	■
VOORUIT SPOELEN	▶▶|
TERUG SPOELEN	|◀◀
SNEL VOORUIT SPOELEN	▶▶
SNEL TERUG SPOELEN	◀◀
WILLEKEURIG	RAN
HERHAAL	REP
PROGRAMMEREN	PRG

OM EEN CD AF TE SPELEN

THIS UNIT EMPLOYS A LASER.

ONLY A QUALIFIED SERVICE PERSONNEL SHOULD OPEN COVER IN ATTEMPT TO SERVICE THIS DEVICE DUE TO POSSIBLE EYE INJURY.

CAUTION: USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CLASS 1 LASER PRODUCT

APPAREIL A LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFECTED.

AVOID EXPOSURE TO BEAM

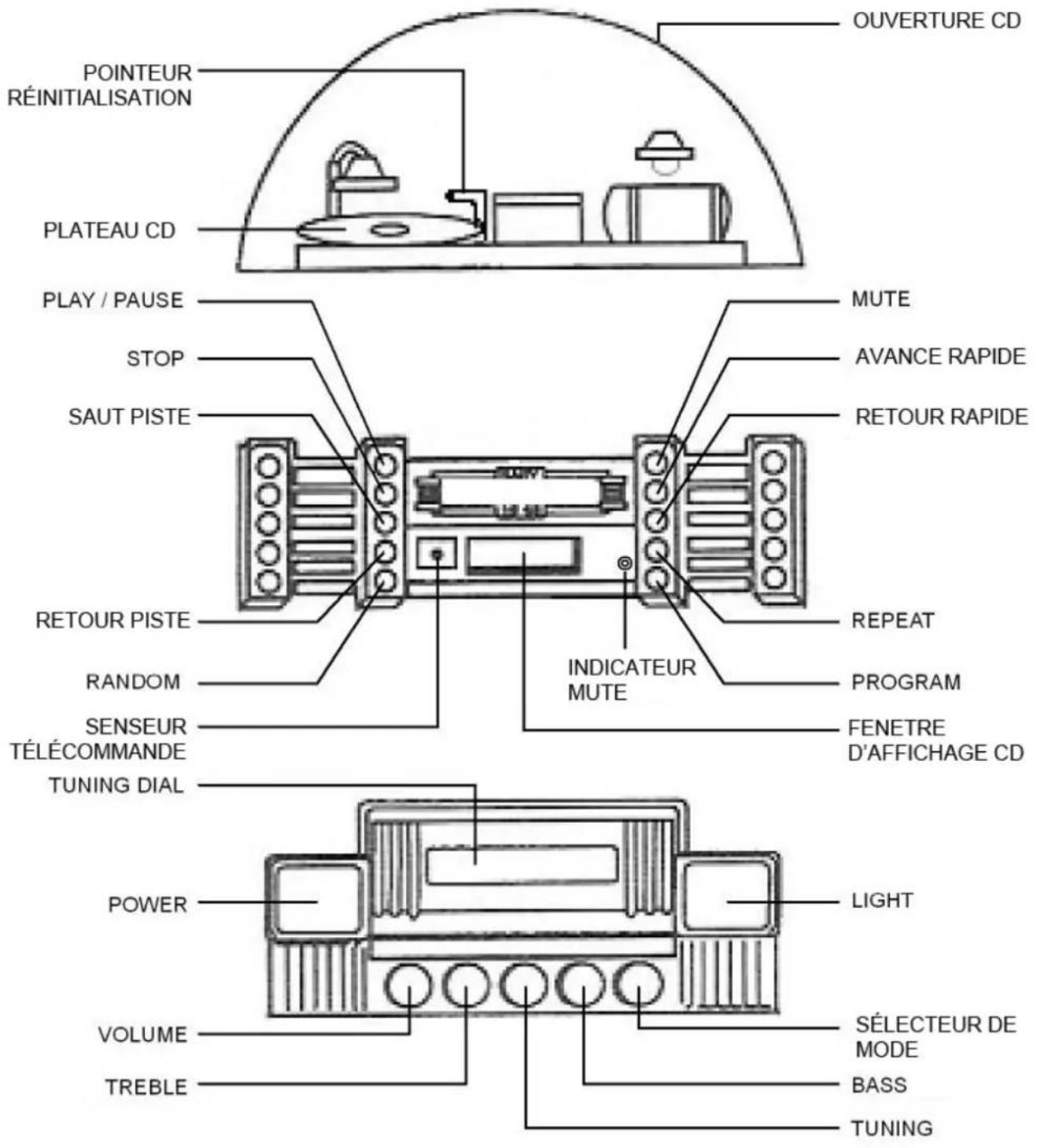

Contrôle de l'unité

OUVERTURE CD POINTEUR RÉINITIALISATION PLATEAU CD MUTE AVANCE RAPIDE RETOUR RAPIDE PLAY / PAUSE STOP SAUT PISTE RETOUR PISTE RANDOM SENSEUR TÉLÉCOMMANDE INDICATEUR MUTE REPEAT PROGRAM FENETRE D'AFFICHAGE CD TUNING DIAL POWER LIGHT VOLUME SÉLECTEUR DE MODE BASS TREBLE TUNING

FONCTIONS DE LA TELECOMMANDE (SEULEMENT POUR LE LECTEUR CD)

LECTURE/PAUSE	▶II
STOP	■
PISTE SUIVANTE	▶▶
PISTE PRECEDENTE	◀◀
AVANCE RAPIDE	▶▶
RETOUR RAPIDE	◀◀
LECTURE ALEATOIRE	RAN
REPETITION	REP
PROGRAMME	PRG

POUR LIRE UN CD

Ricatech BV covers all products (Excl. accessories) with a 2 year warranty applying to all faults caused by a factory-error. External physical damage will not be covered by our warranty

Warranty:

All hardware errors occurring within 2 years after purchase unless caused by points mentioned below.

No Warranty :

Faults caused by:

*Dismountal by any other service center then ours.

*Water and moisture damage

*Drop and bump damage

*Usage with non approved Ricatech accessories.

*Short-circuit or over-voltage

*Physical damage, loss or damage to accessories

Out of warranty repairs

Please be so kind to contact us for out-of-warranty repairs. We will provide you with a quotation with the expected costs.

Goods out of warranty cannot be returned to your reseller.

SUPPORT CLIENTÈLE

Row of seven recycling and waste management icons including recycling symbol, FCC, CE, QR scanning point, green checkmark, red envelope, and trash bin.

BEDIENUNGSANLEITUNG

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN AVIS RISQUE DE CHOC ELECTRIQUE NE PAS QUVRIR

CLASS 1 LASER PRODUCT

APPAREIL A LASER DE CLASSE 1

PRODUCTO LASER DE CLASE 1

ACHTUNG

Ricatech BV covers all products (Excl. accessories) with a 2 year warranty applying to all faults caused by a factory-error. External physical damage will not be covered by our warranty

Warranty :

All hardware errors occurring within 2 years after purchase unless caused by points mentioned below.

No Warranty :

Faults caused by:

*Dismountal by any other service center then ours.

*Water and moisture damage

*Drop and bump damage

*Usage with non approved Ricatech accessories.

*Short-circuit or over-voltage

*Physical damage, loss or damage to accessories

Out of warranty repairs

Please be so kind to contact us for out-of-warranty repairs. We will provide you with a quotation with the expected costs.

Goods out of warranty cannot be returned to your reseller.

KUNDENDIENST

CLASS 1 LASER PRODUCT

APPAREIL A LASER tDE CLASSE 1

PRODUCTO LASER DE CLASE 1

PRECAUCION

EVITE EXPONERSE AL HAZ

Location of Control (Main Unit)

RESET POINTER DISC TRAY PLAY / PAUSE button STOP button SKIP FORWARD button SKIP BACKWARD button RANDOM button REMOTE sensor TUNING DIAL POWER SWITCH button VOLUME knob TREBLE knob CD DOOR MUTE button FAST FORWARD button FAST REWIND button MUTE INDICATOR REPEAT button PROGRAM button DISPLAY WINDOW for CD LIGHT button MODE SELECTOR knob BASS knob TUNING knob

FUNCTIONAMIENTO DEL MANDO A DISTANCIA (SOLO PARA EL REPRODUCTOR DE CD)
REPRODUCCIÓN/PAUSA	▶||
PARADA	■
SALTAR HACIA ADELANTE	▶▶|
SALTAR HACIA ATRÁS	|◀◀
AVANCE RÁPIDO	▶▶
RETROCESO RÁPIDO	◀◀
ALEATORIO	RAN
REPETIR	REP
PROGRAMA	PRG
