USER MANUAL 232614 PRINCESS

door gasten in hotels, motels, bed and

is ondergedompeld in water of andere

slijtage of beschadiging.

Beware of hot parts. The accessible •

surfaces of the appliance can become very

hot during use. Only touch the handgrip

when the accessible surfaces are hot.

Always protect the appliance from water or •

Do not operate the appliance if your hands •

are wet. Do not operate the appliance if

Carefully guide the mains cable to make •

sure that it does not hang over the edge of

a worktop and cannot be caught

accidentally or tripped over.

Never pull the mains cable to disconnect •

the mains plug from the mains. Keep the

mains cable away from heat, oil and sharp

Do not remove any part or accessory when •

the mains plug is connected to the mains.

Always first disconnect the mains plug from

If the mains cable becomes damaged •

during use, immediately disconnect the

mains plug from the mains. Do not touch

the mains cable before disconnecting the

mains plug from the mains.

Disconnect the mains plug from the mains •

when the appliance is not in use, before

assembly or disassembly and before

cleaning and maintenance.

Do not allow children or any person •

unfamiliar with these instructions to use

Do not allow children or animals to come •

near the work area. Do not allow children

or animals to touch the appliance or mains

cable. Close supervision is necessary

when the appliance is used near children.

Disconnect the mains plug from the mains •

and let the appliance cool down before

leaving it unattended and before replacing,

cleaning or inspecting any parts of the

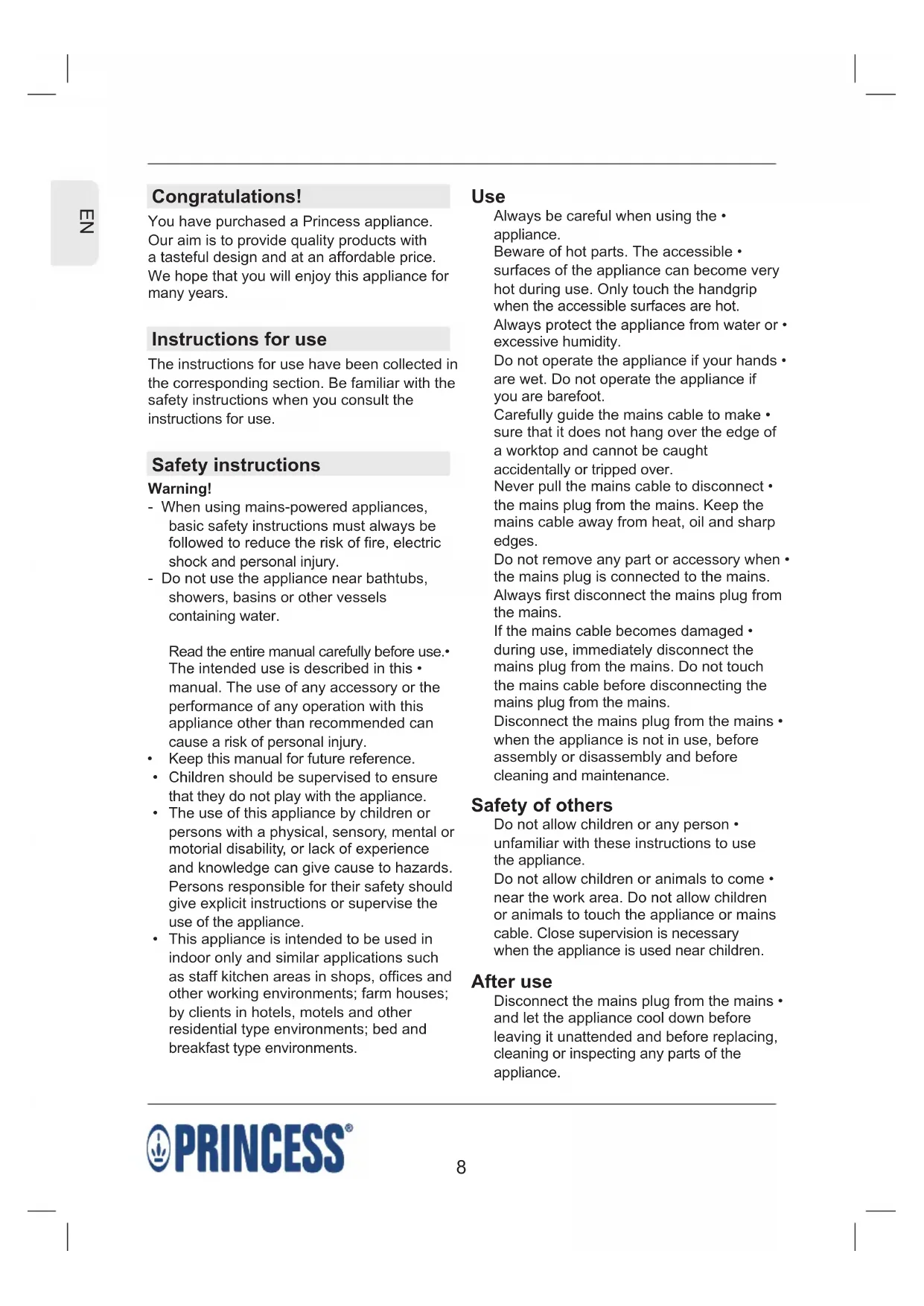

You have purchased a Princess appliance.

Our aim is to provide quality products with

a tasteful design and at an affordable price.

We hope that you will enjoy this appliance for

Instructions for use

The instructions for use have been collected in

the corresponding section. Be familiar with the

safety instructions when you consult the

instructions for use.

- When using mains-powered appliances,

basic safety instructions must always be

followed to reduce the risk of fire, electric

shock and personal injury.

- Do not use the appliance near bathtubs,

showers, basins or other vessels

Read the entire manual carefully before use.•

The intended use is described in this •

manual. The use of any accessory or the

performance of any operation with this

appliance other than recommended can

cause a risk of personal injury.

Keep this manual for future reference.•

Children should be supervised to ensure •

that they do not play with the appliance.

The use of this appliance by children or •

persons with a physical, sensory, mental or

motorial disability, or lack of experience

and knowledge can give cause to hazards.

Persons responsible for their safety should

give explicit instructions or supervise the

use of the appliance.

This appliance is intended to be used in •

indoor only and similar applications such

as staff kitchen areas in shops, offices and

other working environments; farm houses;

by clients in hotels, motels and other

residential type environments; bed and

breakfast type environments.9

- Do not operate the water boiler on an

Place the appliance on a heat-resistant •

and splash-proof surface.

Make sure that there is sufficient space •

around the appliance to allow heat to

escape and provide sufficient ventilation.

Do not cover the appliance.•

Make sure that the appliance does not •

come into contact with flammable material.

Keep the appliance away from heat •

Only use the appliance with the supplied •

Only switch on the appliance when the •

heating element is fully immersed in water.

Do not move the appliance while it is •

Do not immerse the appliance in water or •

other liquids. If the appliance is immersed

in water or other liquids, do not remove the

appliance with your hands. Immediately

remove the mains plug from the wall

socket. If the appliance is immersed in

water or other liquids, do not use the

U.K. Wiring instructions

The wires in the mains lead are coloured in

accordance with the following code:

BLUE NEUTRAL BROWN LIVE GREEN/YELLOW EARTH As the colours of the wire in the mains lead of

this appliance may not correspond with the

colour markings identifying the terminals on

your plug, proceed as follows:

The wire which is coloured BLUE must be

connected to the terminal which is marked

with the letter N or coloured black.

The wire which is coloured BROWN must be

connected to the terminal which is marked

with the letter L or coloured red.

The wire which is coloured GREEN/YELLOW

must be connected to the terminal which is

marked with the letter E or ( ) and is coloured

GREEN or GREEN/YELLOW.

Store the appliance in a dry place when not •

in use. Make sure that children do not have

access to stored appliances.

Inspection and repairs

Before use, check the appliance for •

damaged or defective parts. Inspect the

appliance for breakage of parts, damage to

switches and other conditions that can

affect the operation.

Do not use the appliance if any part is •

damaged or defective.

Have any damaged or defective part •

repaired or replaced by an authorised

Never attempt to remove or replace any •

parts other than those specified in this

Before use, check the mains cable for wear •

Do not use the appliance if the mains cable •

or mains plug is damaged or defective. If

the mains cable or mains plug is damaged

or defective, it must be replaced by the

manufacturer or an authorised repair agent.

Safety instructions for water

Before use, always check that the mains •

voltage is the same as the voltage on the

rating plate of the appliance.

Connect the appliance to an earthed wall •

socket. If necessary, use an earthed

extension cable of a suitable diameter

For additional protection, install a residual •

current device (RCD) with a rated residual

operating current that does not exceed

The appliance is not intended to be operated •

by means of an external timer or separate

remote-control system.

Make sure that water cannot enter the •

contact plugs of the mains cable and the

Always fully unwind the mains cable and •

the extension cable.

Place the appliance on a stable and flat •

- Always make sure that the water level is

between the minimum mark and the

maximum mark on the water level indicator

(fig. A). If the water level is below the

minimum mark, the water boiler will boil

dry. If the water level is above the

maximum mark, the water boiler will boil

over and hot water will spray out.

- Do not remove the water boiler from the

base until the appliance has been switched

Place the appliance on a stable and flat •

Remove the water boiler (3) from the base •

Open the lid (5) by pressing the lid release •

Fill the water boiler (3) with water.•

Place the water boiler (3) onto the base (7).•

Insert the mains plug into the wall socket.•

To switch on the appliance, press the on/off •

switch (1). The on/off indicator (2) comes

on. The appliance starts to boil the water.

To interrupt the process, remove the mains •

plug from the wall socket.

If the process is completed, the appliance •

switches off automatically. The on/off

indicator (2) goes off.

Cleaning and maintenance

- Before cleaning or maintenance, remove

the mains plug from the wall socket and

wait until the appliance has cooled down.

- Do not immerse the appliance in water or

- Do not use aggressive or abrasive cleaning

agents to clean the appliance.

- Do not use sharp objects to clean the

Clean the outside of the appliance with •

Clean the base with a clean, dry cloth.•

If a 13Amp (BS1363) plug is used, a 13Amp

(BS1362) fuse must be fitted, or if any other

type of plug is used, a 13Amp fuse must be

fitted, either in the plug or adaptor, or on the

Warning! This appliance must be earthed.

Description (fig. A)

Your 232613/232614 Princess water boiler

has been designed for boiling water.

The appliance is not suitable for boiling liquids

other than water. The appliance is suitable for

Clean the appliance. •

Refer to ”Cleaning and maintenance”.

- Before first use, completely fill the water

boiler with water without using the water for

consumption or other purposes.

Fill the water boiler (3) with water up to the •

maximum mark on the water level indicator

- Before filling the water boiler, always

remove the water boiler from the base.

- Only use tap water to fill the water boiler.11

EN Descaling the appliance (fig. A)

The appliance must be descaled after every

25 uses. If the appliance must be descaled,

use a suitable descaling agent. Special

descaling agents are available from our

Note: Princess will not be responsible for any

damage caused by descaling agents.

Damage caused by not regularly descaling the

appliance is not covered by the guarantee.

- Before descaling the appliance, remove

the mains plug from the wall socket and

wait until the appliance has cooled down.

- Do not immerse the appliance in water or

- Be careful when descaling the appliance to

prevent damage to furniture or clothing.

- Do not use vinegar or vinegar concentrate

to descale the appliance.

- Do not use citric acid to descale the

Descale the water boiler (3) with a suitable •

Let the descaling agent soak in.•

Thoroughly rinse the water boiler (3) with •

Subject to change; specifications can be

changed without further notice.12
