USER MANUAL Sonicare AirFloss HX8181 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

Philips Sonicare AirFloss 100 SERIES

ENGLISH 4

ESPÁNOL 18

FRANÇAIS (CANADA) 32

4 ENGLISH

1 Important Safeguards 5
2 What's in the box 8
3 Charging AirFloss 9
4 Preparing for use 10
5 Using AirFloss 11
6 Auto off 12
7 Cleaning AirFloss 13
8 Storing AirFloss 14
9 Disposing or recycling at end of product life 15
10 Support 16

1 IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE

DANGERS

To reduce the risk of electrocution:

• Do not place or store product where it can fall or be pulled into a bathtub, washbasin or sink.
• Do not place charger in or drop into water or other liquid, unplug the charger immediately if this should occur.
• After cleaning, make sure the charger is completely dry before you connect it to the mains.

WARNING

To reduce the risk of burns, electrocution, fire, or physical injury:

• DO NOT use alcohol or other cleaning fluids in the reservoir as it may be an ingestion hazard.
• DO NOT use attachments other than those recommended by the manufacturer.
• DO NOT plug the charger into an outlet with a voltage other than specified on the bottom of the charger. This product is designed to operate within a range of 100 to 240 volts. Voltage converters DO NOT warrant voltage compatibility.
• DO NOT use hot water so as to avoid physical injury.
• DO NOT use the charger outdoors.
• DO NOT drop or insert any foreign objects into the reservoir.
• Never force the plug into an outlet; if the plug does not easily fit into the outlet, discontinue use.
• Keep the cord away from heated surfaces.

• Discontinue use if the nozzle, body, or charger body/cord appear damaged in any way. Refer to "Warranty and Service" for service or repair.

• This product contains no user-serviceable parts. Refer to "Warranty and Service" if AirFloss no longer works properly or needs repair.

• Use this product only for its intended use as described in this document or as recommended by your dental professional.
• This product is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• AirFloss is a personal care device and is not intended for use on multiple patients in a dental office or institution.
• Do not direct the spray under the tongue or into the ear, nose, eye, or other sensitive areas. This product may cause serious damage to these areas. See "Using AirFloss" for correct usage.
• Avoid applying excessive nozzle tip pressure.

MEDICALWARNINGS

• Consult your dental professional before you use this product if you have had oral or gum surgery in the previous two (2) months.
• Contact your dental professional if excessive bleeding occurs after using this product or bleeding continues to occur after one (1) week of use.
• Discontinue use of this product and contact a physician/dentist if discomfort or pain is experienced.
• This product complies with the safety standards for electromagnetic devices. If you have a pacemaker or other implanted device, contact your physician or the device manufacturer prior to use.
• Consult your physician if you have other medical concerns.

Electromagnetic fields (EMF)

This Philips product has been tested and is compliant with safety standards for electromagnetic devices. If handled properly and according to the instructions in this user manual, the product is safe to use.

SAVE THESE INSTRUCTIONS

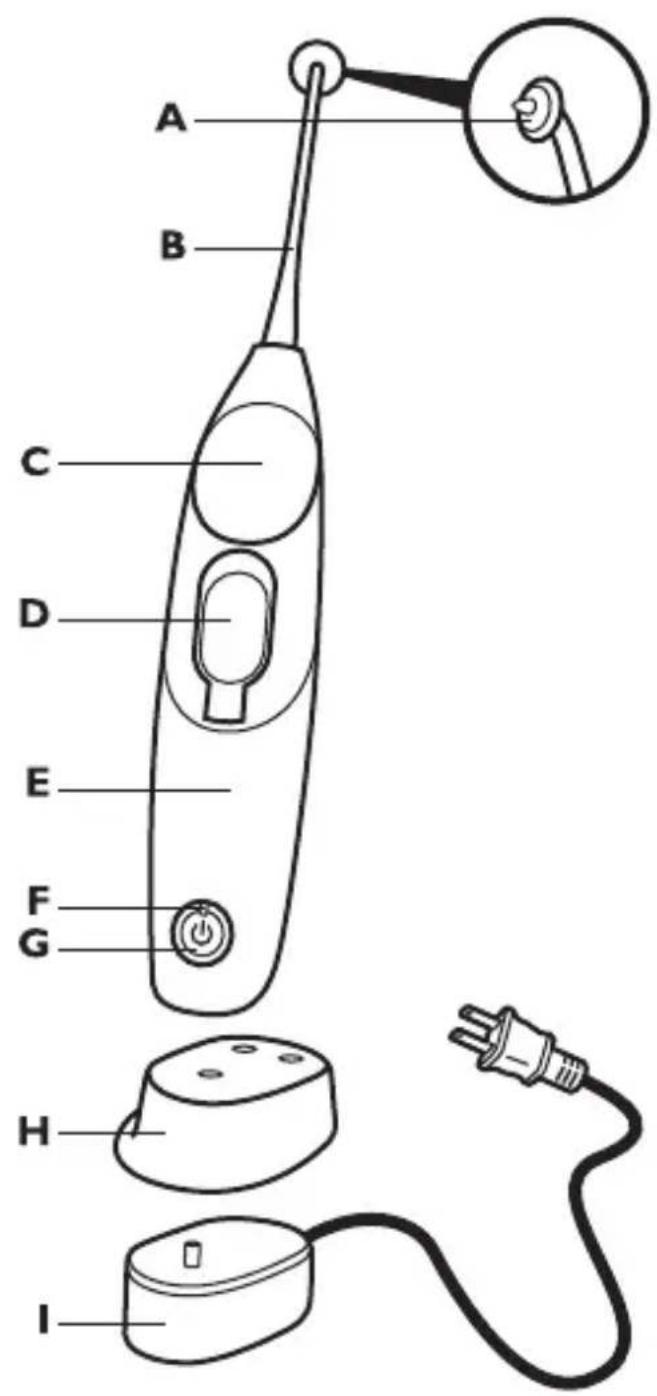

A Guidance tip
B AirFloss nozzle
C Activation button
D Water reservoir and cover
E Handle

F Charge indicator
G Power on/off button
H Removable charger cover (select models)
I Charger

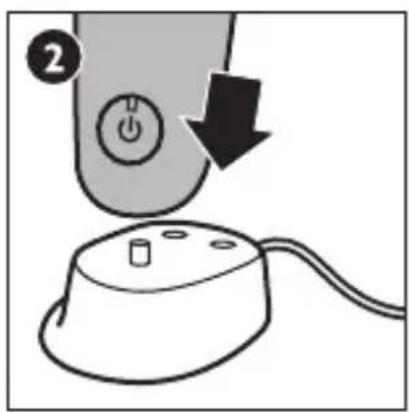

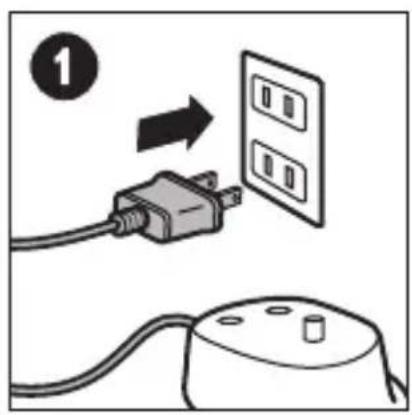

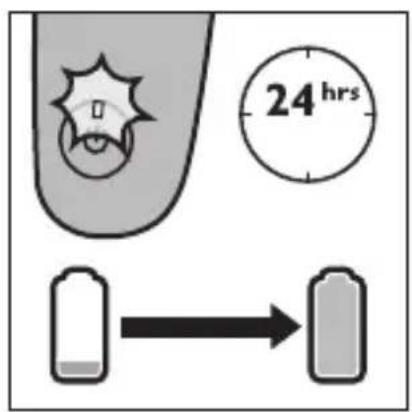

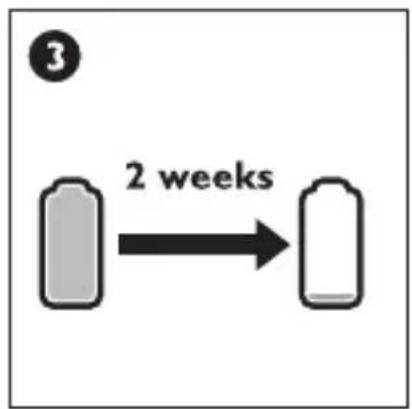

CHARGING AIRFLOSS

Charge for 24 hours before first use. Charge indicator flashes green until AirFloss is fully charged. Rapid yellow flashing indicates charge is extremely low (fewer than 3 uses left). AirFloss is designed to last 2 weeks (or 14 uses) on a single charge.

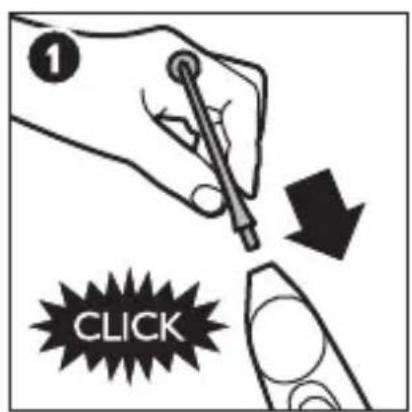

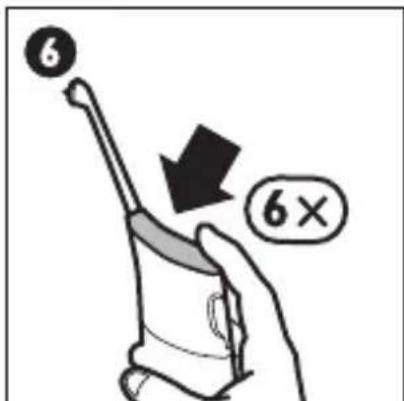

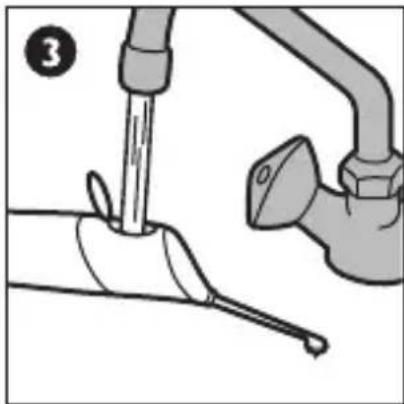

PREPARING FOR USE

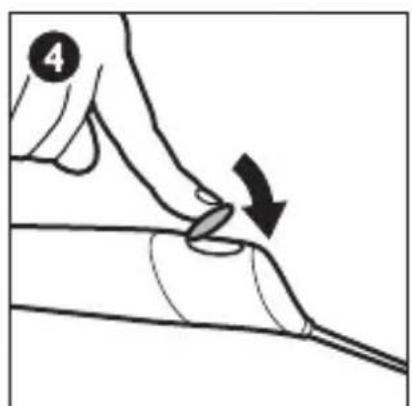

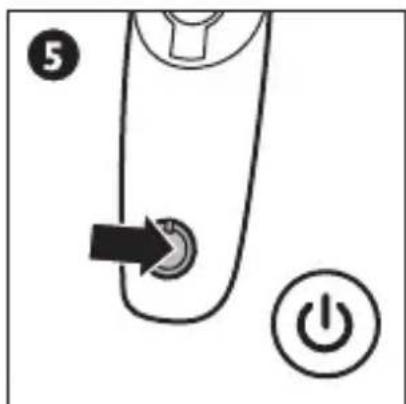

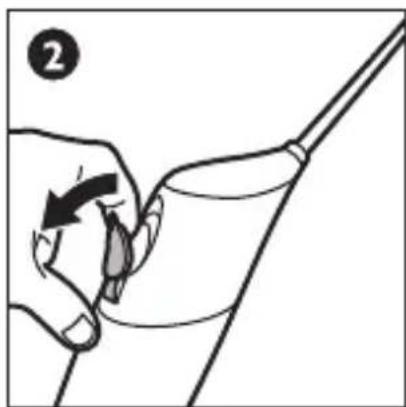

To use, attach nozzle, fill reservoir with water or mouthwash. After filling the reservoir, press the power on/off button to turn on, then press the activation button approximately 6 times or until spray is produced. The reservoir holds enough liquid for approximately 2 uses. Replace the nozzle every 6 months for optimal results.

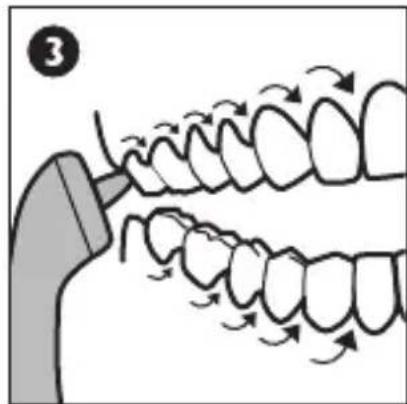

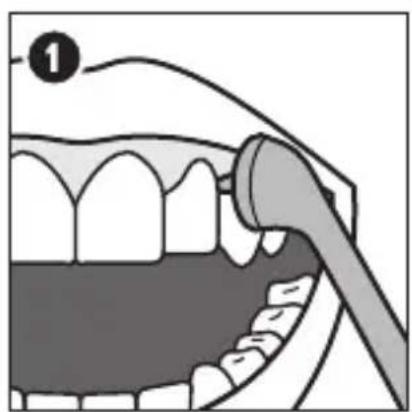

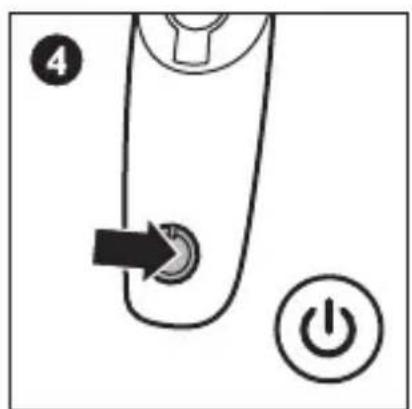

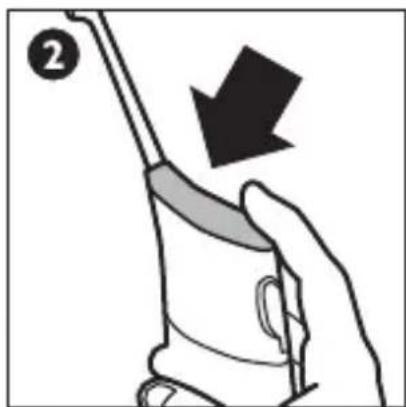

USING AIRFLOSS

AirFloss is designed to be used on the outside of the teeth. Place the tip between teeth and apply gentle pressure. Press activation button to deliver a burst of air and water. Glide the guidance tip along the gum line until you feel it settle between the next two teeth. Press the activation button again and repeat for all spaces including behind your back teeth. Press power on/off button to turn power off after use.

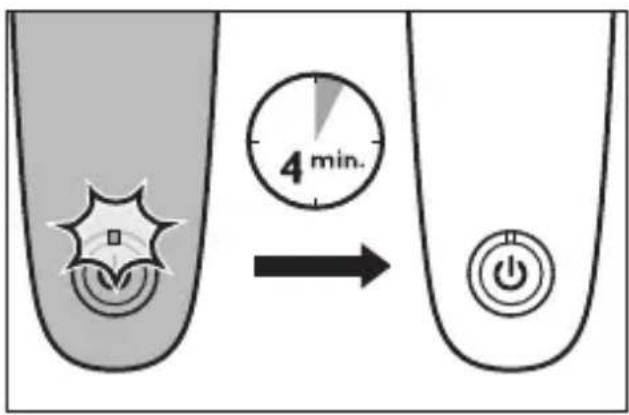

AUTO OFF

7

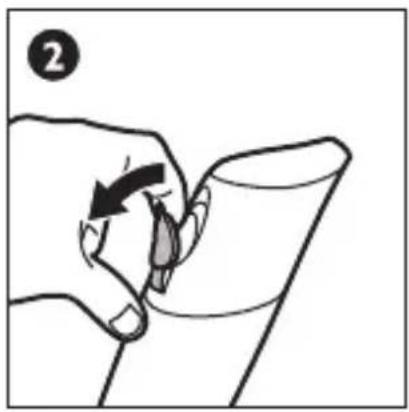

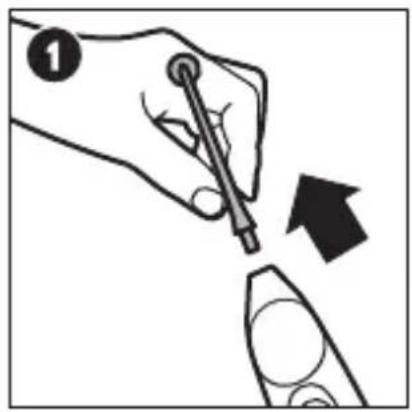

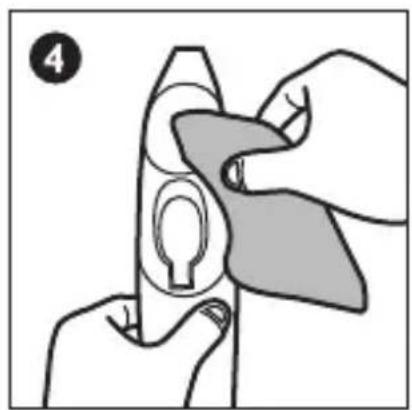

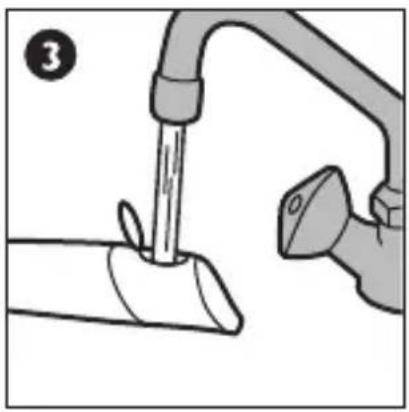

CLEANING AIRFLOSS

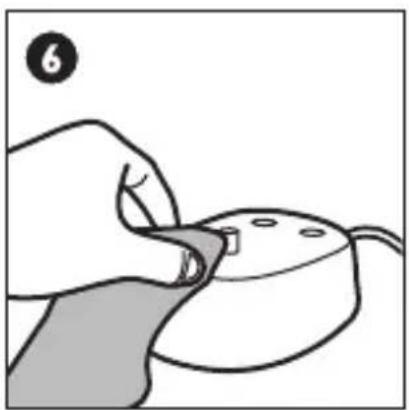

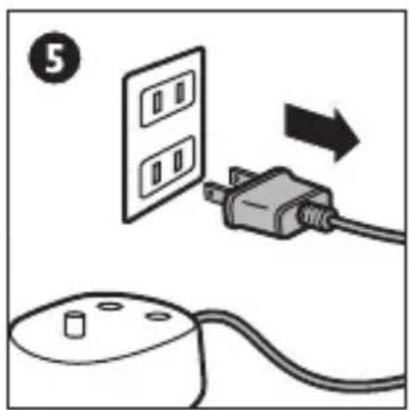

Remove nozzle and rinse reservoir with water. Use a cotton-tipped swab to wipe down the reservoir, if desired. Avoid getting foreign objects inside. The use of cleaning agents inside the device is not recommended. Do not clean in the dishwasher or any other sanitizing devices.

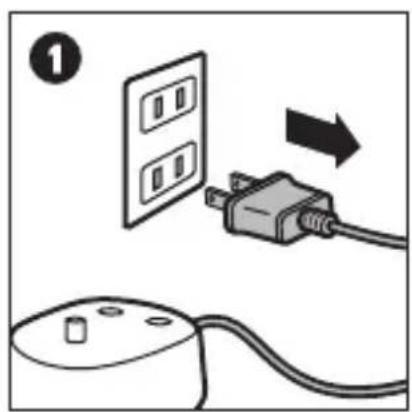

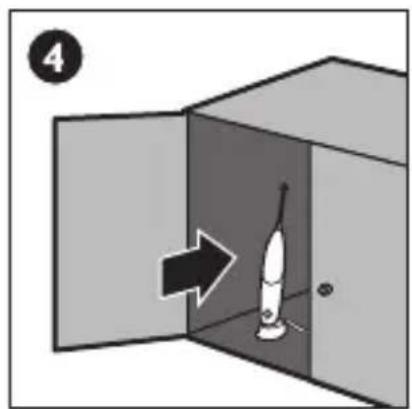

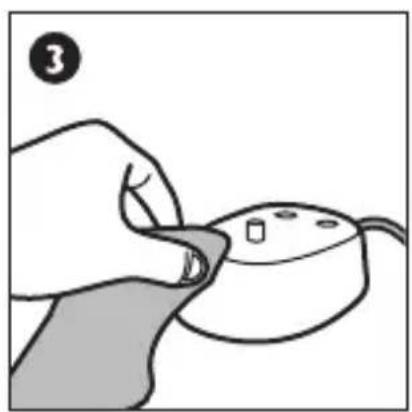

STORING AIRFLOSS

If AirFloss will not be used for an extended period of time, empty water from reservoir, press activation button until no spray is produced, unplug the charger, clean the product, and store it in a cool, dry place away from direct sunlight.

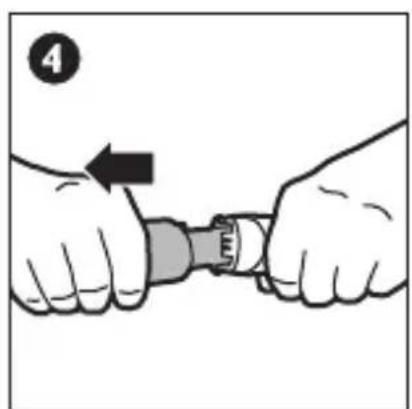

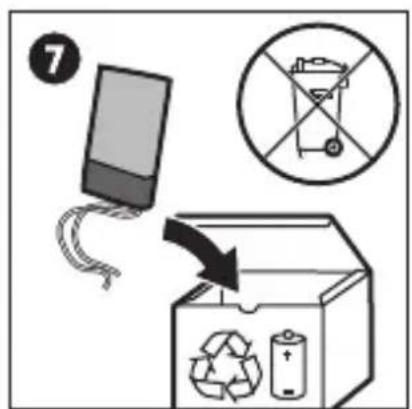

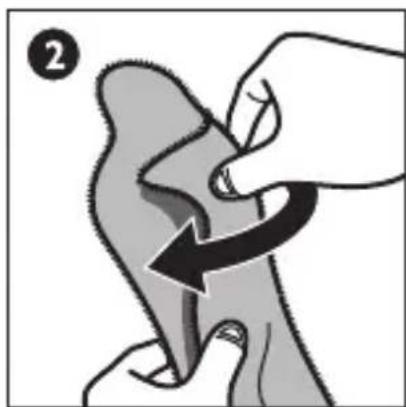

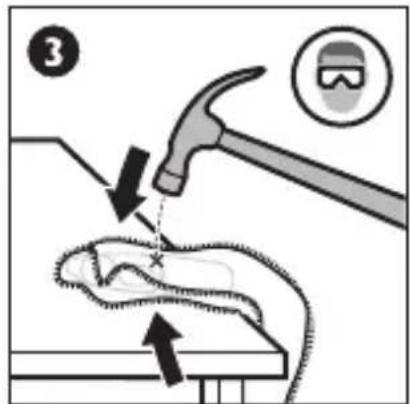

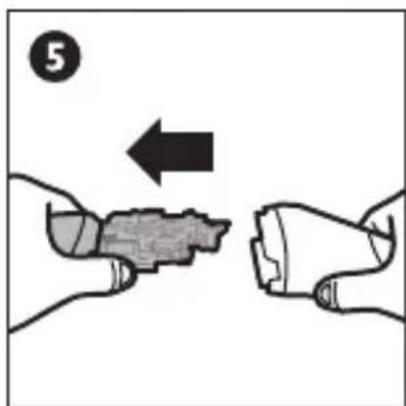

DISPOSING OR RECYCLING AT END OF PRODUCT LIFE

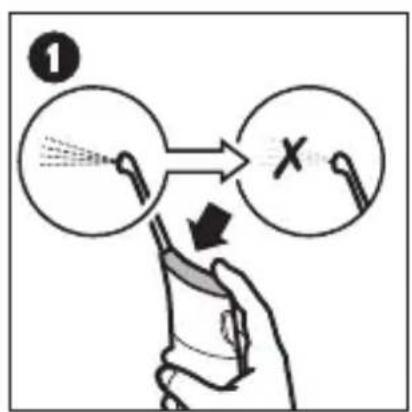

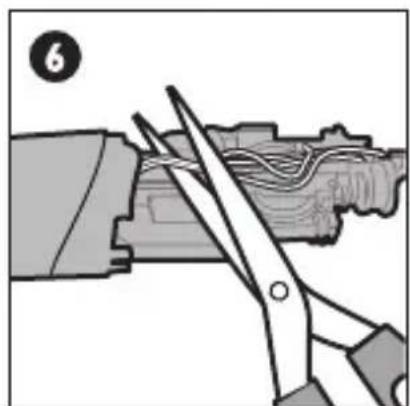

Please note this process is not reversible - The rechargeable battery inside AirFloss cannot be replaced but can be removed for recycling. Please contact your local waste management for recycling requirements. Only remove the battery at the end of the product's life. Doing so earlier will destroy the product. Deplete the battery charge by repeatedly pressing the activation button until AirFloss no longer produces any bursts of air. Observe basic safety precautions.

LOCATING THE MODEL NUMBER

Look on the bottom of the device for the model number (HX8181, HX8141, or HX8111).

SUPPORT

For product information and purchase, or for product support, please contact your local Philips Customer Care Center. The Customer Care Center in your area may be found in the Warranty and Service booklet you received with your product and at www.philips.com/Sonicare.

WARRANTY AND SERVICE

• Philips warrants its products for two years after the date of purchase. Defects due to faulty materials and workmanship will be repaired or replaced at Philips expense provided that convincing proof of purchase in the qualifying period is provided. Use of unauthorized replacement parts will void this warranty.
• Contact our Consumer Care Center at 1-800-682-7664 (North America), outside North America contact your local Philips Consumer Care Center.
• Internet information: www.sonicare.com (North America) or www.philips.com (outside North America).

WARRANTY EXCLUSIONS

What is not covered under the two-year warranty:

AirFloss nozzle
- Damage caused by misuse, abuse, neglect, alterations or unauthorized repair
- Normal wear and tear, including chips, scratches, abrasions, discoloration or fading

IMPLIED WARRANTYIS

ANY IMPLIED WARRANTYES, INCLUDING IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THE EXPRESS WARRANTYES SET FORTH ABOVE. IN SOME STATES LIMITATIONS ON DURATION OF IMPLIED WARRANTYES DO NOT APPLY.

LIMITATION OF REMEDIES

IN NO EVENT SHALL PHILIPS OR ANY OF ITS AFFILIATED OR SUBSIDIARY COMPANIES BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES BASED UPON BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR ANY OTHER LEGAL THEORY. SUCH DAMAGES INCLUDE, WITHOUT LIMITATION, LOSS OF SAVINGS OR REVENUE; LOSS OF PROFIT; LOSS OF USE; THE CLAIMS OF THIRD PARTIES INCLUDING, WITHOUT LIMITATION, DENTISTS AND DENTAL HYGIENISTS; AND COST OF ANY SUBSTITUTE EQUIPMENT OR SERVICES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES.

MISES EN GARDE D'ORDRE MEDICAL

www.philips.com/Sonicare

All rights reserved. PHILIPS and Philips shield are registered trademarks of KPENV. Airfloss, Sonicare and the Sonicare logo are trademarks of Philips Oral Healthcare, Inc. and/or KPENV.

Protected by U.S. and international patents.

Other patents pending. Reg. U.S. Pat. & Tm. Off.

100% recycled paper

100% papier recyclé

4235.020.4614.2
