K65320BX - Cooker GORENJE - Free user manual and instructions

Product Type	Cooker
Brand	Gorenje
Model	K65320BX
Control Type	Electronic touch control
Display	Digital display with clock
Timer	Duration programming, end time programming, audible alarm
Maximum cooking duration	10 hours
Maximum alarm duration	10 hours
Child safety	Key lock (ON/OFF)
Audible signal	4 adjustable volume levels
Automatic shut-off function	Yes (programmed end of cooking)
Delayed start function	Yes (combined duration + end programming)
Display intensity variation	Yes (dimming after one minute of inactivity)
Cancellation of settings	Yes (simultaneous press of B+C for 3 seconds)
Clock adjustment	After plugging in or power cut
Power supply	Electric (not specified)
Available languages for manual	24 languages

Frequently Asked Questions - K65320BX GORENJE

How to set the time on the Gorenje K65320BX cooker?

After plugging in the appliance or after a power cut, touch the sensor key (A) to select the clock icon (4). Use keys (B) and (C) to set the exact time. Confirm by touching (A) again or wait a few seconds.

How to program a cooking duration?

Touch key (A) to select the duration icon (1). Set the desired time (max 10h) with keys (B) and (C). Then turn on the oven by setting the mode and temperature. The oven will automatically stop at the end of the programmed time.

How to set the end time of cooking?

First check that the clock is set correctly. Touch (A) to select the end icon (2). Set the desired time with (B) and (C). Turn on the oven; it will turn off at the set time.

How to program a delayed start (cooking with end time)?

First set the cooking duration (icon 1) then the end time (icon 2). The timer automatically calculates the start time. Both icons (1) and (2) are lit. Turn on the oven; cooking will start at the calculated time.

How to use the audible alarm independently?

Touch (A) to select the alarm icon (3). Set the countdown (max 10h) with (B) and (C). At the end of the time, an audible alarm sounds. You can stop it by touching a key.

How to adjust the volume of the audible signal?

When only the time is displayed, press and hold key (B) for 3 seconds. A volume indicator appears ("oooo" = max, "o" = min). Use (B) to choose a level. Confirm with (A) or wait.

How to activate child safety (lock)?

Child safety can only be activated if a function (duration, end, alarm) is active. Touch (A) to select icon (5), then (B) or (C) to display "ON". Confirm with (A). To deactivate, repeat the operation until "OF".

How to cancel all timer settings?

Press keys (B) and (C) simultaneously for three seconds. All active programs are cancelled and the clock displays the time of day. You can also cancel a specific setting by selecting it and then pressing (B) and (C) together.

What to do after a micro power cut of less than two minutes?

All settings remain active and the appliance continues to function normally. No action is necessary.

How to improve the responsiveness of the touch keys?

Touch the keys with a wide surface of your finger for better response. Each touch is confirmed by an audible signal.

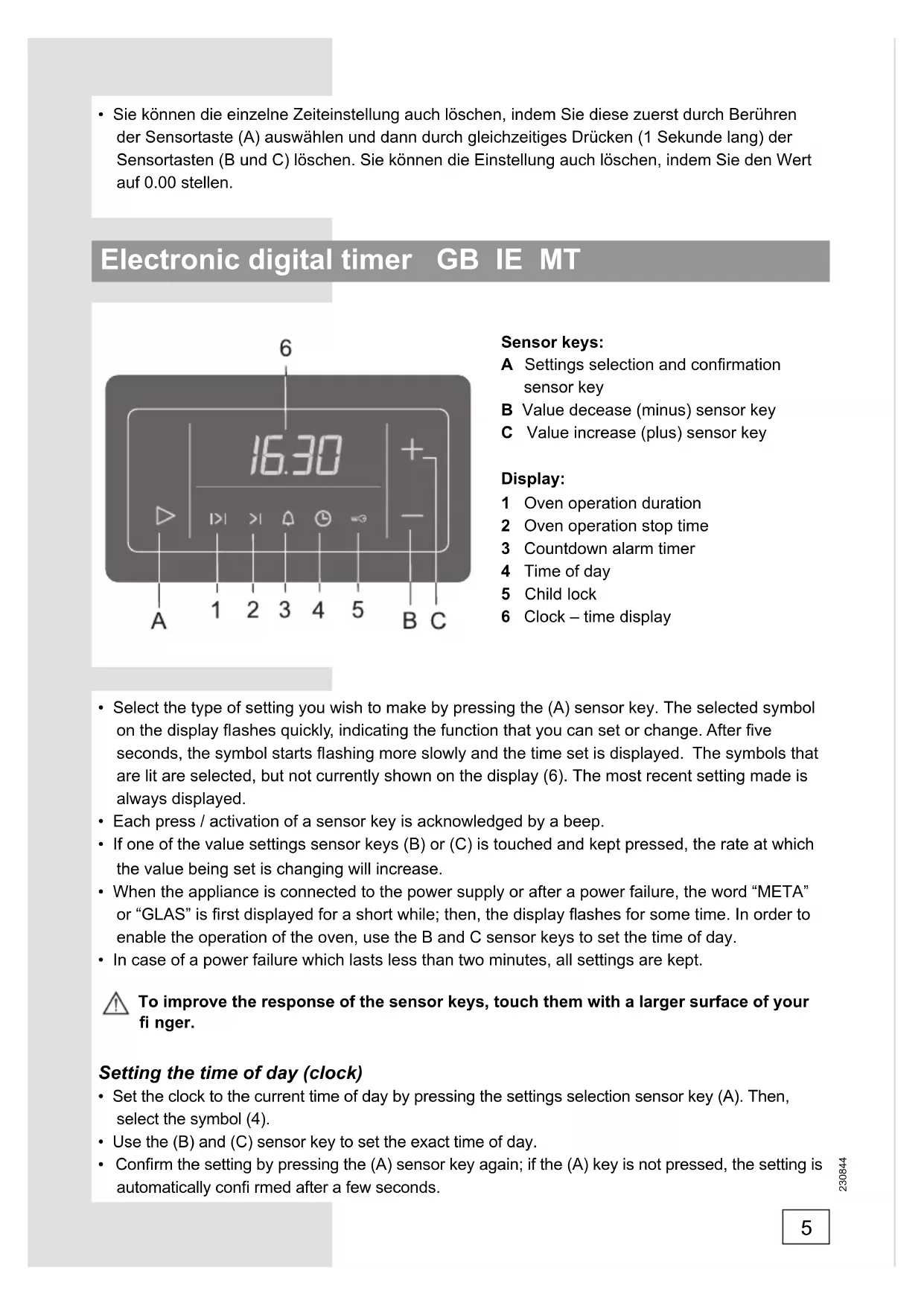

USER MANUAL K65320BX GORENJE

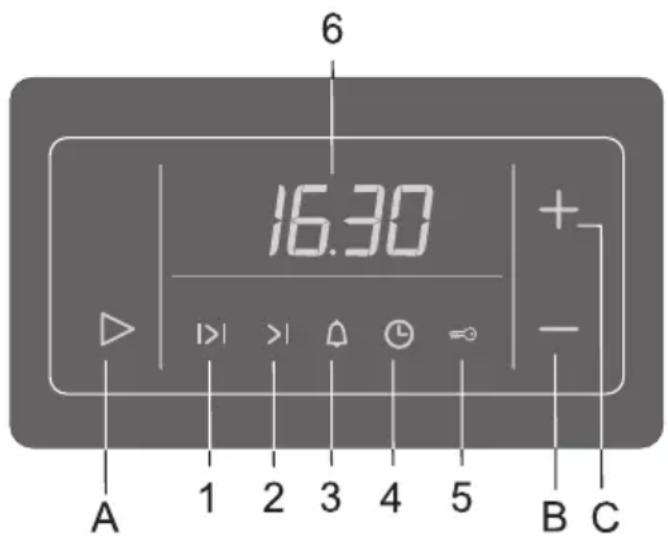

A Settings selection and confirmation sensor key B Value decrease (minus) sensor key C Value increase (plus) sensor key

Display:

1 Oven operation duration 2 Oven operation stop time 3 Countdown alarm timer 4 Time of day 5 Child lock 6 Clock – time display

• Select the type of setting you wish to make by pressing the (A) sensor key. The selected symbol on the display flashes quickly, indicating the function that you can set or change. After five seconds, the symbol starts flashing more slowly and the time set is displayed. The symbols that are lit are selected, but not currently shown on the display (6). The most recent setting made is always displayed. • Each press / activation of a sensor key is acknowledged by a beep.
• If one of the value settings sensor keys (B) or (C) is touched and kept pressed, the rate at which the value being set is changing will increase.
• When the appliance is connected to the power supply or after a power failure, the word “META” or “GLAS” is first displayed for a short while; then, the display flashes for some time. In order to enable the operation of the oven, use the B and C sensor keys to set the time of day.
• In case of a power failure which lasts less than two minutes, all settings are kept.

To improve the response of the sensor keys, touch them with a larger surface of your finger.

Setting the time of day (clock)

• Set the clock to the current time of day by pressing the settings selection sensor key (A). Then, select the symbol (4).
• Use the (B) and (C) sensor key to set the exact time of day.
• Confirm the setting by pressing the (A) sensor key again; if the (A) key is not pressed, the setting is automatically confirmed after a few seconds.

The program timer can be used to program the oven operation in three ways:

• Cooking time setting – immediate start of oven operation; after a set period of time, the oven is turned off automatically.
• Cooking end time setting – the time at which oven operation is to end is set.
• Delayed start setting – automatic start and end of oven operation at a selected time.

Setting the cooking time

With this program mode, the duration of oven operation is set (cooking time). Maximum setting allowed is 10 hours.

• Press the (A) sensor key to select the symbol (1). Use the (B) and (C) sensor keys to set the duration / cooking time.
• Turn on the oven (use the corresponding oven knobs to set the operation mode and temperature). After the expiration of the set time, the oven will automatically stop operating (end of cooking time). An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.
• The symbol (1) and the sign (_:__) will flash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the cooking end time

This mode allows you to set the time at which the oven should stop operating. Maximum setting allowed is 10 hours relative to the current time of day.

• Make sure the current time of day is set correctly.
• Use the (A) sensor key and select the symbol (2). The current time of day is indicated on the display. Press the (B) and (C) sensor keys to set the cooking end time.
• Turn on the oven (use the corresponding oven knobs to set the operation mode and temperature). The oven starts to operate immediately and stops operation at the set time. An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.
• The symbol (1) and the sign (_:__) will flash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the oven delayed start

With this operation mode, two settings have to be made: cooking time (duration of oven operation) and cooking end time (tie at which the operation should stop).

Cooking end time can be delayed by a maximum of 24 hours relative to the current time of day.

• Make sure the current time of day is set correctly.
• First, set the cooking time: Press the (A) sensor key to select the symbol (1). Use the (B) and (C) sensor keys to set the duration / cooking time.
• Then, set the cooking end time: Use the (A) sensor key and select the symbol (2). (A sum of the current time of day and the oven operation time is automatically shown on the display). Press the (B) and (C) sensor keys to set the cooking end time.
• The timer will wait for the start of the cooking – both symbols (1 and 2) are lit.
• Turn on the oven (use the corresponding oven knobs to set the operation mode and temperature). At the corresponding time, the oven starts operating automatically (the symbol (2) goes off upon the start of operation), and switches off when the set cooking time has elapsed. An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.

- The symbol (1) and the sign (_:__) will flash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the alarm timer

The clock can also be used independently of the oven operation, as an alarm timer that sounds an alarm after the expiration of a preset time.

• Use the (A) sensor key to select the symbol (3). Then, use the (B) and (C) sensor keys to set the time before the alarm sounds. Maximum setting allowed is 10 hours.
• When the set time has elapsed, an intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute. The symbol (3) will go off.

The last minute of the timer countdown is displayed in second intervals.

Setting the beep volume (loudness)

The alarm volume can be set when no timer function is activated (only current time of day is displayed).

• Press the (B) sensor key and hold it approximately three seconds; a volume indicator will appear, and the corresponding sample sound will sound. "oooo" indicates maximum volume, and "o" indicates minimum volume. Use the (B) sensor key to select among the four loudness levels.
• Confirm the selected volume level by pressing the (A) sensor key; if the (A) sensor key is not pressed, the setting will be confirmed and stored automatically after a few seconds.

Setting the child lock

The clock may be locked only after one of time functions had been previously set (period of operation, end of operation, or alarm). The oven will function normally, but you will not be able to change settings.

Activation: Press the (A) sensor key to select the symbol (5). Use the (B) and (C) sensor keys to activate the child lock; the display will read "ON". Confirm the setting by pressing the (A) sensor key.

Deactivation: Press the (B) or (C) sensor to deactivate the child lock; "OFF" is displayed.

The setting must be confirmed by pressing the (A) sensor key.

Display dimmer

One minute after the appliance is turned off, the display will be dimmed.

Deleting the timer settings

• All timer settings can be deleted any time by pressing the (B) and (C) sensor keys simultaneously and holding them for three seconds. The set programs are automatically interrupted and the timer switches to display of the current time of day.
• Any timer setting can also be deleted in the following way: selecting it using the (A) sensor key, then press the (B) and (C) sensor keys simultaneously. Another way to delete a setting is by setting the timer value to "0.00".

Sensor keys:

Set delayed start
