Product Type	Wine Cellar
Brand	Haier
Model	WS50GA
Capacity	50 bottles (estimate)
Power Supply	220-240 V, 15 A
Temperature Range	5 °C to 20 °C
Temperature Setting	Electronic, digital display, preset at 12 °C
Interior Light	Yes, controlled by the "Light" key; turns on when door opens
Shelves	Removable, suitable for magnums and large bottles
Adjustable Feet	Yes, front and rear
Recommended Clearances	Sides: 50 mm, Top: 50 mm, Back: 50 mm
Installation	Free-standing only (not built-in)
Cleaning	Baking soda and warm water solution; rinse and dry
Door Seal Maintenance	Every 3 months; apply petroleum jelly on hinges
Electrical Safety	Grounding required; avoid extension cords
Normal Operating Noises	Gurgling of refrigerant, click of thermostat
Troubleshooting	Check plug, seals, condenser, door opening frequency
Repairability	Power cord to be replaced by a qualified professional

Frequently Asked Questions - WS50GA HAIER

How to adjust the temperature of the wine cellar?

Press and hold the setting key for about 3 seconds until the display flashes. Use the + or - keys to adjust the temperature between 5 °C and 20 °C. Wait 5 seconds or press the setting key again to confirm. The unit may take some time to reach the temperature.

Why is my wine not cold enough?

Check if the door is opened too often or if warm bottles have just been added. Ensure the door seals are airtight and clean the condenser if needed. You can also lower the temperature setting.

Why is the wine temperature too low?

If the setting is too low, increase the temperature using the keys. Also check that the sensor is not obstructed by bottles.

Why does the wine cellar start too frequently?

This may be normal in hot and humid weather. Check that the door is properly closed and the seals are airtight. Clean the condenser and reduce the door opening frequency.

Why is there humidity inside or outside the cellar?

This is normal in periods of high humidity. Make sure the door is not opened too long and the door seals are in good condition. Check the tightness.

How to clean my wine cellar?

Unplug the unit before cleaning. Prepare a solution of 3-4 teaspoons of baking soda in warm water. Wipe with a soft sponge, rinse with warm water and dry. Do not use abrasive products or ammonia.

How to level the wine cellar?

Use the adjustable feet at the front and rear corners. Turn clockwise to raise, counterclockwise to lower. The door will close better once level.

Can I use an extension cord?

It is best to avoid extension cords. If necessary, use an extension cord with grounded plug and a power rating at least equal to that of the unit.

What to do in case of a power outage?

Unplug the unit during the outage. Once power is restored, plug it back in. Wait for the temperature to stabilize before unnecessarily opening the door.

How to maintain the door seals?

Clean the seals every three months with the same solution as for the interior. Apply a little petroleum jelly to the hinges to maintain their flexibility and ensure a good seal.

USER MANUAL WS50GA HAIER

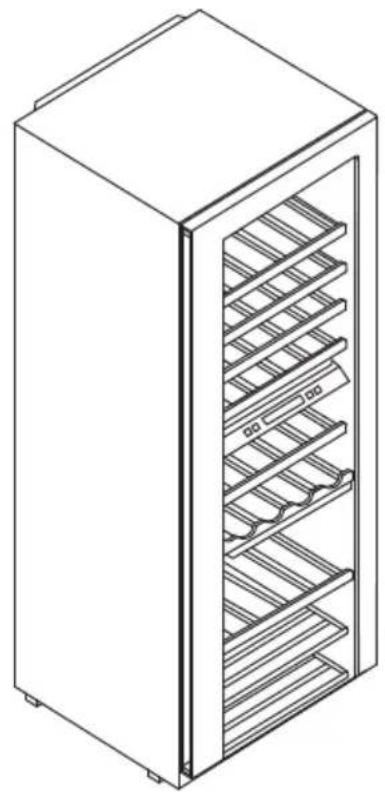

WS50GA

WS49GDB

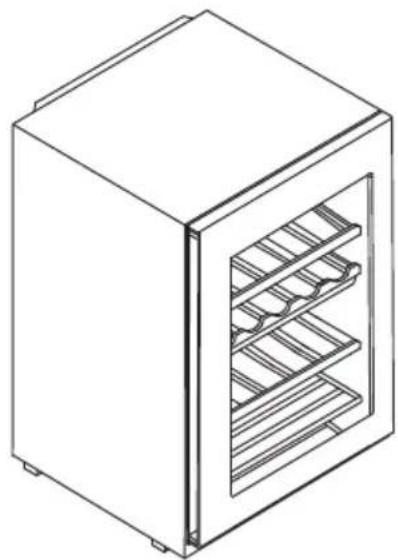

WS25GA

Wine Cellar - User Manual

49

WS25GA

25

WS50GA

fig. # 2

WS49GDB

fig. # 3

WS25GA

Table Of Contents

PAGE

Important safeguards....1

Installing Your Wine Cellar ....2

Unpacking Your Wine Cellar ....2

Leveling Your Wine Cellar....2

Proper Air Circulation 2

Electrical Requirement ....3

Install Limitations....3

Use of Extension Cord....3

Wine Cellar Features And Use ....4

Initial Setup....4

Temperature Adjustments ....4

Shelving....6

Interior Light....6

Normal Operating Sounds You May Hear....6

Proper Wine Cellar Care and Cleaning....7

Cleaning and Maintenance....7

Power Interruptions ....7

Vacation and Moving Care ....7

Troubleshooting 8

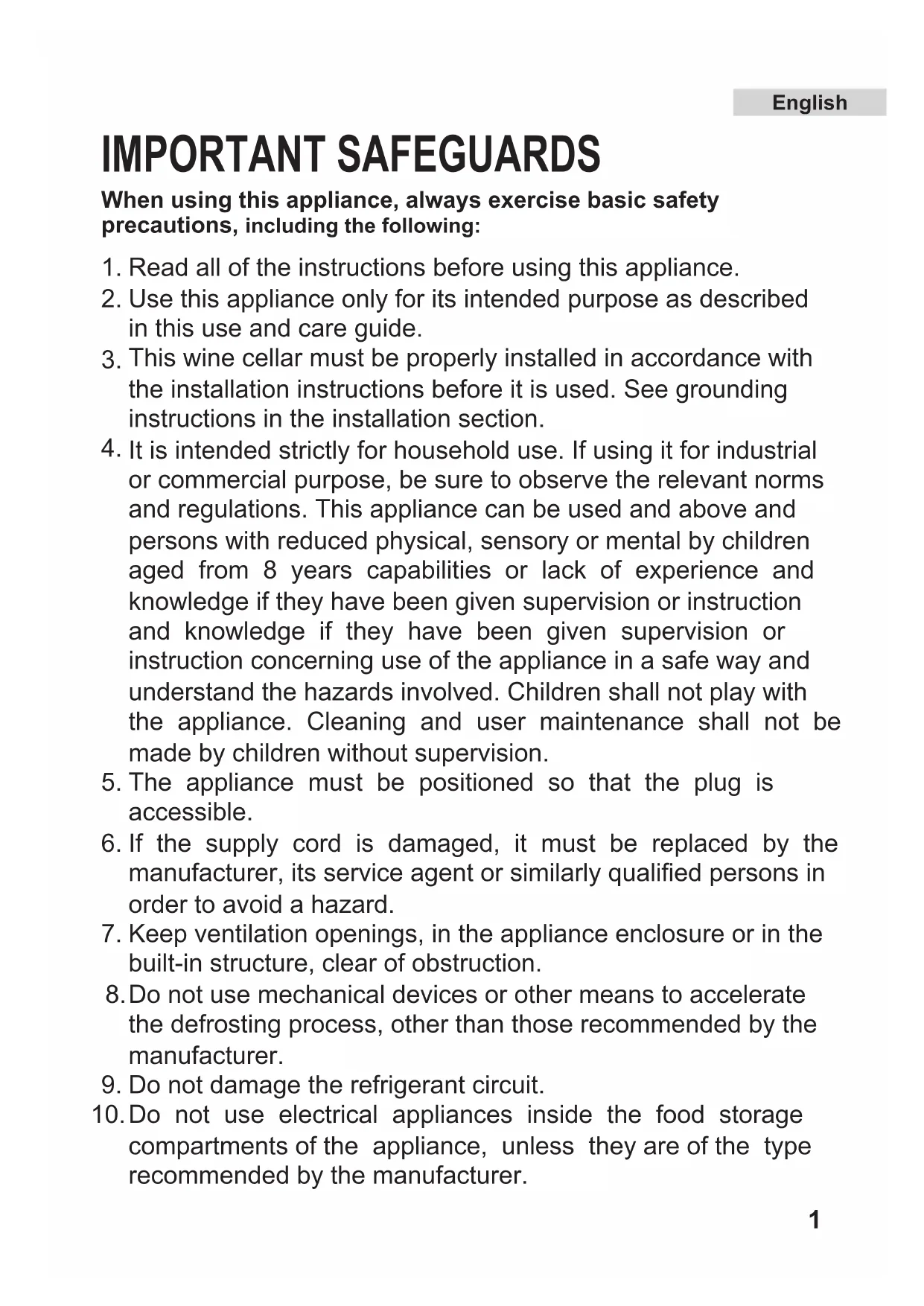

IMPORTANT SAFEGUARDS

When using this appliance, always exercise basic safety precautions, including the following:

1. Read all of the instructions before using this appliance.
2. Use this appliance only for its intended purpose as described in this use and care guide.
3. This wine cellar must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
4. It is intended strictly for household use. If using it for industrial or commercial purpose, be sure to observe the relevant norms and regulations. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
5. The appliance must be positioned so that the plug is accessible.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
8. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
9. Do not damage the refrigerant circuit.
10. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
11. If the light is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
12. This appliance is intended to be used exclusively for the storage of wine.
13. Risk of child entrapment. Before you throw away your old wine cellar, take off the doors. Leave the shelves in place so that children may not easily climb inside.

Installing Your Wine Cellar

Unpacking Your Wine Cellar

1. Remove all packaging material. This includes the foam base and all adhesive tape holding the wine cellar accessories inside and outside.
2. Inspect and remove any remains of packing, tape or printed materials before powering on the wine cellar.

Leveling Your Wine Cellar

• Your wine cellar has leveling legs located in the front and rear corners. After properly placing your wine cellar in its final position, you can level it.
• The leveling legs can be adjusted by turning them clockwise to raise the wine cellar or counterclockwise to lower it. The door will close easier when the leveling legs are extended.

Proper Air Circulation

• To ensure your wine cellar operates at maximum efficiency, install it in a location with proper air circulation, plumbing, and electrical connections.
• The following clearances are recommended around the wine cellar:

Sides: 2" (50 mm)

Top: 2" (50 mm)

Back: 2" (50 mm)

Do not overfill your wine cellar to ensure proper wine cooling.

Note: If your wine cellar has been tilted for any reason, wait 24 hours before plugging it in.

Electrical Requirements

• Make sure there is a suitable power outlet (220-240V, 15 amps) with proper grounding to power the wine cellar.
• Avoid using three-prong adapters or cutting off the third grounding prong to accommodate a two-prong outlet. This is a dangerous practice as it provides no effective grounding for the wine cellar and may result in a shock hazard.

Installation Limitations

• Do not install your wine cellar in any location not properly insulated or heated, e.g., garage, etc. Your wine cellar was not designed to operate in ambient temperatures below 16°C.
• Select a suitable location for the wine cellar on a hard, even surface away from direct sunlight or heat sources, e.g., radiators, baseboard heaters, cooking appliances, etc. Any floor unevenness should be corrected with the leveling legs located on the front and rear bottom corners of the wine cellar.
• Your wine cellar is designed for free-standing installation only. It is not designed for built-in application.

Use of Extension Cord

- Avoid the use of an extension cord because of potential safety hazards under certain conditions. If it is necessary to use an extension cord, use only an extension cord that has a plug and an outlet with grounding function. The marked rating of the extension cord must be equal to or greater than the electrical rating of the appliance.

Wine Cellar Features And Use

Initial Setup

Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes to acclimatize itself before making any adjustments.

Temperature Adjustments:

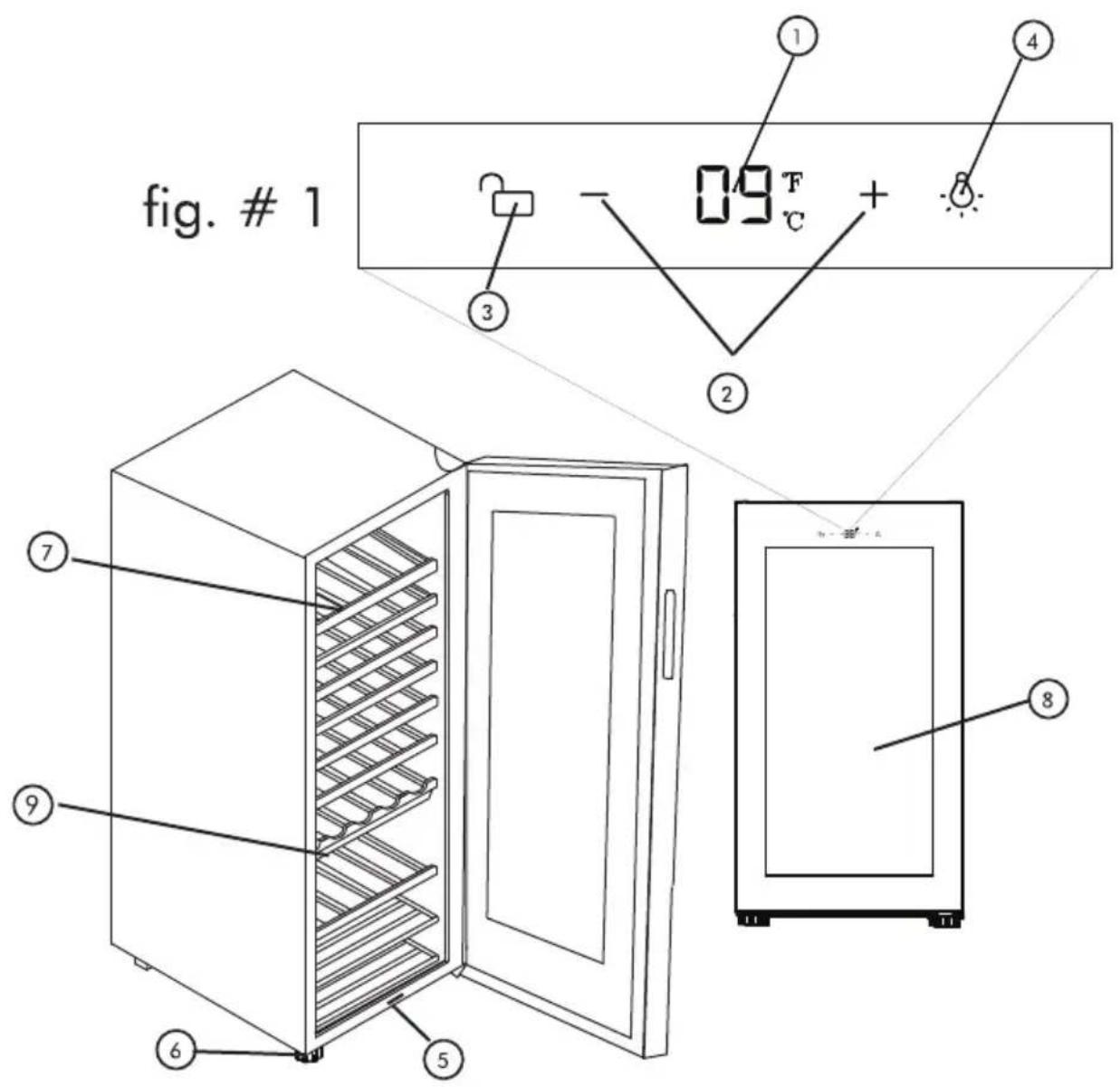

WS50GA See fig. # 1

• The temperature of the wine cellar is preset to 12 °C (54 °F) from the factory.
• The wine cellar can be set to any temperature between 5 °C (41 °F) and 20 °C (68 °F) in either of the compartments to accommodate your wine storage requirements. To set the temperature, hold the "" button for about 3 seconds. You will notice the temperature display blink. Press the "" or "+" button to increase or decrease the temperature setting. Once the desired temperature is attained, press the "" button or stop operation for about 5 seconds, and the panel will memorize the setting. The temperature display will revert back to display the inside temperature. It may take some time to reach the set temperature.
• Press the "-8" button for about 3 seconds to switch between "°C" and "°F" (the temperature display mode).

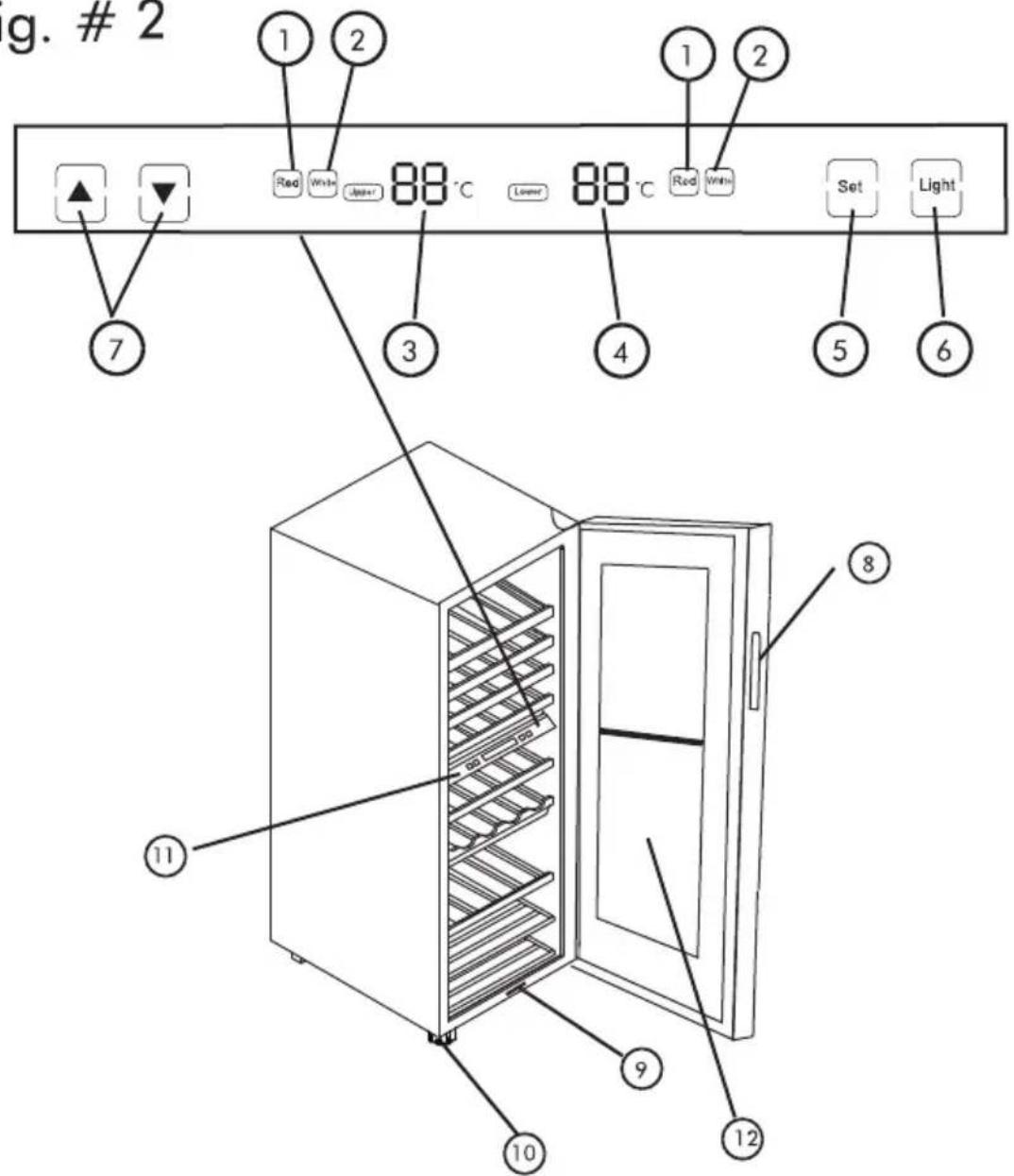

WS49GDB See fig. # 2

• The wine cellar is preset from the factory to automatically accommodate temperature requirements for red or white wines.
• The wine cellar can be set to any temperature between 6 °C and 18 °C in either of the compartments to accommodate your wine storage requirements. To set the temperature, hold the "S" button for about 3 seconds. You will notice the temperature display blink for the upper compartment. Press the up or down arrow button to increase or decrease the temperature setting. Once the desired temperature is attained, press the " " button. Doing this, the electronic control panel will memorize the setting. The temperature display will revert back to display the inside temperature. It may take some time to reach the set temperature.

Wine Cellar Features And Use

- Once the temperature is set for the upper compartment, you will notice the temperature display blink for the lower compartment. Again press the up or down arrow button to increase or decrease the temperature. Once the desired temperature is attained, press the "S" button. Doing this, the electronic control panel will memorize the setting. The temperature display will revert back to display the inside temperature. It may take some time to reach the set temperature.

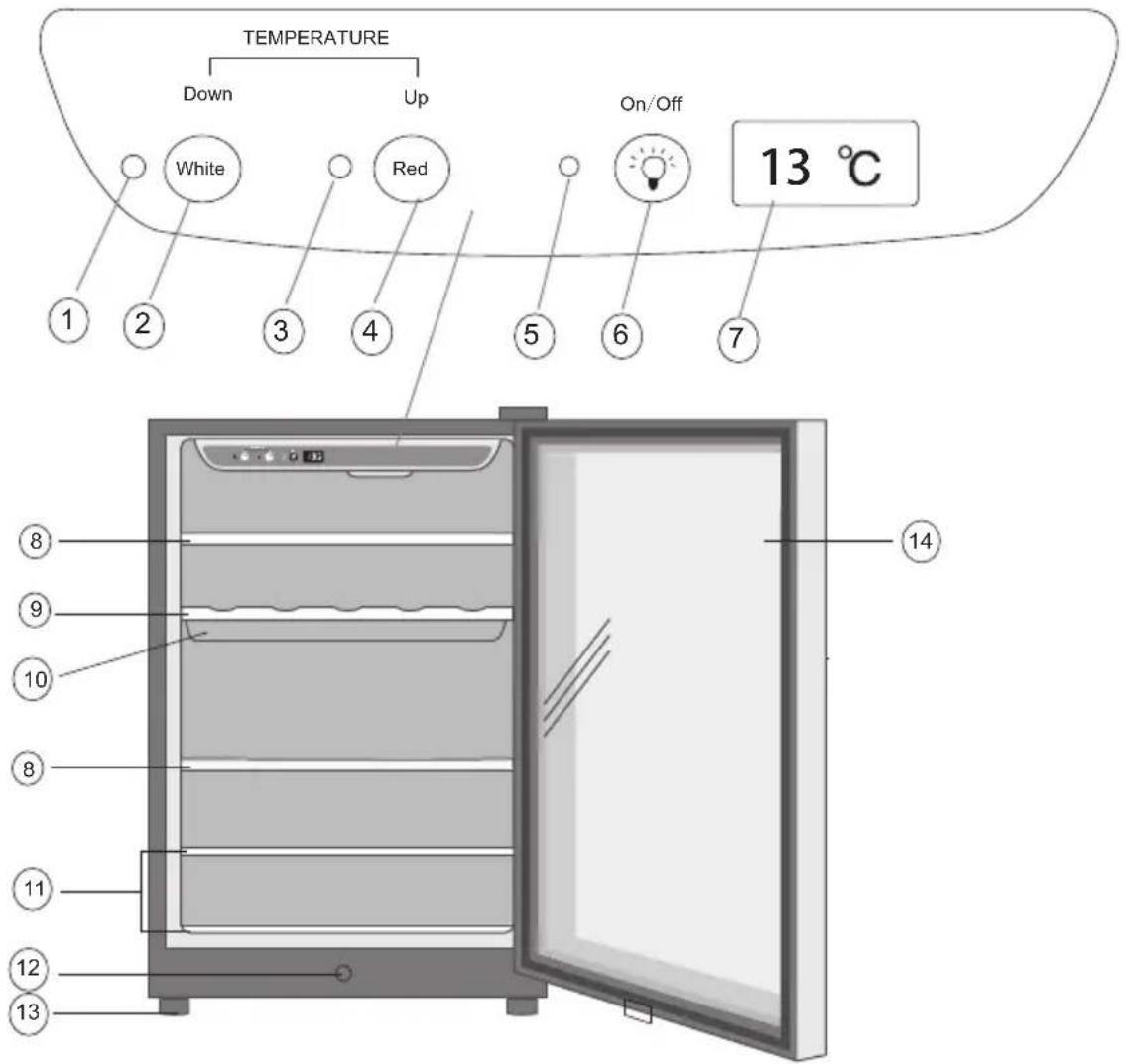

WS25GA See fig. # 3

- The wine cellar is preset from the factory to automatically accommodate temperature requirements for red or white wines. If you store mostly white wines, press the "White Wine" button and the wine cellar will maintain an average temperature between 7° to 10 °C. Pushing the "Red Wine" button will yield an average temperature between 13 °C to 16 °C.

- The wine cellar can be set to any temperature you desire to accommodate your wine storage requirements. To set the temperature, press both the "White Wine" and "Red Wine" buttons simultaneously and hold for approximately 3 seconds. Now you are in temperature set mode. Decrease the temperature by pushing the "White Wine" button and increase the temperature by pressing the "Red Wine" button. Pressing the appropriate button 3 times will adjust the temperature 3 degrees, press 4 times equals 4 degrees, 5 times equals 5 degrees, and so on. Once you have selected the temperature you desire, push the "Light" button. Now the wine cellar is programmed and the LED readout will return to current internal temperature reading.

Note: You can fill in proper amount of water into the water container for the improvement of humidity inside your wine cellar.

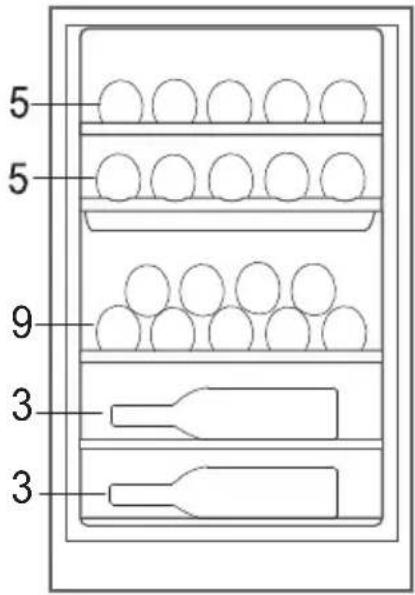

Shelving

• The shelves are designed for appearance and easy cleaning. Larger bottles or Magnums can be more easily accommodated at the cross shelves at the bottom of the cellar.
• There are some shelves for easy storage and removal of your wine.

Interior Light

• To complement the look of your wine collection, a light has been built into the wine cellar. Simply push the "or" "button and the light comes on, push again for off. For maximum energy efficiency, leave light off when not viewing your collection.
• When door is open the light will go on. Upon closing the door, the light will go off.

Normal Operating Sounds You May Hear

• Boiling water, gurgling sounds, or slight vibrations that are the result of the refrigerant circulating through the cooling coils.
• The thermostat control will click when it cycles on and off.

Proper Wine Cellar Care and Cleaning

Cleaning and Maintenance

Warning: To avoid electric shock, always unplug your wine cellar before cleaning. Ignoring this warning may result in death or injury.

Caution: Before using cleaning products, always read and follow the manufacturer's instructions and warnings to avoid personal injury or product damage.

General: Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use a sponge or soft cloth, dampened with the cleaning solution, to wipe down your wine cellar. • Rinse with clean warm water and dry with a soft cloth. • Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents, or metal scouring pads. Some of these chemicals may dissolve, damage, and/or discolor your wine cellar.

Door Gaskets: Clean door gaskets every three months according to the general instructions. Gaskets must be kept clean and pliable to assure a proper seal. • Petroleum jelly applied lightly on the hinge side of gaskets will keep the gasket pliable and assure a good seal.

Power Interruptions

- Occasionally there may be power interruptions due to thunderstorms or other causes. Remove the power cord from the AC outlet when a power outage occurs. When power has been restored, replug the power cord into the AC outlet.

Vacation and Moving Care

- For long vacations or absences, unplug the wine cellar and clean the wine cellar and door gaskets according to the "General Cleaning" section. Leave the doors open so that air can circulate inside. - When moving, always move the wine cellar vertically. Do not move with the unit lying down, as possible damage to the sealed system could occur.

Note: After moving, wait for 24 hours before plugging in the wine cellar.

Troubleshooting

Wine Cellar Does Not Operate:

• Check if wine cellar is plugged in.
• Check if there is power in the AC outlet, by checking the circuit breaker.

Wine appears too warm:

• Frequent door openings.
• Allow time for recently added wine to reach desired temperature.
• Check gaskets for proper seal.
• Clean condenser coils.
• Adjust temperature control to colder setting.

Wine temperature is too cold:

- If temperature control setting is too cold, adjust to a warmer setting.

Wine cellar runs too frequently:

• This may be normal to maintain constant temperature during high temperature and humid days.
• Doors may have been opened frequently or for an extended period of time.
• Clean condenser coils.
• Check gasket for proper seal.
• Check to see if doors are completely closed.

Moisture build up on interior or exterior of the wine cellar:

• This is normal during high humidity periods. - Prolonged or frequent door openings. - Check door gaskets for proper seal.

Wine cellar door does not shut properly:

• Level the wine cellar. - Check for blockages e.g. wine bottles, shelves.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposal at least free of charge.

Supplier	Haier
Model	WS50GA WS	49GDB WS25GA
Category	Wine storage C	Cellar Cellar
Energy efficiency class	A B A
Energy consumption (kWh per year)	146 190 128
Net capacity (Litters)	167 162 87
Temperature range °C	5~20 6~18	6~18
Climate class*	ST ST N
Noise level dB(A)	42 42 42
This appliance is intended to be used exclusively for the storage of wine

^* =This appliance is intended to be used at an ambient temperature indicated below

Climate class	Ambient average temperature °C
SN	+ 10 to + 32
N	+ 16 to + 32
ST	+ 16 to + 38
T	+ 16 to + 43
