Brand	HOTPOINT-ARISTON
Model	PK 644 D GH E XHA
Product type	Built-in gas hob
Number of burners	3 (Rapid, Semi-rapid, Auxiliary)
Power Rapid burner	3,00 kW
Power Semi-rapid burner	1,90 kW
Power Auxiliary burner	1,00 kW
Diameter Rapid burner	157 mm
Diameter Semi-rapid burner	132 mm
Diameter Auxiliary burner	110 mm
Recommended pan diameter (Rapid)	24 - 26 cm
Recommended pan diameter (Semi-rapid)	16 - 20 cm
Recommended pan diameter (Auxiliary)	10 - 14 cm
Gas supply	Natural gas G20 (20 mbar)
Electrical supply	230 V ~ 50 Hz (for ignition and safety)
Ignition	Built-in automatic (spark ignition)
Safety device	Gas cut-off in case of accidental flame extinction
Installation class	Class 3 (built-in)
Burner maintenance	Wash with hot water and detergent; do not put caps in dishwasher
Surface cleaning	Damp sponge and non-abrasive detergent; do not use steam cleaners
Compatibility with built-in oven	Yes, subject to cooling ventilation
Standards	Compliant with EC directives (Low Voltage, Electromagnetic Compatibility, Gas, WEEE)

Frequently Asked Questions - PK 644 D GH E XHA HOTPOINT-ARISTON

How to light a burner?

Press the corresponding knob fully and turn it counterclockwise to the maximum power position. Hold the pressure for 2-3 seconds until the safety device heats up. Some models have built-in ignition: press the knob and turn until ignition.

What to do in case of accidental flame extinction?

Immediately turn the knob to the off position (●) and wait at least 1 minute before attempting to relight. Never try to extinguish a fire with water; use a lid or fire blanket.

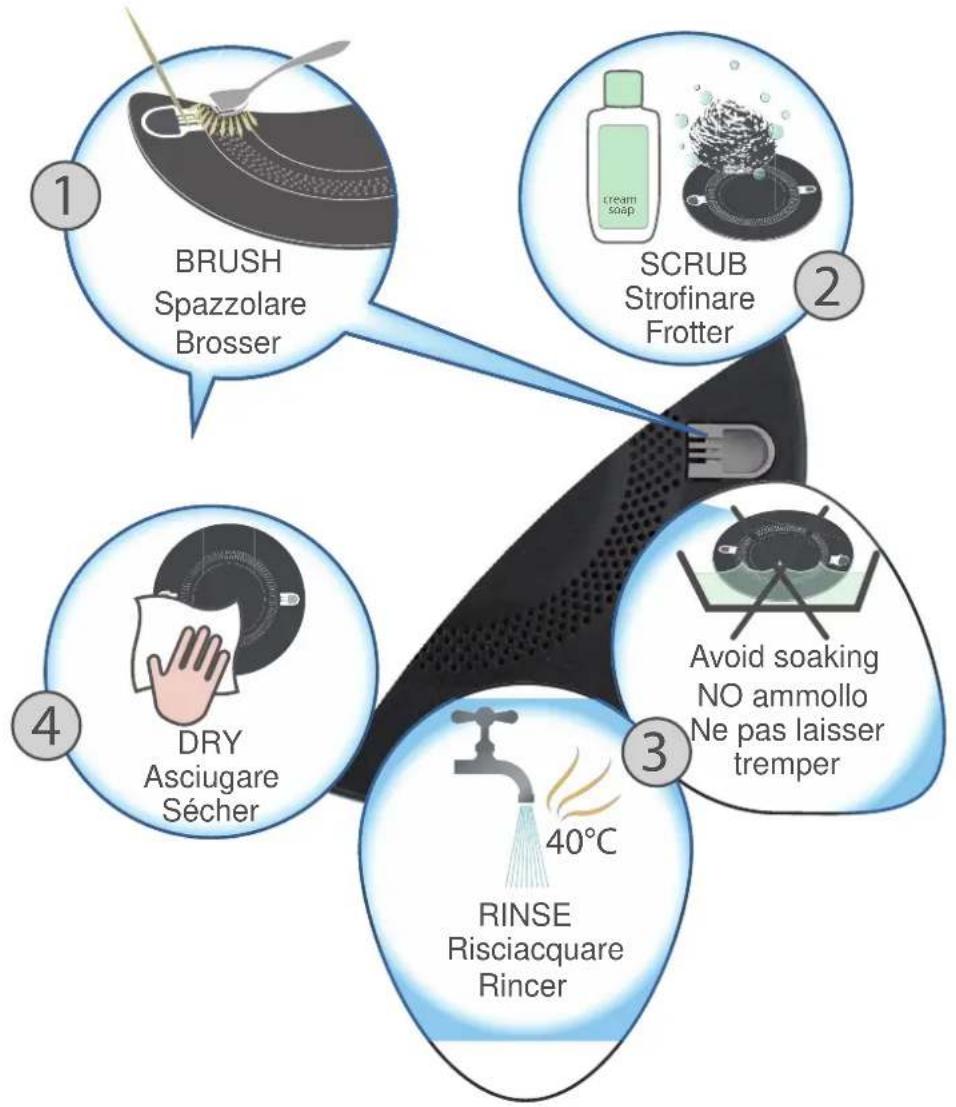

How to clean the burners?

Frequently wash the removable parts of the burners with hot water and detergent, carefully removing deposits. Do not put caps in the dishwasher to avoid aluminum dulling. Use a brush to clean the gas outlet holes.

What types of pans to use?

Use flat-bottomed pans with lids. The diameter should match the burner: Rapid (24-26 cm), Semi-rapid (16-20 cm), Auxiliary (10-14 cm). Avoid flames extending beyond the pan base.

What is the power of the burners?

Rapid burner: 3,00 kW; Semi-rapid: 1,90 kW; Auxiliary: 1,00 kW (natural gas G20 at 20 mbar).

How to install the hob?

Installation must be carried out by a professional. The hob must be built into a worktop 20 to 40 mm thick. Respect the minimum distances from furniture and hoods (650 mm for the hood, 420 mm for high units). Ensure adequate ventilation.

What to do if the burner does not light or has an irregular flame?

Check that the gas outlet holes are not blocked, that the burner parts are correctly assembled, and that there are no draughts. If the flame goes out at minimum position, the minimum settings may require professional adjustment.

How to maintain the gas taps?

If a tap jams or turns hard, it must be replaced by a technician approved by the manufacturer. Do not attempt to repair it yourself.

What are the important safety precautions?

Never leave objects on the cooking surfaces. Keep children under 8 away without supervision. Do not clean with steam cleaners. Ensure knobs are off when not in use.

How to dispose of the appliance at end of life?

Do not discard the appliance with household waste. In accordance with WEEE Directive 2012/19/EC, take it to a selective collection point or return it to the retailer when purchasing a new equivalent appliance.

USER MANUAL PK 644 D GH E XHA HOTPOINT-ARISTON

Operating Instructions

HOB

Contents

Operating Instructions,1

Warnings,3

Assistance,10

Description of the appliance,12

Installation,24

Start-up and use,27

Precautions and tips,27

Maintenance and care,28

Troubleshooting,30

PT

Portuges

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: Danger of fire: do not store items on the cooking surfaces.

Never use steam cleaners or pressure cleaners on the appliance.

Remove any liquid from the lid before opening it. Do not close the glass cover (if present) when the gas burners or electric hotplates are still hot.

The appliance is not intended to be operated by means of an external timer or separate remote control system.

CAUTION: the use of inappropriate hob guards can cause accidents.

CAUTION: In case of hotplate glass breakage:

• shut immediately off all burners and any electrical heating element and isolate the appliance from the power supply
• do not touch the appliance surface.

FR

Avertissements

• The type of problem encountered.
- appliance model (Mod.)
- serial number (S/N)

This information is found on the data plate located on the appliance and/or on the packaging.

FR

Assistance

Indiquez-lui :

Description of the appliance

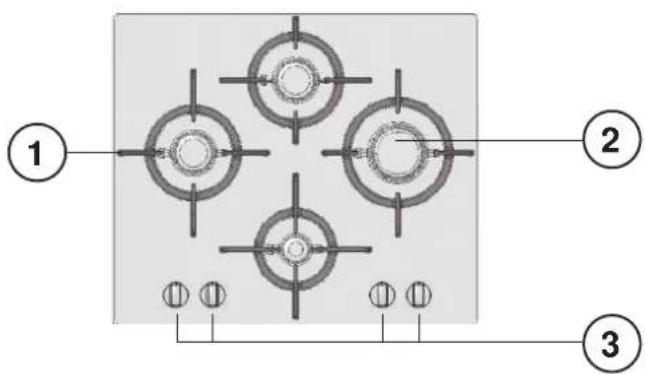

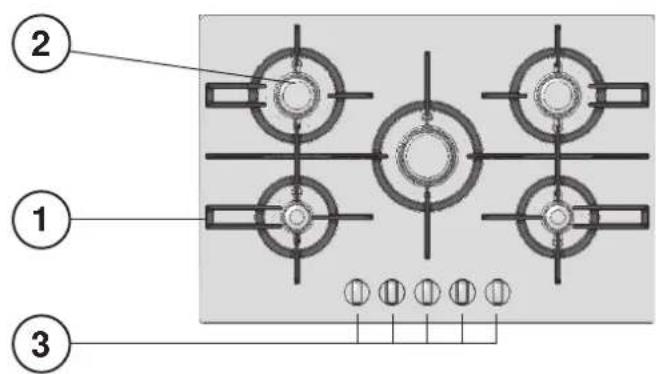

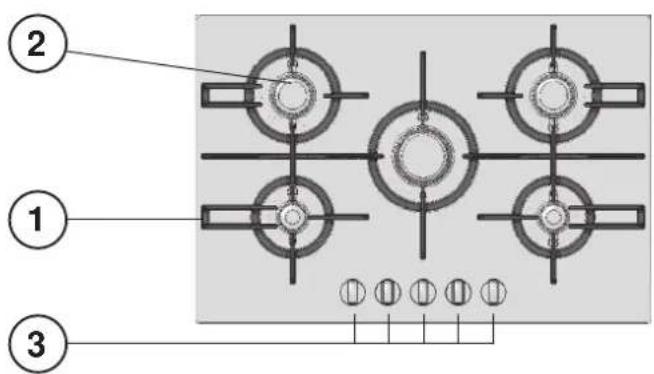

Overall view

1 Support Grid for COOKWARE
2 GAS BURNERS
3 Control Knobs for GAS BURNERS
4 Ignition for GAS BURNERS
5 SAFETY DEVICES

• GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with.
- Control Knobs for GAS BURNERS adjust the power or the size of the flame.
• GAS BURNER IGNITION enables a specific burner to be lit automatically.
- SAFETY DEVICE stops the gas flow if the flame is accidentally extinguished.

! The largest slot should be inserted into the ignition.

Mechanical component diagram showing a flanged housing with labeled parts (4 and 5), no text or symbols present.

② ① ③

① ② ③

FR

Mechanical component diagram showing a flanged housing with labeled parts (4 and 5), no text or symbols present.

Technical diagram of a mechanical component with numbered parts and internal circular features

① ② ③

PT

Mechanical component diagram showing a flanged housing with labeled parts (4 and 5), no text or symbols present.

② ① ③

① ② ③

BE

Mechanical component diagram showing a flanged top and base with labeled parts (no text or symbols beyond numbers 4 and 5)

② ① ③

① ② ③

TR

Cihazın tanıtımı

Genel görünüm

55mm 475mm 555 mm

Technical diagram of a rectangular electronic device with internal components and directional arrows indicating orientation (no text or symbols)

Pure mechanical assembly diagram showing a bracket and lever mechanism without any text or symbols

Pure mechanical cross-section diagram without any text, numbers, or symbols

Cross-sectional diagram of a mechanical joint or seal assembly (no text or symbols visible)

Architectural floor plan sketch showing room layouts and structural elements (no text or labels)

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

S S A R O O O O

PK 644 D GH X/HA PKQ 644 D GH /HA PK 644 D GH E X /HA

Diagram showing two circular components with highlighted features and red X marks below, illustrating mechanical or electrical assembly (no text or symbols present)

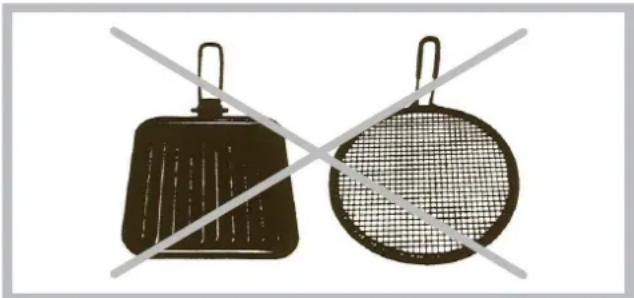

Two crossed-out kitchen utensils: a black kettle and a mesh fan, with no text or symbols present.

! Before operating your new appliance please read this instruction booklet carefully. It contains important information for safe use, installation and care of the appliance.

! Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

Positioning

! Keep packaging material out of the reach of children. It can become a choking or suffocation hazard (see Precautions and tips).

! The appliance must be installed by a qualified professional according to the instructions provided. Incorrect installation may cause harm to people and animals or may damage property.
! This unit may be installed and used only in permanently ventilated rooms in accordance with current national regulations. The following requirements must be observed:
- The room must be equipped with an air extraction system that expels any combustion fumes. This may consist of a hood or an electric fan that automatically starts each time the appliance is switched on.

In a chimney stack or branched flue (exclusively for cooking appliances)

Directly to the Outside

- The room must also allow proper air circulation, as air is needed for combustion to occur normally. The flow of air must not be less than 2m^3/h per kW of installed power.

Examples of ventilation holes for combustible air.

The air circulation system may take air directly from the outside by means of a pipe with an inner cross section of at least 100 cm ^2 ; the opening must not be vulnerable to any type of blockages.

Adjacent Room Room to be Vented Enlarging the ventilation slot between window and floor.

The system can also provide the air needed for combustion indirectly, i.e. from adjacent rooms fitted with air circulation tubes as described above. However, these rooms must not be communal rooms, bedrooms or rooms that may present a fire hazard.

Fitting the appliance

The following precautions must be taken when installing the hob:

• Kitchen cabinets adjacent to the appliance and taller than the top of the hob must be at least 600 mm from the edge of the hob.
• Hoods must be installed according to their relative installation instruction manuals and at a minimum distance of 650 mm from the hob (see figure).
• Place the wall cabinets adjacent to the hood at a minimum height of 420 mm from the hob (see figure).

If the hob is installed beneath a wall cabinet, the latter must be situated at a minimum of 700 mm above the hob.

- The installation cavity should have the dimensions indicated in the figure. Fastening hooks are provided, allowing you to fasten the hob to tops that are between 20 and 40 mm thick. To ensure the hob is securely fastened to the top, we recommend you use all the hooks provided.

55 mm 475 mm 555 mm

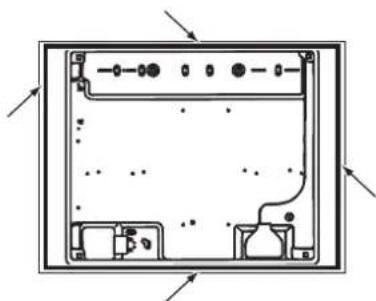

- Before fastening the cooktop in place, position the seal (supplied) along the perimeter of the countertop, as shown in the figure.

Technical line drawing of a mechanical component with mounting holes and internal features (no text or symbols)

Hook fastening diagram

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Cross-sectional diagram of a mechanical assembly with hatched and solid sections (no text or labels)

Hooking position Hooking position for top H=20mm for top H=30mm

Front

Technical cross-section diagram of a mechanical assembly (no text or labels)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Hooking position Back for top H=40mm

! Use the hooks contained in the "accessory pack".

- Where the hob is not installed over a built-in oven, a wooden panel must be installed as insulation. This must be placed at a minimum distance of 20 mm from the lower part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

! The hob can only be installed above built-in ovens with a cooling ventilation system.

Electrical connection

Hobs equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate (this is located on the lower part of the appliance). The earth wire in the cable has a green and yellow cover. If the appliance is to be installed above a built-in electric oven, the electrical connection of the hob and the oven must be carried out separately, both for electrical safety purposes and to make extracting the oven easier.

Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate.

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains. The circuit-breaker must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the circuit-breaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C.

! The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.

Before connecting to the power supply, make sure that:

- The appliance is earthed and the plug is compliant with the law.

- The socket can withstand the maximum power of the appliance, which is indicated on the data plate.

- The voltage is in the range between the values indicated on the data plate.

- The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).

! The manufacturer declines any liability should these safety measures not be observed.

Gas connection

The appliance should be connected to the main gas supply in compliance with current national regulations. Before carrying out the connection, make sure the cooker is compatible with the gas supply you wish to use: G20-20mbar (Natural Gas).

! Check that the pressure of the gas supply is consistent with the values indicated in Table 1 (“Burner and nozzle specifications”). This will ensure the safe operation and longevity of your appliance while maintaining efficient energy consumption.

Connection with a rigid pipe (copper or steel)

! Connection to the gas system must be carried out in such a way as not to place any strain of any kind on the appliance. There is an adjustable L-shaped pipe fitting on the appliance supply ramp and this is fitted with a seal in order to prevent leaks. The seal must always be replaced after rotating the pipe fitting (seal provided with appliance). The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

Connecting a flexible jointless stainless steel pipe to a threaded attachment

The gas supply pipe fitting is a threaded 1/2 gas cylindrical male attachment.

These pipes must be installed so that they are never longer than 2000 mm when fully extended. Once connection has been carried out, make sure that the flexible metal pipe does not touch any moving parts and is not compressed.

! Only use pipes and seals that comply with current national regulations.

GB

Checking the tightness of the connection

! When the installation process is complete, check the pipe fittings for leaks using a soapy solution. Never use a flame.

! Should the gas pressure used be different (or vary slightly) from the recommended pressure, a suitable pressure regulator must be fitted to the inlet pipe (in order to comply with current national regulations).

DATA PLATE
Electrical connections	see data plate
	This appliance conforms to the following European Economic Community directives:- 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments- 2004/108/EEC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments- 93/68/EEC dated 22/07/93 and subsequent amendments.- 2009/142/EEC dated 30/11/09 (Gas) and subsequent amendments.- 2012/19/EC and subsequent amendments.

Burner and nozzle specifications

Table 1

					(G20 / 20 mbar)		primary air
Burner	Diameter (mm)	Thermal Power kW (p.c.s.*)		By-pass 1/100 (mm)	Nozzle 1/100 (mm) (G20)	Flow* l/h	(mm)
		Nomin.	Reduc.
Fast (R)	157	3.00	1.00	73	125	286	4.7
Semi Fast (S)	132	1.90	0.80	66	100	157	2.6
Auxiliary (A)	110	1.00	0.50	54	72	95	2.0
Supply pressures	Nominal (mbar)Minimum (mbar)Maximum (mbar)				201725

* At 15°C and 1013,25 mbar-dry gas
Natural P.C.S. = 37.78 MJ/m ^4

S S A R O O O O

PK 644 D GH X/HA
PKQ 644 D GH /HA
PK 644 D GH E X /HA

! The position of the corresponding gas burner is shown on every knob.

Gas burners

Each burner can be adjusted to one of the following settings using the corresponding control knob:

To turn on one of the burners, place a lighted match or lighter near the burner, press the knob all the way in and turn it anticlockwise to the "High" setting.

The knob must be pressed in for about 2-3 seconds until the device that keeps the flame lit warms up.

Some models are equipped with an ignition button incorporated into the control knob. If this is the case, the ignitor is present. To light a burner, simply press the corresponding knob all the way in and then turn it anti-clockwise to the "High" setting, keeping it pressed in until the burner lights.

! If a flame is accidentally extinguished, turn off the control knob and wait for at least 1 minute before trying to relight it.

To switch off the burner, turn the knob in a clockwise direction until it stops (when reaches the “●” position).

Practical advice on using the burners

To ensure the burners operate efficiently:

• Use appropriate cookware for each burner (see table) so that the flames do not extend beyond the bottom of the cookware.
  • Always use cookware with a flat base and a cover.
• When the contents of the pan reach boiling point, turn the knob to minimum.

Burner	∅ Cookware Diameter (cm)
Fast (R)	24 - 26
Semi Fast (S)	16 - 20
Auxiliary (A)	10 - 14

To identify the type of burner, refer to the designs in the section entitled, "Burner and Nozzle Specifications".

! Make sure the pans do not overlap the edges of the hob while it is being used..

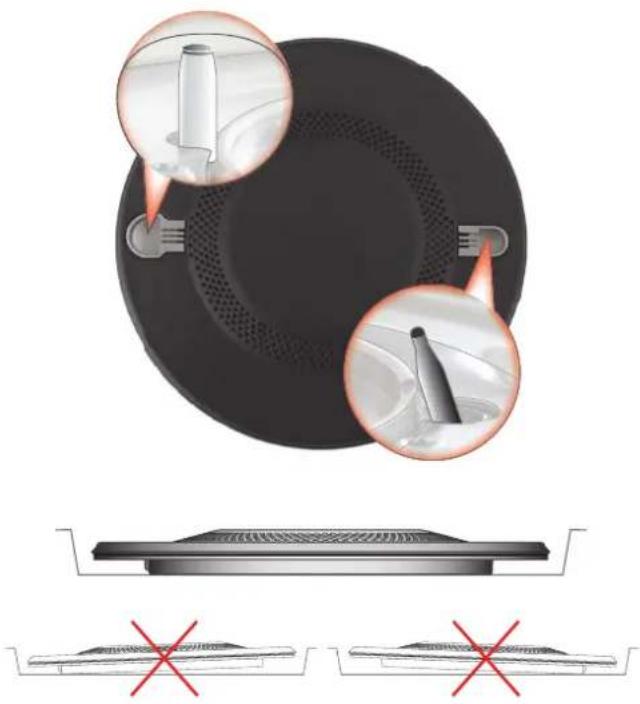

Correct positioning of the FTGH burners

Diagram showing a circular device with two views of a speaker grille, each with a magnified view of its speaker grille (no text or symbols present)

GB

Precautions and tips

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

General safety

• This is a class 3 built-in appliance.
- Gas appliances require regular air exchange to maintain efficient operation. When installing the hob, follow the instructions provided in the paragraph on "Positioning" the appliance.
- These instructions are only valid for the countries whose symbols appear in the manual and on the serial number plate.
- The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
- The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
- Do not touch the appliance with bare feet or with wet or damp hands and feet.
- The appliance must be used by adults only for the preparation of food, in accordance with the instructions outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and unreasonable use of the appliance.
- Ensure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven.

GB

• The openings used for ventilation and dispersion of heat must never be covered.
• Always make sure the knobs are in the “●”/“○” position when the appliance is not in use.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.
• Never carry out any cleaning or maintenance work without having detached the plug from the mains.
• In case of malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance. Contact a Service Centre (see Assistance).
  • Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns.
• Do not use unstable or deformed pans.
• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance.
• Do not let children play with the appliance.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Disposal

• When disposing of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected.
  Consumers may take their old appliance to public waste collection areas, other communal collection areas, or if national legislation allows return it to a retailer when purchasing a similar new product.
  All major household appliance manufacturers are active in the creation of systems to manage the collection and disposal of old appliances.

Maintenance and care

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair.

! Never use steam cleaners or pressure cleaners on the appliance.
- It is usually enough to wash the hob with a damp sponge and dry it with absorbent kitchen roll.
- The removable parts of the burners should be washed frequently with warm water and soap and any burnt-on substances removed.
The burner caps should NOT be put in the dishwasher to prevent dulling of the aluminum part
- For hobs which ligth automatically, the terminal part of the electronic instant lighting devices should be cleaned frequently and the gas outlet holes should be checked for blockages.
- Before using the hob, the surface must be cleaned, using a damp cloth to remove dust or food residues. The hob surface should be cleaned regularly with a solution of warm water and a non-abrasive detergent.
- Stainless steel can be marked by hard water that has been left on the surface for a long time, or by aggressive detergents containing phosphorus. After cleaning, rinse and dry any remaining drops of water.

Two crossed-out kitchen utensils: a black kettle and a mesh grater (no text or symbols)

! Do not use stainless steel flame spreaders, bread toasters or meat grills over gas flames.

• To clean the FTGH burner:

GB

12

Cepillar

Escovar

Borstelen

Fırçalayın

Прочистить щеткой

Щеткамен тазалау

Βούρτσισμα

Očistit kartáčem

Bürsten

Kefélés

Wyczyścić szczotką

Periati

Očistit kefou

فرشاه

Fregar

Esfregar

Poetsen

Ovalayın

Потереть

Ыскылау

Τρίψιμο

Otrít

Reiben

Dörzsölés

Czyścić pocierając

Frecati

Otierat

أفرك

Enjuagar

Enxaguar

Spoelen

Durulayın

Ополоснуть

Шаю

Ξέβγαλμα

Opláchnout

Abspülen

Öblítés

Splukać

Clătiți

Opláchnut

اغسل

No remojar

Sem amolecimento

Niet weken

Islatmayin

Без замачивания

Over time, the taps may become jammed or difficult to turn. If this happens, the tap must be replaced.

! This procedure must be performed by a qualified technician authorised by the manufacturer.

Troubleshooting

It may happen that the appliance does not function properly or at all. Before calling the service centre for assistance, check if anything can be done. First, check to see that there are no interruptions in the gas and electrical supplies, and, in particular, that the gas valves for the mains are open.

The burner does not light or the flame is not even around the burner.

Check whether:

• The gas holes on the burner are clogged.
- All the movable parts that make up the burner are mounted correctly.
• There are draughts near the appliance.

The flame dies in models with a safety device.

Check to make sure that:

• You pressed the knob all the way in.
• You keep the knob pressed in long enough to activate the safety device.
• The gas holes are not blocked in the area corresponding to the safety device.

The burner does not remain lit when set to minimum.

Check to make sure that:

• The gas holes are not blocked.
- There are no draughts near the appliance.
- The minimum setting has been adjusted properly.

The cookware is unstable.

Check to make sure that:

• The bottom of the cookware is perfectly flat.
• The cookware is positioned correctly at the centre of the burner.
• The pan support grids have been positioned correctly.

Installation

55mm 475 mm 555 mm

Technical diagram of a device casing with internal components and directional arrows indicating orientation (no text or symbols)

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Cross-sectional diagram of a mechanical assembly with hatched fill and central component (no text or labels)

Architectural floor plan with labeled rooms and structural elements

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

560 mm. 45 mm.

S S A R O O O O

PK 644 D GH X/HA
PKQ 644 D GH /HA
PK 644 D GH E X /HA

S R A A S A

PK 755 D GH X/HA
PKQ 755 D GH /HA
PK 755D GH E X /HA

Diagram showing a circular device with two close-up views of its internal components, plus a blank cross symbol below (no text or labels)

Two crossed-out kitchen utensils: a rectangular container and a circular filter, both without any text or symbols.

55mm 475mm 555 mm

Diagram of a device casing with internal components and directional arrows indicating orientation (no text or symbols)

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Technical cross-section diagram of a mechanical assembly (no text or labels)

Architectural floor plan outline showing room layouts and structural elements (no text or labels)

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

S S A R O O O O

PK 644 D GH X/HA
PKQ 644 D GH /HA
PK 644 D GH E X /HA

Diagram showing a circular device with two views of a speaker grille, one with a cylindrical object and the other with a speaker (no text or symbols present)

Two crossed-out kitchen utensils: a black kettle and a circular grater, with no text or symbols present.

Technical diagram of a device casing with internal components and directional arrows indicating orientation (no text or labels)

Esquema para prender os ganchos

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Cross-sectional diagram of a mechanical joint or bracket (no text or symbols visible)

H=30mm

Frente

Technical cross-section diagram of a mechanical assembly (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

S S A R O O O O

PK 644 D GH X/HA
PKQ 644 D GH /HA
PK 644 D GH E X /HA

Diagram showing a circular device with two views of a speaker emitting sound waves, marked with red X symbols (no text or labels present)

Two crossed-out objects: a plastic container and a circular filter, both without any text or symbols.

Pure technical diagram of a rectangular device with internal components and directional arrows, no text or symbols present.

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Technical cross-section diagram of a mechanical assembly (no text or symbols)

Technical diagram showing a mechanical assembly with a hatched section and a base mount (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

S S A R O O O O

PK 644 D GH X/HA
PKQ 644 D GH /HA
PK 644 D GH E X /HA

Diagram showing a circular device with two views of a speaker grille, plus two cross-sectional diagrams below (no text or symbols)

Two crossed-out objects: a rectangular container and a circular filter, both with diagonal lines (no text or symbols)

55mm 475mm 555 mm

Pure technical diagram of a rectangular device with internal components and directional arrows, no text or symbols present.

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Cross-sectional diagram of a mechanical assembly with hatched and solid lines indicating material sections (no text or labels)

keukenblad
H=30mm

Voor

Technical drawing of a mechanical assembly with cross-hatched section and base (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Pure technical line drawing of a cabinet or enclosure structure without any text, numbers, or symbols

560 mm. 45 mm.

S S A R O O O O

PK 644 D GH X/HA PKQ 644 D GH /HA PK 644 D GH E X /HA

S R A S A

PK 755 D GH X/HA PKQ 755 D GH /HA PK 755D GH E X /HA

BE

Starten en gebruik

Diagram showing two views of a car interior with ventilation grilles and a speaker grille (no text or symbols)

Two identical line drawings of a flat object with red X marks, no text or symbols present.

Two crossed-out kitchen utensils: a flat plate and a mesh-patterned sink, both without any text or symbols.

Technical diagram of a mechanical or electronic component with no visible text, numbers, or symbols

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

H=30mm

Μπροστά

Pure mechanical cross-section diagram without any text, numbers, or symbols

Architectural floor plan diagram showing room layouts and structural elements (no text or labels)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

560 mm. 45 mm.

S S A R O O O O

PK 644 D GH X/HA
PKQ 644 D GH /HA
PK 644 D GH E X /HA

Diagram showing a circular device with two close-up views of its internal components, plus two red X marks below (no text or symbols present)

Two crossed-out kitchen utensils: a large cylindrical container and a circular filter, both without any text or symbols.

55mm 475mm 555 mm

Technical diagram of a rectangular device with internal components and directional arrows indicating orientation (no text or symbols)

Pure mechanical assembly diagram showing a bracket and pipe connection without any text or symbols

Technical diagram of a mechanical assembly with cross-hatched section and base (no text or labels)

Cross-sectional diagram of a mechanical joint or seal assembly (no text or symbols visible)

Architectural floor plan sketch showing room layouts and structural elements (no text or labels)

Pure technical line drawing of a structural frame with no text, numbers, or symbols

560 mm. 45 mm.

S S A R O O O O

PK 644 D GH X/HA PKQ 644 D GH /HA PK 644 D GH E X /HA

Diagram showing two views of a device with a speaker grille and a red X marks indicating failure or absence (no text or symbols present)

Two crossed-out kitchen utensils: a flat pot and a mesh-patterned sink, both without any text or symbols.

Technical diagram of a device casing with internal components and directional arrows indicating orientation (no text or labels)

Pure mechanical assembly diagram showing a lever and pivot (no text or symbols)

Pure mechanical cross-section diagram without any text, numbers, or symbols

Cross-sectional diagram of a mechanical joint or seal assembly (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

560 mm. 45 mm.

S S A R O O O O

PK 644 D GH X/HA PKQ 644 D GH /HA PK 644 D GH E X /HA

S R A A S A

PK 755 D GH X/HA PKQ 755 D GH /HA PK 755D GH E X /HA

Diagram showing two circular components with highlighted cylindrical features and red X marks below, illustrating mechanical or electrical assembly (no text or symbols present)

UA

Two crossed-out objects: a black container and a circular filter, both with diagonal lines (no text or symbols)
