USER MANUAL EBL 20321 V HOTPOINT-ARISTON

Operating Instructions

Operating Instructions, 1

Assistance, 2

Description of the appliance, 7

Description of the appliance, 13

Start-up and use, 25

Maintenance and care, 25

Precautions and tips, 26

Troubleshooting, 27

KOEL/DIEPVRIESCOMBINATIE

Inhoud

Before calling for Assistance:

• Check if the malfunction can be solved on your own (see Troubleshooting).
• If after all the checks, the appliance still does not operate or the problem persists, call the nearest Service Centre

Communicating:

• type of malfunction
• appliance model (Mod.)
• serial number (S/N)

This information can be found on the data plate located on the bottom left side of the refrigerator compartment.

Never call on unauthorized technicians and always refuse spare parts which are not originals.

F

Assistance

Description of the appliance

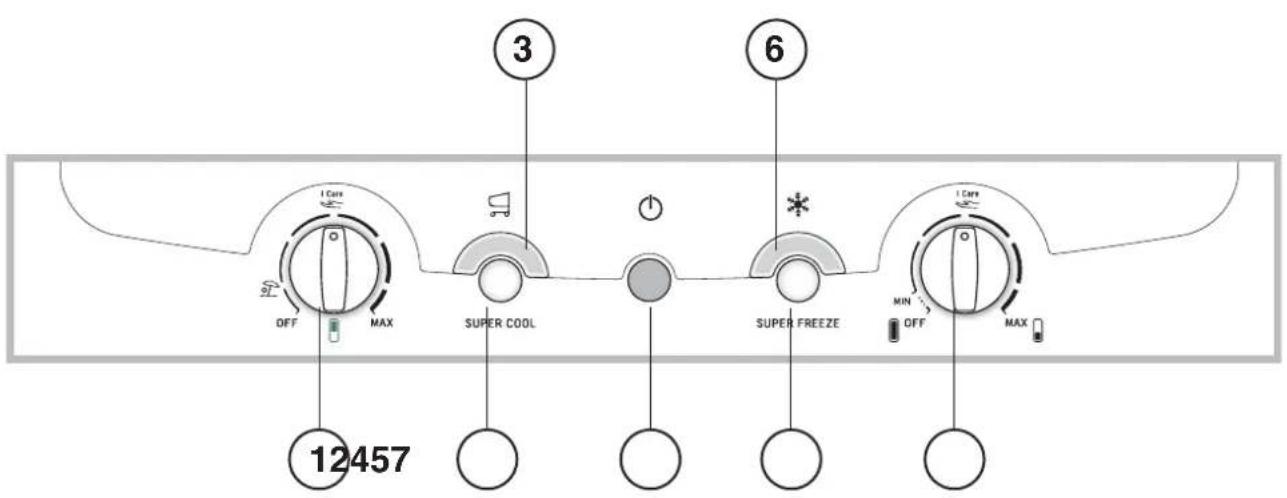

Control panel

1 REFRIGERATOR OPERATION Knob to regulate the temperature of the refrigerator compartment.

I Care is the optimal temperature for energy saving levels.

is the holiday function (see Maintenance and care). OFF switches the refrigerator off.

2 SUPER COOL (quick cool) to lower the temperature of the refrigerator compartment rapidly. When it is pressed, the SUPER COOL indicator light illuminates (see Start-up and use).

3 SUPER COOL Yellow indicator light (rapid cooling) illuminates when the SUPER COOL button is pressed.

4 POWER Indicator light illuminates when the appliance is connected to the electricity network.

5 SUPER FREEZE button (rapid freezing) to freeze fresh food. When it is pressed, the SUPER FREEZE indicator light illuminates (see Start-up and use).

6 SUPER FREEZE Yellow indicator light (rapid freezing) illuminates when the SUPER FREEZE button is pressed.

7 FREEZER OPERATION Knob to regulate the temperature of the freezer compartment.

I Care is the optimal temperature for energy saving levels.

OFF switches the appliance off, including the refrigerator.

!The indicator lights are also used to indicate an unusual temperature increase in the freezer compartment (see Troubleshooting).

12457 OFF MAX SUPER COOL 3 6 SUPER FREEZE MIN OFF MAX

F

Description of the appliance

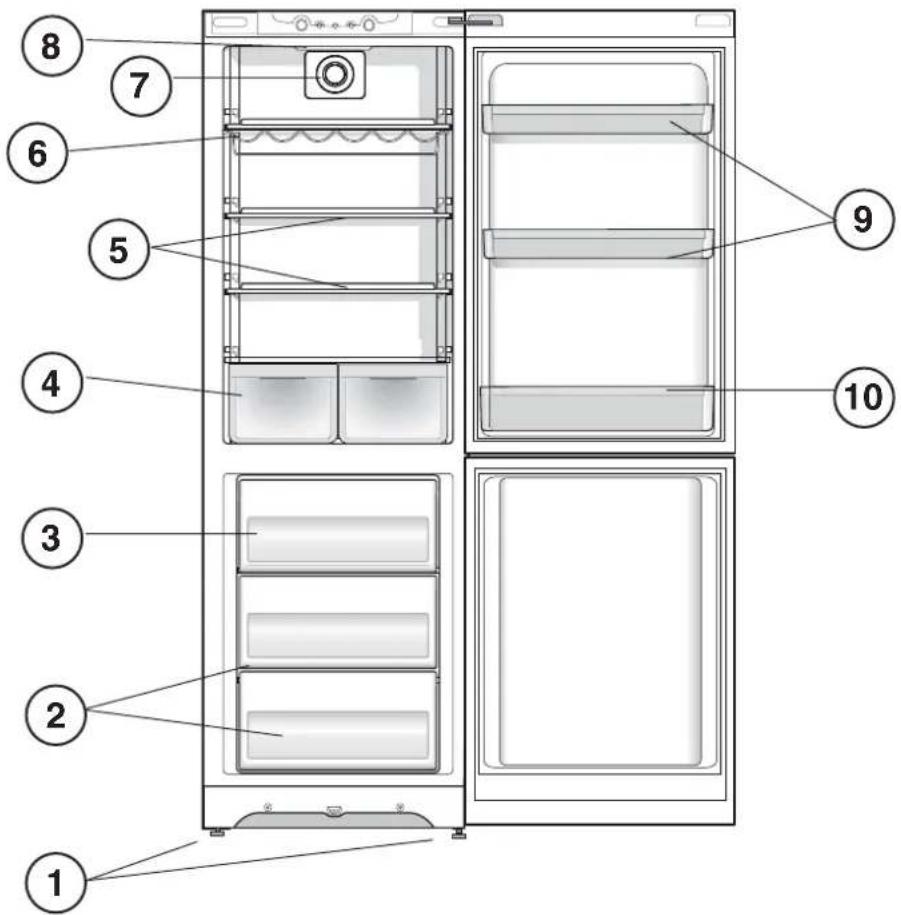

Overall view

The instructions contained in this manual are applicable to different model refrigerators. The diagrams may not directly represent the appliance purchased. For more complex features, consult the following pages.

1 Levelling FEET
2 STORAGE compartment*
3 FREEZER and STORAGE compartment*.
4 FRUIT and VEGETABLE bin
5 SHELVES*.
6 WINE RACK*.
7 AIR*
8 LAMP (see Maintenance).
9 Removable multipurpose SHELVES*.
10 BOTTLE shelf

* Varies by number and/or position, available only on certain models.

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

F

Labeled diagram of a refrigerator interior showing numbered compartments and doors

NL

Labeled diagram of a refrigerator interior showing numbered compartments and doors

P

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

RO

Descriere aparat

Vedere de ansamblu

Labeled diagram of a refrigerator interior showing numbered compartments and storage areas

SK

Popis zariadenia

Celkový pohl'ad

Labeled diagram of a refrigerator interior showing numbered compartments and doors

* Available only on certain models.

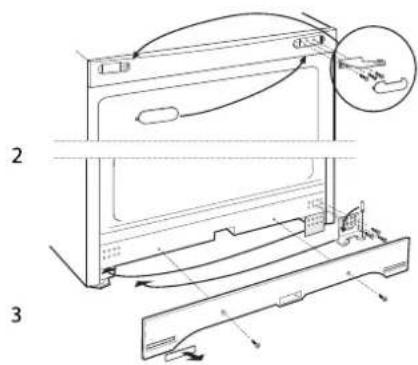

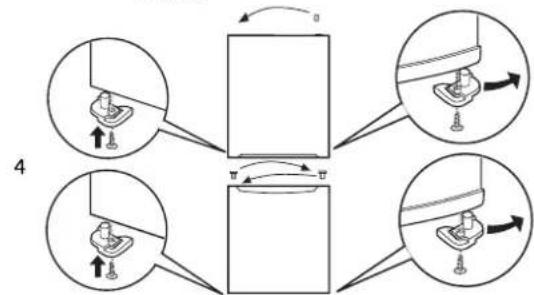

Diagram showing a refrigerator with two views of the refrigerator's side panel, including a close-up of the top view and a magnified inset illustrating the interior mechanism.

Technical diagram of a refrigerator with labeled parts and directional arrows indicating assembly or movement.


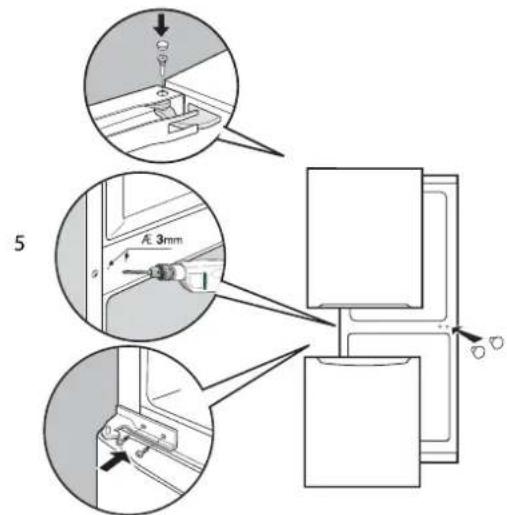

5 AE 3mm

Installazione

Diagram showing a device with labeled components A and B, indicating directional flow or movement around a vertical structure.

3D rendering of a mechanical component with layered structure and mounting bracket (no text or symbols)

Manutenzione e cura

Diagram of a kitchen sink with a downward arrow indicating a drop or direction (no text or symbols present)

Diagram of a refrigerator with a circular base and a small object inserted, no text or symbols present

! Before placing your new appliance into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

! Please keep these operating instructions for future reference.

Pass them on to possible new owners of the appliance.

Positioning and connection

Positioning

1. Place the appliance in a well-ventilated humidity-free room.
2. Do not obstruct the rear fan grills. The compressor and condenser give off heat and require good ventilation to operate correctly and save energy.
3. Leave a space of at least 10 cm between the top part of the appliance and any furniture above it, and at least 5 cm between the sides and any furniture/side walls.
4. Ensure the appliance is away from any sources of heat (direct sunlight, electric stove, etc.).
5. In order to maintain the correct distance between the appliance and the wall behind it, fit the spacers supplied in the installation kit, following the instructions provided.

Levelling

1. Install the appliance on a level and rigid floor.
2. If the floor is not perfectly horizontal, adjust the refrigerator by tightening or loosening the front feet.

Electrical connections

After the appliance has been transported, carefully place it vertically and wait at least 3 hours before connecting it to the electricity mains. Before inserting the plug into the electrical socket ensure the following:

• The appliance is earthed and the plug is compliant with the law.
• The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the bottom left side of the fridge (e.g. 150 W).
• The voltage must be in the range between the values indicated on the data plate located on the bottom left side (e.g. 220-240V).
• The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it (see Assistance). Do not use extension cords or multiple sockets.

! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible.
! The cable must not be bent or compressed.
! The cable must be checked regularly and replaced by authorised technicians only (see Assistance).
! The manufacturer declines any liability should these The safety measures not be observed. safety measures not be

Start-up and use

Starting the appliance

! Before starting the appliance, follow the installation instructions (see Installation).

! Before connecting the appliance, clean the compartments and accessories well with lukewarm water and bicarbonate.
! The appliance comes with a motor protection control system which makes the compressor start approximately 8 minutes after being switched on. The compressor also starts each time the power supply is cut off whether voluntarily or involuntarily (blackout).

1. Set the FREEZER OPERATION knob on
2. Insert the plug into the socket and ensure that the green POWER indicator light illuminates.
3. Turn the REFRIGERATOR OPERATION knob to an average value. After a few hours you will be able to put food in the refrigerator.
4. Turn the FREEZER OPERATION knob to an average value and press the SUPER FREEZE button (rapid freezing): the SUPER FREEZE indicator light will illuminate. Once the refrigerator has reached the optimal temperature, the indicator light goes out and you can begin food storage.

Using the refrigerator to its full potential

• Place only cold or lukewarm foods in the compartment, never hot foods (see Precautions and tips).
• Remember that cooked foods do not last longer than raw foods.
• Do not store liquids in open containers: they will increase the level of humidity in the refrigerator and cause condensation to form.

SHELVES: with or without grill.

Due to the special guides the shelves are removable and the height is adjustable, allowing easy storage of large containers and food. Height can be adjusted without complete removal of the shelf.

TEMPERATURE Indicator light\*: to identify the coldest area in the refrigerator.

1. Check that OK appears clearly on the indicator light (see diagram).

1. If the word "OK" does not appear it means that the temperature is too high: adjust the REFRIGERATOR OPERATION knob to a higher position (colder) and wait approximately 10 hours until the temperature has been stabilised.
2. Check the indicator light again: if necessary, readjust it following the initial process. If large quantities of food have been added or if the refrigerator door has been opened frequently, it is normal for the indicator not to show OK. Wait at least 10 hours before adjusting the REFRIGERATOR OPERATION knob to a higher setting.

AIR \*

It is recognizable due to the presence of the mechanism on the top part of the refrigerator compartment (see diagram).

AIR maximises air circulation, improving the efficiency of the evaporator and helping to achieve the optimal temperature inside the refrigerator as quickly as possible each time it has been opened. The blown air (A) is cooled when it comes into contact with the cold wall, whereas the hotter air (B) is sucked up (see manufacturer declines any liability should these observed.

Diagram showing a device with labeled components A and B, indicating directional flow or movement around a vertical structure.

Using the freezer to its full potential

- Use the FREEZER OPERATION knob to adjust the temperature (see Description).

• Do not re-freeze food that is defrosting or that has already been defrosted. These foods must be cooked and eaten (within 24 hours).
• Fresh food that needs to be frozen must not come into contact with food that has already been defrosted. Fresh food must be stored in the top FREEZER and STORAGE compartment where the temperature drops below -18^ and guarantees rapid freezing.
• To freeze fresh food in the best and safest way possible, activate the SUPER FREEZE function 24 hours before placing the food in the freezer. After placing the food inside, activate the SUPER FREEZE function again; it will be deactivated automatically after 24 hours;
• Do not place glass bottles which contain liquids, and which are corked or hermetically sealed in the freezer because they could break.
• The maximum quantity of food that may be frozen daily is indicated on the plate containing the technical properties located on the bottom left side of the refrigerator compartment (for example: Kg/24h: 4).
• In order to obtain a greater amount of space in the freezer compartment, you may remove the bins (except the lowest bin and the special COOL CARE ZONE bin, which has an adjustable temperature) and place the food directly onto the evaporator plates.

! If the room temperature drops below 14^ C for an extended period of time, the ideal temperature will not be reached in the freezer compartment and food preservation will be reduced.

! Do not open the door during freezing.

! If there is a power cut or malfunction, do not open the freezer door. This will help maintain the temperature inside the freezer, ensuring that foods are conserved for at least 9 -14 hours.

Easy Ice \*

The double tub was designed to optimise space in the freezer compartment and to ensure that ice is always readily available. The trays can be stacked or filled and used separately.

Furthermore, the special fastening system makes Easy Ice an extremely flexible solution, as it can be positioned in the right or left part of the top drawers.

3D rendering of a mechanical component with layered structure and mounting bracket (no text or symbols)

Maintenance and care

Switching the appliance off

During cleaning and maintenance it is necessary to disconnect the appliance from the electricity supply:

1. pull the plug out of the socket

Cleaning the appliance

- The external and internal parts, as well as the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and bicarbonate of soda or neutral soap. Do not use

* Varies by number and/or position, available only on certain models.

solvents, abrasive products, bleach or ammonia.

• The removable accessories may be soaked in warm water and soap or dishwashing liquid. Rinse and dry them carefully.
• The back of the appliance may collect dust which can be removed by delicately using the hose of a vacuum cleaner set on medium power. The appliance must be switched off and the plug must be pulled out before cleaning the appliance.

Avoiding mould and unpleasant odours

• The appliance is manufactured with hygienic materials which are odour free. In order to maintain an odour free refrigerator and to prevent the formation of stains, food must always be covered or sealed properly.
• If you want to switch the appliance off for an extended period of time, clean the inside and leave the doors open.

Defrosting the appliance

! Follow the instructions below.

Do not speed up the defrosting process by using any devices or tools other than the scraper provided, you may damage the refrigeration circuit.

Defrosting the refrigerator compartment

The refrigerator has an automatic defrosting function: water is ducted to the back of the appliance by a special discharge outlet (see diagram) where the heat produced by the compressor causes it to evaporate. It is necessary to clean the discharge hole regularly so that the water can flow out easily.

Diagram of a kitchen sink with a downward arrow indicating a drop or change (no text or symbols present)

Defrosting the freezer compartment

If the frost layer is greater than 5 mm, it is necessary to defrost manually:

1. Set the TEMPERATURE ADJUSTMENT knob to the position OFF
2. Wrap frozen foods in newspaper and place them in another freezer or in a cool place.
3. Leave the door open until the frost has melted completely. This can be made easier by placing containers with lukewarm water in the freezer compartment.
4. Clean and dry the freezer compartment carefully before switching the appliance on again.

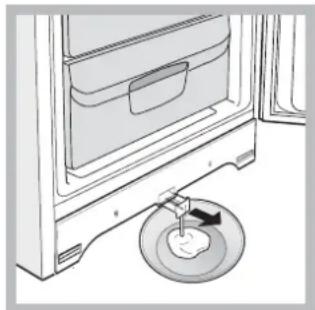

5. Certain appliances are fitted with the DRAIN SYSTEM to lead the water outside: let the water flow into a container (see diagram).

Diagram of a refrigerator with a circular base and an arrow indicating a point of interest (no text or symbols present)

1. Wait for approximately 2 hours, i.e. until the ideal storage conditions have been restored, before placing food in the freezer compartment.

Holiday function

To minimise energy usage when on holiday, it is not necessary to switch the appliance off. The appliance has a function which allows it to maintain the temperature of the refrigerator compartment at approximately 12^ C (which can also be used to conserve make-up and beauty products). The freezer temperature must be set to the minimum value in order to preserve the food.

To enable the function:

set the REFRIGERATOR OPERATION knob on

A double acoustic signal informs you when it has been enabled. A single acoustic signal informs you when it has been disabled.

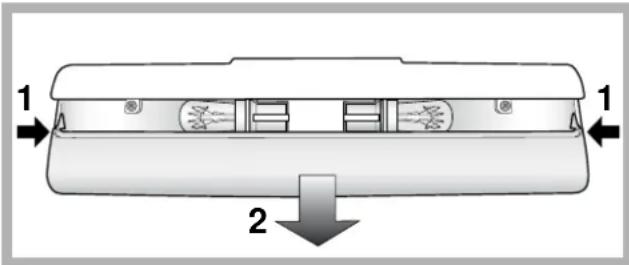

Replacing the light bulb \*

To replace the light bulb in the refrigerator compartment, pull out the plug from the electrical socket. Follow the instructions below. Access the light bulb by removing the cover as indicated in the diagram. Replace it with a similar light bulb within the power range indicated on the cover.

1 2 1 2

Precautions and tips

! The appliance was designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

This appliance complies with the following Community Directives:

- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent amendments;

-89/336/EEC of 03.05.89 (Electromagnetic Compatibility) and subsequent amendments;

- 2002/96/CE.

General safety

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used to store and freeze food products by adults only and according to the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms.
• Do not touch the appliance with bare feet or with wet or moist hands and feet.
• Do not touch the internal cooling elements: this could cause skin abrasions or frost/freezer burns.
• When unplugging the appliance always pull the plug from the mains socket, do not pull on the cable.

* Varies by number and/or position, available only on certain models.

• Before cleaning and maintenance, always switch off the appliance and disconnect it from the electrical supply. It is not sufficient to set the TEMPERATURE ADJUSTMENT knobs on OFF (appliance off) to eliminate all electrical contact.
• In the case of a malfunction, under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by inexperienced persons may cause injury or further malfunctioning of the appliance.
• Do not use any sharp or pointed utensils or electrical equipment - other than the type recommended by the manufacturer - inside the frozen food storage compartments.
• Do not put ice cubes taken directly from the freezer into your mouth.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Keep packaging material out of the reach of children! It can become a choking or suffocation hazard.

Disposal

• Observe local environmental standards when disposing packaging material for recycling purposes.
• The European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• Install the appliance in a fresh and well-ventilated room. Ensure that it is protected from direct sunlight and do not place it near heat sources.
• Try to avoid keeping the door open for long periods or opening the door too frequently in order to conserve energy.
• Do not fill the appliance with too much food: cold air must circulate freely for food to be preserved properly. If circulation is impeded, the compressor will work continuously.
• Do not place hot food directly into the refrigerator. The internal temperature will increase and force the compressor to work harder and will consume more energy.
• Defrost the appliance if ice forms (see Maintenance). A thick layer of ice makes cold transference to food products more difficult and results in increased energy consumption.

Troubleshooting

If the appliance does not work, before calling for Assistance (see Assistance), check for a solution from the following list.

The green POWER indicator light does not illuminate.

- The plug has not been inserted into the electrical socket, or not far enough to make contact, or there is no power in the house.

The motor does not start.

- The appliance comes with a motor protection control (see Start-up and use).

The indicator lights are on but the light is dim.

- Pull out and reverse the plug before putting it back in the socket.

a) The alarm sounds.

a) The refrigerator door has remained open for more than two minutes (the buzzer will stop sounding when you shut the door) or the correct switching-off procedure was not followed (see Maintenance).

b) The alarm sounds and the two yellow indicator lights flash.

b) The temperature in the freezer is too high. Check the quality of the food products and dispose if necessary.

+ buzzer = Heating is excessive

c) The alarm sounds and the two yellow indicator lights as well as the green one flash.

c) The temperature in the freezer has reached a dangerous level. The food must be disposed immediately.

+ buzzer = Heating danger

b/c) In both these cases the freezer will maintain a temperature of about 0^ C so that the food does not re-freeze. To turn off the acoustic signal open and close the refrigerator door. To restore normal operation bring the FREEZER OPERATION knob

setting to OFF (off) and turn the appliance on again.

The green POWER indicator light flashes.

- The appliance is not operating correctly. Contact the Technical Assistance Centre.

The refrigerator and the freezer do not cool well.

• The doors do not close properly or the seals are damaged.
• The doors are opened too frequently.
• The OPERATION knobs are not on the correct setting (see Description).
• The refrigerator or the freezer have been over-filled.

The food inside the refrigerator is beginning to freeze.

• The REFRIGERATOR OPERATION knob is not on the correct setting (see Description).
• The food is in contact with the back inside wall of the refrigerator.

The motor runs continuously.

• The SUPER FREEZE button has been pressed (rapid freezing): the yellow SUPER FREEZE light is on or flashing (see Description).
• The door is not closed properly or is continuously opened.
• The outside ambient temperature is very high.

The appliance makes a lot of noise.

• The appliance has not been installed on a level surface (see Installation).
• The appliance has been installed between cabinets that vibrate and make noise.
• The internal refrigerant makes a slight noise even when the compressor is off. This is not a defect, it is normal.

The back wall of the refrigerator unit is covered in frost or droplets of water

- This shows the appliance is operating normally.

Installation

Diagram showing a device with labeled components A and B, indicating directional flow or movement with arrows.

3D rendering of a mechanical component with layered structure and mounting bracket (no text or symbols)

Entretien et soin

Mise hors tension

Diagram of a kitchen sink with a downward arrow indicating a drop or direction (no text or symbols present)

Diagram of a refrigerator with a circular base and a small object inserted, no text or symbols present

Diagram showing a device with labeled components A and B, indicating directional flow or movement with arrows.

3D rendering of a mechanical component with layered structure and mounting bracket (no text or symbols)

Wartung und Pflege

Diagram of a kitchen sink with a downward arrow indicating a drop or direction (no text or symbols present)

Diagram of a refrigerator interior with a circular base and a pointer indicating a point of interest (no text or symbols present)

Diagram showing a device with labeled components A and B, indicating directional flow or movement with arrows.

3D rendering of a mechanical component with layered structure and mounting holes (no text or symbols)

Diagram of a kitchen sink with a downward arrow indicating a drop or change (no text or symbols present)

Diagram of a refrigerator with a circular base and a mechanical component inserted, no text or symbols present

Diagram showing a device with labeled components A and B, indicating directional flow or movement with arrows.

3D rendering of a mechanical component with symmetrical slots and a central slot (no text or symbols)

Diagram of a kitchen sink with a downward arrow indicating a drop or direction (no text or symbols present)

Diagram of a refrigerator with a circular base and a small object inserted into the seat (no text or symbols)

Diagram showing a device with labeled components A and B, indicating directional flow or rotation around component B.

3D rendering of a mechanical component with layered structure and mounting bracket (no text or symbols)

Diagram of a kitchen sink with a downward arrow indicating a drop or change (no text or symbols present)

Descongelar o compartimento congelador

Diagram of a refrigerator with a circular base and a small object inserted, no text or symbols present

Diagram showing a device with labeled components A and B, indicating directional flow or movement with arrows.

3D rendering of a mechanical component with layered structure and mounting bracket (no text or symbols)

Diagram of a kitchen sink with a downward arrow indicating a drop or removal (no text or symbols present)

Diagram of a door with a circular base and a mechanical component inserted, no visible text or symbols

Diagram showing a device with labeled components A and B, indicating rotation or movement around a wall-like structure.

3D rendering of a mechanical component with layered structure and mounting bracket (no text or symbols)

Diagram of a kitchen sink with a downward arrow indicating a drop or direction (no text or symbols present)

Dezghetare congelator

Diagram of a refrigerator interior with a circular base and a pointer indicating a point of interest (no text or symbols present)

Diagram showing a device with labeled components A and B, indicating directional flow or movement around a vertical structure.

3D rendering of a mechanical component with layered structure and mounting bracket (no text or symbols)

Diagram of a kitchen sink with a downward arrow indicating a drop or direction (no text or symbols present)

Diagram of a door with a circular base and a mechanical component inserted into the seat (no text or symbols)

Diagram showing a device with labeled components A and B, indicating directional flow or movement around a vertical bar.

3D rendering of a mechanical component with layered structure and mounting bracket (no text or symbols)

Diagram of a kitchen sink with a downward arrow indicating a drop or direction (no text or symbols present)

Diagram of a device with a circular base and a mechanical component inserted, no visible text or symbols
