Product Type	Massage Cushion
Brand	König
Model	HCPL10
Power Supply	2 AA batteries (not included)
Massage Modes	6 modes: gentle continuous, strong continuous, alternating strong/pause, alternating gentle/strong, cycle modes 1-4, cycle modes 1-5
Automatic Shut-off	After 20 minutes of operation
Use	Muscle massage, improved blood circulation, relief from stiffness and fatigue
Cleaning	With a dry cloth only; do not use solvents or abrasive products
Safety	Do not open (risk of electric shock), do not expose to water or moisture, keep away from children
Compliance	EC Directive 2004/108/EC
Warranty	Warranty void if modified or used incorrectly

Frequently Asked Questions - HCPL10 KONIG

How to turn on the massage cushion?

Press the ON/OFF switch on the cushion to activate the massage. The massage starts in mode 1 by default.

How to change the massage mode?

Press the MODE button to cycle through the 6 available modes. Each mode offers a different type of massage (gentle, strong, alternating, etc.).

When and how to replace the batteries?

When the vibrations slow down or stop, replace the batteries. Open the zipper at the back of the cushion, take out the battery compartment, slide the cover, replace the batteries with two new AA batteries, then close.

Does the massage cushion work on mains power?

No, this model operates only on batteries (2 AA batteries). There is no mains adapter included.

How long does a massage session last?

The cushion automatically turns off after 20 minutes of operation. You can turn it back on if needed.

Is the cushion washable?

No, the cushion should not be washed. Clean it only with a dry cloth. Do not use solvents or abrasive products.

Can I use the cushion if I have a health condition?

Consult your doctor before use if you have specific medical conditions. The cushion is not suitable for people who cannot express themselves properly (babies, etc.).

What to do if the cushion stops working?

First check the batteries: replace them if necessary. If the problem persists, contact a qualified technician. Do not open the device yourself.

Where can I find the complete manual?

The complete PDF manual is available for free on the notice-facile.com website for the König HCPL10 model.

How to dispose of the device at end of life?

Do not dispose of the device with household waste. Take it to an electronic waste collection point (crossed-out wheelie bin symbol).

USER MANUAL HCPL10 KONIG

MANUAL (p.2)
MASSAGE PILLOW

MODE D'EMPLOI (p. 10) COUSSIN DE MASSAGE

MANUALE (p.18) CUSCINO MASSAGGIANTE

HASZNALATI UTMUTATO (o.26.) MASSZIROZO PÁRNA

BRUKSANVISNING (s.34)
MASSAGEKUDDE

MANUAL DE UTILIZARE (p.42) PERNA DE MASAJ

This product can effectively massage muscles, release arteries and veins and increase the blood circulation. It relieves stiffness, tiredness and paralysis while it can be used wherever: at home or at the office.

Product Features

1. 6 massage modes (Ref. to table 1)
2. Automatically switches off after 20 minutes
3. Improve the blood circulation of your head and neck for a better oxygen supply to the brain
4. The massaging device can be installed inside a pillow which can adapt to the different postures of the users and provide good support. This supportive function minimizes the harm cause pressure and protects the backbone.
5. This pillow is designed to fit a human's head curve ergonomically.

Table 1

Mode Massage Type
MODE 1	Continuous gentle massage
MODE 2	Continuous strong massage
MODE 3	Changes from strong massage to stop massaging (Changes 70 times within 1 minute)
MODE 4	Alternates gentle and strong massages. Changes between the two modes 60 times in 1 minute.
MODE 5	Circulate massage mode 1,2,3 and 4 for around 3 seconds each
MODE 6	Circulate massage mode 1,2,3,4, and 5 for around 45 seconds each

1 Operation

1.1 Press the ON/OFF button to switch on the massage pillow and activate the massage mode.
1.2 Press the MODE button to select the different massaging modes.

2 Battery Replacement

When the massage pillow's vibration is slower or stops completely, the battery is low. Please replace the battery with 2pcs of AA batteries.

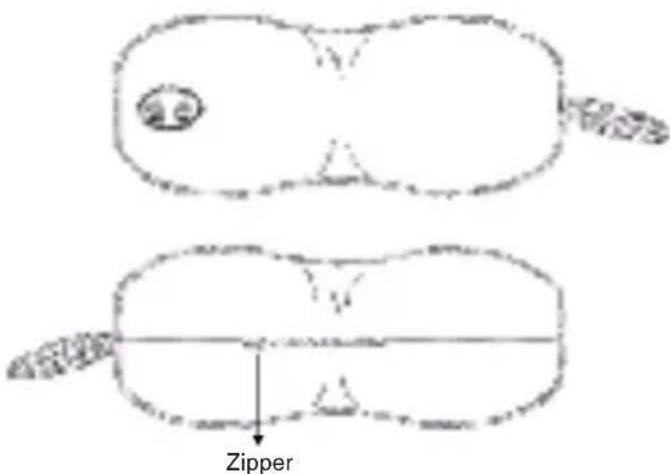

2.1 Unzip the back of the pillow and take out the battery compartment.
2.2 Press on the battery cover slightly and slide it down according to the arrow's direction on the cover.
2.3 Replace the old batteries by the new ones.
2.4 Close the battery cover. Put it back inside the massage pillow and zip the massage pillow again.

3 Attention

3.1 Please put the massage pillow away from children.
3.2 Do not use or store the massage pillow near magnetic fields and keep it away from high temperatures and moisture.
3.3 Please take out the batteries and store the massage pillow properly when it is not going to be used for a long period.
3.4 People without the ability to express themselves, such as babies, are forbidden to use this product.
3.5 Do not throw the batteries into a fire.

Declaration of conformity

We,

Nedis B.V.

De Tweeling 28

Declare that product:

Brand: König Electronic

Model: HC-PL10-20-30

Description: Massage pillow

Is in conformity with the following standards

EN55022:2006

EN61000-6-3:2001+A11:2004

EN61000-6-1:2001

And complies with the requirements of the European Union Directives. 2004/108/EC

's-Hertogenbosch, 2009, January 22

Mrs. J. Gilad

Purchase Director

Safety precautions:

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

To reduce risk of electric shock, this product should ONLY be opened authorized technician when service is

required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

Copyright ©

DEUTSCH

Declaration of conformity

We,

Nedis B.V.

De Tweeling 28

Declare that product:

Brand: König Electronic

Model: HC-PL10-20-30

Description: Massage pillow

Is in conformity with the following standards

EN55022:2006

EN61000-6-3:2001+A11:2004

EN61000-6-1:2001

And complies with the requirements of the European Union Directives. 2004/108/EC

's-Hertogenbosch, 2009, January 22

Mrs. J. Gilad

Purchase Director

PpouaEic aσpaλεiαc:

PPOEOXH

KINΔYNOZ HAEKTPONHAIEA2

MHN TO ANOITETE

Tia va µ ω σ To pioko nAektpoTTnIac, To ouykekpiévo Tpoiov 0a TpETe i va avoiyetai MONO aTó Egouoiodotnevo

Texvko otav aTaitai katoia utnpoeia.Atoouvdeote to pioov ato Tnv npoxn nEKTPIKOU peuatoa kai aTO aAee c uOKEUEc otav POKUTI KAOIO PpO βληµ .Mn EKtheta tTo Uypaia.
