CMPMOUSE200 - Mouse KONIG - Free user manual and instructions

Product Type	Wireless Touchscroll Mouse
Brand	Konig
Model	CMPMOUSE200
Dimensions (L × W × H)	90 × 54 × 16 mm
Weight	Approx. 100 g
Power Supply	2 batteries (not included)
Connectivity	Wireless 2.4 GHz via USB receiver
Control Technology	Dual lens
Range	Up to 10 m (estimated)
Buttons	Left button, right button, power switch
Indicator Light	Activity indicator (flashes if batteries low)
Touch Functions	Touchscroll, horizontal/vertical scrolling, zoom (with Ctrl key)
Sleep Mode	Automatic after 8 minutes of inactivity
Receiver Storage	In the battery compartment
Compatible Systems	Windows Vista, 7 and later (plug and play)
Maintenance	Clean with a dry cloth, do not use solvents
Safety Instructions	Do not dispose with household waste (WEEE symbol)
Warranty	No warranty in case of modification or incorrect use
Package Contents	Mouse, USB receiver, user manual

Frequently Asked Questions - CMPMOUSE200 KONIG

How do I connect my Konig CMPMOUSE200 mouse to my computer?

Insert two batteries into the mouse, set the ON/OFF switch to ON and plug the USB receiver into a free USB port. The mouse is automatically recognized (plug and play).

How do I change the mouse batteries?

Slide open the battery compartment cover, remove the old batteries and insert two new batteries respecting the polarity (+/-). Close the cover.

Why is the indicator light flashing?

The light flashes when the batteries are low. Replace them with new ones. It also flashes during normal mouse activity.

My mouse is not working, what should I do?

Check that the ON/OFF switch is set to ON, that the batteries are correctly installed and that the USB receiver is properly plugged in. If the problem persists, try another USB port or reset the mouse by removing the batteries for 10 seconds.

How do I use the touchscroll function?

Slide your finger vertically or horizontally on the mouse surface to scroll. For lateral swipe (photos/pages), use two fingers simultaneously.

How do I enable or disable sleep mode?

Sleep mode activates automatically after 8 minutes of inactivity. To deactivate, move the mouse or press a button. You can also turn off the mouse with the ON/OFF switch to save batteries.

Is the mouse compatible with Windows 10?

Yes, it is compatible with Windows Vista, 7 and later, including Windows 10 and 11, in plug and play mode.

How do I safely clean the mouse?

Use a dry, soft cloth. Never use solvents, alcohol or abrasive products that could damage the surface.

Where do I store the USB receiver when not using the mouse?

Open the battery compartment, you will find a dedicated slot to store the USB receiver. Close the cover to keep it in place.

What to do if the wireless range is reduced or the mouse stutters?

Move the USB receiver closer to the mouse (less than 10 m) and avoid metal obstacles. Check the battery status and replace if necessary. Move other wireless devices away.

USER MANUAL CMPMOUSE200 KONIG

MANUAL DE USO (p.24)

Description of each part:

1. Activity light
   2.Left button
2. Right button
3. USB receiver

Package contents:

• Touchscroll mouse
• USB receiver
• Manual

Features:

Power saving switch (ON/OFF) to save your batteries.

Sleep mode. After 8 minutes of inactivity, it automatically enters the sleep mode.

Smart storage of USB receiver. Open the battery cover and you can easily store the receiver.

LED indicator. Shows activity when active, also flashes when batteries are almost empty.

Hardware installation:

Step 1: Pull down the cover of the battery compartment to open it. Remove the USB receiver.

Step 2: Put two batteries in the compartment. Make sure the polarity is correct.

Step 3: Replace the cover on the compartment.

Step 4: Connect the USB receiver to the USB port of the computer or notebook.

Step 5: Switch the ON/OFF button to ON, then you can start using the mouse.

(There is no need to set the channel, it is plug & play)

Gesture types:

Click with your finger on the left button area, just like with other mice.

You can also place another finger next to your index finger.

Click the right button with one finger only.

Attention! Click the right button with only one finger (on the top right side area of the mouse). Lift the index finger.

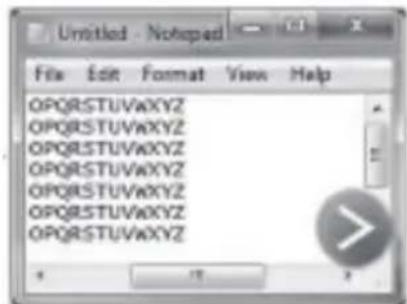

Using two fingers, sweep left or right to browse through pictures or pages.

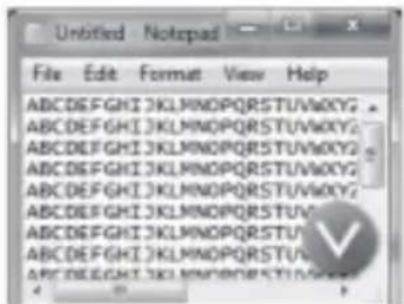

To scroll, slide one finger horizontally and vertically along the mouse surface.

One finger

This function is compatible with Windows Vista and 7.

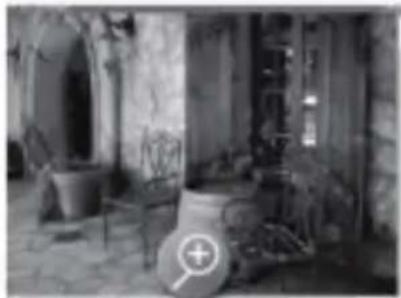

Screen zoom is possible with one finger on the mouse.

One finger

And press your CTRL key on your keyboard.

Specifications:

Connection: Wireless via USB receiver

Dimensions: 90 × 54 × 16 mm

Mouse type: Touch scroll

RF: 2.4 GHz

Control: Double lens technology

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

DEUTSCH

Hardware installment:

Tipodel mouse:Touchscroll

RF: 2.4

GHz

Controllo: Tecnologia a dopbia lente

Manutenzione:

Conectare: Wireless, prin receptor USB

Dimensiuni: 90 × 54 × 16 ~mm

Tip mouse: Touchscroll

RF:

2,4

GHz

Comanda:

Tecnologie cu dubla lentilä

Intretinere:

Curataea trebuie facutca cu o cappa uscata. Nu folositi solventi tau agenti de curatae abrazivi.

Garantie:

Hardware-installation:

Trin 1 Trak batteridaekslet nedad for at abne batterirummet. Tag USB-modtageren ud.

Description: Touch scroll mouse
