USER MANUAL N11K30N0 NEFF

! Operation indicator

Before using for the first time4

Precautions for use5

Cleaning and maintenance5

Stainless steel surfaces5

Technical Assistance Service 6

Warranty conditions6

Used appliances and packaging6

Environmentally-friendly disposal6

Additional information on products, accessories, replacement

parts and services can be found at www.neff-

international.com and in the online shop www.neff-

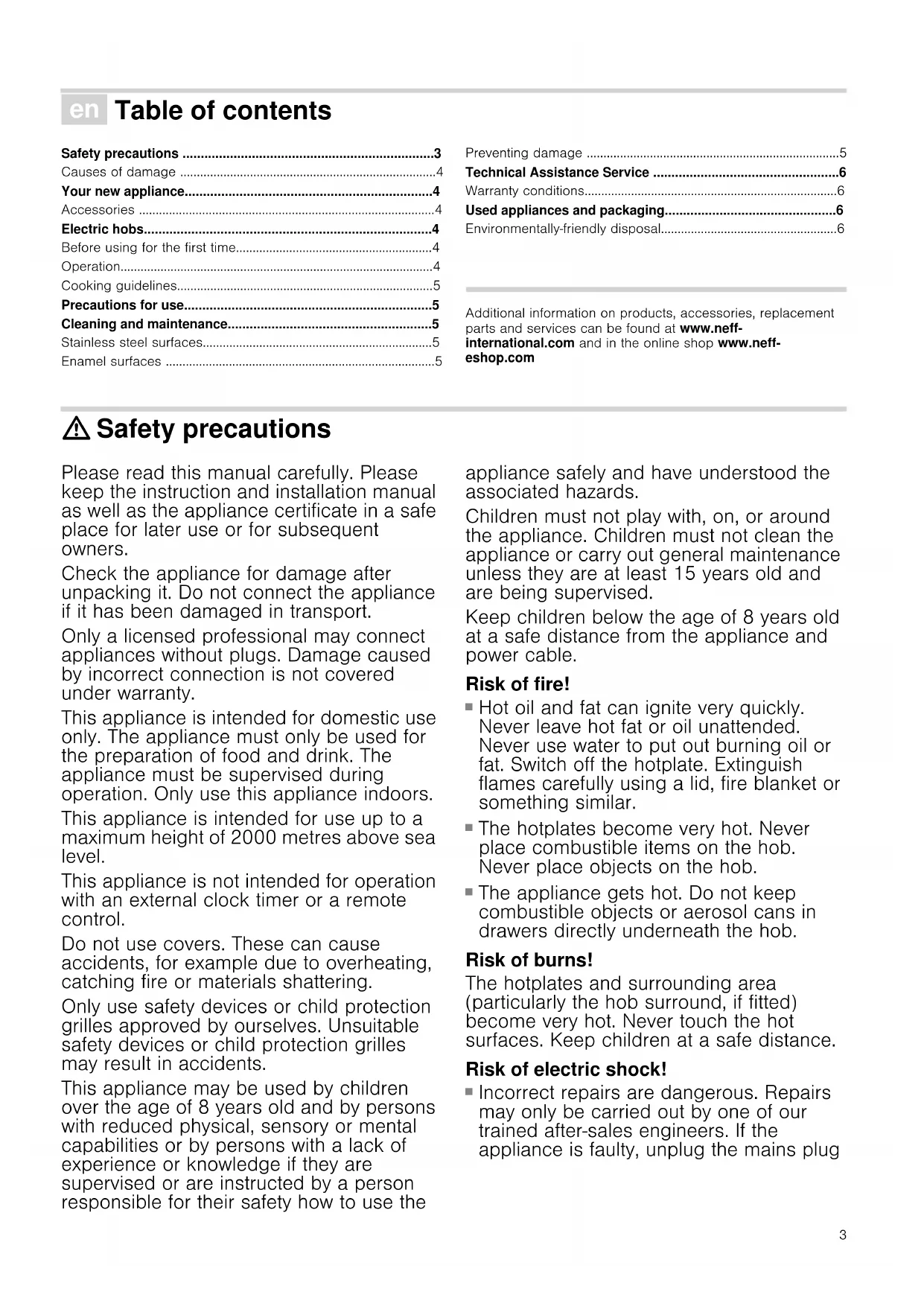

: Safety precautions

Please read this manual carefully. Please

keep the instruction and installation manual

as well as the appliance certificate in a safe

place for later use or for subsequent

Check the appliance for damage after

unpacking it. Do not connect the appliance

if it has been damaged in transport.

Only a licensed professional may connect

appliances without plugs. Damage caused

by incorrect connection is not covered

This appliance is intended for domestic use

only. The appliance must only be used for

the preparation of food and drink. The

appliance must be supervised during

operation. Only use this appliance indoors.

This appliance is intended for use up to a

maximum height of 2000 metres above sea

This appliance is not intended for operation

with an external clock timer or a remote

Do not use covers. These can cause

accidents, for example due to overheating,

catching fire or materials shattering.

Only use safety devices or child protection

grilles approved by ourselves. Unsuitable

safety devices or child protection grilles

may result in accidents.

This appliance may be used by children

over the age of 8 years old and by persons

with reduced physical, sensory or mental

capabilities or by persons with a lack of

experience or knowledge if they are

supervised or are instructed by a person

responsible for their safety how to use the

appliance safely and have understood the

Children must not play with, on, or around

the appliance. Children must not clean the

appliance or carry out general maintenance

unless they are at least 15 years old and

are being supervised.

Keep children below the age of 8 years old

at a safe distance from the appliance and

Hot oil and fat can ignite very quickly.

Never leave hot fat or oil unattended.

Never use water to put out burning oil or

fat. Switch off the hotplate. Extinguish

flames carefully using a lid, fire blanket or

something similar. Risk of fire! ■

The hotplates become very hot. Never

place combustible items on the hob.

Never place objects on the hob. Risk of fire! ■

The appliance gets hot. Do not keep

combustible objects or aerosol cans in

drawers directly underneath the hob.

The hotplates and surrounding area

(particularly the hob surround, if fitted)

become very hot. Never touch the hot

surfaces. Keep children at a safe distance.

Risk of electric shock!

Incorrect repairs are dangerous. Repairs

may only be carried out by one of our

trained after-sales engineers. If the

appliance is faulty, unplug the mains plug4

or switch off the fuse in the fuse box.

Contact the after-sales service. Risk of electric shock! ■

Do not use any high-pressure cleaners or

steam cleaners, which can result in an

electric shock. Risk of electric shock! ■

A defective appliance may cause electric

shock. Never switch on a defective

appliance. Unplug the appliance from the

mains or switch off the circuit breaker in

the fuse box. Contact the after-sales

service. Risk of electric shock! ■

Cracks or fractures in the glass ceramic

may cause electric shocks. Switch off the

circuit breaker in the fuse box. Contact the

after-sales service.

Saucepans may suddenly jump due to

liquid between the pan base and the

hotplate. Always keep the hotplate and

Caution! ■ Rough pot and pan bases scratch the ceramic.■ Avoid boiling pots dry. This may cause damage.■ Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage. ■ Damage can occur if hard or pointed objects fall on the hob. ■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob.

The following table provides an overview of the most frequent

Page 2 shows an overall view of your new appliance as well as

information on the measurements and power of the hobs.

The following accessories can be purchased from the

Technical Assistance Service:

The manufacturer accepts no liability if these accessories are

not used or are used incorrectly.

Before using for the first time

To remove the new smell, switch the hotplates on to full power

for five minutes, one by one, without placing any pans on top.

Do not switch more than one hotplate on at a time. At this point

it is normal to notice smoke and odours, but these will

disappear over time.

Do not operate the hotplates without placing pans on top,

except during this initial heating phase.

Each control knob shows the hotplate that it controls.

Stains Food spills Remove spills immediately with a glass scraper.

Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic

Scratches Salt, sugar and sand Do not use the hob as a work surface or storage space.

Rough pot and pan bases scratch the

Check your cookware.

Discolouration Unsuitable cleaning agents Only use cleaning agents which are suitable for ceramic

Pan abrasion (e.g. aluminium) Lift the pots and pans when moving them.

Blisters Sugar, food with a high sugar content Remove spills immediately with a glass scraper.

NEZ34VLA Coupling profile

Turn the control knob anticlockwise to the required setting. The

operation indicator will light up.

Setting 1: low power.

Setting 9: full power.

Note: It is recommended to start cooking on full power and

then to use intermediate power levels after a few minutes.

Turn the control knob clockwise to the off setting. The operation

indicator will switch off.

The electric hob can be switched off slightly before the end of

the cooking time. The residual heat will enable you to continue

cooking for several minutes, thus saving energy.

The following suggestions are intended as a guide only.

Increase the power for:

■ large quantities of liquid,

■ preparation of large dishes,

The following advice is intended to help you save energy and

■ Use pans which are suitably sized for the hotplate. The

diameter of the base of the pan should match that of the

hotplate, and should not be smaller.

■ Use a pan with thick flat base.

■ Do not use damaged pans that do not sit on the hotplate in a

■ Place the pan in the centre of the hotplate. Otherwise it could

■ Always use the pan lids when cooking.

■ Do not strike the hob and do not place excessive weight on it.

■ Pans should be placed on the hob carefully.

■ Do not cover the hob with aluminium foil or similar products

when cooking. This could damage the hob.

■ Do not allow liquids to boil over onto the hob and hotplates.

Use deep pans when cooking with large quantities of liquid.

■ The hob must be kept dry. Salt water and wet pans can

damage the hob. Do not cook with wet pans.

Cleaning and maintenance

Any food which spills onto the hob must be cleaned off

immediately with a dishcloth.

The hotplates should be cleaned with soap and water when

Dry the hob. Moisture may cause the hotplates to rust over

time. Wet hotplates should be dried quickly.

To protect the surface of the hotplates, treat them with oil or any

other protective product available on the market.

Stainless steel surfaces

Over time, bluish or yellowish stains may appear on the hob

and around the edges of the hotplates. Use stainless steel

It is recommended that the cleaning product available from our

Technical Assistance Service (code 464524) is used regularly.

Avoid using this type of product in areas with screen printed

indications. The indications could be erased.

Do not use abrasive cleaning products.

Clean the cooking hob using a damp cloth.

Do not use abrasive cleaning products or scouring sponges.

This could cause the hob to lose its shine.

appliance. The appliance may be damaged if moisture finds

■ The hob must be kept dry. Salt water and wet pans can

■ Try not to spill salt on the surface of the hob.

■ Never use abrasive products, steel scourers, sharp

implements, knives, etc. to remove bits of hardened food

■ Do not use steam cleaners. This could damage the hob.

Melting: chocolate, butter, gelatine. 1-2

Cooking: rice, white sauce and ragout. 2-3

Cooking: potatoes, pasta, vegetables. 4-5

Light frying: stews, roast joints. 4-5

Heating, keeping things warm: ready

Grilling: escalopes, steaks, omelettes. 6-7-8

Cooking and browning 96

Technical Assistance Service

When contacting our Technical Assistance Service, please

provide the product number (E-Nr.) and production number

(FD) of the appliance. This information is given on the

specifications plate located on the lower section of the hob and

on the label in the user manual.

Please find the contact data of all countries in the enclosed

customer service list.

To book an engineer visit and product advice

Rely on the professionalism of the manufacturer. You can

therefore be sure that the repair is carried out by trained service

technicians who carry original spare parts for your appliances.

In the unlikely event that the appliance is damaged or does not

meet your expectations in terms of quality, please inform us as

soon as possible. For the warranty to be valid, the appliance

must not have been tampered with, or used inappropriately.

The applicable warranty conditions are those set out by the

company's representative office in the country of purchase.

Detailed information is available from retail outlets. Proof of

purchase must be presented to obtain the benefits of the

We reserve the right to introduce changes.

Used appliances and packaging

If the ) symbol is shown on the specifications plate, bear in

mind the following instructions:

Environmentally-friendly disposal

Dispose of packaging in an environmentally-friendly manner.

The packaging of your appliance has been manufactured using

only the materials which are strictly necessary to guarantee

efficient protection during transport. These materials are 100%

recyclable, thus reducing the environmental impact. You can

also contribute to caring for the environment by following the

■ Dispose of the packaging in the appropriate recycling bin.

■ Before you get rid of an old appliance, make sure you disable

it. Contact your local authority to find out the address of your

nearest recycling centre to dispose of your appliance.

■ Do not pour used oil down the sink. Collect it in a sealed

container and take it to an appropriate collection point or,

failing that, place it in the rubbish bin (it will end up in a

controlled dump; this is probably not the best option, but it

will avoid contaminating ground water)

Calls charged at local or mobile rate.

0.03 € per minute at peak. Off peak 0.0088 € per

This appliance is labelled in accordance with

European Directive 2012/19/EU concerning used

electrical and electronic appliances (waste electrical

and electronic equipment - WEEE). The guideline

determines the framework for the return and recycling

of used appliances as applicable throughout the EU.7
