USER MANUAL MDT551S MITSUBISHI

Important Information English-3

De clar ation English-5

Safety Precautions, Maintenance & Recommended Use English-6

Parts Name and Functions English-8

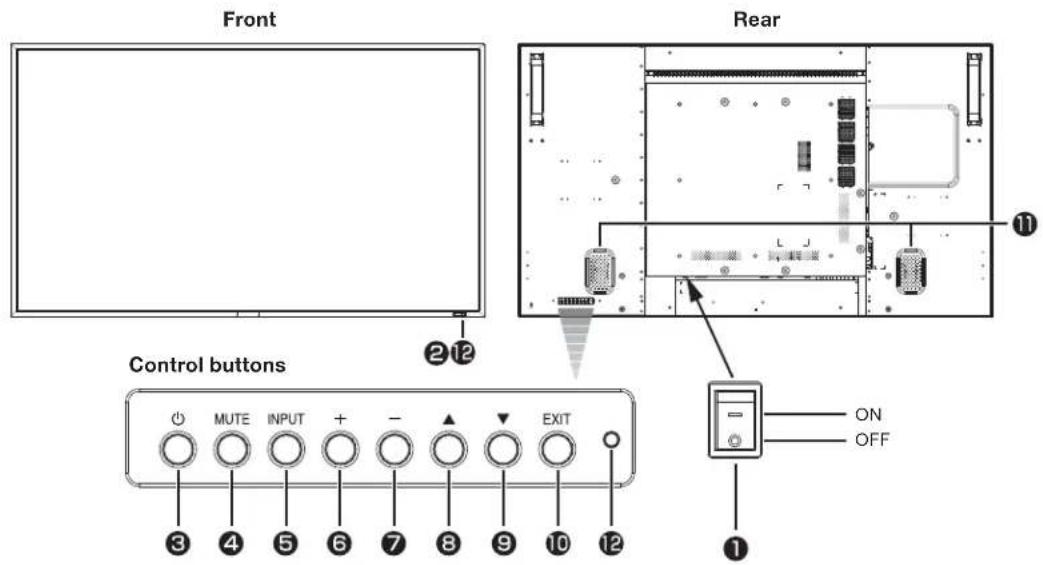

Buttons, Switch, and Indicator English-8

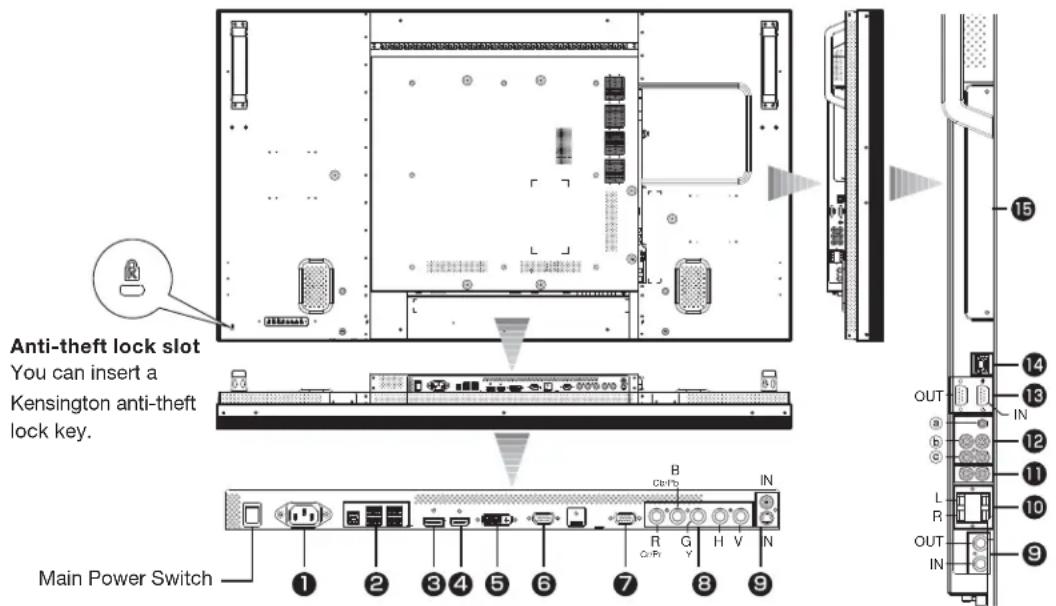

Connectors and Terminals English-9

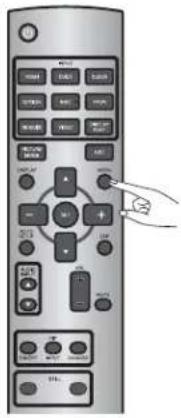

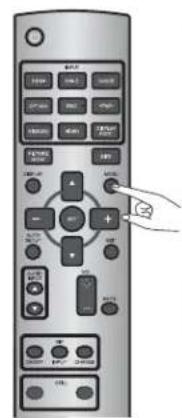

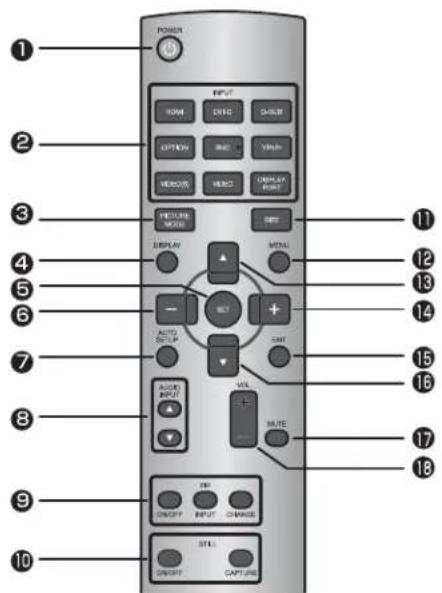

Wireless Remote Control English-10

How to Use the Wireless Remote Control English-11

Preparation for use English-12

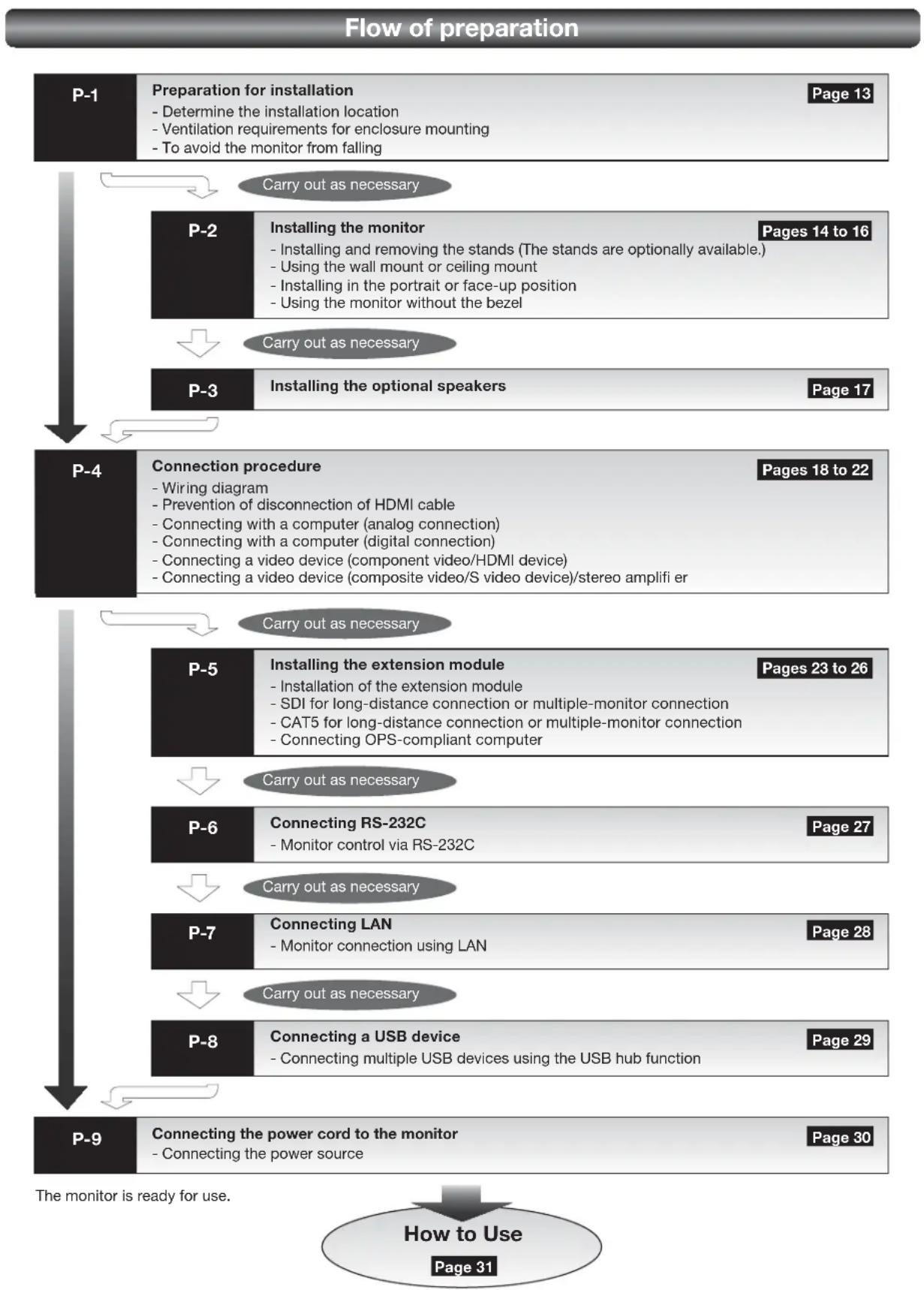

Flow of preparation English-12

[P-1] Preparation for installation English-13

Determine the installation location English-13

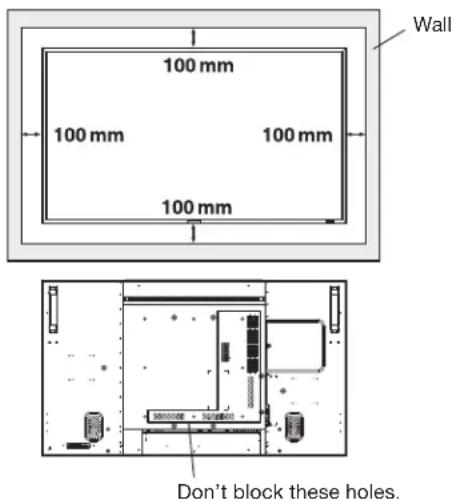

Ventilation requirements for enclosure mounting English-13

To avoid the monitor from falling English-13

[P-2] Installing the monitor English-14

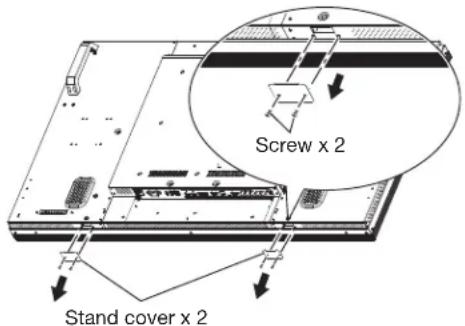

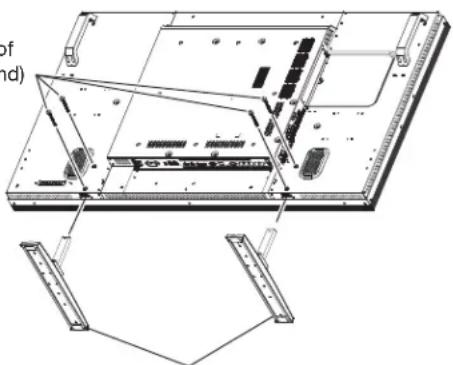

Installing and removing the stands English-14

Using the wall mount or ceiling mount English-14

Installing in the portrait or face-up position English-15

Using the monitor without the bezel English-16

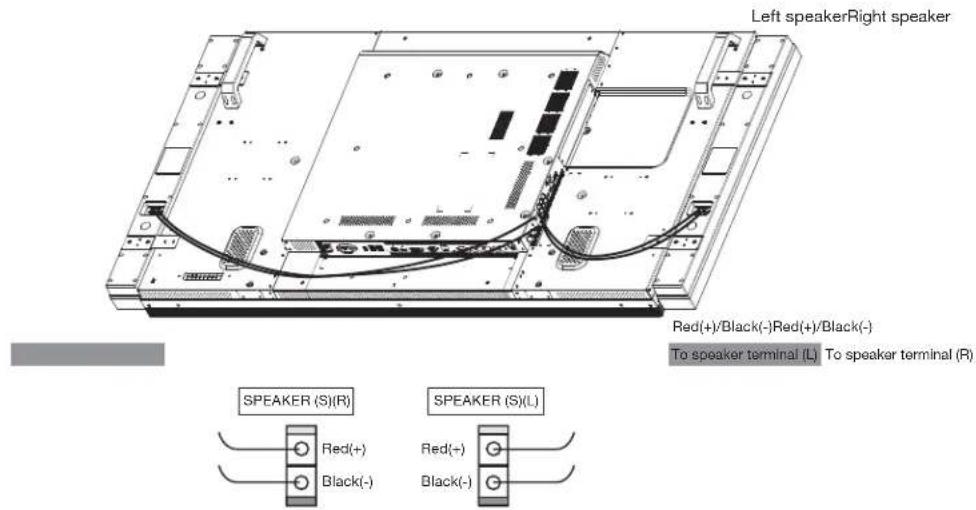

[P-3] Installing the optional speakers English-17

[P-4] Connection procedure English-18

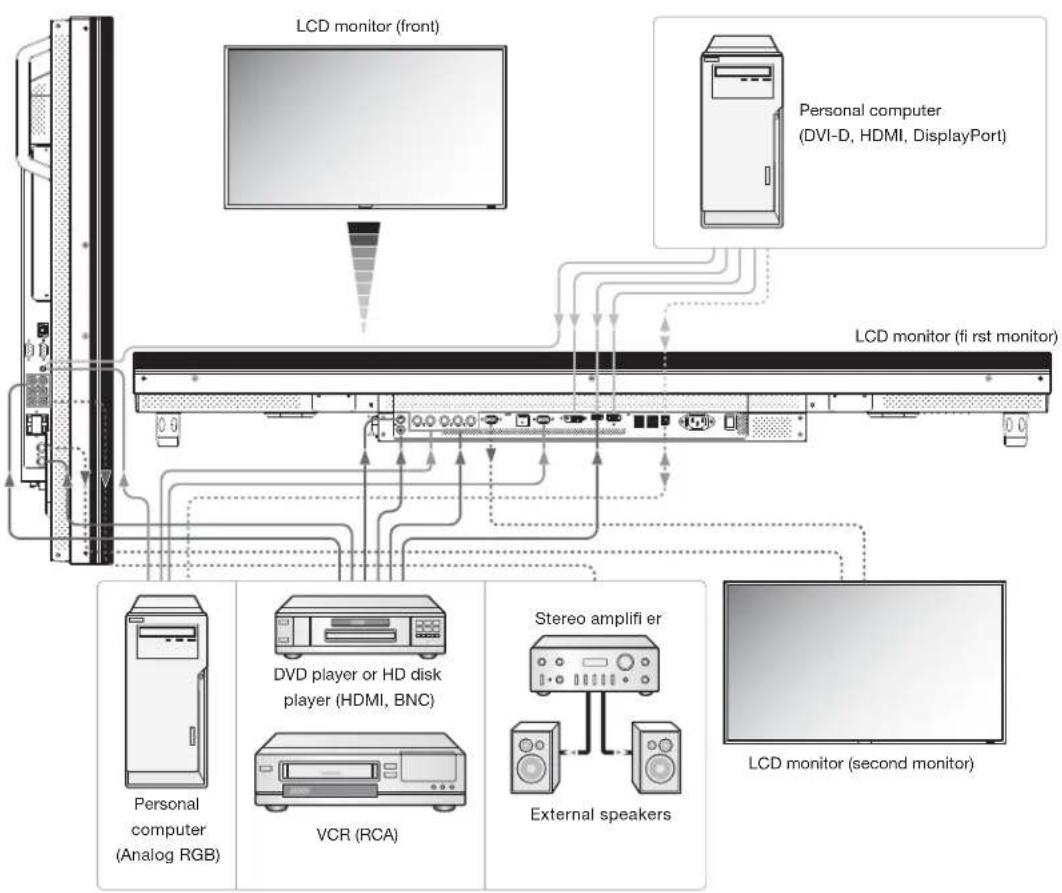

Wiring diagram English-18

Prevention of disconnection of HDMI cable English-18

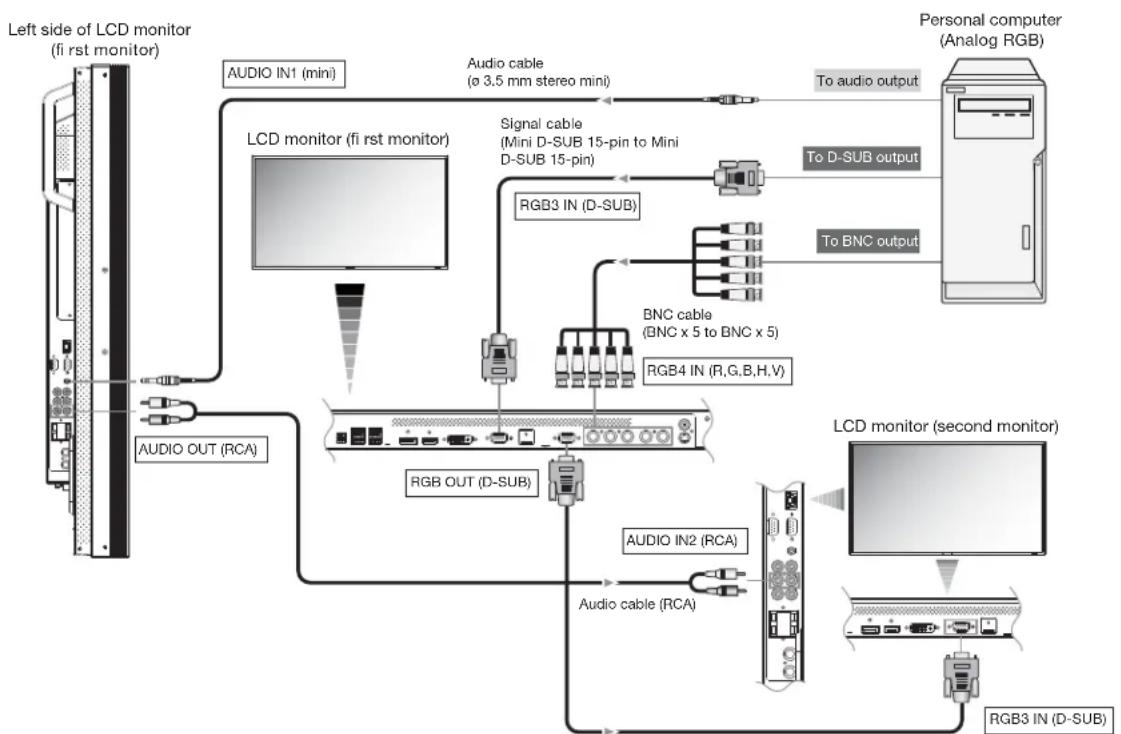

Connecting with a computer (analog connection) English-19

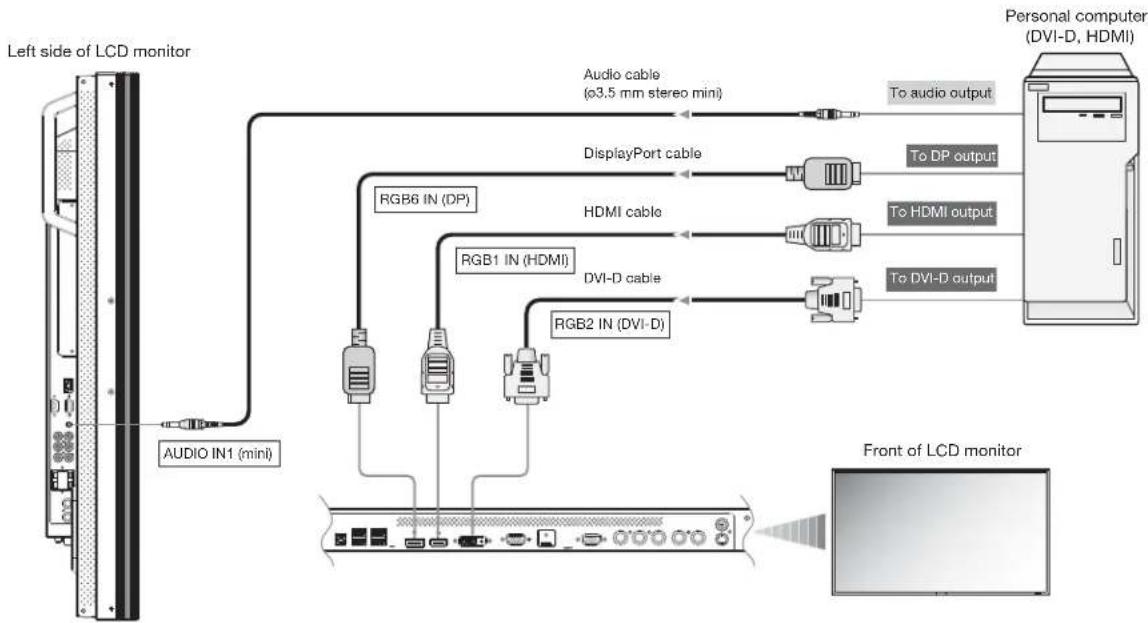

Connecting with a computer (digital connection) English-20

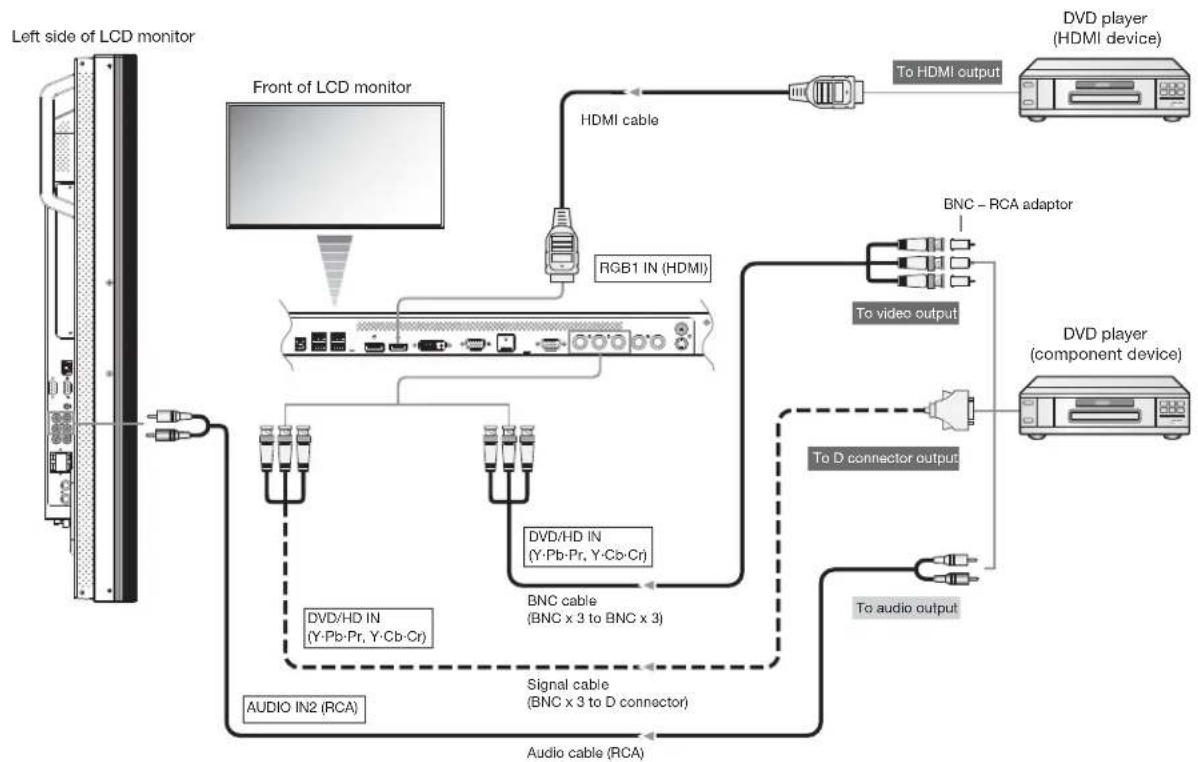

Connecting a video device (component video/HDMI device) English-21

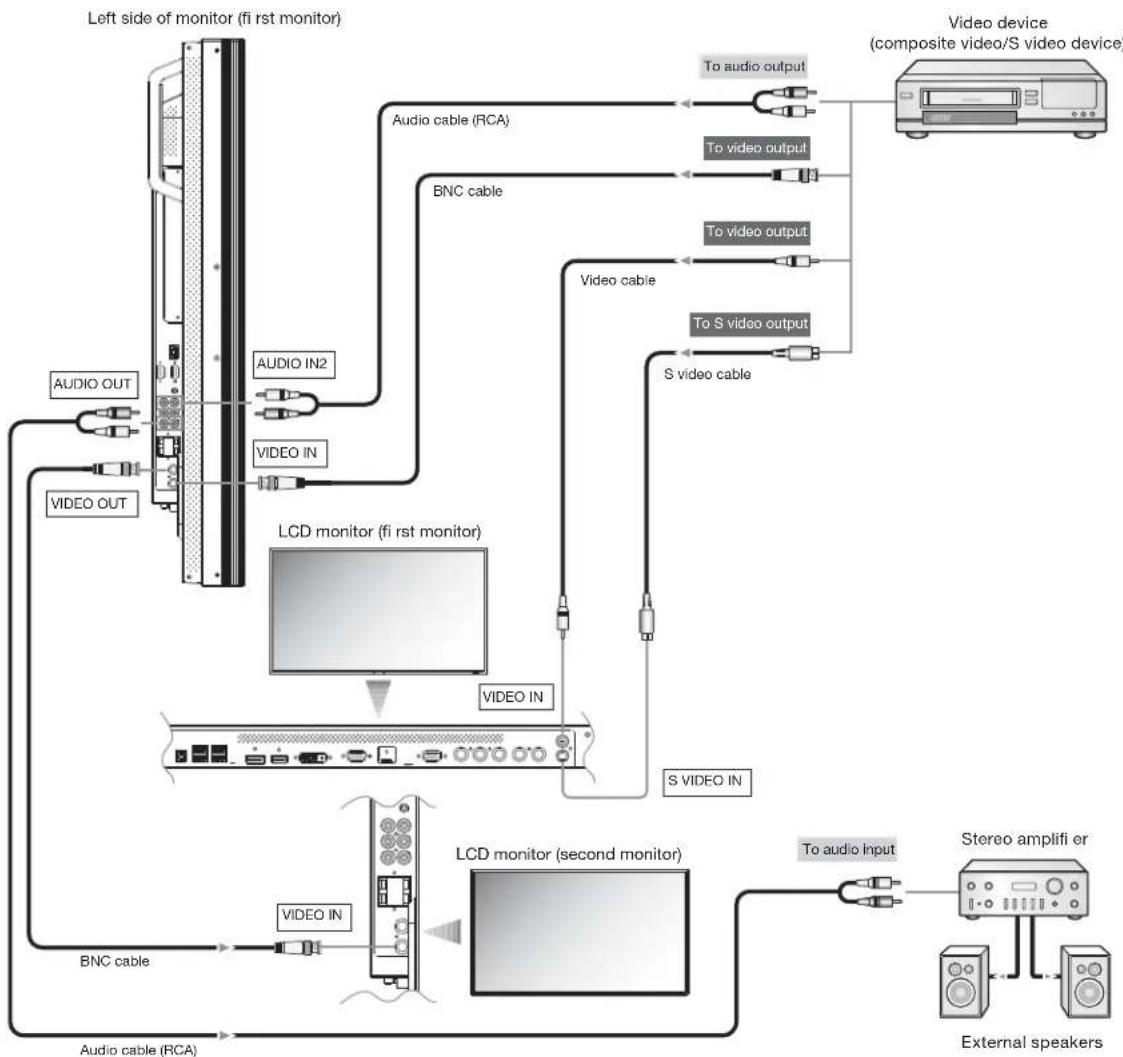

Connecting a video device (composite video/S video device)/stereo amplifi er English-22

[P-5] Installing the extension module English-23

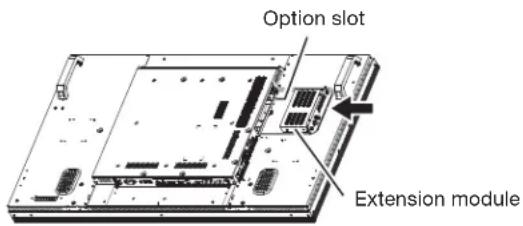

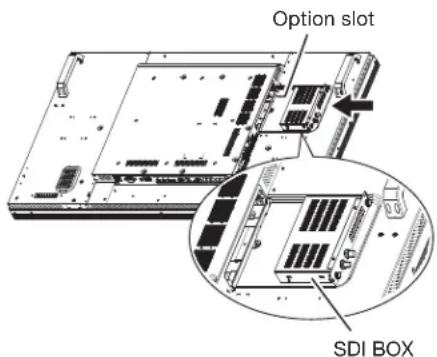

Installation of the extension module English-23

SDI for long-distance connection or multiple-monitor connection English-23

CAT5 for long-distance connection or multiple-monitor connection English-24

Connecting OPS-compliant computer English-26

[P-6] Connecting RS-232C English-27

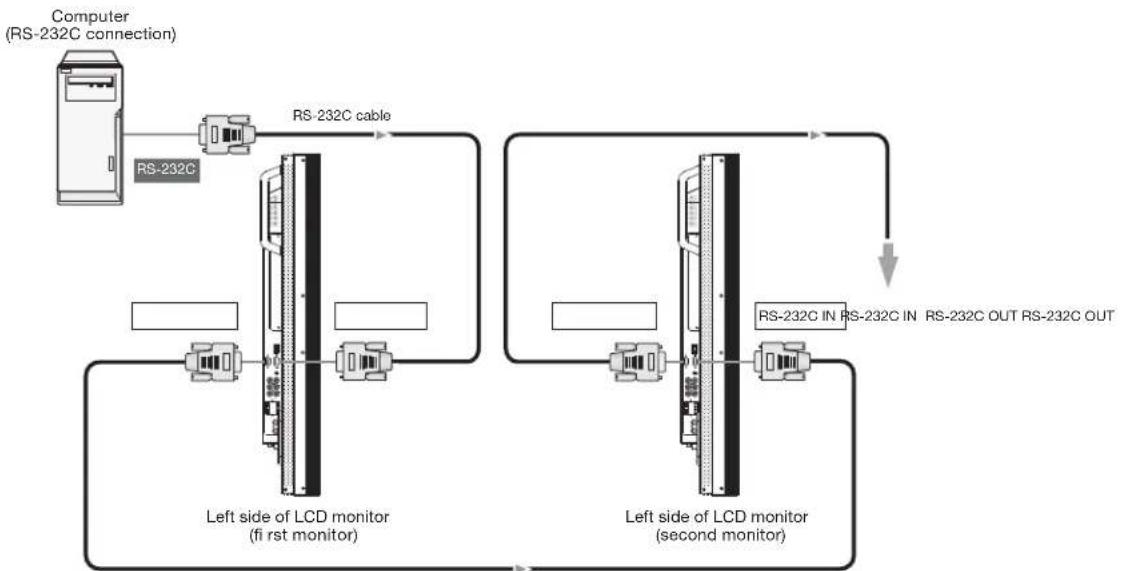

Monitor control via RS-232C English-27

[P-7] Connecting LAN English-28

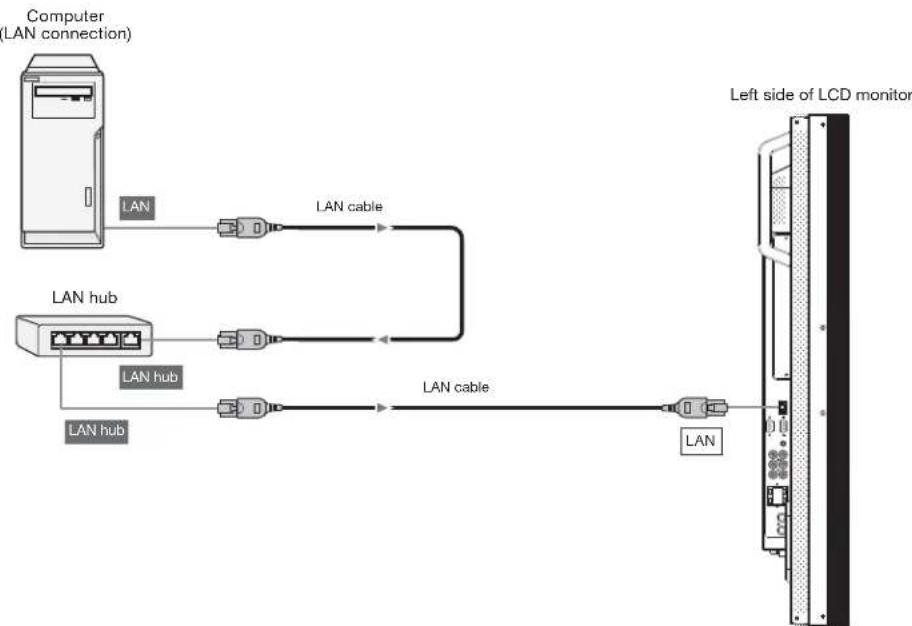

Monitor connection using LAN English-28

[P-8] Connecting a USB device English-29

Connecting multiple USB devices using the USB hub function English-29

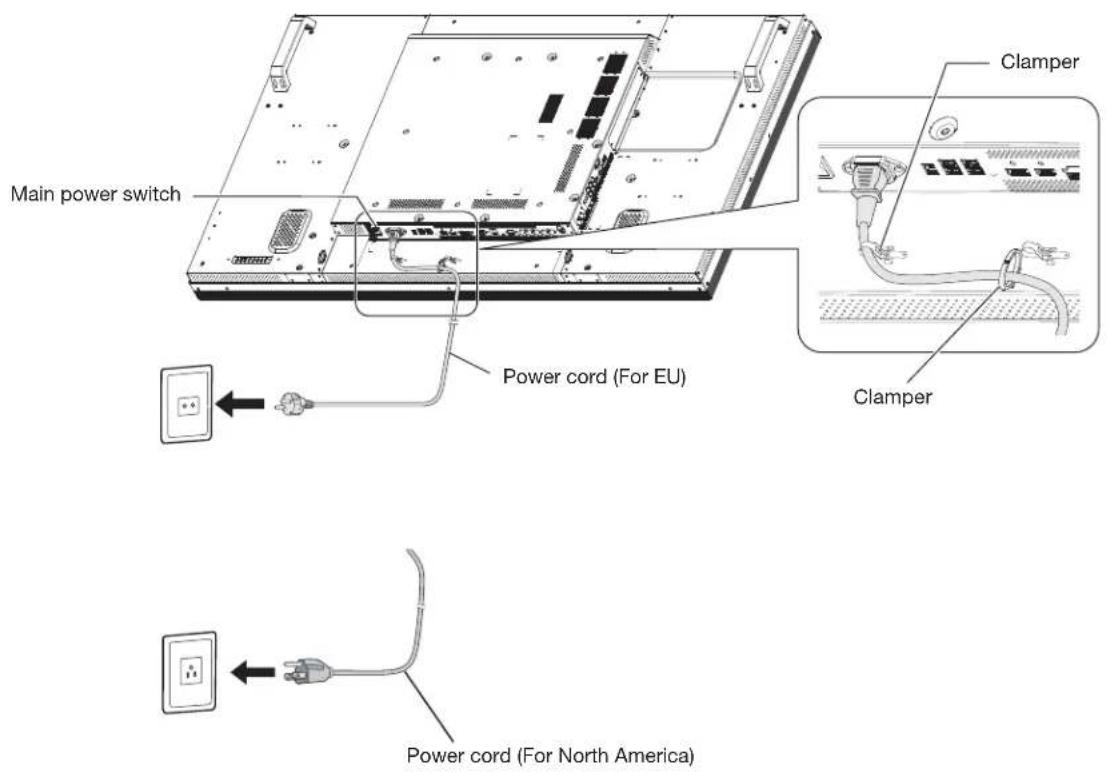

[P-9] Connecting the power cord to the monitor English-30

Connecting the power source English-30

How to Use English-31

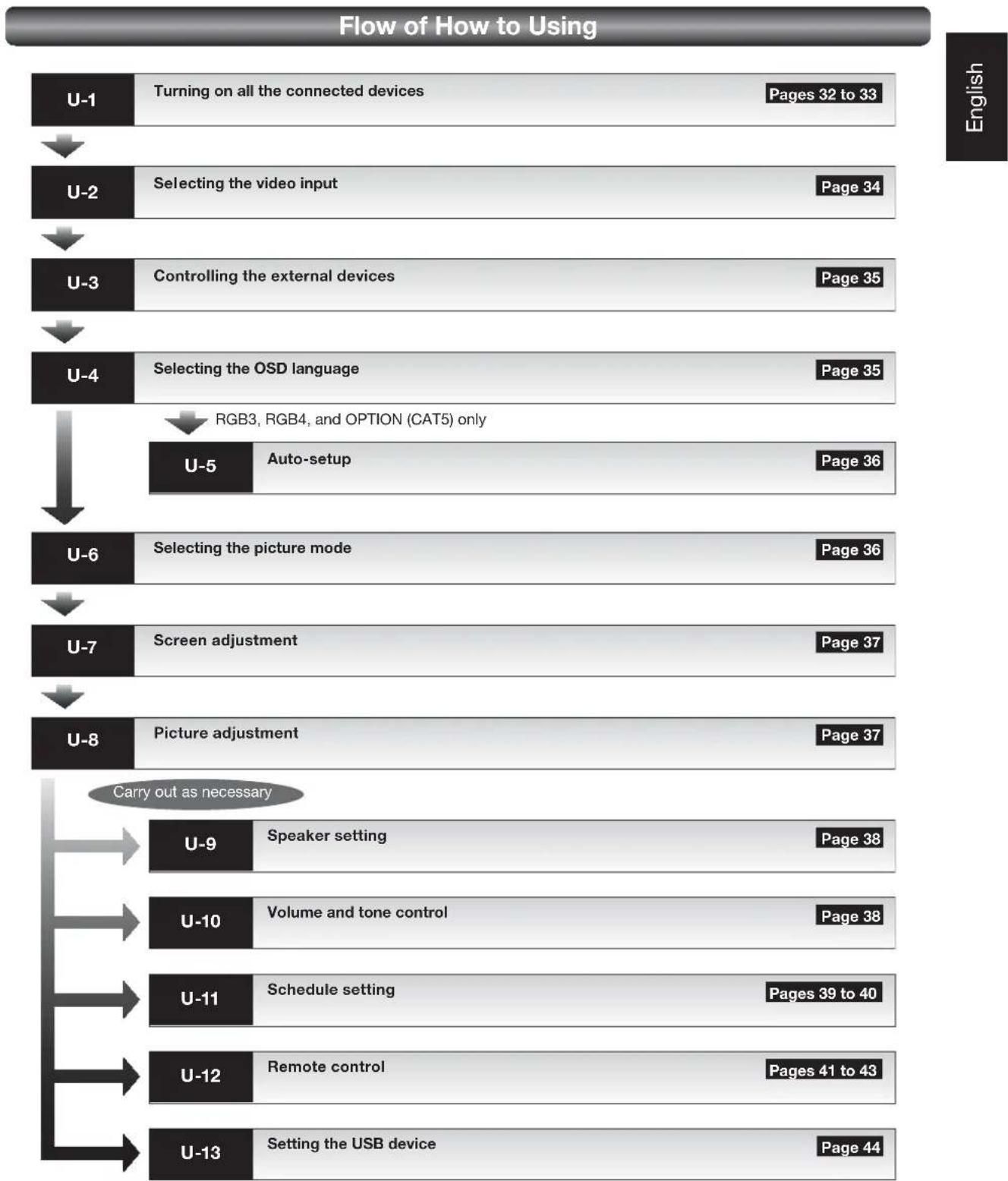

Flow of How to Using English-31

[U-1] Turning on all the connected devices English-32

Turning on external devices English-32

Turning on the monitor English-32

Power Management Function English-33

[U-2] Selecting the video input

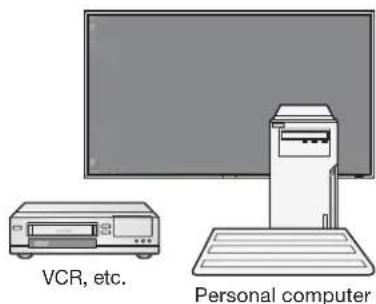

[U-3] Controlling the external devices English-35

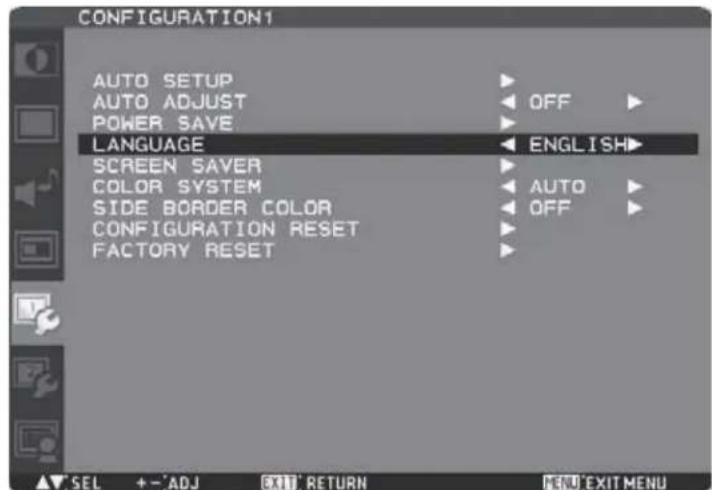

[U-4] Selecting the OSD language English-35

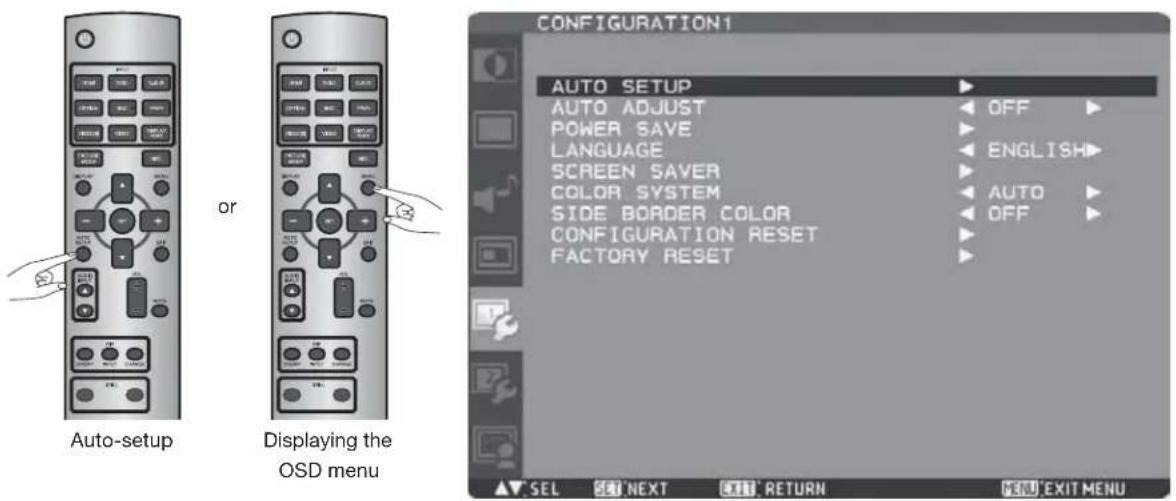

[U-5] Auto-setup English-36

[U-6] Selecting the picture mode English-36

[U-7] Screen adjustment English-37

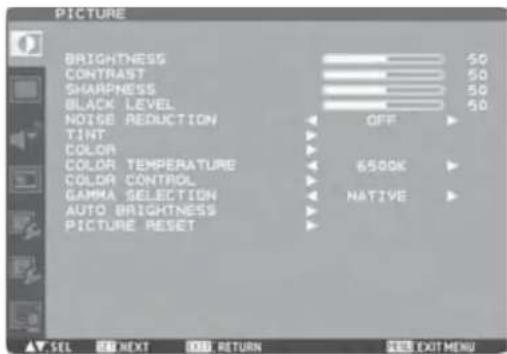

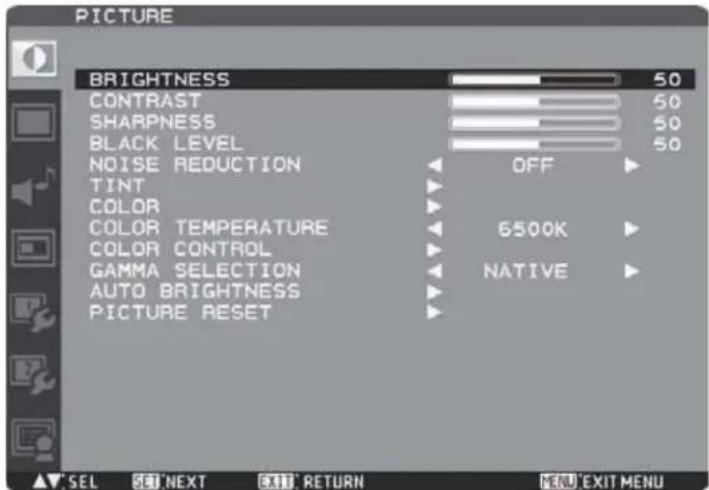

[U-8] Picture adjustment English-37

[U-9] Speaker setting English-38

[U-10] Volume and tone control English-38

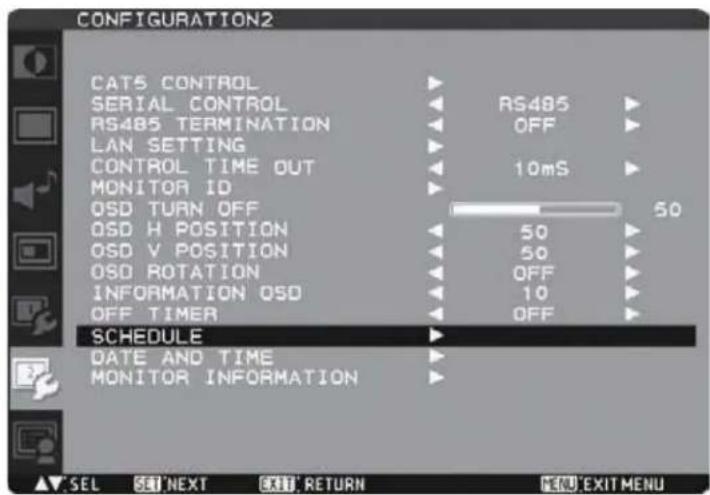

[U-11] Schedule setting English-39

How to set up schedule English-40

[U-12] Remote control English-41

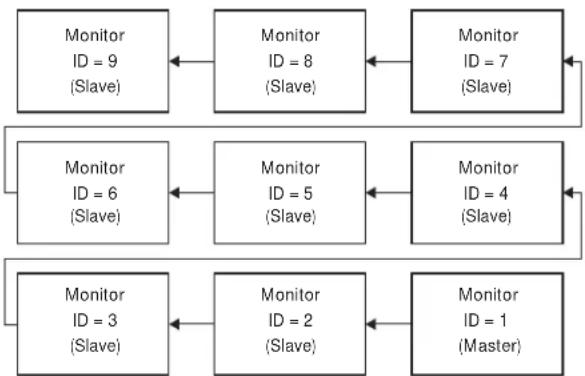

RS-232C/RS-485 Remote control English-41

LAN Remote control English-43

[U-13] Setting the USB device English-44

Confi guration and basic operation of OSD screen English-45

Confi guration of OSD screen English-45

Basic operation of OSD English-46

OSD screen functions English-47

Other functions English-57

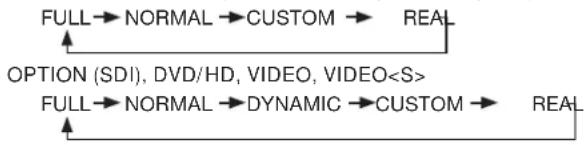

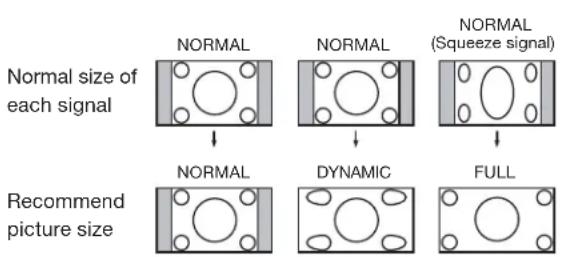

Picture size English-57

Picture mode English-57

Control Lock mode English-57

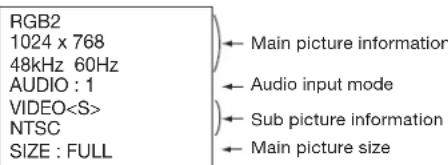

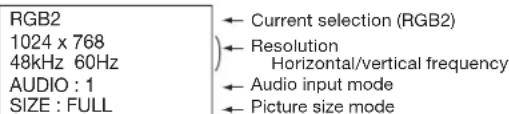

OSD information English-57

Audio input change English-58

Supplemental information of the auto brightness function English-59

Pin Assignment English-64English-2

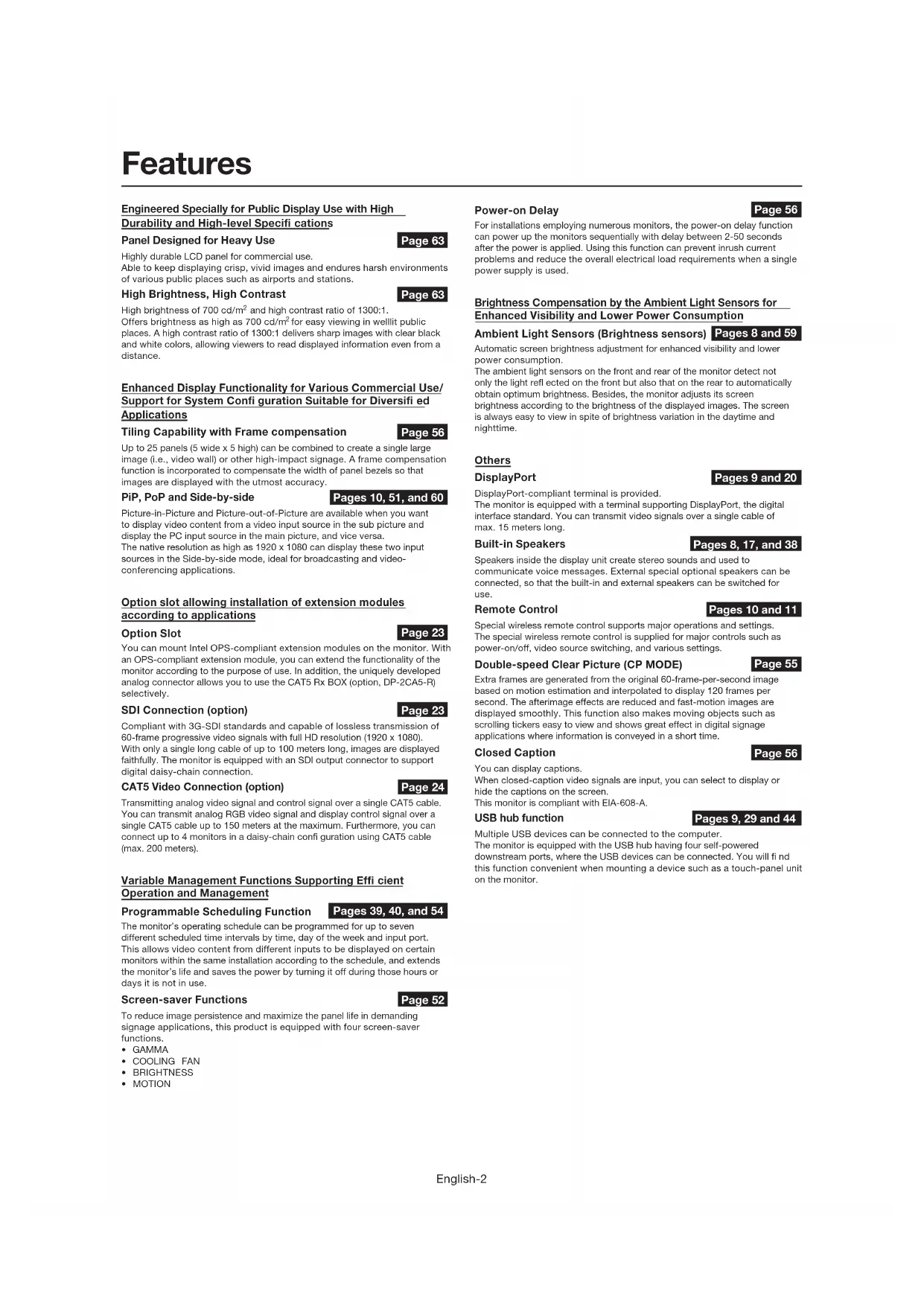

Engineered Specially for Public Display Use with High

Durability and High-level Specifi cations

Panel Designed for Heavy Use

Highly durable LCD panel for commercial use.

Able to keep displaying crisp, vivid images and endures harsh environments

of various public places such as airports and stations.

High Brightness, High Contrast

High brightness of 700 cd/m

and high contrast ratio of 1300:1.

Offers brightness as high as 700 cd/m

for easy viewing in welllit public

places. A high contrast ratio of 1300:1 delivers sharp images with clear black

and white colors, allowing viewers to read displayed information even from a

Enhanced Display Functionality for Various Commercial Use/

Support for System Confi guration Suitable for Diversifi ed

Tiling Capability with Frame compensation

Up to 25 panels (5 wide x 5 high) can be combined to create a single large

image (i.e., video wall) or other high-impact signage. A frame compensation

function is incorporated to compensate the width of panel bezels so that

images are displayed with the utmost accuracy.

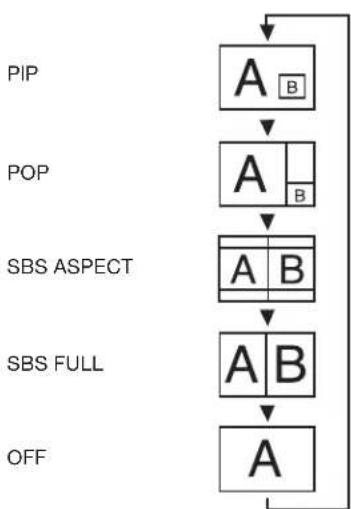

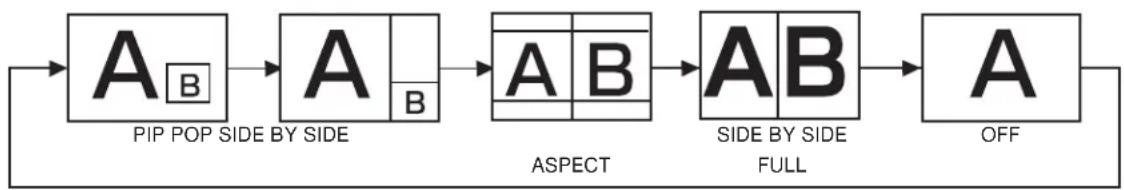

PiP, PoP and Side-by-side

Pages 10, 51, and 60

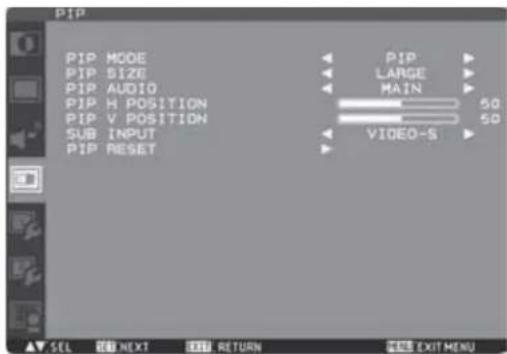

Picture-in-Picture and Picture-out-of-Picture are available when you want

to display video content from a video input source in the sub picture and

display the PC input source in the main picture, and vice versa.

The native resolution as high as 1920 x 1080 can display these two input

sources in the Side-by-side mode, ideal for broadcasting and video-

conferencing applications.

Option slot allowing installation of extension modules

according to applications

You can mount Intel OPS-compliant extension modules on the monitor. With

an OPS-compliant extension module, you can extend the functionality of the

monitor according to the purpose of use. In addition, the uniquely developed

analog connector allows you to use the CAT5 Rx BOX (option, DP-2CA5-R)

Compliant with 3G-SDI standards and capable of lossless transmission of

60-frame progressive video signals with full HD resolution (1920 x 1080).

With only a single long cable of up to 100 meters long, images are displayed

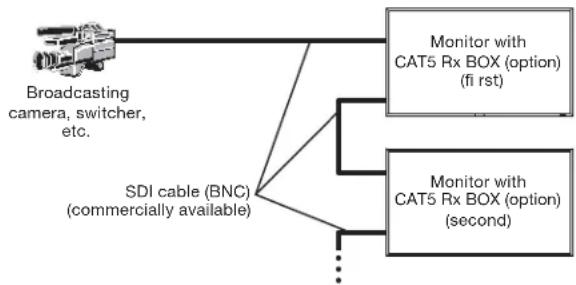

faithfully. The monitor is equipped with an SDI output connector to support

digital daisy-chain connection.

CAT5 Video Connection (option)

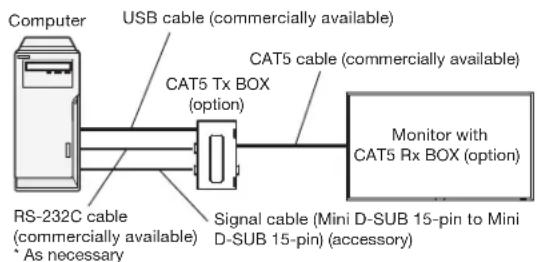

Transmitting analog video signal and control signal over a single CAT5 cable.

You can transmit analog RGB video signal and display control signal over a

single CAT5 cable up to 150 meters at the maximum. Furthermore, you can

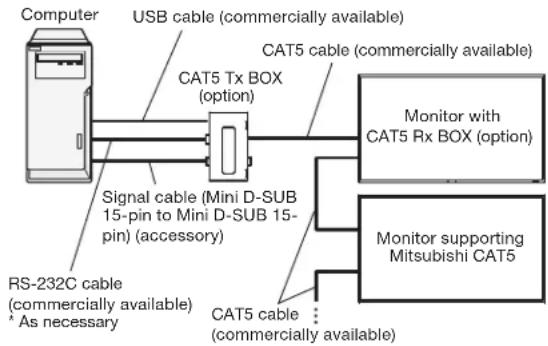

connect up to 4 monitors in a daisy-chain confi guration using CAT5 cable

Variable Management Functions Supporting Effi cient

Operation and Management

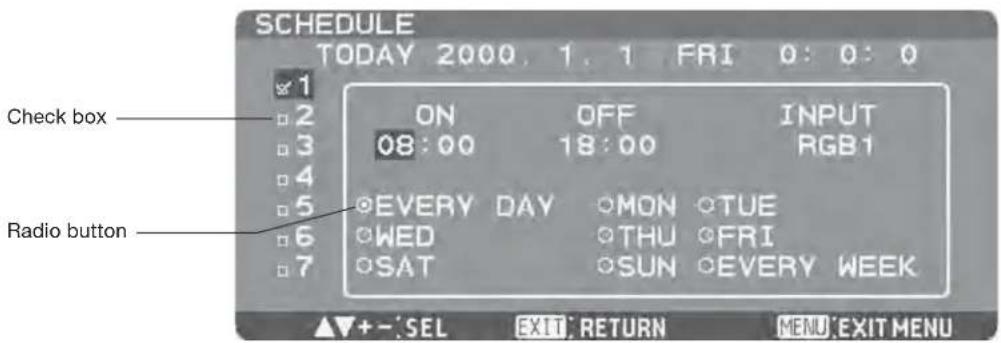

Programmable Scheduling Function

Pages 39, 40, and 54

The monitor’s operating schedule can be programmed for up to seven

different scheduled time intervals by time, day of the week and input port.

This allows video content from different inputs to be displayed on certain

monitors within the same installation according to the schedule, and extends

the monitor’s life and saves the power by turning it off during those hours or

days it is not in use.

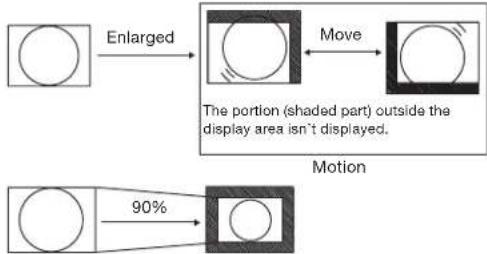

Screen-saver Functions

To reduce image persistence and maximize the panel life in demanding

signage applications, this product is equipped with four screen-saver

For installations employing numerous monitors, the power-on delay function

can power up the monitors sequentially with delay between 2-50 seconds

after the power is applied. Using this function can prevent inrush current

problems and reduce the overall electrical load requirements when a single

power supply is used.

Brightness Compensation by the Ambient Light Sensors for

Enhanced Visibility and Lower Power Consumption

Ambient Light Sensors (Brightness sensors)

Automatic screen brightness adjustment for enhanced visibility and lower

The ambient light sensors on the front and rear of the monitor detect not

only the light refl ected on the front but also that on the rear to automatically

obtain optimum brightness. Besides, the monitor adjusts its screen

brightness according to the brightness of the displayed images. The screen

is always easy to view in spite of brightness variation in the daytime and

DisplayPort-compliant terminal is provided.

The monitor is equipped with a terminal supporting DisplayPort, the digital

interface standard. You can transmit video signals over a single cable of

max. 15 meters long.

connected, so that the built-in and external speakers can be switched for

Special wireless remote control supports major operations and settings.

The special wireless remote control is supplied for major controls such as

power-on/off, video source switching, and various settings.

Double-speed Clear Picture (CP MODE)

Extra frames are generated from the original 60-frame-per-second image

based on motion estimation and interpolated to display 120 frames per

second. The afterimage effects are reduced and fast-motion images are

displayed smoothly. This function also makes moving objects such as

scrolling tickers easy to view and shows great effect in digital signage

applications where information is conveyed in a short time.

You can display captions.

When closed-caption video signals are input, you can select to display or

hide the captions on the screen.

This monitor is compliant with EIA-608-A.

Multiple USB devices can be connected to the computer.

The monitor is equipped with the USB hub having four self-powered

downstream ports, where the USB devices can be connected. You will fi nd

this function convenient when mounting a device such as a touch-panel unit

on the monitor.English-3

Canadian Department of Communications Compliance Statement

DOC: This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2

1. Use the attached specifi ed cables with the MDT551S (D2043) color monitor so as not to interfere with radio and television

(1) Please use the supplied power cord or equivalent to ensure FCC compliance.

(2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to 15-pin mini D-SUB.

2. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the

These limits are designed to provide reasonable protection against harmful interference when the equipment is operated

in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

3. You are cautioned that changes or modifi cations not expressly approved by the party responsible for compliance could

void your authority to operate the equipment.

Windows is a registered trademark of Microsoft Corporation.

HDMI, the HDMI logo, and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing

LLC in the United States and other countries.

The DisplayPort Icon is a trademark of the Video Electronics Standards Association, registered in the U.S. and other

Intel is a trademark of Intel Corporation in the United States and other countries.

All other brands and product names are trademarks or registered trademarks of their respective owners.

Important InformationEnglish-4

Important Information (continued)

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have suffi cient magnitude to cause electric shock.

Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been

included. Therefore, it should be read carefully in order to avoid any problems.

WARNING CAUTION CAUTION:

This LCD Monitor uses a lamp that contains mercury. Disposal of the lamp or the LCD Monitor with the lamp may be

regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or

the Electronic Industries Alliance: www.eiae.org. (For US only).

We hereby certify that the color monitor MDT551S (D2043)

is in compliance with

Council Directive 2006/95/EC:

Council Directive 2004/108/EC:

Declaration of the Manufacturer

Declaration of the Manufacturer

Note: This symbol mark is for EU countries only.

This symbol mark is according to the directive 2002/96/EC Article 10 Information for users and

Annex IV, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II.

Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and

components which can be recycled and/or reused.

This symbol means that electrical and electronic equipment, batteries and accumulators, at their end-of-life,

should be disposed of separately from your household waste.

If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the

battery or accumulator contains a heavy metal at a certain concentration. This will be indicated as follows:

Hg: mercury (0,0005%), Cd: cadmium (0,002%), Pb: lead (0,004%)

In the European Union there are separate collection systems for used electrical and electronic products,

batteries and accumulators.

Please, dispose of this equipment, batteries and accumulators correctly at your local community waste

collection/recycling centre.

Please, help us to conserve the environment we live in!

This is a Class A product. In a domestic environment this product may cause radio interference, in which case the

user may be required to take adequate measures.English-6

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING WHEN SETTING UP AND USING THE LCD COLOR MONITOR:

• DO NOT REMOVE MONITOR BACK COVER. There are

no user serviceable parts inside and opening or removing

covers may expose you to dangerous shock hazards or

Refer all servicing to qualifi ed service personnel.

• Do not spill any liquids into the cabinet or use your monitor

• Do not insert objects of any kind into the cabinet slots,

as they may touch dangerous voltage points, which can

be harmful or fatal or may cause electric shock, fi re or

• Do not place any heavy objects on the power cord.

Damage to the cord may cause shock or fi re.

• Do not place this product on a sloping or unstable cart,

stand or table, as the monitor may fall, causing serious

damage to the monitor.

• When operating the LCD monitor with its AC 100-120 V

power supply in North America, use a power supply cord

provided with the monitor.

If a power cord is not supplied with this monitor, please

contact your supplier.

• When operating the LCD monitor with its AC 220-240 V

power supply in Europe, use a power supply cord provided

If a power cord is not supplied with this monitor, please

contact your supplier.

• In UK, use a BS-approved power cord with molded plug

having a black (10 A) fuse installed for use with this monitor.

• When operating the LCD Monitor with a 220-240 V AC

power supply in Australia, use the power cord provided with

If a power cord is not supplied with this equipment, please

contact your supplier.

• For all other cases, use a power cord that matches the AC

voltage of the power outlet and has been approved by and

complies with the safety standard of your particular country.

• Do not place any objects onto the monitor and do not use

the monitor outdoors.

• The inside of the fl uorescent tube located within the LCD

monitor contains mercury. Please follow the bylaws or rules

of your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperature, humid, dusty, or

• If monitor or glass is broken, do not come in contact with

the liquid crystal and handle with care.

• If the LCD monitor is damaged and the liquid crystal leaks

out, do not inhale or swallow it.

• Allow adequate ventilation around the monitor, so that heat

can properly dissipate. Do not block ventilated openings or

place the monitor near a radiator or other heat sources.

Do not put anything on top of the monitor.

• The power cable connector is the primary means of

detaching the system from the power supply. The monitor

should be installed close to a power outlet, which is easily

• Handle with care when transporting. Save packaging for

• Please clean the holes of back cabinet to reject dirt and

dust at least once a year because of set reliability.

• If using the cooling fan continuously, it’s recommended to

wipe holes a minimum of once a month.

• When installing the remote control batteries;

- Align the batteries according to the (+) and (-) indications

Immediately unplug your monitor from the wall outlet and refer

servicing to qualifi ed service personnel under the following

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen inside the

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following

operating instructions.

• For optimum performance, allow 20 minutes for warm-up.

• Rest your eyes periodically by focusing on an object at least

5 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other

light sources to minimize glare and refl ections.

• Clean the LCD monitor surface with a lint-free, non-abrasive

cloth. Avoid using any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness, contrast, and sharpness

controls to enhance readability.

• Avoid displaying fi xed patterns on the monitor for long

periods of time to avoid image persistence (after image

• Get regular eye checkups.

To realize the maximum ergonomic benefi ts, we recommend

• Use the preset Size and Position controls with standard

• Use the preset Color Setting.

• Use non-interlaced signals.

• Do not use primary color blue on a dark background, as

it is diffi cult to see and may produce eye fatigue due to

insuffi cient contrast.

Safety Precautions, Maintenance & Recommended UseEnglish-7

(Mini D-SUB 15-pin to

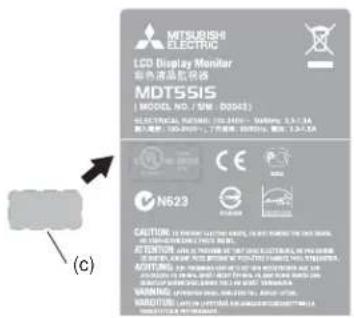

Label to cover the UL

Control and AAA Batteries

Your LCD monitor (MDT551S) comes with the following:

* For the use in the other regions, use a power cord that

matches the AC voltage of the power outlet and has been

approved by and complies with the safety standard of those

regions or countries.

The following components are supplied as option.

(To prevent from falling)

(For preventing disconnection of

* The supplied power cord varies depending on destination.

User’s ManualEnglish-8

PLUS (+) button Acts as (+) button to increase the adjustment in the OSD menu. Increases the audio output level when the OSD menu is off. 7

MINUS (-) button Acts as (-) button to decrease the adjustment in the OSD menu. Decreases the audio output level when the OSD menu is off. 8

UP ( ) button Acts as button to move the highlighted area up to select an adjustment item in the OSD menu. 9

DOWN ( ) button Acts as button to move the highlighted area down to select an adjustment item in the OSD menu. 10

EXIT button Activates the OSD menu when the OSD menu is off.Acts as EXIT button to go back to the previous OSD menu. 11

Speakers Audio sound is output from the built-in speakers. 12

Brightness sensor (on the front and rear) Sensor for the auto brightness function. (Reference) Control Lock mode You can lock the operation buttons. See page 57. 1

Main Power Switch Switches the main power on/off. 2

Remote control sensor and Power indicator Remote control sensor: Receives the signal from the wireless remote control.Power indicator: Indicates the state of the LCD monitor.• Steady green: The power is on. • Steady red: The power is off. Some operations such as power-on are possible. • Steady green and red: The LCD monitor is in the sleep mode.• Off: The main power is off. • Steady red and blinking green: The LCD monitor is in the schedule standby mode. • Blinking red: The LCD monitor has an error (detected by the self-diagnostic function). 3

POWER button ( ) Switches the power on/off. This button doesn’t work when the power indicator is off. Turn on the main power. (See page 32.) 4

MUTE button Switches the audio mute on/off. 5

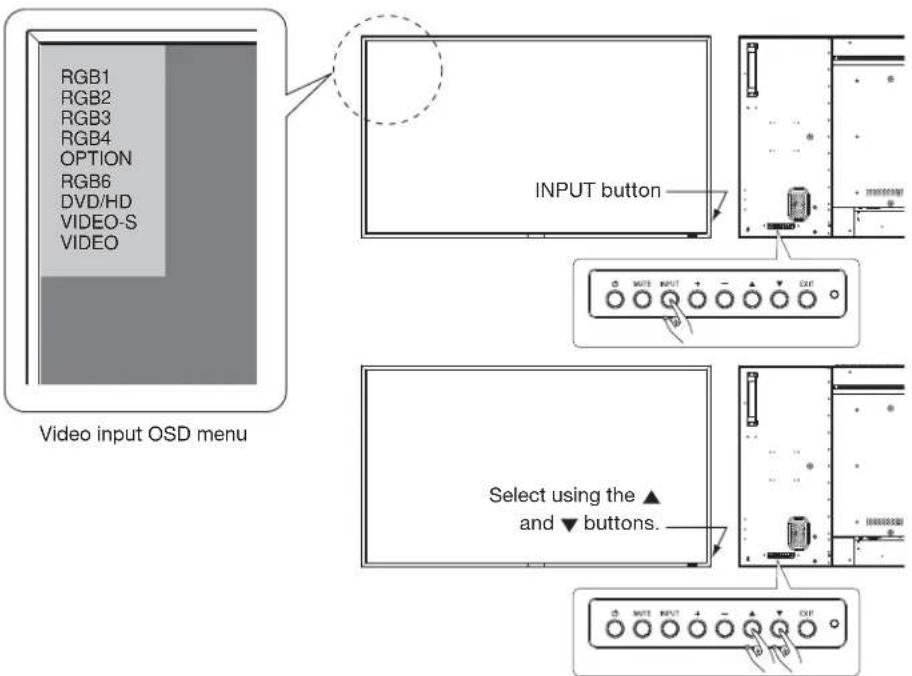

INPUT button Displays the OSD menu to switch the video input. You can select [RGB1], [RGB2], [RGB3], [RGB4], [OPTION]*, [RGB6], [DVD/HD], [VIDEO<S>], or [VIDEO] using the UP () or DOWN () button.* OPTION can be used when an extension module is mounted on the option slot. Buttons, Switch, and Indicator

ON OFF Parts Name and Functions NOTE:For details about the OSD menu operation using the buttons, see “Basic operation of OSD.” (See page 46.)FrontControl buttons RearEnglish-9 English

AC IN (3-pin, with earth terminal) Connects with the supplied power cord. 2

USB hub You can select either of the two upstream ports and distribute the signal to four downstream ports.USB upstream port (Standard B): 1To be connected to an external computer.USB upstream port (internal connection): 1To be connected to an OPS-compliant computer internally.USB downstream port (Standard A): 4To be connected to peripheral devices such as touch panel. 3

RGB6 IN (DisplayPort) Connects with the digital video output of a computer, etc. 4

RGB1 IN (HDMI) Connects with the digital video output of a computer, DVD player, etc. 5

RGB2 IN (DVI-D) Connects with the digital video output of a computer, etc. 6

RGB3 IN (MINI D-SUB 15-pin) Connects with the analog video output of a computer, etc. 7

RGB OUT (MINI D-SUB 15-pin) Outputs the signal that is supplied to the RGB3, RGB4 or OPTION (CAT5) IN connector. 8

RGB4 IN, DVD/HD IN (BNC) Connects with the analog video output of a computer or the component video output of a DVD player, etc. 9

VIDEO INPUT/OUTPUT (S connector/RCA/BNC) Connects with video equipment. S VIDEO IN: S-video input connector (MINI DIN 4-pin)VIDEO IN: BNC connector, RCA connectorVIDEO OUT: BNC connectorNOTE: The video input connectors (BNC, RCA) cannot be used at the same time. Use either BNC connector or RCA connector. Connectors and Terminals

Y IN IN IN OUT IN OUT R L

EXTERNAL SPEAKER TERMINAL Connects with the special stereo speakers (option). 11

AUDIO OUT (RCA) Outputs the signal that is supplied to the selected AUDIO IN connector. Connects with an external audio amplifi er, etc. 12

AUDIO IN Connects with the audio output connector of external equipment such as a computer, VCR, and DVD player. (a) AUDIO1: ø3.5 stereo mini-jack connector(b) AUDIO2: RCA connector(c) AUDIO3: RCA connector 13

RS-232C connector (D-SUB 9-pin) IN connector:Connects with the RS-232C OUT connector of a computer or other connected MDT551S.OUT connector:Connects with the RS-232C IN connector of other connected MDT551S. 14

LAN connector Connects with a LAN cord. 15

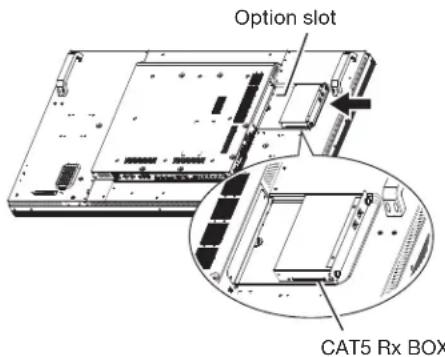

Option slot Slot to mount a CAT5 Rx BOX (option) or an OPS-compliant module (option or commercially available).CAUTION: Damage to the product may result or monitor may not function properly if an incompatible device is installed in this slot. See page 23. Parts Name and Functions (continued) Anti-theft lock slotYou can insert a Kensington anti-theft lock key.Rear Left sideMain Power SwitchEnglish-10

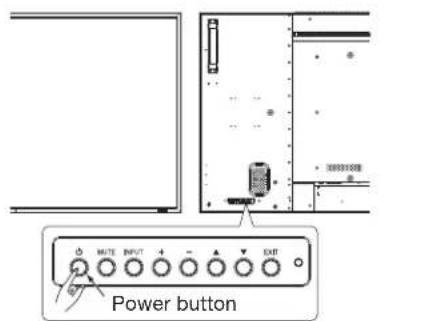

POWER button Switches the power on/off.* When the Power indicator is not glowing, no controls will work. 2

INPUT buttons Select the input signal from [RGB1] (HDMI), [RGB2] (DVI-D), [RGB3] (D-SUB), [RGB4] (BNC), [OPTION]*, [RGB6] (DISPLAY PORT), [DVD/HD] (YPbPr), [VIDEO<S>], and [VIDEO].* OPTION can be used when an extension module is mounted on the option slot. 3

PICTURE MODE button Selects the picture mode from [HIGHBRIGHT], [STANDARD], [sRGB], and [CINEMA]. See page 36. HIGHBRIGHT: The brightness is maximized. STANDARD: Factory default setting. sRGB: Suitable for color matching with sRGB-compliant devices. CINEMA: Suitable for viewing movies. 4

DISPLAY button Displays the screen information. See page 57. When the remote control mode is LOCK, you can set it back to NORMAL by holding down the DISPLAY button for at least 5 seconds (see page 55). 5

SET button Accepts the settings made in the OSD menu. 6

MINUS button (-) Acts as (-) button to decrease the adjustment in the OSD menu. When the PIP mode is active, this button moves the sub picture to the left.

AUTO SETUP button Displays the auto setup menu. See pages 36 and 52. 8

AUDIO INPUT buttons Selects the audio input according to the video input. 9

PIP (Picture-in-Picture) buttons ON/OFF button: Switches the PIP or POP mode on/off. INPUT button: Selects video to be displayed in the sub picture. CHANGE button: Changes the main picture with the sub picture.[Description]PIP: Picture-in-PictureThe sub picture is displayed within the main picture. POP: Picture-out-PictureThe sub picture is displayed to the bottom right of the main picture. SIDE BY SIDEThe main picture and the sub picture are displayed side by side. NOTE: When the screen size is [CUSTOM] or [REAL], the PIP and POP modes don’t work. 10

STILL button ON/OFF button: Switches the still picture mode on/off. CAPTURE button: Captures the new picture. 11

SIZE button Selects the picture size from [FULL], [NORMAL], [CUSTOM], [DYNAMIC], and [REAL]. See page 57. 12

MENU button Switches the OSD menu mode on/off. 13

UP button ( ) Acts as button to move the highlighted area up to select an adjustment item in the OSD menu. When the PIP mode is active, this button moves the sub picture up. 14

PLUS button (+) Acts as (+) button to increase the adjustment in the OSD menu. When the PIP mode is active, this button moves the sub picture to the right. 15

EXIT button Displays the previous OSD menu. 16

DOWN button ( ) Acts as button to move the highlighted area down to select an adjustment item in the OSD menu. When the PIP mode is active, this button moves the sub picture down. 17

MUTE button Switches the mute function on/off. 18

VOLUME buttons (VOL) Pressing the plus (+) side increases the audio output level.Pressing the minus (-) side decreases the audio output level. Parts Name and Functions (continued)

Wireless Remote ControlEnglish-11

Operating Range of the Wireless Remote

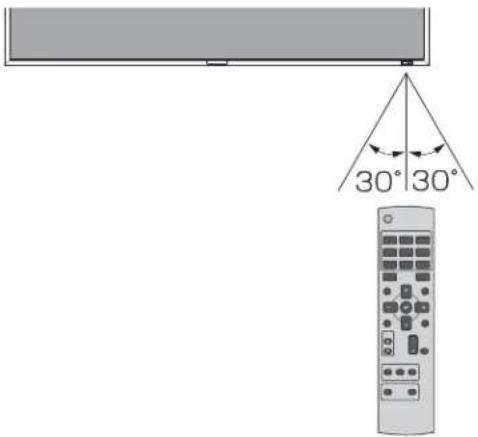

Point the wireless remote control toward the LCD monitor’s

remote control sensor during button operation.

Use the wireless remote control within a distance of about 7 m

from the front of the LCD monitor’s remote control sensor and

at a horizontal and vertical angle of within 30° within a distance

The remote control system may not function when direct

sunlight or strong illumination strikes the remote control sensor

of the LCD monitor, or when there is an object in the path.

Handling the wireless remote control

* Do not subject to strong shock.

* Do not allow water or other liquid to splash on the wireless

remote control. If the wireless remote control gets wet, wipe

* Avoid exposure to heat and steam.

* Other than to install the batteries, do not open the wireless

Parts Name and Functions (continued)

Installing and removing the wireless

remote control batteries

The wireless remote control is powered by 1.5 V AAA batteries.

How to install the batteries

1. Unlock and pull up the cover in the arrow’s direction.

2. Align the batteries according to the (+) and (-) indications

3. Replace the cover.

How to remove the batteries

1. Unlock and pull up the cover in the arrow’s direction.

2. Remove the batteries.

Incorrect use of batteries can result in leaks or explosion.

Be careful especially about the following points.

• Place “AAA” batteries matching the (+) and (-) signs on each

battery to the (+) and (-) signs of battery compartment.

• Do not mix battery types.

• Do not combine new batteries with used ones. It causes

shorter battery life or leakage of batteries.

• Remove dead batteries immediately to prevent battery

liquid from leaking into the battery compartment. Don’t

touch exposed battery acid because it causes damage to

How to Use the Wireless Remote ControlEnglish-12

P-1 Preparation for installation- Determine the installation location- Ventilation requirements for enclosure mounting- To avoid the monitor from falling Page 13Carry out as necessary P-2

P-9 Carry out as necessaryCarry out as necessaryCarry out as necessaryCarry out as necessaryCarry out as necessaryInstalling the optional speakersInstalling the extension module- Installation of the extension module- SDI for long-distance connection or multiple-monitor connection- CAT5 for long-distance connection or multiple-monitor connection- Connecting OPS-compliant computerConnecting RS-232C- Monitor control via RS-232CConnecting LAN- Monitor connection using LANConnecting a USB device- Connecting multiple USB devices using the USB hub functionInstalling the monitor- Installing and removing the stands (The stands are optionally available.)- Using the wall mount or ceiling mount- Installing in the portrait or face-up position- Using the monitor without the bezel Pages 14 to 16 Page 17 Page 27 Page 28 Page 29 Pages 18 to 22 Pages 23 to 26 Page 30 Page 31Connection procedure- Wiring diagram- Prevention of disconnection of HDMI cable- Connecting with a computer (analog connection)- Connecting with a computer (digital connection)- Connecting a video device (component video/HDMI device)- Connecting a video device (composite video/S video device)/stereo amplifi erConnecting the power cord to the monitor- Connecting the power sourceThe monitor is ready for use. How to Use

Preparation for useEnglish-13

P-1 Preparation for installation

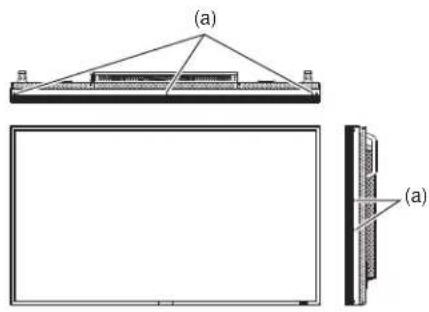

Don’t block the holes in the rear of the monitor shown in the

fi gure above. If they are blocked, heat accumulates inside the

monitor, causing breakdown. The upper limit of the operation-

guaranteed ambient temperature when the monitor is installed

in the landscape position is 40˚C. When installing the monitor

in a case or an enclosure, ensure adequate ventilation to keep

the temperature inside the case 40˚C or lower by providing

a cooling fan or ventilation holes in the case. The upper limit

when the monitor is in the portrait or face-up position is 35˚C.

This LCD has a temperature sensor and cooling fan. If the LCD

becomes hot, the cooling fan will turn on automatically. If the

LCD becomes overheated, the “Caution” menu will appear.

If the “Caution” menu appears, stop using the monitor and

allow it to cool. When the LCD monitor is used in an enclosure

or with protection on LCD surface, please check the inside

temperature of the monitor by “HEAT STATUS” (See page 56). If

the temperature is higher than the normal level, set “COOLING FAN” to ON using the SCREEN SAVER function (See page 52).

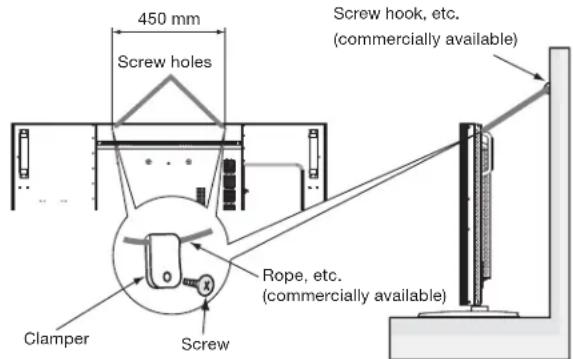

To avoid the monitor from falling

When installing the monitor using the tabletop stands (option),

take measures to prevent the monitor from falling over in case

of an earthquake or other disaster to lessen the probability of

injury and damage resulting from the fall.

As shown in the fi gure, secure the monitor to a solid wall or

pillar using rope (commercially available) strong enough to bear

the weight of the monitor. [MDT551S: approximately 38.6 kg (with

the optional stands)]

When using screw hooks (commercially available), use ring

hooks, not C-hooks (with opening).

• The effect of the fall prevention substantially depends

on the strength of brackets and base to which the fall

prevention devices is attached. When you cannot ensure

suffi cient strength, provide adequate reinforcement.

• Though the recommended fall prevention is intended to

lessen the probability of injury and damage, it doesn’t

assure its effectiveness against any kind of earthquake or

• Do not sleep where the monitor may topple over or fall in

case of an earthquake or other disaster.

• Before moving the monitor, remove the rope that is

securing the monitor. Failure to do so may result in injury or

breakdown of the monitor.

Determine the installation location

DO NOT ATTEMPT TO INSTALL THE LCD MONITOR BY YOURSELF.

Installing your LCD monitor must be done by a qualifi ed

technician. Contact your dealer for more information.

MOVING OR INSTALLING THE LCD MONITOR MUST BE DONE BY TWO OR MORE PEOPLE.

Failure to follow this caution may result in injury if the LCD

Proper operation of the monitor is not guaranteed when it is

mounted upside down or face down.

Lay the protective sheet, which was wrapped around the LCD

monitor when it was packaged, beneath the LCD monitor so as

not to scratch the panel.

Ventilation requirements for enclosure mounting

To allow heat to disperse, leave space around the monitor as

shown in the fi gure below. Screw holesScrew hook, etc. (commercially available)ClamperScrewRope, etc.(commercially available)450 mm Don’t block these holes.

P-2 Installing the monitor

Carry out as necessary

Using the wall mount or ceiling mount

Lay the screen face down

Lay the protective sheet on a table, which was wrapped around

the monitor when it was packaged, beneath the screen surface

so as not to scratch the screen surface.

This device cannot be used or installed without the Tabletop

Stand or other mounting accessory. Failure to follow the correct

mounting procedures can result in damage to the equipment or

injury to the user or installer. Product warranty does not cover

damage caused by improper installation.

Failure to follow these recommendations can void your

Use M8 screws (having a length 15 mm longer than the

thickness of the mounting bracket) and tighten them securely.

Prevent the screws from loosening using spring washers, etc.

MITSUBISHI ELECTRIC recommends using mounting interface

that comply with TÜV-GS and UL1678 standard in North

America. 625.5 625.5360.5360.5200 200200 200 CAUTION:

For preventing the monitor from falling.

• Install the monitor with metal brackets for wall or

ceiling installation (commercially available) on your own

responsibility. For detailed procedures of installation, refer

to the instructions of the metal brackets.

• To lessen the probability of injury and damage resulting

from fall of the monitor in case of earthquake or other

disaster, be sure to consult the bracket manufacturer for

installation location.

• To lessen the risk of falling of the monitor, thread

commercially available rope through the handles at the

right and left of the monitor and secure the rope to the wall

mount brackets or ceiling mount brackets.

• Do not sleep where the monitor may topple over or fall in

case of an earthquake or other disaster.

• Use screws having enough strength to support the LCD

display monitor (made of stainless steel etc.). HandlesProtective Sheet (mm) Table Installing and removing the stands

The stands are available as option.

Refer to the user’s manual of the stand for more information.

How to install the stands

1. Turn the monitor off.

2. Remove the screws that are securing the option stand

covers on both sides, and then remove the stand covers

3. Insert the option stands in the guide frames on both sides

Secure the option stands on both sides fi rmly using the

screws supplied with the option stands.

4. Install the monitor on a fl at and stable surface.

• Install the stands so that their longer portions come to the

• Retain the stand covers and screws you removed because

they are necessary when you install the monitor without the

How to remove the stands

1. Spread the protective sheet on a fl at surface, such as a

2. Place the monitor on the protective sheet.

3. Remove the screws to remove the option stands.

4. Fasten the stand covers on both sides using the screws.

(Longer portion comes to the front.)

Stand cover x 2English-15

P-2 Installing the monitor (continued)

Carry out as necessary

Installing in the portrait or face-up

position The monitor can be installed in the portrait or face-up position.Ensure that the monitor is oriented as shown below.CAUTION:• The operating environmental condition (temperature) when the monitor is in the portrait or face-up position is 5˚C to 35˚C.• Proper operation of the monitor is not guaranteed when it is not mounted as shown below (upside down, face down, etc.).• In the portrait position, the lifetime of the fl uorescent tube (backlight) is shorter than that when the monitor is in the landscape position.• When installing the monitor with its screen facing up, ensure that the fan is always running.Installation in the portrait positionThe “” logo should be on the LEFT side when viewed from the front of the monitor.Installation in the face-up positionOperation environment for portrait or face-up installationWhen the monitor is installed in the portrait or face-up position, the following conditions should be satisfi ed.Temperature 5 - 35°C / 41 - 95°FHumidity 20 - 80% (without condensation) Face-up

90° Clockwise Portrait

Portrait logo LandscapeEnglish-16

P-2 Installing the monitor (continued)

Carry out as necessary

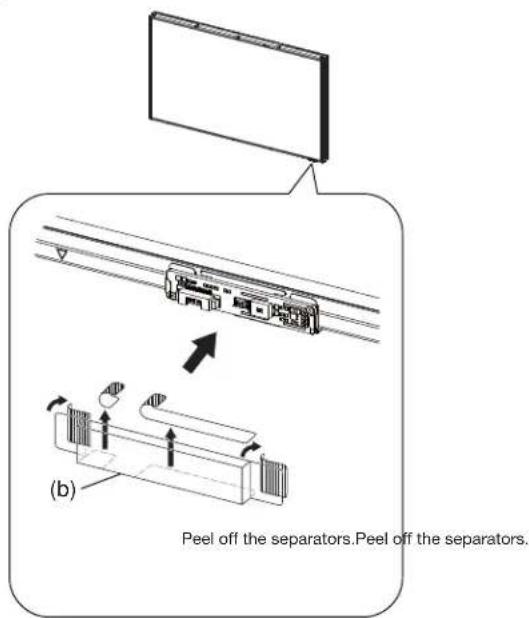

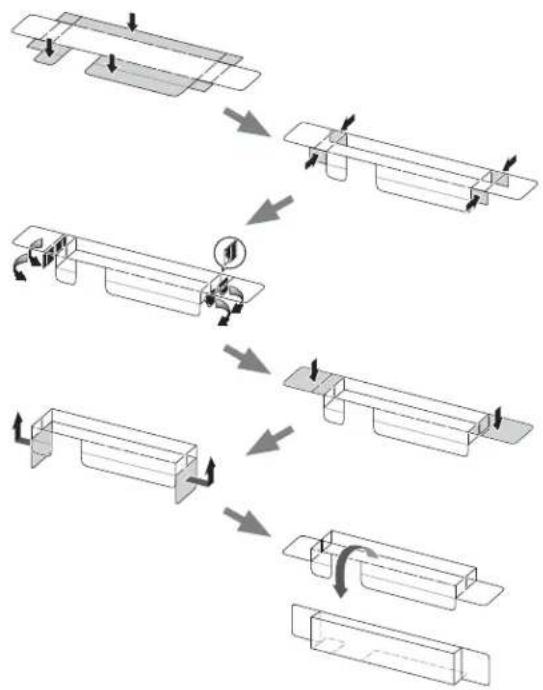

Using the monitor without the bezel CAUTION:• MDT551S satisfi es the UL requirements as long as it is used with the bezel attached. When using the monitor without the bezel, in which case the monitor doesn’t satisfy the UL requirements, cover the UL certifi cation marking on the rear panel with the supplied label.• To prevent static damage to circuit boards, attach the protective cover to the LCD panel.1. Assemble the supplied protective cover according to the following procedure.

2. Unscrew the screws (a) that hold the bezel to remove the bezel from the monitor.CAUTION:If you remove other screws than the screws (a), the bezel falls apart. If you do so, the bezel may fall, causing injury or damaging the monitor. (a)

(a) 3. Peel off the separators from the protective cover (b) assembled in step 1 and then attach the protective cover to the LCD panel.CAUTION:Never touch the circuit boards because they may be damaged. (b) 4. Cover the UL certifi cation marking on the rear panel with the supplied label (c). (c) Peel off the separators.Peel off the separators.(a): Screws for securing the bezel (M4, 10 pcs.)English-17

English To speaker terminal (L) To speaker terminal (R) Red(+)/Black(-)Red(+)/Black(-)SPEAKER (S)(L)SPEAKER (S)(R)Black(-)Red(+)Black(-)Red(+) NOTE:

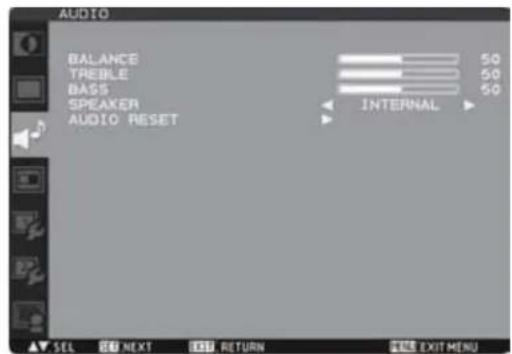

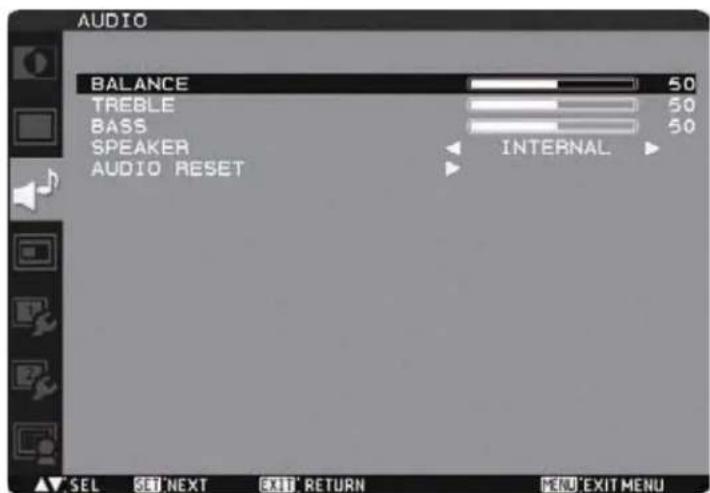

Switch the built-in speaker mode to the optional speaker mode after you power on the monitor.

See the page for How to Use (on page 31) for further details.

Do not move the monitor with the speakers installed.

The monitor and the speakers may be damaged and you may be injured if the monitor falls. Left speakerRight speaker Before making connections

• Optional speakers can be installed.

• Please refer to Quick Setup Guide of the optional speakers for the detailed installation procedure.

How to install the optional speakers

1. Install the optional speakers on the monitor.

Use the metal fi ttings and screws supplied with the optional speakers.

2. Insert the left speaker cable into the SPEAKER (S) terminal (L) on the monitor, and insert the right speaker cable into the

SPEAKER (S) terminal (R).

Match the polarity of the speaker cables and that of the terminals (+ (red)/- (black)).

Unmatched polarity may cause problems with audio output.

Installing the optional speakers

Carry out as necessaryEnglish-18

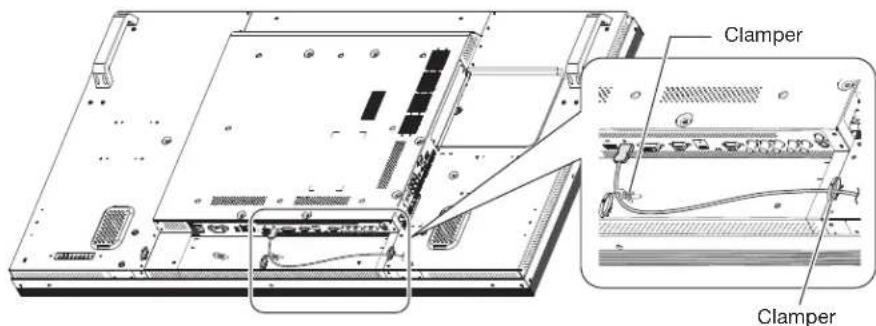

Prevention of disconnection of HDMI cable

When you connect the HDMI cable to the connector on the monitor, in order to prevent accidental disconnection of the cable, you

are recommended to secure it using the supplied clamper as shown in the fi gure.

LCD monitor (second monitor)

DVD player or HD disk

Before making connections

• First turn off the power of all the connected equipment before making connections.

• Refer to the user manual of each piece of equipment.

Please use the audio cable without resistance when the audio output terminal of the audio device and PC is stereo mini-Jack.

When the audio cable with resistance is used, the audio level may not be increased or no audio may be output.

P-4 Connection procedure

LCD monitor (fi rst monitor)English-19

English Signal cable(Mini D-SUB 15-pin to Mini D-SUB 15-pin) To audio output To BNC output RGB4 IN (R,G,B,H,V)BNC cable(BNC x 5 to BNC x 5) RGB3 IN (D-SUB) RGB OUT (D-SUB) AUDIO IN1 (mini) AUDIO OUT (RCA)Audio cable(ø 3.5 mm stereo mini) RGB3 IN (D-SUB) AUDIO IN2 (RCA)Signal cable(Mini D-SUB 15-pin to Mini D-SUB 15-pin)Audio cable (RCA) To D-SUB output Left side of LCD monitor (fi rst monitor)LCD monitor (fi rst monitor)LCD monitor (second monitor)Personal computer(Analog RGB) Connecting with a computer (analog connection)

• Connection via RGB3 IN (D-SUB) connector

(1) Connect a signal cable (mini D-SUB 15-pin – mini D-SUB 15-pin) (accessory) to the RGB3 IN connector.

(2) Select [RGB3] using the INPUT button on the monitor or the D-SUB button on the wireless remote control.

• Connection via RGB4 IN (BNC: R•G•B•H•V, or R•G•B•Csync, RGB sync on green) connector

(1) When connecting the RGB4 IN connector, use a BNC cable (BNC x 5 – BNC x 5) (commercially available) to connect to the

BNC connector on the computer, or use a signal cable (mini D-SUB 15-pin – BNC x 5) (commercially available) to connect to

the mini D-SUB 15-pin connector on the computer.

(2) Select [RGB4] using the INPUT button on the monitor or the BNC button on the wireless remote control.

Second monitor connection:

• Connect the RGB OUT connector (mini D-SUB 15-pin) on the fi rst monitor and the RGB3 IN connector (mini D-SUB 15-pin)

on the second monitor using a signal cable (mini D-SUB 15-pin – mini D-SUB 15-pin) (an accessory of the second monitor or

commercially available).

(The analog input signal of RGB3, RGB4, or OPTION (CAT5) selected by the fi rst monitor is output. The digital input signal of

RGB1, RGB2, or RGB6 is not output.)

When different monitors need to be adjusted so that their tint can be identical, such as when using multiple screens, it is

recommended to use a signal distributor (commercially available).

• Connect an audio cable (ø3.5 mm stereo mini) (commercially available) to the AUDIO IN1 connector.

Select [AUDIO1] using the AUDIO INPUT buttons on the wireless remote control.

• To output audio to the second monitor:

Connect the AUDIO OUT connector on the fi rst monitor and the AUDIO IN2 connector or AUDIO IN3 connector on the second

monitor using an audio cable (RCA) (commercially available).

P-4 Connection procedure (continued)English-20 RGB2 IN (DVI-D) RGB1 IN (HDMI) RGB6 IN (DP) AUDIO IN1 (mini)DisplayPort cableHDMI cableDVI-D cable To DVI-D output To HDMI output To DP output To audio output Audio cable(ø3.5 mm stereo mini) Personal computer

Connecting with a computer (digital connection)

• Connection via the RGB1 IN connector (HDMI)

(1) Connect an HDMI cable (commercially available) to the RGB1 IN connector.

(2) Select [RGB1] using the INPUT button on the monitor or the HDMI button on the wireless remote control.

• Connection via the RGB2 IN connector (DVI-D)

(1) Connect a DVI-D cable (commercially available) to the RGB2 IN connector.

(2) Select [RGB2] using the INPUT button on the monitor or the DVI-D button on the wireless remote control.

• Connection via the RGB6 IN connector (DisplayPort)

(1) Connect a DisplayPort cable (commercially available) to the RGB6 IN connector.

(2) Select [RGB6] using the INPUT button on the monitor or the DISPLAY PORT button on the wireless remote control.

• Connect an audio cable (ø3.5 mm stereo mini) (commercially available) to the AUDIO IN1 connector.

Select [AUDIO1] using the AUDIO INPUT buttons on the wireless remote control.

When an HDMI cable is connected, select HDMI audio.

(You can select HDMI only when the video input is [RGB1].)

Left side of LCD monitor

Front of LCD monitor

P-4 Connection procedure (continued)

The monitor automatically distinguishes the timings shown in the table below and sets the screen information. When a PC or other

device is connected, it automatically displays images properly. See the page describing AUTO SETUP/AUTO ADJUST.

CVT Reduced Blanking

5 1360 x 768 47.7 kHz 60 Hz

When a signal other than 1920x1080 is input, characters may be blurred and fi gures and objects may be distorted.

Images may not be displayed correctly depending on the video card or driver being used.English-21

English HDMI cable DVD/HD IN (Y·Pb·Pr, Y·Cb·Cr) DVD/HD IN (Y·Pb·Pr, Y·Cb·Cr) AUDIO IN2 (RCA) RGB1 IN (HDMI) To D connector output To video output To HDMI output To audio output Audio cable (RCA)Signal cable(BNC x 3 to D connector)BNC cable(BNC x 3 to BNC x 3)BNC – RCA adaptor Connecting a video device (component video/HDMI device)

This monitor can be connected to a video device equipped with component output such as a DVD player.

Refer to the user’s manual of the connected device for details. (Cables shown in the fi gure below are commercially available.)

• To connect a DVD player equipped with component output to the DVD/HD IN connector (YPbPr or YCbCr) on the monitor, use a

BNC cable (BNC x 3 – BNC x 3) and a BNC – RCA adaptor (commercially available), or a signal cable (BNC x 3 – D connector).

Select [DVD/HD] using the INPUT button on the monitor or the YPbPr button on the wireless remote control.

• To make audio connection, connect an audio cable (RCA) to the AUDIO IN2 connector or the AUDIO IN3 connector.

Select [AUDIO2] or [AUDIO3] using the AUDIO INPUT buttons on the wireless remote control.

• To connect a DVD player equipped with HDMI output to the RGB1 IN connector (HDMI) on the monitor, use an HDMI signal

Select [RGB1] using the INPUT button on the monitor or the HDMI button on the wireless remote control.

• For HDMI cable connection, select HDMI audio.

(You can select HDMI audio only when the video input is [RGB1].) DVD player(component device)Front of LCD monitorDVD player(HDMI device) P-4 Connection procedure (continued) Left side of LCD monitorEnglish-22 BNC cable S VIDEO IN AUDIO IN2 AUDIO OUT VIDEO IN VIDEO IN VIDEO IN VIDEO OUT To S video output To video output To video output To audio output To audio input Audio cable (RCA)Audio cable (RCA)Video cableBNC cableS video cable Connecting a video device (composite video/S video device)/stereo amplifi er

This monitor can be connected to a stereo amplifi er.

Refer to the user’s manual of the stereo amplifi er for details. (Cables shown in the fi gure below are commercially available.)

• To connect a video device to the VIDEO IN connector (VIDEO IN or S VIDEO IN) on the monitor, use a BNC cable, a video

cable, or an S video cable. For connection to the audio input connector on the monitor, use an audio cable (RCA). Connect the

connectors of the audio cable (RCA) correctly. For connection to the VIDEO IN connector, select [VIDEO] using the INPUT button

on the monitor or the VIDEO button on the wireless remote control. For connection to the S VIDEO IN connector, select [VIDEO<S>]

using the INPUT button on the monitor or the VIDEO (S) button on the wireless remote control.

• To connect two monitors, connect one end of a BNC cable to the VIDEO OUT connector of the fi rst monitor and the other end to

the VIDEO IN connector of the second monitor.

When different monitors need to be adjusted so that their tint can be identical, such as when using multiple screens, it is

recommended to use a signal distributor (commercially available).

• When connecting a stereo amplifi er to the monitor, be sure to turn off the power of the stereo amplifi er. For connection to the

audio output connector on the monitor, use an audio cable (RCA). Connect the connectors of the audio cable (RCA) correctly. Be

sure to turn on the monitor fi rst, and then turn on the stereo amplifi er.

• The selected audio input signal is output from the AUDIO OUT connector.

To connect the device to VIDEO IN connector (BNC, RCA), use either of them.

LCD monitor (second monitor)

Left side of monitor (fi rst monitor)

LCD monitor (fi rst monitor)

P-4 Connection procedure (continued)English-23

English SDI cable (BNC)(commercially available)Broadcasting camera, switcher, etc. Monitor withCAT5 Rx BOX (option) (fi rst)Monitor withCAT5 Rx BOX (option) (second)Extension moduleOption slotOption slotSDI BOX P-5

Installing the extension module

Carry out as necessary

SDI for long-distance connection

or multiple-monitor connection

1. Mounting the SDI BOX on the monitor 1. Turn off the main power switch of the monitor and disconnect the power cord.CAUTION:Be sure to disconnect the power cord to prevent breakdown and electric shock.2. Use a Phillips screwdriver to unscrew and remove the option slot cover. Retain the screw for later use in step 4.3. Mount a SDI BOX (option) in the option slot of the monitor.

CAUTION:To prevent damage, please ensure proper orientation and position of the SDI BOX before inserting it fully into the slot.4. Reuse the two screws removed from step 2 and properly secure the SDI BOX. 2. Connection with SDI There are two cases of connection. 1) Connection to one monitor1. Connect the video device and the SDI BOX (option) using an SDI cable (BNC) (commercially available).NOTE:A high-spec BNC cable capable of carrying SDI signal is called SDI cable and distinguished from other BNC cables.2) Connection to multiple monitors1. After the connection made in 2-1) above, connect the SDI OUT connector on the fi rst SDI BOX and the SDI IN connector on the second SDI BOX using a commercially available SDI cable (BNC).2. Connect the third and later monitors in the same way. You can connect up to 25 monitors. Allowable cable lengthConnectionMax. cable lengthSD-SDI HD-SDI 3G-SDIOne monitor 300 m 200 m 100 mMultiple monitors(total cable length)350 m 250 m 150 mThe lengths given above are based on the actual measurements using our standard signal source and the recommended cable as follows. Before installation, check the monitor operation in advance by connecting it with your video device and cables. Installation of the extension module Install the extension module to the option slot of this monitor following the precautions and procedures described in the manual supplied with the module.

Examples of supported extension modules:• SDI BOX (DP-1SDI-3G)• CAT5 Rx BOX (DP-2CA5-R)• OPS-compliant computer (commercially available) Example of commercially available computer: ARK-DS220F-MTSA1E of Advantech Co., Ltd.NOTE:• Please contact module manufacturer for any compatibility issues.• This monitor is equipped with a uniquely developed analog interface so that a single extension slot can support both digital connection of an OPS-compliant module and analog connection of a CAT5 Rx BOX.[Description]Intel ® OPS (Open Pluggable Specifi cation) is a standard advocated by Intel Corporation for pluggable modules into monitors designed for digital signage applications.Supported OPS features:• DVI-D • Power control• USB • UARTNOTE:When an OPS-compliant module is in the option slot, the monitor doesn’t enter the sleep mode even when POWER SAVE in the CONFIGURATION1 menu is set to ON. Even when other video input is selected, the monitor doesn’t enter the sleep mode. See pages 33 and 52.English-24USB cable (commercially available)CAT5 Tx BOX(option)Signal cable (Mini D-SUB 15-pin to Mini D-SUB 15-pin) (accessory)CAT5 cable (commercially available)ComputerMonitor withCAT5 Rx BOX (option)RS-232C cable (commercially available)* As necessaryCAT5 Rx BOXOption slot P-5 Installing the extension module (continued)

Carry out as necessary

Recommended cable:Coaxial cable having a characteristic impedance of 75 Ω, BNC connectorCommercially available cable:1694A of BeldenInput formatSD-SDI 480i@59.94 Hz, 576i@50 HzHD-SDI720p@50/59.94/60 Hz,1080i@50/59.94/60 Hz,1080p@24 Hz3G-SDI 1080p@50/59.94/60 HzSignal system: YC B C R (4:2:2) / 10 bits onlyRemoval of the SDI BOXHold the handle on the SDI BOX for removal.CAUTION:Use the handle to extract the SDI BOX only. Pulling on the SDI cable (BNC) or by other means may cause damage. CAT5 for long-distance connection

or multiple-monitor connection The CAT5 video connection function is for transmitting the analog RGB video signal of the computer and the control signal of the monitor over a long distance using CAT5 cables.The computer can control the monitor via the optional CAT5 Tx BOX (option) and the CAT5 Rx BOX (option) that is mounted on MDT551S.CAUTION:Never connect network devices (such as a hub and a computer for LAN) to the CAT5 IN and OUT connectors of the CAT5 Tx BOX and the CAT5 Rx BOX. If they are connected, the network devices themselves, CAT5 Tx BOX, CAT5 Rx BOX, and monitor may be damaged. 1. Installation of the USB driver for CAT5

serial communication control To connect the computer and the CAT5 Tx BOX (option) via USB interface, it is necessary to install the USB driver to the computer from the CD-ROM supplied with the CAT5 Tx BOX.(Installing the USB driver isn’t necessary when the communication control isn’t used or the RS-232C cable is used for connection.) OS supported: Windows ® XP, Windows Vista ® , Windows ®

7 How to install:Start the “PL2303_Prolifi c_DriverInstaller_v *** .exe” fi le in the Windows folder on the CD-ROM supplied with the CAT5 Tx BOX (option) and install the driver according to the instructions displayed on the screen. 2. Mounting the CAT5 Rx BOX on the

monitor 1. Turn off the main power switch of the monitor and disconnect the power cord.CAUTION:Be sure to disconnect the power cord to prevent breakdown and electric shock.2. Use a Phillips screwdriver to unscrew and remove the option slot cover. Retain the screw for later use in step 4.3. Mount a CAT5 Rx BOX (option) in the option slot of the monitor.

CAUTION:To prevent damage, please ensure proper orientation and position of the CAT5 Rx BOX before inserting it fully into the slot.4. Reuse the two screws removed from step 2 and properly secure the CAT5 Rx BOX. 3. Connection of the CAT5 video

connection function There are two cases of connection. 1) Connection to one monitor1. Connect the computer and the CAT5 Tx BOX (option) using a commercially available USB cable.2. When the USB connector isn’t used for the communication control, connect with an RS-232C cable and set the input selection switch on the CAT5 Tx BOX to the RS-232C side.NOTE:To supply a power to the CAT5 Tx BOX, connect a USB cable also.3. Connect the analog RGB OUT connector on the computer and the RGB IN connector on the CAT5 Tx BOX using the signal cable (mini D-SUB 15-pin – mini D-SUB 15-pin) supplied with the monitor.4. Connect the CAT5 output connector (modular connector 8-pin) of the CAT5 Tx BOX and the CAT5 IN connector of the CAT5 Rx BOX using a commercially available CAT5 cable.English-25

English USB cable (commercially available)Signal cable (Mini D-SUB 15-pin to Mini D-SUB 15-pin) (accessory)CAT5 cable (commercially available)CAT5 cable(commercially available)ComputerMonitor withCAT5 Rx BOX (option)Monitor supportingMitsubishi CAT5CAT5 Tx BOX(option)RS-232C cable (commercially available)* As necessary P-5 Installing the extension module (continued)

Carry out as necessary

2) Connection to multiple monitors

1. After the connection made in 3-1) above, connect the OUT

connector of the OPTION/CAT5 input/output connector

(modular connector 8-pin) of the fi rst monitor and the IN

connector of the OPTION/CAT5 input/output connector

(modular connector 8-pin) of the second monitor using a

commercially available CAT5 cable.

2. Connect the third and later monitors in the same way.

You can connect up to 4 monitors.

• When different monitors need to be adjusted so that their

tint can be identical, such as when using multiple screens,

it is recommended to use a signal distributor (commercially

• When a signal such as 1280 x 768, 1360 x 768, and

1280 x 1024 is input and the horizontal frequency is 48 to

62 kHz, up to 3 monitors can be connected.

• When the pulse width of the horizontal sync signal for video

signal is 400 nsec or less (e.g CEA861#16), up to 3 monitors

• To supply a power to the CAT5 Tx BOX, connect a USB

• To CAT5 output, the signal same as RGB3, RGB4 or

OPTION (CAT5) selected at the input switching is output.

• Since analog transmission involves certain amount of image

quality degradation, digital data transmission, such as

SDI connection, is recommended for high defi nition video

Allowable cable length

Connection Max. cable length/signal timing

200 m / 1920 x 1080 @60 Hz

(Total length of the connected cables)

The lengths given above are based on the actual measurements

using our standard signal source and the recommended cable

as follows. Before installation, check the monitor operation in

advance by connecting it with your computer and cables.

8-pin modular connector, straight-through, shielded, Category

Commercially available cables:

7929A of Belden, NFTP-C5e-GY of Nex1

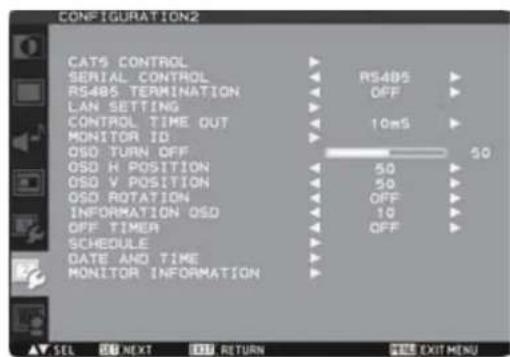

4. Confi guring CAT5 Rx BOX In the case of the CAT5 video connection, confi gure the

following settings displayed on the OSD screen. (See page 53.)

1) CAT5 CABLE LENGTH Select the cable length, and the defaults of all the adjustment

values are automatically determined.

Select the length that is closest to the actual length of your

Make adjustment so that blur and smear of the displayed letters

and graphic objects are minimized.

3) CAT5 RED GAIN/GREEN GAIN/BLUE GAIN When the displayed image is dark, increase each value.

When whites aren’t displayed as intended, adjust the RED GAIN

and BLUE GAIN values.

4) CAT5 RED SKEW/GREEN SKEW/BLUE SKEW Adjust each value so that the color deviation in the displayed

letters and graphic objects is minimized.

Removal of the CAT5 Rx BOX Hold the handle on the CAT5 Rx BOX for removal.

Use the handle to extract the CAT5 Rx BOX only. Pulling on the

CAT5 cable or by other means may cause damage.English-26

P-5 Installing the extension module (continued)

Carry out as necessary

Connecting OPS-compliant

computer NOTE:Operation of all types of OPS-compliant computers isn’t guaranteed. For the compatibility of your OPS-compliant computer, contact its manufacturer.Example of commercially available computer: ARK-DS220F-MTSA1E of Advantech Co., Ltd.When an OPS-compliant computer (commercially available) is mounted, set “COOLING FAN” to ON using the SCREEN SAVER function. See page 52. 1. Mounting the OPS-compliant computer

on the monitor 1. Turn off the main power switch of the monitor and disconnect the power cord.CAUTION:Be sure to disconnect the power cord to prevent breakdown and electric shock.2. Use a Phillips screwdriver to unscrew and remove the option slot cover. Retain the screw for later use in step 4.3. Mount a OPS-compliant computer (commercially available) on the option slot of the monitor.CAUTION:To prevent damage, please ensure proper orientation and position of the OPS-compliant computer before inserting it fully into the slot.4. Reuse the two screws removed from step 2 and properly secure the OPS-compliant computer.Removal of the OPS-compliant computerHold the handle on the OPS-compliant computer for removal.CAUTION:Extract the OPS-compliant computer by using the handle only. Pulling on the cable or other means may cause damage.English-27

RS-232C IN RS-232C IN RS-232C OUT RS-232C OUTRS-232C cableRS-232C cable RS-232C P-6 Connecting RS-232C Carry out as necessary

Monitor control via RS-232C To control this monitor from a computer via a communication, connect this monitor and the computer using an RS-232C cable (commercially available).How to connect • Turn off the main power switch of the computer and this monitor. If you make a connection while the power is on, it causes a failure of the devices.• Connect the computer and this monitor using a reverse type RS-232C cable (commercially available). • In addition, when you connect two or more monitors as shown in the illustration below, connect the RS-232C OUT connector

of the fi rst monitor and the RS-232C IN connector of the second monitor using a reverse type RS-232C cable (commercially

available). By repeating the connection in the similar way, you can connect monitors in a daisy chain confi guration. NOTE: When only the 25-pin serial port is equipped as the serial communication port on the computer, a conversion adapter (commercially available) is necessary for the connection.Computer(RS-232C connection)Left side of LCD monitor (fi rst monitor)Left side of LCD monitor (second monitor)English-28 LAN cableLAN cable LAN LAN hub LAN hub

LAN Monitor connection using LAN As shown in the illustration below, you can connect this monitor and a computer in network through a LAN hub. Connect the monitor

and the LAN hub using a straight type LAN cable (commercially available).

• Turn off the main power switch of the computer and this monitor. If you make a connection while the power is on, it causes a

failure of the devices.

• Connect the computer and the LAN hub using a straight type LAN cable (commercially available).

• Connect this monitor and the LAN hub using a straight type LAN cable (commercially available).

• When you connect two or more monitors, you can connect the monitor and the LAN hub using a straight type LAN cable

(commercially available) as described above.

Do not connect the CAT5 IN or the CAT5 OUT connector to the LAN connector. If connected, both of the connectors may fail.

• When you use a cross type LAN cable (commercially available), you can connect the monitor and the computer one-to-one

without using a LAN hub, however, the computer may not be supported. It is recommended to check the operation in advance.

• The image transfer function via the LAN isn’t supported. This monitor isn’t equipped with the host function for controlling other

P-7 Connecting LAN Carry out as necessary Computer(LAN connection)LAN hubLeft side of LCD monitorEnglish-29

Connecting multiple USB devices using the USB hub function

The USB hub of this monitor is equipped with two switchable upstream ports. One is for connecting an external computer, and the

other is for connecting an OPS-compliant computer internally. Only the selected upstream port is connected to the USB hub. Use the OSD screen function to select the appropriate upstream port. See pages 44 and 56. 1. [When using an external computer]

Connect the USB port (Standard A) on the computer and the USB upstream port

(Standard B) on the monitor using a USB cable (commercially available).

[When using an OPS-compliant computer]

Install an OPS-compliant computer (connected internally).

2. Connect a USB device to the downstream port of this monitor. NOTE: • The USB hub function cannot control the monitor. Use CAT5 Tx BOX (option) and CAT5 Rx BOX (option) to control the monitor from a USB device. See pages 23 and 44. • Up to 5 hubs can be cascaded in the hub function of this monitor. Carry out operation check in advance even if you connect a device pursuant to the USB standards. P-8 Connecting a USB device

Carry out as necessary USB devices(mouse, touch panel, etc.)Internal structure of the monitor’s USB functionSwitchUpstream portDownstream portInternal hubWhen using an external computerWhen using an OPS-compliant computer USBEnglish-30

Connecting the power source

Before making connections

• Check that the main power switch is off.

When an OPS-compliant computer is installed and the main power switch of the monitor is on, connecting the power source

may cause the computer to power on, causing damage or breakdown of the operation system and the hard disc.

• The power outlet socket should be installed as near the equipment as possible and should be easily accessible.

• Fully insert the prongs into the power outlet socket.

Loose connection may cause noise.

• Don’t plug and unplug the power cord repeatedly in a short time of period.

Please refer to “Safety Precautions, Maintenance & Recommended Use” in this manual for proper selection of the AC power cord.

Use the clamper to prevent accidental disconnection of the power cord.

Connecting the power cord to the monitor

Flow of How to Using

U-13 Carry out as necessary Pages 32 to 33 Page 34 Page 35 Page 35 Page 36 Page 37 Page 36 Page 37 Page 38 Page 38 Pages 39 to 40 Pages 41 to 43 Page 44Turning on all the connected devices Sel ecting the video inputControlling the external devicesSelecting the OSD languageRGB3, RGB4, and OPTION (CAT5) onlyAuto-setupSelecting the picture modeScreen adjustmentPicture adjustmentVolume and tone controlSpeaker settingSchedule settingRemote controlSetting the USB device How to UseEnglish-32

U-1 Turning on all the connected devices

Turning on external devices

1. Turn on the connected devices such as

the computer and VCR.

Turning on the monitor

When an OPS-compliant computer is installed as an extension

module, the computer automatically turns on and starts as the

monitor is turned on.

Don’t turn off the monitor immediately after turning it on

because the computer may be in the startup process. Select

OPTION as the video input and wait for the operating system of

the computer to complete the startup process.

If the computer doesn’t reply to the monitor for about one

minute, an error message “OPTION ERROR” is displayed. See

the user’s manual of your computer.

2. Turn on the Main Power Switch.

The power indicator turns on green and the monitor turns

The control buttons on the rear of the monitor and the

wireless remote control don’t work while the Main Power

Switch is off (the power indicator is off).

When using them, check that the Main Power Switch is on

(the power indicator is on).

U-1 Turning on all the connected devices (continued)

Power Management Function

This function reduces the power consumption of the monitor

when the keyboard or the mouse is not used for a fi xed period

even though the power of the monitor is on.

While this function is working, the screen becomes dark and

the power indicator glows green and red.

This function is available only when a computer equipped

with the VESA-approved DPM Power Management function is

connected to the monitor.

When the power saver in the OSD menu is turned ON, the

power management function works.

RGB: When the sync signal of computer input (RGB1, 2, 3,

4, OPTION (CAT5), or RGB6) is terminated, the monitor

will be in the sleep mode in several seconds.

When the sync signal of video input (DVD/HD, VIDEO<S>,

or VIDEO) is terminated, the monitor will be in the sleep

mode in approximately 10 minutes.

DPM: Acronym for Display Power Management

• The default power management settings (power savers) for

RGB and VIDEO are ON.

• When an OPS-compliant module is in the option slot, the

monitor doesn’t enter the sleep mode even when POWER SAVE in the CONFIGURATION1 menu is set to ON. Even

when other video input is selected, the monitor doesn’t

enter the sleep mode.

Diagnosis (Detecting failure)

Red Blinking * See troubleshooting on page 62.English-34

You can select the desired video input using the wireless remote control or the INPUT button on the monitor.

Select using the INPUT buttons on the wireless remote control.

You can select the desired video input by pressing the corresponding INPUT button on the wireless remote control.

Selectable video inputs are [RGB1] (HDMI), [RGB2] (DVI-D), [RGB3] (D-SUB), [RGB4] (BNC), [OPTION]*, [RGB6] (DISPLAY PORT),

[DVD/HD] (YPbPr), [VIDEO<S>], and [VIDEO].

* OPTION can be used when an extension module is mounted on the option slot.

Select using the INPUT button on the monitor.

When you press the INPUT button on the monitor, the video input OSD menu is displayed and you can select the video input

Selectable video inputs are [RGB1] (HDMI), [RGB2] (DVI-D), [RGB3] (D-SUB), [RGB4] (BNC), [OPTION]*, [RGB6] (DISPLAY PORT),

[DVD/HD] (YPbPr), [VIDEO-S], and [VIDEO]. When you press the INPUT button again, the selected video input is displayed.

* OPTION can be used when an extension module is mounted on the option slot.

The selection you make doesn’t complete unless you press the INPUT button while the video input OSD menu is displayed. The

time during which the video input OSD menu is displayed is same as that of the INFORMATION OSD. See page 54.

To control the connected external devices, display images on the monitor.

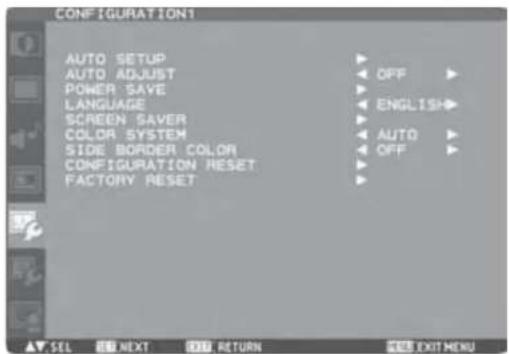

U-4 Selecting the OSD language

Display the OSD menu by pressing the MENU button on the wireless remote control or the EXIT button on the rear of the monitor.

Using LANGUAGE in the CONFIGURATION1 menu of the OSD screen function, you can select the OSD language. See page 52.

U-3 Controlling the external devices

Press the AUTO SETUP button on the wireless remote control, or display the OSD menu by pressing the MENU button on the

wireless remote control or the EXIT button on the rear of the monitor.

Using AUTO SETUP in the CONFIGURATION1 menu of the OSD screen function, you can automatically adjust the screen size,

horizontal/vertical position, clock, clock phase, and input signal level.

The auto setup works on RGB3, RGB4, and OPTION (CAT5) only.

U-6 Selecting the picture mode

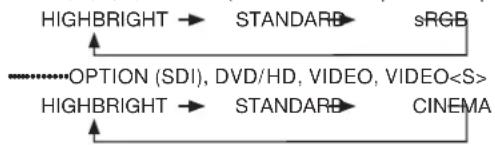

Using the PICTURE MODE button on the wireless remote control, you can select the picture mode suitable for images to be

HIGHBRIGHT: The brightness is maximized.

STANDARD: Factory default setting.

sRGB: Suitable for color matching with sRGB-compliant devices.

CINEMA: Suitable for viewing movies.

• “sRGB” can be selected for computer input (RGB1*, RGB2, RGB3, RGB4,

OPTION (CAT5/OPS-compliant computer), and RGB6).

• “CINEMA” can be selected for video input (RGB1*, OPTION (SDI), DVD/HD,

VIDEO, and S-VIDEO).

* PC/AV CommonEnglish-37

When images aren’t displayed properly even after the auto setup, adjust the screen settings.

Display the OSD menu by pressing the MENU button on the wireless remote control or the EXIT button on the rear of the monitor.

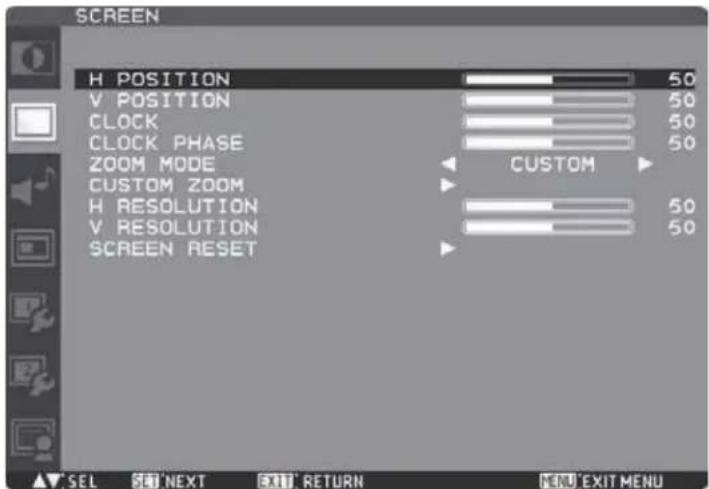

Using the SCREEN menu of the OSD screen function, you can adjust the horizontal/vertical position, clock, clock phase, zoom

mode, custom zoom, and horizontal/vertical resolutions to obtain proper screen condition.

The position adjustment works on RGB3, RGB4, OPTION (CAT5), DVD/HD, VIDEO<S>, and VIDEO only.

The clock adjustment and the resolution adjustment work on RGB3, RGB4, and OPTION (CAT5) only.

The zoom adjustment works on all video inputs.

U-8 Picture adjustment

Display the OSD menu by pressing the MENU button on the wireless remote control or the EXIT button on the rear of the monitor.

Using the PICTURE menu of the OSD screen function, you can adjust the picture settings such as the brightness, contrast, and

sharpness to obtain desired image quality.

U-7 Screen adjustmentEnglish-38

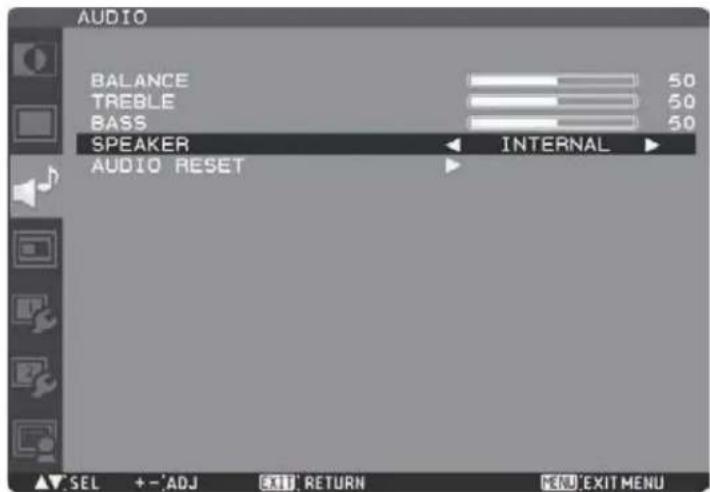

Select the built-in speakers or the external special stereo speakers (option) in the speaker setting in the OSD menu.

Display the OSD menu by pressing the MENU button on the wireless remote control or the EXIT button on the rear of the monitor.

Using SPEAKER in the AUDIO menu of the OSD screen function, you can select the speakers.

U-10 Volume and tone control

Carry out as necessary

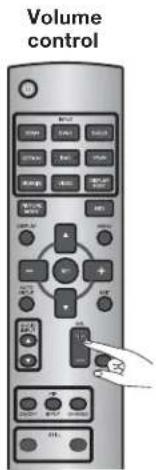

You can control the volume level using the VOL button on the wireless remote control.

Alternatively, display the OSD menu by pressing the MENU button on the wireless remote control or the EXIT button on the rear of

Using the AUDIO menu of the OSD screen function, you can adjust the balance, treble, and bass.

If no audio is output when an OPS-compliant computer is in use, check that the monitor is selected as the audio output source by

the operating system of the computer. For the selection method, see the help or the user’s manual of the operating system for the

computer or the driver for the audio device.

Carry out as necessary

Display the OSD menu by pressing the MENU button on the wireless remote control or the EXIT button on the rear of the monitor.

Using SCHEDULE in the CONFIGURATION2 menu of the OSD screen function, you can program power-on/off and input selection.

U-11 Schedule setting

Carry out as necessaryEnglish-40

How to set up schedule

When the cursor is on any of the check boxes showing the program numbers 1 to 7 on the left side of the screen, pressing the UP

) or DOWN ( ) button moves the cursor vertically and pressing the PLUS (+) or MINUS (-) button moves it horizontally.

By pressing the SET button, you can select or deselect the check boxes.

Check box: When the check box is selected, the program is enabled. When it is cleared, the program is disabled.

When the SCHEDULE screen is closed, the programs you made become enabled and will be executed at the

When the cursor is on any item of the schedule settings in the white frame, pressing the PLUS (+) button moves it to the right and

pressing the MINUS (-) button moves it to the left.

You can set the power-on/off time and video input by pressing the UP (

) or DOWN ( ) button. You can select or deselect the

radio buttons by pressing the SET button.

ON: Set the time when the power is turned on. If you don’t want to set the power-on time, enter “--.”

OFF: Set the time when the power is turned off. If you don’t want to set to the power-off time, enter “--.”

INPUT: Set the video input to be selected when the power is turned on. If you want to select the video input that was

selected before the power is turned on, enter “--.”

EVERY DAY: Select this option to execute the schedule every day. When you select EVERY DAY, you cannot select any days

of the week and EVERY WEEK.

MON - SUN: Select the days of the week on which you want to execute the schedule. Unless you select EVERY WEEK, too,

the selection of the days of the week is cleared after the schedule is executed one time.

EVERY WEEK: Select this option to execute the schedule on the selected days of the week, every week.

• Before making the schedule settings, be sure to check the current date and time using “DATE AND TIME.”

• When you close the SCHEDULE screen, the settings are saved.

• When two or more schedules are enabled, they are executed in descending order of the program number, and the power is

turned off upon completion of the last executed schedule.

• When there are two or more schedules having the same power-on/off time, the one having the largest program number is

• You cannot set the power-on time and the power-off time to the same time.

• When OFF TIMER is ON, the schedule settings are ignored.

U-11 Schedule setting (continued)

Carry out as necessaryEnglish-41

Carry out as necessary

RS-232C/RS-485 Remote control

When the monitor is connected directly to a computer using an RS-232C cable (commercially available), the following operations

can be controlled via a communication. When using CAT5 Tx BOX (option) and CAT5 Rx BOX (option) for connection, they are

connected with each other via RS-485, allowing long-distance communication control. When the CAT5 Tx BOX is connected using a USB cable, it functions as an RS-232C (COM) port by a Windows driver.• Power ON or OFF• Switching between input signals• Volume control and mute• Auto setup• Check of the internal temperature of the monitor, etc.CAUTION: Never connect network devices to the CAT5 IN and OUT connectors. If you do so, they may adversely affect with each other, causing breakdown.NOTE: For connection with a 25-pin serial port connector on the computer, a conversion adapter (commercially available) is required. 1) InterfacePROTOCOL RS-232C/RS-485 (CAT5)BAUD RATE 9600 [bps]DATA LENGTH 8 [bit]PARITY BIT NONESTOP BIT 1 [bit]FLOW CONTROL NONE• For direct connection using RS-232C, use the RXD, TXD, and GND lines. • For RS-485 communication using the CAT5 Tx BOX (option, DP-2CA5-T), transmission and reception must be controlled alternately. Select either of the following two transmission/reception control modes using the COM. MODE switch. LEGACY: DP-1CA5-T compatible mode (The RXD, TXD, RTS, DTR, and GND lines are used.) For a control program, RTS and DTR as transmit control signals of negative logic are used. The transmission period of TXD and the hold time of 70 ms are defi ned as “Sending (Low),” and the subsequent processes as “Receiving (High).” AUTO: RTS/ DTR auto control mode (The RXD, TXD, and GND lines are used.) A response from the monitor will be returned in 70 ms or later.2) Control command diagram The command is structured by the address code, function code, data code and end code. The length of the command is different for each function.NOTE:• This example shows a basic command that is used when a single computer and a single monitor are connected. When you want to connect multiple monitors or perform complicated control using other commands than the basic commands, contact your dealer for advanced command specifi cations.• To send commands with a keypad using terminal software, select “2s” or “30s” for CONTROL TIME OUT in CONFIGURATION2 in the OSD menu. (Follow the same procedure for LAN control.) Address code Function code Data code End code

HEX 30h 30h Function Data 0Dh ASCII ‘0’ ‘0’ Function Data [Address code] 30h 30h (ASCII code, ‘0’ ‘0’), fi xed.

[Function code] Code unique to each control function.

[Data code] Data unique to each control function (Not always indicated by numerical values.) [End code] 0Dh (ASCII code, ‘’) fi xed.English-42

(1) A command is sent from the computer to the monitor. (Commands should be sent at intervals of at least 600 ms.)

(2) The monitor sends a return command within 600 ms* after receiving the end code. If the monitor fails to receive the

command, it doesn’t send any return command. (*During the power-on/off or input selection process, the transmission of the

return command may take more than 600 ms.)

(3) The computer checks the return command to see whether the command it sent was received or not. The computer must

receive the return command before sending the next command.

(4) The monitor sends various codes other than commands including the return command. While RS-232C control sequence is

in progress, the computer must reject the codes.

Example: Turn the power ON (‘ ’ is for ASCII code)

Control command from

Description of command

Sending a command for

(Command echoed back)

4) Operation commands

The operation commands confi gure the basic operation settings of this LCD monitor. The commands may not work during signal

The operation commands have no data codes.

Operation ASCII HEX POWER ON ! 21h

Turn off the power forcefully.* "" 22h 22h

AUTO SETUP r09 72h 30h 39h

• When you send the POWER ON or POWER OFF command, send the next command at intervals of at least 14 seconds.

• It is recommended that after sending a command for video input selection, wait for at least 5 seconds to send the next

command. Otherwise, the monitor may not reply within 600 ms.

• In the power off mode or the sleep mode, only the POWER ON, POWER OFF, and POWER ON read commands which are

described on the next page can be operated.

* Used when the OPS-compliant computer makes no response.

** OPTION can be used when an extension module is mounted on the option slot.

U-12 Remote control (continued)

Carry out as necessaryEnglish-43

U-12 Remote control (continued)

Carry out as necessary 5) Read command The computer sends the command without datacode to the monitor. After receiving this command, the monitor returns the command with datacode including the current status to the computer. Example: When the computer asks the power status of the monitor, and the status of the monitor is powered-on.Control command from computerReturn command from monitor to computerDescription of command30 30 76 50 0D ‘0’‘0’‘v’‘P’[enter]Sending a command for checking the power status30 30 76 50 31 0D ‘0’‘0’‘v’‘P’‘1’[enter] Monitor is powered-on.Structure of the Read-commandASCII HEXFunction Data (Receive) Function Data (Receive)POWERON vP 1 76 50 31OFF (Sleep) vP 0 76 50 30InputRGB-1 (HDMI) vI r1 76 49 72 31RGB-2 (DVI-D) vI r2 76 49 72 32 RGB-3 (D-SUB) vI r3 76 49 72 33 RGB-4 (BNC) vI r4 76 49 72 34OPTION* vI r5 76 49 72 35 RGB-6 (DISPLAY PORT) vI r6 76 49 72 36 Video vI v1 76 49 76 31 DVD/HD vI v2 76 49 76 32 S-VIDEO vI v3 76 49 76 33Internal temperatureAround the main boardResolution 1˚C tc1 (ex.) +25 74 63 31 2B 20 32 35Around the power supplyResolution 1˚C tc2 (ex.) +31 74 63 32 2B 20 33 31* OPTION can be used when an extension module is mounted on the option slot.NOTE: The monitor will acknowledge the power-on/off command issued from the OPS-compliant computer, however, it will not execute the command. This is not a malfunction. For automatic operation, use SCHEDULE in the CONFIGURATION2 menu of the OSD screen function. LAN Remote control

When you connect the monitor and the computer using network devices such as LAN hub and LAN cable (see page 28) and then

confi gure the network settings using the OSD screen function in advance, you can remote-control the monitor using the same commands as those for RS-232C.1. Setting procedure(1) Set the following network parameters using the OSD menu. (See page 53.) • DHCP client ON/OFF, IP address, subnet mask and default gateway (2) Set the IP address described above and the port number (63007 or 3007) using the application program of your computer to perform the socket communication. (3) Send the same control command as that for RS-232C or RS-485 via TCP/IP socket communication.

(4) Check the return command sent from the monitor. When it is received successfully, the setting is completed. CAUTION: Do not connect the CAT5 IN or the CAT5 OUT connector to the LAN connector. If connected, both of the connectors may fail.English-44

U-13 Setting the USB device

Carry out as necessary

• USB function may not work depending on the BIOS setting of the computer used, OS, and USB devices. In such a case, refer to

the user’s manual of each device and contact the respective manufacturer.

• Up to 5 hubs can be cascaded in the hub function of this monitor. Carry out operation check in advance even if you connect a

device pursuant to the USB standards.

• The USB hub function cannot control the monitor.

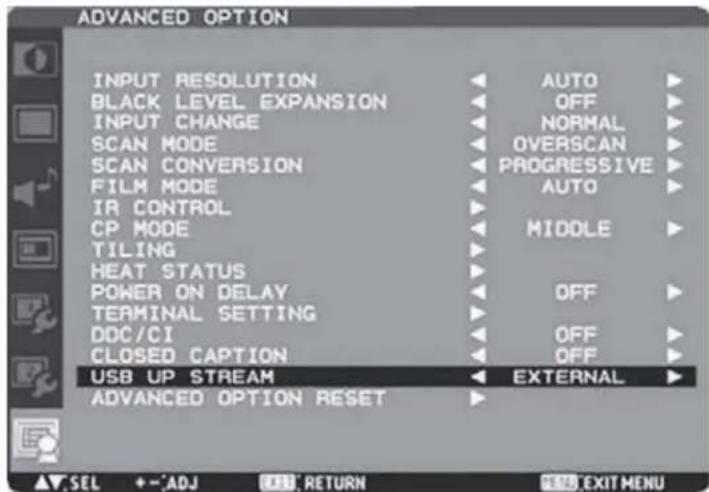

1. Select the computer to be used.

Display the OSD menu by pressing the MENU button on the wireless remote control or the EXIT button on the rear of the

Using USB UP STREAM in the ADVANCED OPTION menu of the OSD screen function, you can select the computer (EXTERNAL/

2. Check that the USB hub is recognized.

The USB hub of this monitor is detected by the computer, and the OS-standard device driver is installed automatically. Some

computers may not recognize the USB hub even if it is connected. In such a case, install the device driver for the USB hub

referring to the user’s manual of the computer.

It takes several seconds for the computer to recognize this monitor. Do not pull out the USB cable before the monitor is

recognized, and do not repeat connecting/disconnecting of the cable instantaneously.

3. Check that the USB is recognized.

Install the device driver of the USB device after the USB device is detected by the computer. The OS-standard device driver may

be installed automatically.

Some computers may not recognize the USB device even if it is connected. In such a case, see the user’s manual of the USB

EXTERNAL: External computer is selected.

OPS: OPS-compliant computer is selected.English-45

The values adjusted by the wireless remote control and the

PLUS (+) and MINUS (-) buttons on the monitor are displayed.

Sub menu (Adjustment items)

Adjustment items are displayed.

Operation buttons (Key guide)

Buttons for controlling the displayed OSD menu are displayed.

PICTURE SCREEN AUDIO PIP CONFIGURATION1

Icons other than the one you selected are grayed out.

When you select a sub menu, an OSD screen is displayed.

Sub menus contain information screens, adjustment menu screens, and selection menu screens as shown below.

Sub menu screen: Picture reset (for example)

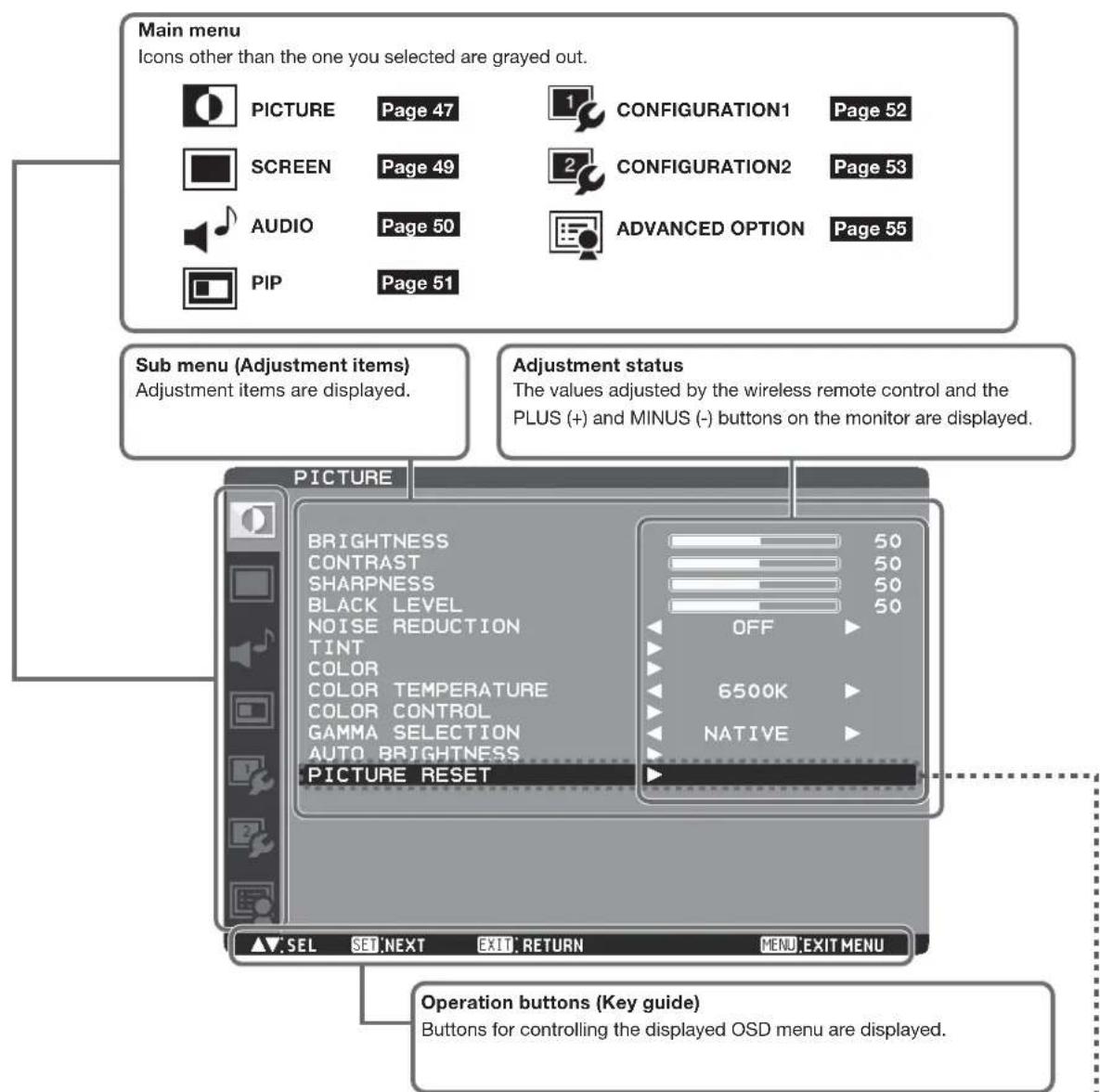

Confi guration of OSD screen

This monitor is equipped with the OSD (On Screen Display) function for easy screen adjustment. The OSD function allows you to

control the menus displayed on the screen for brightness setting and other settings.

The OSD screen is confi gured as shown below.

Confi guration and basic operation of OSD screenEnglish-46

Basic operation of OSD When the MENU button on the wireless remote control or the EXIT button on the monitor is pressed, the OSD screen is displayed.

Select a main menu by pressing the

Accept the selected main menu

by pressing the SET button.

Accept the selected main menu

by pressing the INPUT button.

Select a sub menu by pressing

Select a sub menu by pressing

Accept the selected sub menu

by pressing the SET button.

Accept the selected sub menu

by pressing the INPUT button.

Select the setting value by

and then press the SET button

to accept the setting.

Select the setting value by

The OSD screen disappears when you press the MENU button on the wireless remote control once or the EXIT button on the

monitor three times.

Wireless remote control Monitor button OSD screen

Confi guration and basic operation of OSD screen (continued)English-47

OSD screen functions

BRIGHTNESS You can adjust the brightness. Press the PLUS (+) button to increase the brightness. Press the MINUS (-) button to decrease the brightness. 

CONTRAST You can adjust the contrast. Adjust the contrast using the PLUS (+) or MINUS (-) button to obtain a desired result.NOTE: Brightness changes luminance of the backlight. Contrast changes signal levels, and therefore it is likely to lead to whiteness. 

SHARPNESS You can adjust the sharpness. Press the PLUS (+) button to make the image look sharper. Press the MINUS (-) button to make the image look softer.NOTE: If you increase the sharpness setting value too much, lines may appear double. In such a case, decrease the sharpness setting value. 

BLACK LEVEL You can adjust the brightness in the dark area of the image. Press the PLUS (+) button to brighten dark areas in the image. Press the MINUS (-) button to further darken the dark area of the image.NOTE: This adjustment doesn’t work in the sRGB picture mode. 

NOISE REDUCTION * For the VIDEO<S> and VIDEO inputs only.You can adjust the noise reduction level. Press the PLUS (+) button to increase the value to lessen the noise. 

TINT * For the RGB1, DVD/HD, VIDEO<S>, and VIDEO inputs only.When you select TINT by pressing the SET button on the wireless remote control, the TINT screen appears and you can adjust the following.[TINT]:You can adjust all the colors at the same time. Press the PLUS (+) button to add a green tint. Press the MINUS (-) button to add a purple tint. [RED], [MAGENTA], [BLUE], [CYAN], [GREEN], or [YELLOW]:You can adjust each color individually. Press the PLUS (+) button to shift the selected color to the right around the color circle. Press the MINUS (-) button to shift the selected color to the left around the color circle. 

COLOR * For the RGB1, DVD/HD, VIDEO<S>, and VIDEO inputs only.When you select COLOR by pressing the SET button on the wireless remote control, the COLOR screen appears and you can adjust the following.[COLOR]:You can adjust all the colors at the same time. Press the PLUS (+) button to deepen the colors. Press the MINUS (-) button to lighten the colors.[RED], [MAGENTA], [BLUE], [CYAN], [GREEN], or [YELLOW]:You can adjust each color individually. Press the PLUS (+) button to deepen the selected color. Press the MINUS (-) button to lighten the selected color.NOTE: This adjustment doesn’t work in the sRGB picture mode. 

COLOR TEMPERATURE You can adjust the color temperature.The image becomes reddish as the color temperature decreases, and it becomes bluish as the color temperature increases.NOTE: This adjustment doesn’t work in the sRGB picture mode. 

COLOR CONTROL The color levels of red, green, and blue are adjusted by the color bars.R: Red, G: Green, B: BlueNOTE: This adjustment doesn’t work in the sRGB picture mode.RED MAGENTAGREENColor circle CYAN YELLOW BLUEEnglish-48

GAMMA SELECTION You can select the gamma mode from NATIVE, S GAMMA,

2.2, 2.4, OPTION, and PROGRAMMABLE.

PROGRAMMABLE can change the GAMMA characteristic

curve via a computer.

Contact your dealer for further details.

NOTE: GAMMA is fi xed to 2.2 in the sRGB picture mode.

When PROGRAMMABLE has been selected, the

setting for color temperature is fi xed at 10,000K

AUTO BRIGHTNESS This function controls the screen brightness depending on

the ambient light for easy viewing.

In addition, it changes the screen brightness depending on

the ambient light and what are displayed on the screen to

reduce power consumption as low as possible.

LOCAL: The auto brightness function is enabled.

REMOTE: The auto brightness function is enabled.

In addition, the monitor enters the

intercommunication mode where multiple

monitors are controlled collectively. (See page

OFF: This function is disabled.

PRIMARY: Select this setting to confi gure the monitor

as Master when controlling multiple

monitors collectively.

SECONDARY: Select this setting to use the monitor

alone or to confi gure the monitor as

Slave when controlling multiple monitors

When a light source such as a light and a window is behind

the monitor, the rear sensor takes precedence.

YES: Select this setting when there is a light source

such lighting equipment and a window behind the

NO: Select this setting when there is no light source

such lighting equipment and a window behind the

Select the following settings according to the distance

between the rear of the monitor and the wall or window.

FAR: The distance is 5 meters or longer.

NEAR: The distance is 5 meters or shorter.

Select ON for normal use.

OFF: Select this setting when the sensor on the front

Select ON for normal use.

OFF: Select this setting when the sensor on the rear

ON: The image saturation is adjusted depending on the

OFF: Image saturation isn’t adjusted.

ON: The screen brightness varies depending on what

are displayed on the screen to reduce power

consumption of the monitor.

OFF: The screen brightness doesn’t vary and the power

consumption isn’t reduced.

OSD screen functions (continued)

PICTURE RESET You can reset all the PICTURE settings to the factory

OSD screen functions (continued)

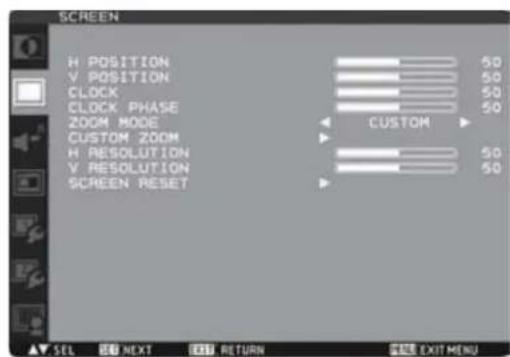

H POSITION You can adjust the horizontal image position.Press the PLUS (+) button to move the image to the right. Press the MINUS (-) button to move the image to the left. 

V POSITION You can adjust the vertical image position.Press the PLUS (+) button to move the image up. Press the MINUS (-) button to move the image down. 

CLOCK * For the RGB3, RGB4, and OPTION (CAT5) inputs only.You can adjust the image size of the computer and eliminate blurred letters. Press the PLUS (+) button to expand the width of the image on the screen to the right. Press the MINUS (-) button to narrow the width of the image on the screen to the left. 

CLOCK PHASE * For the RGB3, RGB4, and OPTION (CAT5) inputs only.You can adjust the level of the periodic variation of the screen fl icker. 

ZOOM MODE You can select the mode to stretch the image to fi t it to the screen.For the RGB1, RGB2, RGB3, RGB4, OPTION (CAT5), and RGB6 inputs, you can select FULL, NORMAL, CUSTOM, or REAL. For DVD/HD, VIDEO<S>, and VIDEO, you can select FULL, NORMAL, DYNAMIC, CUSTOM, or REAL. FULL: The image is stretched to fi ll the screen regardless of its aspect ratio. NORMAL: The image is stretched vertically to the full height of the screen while keeping the aspect ratio. DYNAMIC: The image is stretched to fi ll the screen with different magnifi cations at the screen center and the screen edges.CUSTOM: You can stretch the image horizontally and vertically as you desire using the CUSTOM ZOOM setting. REAL: The image is displayed without being stretched or reduced.NOTE: In the DYNAMIC mode, the top and the bottom of the image may be cropped. Full HD images are displayed as in the FULL mode. 

CUSTOM ZOOM CUSTOM ZOOM becomes selectable when you set ZOOM MODE to CUSTOM.ZOOM: You can expand the horizontal and vertical sizes simultaneously.H ZOOM: You can expand the horizontal size only.V ZOOM: You can expand the vertical size only.H POSITION: Pressing the PLUS (+) button moves the image to the right. Pressing the MINUS (-) button moves the image to the left.V POSITION: Pressing the PLUS (+) button moves the image up. Pressing the MINUS (-) button moves the image down. 

H RESOLUTION * For the RGB3, RGB4, and OPTION (CAT5) inputs only.Use this setting when AUTO SETUP and AUTO ADJUST cannot obtain the horizontal resolution of the input signal. Press the PLUS (+) button to increase the resolution. Press the MINUS (-) button to decrease the resolution. 

V RESOLUTION * For the RGB3, RGB4, and OPTION (CAT5) inputs only.Use this setting when AUTO SETUP and AUTO ADJUST cannot obtain the vertical resolution of the input signal. Press the PLUS (+) button to increase the resolution. Press the MINUS (-) button to decrease the resolution. 

SCREEN RESET You can reset all the SCREEN settings to the factory defaults.English-50

OSD screen functions (continued)

BALANCE You can adjust the balance of the right and left volumes.

Press the MINUS (-) button to decrease the right volume.

TREBLE You can adjust the high frequency sound.

Press the PLUS (+) button to increase the treble sound.

Press the MINUS (-) button to decrease the treble sound.

BASS You can adjust the low frequency sound.

Press the PLUS (+) button to increase the bass sound.

Press the MINUS (-) button to decrease the bass sound.

SPEAKER You can switch the built-in speakers and external stereo

INTERNAL: To output from the built-in speakers

(Maximum output 10 W + 10 W)

EXTERNAL: To output from external speakers

(Maximum output 7 W + 7 W)

AUDIO RESET You can reset all the AUDIO settings to the factory defaults.English-51

OSD screen functions (continued)

PIP (PICTURE IN PICTURE)

PIP MODE You can select the PIP mode from PIP, POP, SBS ASPECT, SBS FULL, and OFF using the PLUS (+) and MINUS (-) buttons. See page 60.* SBS: SIDE BY SIDE 

PIP SIZE You can select the size of the sub picture displayed in the PIP mode. You can move the sub picture by pressing the UP ( ), DOWN (), PLUS (+), and MINUS (-) buttons. 

PIP AUDIO You can select the audio output in the PIP mode. When MAIN is selected, audio of the main picture is output. When SUB is selected, audio of the sub picture is output. 

PIP H POSITION You can adjust the horizontal position of the sub screen.Press the PLUS (+) button to move the sub screen to the right. Press the MINUS (-) button to move the sub screen to the left. 

PIP V POSITION You can adjust the vertical position of the sub screen.Press the PLUS (+) button to move the sub screen up. Press the MINUS (-) button to move the sub screen down. 

SUB INPUT You can select the video input for the sub screen from HDMI (RGB1), DVI-D (RGB2), D-SUB (RGB3), RGB4, DVD/HD, VIDEO<S>, and VIDEO. 

PIP RESET You can reset all the PIP settings to the factory defaults.

PIP POP SBS ASPECTSBS FULL OFF NOTE:The PIP and POP functions don’t work in the CUSTOM and REAL picture size modes.Refer to “PIP, POP function” for details. (See page 60.)English-52 Enlarged 90% Motion Move The portion (shaded part) outside the display area isn’t displayed. OSD screen functions (continued)

* For the RGB3, RGB4, and OPTION (CAT5) inputs only.

The screen size, horizontal/vertical position, clock, clock

phase, and input signal level are automatically adjusted.

* For the RGB3, RGB4, and OPTION (CAT5) inputs only.

When AUTO ADJUST is ON, the horizontal position, vertical

position, and clock phase are automatically adjusted at the

time of the timing switching.

POWER SAVE When the power saver in the OSD menu is turned ON, the

power management function works.

RGB: When the sync signal of computer input (RGB1, 2, 3,

4, OPTION, or RGB6) is terminated, the monitor will

be in the sleep mode in several seconds.

VIDEO: When the sync signal of video input (DVD/HD,

VIDEO<S>, or VIDEO) is terminated, the monitor will

be in the sleep mode in approximately 10 minutes.

NOTE: When an OPS-compliant module is mounted on the

option slot, turning on the power saver is invalid and

it doesn’t put the monitor in the sleep mode. Even

when you select other image source, the monitor

doesn’t enter the sleep mode.

LANGUAGE OSD control menus are available in eight languages.

(English, German, Spanish, French, Italian, Swedish,

Chinese, and Japanese)

SCREEN SAVER You can set the SCREEN SAVER functions to reduce the

risk of “image persistence.”

When you select ON, the gamma mode where image

persistence is diffi cult to occur is used.

When you select ON, the cooling fan always runs.

When you select AUTO, the built-in fan automatically starts

running according to the operating temperature.

When you select ON, the brightness decreases.

The screen slightly moves horizontally and vertically

at regular intervals to reduce the effect of the image

NOTE: When you select a time period in the MOTION

setting, the monitor enlarges the image and moves it

horizontally and vertically. The portions of the image

out of the display area aren’t visible.

To make the entire image visible all the time, arrange

it to fi t within 90% of the screen area at the center.

You can select the color system depending on the video

AUTO: NTSC, PAL, SECAM, PAL60 or 4.43 NTSC is

NTSC: NTSC PAL: PAL SECAM: SECAM

NOTE: When you use a video device purchased from

SIDE BORDER COLOR You can adjust the brightness of the area where no images

are displayed when a 4:3 image is displayed in the NORMAL

mode in the ZOOM MODE or the POP or other modes in the

CONFIGURATION RESET The settings made in the CONFIGURATION1 and

CONFIGURATION2 menus are reset to the factory defaults.

However, the LANGUAGE, MONITOR ID, SCHEDULE, and

DATE AND TIME settings aren’t reset.

FACTORY RESET The settings made in the PICTURE, SCREEN, AUDIO,

CONFIGURATION1, CONFIGURATION2, and ADVANCED OPTION menus are reset to the factory defaults.

In addition, the picture mode selected by the wireless

remote control is reset to the factory default.

However, the LANGUAGE, MONITOR ID, SCHEDULE, DATE AND TIME, HDMI-MODE, DVI-MODE, and DDC/CI aren’t

OSD screen functions (continued)

CAT5 CONTROL * Confi gurable only when the CAT5 Rx BOX (option) is mounted on the option slot.You can adjust the correction amount for the images transmitted via CAT5 cable.[CAT5 CABLE LENGTH]Select the cable length, and the defaults of all the adjustment values are automatically determined. After that, you can set the adjustment items in detail according to the type of the cable you use.[CAT5 EQ.]You can adjust the correction amount for the frequency characteristics of the image signal. Make adjustments so that blur and smear of the displayed letters and graphic objects are minimized.[CAT5 RED GAIN, GREEN GAIN, BLUE GAIN]You can adjust the R, G, and B signal levels. When the displayed image is dark, increase the R, G, and B values equally. Adjusting GREEN GAIN fi rst makes it easy to fi nd optimum levels.When whites aren’t displayed as intended, adjust the balance among R, G, and B. Adjusting RED GAIN and BLUE GAIN with GREEN GAIN kept constant makes adjustment easy.NOTE: Before performing the color adjustment described above, check the TINT settings on page 47.[CAT5 RED SKEW, GREEN SKEW, BLUE SKEW]Adjust each value so that the color deviation in the displayed letters and graphic objects is minimized. 

SERIAL CONTROL * RS-485 can be set only when an optional CAT5 Rx BOX is mounted on the option slot.Select the communication interface (RS-232C, RS-485, or LAN) for the serial communication function.For connection of the signal cable, see page 23 to 29. 

RS485 TERMINATION * RS-485 can be set only when an optional CAT5 Rx BOX is mounted on the option slot.Turn ON or OFF the termination resistance of the RS-485 interface.ON: Select this setting to use the monitor alone or to confi gure the monitor as the one at the end of the connection when more than one monitor is multi-connected.OFF: Select this setting to confi gure the monitor as other than the one at the end of the connection when more than one monitor is multi-connected. 

LAN SETTING You can set the communication parameters for the LAN network.DHCP CLIENTSelect whether to use DHCP client or not. Select OFF when not using it, and select ON when using it. IP ADDRESSWhen DHCP CLIENT is OFF, set the IP address of the monitor. When DHCP CLIENT is ON, you can check the value set by the DHCP server. SUBNET MASKWhen DHCP CLIENT is OFF, set the gateway mask. Set it to 255.255.255.0 for normal use. When DHCP CLIENT is ON, you can check the value set by the DHCP server. DEFAULT GATEWAYWhen DHCP CLIENT is OFF, set the IP address of the gateway router to externally connect the local area including the monitor. When DHCP CLIENT is ON, you can check the value set by the DHCP server. PORT NUMBERThe port number (3007 and 63007) of the monitor is displayed.RESETLAN settings are reset. 

CONTROL TIME OUT When using remote control, the timeout for transmission intervals among codes within the control command can be set. 10 ms: Set the time out intervals to 10 milliseconds.2 s: Set the time out intervals to 2 seconds.30 s: Set the time out intervals to 30 seconds.English-54

OFF H MIRROR Horizontally

OSD screen functions (continued)

MONITOR ID ID numbers for wireless remote control are assigned to

MDT551S monitors that are multi-connected via RS-232C

ID numbers 1 to 26 are selectable.

OSD TURN OFF The OSD control menu will stay on as long as it is used.

The preset choices are 5 -120 seconds.

OSD ROTATION The OSD screen is rotated.

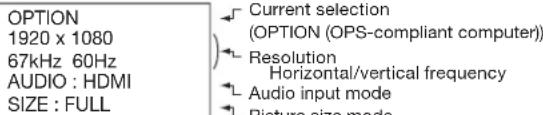

INFORMATION OSD You can enable and disable the information OSD display.

The display time is selectable from 3 to 10 seconds.

NOTE: The information OSD display shows a message

when the input source is switched, the input signal

state is changed, or the input signal has an error.

OFF TIMER You can select the OFF TIMER mode.

Select the time period to automatically turn off the power

NOTE: When OFF TIMER is enabled, the SCHEDULE

settings (see page 39) will be disabled.

SCHEDULE You can program the LCD monitor operation schedules. (See

< HOW TO SETUP SCHEDULE >

Using the “SCHEDULE” function allows you to set up to

seven different scheduled time intervals when the LCD Monitor will be activated.

You can select the time the monitor turns on and turns off,

the day of week the monitor is activated, and which input

source the monitor will use for each scheduled activation

period. A check mark in the box next to the number of the

schedule indicates that the selected schedule is in effect.

To select which schedule to set, use the up/down arrows to

move the number (1 to 7) of the schedule.

Use the (+) and (-) buttons to move the cursor horizontally

within the particular schedule. Use the

to increase the time and select the input port. The “SET”

button is used to make a selection.

If you create a schedule but do not want to set the power

on time, select “--” in the “ON” time slot.

If you do not want to use a power off time select “--” in the

If there is no input selected (“--” showing in the input spot)

the input from the previous schedule will be used.

The selection of EVERY DAY within a schedule takes priority

over other schedules that are set up to operate weekly.

When schedules are overlapping, scheduled Power ON time

has priority over scheduled Power OFF time.

If there are two schedules programmed for the same time,

then the highest numbered schedule has priority.

When OFF TIMER is enabled, the “SCHEDULE” settings are

DATE AND TIME You can adjust the current date and time for the internal

You must set this item when using SCHEDULE.

After competing the setting, be sure to press the SET

MONITOR INFORMATION The model name and the serial number of your monitor are

The MAC address of LAN is displayed.English-55

OSD screen functions (continued)

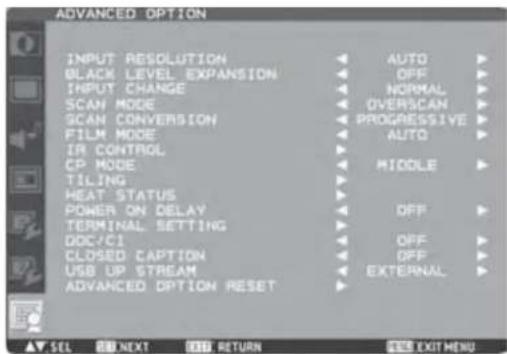

INPUT RESOLUTION * For the RGB3, RGB4, and OPTION (CAT5) inputs only.If the monitor fails to recognize the input signal resolution correctly, you can select a proper resolution manually. Only when a signal having a resolution close to any of the following values from three groups, the values in the most appropriate group are selectable.Group 1: AUTO, 1024 x 768, 1280 x 768, 1360 x 768Group 2: AUTO, 1400 x 1050, 1680 x 1050Group 3: AUTO, 1600 x 1200, 1920 x 1200 

BLACK LEVEL EXPANSION * For the RGB1 (HDMI-MODE: HDMI-HD), RGB2 (DVI-MODE: DVI-HD), OPTION (SDI), DVD/HD, VIDEO<S>, and VIDEO inputs only.Select the level of black expansion from OFF, MIDDLE, and HIGH. 

INPUT CHANGE You can select the time for input switching from QUICK and NORMAL.NOTE: When you select QUICK, slight noise may appear. 

SCAN MODE * For the RGB1 (HDMI), DVD/HD, VIDEO<S>, and VIDEO inputs only.You can select the image display area.OVERSCAN: About 95% of the input image is displayed.UNDERSCAN: Almost 100% of the input image is displayed. 

SCAN CONVERSION * For the RGB1 (HDMI), DVD/HD, VIDEO<S>, and VIDEO inputs only.You can select the IP conversion mode.PROGRESSIVE: Interlace signals are converted into progressive signals. Select this setting for normal cases.INTERLACE: Interlace signals are displayed without being converted. Though this setting is suitable for motion images, still images aren’t displayed properly. 

FILM MODE You can select the fi lm mode function.AUTO: Images of 24 frames per second are detected, subjected to interpolation, and then displayed.OFF: The input video signals are displayed without being subjected to any processing.NOTE: When FILM MODE is AUTO, set SCAN CONVERSION to PROGRESSIVE. See page 55. 

IR CONTROL You can lock the wireless remote control. Select from the following 4 modes using the and buttons and then determine the selected mode by pressing the SET button.NORMAL: All the remote control operations are enabled.PRIMARY: The fi rst MDT551S monitor of those multi-connected via RS-232C is designated as PRIMARY.SECONDARY: MDT551S monitors other than the fi rst one multi-connected via RS-232C are designated as SECONDARY. LOCK: All the remote control operations are disabled.NOTE: When you hold down the DISPLAY button on the wireless remote control for at least 5 seconds, the NORMAL mode is activated. You can lock the wireless remote control independently from the control buttons on the rear of the monitor. See page 57. 

CP MODE You can enable the double-speed clear picture function (CP mode).Moving images displayed at 60 frames per second are interpolated into 120-frame-per-second images for smooth and sharp image quality.OFF: Not interpolatedMIDDLE: Interpolated (Typical)HIGH: Interpolated (for smoother and sharper image)NOTE: Frame interpolation may cause noise and smear. To reduce noise and smear, select OFF.English-56

OSD screen functions (continued)

TILING You can enlarge an image across multiple screens.

A single large screen can be confi gured with up to 25

monitors. You can also divide the displayed image into up

to 5 pieces horizontally and vertically.

NOTE: A same video signal needs to be input to each

monitor. When different monitors need to be

adjusted so that their tint can be identical, it

is recommended to use a signal distributor

(commercially available).

When TILING is activated, PIP, POP, SBS, and STILL

TILING doesn’t work in the REAL picture size mode.

H MONITORS: Select the number of images obtained by

horizontal division.

V MONITORS: Select the number of images obtained by

POSITION: Select the area you want to enlarge.

FRAME COMP.: When displaying an image across multiple

monitors, you can select the mode to

compensate for the bezel widths for

smooth and natural display.

ENABLE: When you select ON, the image in the

selected area is enlarged on the screen.

HEAT STATUS The statuses of the cooling fan, brightness, and internal

temperature are displayed.

NOTE: The cooling fan starts running according to the

operating temperature or when COOLING FAN is

ON in the SCREEN SAVER menu.

When the operating temperature substantially

exceeds the operation guaranteed range, the

message “TEMPERATURE WARNING!!” is displayed

POWER ON DELAY You can adjust the delayed time until the power-on mode

is activated at the time of recovery from the sleep mode or

The time is selectable from OFF and 2, 4, 6, 8, 10, 20, 30,

TERMINAL SETTING You can select the mode to display the RGB1 (HDMI)

or RGB2 (DVI-D) signal according to their signal format

depending on their source device.

Select this setting when displaying the RGB1 (HDMI) signal.

Select FULL when displaying the signal that uses all 256

levels (from level 0 to 255). This mode is used primarily

when input comes from a computer.

Select LIMITED when displaying the signal that uses 16

to 235 levels of 256 levels for each of R, G, and B. This

mode is used primarily when input comes from a video

Select HDMI-HD when the source device is a video

Select HDMI-PC when the source device is a PC.

Select this setting when displaying the RGB2 (DVI-D) signal.

Select DVI-PC when the source device is a PC.

Select DVI-HD when the source device is a video

NOTE: The mounted OPS-compliant module operates

independently from the HDMI SIGNAL, HDMI-MODE,

and DVI-MODE without being affected by their

DDC/CI Use to turn ON or OFF the DDC/CI communication function.

Select ON for normal use.

CLOSED CAPTION You can select to display or hide captions.

CC1: Captions are displayed in sync with the

CC2: Information (related to the primary

audio) is displayed without sync.

CC3: Captions are displayed in sync with the

CC4: Information (related to the secondary

audio) is displayed without sync.

TT1/TT2/TT3/TT4: Four types of information not related to

the displayed images are displayed. (For

example, news and weather forecast.)

NOTE: Check with each supplier of your video software and

external video devices in advance whether they are

compliant with EIA-608-A.

If their video signals are not compliant with it,

images may not be displayed correctly.

USB UP STREAM You can select either of the two upstream ports and

distribute the signal to four downstream ports.

EXTERNAL: External computer is selected.

OPS: OPS-compliant computer is selected.

ADVANCED OPTION RESET The settings made in the ADVANCED OPTION menus are

reset to the factory defaults.

However, the HDMI-MODE, DVI-MODE, and DDC/CI aren’t

FULL NORMAL CUSTOM REAL OPTION (SDI), DVD/HD, VIDEO, VIDEO<S>

FULL NORMAL DYNAMIC CUSTOM REAL NORMAL: Images supplied from external devices such

as PC and DVD fi t the screen, keeping their

original aspect ratio.

FULL: Images are displayed on the entire screen.

D YNAMI C: 4:3 images are enlarged on the entire

screen with non-linearity. (Round images

may be cut when enlarged.)

CUSTOM (ZOOM): You can enlarge the displayed images

beyond the active display area. The portions

of the image out of the display area aren’t

REAL: Images are displayed in their original sizes.

You can lock the operation buttons so that the image

adjustments you made aren’t changed even when the buttons

By holding down both the

and button on the monitor for

3 seconds or longer, you can lock the operation buttons.

By holding down both the

and button on the monitor for

3 seconds or longer again, you can unlock the operation

OPTION (OPS-compliant computer)

Sub : VIDEO<S> Current selection (RGB2)Resolution Horizontal/vertical frequencyAudio input modePicture size mode3G-SDI format is selected.Resolution Horizontal/vertical frequencyAudio input modePicture size modeCurrent selection(OPTION (OPS-compliant computer))Resolution Horizontal/vertical frequencyAudio input modePicture size modeCurrent selection (DVD/HD)Audio input modePicture size modeCurrent selection (VIDEO<S>)Color system modeAudio input modePicture size modeMain picture informationAudio input modeSub picture informationMain picture size Other functions

Other functions (continued)

(For OPS-compliant computer)

* OPTION can be used when an extensiton module is mounted on the option slot.English-59

Master: Monitor confi gured as Master that detects the

outside light (Monitor ID is “1”.)

Slave: Monitor controlled by the Master monitor (Monitor

ID is other than “1”.) MonitorID = 9(Slave)MonitorID = 6(Slave)MonitorID = 3(Slave)MonitorID = 8(Slave)MonitorID = 5(Slave)MonitorID = 2(Slave)MonitorID = 7(Slave)MonitorID = 4(Slave)MonitorID = 1(Master) Other functions (continued)

Supplemental information of the auto brightness function

To control multiple monitors collectively

In such a case where the tiling function is used, you can control the auto brightness function by sharing the detection result of the

brightness sensor of a certain monitor among the connected monitors.

1. Multi-connect the monitors using RS-232C or CAT5 cables separately sold as shown by the example below.

2. Assign a monitor ID to each multi-connected MDT551S using MONITOR ID. (See page 54.)

Monitor ID is selectable from 1 to 26.

The monitor ID of the Master monitor should be “1” and those of the Slave monitors should be other than “1”.

You are recommended to assign IDs to the monitors consecutively from 1, 2, 3, and on.

3. Set AUTO BRIGHTNESS on the OSD screen (PICTURE) as follows.

AUTO BRIGHTNESS CONTROL Master monitor LOCAL PRIMARY Slave monitors REMOTE SECONDARY

4. For connection with CAT5, set [RS485 TERMINATION] of the master monitor and the slave monitor at the end to ON. Set [RS485

TERMINATION] of the other slave monitors to OFF. See page 53.

To use a computer to control the monitors

When using a computer to control the monitors, you must prepare an application software program for control by yourself.

Brightness of all the monitors can be controlled centrally using a computer, if the customer create a control application to remotely

read the value from two brightness sensors of any monitor and distribute it to all monitors.

1. Connect the RS-232C IN connector of the Master monitor shown above and the RS-232C connector of the computer using an

Using a CAT5 cable, connect the RS-232C connector of the computer to the CAT5 IN connector of the Master monitor via the

The communication control function via LAN isn’t supported on the monitor alone, however, it is available when the monitor is

used with the computer.

2. Assign a monitor ID to each multi-connected MDT551S using MONITOR ID. (See step 2 on page 54.)

3. Set AUTO BRIGHTNESS on the OSD screen (PICTURE) as follows.

AUTO BRIGHTNESS CONTROL Master monitor REMOTE SECONDARY Slave monitors REMOTE SECONDARY

4. For connection with CAT5, set [RS485 TERMINATION] of the master monitor and the slave monitors to ON. However, set [RS485

TERMINATION] of the slave monitor at the end to OFF. See page 53.

5. A control application made by the customer reads the value from two brightness sensors of any monitor and distributes it to all

monitors. For the specifi cations of the communication commands, contact your dealer.

When using CAT5 for control only, you can connect up to 26 monitors. When using the video function together, you are

recommended to connect only 4 or less monitors due to the restrictions of the video function. See page 25.English-60

PIP POP SIDE BY SIDE ASPECT SIDE BY SIDE FULL OFF PIP, POP function

The following table shows the combinations of signal inputs with which the “PIP” and “POP” modes function. However, these modes

do not function when the screen size is “CUSTOM” or “REAL”.

: Supported × : Not supported

* OPTION can be used when an extension module is mounted on the option slot.

By pressing the PIP ON/OFF button on the wireless remote control, you can change the PIP, POP, and SIDE BY SIDE modes in the

Alternatively, you can change the modes using the PIP MODE setting of PIP in the OSD main menu. See page 51.

The resolutions in the PIP, POP, and SIDE BY SIDE FULL modes are as follows:

PIP SIZE < SMALL > : 450 pixels X 338 pixels

When the PIP, POP, or SIDE BY SIDE FULL mode has been selected, images in the sub picture always fi t the size of each mode

shown above irrespective of the aspect ratio of the input image.

Other functions (continued)English-61

Remote control numbering function

By connecting multiple MDT551S monitors using RS-232C cables, you can control any one monitor or all the monitors by one

1. Assign arbitrary ID number to each of multi-connected MDT551S monitors using MONITOR ID.

ID numbers 1 to 26 are selectable.

It is recommended to assign sequential ID numbers from 1 and up.

2. The remote control mode of the fi rst MDT551S monitor is set to PRIMARY and those of the other monitors are set to

3. When you direct the remote controller at the remote control signal sensor of the PRIMARY monitor and press the DISPLAY

button on the remote controller, the ID selection OSD appears at the upper left of the screen.

ID:1 ID No. :2 4. Direct the remote controller at the remote control signal sensor of the PRIMARY monitor.

OSD appears on the monitor having the ID number you selected.

When the ID selection OSD is being displayed on the PRIMARY monitor, press the DISPLAY button on the remote controller again to

cancel the ID selection OSD and then control the monitor you selected.

If you set the remote control mode wrongly and remote control operation becomes unavailable, press any button on the control

panel of the monitor to display the OSD screen and change the remote control mode using ADVANCED OPTION. By pressing and

holding down the DISPLAY button on the remote control for 5 seconds or longer, the remote control mode is initialized to NORMAL.

Other functions (continued)

ID number of the currently viewed monitor

Select the ID number of the monitor you want to control using the +/- button on the remote controller.

The ID of the monitor you want to control is displayed at the upper left of its screen.

By selecting ALL, you can control all the multi-connected monitors.English-62

• The signal cable should be securely connected to the display card/computer.

• The display card should be securely seated in its slot.

• The Main Power Switch and the computer power switch should be in the ON position.

• Make sure that the correct mode has been selected on the display card or system being used.

(Please consult the display card or system manual to change the graphics mode.)

• Check the monitor and your display card with respect to the compatibility and recommended settings.

• Check the signal cable connectors for bent or pushed-in pins.

Power button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

• Please be aware that LCD Technology may experience a phenomenon known as “image persistence.” Image persistence occurs

when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image

persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate

image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the

monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

As with all display devices, MITSUBISHI ELECTRIC recommends displaying moving images and using a moving screen saver at

regular intervals whenever the screen is idle or turning off the monitor when not in use.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be securely attached to the computer.

• Use the OSD Image Adjust controls to focus and adjust the display by increasing or decreasing the fi ne adjustment.

When the display mode is changed, the OSD Image Adjust settings may need to be re-adjusted.

• Check the monitor and your display card with respect to the compatibility and recommended signal timings.

• If the displayed text is garbled, change the video mode to the non-interlace mode and use 60 Hz refresh rate.

Image of component signal is greenish

• Check to see if the DVD/HD input connector is selected.

LED on the monitor is not lit (No green or red color can be seen)

• Power Switch should be in the ON position and power cord should be connected.

• Make certain the computer is not in the power-saving mode (touch the keyboard or mouse).

RED LED on the monitor is blinking

• A certain failure may have occurred. Please contact your nearest authorized MITSUBISHI ELECTRIC service facility.

Displayed image is not sized properly

• Use the OSD Image Adjust controls to increase or decrease the coarse adjustment.

• Make sure that the correct mode has been selected on the display card or system being used.

(Please consult the display card or system manual to change the graphics mode.)

Selected resolution is not displayed properly

• Use OSD Display Mode to enter Information menu and check that the appropriate resolution has been selected. If not, select

corresponding option.

• Check to see if the speaker cable is properly connected.

• Check to see if the mute is activated.

• Check to see if the volume is set to the minimum level.

Wireless remote control is not available

• Check the wireless remote control’s batteries status.

• Check if the batteries are inserted correctly.

• Check if the wireless remote control is pointing at the monitor’s remote sensor.

“SCHEDULE”/“OFF TIMER” function is not working properly

• The “SCHEDULE” function will be disabled when the “OFF TIMER” is set.

• If the “OFF TIMER” function is enabled and the power to the LCD monitor is turned off if the power supply is interrupted

unexpectedly, then the “OFF TIMER” will be reset.

Either light vertical or horizontal stripes may appear, depending on the specifi c display pattern. This is no product fault or

TroubleshootingEnglish-63

Model MDT551S Orientation Landscape/Portrait/Face-up

Panel Type IPS Pixel Pitch 0.630 mm

Resolution 1920 x 1080 pixels

Color Approximately 1.06 Billion

Response time 10 ms (Gray to Gray)

Viewable Size (H x V) 1209.6 mm x 680.4 mm / 47.6” x 26.8”

Power Management VESA DPM Plug and Play VESA DDC2B, DDC/CI Auto Adjustment Yes (Contrast / Position / Phase / Clock)

Brightness, Contrast, Black level, Auto brightness, Zoom, PIP, Screen saver, Side border

color, Gamma selection, Heat status, Power on delay, Schedule, Tiling, CAT5 control, LAN

control, Closed caption, etc.

Input / Output Signal

Horizontal Frequency 15.625/15.734, 31.5 kHz - 91.1 kHz

Vertical Frequency 50/58 Hz - 85 Hz

Video Signal Analog: Analog RGB, Digital: TMDS (with HDCP)

Sync Signal Analog: Separate (TTL), Composite (TTL), Sync on Green, Digital: TMDS Supported Resolution

640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1360 x 768, 1280 x 1024,

Supported Resolution

Option slot Slot interface Supporting both digital (OPS) and analog (CAT5)

USB hub 2 upstream / 4 downstream, USB2.0

Input Voltage / Current 3. A - 1. A @AC100 - 240 V, 50/60 Hz

Power Consumption 316 W (293 W without speaker)

Power Consumption at Power Saving

Sleep mode: Less than 1 W Power switch off: Less than 1 W Main power switch off: 0 W Operation Environment

5 - 40°C / 41 - 104°F (Landscape position), 5 - 35°C / 41 - 95°F (Portrait position, Face-up

Humidity 20 - 80% (without condensation)

Net (without stand) Approximately 37.0 kg / 81. lbs

Gross Approximately 47.5 kg / 104. lbs

Wall mounting interface 8-M8 Screws holes (200 mm / 7.9” pitches) for Monitor mount

Complied regulatory and guidelines

UL60950-1 / C-UL / EN60950-1 / CE / BSMI / GOST-R / FCC-A / DOC-A / EN55022-A /

EN55024 / EN61000-3-2 / EN61000-3-3 / C-Tick / Energy Star / RoHS / US Mercury

NOTE: Technical specifi cations are subject to change without notice.

Pin - Assignment of HDMI connector:

Pin - Assignment of DVI-D connector:

Ground (return for +5V,

Pin Assignment (continued)

Pin at R 45 Signal Pair
