USER MANUAL PFD7C12N3 Moog Videolarm

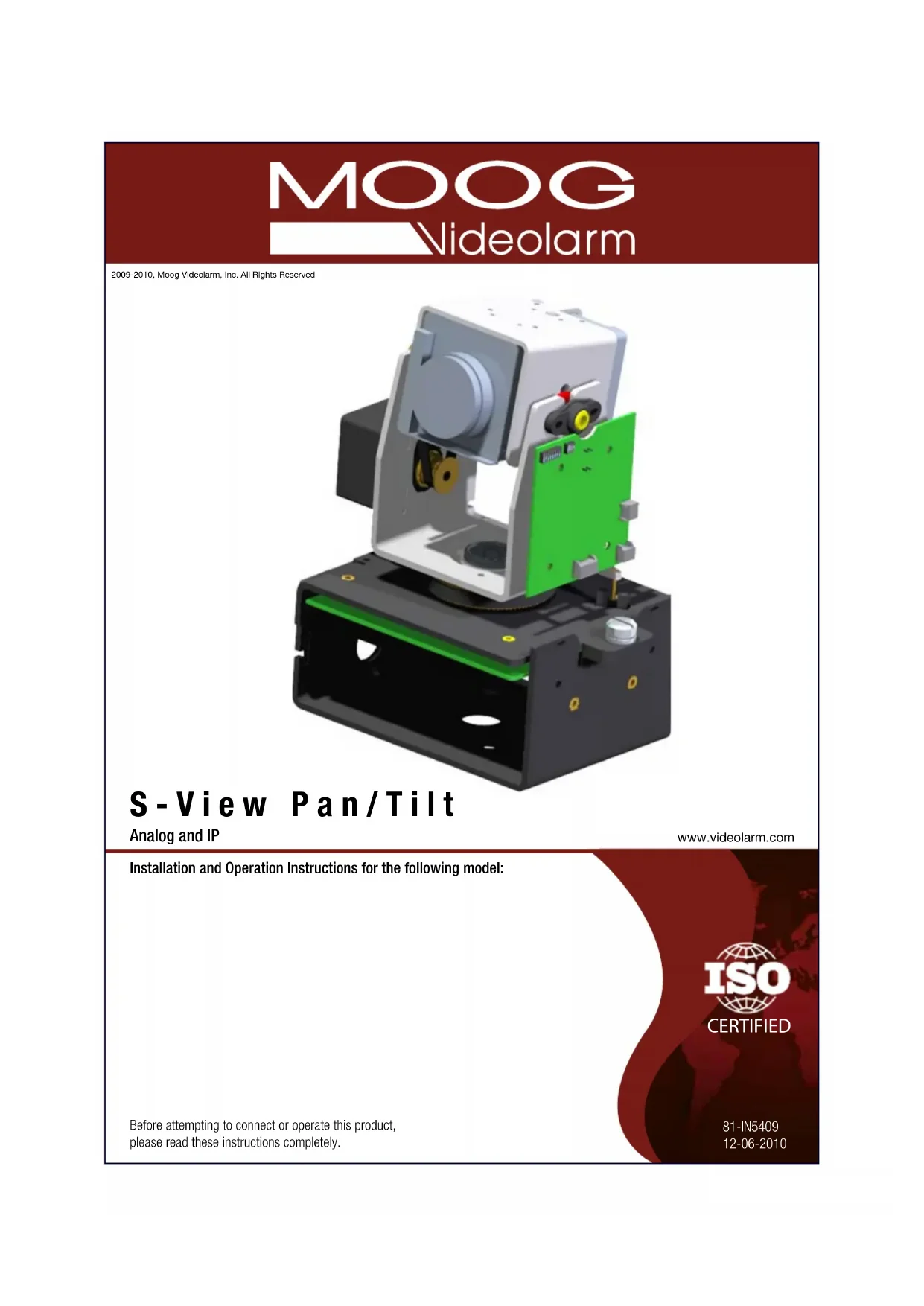

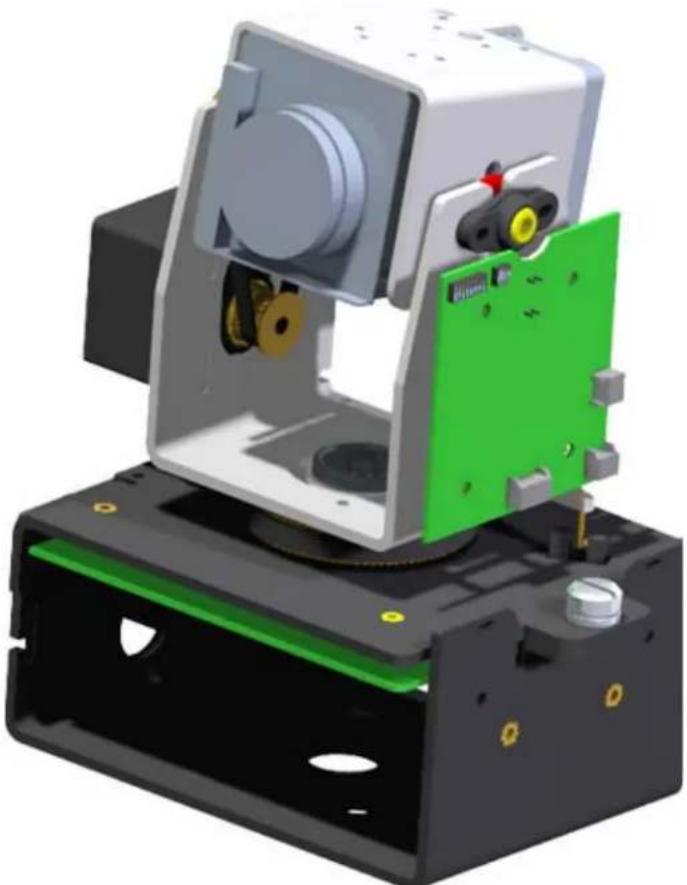

www.videolarm.com2009-2010, Moog Videolarm, Inc. All Rights Reserved S - V i e w P a n / T i l t Analog and IP Installation and Operation Instructions for the following model: Before attempting to connect or operate this product, please read these instructions completely. CERTIFIED 81-IN5409

12-06-2010IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS

UNPACKING SERVICE 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with damp cloth. 7 Do not block any of the ventilation openings. Install in accordance with the manufacturers instructions. 8 Cable Runs- All cable runs must be within permissible distance. 9 Mounting - This unit must be properly and securely mounted to a supporting structure capable of sustaining the weight of the unit. Accordingly: a. The installation should be made by a qualied installer. b. The installation should be in compliance with local codes. c. Care should be exercised to select suitable hardware to install the unit, taking into account both the composition of the mounting surface and the weight of the unit. 10 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus ( including ampliers) that produce heat. 11 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet. 12 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 13 Only use attachment/ accessories specied by the manufacturer. 14 Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 15 Unplug this apparatus during lighting storms or when unused for long periods of time. 16 Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled of objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Be sure to periodically examine the unit and the supporting structure to make sure that the integrity of the installation is intact. Failure to comply with the foregoing could result in the unit separating from the support structure and falling, with resultant damages or injury to anyone or anything struck by the falling unit. Unpack carefully. Electronic components can be damaged if improperly handled or dropped. If an item appears to have been damaged in shipment, replace it properly in its carton and notify the shipper. Be sure to save: 1 The shipping carton and packaging material. They are the safest material in which to make future shipments of the equipment. 2 These Installation and Operating Instructions. If technical support or service is needed, contact us at the following number: The lightning ash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufcient magnitude to constitute a risk to persons. Este símbolo se piensa para alertar al usuario a la presencia del “voltaje peligroso no-aisIado” dentro del recinto de los productos que puede ser un riesgo de choque eléctrico. Ce symbole est prévu pour alerter I’utilisateur à la presence “de la tension dangereuse” non-isolée dans la clôture de produits qui peut être un risque de choc électrique. Dieses Symbol soll den Benutzer zum Vorhandensein der nicht-lsolier “Gefährdungsspannung” innerhalb der Produkteinschließung alarmieren die eine Gefahr des elektrischen Schlages sein kann. Este símbolo é pretendido alertar o usuário à presença “di tensão perigosa non-isolada” dentro do cerco dos produtos que pode ser um risco de choque elétrico. Questo simbolo è inteso per avvertire I’utente alla presenza “di tensione pericolosa” non-isolata all’interno della recinzione dei prodotti che può essere un rischio di scossa elettrica

TO QUALIFIED SERVICE PERSONNEL.LIMITED WARRANTY FOR VIDEOLARM INC. PRODUCTS VIDEOLARM INC. warrants this Product to be free from defectsin material or workmanship,as follows:

PRODUCTCATEGORY PARTS LABOR

All Enclosuresand Electronics Five (5) Years Five (5) Years Pan/Tilts Three (3) Years **6 months if used in autoscan Three (3) Years **6 months if used in autoscan Poles/PoleEvators Three (3) Years Three (3) Years Warrior/Q-View/I.R.Illuminators Five (5) Years Five (5) Years Controllers Five (5) Years Five (5) Years PowerSupplies Five (5) Years Five (5) Years AccessoryBrackets Five (5) Years Five (5) Years During the labor warranty period, to repair the Product,Purchaserwill either return the defective product, freight prepaid,or deliver it to Videolarm Inc. Decatur GA.The Productto be repaired is to be returned in either its original carton or a similar package an equal degree of protection with a RMA# (Return Materials Authorization number) displayed on the outer box or packing slip. To obtain a RMA#you must contact our TechnicalSupport Teamat 800.554.1124,extension 101.Videolarm will return the repaired Productfreight prepaid to Purchaser.Videolarm is not obligated to provide Purchaserwith a substitute unit during the warranty period or at any time. After the applicable warranty period, Purchasermust pay all labor and/or parts charges. 1.NOTIFICATIONOF CLAIMS: WARRANTYSERVICE:If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Videolarm but all claims for warranty service must be made within the warranty period. If after investigation Videolarm determines that the reported problem was not covered by the warranty, P urchaser shall pay Videolarm for the cost of investigating the problem at its then prevailing per incident billable rate. No repair or replacement of any Product or part thereof shall extend the warranty period as to the entire Product. The warranty on the repaired part only shall be in for a period of ninety (90) days following the repair or replacement of that part or the remaining period of the Product parts warranty, whichever is greater. 2.EXCLUSIVE REMEDY: ACCEPTANCE:Purchaser’s exclusive remedy and Videolarm’s sole obligation is to supply (or pay for) all labor necessary to repair any Product found to be defective within the warranty period and to supply, at no extra charge, new or rebuilt replacements for defective parts. 3.EXCEPTIONS TO LIMITED WARRANTY: Videolarm shall have no liability or obligation to Purchaser with respect to any Product requiring service during the warranty period which is subjected to any of the following: abuse, improper use: negligence, accident, lightning damage or other acts of God (i.e., hurricanes, earthquakes), failure of the end-user to follow the directions outlined in the product instructions, failure of the end-user to follow the maintenance procedures recommended by the International Security Industry Organization, written in product instructions, or recommended in the service manual for the Product. Furthermore, Videolarm shall have no liability where a schedule is for regular replacement or maintenance or cleaning of certain parts (based on usage) and the end-user has failed to follow such schedule; attempted repair by personnel; operation of the Product outside of the published environmental and electrical parameters, or if such Product’s original (trademark, serial number) markings have been defaced, altered, or removed. Videolarm excludes from warranty coverage Products sold AS IS and/or WITH ALL FAULTS and excludes used Products which have not been sold by Videolarm to the Purchaser. All software and accompanying documentation furnished with, or as part of the Product is furnished “AS IS” (i.e., without any warranty of any kind), except where expressly provided otherwise in any documentation or license agreement furnished with the Product. 4.PROOF OF PURCHASE:The Purchaser’s dated bill of sale must be retained as evidence of the date of purchase and to establish warranty eligibility. DISCLAIMEROF WARRANTY EXCEPT FOR THE FOREGOING WARRANTIES, VIDEOLARM HEREBY DISCLAIMS AND EXCLUDES ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO ANY AND/OR ALL IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND/OR ANY WARRANTY WITH REGARD TO ANY CLAIM OF INFRINGEMENT THAT MAY BE PROVIDED IN SECTION 2-312(3) OF THE UNIFORM COMMERCIAL CODE AND/OR IN ANY OTHER COMPARABLE STATE STATUTE. VIDEOLARM HEREBY DISCLAIMS ANY REPRESENTATIONS OR WARRANTY THAT THE PRODUCT IS COMPATIBLE WITH ANY COMBINATION OF NON-VIDEOLARM PRODUCTS OR NON-VIDEOLARM RECOMMENDED PRODUCTS PURCHASER CHOOSES TO CONNECT TO PRODUCT.

PRODUCT WITH RESPECT TO WHICH SUCH CLAIM IS MADE. IN NO EVENT SHALL VIDEOLARM BE LIABLE TO PURCHASER FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION, REIMBURSEMENT OR DAMAGES ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS OR FOR ANY OTHER REASON WHATSOEVER. /tour operation /tour operation **6 months if used in autoscan /tour operation **6 months if used in autoscan /tour operation SView Series Five (5) Years Five (5) Years The limited warranty stated in these product instructions is subject to all of the following terms and conditions:

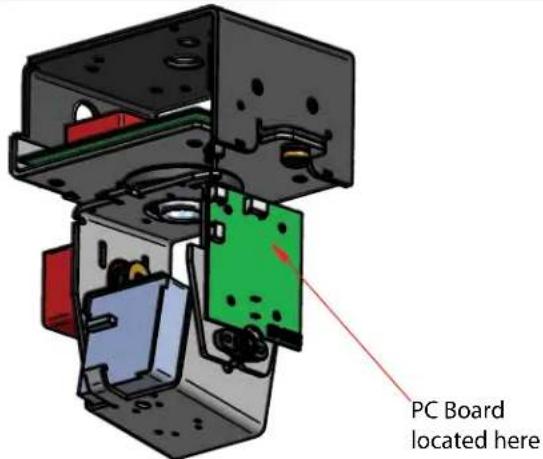

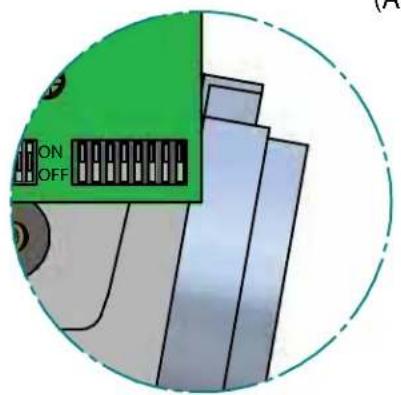

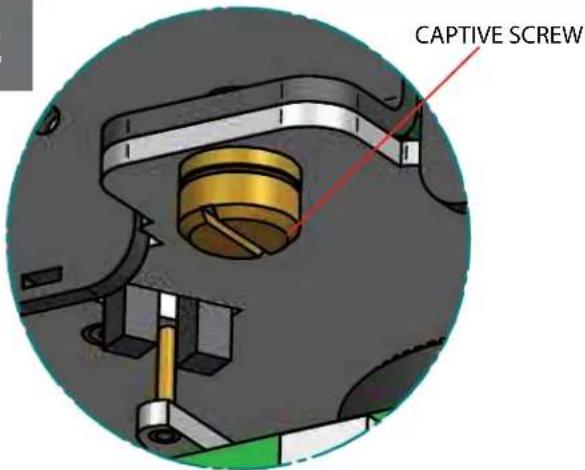

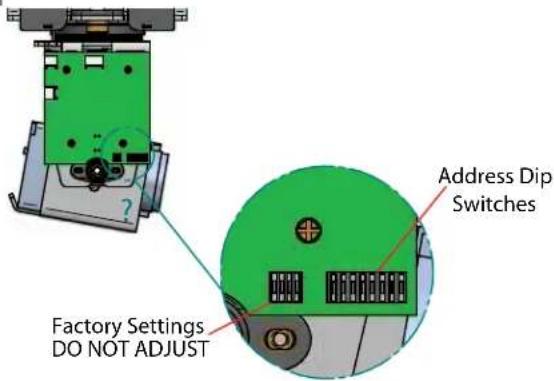

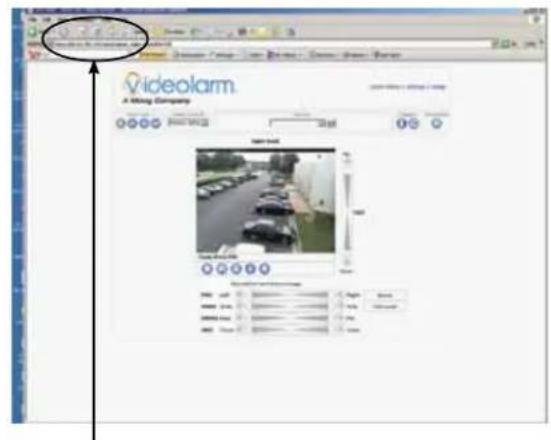

7IP INSTRUCTIONS: The factory default IP address is : 192.168.0.90.

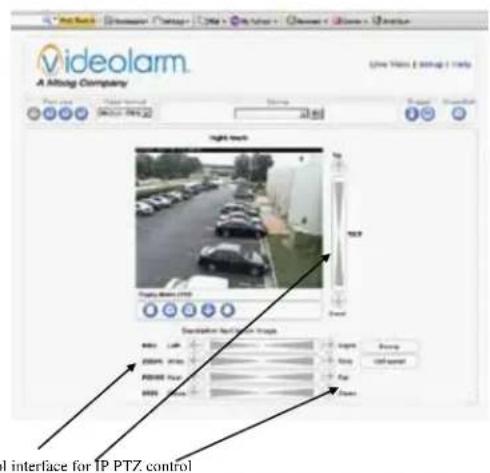

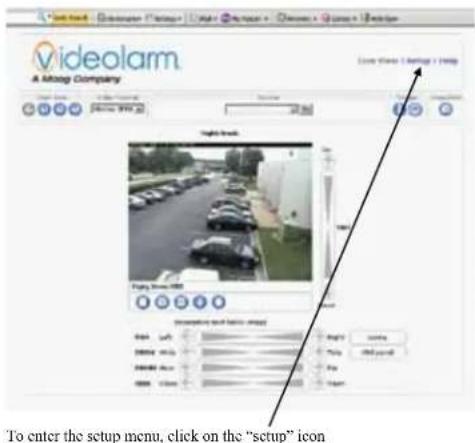

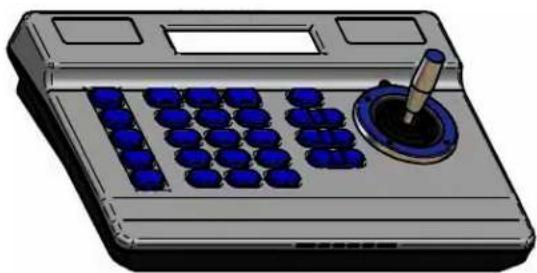

Control interface for IP PTZ control (IP)

Use the “Zoom In” botton to set calibration. Display will show OK.

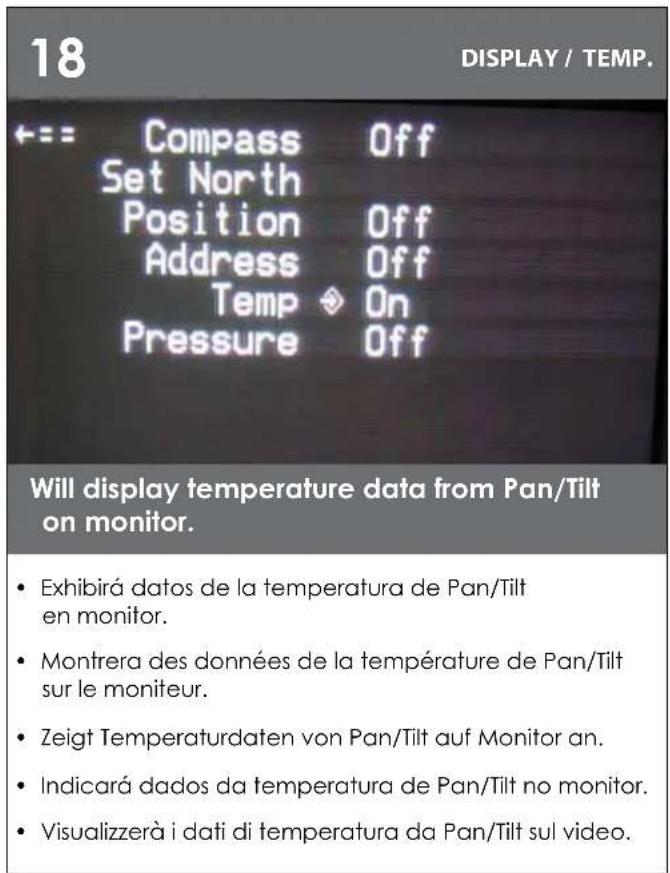

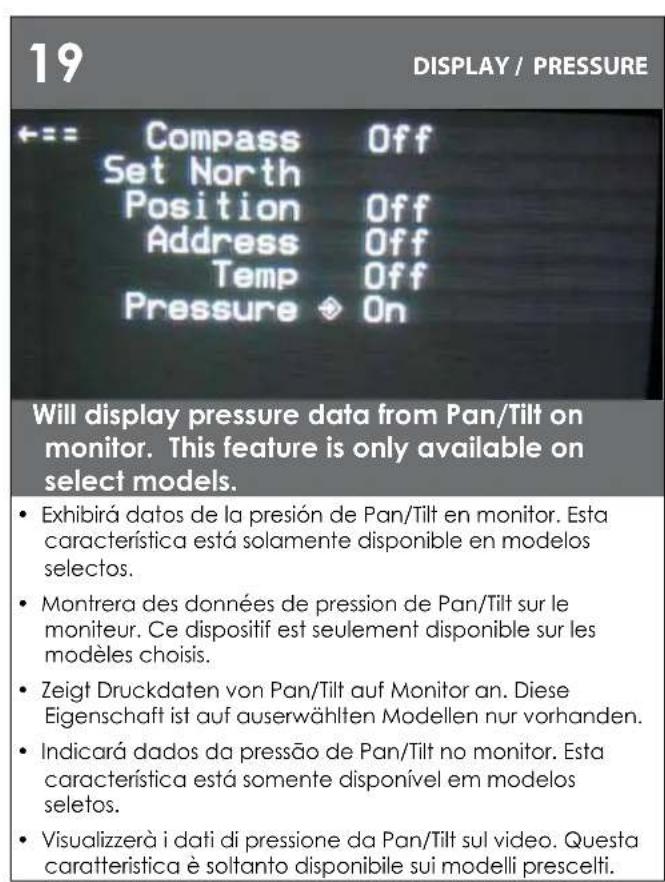

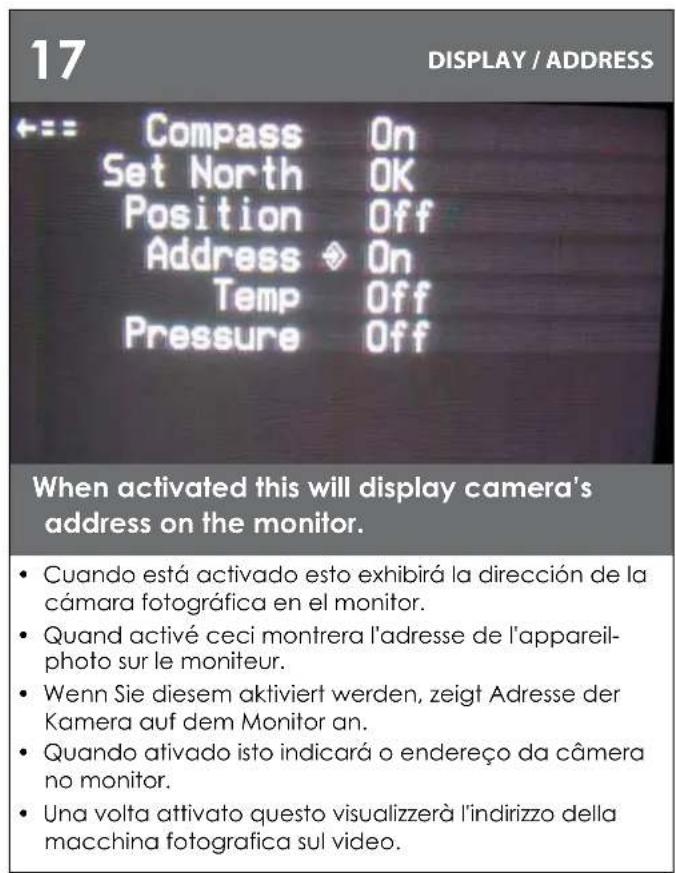

1615DISPLAY / ADDRESS When activated this will display camera’s address on the monitor.

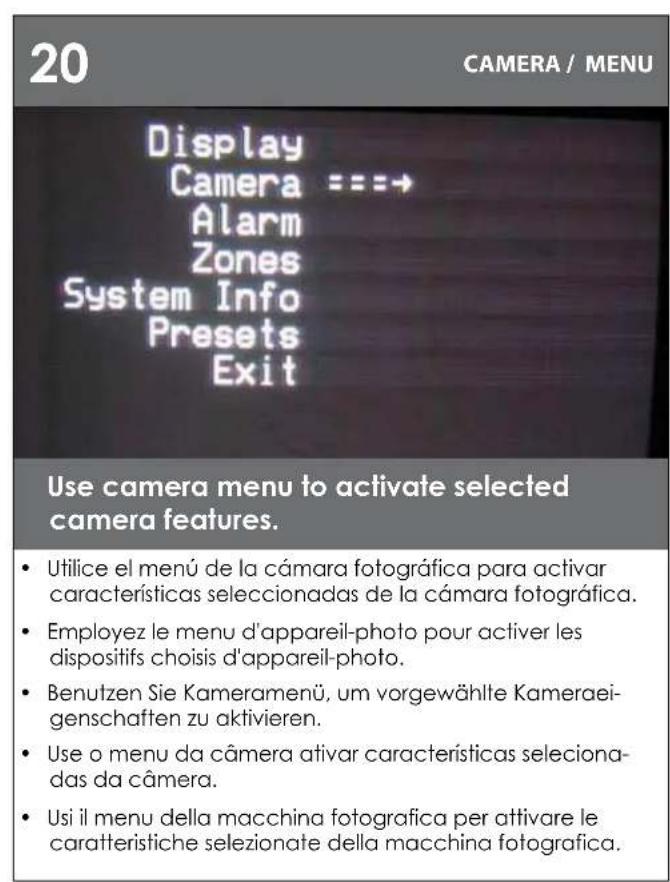

2019CAMERA / STABILIZATION Camera sub menu includes, image stabilization, day/night mode, shutter, backlight, AGC and digital zoom. Image stabilization is not a feature of all cameras.

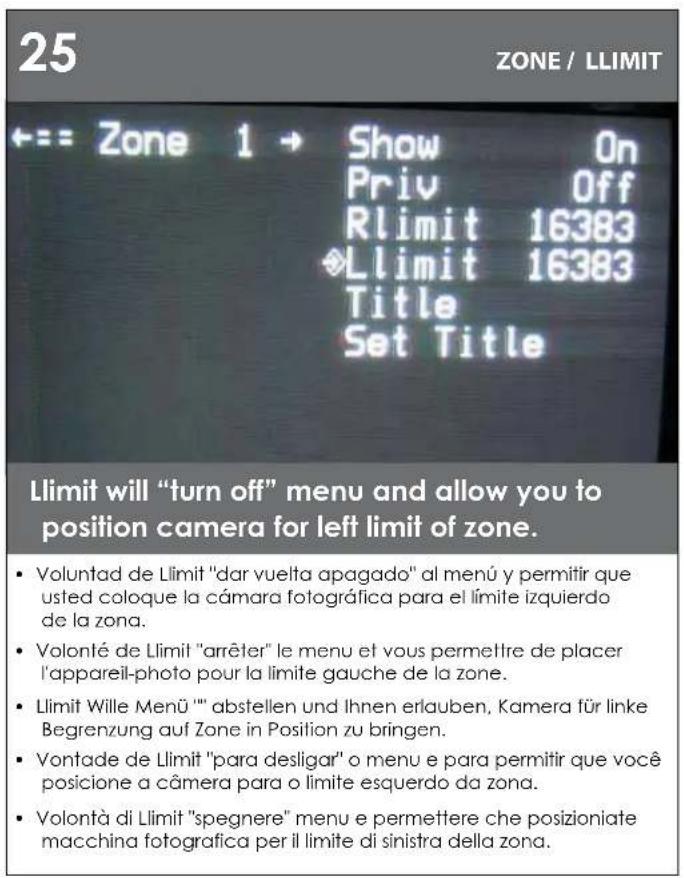

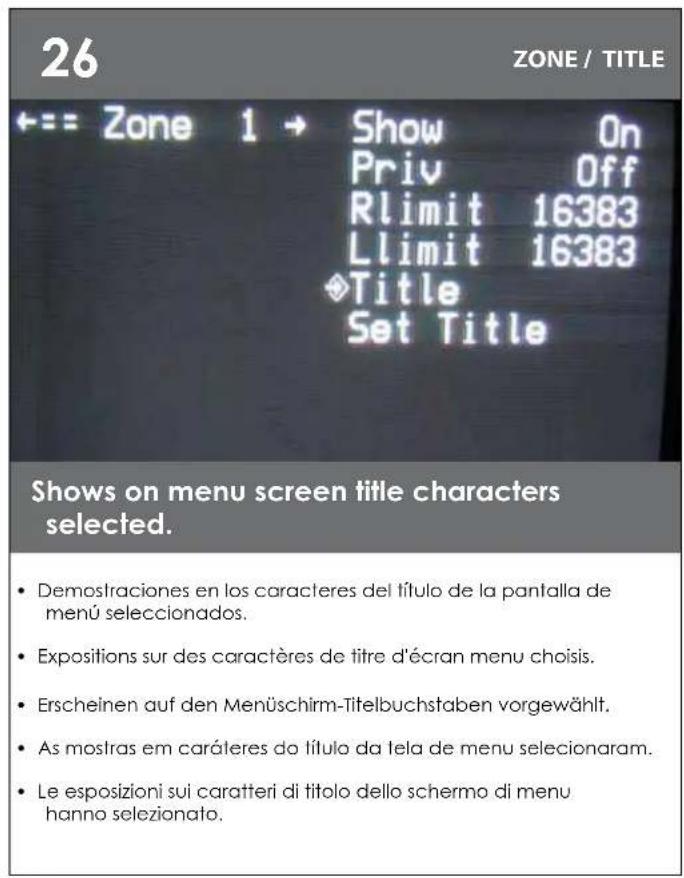

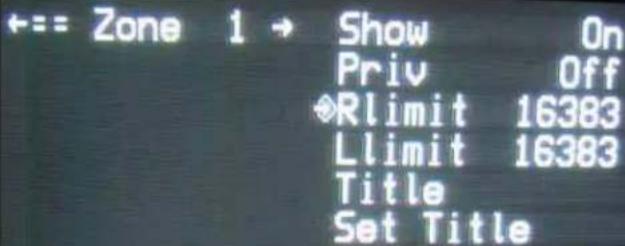

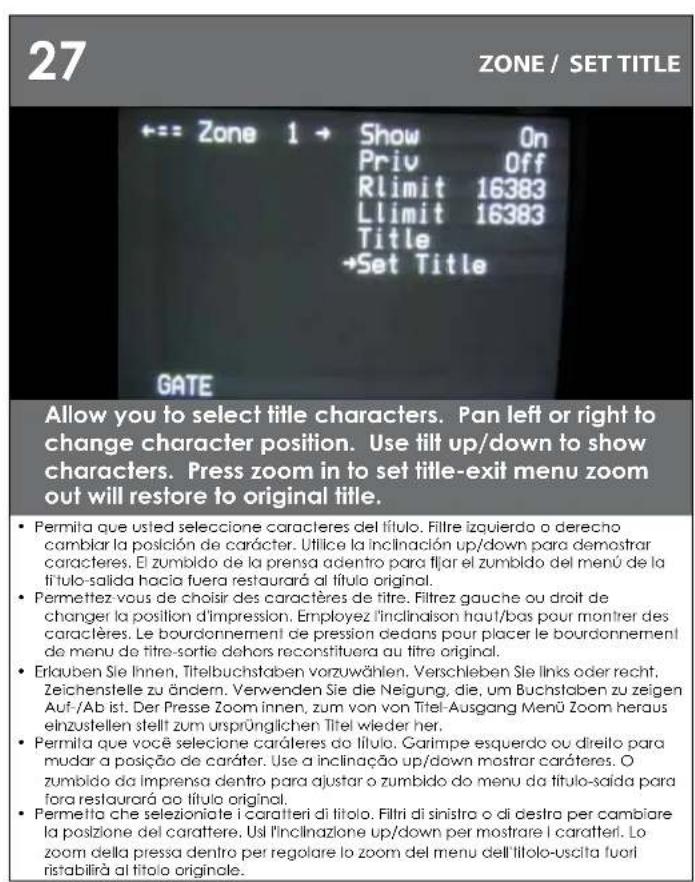

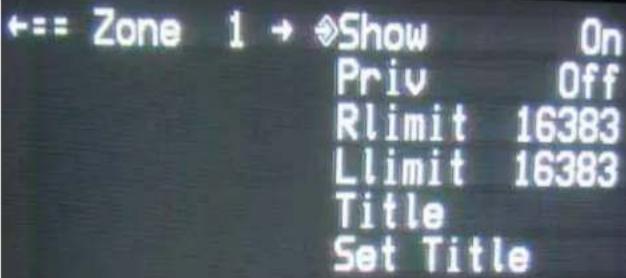

2423ZONE / LLIMIT Llimit will “turn off” menu and allow you to position camera for left limit of zone.

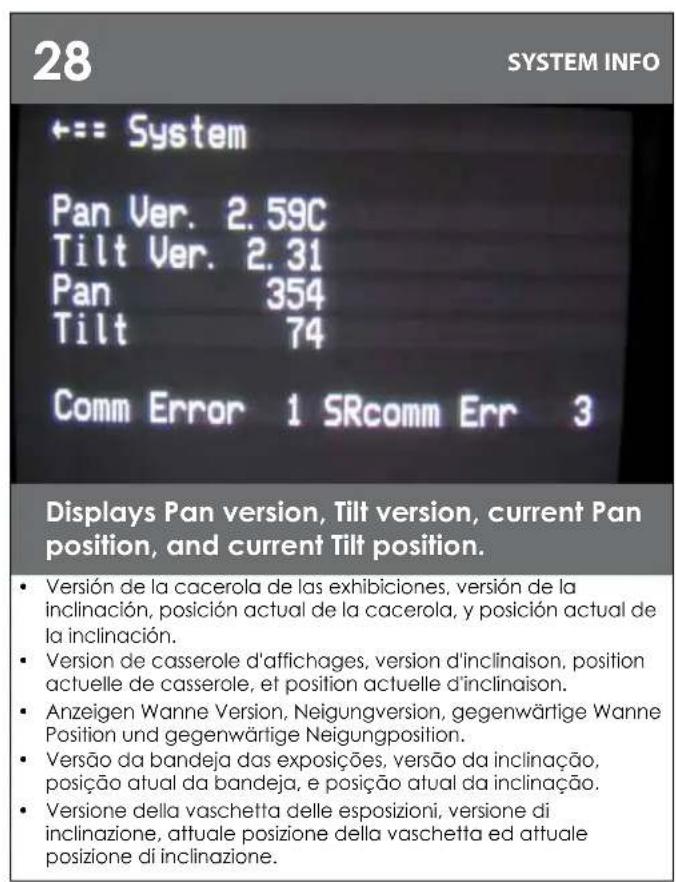

32To set a manually controlled pattern by joystick set Preset 80 (80,#, ).

Using the joystick move Pan/Tilt to desired positions where you can record up to 128 seconds of movement.

Presets OTHER FEATURES: Home Preset Preset 1 is the “home preset”. If this preset has been defined, then the VLTP385 will always go to this preset when the unit is powered up. Remote Address The Address of the unit can be set by a remote command. This “soft” address will be saved even if the unit loses power and will override the dip switch set address. The “soft” address can be cleared by a remote command and the address will be determined by the dip switch setting. Program Download There are two software programs in the standard unit. Each program can be updated via the command communication channel with a laptop or other computer system. Error Messages The “COMM ERROR” message will be displayed at the top of the screen whenever the MR7CS-9™ detects frame errors in the receive data, such as when the RXA and RXB wires are reversed when using RS485/422 or when the baud rate is incorrect. The CAMERA ERROR” message will be displayed at the top of the screen whenever there is an error in communication with the camera.

Part No. Description 1 RP6039mm1.8 Motor (2) 2 RPVL2314 Hub Bracket 3 RP40CASL385 Slip Ring Assembly (2) 5 RPVL2315 20T 80 Pitch Pulley (2) 6 RP605007 Bearing 7 RPVL2316 90T Pan Pulley 8 RPVL2318 60T Tilt Pulley 9 RPVL2320 Tilt Bearing Hub 10 RP605011 Bearing 14 RP73CAVKS454 23 X Zoom Camera 15 RP92WSFN11 Nylon Washer (2) 16 RP605009 Tilt Belt 17 RP605008 Pan belt 18 RP95FSSR06 Retaining ring (large) 19 RP95FSSR07 Retaining ring 21 RP605010 Tilt Bearing 22 RPVL2312R1 Quick Release Bracket 23 RP76V385T Tilt PCB 24 RP76V385P Main PCB 25* RPVL2317 Tilt Bracket 26* RPVL2321 Camera BracketProduct Registration/Warranty Thank you for choosing Videolarm. We value your patronage and are solely committed to providing you with only the highest quality products available with unmatched customer service levels that are second- to-none in the security industry. Should a problem arise, rest assure that Videolarm stands behind its products by offering some of the most impressive warranty plans available: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on all camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Option 1: Online Option 2: Mail-In Take a few moments and validate your purchase with our Online Product Registration Form

www.videolarm.com/productregistration.jsp or complete and mail-in the bottom portion of this yer. Register your recent Videolarm purchases and benet from the following:

• Simple and Trouble-Free RMA process

• Added into customer database to receive product updates / news

• Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc… Main Contact Info First Name: Last Name:Professional Title: Company:Address 1: Address 2:City: State / Province/Country: Zip / Postal Code: Phone Number: E-mail Address: Product Information Please Circle One: Business PersonalName & Location of Company / Store where Purchased:(City, State, Country)Videolarm Product ID Product DescriptionSerial #(Available only for Camera Systems, IR Illuminators, Wireless Devices) PO# Cut at the dotted LinePlace in envelope, afx stamp and mail to: Videolarm ATTN: Warranty2525 Park Central Ave.Decatur, GA 30035
